SECURITY MODELS FOR HETEROGENEOUS NETWORKING

Glenford Mapp, Mahdi Aiash, Aboubaker Lasebae

School of Engineering and Information Sceince,Middlesex University, Hendon, London, U.K.

Raphael Phan

Electronic and Electrical Engineering, Loughborough University, Loughborough, U.K.

Keywords: Heterogeneous networks, Security models, Integrated security module, Open network, Multi-layer.

Abstract: Security for Next Generation Networks (NGN) is an attractive topic for many research groups. The Y-

Comm security group believes that a new security approach is needed to address the security challenges in

4G networks. This paper sheds light on our approach of providing security for the Y-Comm architecture as

an example of 4G communication frameworks. Our approach proposes a four-layer security integrated

module to protect data and three targeted security models to protect different network entities, thus

providing security in different situations without affecting the dynamics of the 4G networks.

1 INTRODUCTION TO Y-COMM

Future communication systems must allow

ubiquitous connectivity where users are always

connected from anywhere and at any time. The need

for continuous connection is being met by the

development and deployment of a number of

wireless technologies including 3G/HSPDA, WLAN

with 802.11n being the latest network of being

deployed, WiMax and satellite communications.

However, the widespread deployment of

wireless networks will have a significant impact on

the evolution of the Internet. These developments

mean that soon, it will not be possible to think of the

Internet as a single unified infrastructure. It would

be better to view the Internet as comprising a fast

core network with slower peripheral networks

attached around the core. The core network will

consist of a super-fast backbone using optical

switches and fast access networks which use ATM

and MPLS. Most of these peripheral networks will

make use of wireless technologies described above.

Y-Comm is architecture for heterogeneous

networking. (Mapp, et al., 2006; 2007). The

architecture consists of two frameworks. The

Peripheral framework deals with issues in peripheral

networks while the Core framework deals with

issues in the Core.

The Y-Comm architecture is shown in Figure 1.

In this architecture, the Peripheral Framework and

the Core Framework are brought together to

represent a future telecommunications environment

which supports heterogeneous devices, disparate

networking technologies, network operators and

service providers.

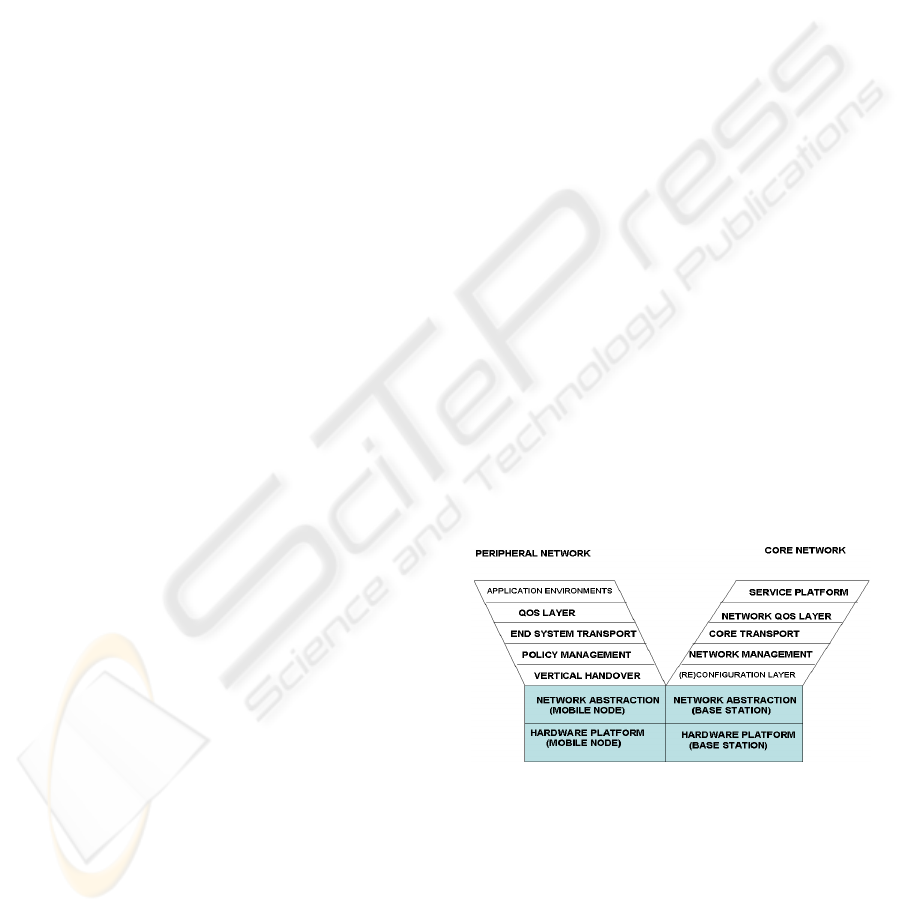

Figure 1: Y-Comm Architecture.

2 Y-COMM SECURITY

FRAMEWORK

Y-Comm employs a multi-layer security model

which must be applied to both the Peripheral and

Core Framework simultaneously to provide total

security. The security layers must work together

318

Mapp G., Aiash M., Lasebae A. and Phan R. (2010).

SECURITY MODELS FOR HETEROGENEOUS NETWORKING.

In Proceedings of the International Conference on Security and Cryptography, pages 318-321

DOI: 10.5220/0003032803180321

 SciTePress

across both frameworks in order to be fully

integrated with the new architecture. The important

point to note is that the need to support

heterogeneous networking with open architectures

means that security should not only protect data but

entities as well.

The highest layer of security is at layer seven and

is called Service and Application Security or SAS.

In the Peripheral Framework, SAS defines the

AAAC functions at the end-device and is used to

authenticate users and applications. SAS in the Core

network provides AAAC functions for services on

the Service Platform in the core network.

The next security layer is called QoS-Based

Security or QBS and is concerned with QoS issues

and the changing QoS demands of the mobile

environment as users move around. In addition, in

order to meet their service-level agreements, servers

may choose to replicate services closer to the current

position of the mobile. So it is necessary to ensure

that core endpoints and peripheral networks are not

overloaded. The QBS layer also attempts to block

QoS related attacks, such as Denial-of-Service

(DoS) attacks on networks and servers.

The next security layer is at layer five, called

Network Transport Security or NTS. In the

Peripheral network, NTS is concerned with access to

and from end-devices and the visibility of these

devices and services on the Internet. In the core

network, NTS is used to set up secure connections

through the core network. So NTS in the Core

Framework involves setting up secure tunnels

between core endpoints using mechanisms such as

IPsec to ensure that moving data across the core

network is done in a secure manner.

Finally, the fourth and last level of security is

defined at layer four but can also encompass layers

three and two. It is called Network Architecture

Security or NAS. In the Peripheral Framework, it

attempts to address security issues involved in using

particular networking technologies and the security

threats that occur from using such a technology. So

when a mobile device wishes to use any given

network, NAS is invoked to ensure that the user is

authorized to do so. NAS also ensures that the local

LAN environment is as secure as possible.

In the core network, NAS is used to secure

access to the programmable infrastructure. NAS in

this context determines which switchlets, routelets or

base-station resources may be used by the network

management system. The full Y-Comm architecture

including its security layers is shown in Figure 2.

Since the security framework is integrated with the

Figure 2: Complete Y-Comm Architecture with Security

Framework.

Core and Peripheral frameworks within Y-Comm,

these security functions being part of the

communications architecture can be used to much

greater effect than previous methods.

2.1 Security Models in Y-Comm

The security layers described above are concerned

with the management of secure data transport and

the authentication of mobile devices and services.

However, because Y-Comm is an open architecture,

it is also necessary to protect entities such as users,

servers and network infrastructure. Y-Comm is

therefore able to offer three distinct network security

models (Aiash, et al., 2010). The first model is

called the Connection Security model, the second

security model is called the Ring-Based Security

model and the third security model is called the

Vertical Handover Security model.

2.1.1 Connection Security Model

In this model, the different security layers work

together to establish a connection between a mobile

node and a service being hosted at another site. See

Figure 3.

We can show how the framework is used by

looking at the interaction involved in setting up a

connection. This is shown as a series of steps.

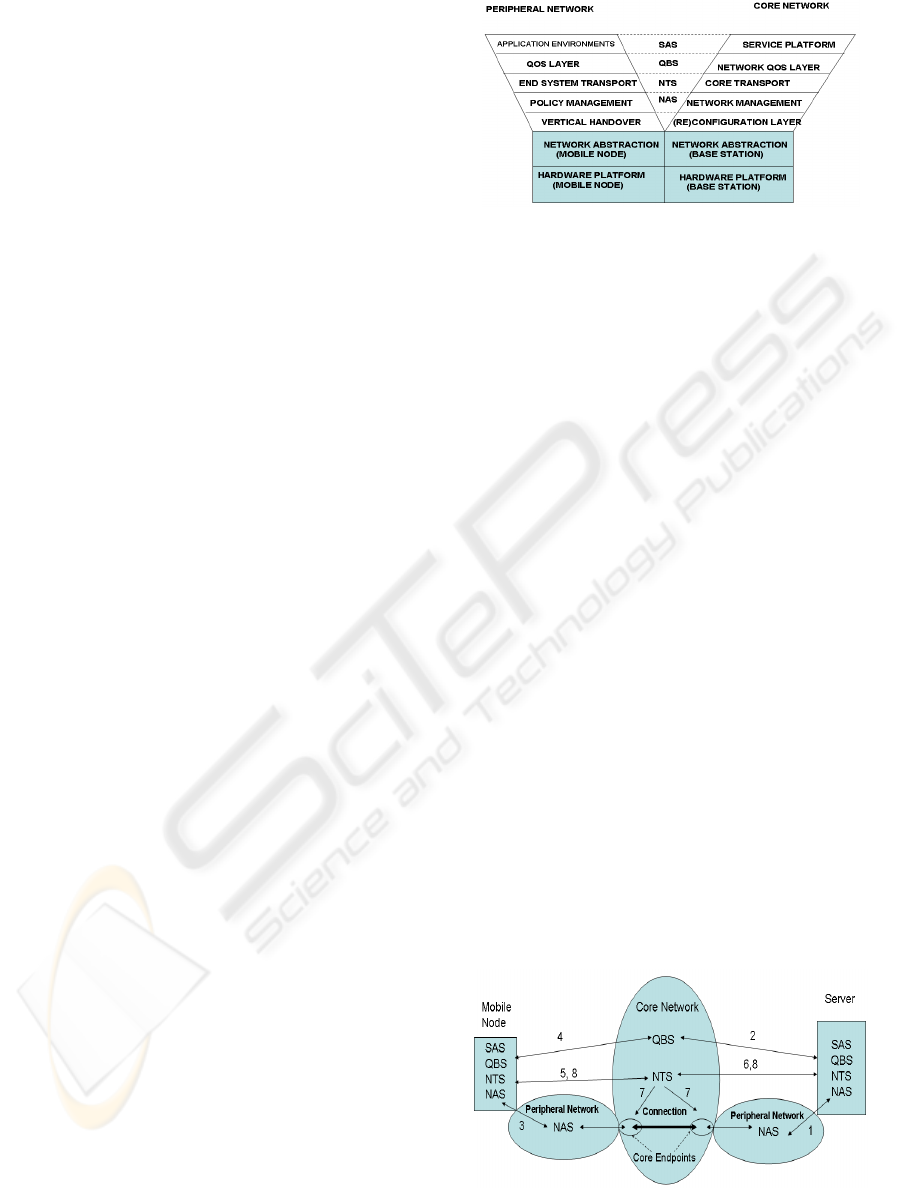

Figure 3: Connection Security Model.

SECURITY MODELS FOR HETEROGENEOUS NETWORKING

319

Step 1: The server is started. The NAS module in

the server talks to the NAS module on the Local

LAN to get access to its wireless infrastructure.

Step 2: The QBS security module on the server

informs the QBS module in the core network about

its Service Level Agreement which contains the QoS

associated with a connection to this service.

Step 3: The mobile node is started. The NAS

module in the mobile node contacts the NAS module

in the peripheral networks to gain access to the

wireless infrastructure.

Step 4: When the mobile node wants to use the

service, the QBS Module in the mobile node

contacts the QBS module in the core network and

asks for a connection with a given quality of service

to be made to the Server. The QBS module returns

two core endpoints which must be used to set up the

connection.

Step 5: The NTS module on the mobile node

contacts the NTS module in the core network and

says that it would like a connection to the server,

using the core endpoints, the QoS and security

parameters.

Step 6: The NTS module in the core network

contacts the NTS module on the server to signal an

incoming call. At this point, the server can also

check the security of the client as well as the

security of the connection.

Step 7: If the server accepts the request, then the

NTS module in the core network joins the two core

endpoints.

Step 8: It then signals to both the client and

server that a connection has been established.

2.1.2 Ring-based Security Model

Ring-based security is an extension of “Off-by-

Default”, an idea introduced by (Ballani, et al.,

2005) See Figure 4. The Ring-Based concept does

not allow servers to be directly accessible over a

WAN such as the Internet without initially

interacting with the network infrastructure. This is

done by using the concept of scope where a server

acts only within a given scope. There are 3 scopes:

Local: Only processes on the same machine are

allowed to use a local server. This is enforced by the

SAS layer on the local machine.

LAN: Only processes on the same network are

allowed to access these servers. This is enforced by

the NAS layer of the Peripheral Network. These

servers must register with a Local DNS and are

made available to mobile devices when users are

cleared to use the peripheral network.

Global: Global Servers are accessible from any

point via the Core Network using Global Services.

This therefore involves the Core NTS and QBS

layers. In addition, servers must register with the

Global DNS.

2.1.3 Vertical Handover Security Model

As shown in Figure 5, in addition to the

Authentication, Authorization, Auditing and Cost

(AAAC) servers, new entities are involved in the

Vertical Handover Security Model (VHSM); the

QoS Brokers (QoSB) which monitor the network

performance and QoS-related issues; it accomplishes

this using admission control and auditing

mechanisms. This model is given by the steps

below:

Step 1: The QBS layer of the MN asks the QBS of

the QoSB about potential target network for

handover with required QoS and security level.

Step 2: The request is passed to the QBS layer of

the Core endpoint.

Step 3: If this information has not been already in

the Core-End point, the QoS Brokers of all the

available networks are probed by the core endpoint.

At the end of this first stage, the MN has a clear idea

of the QoS and security suits available at all

potential networks in the vicinity and could decide

on the target network for future handover.

Step 4: The NAS layer of the MN initiates a Re-

authentication process to lunch the security

mechanisms in the target network.

Step 5: Through its NAS layer, the currently

serving AAA server (CAAA) forwards the re-

authentication request along with core information

that are used to derive a fresh set of the security

parameters for the new network to the NAS layer of

a Central Authority (CA) in the Core endpoint.

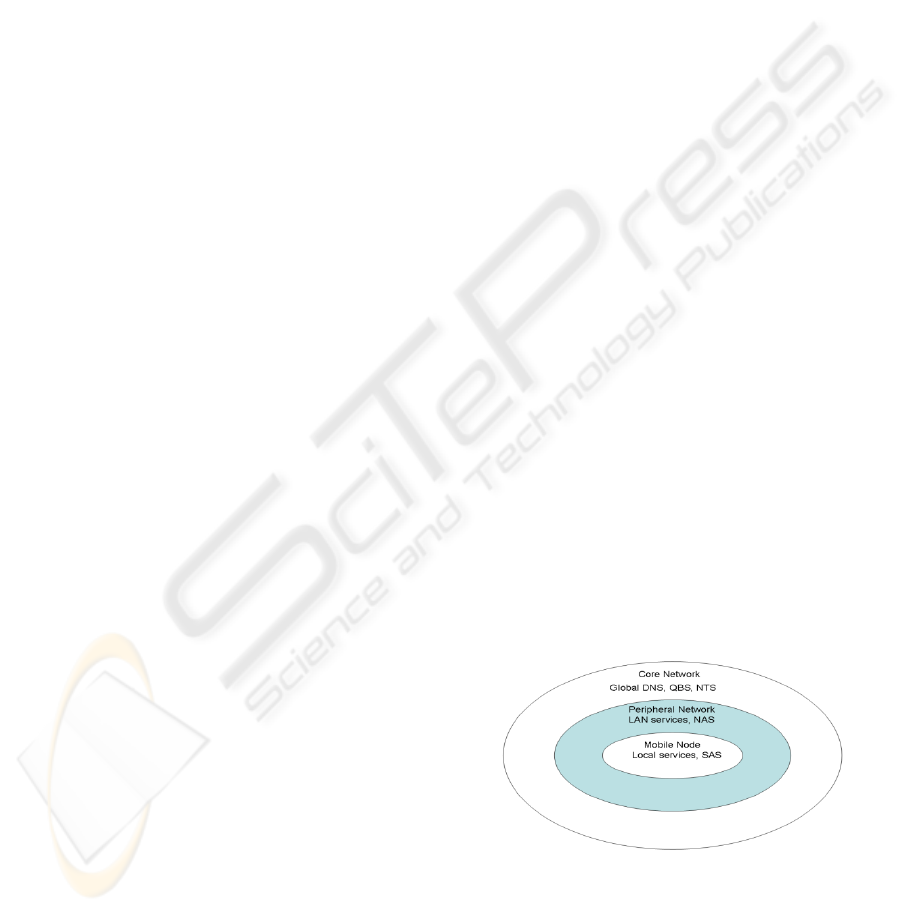

Figure 4: Ring based Security Model.

Step 6: If the target network is located in the core-

endpoint, CA’s NAS layer passes the core

information to the target network to derive the

security materials and achieves the triple A tasks.

SECRYPT 2010 - International Conference on Security and Cryptography

320

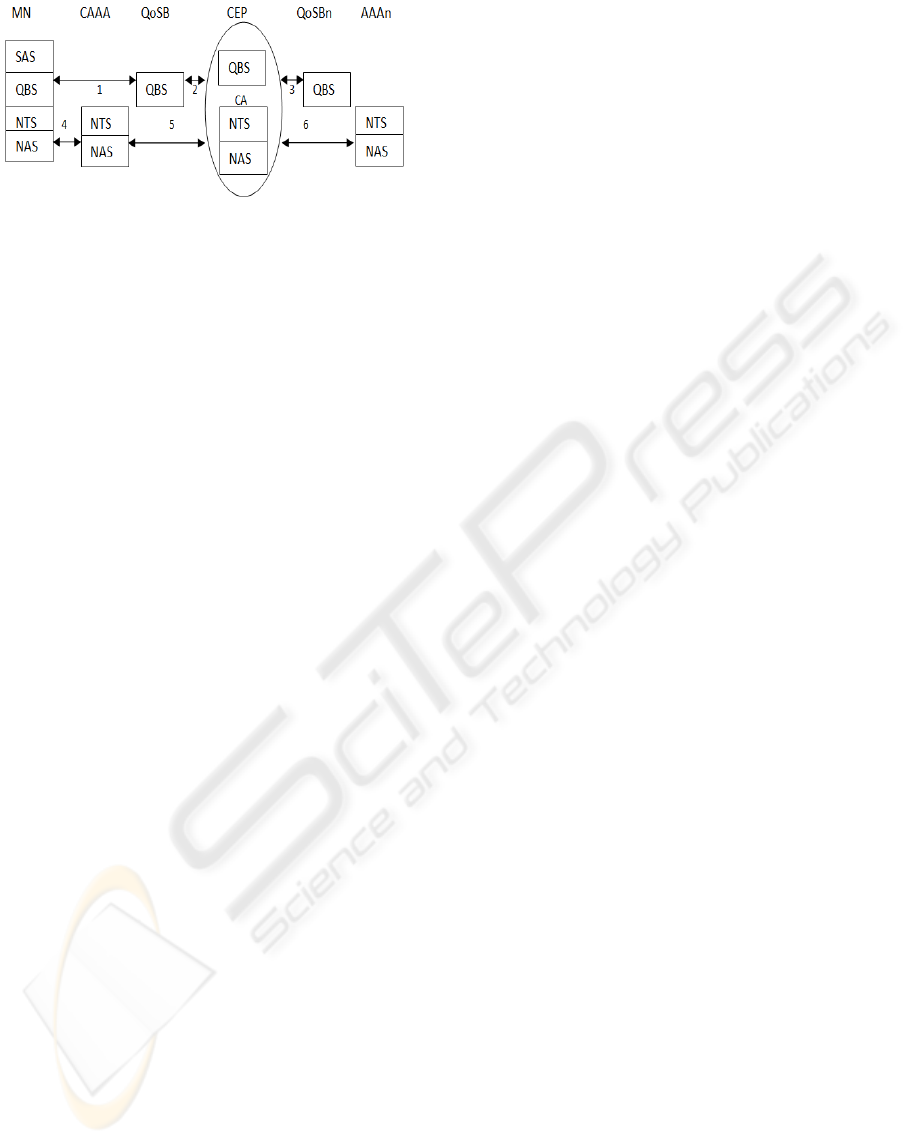

Figure 5: Vertical Handover Security Model.

The MN will check whether it has the same security

parameters the AAA of the target network has

generated using core information. In case of a match

this means that the new network is authentic.

Moreover, we presume a certain trust relations

between the AAA servers, different trust relationship

models might be implemented such as parent-child

model where the top level Authority in the Core-

endpoint issues certificates for all the AAAC servers

working in its zone. Alternatively, current

Authentication and Key Agreement protocols such

as EAP as defined in RFC 5247, might be used to set

up a lower-layer secure association among AAA

servers.

3 CONCLUDING REMARKS

We showed how the new communications

architecture for heterogeneous networking called Y-

Comm can have a multi-layer security framework.

The integration of the various layers into the security

framework as well as the fact that the model itself is

closely integrated with the overall architecture make

it possible to design new security solutions. We

believe that the security models introduced using the

Y-Comm architecture supersede a lot of security

techniques being used today, including firewalls and

Network Address Translation (NAS), leading to a

more secure but also a more efficient network

infrastructure.

REFERENCES

Saltzer, J. H. Reed, D., & Clark, D. D., 1984. End-to-end

arguments in system design. In ACM Transactions in

Computing Systems, p. 277–288.

McNair, J., Zhu, F., 2004. Vertical Handoffs in Fourth-

Generation Multinetwork Environments. In IEEE

Wireless Communications, vol. 11,.

Duda, A., Sreenan, C., 2003. Challenges for Quality of

Service in Next-Generation Mobile Networks. In

Proceedings of IT &T Annual Conference, October

2003.

Mapp, G., Cottingham, D., Shaikh , F., Vidales, P.,

Patanapongpibul, L., Baliosian ,J. & Crowcroft, J.,

2006. An Architectural Framework for Heterogeneous

Networking. In Proceedings of the International

Conference on Wireless Information Networks and

Systems (WINSYS 2006). August 2006, p.5–10.

Mapp, G., Shaikh, F., Crowcroft, J., Cottingham, D.,

Beliosian, J., 2007. Y-Comm: A Global Architecture

for Heterogeneous Networking, (Invited Paper). In the

3rd Annual International Wireless Internet Conference

(WICON 2007). Austin, Texas, USA,

October 22-24, 2007.

Irvine, C., Levin, T., 2000. Quality of Security Service. In

Proceedings of the New Security Paradigms

Workshop, September 2000.

Ballani, H., Chawathe, Y., Ratnasamy, S., Roscoe, T. &

Shenker, S., 2005. Off by Default!. In Proceedings of

the Fourth Workshop on Hot Topics in Networking

(HotNets-II), College Park, MD, USA, November

2005.

Aiash, M., Mapp, G., Lasebae, A. & Phan, R., 2010.

Providing Security in 4G Systems: Unveiling the

Challenges. In The Sixth Advanced International

Conference on Telecommunications, AICT 2010.

Barcelona, Spain, 9-15 May 2010. [Accepted paper].

SECURITY MODELS FOR HETEROGENEOUS NETWORKING

321
