Abstract. In this paper we show how to utilize enterprise architectures to model

relations between information sources of an enterprise. With our approach the

enterprise architecture models are not passive entities anymore but can be

operationalized to identify dependencies between the various models and to

integrate information sources. It thus is the basis for agile enterprises. We show

that the elements of an enterprise architecture and the referenced data can take

the role of both context and content depending on the objectives of their use.

We present two independent approaches for modeling an enterprise ontology.

1 Introduction

There are many information resources in an enterprise that serve several purposes,

usually residing in different information systems.

• Operational data like financial data, bill of material, human resource data are

stored in enterprise resource planning (ERP) systems

• Customer data can be found in systems for customer relationship management

(CRM)

• Business process models usually are stored in files of business process

management suites

• Documents are stored in a document management system (DMS)

• Configuration data in configuration management databases (CMD)

• Websites for the internet can be found in content management systems (CMS)

These information resources, however, are not independent but depend on each

other. An enterprise architecture (EA) - originally developed to support information

systems engineering, can also be used to make these interrelations explicit.

An enterprise architecture (EA) consists of a number of models representing

information likewise for companies and for public administrations, e.g. Zachmann's

FEA

, TOGAF

, IAF

and many others. It is not the purpose of this paper to go into

John Zachman. URL: http://www.zachmaninternational.com/index.php/the-zachman-

framework (18.3.10)

Federal Enterprise Architecture. URL: http://www.whitehouse.gov/omb/e-gov/fea/ (18.3.10)

The Open Group Architecture Framework. URL: http://www.opengroup.org/togaf/ (18.3.10)

Hinkelmann K., Merelli E. and Thönssen B. (2010).

The Role of Content and Context in Enterprise Repositories.

In Proceedings of the International Joint Workshop on Technologies for Context-Aware Business Process Management, Advanced Enterprise

Architecture and Repositories and Recent Trends in SOA Based Information Systems, pages 30-41

DOI: 10.5220/0003028200300041

 SciTePress

detail of the different EA frameworks. The most recent overview on enterprise

architectures is given by [2]. In the following we use the Zachman framework [22] as

an example, however the arguments hold for any enterprise architecture.

The structure of enterprise architecture frameworks can be regarded as a

scaffolding to organize the models by assigning them to business or IT perspective

and classifying them w.r.t. to several aspects. However, hidden in the overall structure

of the enterprise architecture frameworks there are additional links between the model

contents. Just to mention a few:

• The information objects used or created in a business process are described in

the inventory aspect (called "data" in former versions of the Zachman

framework [22]), whereas the process flow is decribed in the process aspect.

• By assigning participants of activities via roles a link is made between business

process and organization aspect.

• The motivation and purpose of a business process is given by the product or

service it produces which itself is determined by the business motivation.

• Document types and data models of the inventory aspect are related to

information infrastructure of the network aspects specifying the source where

the information is stored.

Although the Enterprise Architecture framework helps to make those relations

transparent [19] it falls short when it comes to the concrete models. On operational

level, the models of the enterprise architecture are implemented as applications and

data:

• For the employees mentioned in the organization structure there exist records

stored in the HR module of the ERP system.

• Data about the IT infrastructure can be stored in a Configuration Management

Database [11].

• Data of Workflow instances is stored in the Workflow Management System.

• Production data is managed with a Production Planning System and so on.

Thus the relations and links defined in the EA models are limited on the concrete

model level to APIs and completely lost on the implemented data level.

But, on those two levels changes can take place: a business rule can change due to

a revision of a law – in this case, what business processes are affected and what

impact does that have on information objects? If the categorization of clients changes

due to a new marketing strategy - what business rules have to be adjusted, what

information objects adapted? Changing a process model - what does that mean for IT-

operation?

Fig. 1 depicts the relation between an EA, application models and their data. The

dotted lines between the EA and the concrete models indicate the weakly expressed

relationship amongst them.

Consider for example a manufacturer of espresso machines: It highly relies on the

suppliers for the various parts needed to produce the machines. Thus, supply-chain-

management is vital for the company's survival. Information about the supplier are

stored in a ERP system whereas the reports are stored in a Document Management

System (DMS). Although in the EA relations between suppliers and production are

Capgemini Enterprise Architecture Framework. URL: http://www.capgemini.com/services-

and-solutions/technology/soa/soa-solutions/ent_architecture/iaf/ (18.3.10)

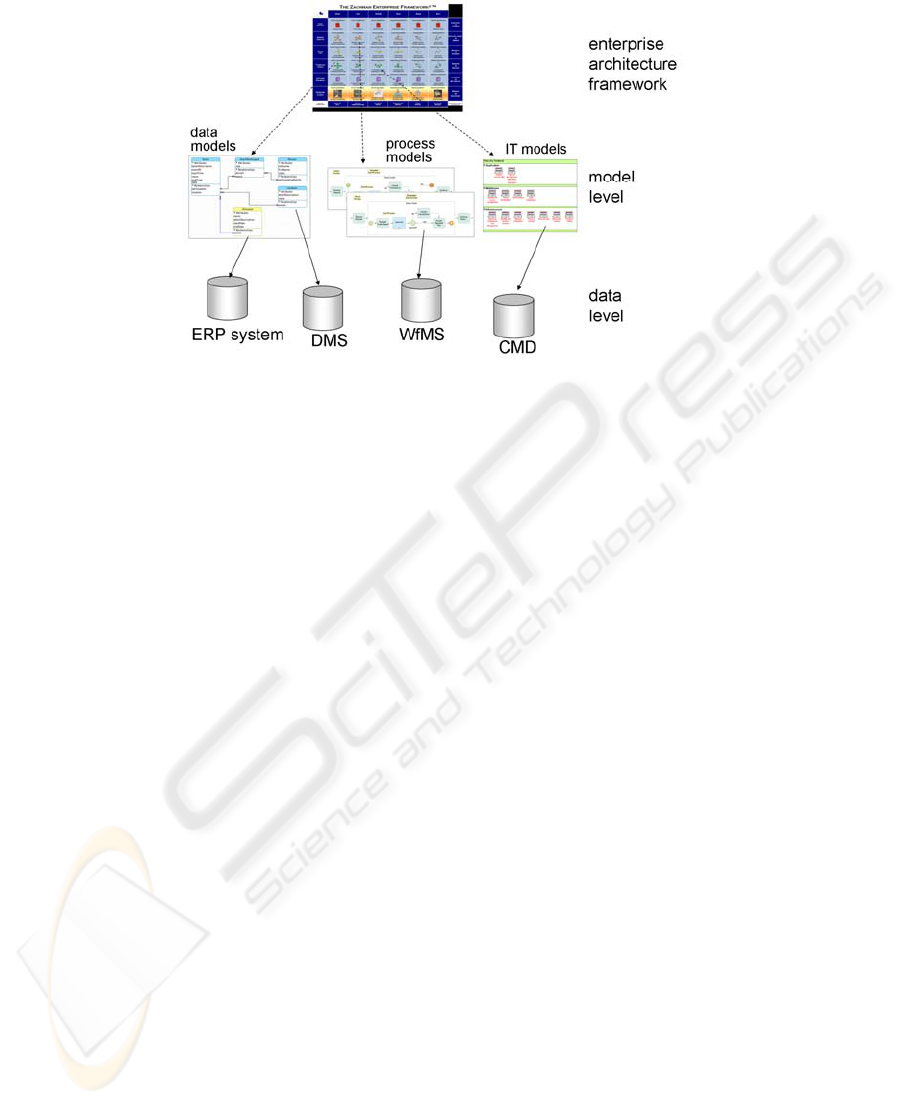

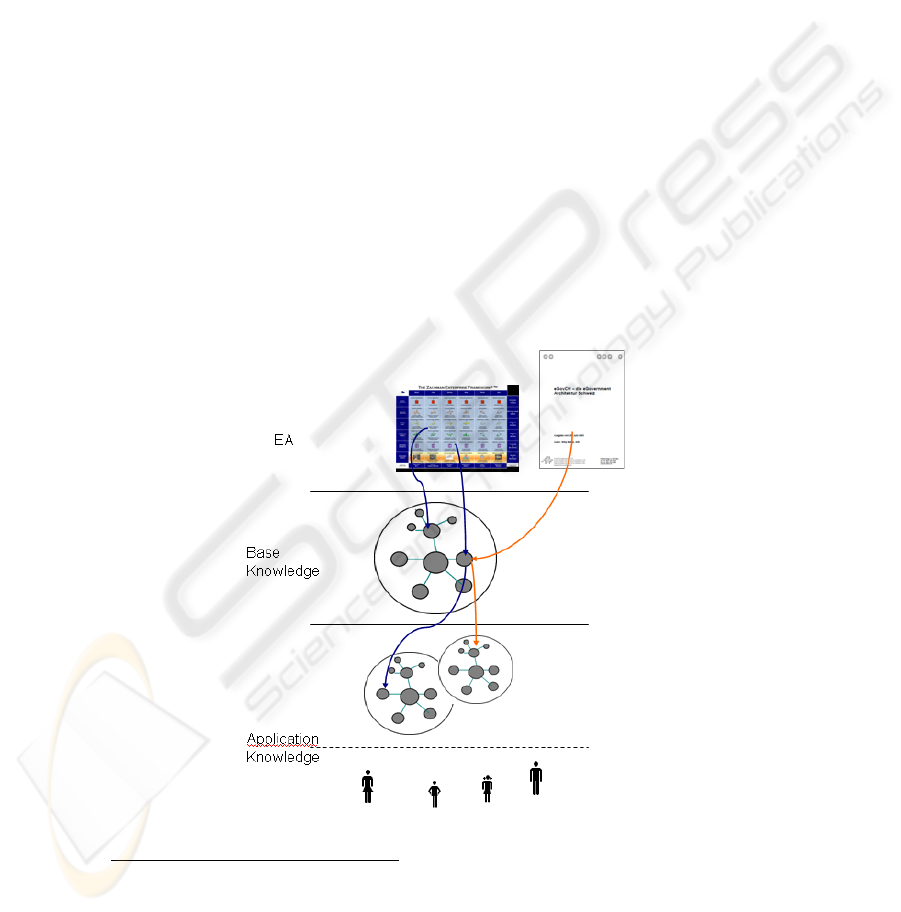

Fig. 1. Relation between EA, models and data.

expressed, they are not represented on the operational level. Even if the company has

a separate knowledge process for monitoring, identification and validation of changes

in place it is separated from daily business work. Changes like increasing late delivery

or delivery of damaged parts of that very supplier, would be stored in the respective

applications (the ERP system) and identified in the Production Planning System (PPS)

but not be linked to the externally gathered information. Having these relations

modelled semantically would improve the awareness of changes, therefore is better

protected against risks (or earlier in detecting opportunities) and therefore supporting

enterprises agility and risk protection - not only with respect to supply chain

management.

Reacting accordingly to changes is considered important but difficult, complex and

risky according to unintended side effect. Every change has an impact on other parts

of the enterprise, which leads to the choice, whether to make a change or abandon the

competitive benefits of innovation because of the risk [17]. Therefore representing

dependencies between enterprise resources in a machine understanding and

executable way is necessary if an organization wants to stay competitive.

We propose an ontological representation of the perspectives and aspects of an

enterprise architecture using the enterprise architecture as an integration scheme.

2 How to use Enterprise Architecture

Whereas it is consensus that using semantic technologies to describe an enterprise is

an appropriate approach (amongst others [1], [6], [7], [13], [20]) it is at the risk that

the created ontologies do not reflect the whole picture and suffer from

incompleteness. Therefore Kang et al. [12] propose to relate enterprise ontology to an

Enterprise Architecture Model. Even though there are many Enterprise Architectures

likewise for companies and the public sector available they are designed for humans,

to understand the various areas of an enterprise and the relations amongst them but

are not 'understandable' for machines. Using ontologies to describe an enterprise helps

• reach a shared understanding (amongst different stakeholders)

• solving ambiguity

• becoming machine understandable and,

• getting active (using reasoning for access and mining).

Relating the enterprise ontology to an enterprise architecture allows for validating

the ontology on the basis of a 'technical neutral' and 'business approved' model to

ensure completeness and appropriateness.

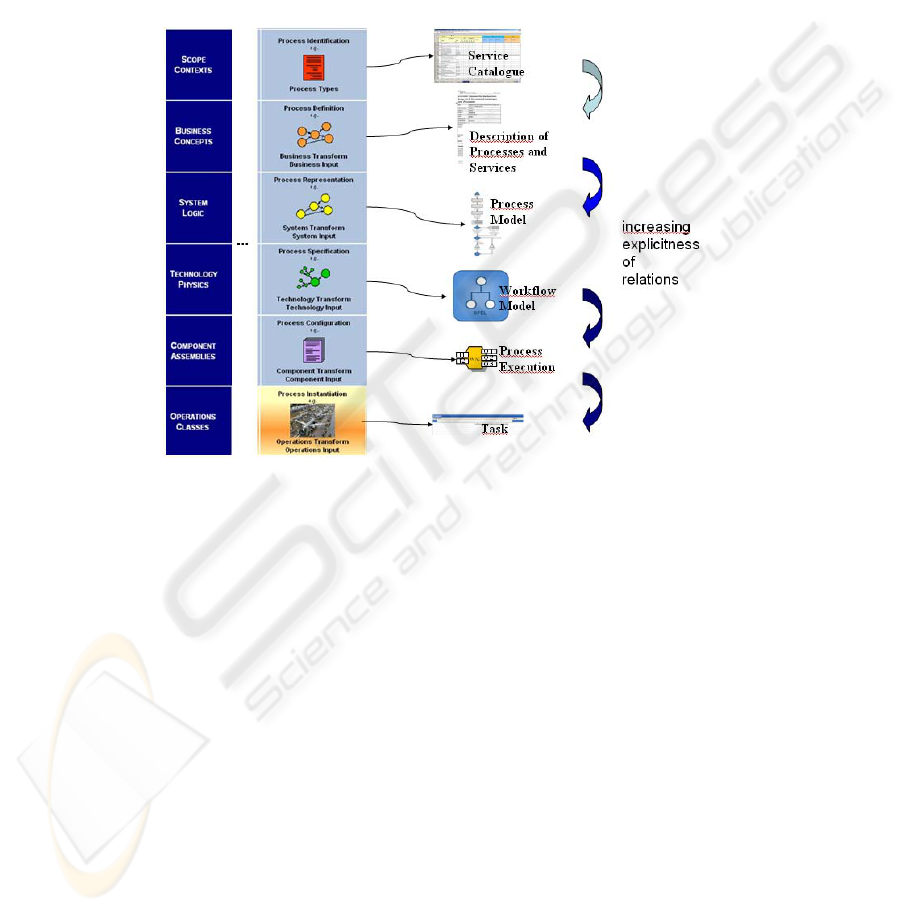

Fig. 2. Vertical Relations between EA perspectives and Business Objects.

Figure 2 gives an example of how the various perspectives of an Enterprise Model

(here for example the function aspect of Zachman's enterprise architecture

framework) are related to business objects. The relation, however, is an implicit one

as well as the relations between the upper level business objects. Thus, the number of

a process, defined in a service catalogue on the Scope Concepts level may occur in

the process description on the Business Concepts level but that relation is not

formalized and therefore hard to trace. The same holds true for the relation between a

process model on the System Logic Layer and the process description. The closer the

relation to implementation the more explicit the relations become, e.g. from a BPEL

process on the Technology Physics layer and the concrete web-service on the

Component Assemblies layer. It is obvious, that changes on the lower level will not

be automatically identified on lower levels and vice versa.

In addition to the 'vertical relations', the 'horizontal relations' between Business

Objects have to be considered. For the sake of better reading only relations between

models on the System Logic layer are regarded in the following.

Fig. 3 depicts some of the relations between business objects on the same EA

layer: The relation between entities of a database model to the process model,

between a records management model and the process model, between the process

model and the organizational model and between the database model and the records

management model to show, that within one aspect there can be more than one model

also related to each other.

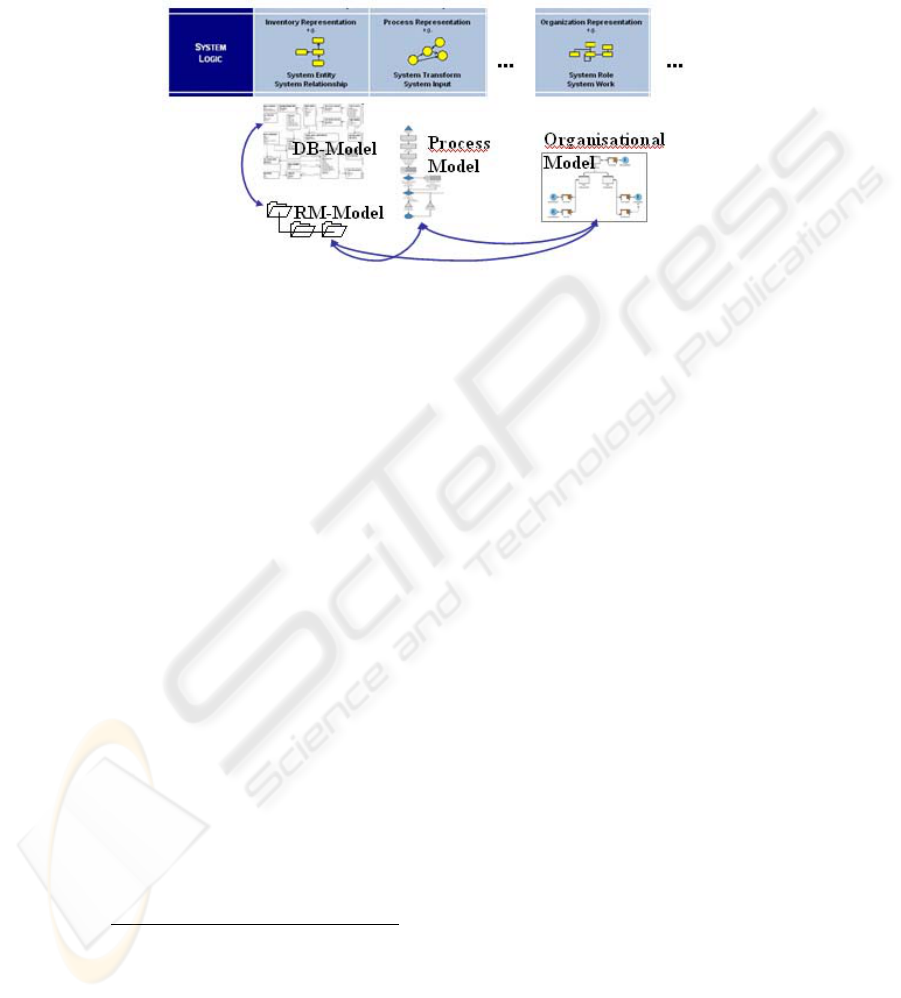

Fig. 3. Horizontal Relations between EA aspects and Business Objects.

In case the models on the various layers (horizontal and vertical) are managed by

IT-systems (e.g. a Business Process Management System like ARIS

or ADONIS

a Document Mangement System like Filenet

) some of the relations are handled.

However none of them comprises all of an EA's aspects and they do not support

semantically enriched descriptions.

In addition to the already high complexity of dependencies between the various

business objects on the various layers another dimension has to be added. As the

several stakeholders, contributing to a product, often do not have one but several

Enterprise Architecture frameworks, an approach is needed to deal with that, too.

Fig. 4 depicts a relation between two different Enterprise Architectures (here: the

Zachman's, for example used in a company and the eGovernment Architecture,

provided by the Swiss Government). Making such kinds of relations transparent is

crucial as cross-organizational processes become more an more relevant: in the public

sector to provide 'one-stop-shop-sevices' incorporating the various public

administrations as well as companies - either as contributor or consumer of a product

- as well as in the industrial sector as a chance for example for SME to form virtual

enterprises.

Related models can be regarded as the context of the model in the focus. Following

Winograd [21] defining context as 'an operational term' we consider context as

'everything that is not 'text', that is not content of the focused model. To the Process

Model, shown in Fig. 3, the DB-Model, the RM-Model and the Organizational Model

build its context, whereas for the RM-Model, the DB-Model and the Process Model

are its context. In general: what content is and what context is, is determined by its

use.

In this sense, context plays a major role as "if knowledge is extracted and

http://www.ids-scheer.com; http://www.ariscommunity.com/aris-express

http://www.boc-eu.com; http://www.adonis-community.com

http://www-01.ibm.com/software/data/content-management/

formalized [in an application independent context model] it can then be used in as

many different [applications] as necessary, whenever and wherever it is needed" [16].

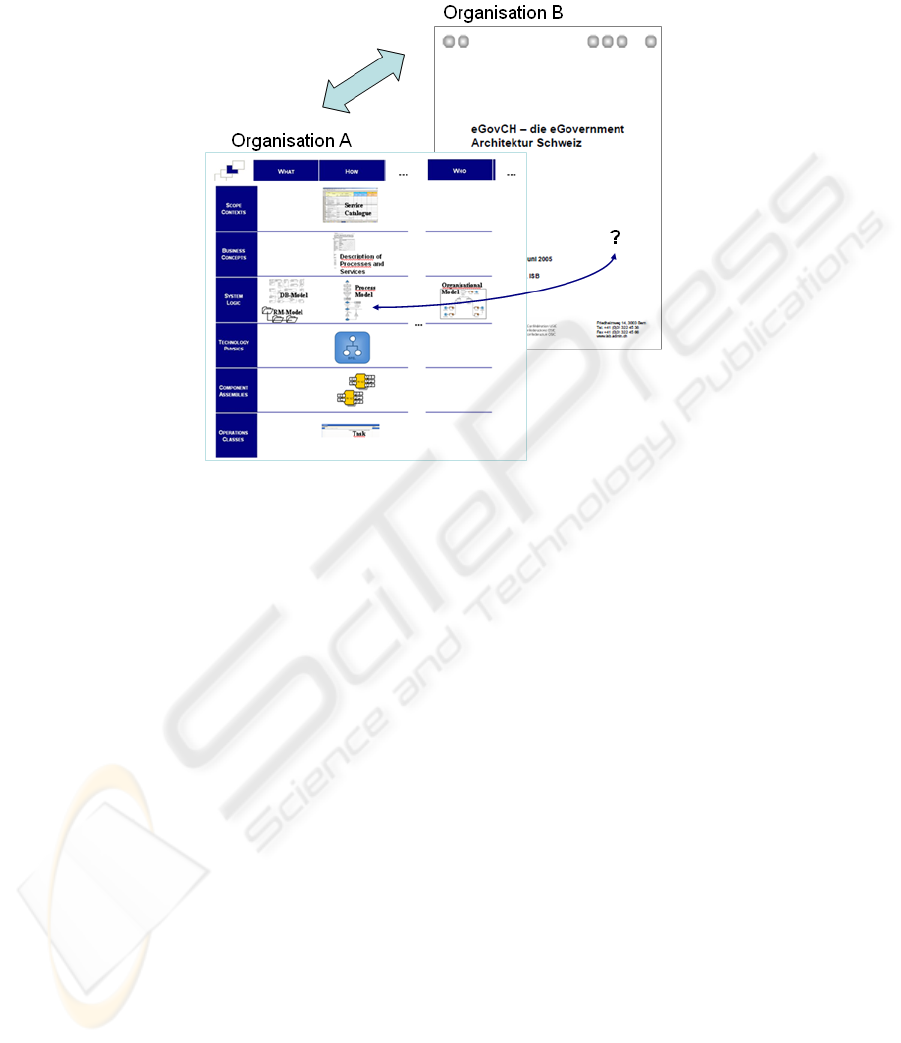

Fig. 4. Transversal Relations between EA aspects and Business Objects.

In our approach we focus on use of an Enterprise Architecture model as an

integration scheme for knowledge structuring to support

• the data model for data integration and

• metadata for non structured documents (information resources)

in the various dimensions of relations.

3 How to Represent Enterprise Architectures

Often EAs are regarded as 'Enterprise Blueprint', aiming to model the relationships

between the various components constituting an enterprise (e.g. business processes,

organisational structure, resources and technology) in a way that dependencies

become visible and can be used for decisions [4] but they are not build to be

executable. Although well structured, EAs are described in natural language fostering

ambiguity and lacking of formalization.

Kang et al. criticize EAs for the lack of detailed models for the components, of

modelling the relationship between the components and the lack of a model for

implementation [12]. To overcome that drawbacks Kang et al. remodelled the EA

with ontologies. They took the Federal Enterprise Architecture, that is based on

Zachmann's, used the structure of WordNet to describe terms and SBVR to structure

the relationships. However, the model is very detailed and it seems to be hard to

extend it into a full blown ontological representation of the EA model (in addition

there is no description of how the ontologies are technically implemented).

[3] built the FEA-Reference Model Ontology (FEA-RMO). Even though they

provide a lot of insights about dealing with problems, modelling an EA as an ontology

it is limited with respect to general use and content. Kang et al. state "Although FEA-

Reference Model Ontology (FEA-RMO) [3] is proposed in order to share meanings of

FEA reference models, it is nothing but the model which describes FEA reference

models with Web Ontology Language (OWL). It is only for FEA reference models

and is short of concrete method to share common meanings of Enterprise Architecture

components" [12].

Goudos et al. [10] base on the Governance Enterprise Architecture (GEA) to

address the problem of matching a citizen’s needs with available public services.

Based on GEA they created an ontology represented in OWL-DL and created with

Protégé (with the OWL plug-in). The approach lacks to important points: the GEA is

not implemented by a PA

and it does not consider various knowledge levels. Thus

we consider that a crucial point. An EA is not necessarily used throughout a company

as a whole. That holds true all the more regarding virtual enterprises. Therefore

enterprise knowledge has to be modelled accordingly in the ontology to allow for

specific enhancements and refinements.

Fig.

5 depicts three levels of abstraction for building an enterprise ontology.

Organizing knowledge on multi levels has been introduced by Guarino [9] and was

followed by [5] for the Resourceome Knowledge Model as well as for the ATHENE

approach, as detailed in the Implementation section below.

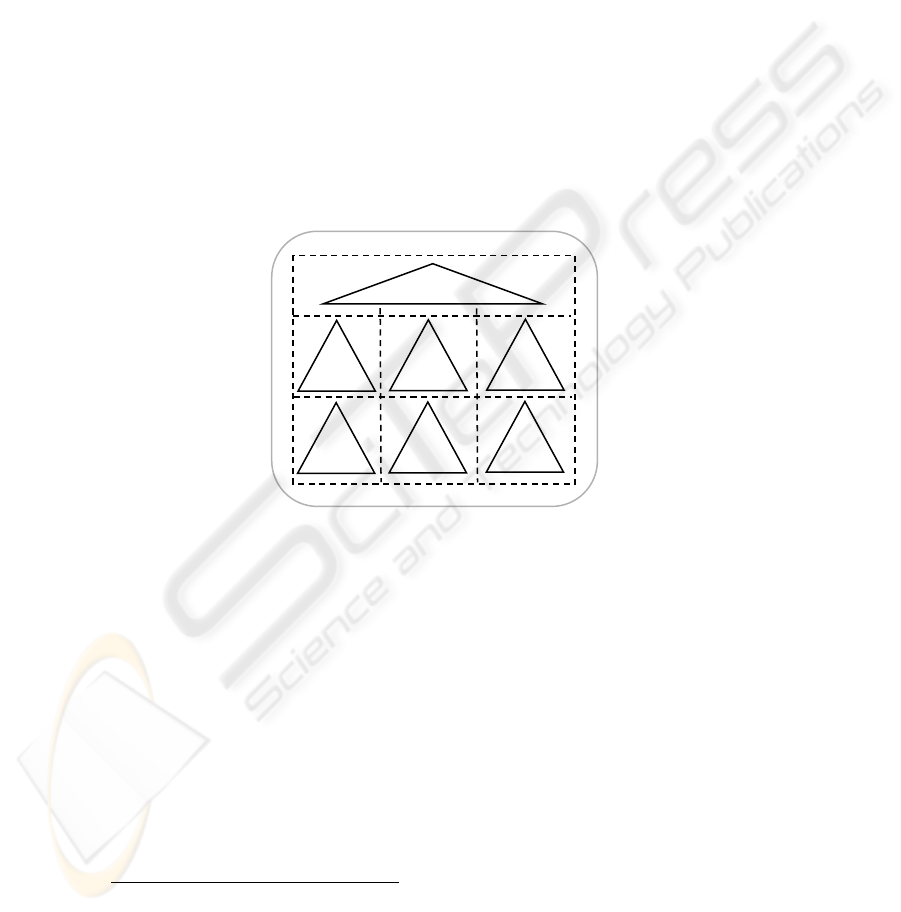

Fig. 5. 3 Levels of Abstraction.

According to Liimatainen et al. the adoption of xGEA (an extension of GEA, a model for

cross-Government Enterprise Architecture) is only starting in the UK [14].

4 Implementation

We represented knowledge of an enterprise architecture using two independent

systems emphasizing different foci of the architecture model:

• ATHENE has a graphical modeling environment with a common concept

repository which allows business users to model the enterprise architecture

using a well-known graphical modeling language and to represent the relations

between concepts of various architecture aspects

• The Resourceome is a tool based on a multilevel model for structuring the

concept repository by separating general (resources and tasks) from domain-

specific concepts that provides a suitable structure for representing the different

EA aspects.

The integration of ATHENE, the graphical environment with Resourceome the

modeling tool, seems to be promising framework for managing an enterprise

ontologies.

5 ATHENE

ATHENE is a graphical modeling environment with a semantic meta-model, i.e.

modeling language and models are represented as ontologies (see Fig. 6). ATHENE

consists of two components: a meta-modeling component to defing modeling

languages and the modeling component to build semantic models using a graphical

interface.

modelling

language

ontology

model

ontology

Fig. 6. Ontologies for model and modeling language.

A modeling language consists of a concrete syntax representing the appearance of

the modeling elements and an abstract syntax representing the semantics of the

modeling elements. For the abstract syntax, all the modeling elements of all modeling

languages are represented as concepts within a common ontology which consequently

also represents the relations between concepts. More precisely, the repository

specifies the meta-meta model and allows to define and (re-)use the concepts and

properties used by any modeling language as subclasses of the given elements.

For example, the business process model contains modeling elements for process

activities with attributes for specifying the participant for the activity (i.e. who has to

execute the activity) and which IT system is to be used in order to execute the

activity. As already mentioned in the Introduction, the role of the participants and the

IT systems are defined in models for the organization and infrastructure aspect,

respectively. By defining the meta-model concepts for business processes,

organizational structures, and IT infrastructure using in the common ontology, the

linking between different models is made explicit.

As a further advantage, when a new modelling language is defined, instead of

modelling the elements from scratch already existing concepts can be reused and

adapted. In the example of Fig. 7 the elements Start Event, Intermediate Event and

End Event are reused while the element Activity is specialized to Manual Activity and

Auto Activity. A part of their semantics is already described as they are defined as

subclasses of Activity. Additionally, the model allows reference to instances of the

concepts Person and Web Service, which are modeled modeling languages for

Organization and Infrastructure, respectively.

Modelling language ontology:

Event

Start Event

Intermediate Event

End Event

Activity

Manual Activity

Auto Activity

Person

IT System

IT Service

Web Service

New meta-model for

process modeling

use

new

reference

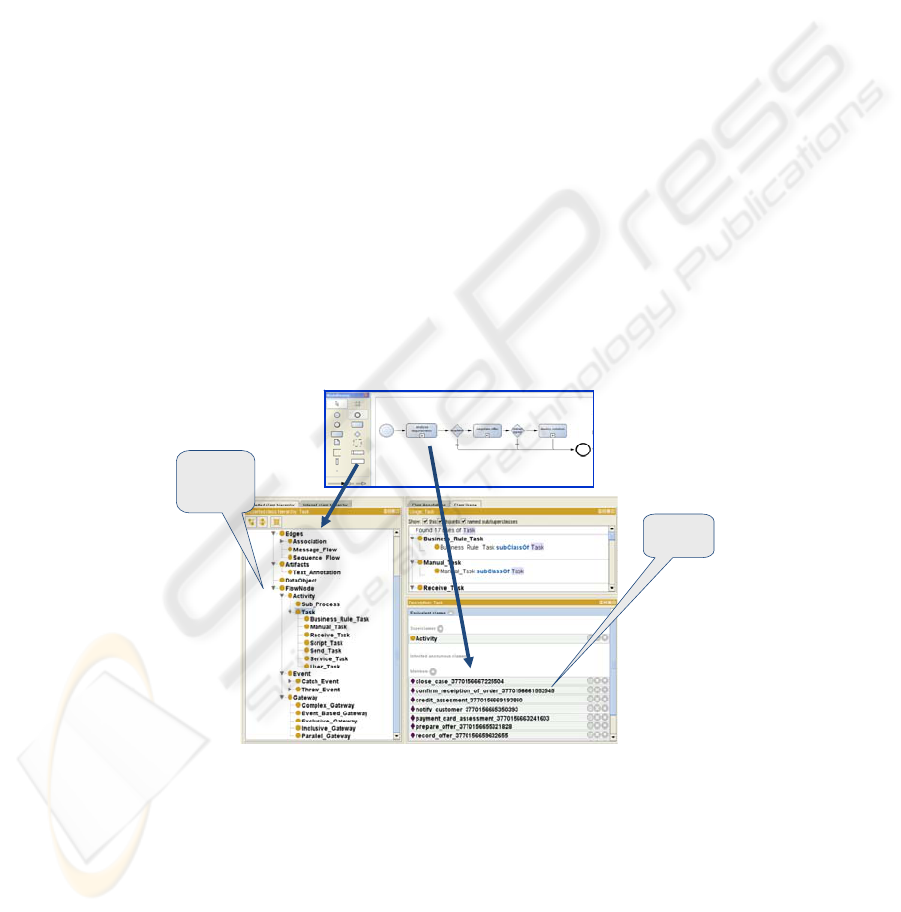

Fig. 7. Defining a new modeling language.

6 Resourcesome

Resourceome is a multilevel model and a semantic web tool for managing declarative

and procedural knowledge [5]. It distinguishes three knowledge levels: top level, base

level and application level as shown in Fig. 8. Top level ontology is based on the

Upper Ontology, describing very general and domain-independent concepts shared

across a large number of ontologies. The choice of what Upper Ontology concepts

depends on what and how the knowledge is going to be described. The base level

ontology describes a specific vocabulary by specializing the terms introduced in the

Upper Ontology w.r.t. a particular domain of interest. The knowledge space is

partitioned in three different ontologies - Domain, Resource and Task Ontologies -

each of which captures and models respectively domain, resource and operational

aspects. In particular, Domain and Resource Ontologies follow by an “orthogonal”

splitting of the Guarino approach’s Domain Ontology. This “orthogonality” property

is realized by a “concerns” relation, which permits to customize, in a very flexible

way, the Resourceome knowledge space w.r.t. any specific domain corresponding to

the linked Domain Ontology. The application level ontology describes specific

concepts, depending on the particular domain, resources and activities.

To implement the Resourceome model we exploit two different languages OWL-

DL [18] and SKOS [15]. We represent concepts as individuals of SKOS concept

class. For the representation, visualisation, integration, storing and querying a

Resourceome we have developed a semantic web-based tool whose functionalities are

organized into three tiers: Front End, Business Logic and Back End. Front End of the

system is characterized by a user friendly interface allowing the navigation of the

Resourceome model through web-based interfaces or stand-alone applications. The

communication with the business logic is based on SOAP messages. The knowledge

visualisation is provided by using Grappa Java library [8]. The Business Logic

provides both management of resources and execution of goals. At this level the

reasoner supports the querying of ontologies and guarantees their integrity. Back End

encodes the ontologies of Resourceome and stores them in files. The tool provides a

guide to add and maintain resources, mapping them on the domain by means of a

user-friendly web interface

upper

ontology

resource

ontology

domain

ontology

task

ontology

resource

concepts

and individuals

domain

concepts

as SKOS

individuals

activities

ontology engineers

domain experts

top level

base level

application level

Multi-level Ontology

Fig. 8. Resourceome ontology model.

In the context of this paper,

• the top level ontology describes the common concepts of an enterprise like

organization, people, role, process etc. that can be found in all enterprise

architectures;

• the base level ontology describes all those composed concepts that are suitable

to represent the various aspects of the architecture of a specific enterprise and

correspond to the business objects models. Figures 2 and 3 show the relations

that can exist among EA aspects and business objects.

• The application level ontology describes all those specific concepts and

individuals of a concrete enterprise; they can be regarded as “context” or

“content” depending on the view.

To this end, Fig. 8 depicts a possible fitting of the Resourceome model to the specific

EA framework domain: the Resource Ontology is refined (by its splitting and

http://resourceome.cs.unicam.it

expanding) into 'IT Systems Infrastructure Ontology', 'People', and 'Information

Objects'; the Domain Ontology is refined into 'Organizational Structure and Roles',

'Business Rules' and 'Business Motivation Ontology'; and finally the Task Ontology is

refined into 'Process Model Ontology' and 'Business Activity Ontology'.

The resulting Resourceome Ontology then represents a multi-level integration

scheme between an enterprise architecture framework and its concrete data models

(cf. Fig.

9).

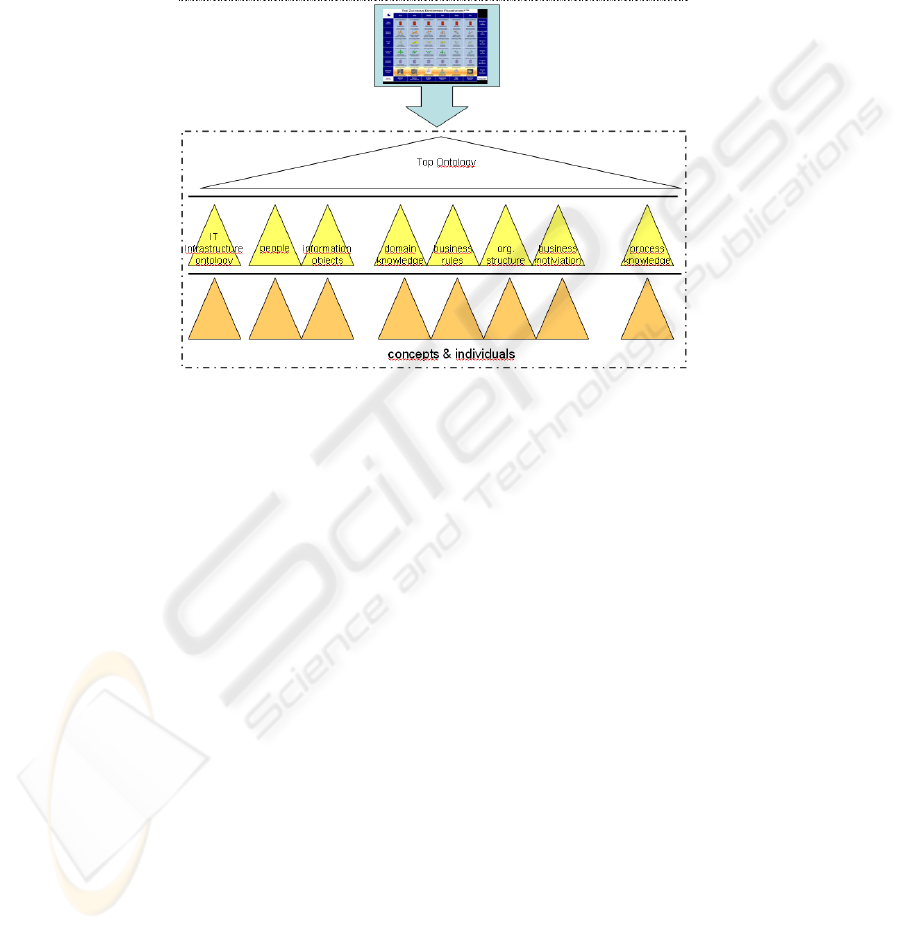

Fig. 9. Extension of Resourceome for EA representation.

Therefore, the use of ATHENE and Resourceome allow from the one side to offer a

user friendly interface for modeling business processes of every enterprise and for any

application context from the other hand to semantically represent and manage the

enterprise concepts, by maintaining their physical separation.

7 Conclusions

Cooperation and agility are two requirements enterprises and public administrations

alike have to deal with. The benefit of an Enterprise Architecture is widely accepted

for building transparency of an enterprise's objects and their relations - representing

objects' context by linking objects represented in models for different asptects.

However, it is not designed for and used to improve daily business operations,

because it does not contain the objects themselves but a model of them. The concrete

content, i.e. the concrete data, process implementations, configuration of IT systems,

are - if at all - stored in separate information sources and only loosely linked to the

EA. On the other hand side, ontologies are increasingly used to formalize business

objects. Representing Enterprise Architectures in an ontology allows for structuring

business objects and for quality insurance, thus bringing the potential of Enterprise

Architectures to full blown.

Experimental implementations with the ATHENE and Resourceome tools showed

that a combination of ATHENE's graphical modeling and Resourceome's ontology

structures are preferable to fully support EA maintenance, exploitation and use.

References

1. Abecker, A. et al.: Toward a Well-Founded Technology for Organizational Memories.

IEEE Intelligent Systems and their Applications, Vol. 13, No. 3, (1998) 40-48.

2. Aier, S., Riege, C. and Winter, U.R.: Unternehmensarchitektur – Literaturüberblick und

Stand der Praxis. Wirtschaftsinformatik, 4, (2008) 292–304.

3. Allemang, D., Hodgson, R. and Polikoff, I.: FEA Reference Model Ontologies (FEA

RMO). Development, (2005)1-43.

4. Bailey, I.: A Simple Guide to Enterprise Architecture. Futures (2006).

5. Cacciagrano, D. et al.: Resourceome: a Multilevel Model and a Semantic Web Tool for

Managing Domain and Operational Knowledge, Sliema, Malta (2009).

6. Dietz, J.L.: Enterprise Ontology, Berlin Heidelberg: Springer-Verlag (2006).

7. Fox, M.S. and Gruninger, M.: Enterprise Modelling. AI Magazine, Fall 1998, American

Association for Artificial Intelligence (1998) 109-121

8. Ganser, E.R. and North S.C.: An open graph visualization system and its applications to

software engineering. In: Software: Practice and Experience, Vol. 30, No. 11, (2000) 1203-

1233.

9. Guarino, N.: Formal Ontology in Information Systems. IOS Press (1998).

10. Goudos, S.K., Peristeras, V. and Tarabanis, K.: Mapping Citizen Profiles to Public

Administration Services Using Ontology Implementations of the Governance Enterprise

Architecture (GEA) models. In: Abecker, A., Mentzas, G. and Stojanovic, L. (Ed.):

Proceedings of the Workshop on Semantic Web for eGovernment at the 3rd European

Semantic Web Conference, Budva (2006)

11. Hanschke, I.: Strategic IT Management, Berlin Heidelberg: Springer-Verlag (2010).

12. Kang, D. et al.. Expert Systems with Applications. An ontology-based Enterprise

Architecture. Expert Systems With Applications, 37(2), (2010) 1456-1464.

13. Leppänen, M.: A Context-Based Enterprise Ontology, Poznan, Poland: Springer Berlin /

Heidelberg (2007).

14. Liimatainen, K., Hoffman, M. and Jukka, H.: Overview of Enterprise Architecture work in

15 countries. Finnish Enterprise Architecture Research Project. Finance (2007).

15. Miles, A. and Bechhofer, S. (Eds.): SKOS Simple Knowledge Organization System

Reference. W3C Recommendation, (2009) Available at: http://www.w3.org/TR/2009/

REC-skos-reference-20090818/ (28 April 2010).

16. Mitra, A. and Gupta, A.: Agile Systems with reusable patterns of Business Knowledge: A

component-based approachj, Norwood, MA: Artech House (2005).

17. Mitra, A. and Gupta, A.: Creating Agile Business Systems with Reusable Knowledge,

Cambridge: Cambridge University Press (2006).

18. Patel-Schneider, P.F., Hayes, P. and Horrock, I.: OWL Web Ontology Language Semantics

and Abstract Syntax. W3C Recommendation, (2004). Available at:

http://www.w3.org/TR/2004/REC-owl-semantics-20040210/ (28 April 2010).

19. Sowa, J.F. and Zachman, J.A.: Extending and formalizing the framework for information

systems architecture. IBM Systems Journal, Vol. 31, No. 3 (1992).

20. Uschold, M., King, M., Moralee, S., and Zorgios, Y.: The Enterprise Ontology. Knowledge

Engineering Review, 13, Special Issue on Putting Ontologies to Use (1998).

21. Winograd, T.: Architectures for Context. Human Computer Interaction, 16 (2001).

22. Zachman, J. A.: A framework for information systems architecture. IBM Systems Journal,

Vol. 26, No. 3 (1987).
