Object Interaction as a Central Component

of Object-oriented System Analysis

Oksana Nikiforova

Riga Technical University, Faculty of Computer Science and Information Technology

Kalku 1, LV-1658, Riga, Latvia

Abstract. An increasing impact of system modeling in software development

facilitates a vision of software development methodology. Currently one of the

leading positions has OMG and its solution for system abstraction, modeling,

development, and reuse – Model Driven Architecture (MDA). A key compo-

nent of system modeling under principles of MDA is Unified Modeling Lan-

guage (UML), which defines several kinds of diagrams and their notation. Sys-

tem modeling is an important part of system analysis and design, where MDA

proposes to use means of automatic code generation. UML offers to use system

presentation as interacting objects and offers to model two kinds of object inte-

raction diagram, namely, sequence and communication. The paper focuses on

investigation of analysis, modeling, and design of object interaction and dis-

cusses the ability to increase the level of formalization in modeling of object in-

teraction.

1 Introduction

Model Driven Architecture (MDA) [1] is an OMG initiative built on principles of

abstraction, modeling, reuse, and patterns, to provide software developers with an

approach to identify and classify all of the system development activities and offer

the usage of models and model transformations as a foundation for system develop-

ment within every group of activities. System analysis results in platform independent

model (PIM), which is then refined and transformed into platform specific model

(PSM) to support the design activities in terms of software components. Then PSM is

used to define code components and system implementation [2].

The primary benefit of MDA is to give a big-picture view of the architecture of the

entire enterprise [3]. Any new system should fit into the existing data and platform

configuration. In order to use the MDA approach, the developer should have a com-

mon modeling system and a language to describe PIMs. A key component of PIM

modeling is another OMG’s standard—Unified Modeling Language (UML) [4].

UML defines a notation for a set of diagrams used for modeling of different aspects

of the system (i.e., static and dynamic ones). A central part of static modeling in

UML is class diagram, which defines a general structure of the system and serve as a

basis for the development of software architecture. Class diagrams are investigated

quite well in different researches. Author of the paper also paid attention to this and

published the results in [5], [6], [7], [8], [9]. According to modeling of system’s

Nikiforova O. (2010).

Object Interaction as a Central Component of Object-oriented System Analysis.

In Proceedings of the 2nd International Workshop on Model-Driven Architecture and Modeling Theory-Driven Development, pages 3-12

DOI: 10.5220/0003023000030012

 SciTePress

dynamic, exactly problems of its definition are the reason why MDA goals are not

achieved yet [10].

The central part of modeling of system’s dynamic is the construction of object in-

teraction, where two UML diagrams—sequence and communication—are used to

present system’s behavior [4]. UML sequence diagrams allow to describe interactions

between system objects and actors of its environment. Sequence diagram describes

sequences of communications that may occur in the course of a run of the system and

traces the messages that are exchanged during this run. Sequence diagram is a popu-

lar notation to specify scenarios of the processing of operations as its clear graphical

layout gives an immediate intuitive understanding of the system’s behavior [11].

UML sequence diagram is stated as one of the ambiguous UML diagrams [12], with

an implicit and informal semantic that designers can give to basic sequence diagram

as a result of this conflict [13], [14], [15]. In turn, collaboration diagrams are another

means for representing the interactions and relationships between objects. Unlike

sequence diagram, however, collaboration diagram does not focus on the timeline of

interaction, but on the structural connections between collaborating objects.

The research object of the paper is UML sequence diagram. The goal of this paper

is to investigate a strategy of definition of main elements of object interaction and to

find an ability to base this definition on the elements of two-hemisphere model, which

is already used for definition of object classes and structure of its collaboration in

author’s previous papers [7], [8], [9].

The paper is structured as follows. Modeling strategy of UML diagrams is investi-

gated in Section 2. Schema of general transitions among UML diagrams is created

based on the examination of object-oriented system analysis. Section 3 offers to use

two-hemisphere model as a foundation for definition of elements of sequence dia-

grams. Overall idea of definition of transformation from business process model and

related concept model into UML sequence diagram is shown in terms of graph trans-

formations. Section 4 illustrates an example of the proposed ideas in a case study.

Section 5 makes several conclusions on the research.

2 Object Interaction under Object-oriented System Analysis

The standard notation for system modeling in object-oriented software development

is Unified Modeling Language (UML) [4]. UML diagrams give a possibility to model

different aspects of software system, but UML is just a notation and does not provide

methodological instructions on how to model the system. Developer needs informa-

tion about the system being developed in a form, which gives an ability to transform

this information into UML diagrams.

Therefore, the development of a software system starts with the gathering of busi-

ness information and its further presentation in a form suitable for system modeling.

In classical approach, this information is presented in a form of processes to be per-

formed and information flows required for process execution. Then this presentation

of business information should be transformed into software system model, which

under object-oriented manner for software development requires to identify objects

from problem domain and to share responsibilities of operation execution between

these objects.

UML sequence diagram shows objects, their lifelines, and messages to be sent by

objects-senders and performed by object-receivers. Sequence diagram is used to

present the dynamic aspect of the system, which in object-oriented approach is ex-

pressed in terms of message transfer among objects. The dynamic of interactions is

defined by an ordering of the message sending and receiving actions. It serves as a

basis for the definition of operations performed by objects to be grouped into classes,

as well as to present and to verify the dynamic aspect of class state transition.

The problem, which is widely researched in the area of modeling of object interac-

tion, is formal transitions among models presented at different levels of system ab-

straction. The transition from problem domain into system implementation expressed

in terms of objects is required in object-oriented software development using MDA

principles [1]. Nothing new is in the definition of classes and attributes without rela-

tionships among them. Software development techniques and methodologies propose

several methods to indicate classes in problem area or in initial models. The process

of class diagram development defined by James Rumbaugh yet in 1991 for Object

Modeling Technique [16] still is one of the best approaches for identification of

classes at system domain level, real-world operations on the domain objects, as well

as state diagrams showing the life histories of domain objects. Ivar Jacobson in [17]

together with Grady Booch and James Rumbaugh in [18] has offered the definition of

system use-cases. Since that, one of the powerful groups of system modelers can be

called as use case-oriented society of software developers. Several more researches

under this direction are [3], [19], etc. In general, the process, which uses use-cases as

a basis for modeling of object interaction, is shown in Fig. 1.

Use-case-oriented approach is based on an effort to define use-cases and users of a

system, as well as to describe the usage of a system by detailed scenarios. It, in turn,

provides a basis to define steps for object interaction and sharing of responsibilities

among domain classes. Deeper analysis of object communication gives a possibility

also to define class stereotypes, which, in turn, will be important components of a

software design.

System developers often ignore the “use-case-driven” prescription that permeates

much of the UML literature, making limited or no use of either use-case diagrams or

textual use-case descriptions [20]. Many organizations are using different tools for

business process analysis and, therefore, have complete and consistent models of their

organizational structure, responsibilities of employer, business processes, as well as

the structure of documentation flows—in other words, well-structured initial business

knowledge [6]. Therefore, the class diagram development in a more formal way can

be based on the initial business knowledge.

So far, another group of software developers prefer to use business process model-

ing at the initial stage of system analysis. We can call them as business process

oriented society of software developers, such as [21], [22]. Anyway, process-oriented

developers are also using use-cases. However, an identification of use-cases is per-

formed in much more formal way than just based on user stories or general domain

descriptions. As far as we have two main concepts for analysis of problem domain,

which are process and data, it is possible to identify several approaches, which are

more oriented on data to be created, updated, and stored during software development

(such as [23]). Entity-relationship modeling is a semiformal data-oriented technique

for specifying software systems. It has been widely used for over 30 years for speci-

fying databases [24]. So called data-oriented developers are working in correspon-

dence with the definition of data structure and operations to be performed with data

are of less importance. Of course, operations are needed to access the data, and the

database should be organized in such a way as to minimize access time. Nevertheless,

the operations performed on the data are less significant. On its merits, we even can

assume that software developed in this way is not developed in object-oriented man-

ner and here the role of object interaction is secondary.

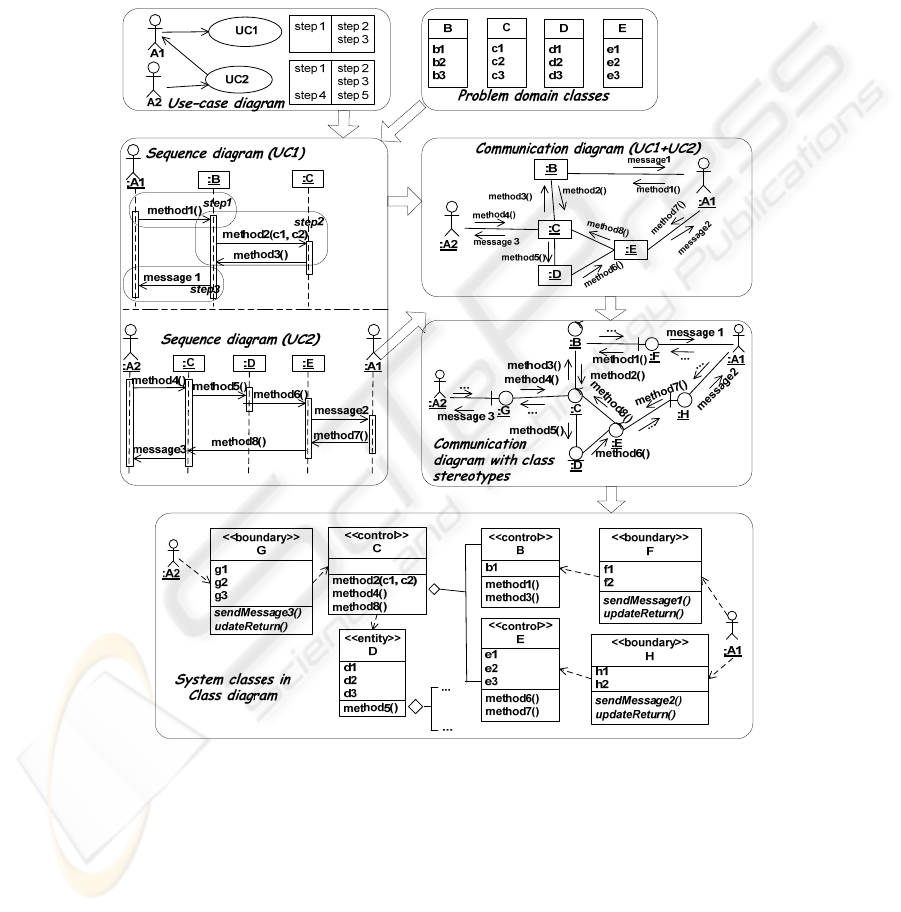

Fig. 1. Class diagram development, based on definition of use-cases.

Author assumes that the concatenation of data (concept) model with process dia-

gram allows to identify classes, their attributes, relationships with other classes and

even more—operations of classes. The idea of common consideration of both models

is known; nevertheless, the usage of combination of business process model and

concept model for definition of class responsibilities and relationships among classes

in object-oriented approach was not widely published. Author of the paper in [25]

proposes how classes and its object’s operations can be defined based on so called

two-hemisphere model [6], which essence is two interrelated models. The next Sec-

tion examines the abilities of two-hemisphere model for definition of elements of

object interaction in terms of UML sequence diagram.

3 Two-hemisphere Model as a Base for UML Sequence Diagram

The core of this paper is a hypothesis that business process and concept model con-

tains enough information for sharing responsibilities among objects and can serve as

a base for definition of object interaction by using of UML sequence diagram. Two-

hemisphere model [6] contains information about business processes and concepts

and has already been used for representation of object interaction with UML commu-

nication diagram in [7], where only static view of the system is investigated and an

ordering of message sending and receiving is missed. Now, author tries to find de-

pendency between elements of two-hemisphere model and elements of UML se-

quence diagram, especially in its timing aspect.

A nature of transition from business information into object interaction is found in

the definition of which processes have to be performed in the system and which per-

former will execute exact process at the software level of system modeling. In order

to identify a performer of the process at the software level of system presentation the

process has to be analyzed with the aim to define a software operation to execute the

process, as well as to notice the object to perform this operation.

So far, two general steps can be defined for object-oriented system analysis. The

first one is to identify objects themselves. This task is solved in [16], [19]. In general,

the analysis of entity relationship [24] can serve as a foundation for object identifica-

tion of the software system. The second activity of object-oriented system analysis is

so called “sharing of responsibilities” among objects, which is not so trivial and is

stated for solving by the author of the paper. The main task to be defined is which

operation will be executed by which object in which time sequence.

Two-hemisphere (2HMD) approach proposes to start process of software devel-

opment based on two-hemisphere problem domain model, where one model reflects

functional (procedural) aspects of the business and software system, and another

model reflects corresponding concept structures [5]. The co-existence and interrela-

tedness of these models enables the use of knowledge transfer from one model to

another, as well as the utilization of particular knowledge completeness and consis-

tency checks [6]. [8] defines the way on how the elements of business process model

and concept model are transformed into elements of UML communication diagram,

as well as their further transformation into elements of class diagram using direct

graph transformations. The arcs of graph of business processes are transformed into

nodes of UML communication diagram. The nodes of business process graph are

transformed into the arcs of UML communication diagram, which is redrawn in ac-

cordance with conventions of UML notation. In other words, events of process model

defined by data types from concept models became objects in UML communication

diagram. And processes of process modelserve as a basis to define corresponding

messages requiring to execute certain operation (to perform the process). The follow-

ing approach and all the transitions are defined in details in [8], [9].

The analysis of two-hemisphere model proposed in [7] may lead to the conclusion

that the notational conventions of UML communication diagram are more suitable for

definitions of formal transformations of two-hemisphere model into object interaction

and then into class diagram, than the application of UML sequence diagram. There-

fore, the UML communication diagram was used for transitions between graphs and

for definition of classes to be responsible for exact message sending and operation

execution. However, the aspect of time sequence, which is a component of UML

sequence diagram, is not shown in communication diagram (i.e., is missed in this

case). This paper focuses on the possibility to save time aspect in transition from two-

hemisphere model into UML sequence diagram in accordance with an initial idea

presented in [5].

Sequence diagram shows interaction of objects for execution of concrete use-case

or business function expressing time aspect as a main focus of modeling. Sequence

diagram consists of objects, their lifelines, and messages which they have to send to

other objects. Object identification is based on the analysis of noun phrases in prob-

lem domain description [16], where it is presented in the form of two-hemisphere

model and contains the information about problem domain, where noun phrases are

defined for events (arcs) of business process model and concepts of concept model

(see Fig. 2). Therefore, it is possible to suggest that description of an event in busi-

ness process with its defined data structure in concept model can serve as a basis for

identification of object in sequence diagram.

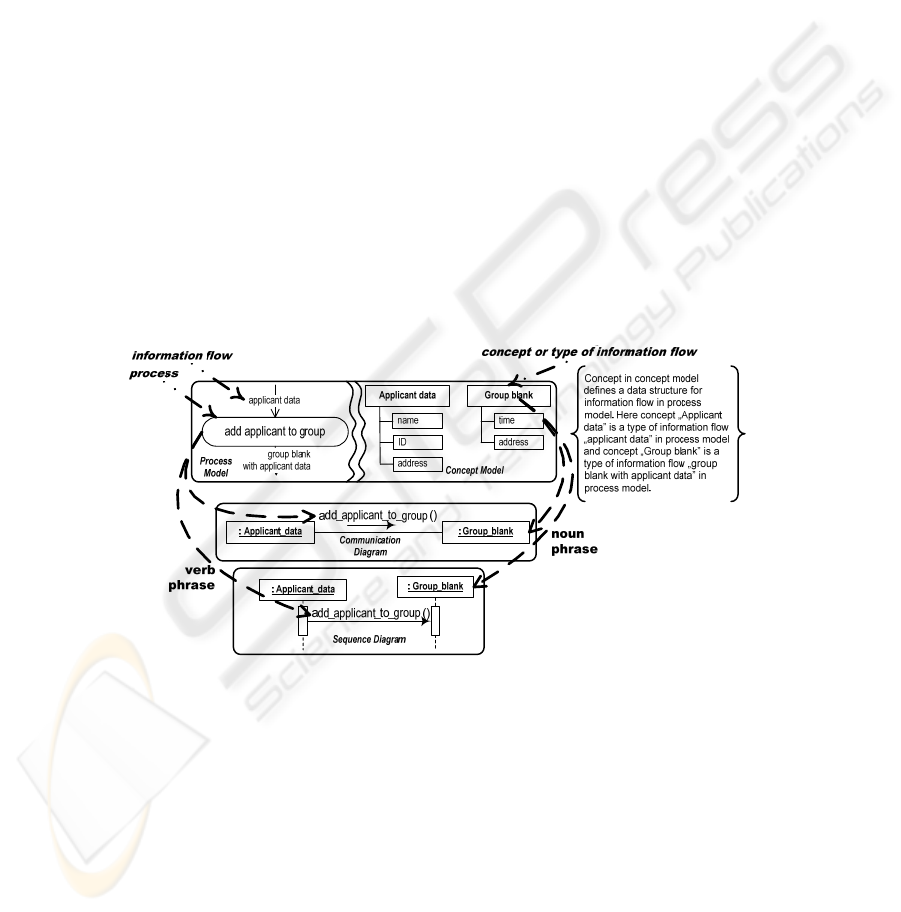

Fig. 2. Analysis of verb and noun phrases in two-hemisphere model and related object

interaction.

The transformation of two-hemisphere model into communication diagram is per-

formed in a direct way by graph transformation, where arcs of graph of business

processes are transformed into the nodes of graph of object communication. The same

assumption can be applied for the definition of objects in sequence diagram—object

sender will be defined by incoming arc of exact process in the model of business

processes and object-receiver will be defined by outgoing arc of exact process in the

model of business processes (Fig.2). The description of an event in business process

with its defined data structure in concept model can serve as basis for definition of

object, which is a node of its lifeline. The analysis of verb phrase (Fig. 2) makes it

possible to suggest that the name of business process has to be a base for the defini-

tion of message of sequence diagram to be performed by object-receiver of this mes-

sage. Therefore, a message defined for execution of exact process in business process

diagram will be sent by the object defined in the incoming arc of exact business

process and received by the object in the outgoing arc of exact business process.

Author’s experiments on the assumptions proposed above have found the variety

of combinations of input and output events for business processes. The problem of

this variety is that it is not always possible to define the elements of sequence dia-

gram in direct way. Several cases, where process has two incomes, require an investi-

gation on the definition of the object-sender of message.

Whereas the construction of object communication and further definition of class

structure was avoided to solve this problem, the main aspect was stated as according

to the aspect of who will be the object-receiver of the method. As for sequence dia-

gram, this variety gives a base for definition of so called interaction frames [4]. Sev-

eral examples of them are demonstrated in the next section, which presents practical

example on using of the defined transformations for pupil application to driving

school.

4 An Illustrative Example of Two-Hemisphere Model Application

The simplified version of the business process for the application of the pupil of the

driving school is reflected in two-hemisphere model shown in Fig. 3. The sketch of

the corresponding sequence diagram is shown in Fig. 4. Several fragments of the

sketch of the sequence diagram allow discussing the ability to define a more compli-

cated set of elements, such as interaction frames for parallel operating and alterna-

tives, different types of messages, etc.

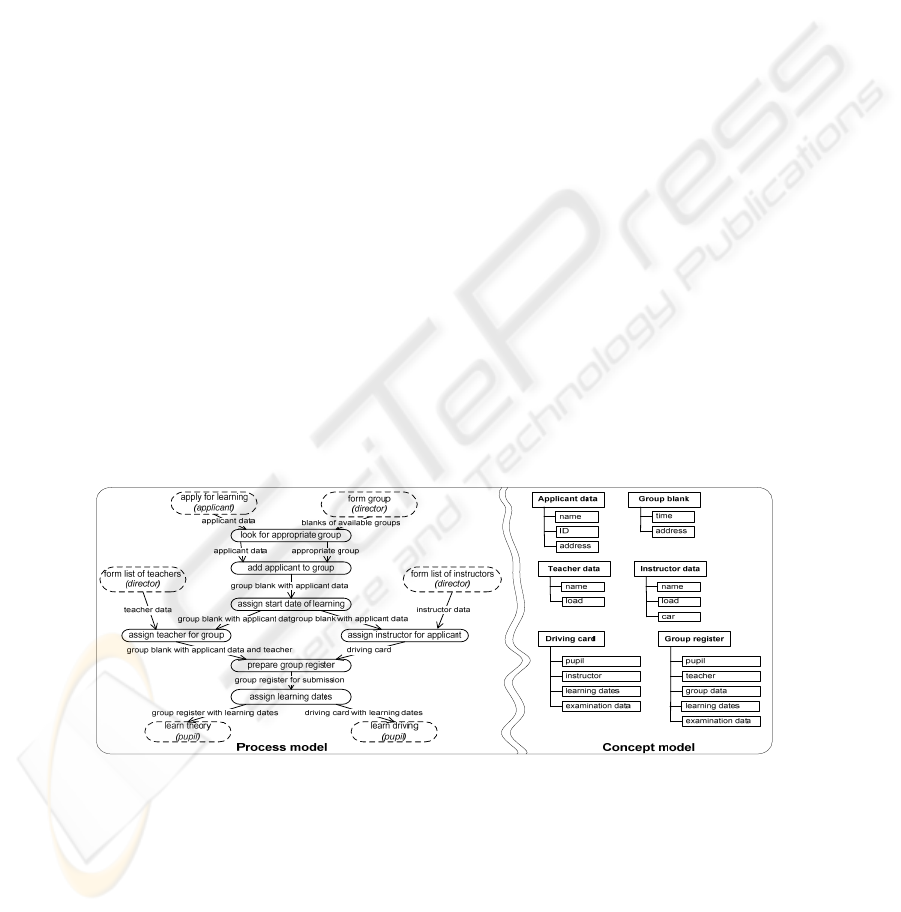

Fig. 3. Two-hemisphere model of the application of pupil to the driving school.

For example, the fact that the Y axis (time axis in both diagrams) and semantic con-

ventions for process modeling that process can be performed when all incoming

information flows are generated from their execution processes. Author assumes

that process “form list of teachers” and “form list of instructors” with all their

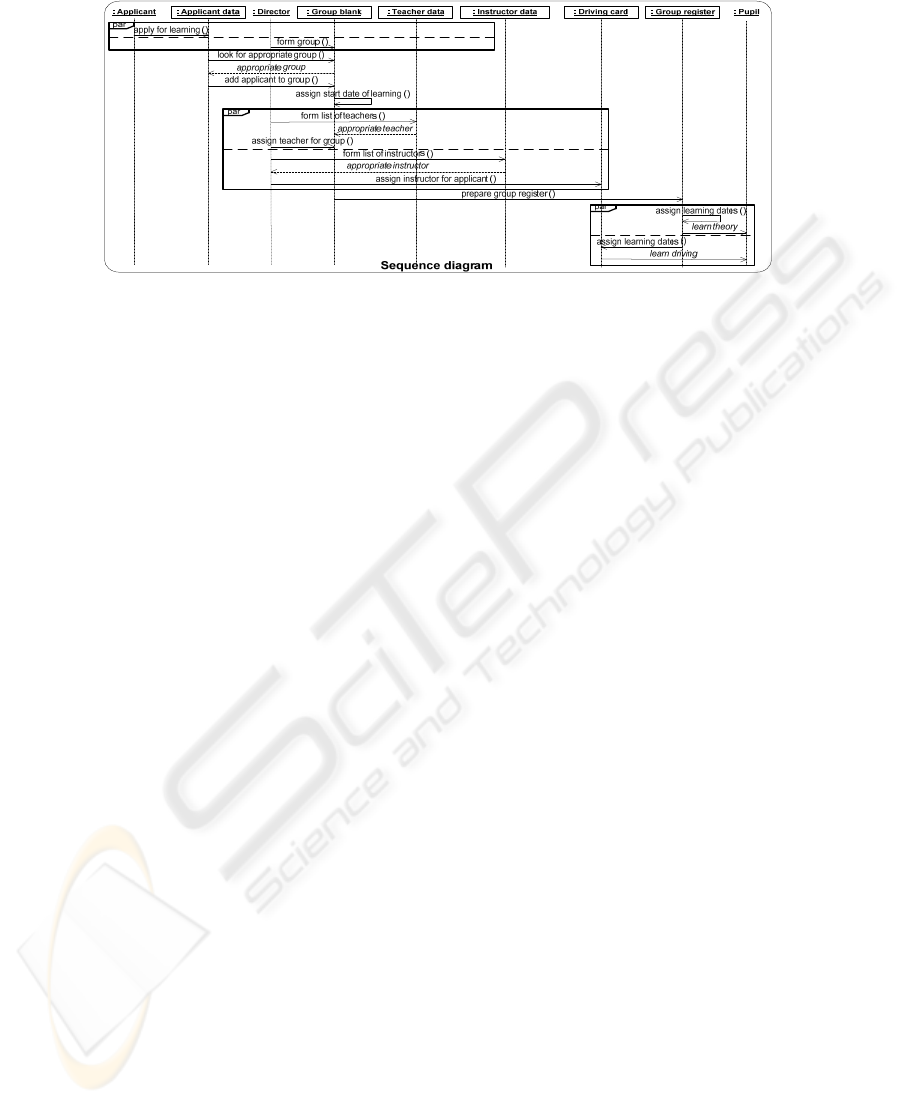

Fig. 4. The corresponding UML sequence diagram.

successors, which are two parallel fragments in process model, seem to be disjunctive

fragments in the resulting UML sequence diagram.

Therefore, the corresponding sequence of message sending is taken into parallel

interaction frame. In addition, the diagram starts with two messages sent at the same

time. However, system requires that both processes have to be completed before the

process “look for appropriate group” should start. For now, the interaction frame for

parallel messages is arranged for both messages to be sent, but this states a set of

possible directions for future research on application of two-hemisphere model for

object-oriented modeling of the system in UML.

One more interesting fragment of object interaction is the process “assign learning

dates.” The fact that the process has two outgoing information flows, which are de-

fined as ones of different data type, lets author to assume that control message “assign

learning dates” should be sent to both objects—“group register” and driving card.” In

this example, this assumption is proved also for several more sophisticated real world

examples, where all the analogical fragments give the same result.

5 Conclusions

The purpose of a model-driven approach is to structure the modeling process, provid-

ing the base of research directions, which explain how to consider general models, as

well as to relate them with a more specific information about platforms, performance

and so on. Two-hemisphere approach is already successfully applied for encapsula-

tion of attributes and methods into system classes, as well as the definition of rela-

tionships between classes. The ideas presented in this paper are a step forward of the

author’s investigations in the application of two-hemisphere model for software sys-

tem development in object-oriented manner and the generation of different elements

of system model viewing the system from different aspect.

Thus, the contribution of the paper can be summarized as follows. First, author in-

vestigates the process of object-oriented system analysis and defines commonly used

transitions among UML diagrams and its elements, which summarizes different ap-

proach for modeling of problem domain in object-oriented manner.

The main achievement of the research is that two-hemisphere model is examined

on the ability to be used for definition not only for structural elements of developed

system, but also as a base for definition of system behavior. This is due to two-

hemisphere model originally contains both aspect of problem domain definition, and

an effort to define behavioral elements of UML diagrams is an evolutionary step

forward in complete usage of elements of two-hemisphere model for software system

definition.

And additionally, as far as two-hemisphere model driven approach introduces

another (additional) modeling step between system specification and software devel-

opment, the question is whether the benefits of formal transformation prevail or not.

But modeling of business processes and preliminary data structure is not new strategy

for requirement analysis and companies are common with business process modeling

techniques or at least they employ particular business process description frame-

works. This fact and existence of many commercial business modeling tools (such as

ARIS, IBM products, Sparx Software Architect, etc.) and their open source analogues

are a strong motivation to base software development on the business process model

rather than on any other soft or hard models. Therefore, the formal transformation of

two-hemisphere model into UML diagrams shall step in and try to acquire software

requirements.

A tool for generation of class diagram from two-hemisphere model is developed

and presented in [7]. The refinement of the tool with an ability to define elements of

object interaction in the form suitable for UML diagramming tools can be defined as

a step for author’s future research.

Acknowledgements

The research reflected in the paper partly is supported by Grant of Latvian Council of

Science No. 09.1269 “Methods and Models Based on Distributed Artificial Intelli-

gence and Web Technologies for Development of Intelligent Applied Software and

Computer System Architecture.” The research reflected in the paper partly is sup-

ported by Riga Technical University in cooperation with Microsoft under the project

No. FLPP-2010/20 “Research of Principles of Model Driven Architecture in Software

Development Tools.”

References

1. MDA Guide Version 1.0.1 – http://www.omg.org/docs/omg/03-05-01.pdf, 2003, achieved

September 2009

2. Siegel, J.: Developing in OMG’s Model-Driven Architecture. OMG document omg/01-12-

01. (2001) http://www.omg.org/mda/papers.htm

3. Satzinger, J., W., Jackson, R., B., Burd, S., D.: Object-Oriented Analysis and Design with

the Unified Process. Thomson Course Technology (2005)

4. OMG, Unified Modeling Language: Superstructure, v. 2.2 – http://www.omg.org/spec/

UML/2.2/Superstructure/, achieved September 2009

5. Nikiforova, O.: General Framework for Object-Oriented Software Development Process.

Scientific Proceedings of Riga Technical University. Series–Computer Science, Applied

Computer Systems, 13 vol., RTU Riga (2002) 132–144

6. Nikiforova, O., Kirikova, M.: Two-Hemisphere Model Driven Approach: Engineering

Based Software Development. In: 16th International Conference Advanced Information

Systems Engineering. Persson A., Stirna J. (Eds.), LNCS 3084, Springer (2004) 219–233

7. Nikiforova, O., Pavlova, N., Grigorjev, J.: Several Facilities of Class Diagram Generation

from Two-Hemisphere Model. In: 23rd International Symposium on Computer and Infor-

mation Sciences, IEEE Xplore (2008) 1–6

8. Nikiforova, O.: Two Hemisphere Model Driven Approach for Generation of UML Class

Diagram in the Context of MDA . In Huzar, Z., Madeyski, L. (eds.) e-Informatica Software

Engineering Journal, Vol. 3, Issue 1, Wrocław University of Technology, Oficyna Wy-

dawnicza Politechniki Wrocławskiej, Wrocław, Poland (2009) 59–72

9. Nikiforova, O.: System Modeling in UML with Two-Hemisphere Model Driven Approach,

In: Scientific Journal of Riga Technical University, 5

Series – Computer Science, Applied

Computer Systems, RTU (2010)

10. Pastor, O., Molina J., C.: Model-Driven Architecture in Practice: A Software Production

Environment Based on Conceptual Modeling, Springer (2007)

11. Sibertin-Blanc, C. Hameurlain, N., Tahir, O.: Ambiguity and structural properties of basic

sequence diagrams. In: Innovations System Software Engineering, Springer (2008) 275–284

12. Sibertin-Blanc, C., Tahir, O., Cardoso, J.: Interpretation of UML sequence diagrams as

causality flows. Advanced distributed systems, 5th international school and symposium

(ISSAD). Lecture Notes in Computer Science, Vol. 3563. Springer (2005) 126–140

13. Alur, R., Etessami, K., Yannakakis, M. Inference of message sequence charts. Proceedings

of the 22nd international conference on software engineering. ACM Press (2000) 304–313

14. Uchitel, S., Kramer, J., Magee, J.: Detecting implied scenarios in message sequence chart

specifications. Proceedings of the 9th European software engineering conference and 9

ACM SIGSOFT international symposium on the foundations of software engineering

(ESEC/FSE’01). ACM New York (2001) 74–82

15. Aredo, B.D.: A framework for semantics of UML sequence diagrams in PVS. J Univers

Comput Sci (JUCS). – 8(7) (2002) 674–697

16. Rumbaugh, J., Blaha, M., Premerlani, W., Eddy F., Lorensen W.: Object Oriented Model-

ing and Design. Englewood Cliffs, Prentice-Hall New Jersey (1991)

17. Jacobson, I.: Object Oriented Software Engineering: A Use-case Driven Approach. Addi-

son-Wesley Professional (1992)

18. Jacobson, I., Booch, G., Rumbaugh, J.: The Unified Software Development Process. Addi-

son-Wesley (2002)

19. Larman, C.: Applying UML and Patterns: An Introduction to Object-Oriented Analysis and

Design. Prentice Hall New Jersey, 3rd edn (2005)

20. Dobing, B., Parsons, J.: Dimensions of UML Diagram Use: A Survey of Practitioners, IGI

Global (2008)

21. Havey, M.: Essential Business Process Modeling. O'Reilly Media (2005)

22. Jeston, J., Nelis, J.: Business Process Management. 2nd edition: Practical Guidelines to

Successful Implementations, Butterworth-Heinemann (2008)

23. Toby, J., Teorey, S., S., Lightstone, T. N., Jagadish H.,V.: Database Modeling and Design:

Logical Design, 4th Edition. In: The Morgan Kaufmann Series in Data Management

Systems, Morgan Kaufmann (2005)

24. Chen, P.: The entity relationship model – towards a unified view of data. ACM Trans.

Database Systems, 1 (1976) 9–36

25. Nikiforova, O., Pavlova, N.: Foundations on Generation of Relationships Between Classes

Based on Initial Business Knowledge. In: 17th International Conference on Information

Systems Development, Springer-Verlag, New York (2008) 289-297
