A PROCESS-DRIVEN METHODOLOGY FOR MODELING

SERVICE-ORIENTED COMPLEX INFORMATION SYSTEMS

Alfredo Cuzzocrea

, Alessandra De Luca

and Salvatore Iiritano

ICAR-CNR and University of Calabria, Calabria, Italy

Exeura Srl, Rende, Italy

Keywords: Service-Oriented Information Systems, Information Systems Design Methodologies.

Abstract: This paper extends state-of-the-art design methodologies for classical information systems by introducing

an innovative methodology for designing service-oriented information systems. Service-oriented

information systems can be viewed as information systems adhering to the novel service-oriented paradigm,

to which a plethora of novel technologies, such as Web Services, Grid Services and Cloud Computing,

currently marry. On the other hand, actual state-of-the-art literature encloses few papers that focus the

attention on this yet-interesting research challenge. With the aim of fulfilling this gap, in this paper we

provide a process-driven methodology for modeling service-oriented complex information systems, and we

prove its effectiveness and reliability on a comprehensive case study represented by a real-life research

project.

1 INTRODUCTION

While a lot of research has been done in the context

of design methodologies for classical information

systems (a significant excerpt of them is provided in

Section 2), the issue of design effective and reliable

methodologies for modeling service-oriented

information systems, which, without loss of

generality, can be viewed as information systems

adhering to the novel service-oriented paradigm

(Papazoglou & van den Heuvel, 2006; Papazoglou

& van den Heuvel, 2007), is still a big research

challenge. This is mainly due to the explosion of

novel service-oriented technologies such as Web

Services, Grid Services, Cloud Computing, and so

forth.

Starting from this critical evidence, in this paper

we propose an innovative methodology for modeling

service-oriented information systems, which

introduces several points of research innovation with

respect to the state-of-the-art literature.

Our proposal falls in the context of activity-

based methodologies, since it deeply leverages on

the concept of process, and mostly focuses the

attention on modeling activities to be performed

within the scope of a given process, according to a

hierarchical abstract decomposition. In more detail,

our proposed methodology consists of the four

following hierarchical design phases meaning that

each phase f

is used as a basis for the subsequent

phase f

i+1

in the terms that phase f

produces in

output a formal model that acts as input for phase

i+1

• Analysis of Requirements, which produces in

output a BusinessModel model;

• Conceptual Design, which originates a

ProjectModel model;

• Logical Design, which produces in output an

ImplementationModel model;

• Services Design, which originates a

ServiceModel model.

Interactions among the various phases of the

proposed methodology follow a feedback-waterfall

methodology (Royce, 1970) characterized by

incremental and iterative procedures in which, at the

end of each phase, all model instances originated by

the previous phase are updated on the basis of the

modeling of the actual phase.

The paper is organized as follows. In Section 2,

we focus the attention on previous efforts which

constitute the active literature for our research.

Section 3 illustrates the Analysis of Requirement

phase, and the BusinessModel model. In Section 4,

the Conceptual Design phase is described, along

with the ProjectModel model. Section 5 focuses the

390

Cuzzocrea A., De Luca A. and Iiritano S. (2010).

A PROCESS-DRIVEN METHODOLOGY FOR MODELING SERVICE-ORIENTED COMPLEX INFORMATION SYSTEMS.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

390-398

DOI: 10.5220/0003020603900398

 SciTePress

attention on the Logical Design phase, and also

provides the description of the

ImplementationModel model. In Section 6, the

Services Design phase is illustrated, along with the

ServiceModel model. Finally, in Section 7 we

derive conclusions of our research, and draw

directions for further efforts in this scientific field.

2 RELATED WORK

Two main literature contexts are relevant for our

research. The first one concerns with design

methodologies for classical information systems

developed in the context of DBMS’ first research

experiences. The second one instead concerns with

innovative methodologies for service-oriented

information systems, which are more and more

attracting the attention from a large community of

researchers, mainly as a direct effect of novel

service-oriented technologies (Papazoglou & van

den Heuvel, 2006; Papazoglou & van den Heuvel,

2007) such as Web Services, Grid Services, Cloud

Computing, and so forth.

We first focus the attention on design

methodologies for classical information systems.

The mutual relationship among business processes

and information systems has been firstly studied in

the early 90’s by the pioneer paper (Davenport &

Short, 1990), which puts in evidence how (i)

business processes have a strong influence on both

the final structure and functionalities of information

systems, and, in turn, (ii) the design of specific

business processes strongly depends on the internal

organization of the target information system itself.

Since then, a plethora of process-based

information system design methodologies have

appeared in literature, and some interesting

applications of them have been proposed as well.

Among the most promising ones, we recall: (i)

integration of process-oriented modeling

methodologies and Data Warehouses (zur Muehlen,

2001), (ii) business processes simulation oriented to

precisely capture information systems requirements

(Serrano, 2003), (iii) process-driven modeling in the

context of e-learning systems (Kim et al., 2005).

Based on this strong mutual interconnection

between business processes and information

systems, (Grover et al., 1994; van Meel et al., 1994)

suggest that achieving a total synergy between

design of business processes and development of

information systems should be a goal for every

business organization.

Nevertheless, (Earl, 1994) notices that, in real-

-life organizations, business analysts and

information system engineers have very often

distinct roles, make use of different tools, techniques

and terminologies. Obviously, this dichotomy

between business analysts and information system

engineers makes the goal of integrating business

processes and information systems far from being

reached. On the other hand, (MacArthur et al., 1994)

points out that it is very difficult to predict mutual

consequences occurring in business organizations

and information systems, and hence re-engineering

becomes critical.

As regards relationships among available design

approaches, (Giaglis, 2001) proposes a taxonomy of

business processes and information systems

modeling techniques, by also highlighting

similarities and differences among state-of-the-art

alternatives. Furthermore, (Giaglis, 2001) analyzes

and systematizes the following perspectives that any

information system should support: (i) functional

perspectives, (ii) behavioral perspectives, (iii)

organizational perspectives, and (iv) informational

perspectives.

With respect to modeling languages,

(Vasconcelos et al., 2001) presents an UML-based

framework for modeling strategies, business

processes and information systems, and proposes the

adoption of a multi-level approach during the

modeling phase. Likewise, (Castela et al., 2001;

Neves et al., 2001) propose the usage of UML for

capturing several aspects of information systems

design. Following this trend, (Cuzzocrea et al.,

2008) proposes a process-driven methodology for

continuous information systems modeling, which

makes use of process mining techniques (e.g.,

(Greco et al., 2005)) to improve the feedback design

phases of the methodology.

As regards design methodologies for service-

oriented information systems, few papers in the

active literature investigate this yet-interesting

research challenge. (Chung et al., 2007) first

discusses principles of service-oriented information

systems re-engineering, and proposes the integration

of a classical business process engine for the

execution of composite services together with pre-

existing database applications in order to raise

traditional legacy systems towards modern service-

oriented information systems. (Arni-Bloch & Ralyté,

2008) focuses instead the attention on service-

oriented information systems engineering, and

proposes a situation-driven approach according to

which an information system is viewed as a

collection of service-shaped inter-related method

chunks, and an innovative integration strategy is

A PROCESS-DRIVEN METHODOLOGY FOR MODELING SERVICE-ORIENTED COMPLEX INFORMATION

SYSTEMS

391

proposed to achieve the comprehensive service-

oriented information system. Finally, (Herold et al.,

2008) studies the suitability of Model-Driven

Development (MDD) paradigms to the issue of

supporting the construction of service-oriented

distributed enterprise information systems via

directly deriving the design of software components

from the underlying business processes of the target

enterprise.

3 ANALYSIS OF

REQUIREMENTS

Analysis of Requirements is characterized by three

main (sub-)activities: (i) identification of actors, i.e.

the entities of the external world which interact with

the information system; (ii) modeling of the

information managed by the organization in form of

archives (i.e., data/information sources); (iii)

modeling of processes of the target organization to

be captured and implemented by the information

system.

Data, information and knowledge collected

during the Analysis of Requirements phase (e.g., by

means of interviews) are formally modeled by a

BusinessModel model. Each BusinessModel

model consists of the following three models (see

Figure 1): (i) BusinessActorSchema model, (ii)

ArchiveSchema model, and (iii) ProcessSchema

models. These models are then instantiated as three

corresponding schemas that aim at representing,

according to logically-separated areas, concepts

characterizing the initial design phase of the

information system, with respect to actors, archives

and processes, respectively. In more detail, a

BusinessActorSchema model represents actors of

the system along with their hierarchical relations

(e.g., Manager ← Employee). An ArchiveSchema

model contains archives representing data and

information sources of the information system (e.g.,

Invoices, Sales). A ProcessSchema model

represents information related to the processes of the

information system (e.g., Invoicing, Hiring). In

particular, a ProcessSchema model is exploited to

describe interdependence relations among

processes, thus modeling the value chain of the

enterprise being modeled.

During the design of processes, the natural

decomposition of processes into sub-processes and,

recursively, activities must be mandatorily taken into

account, as well as for the associations among

processes/sub-process/activities and the involved

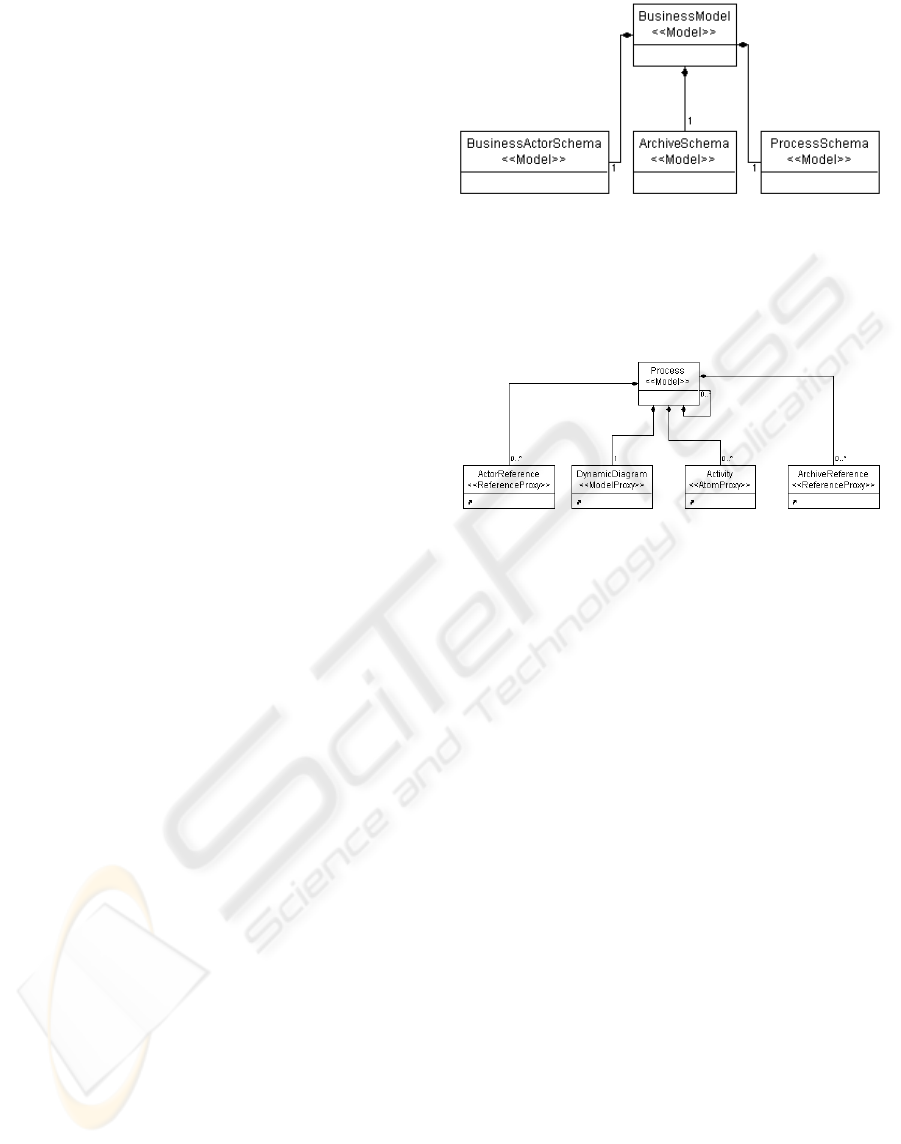

Figure 1: Meta-Model of the model BusinessModel.

actors and archives. Both process hierarchical

organization and associations with actors/archives

are modeled by the meta-model of the model

Process depicted in Figure 2.

Figure 2: Meta-Model of the model Process.

In particular, as illustrated in Figure 2, a Process

model represents the static structure of a process,

consisting of the following components: (i)

processes and sub-processes (a sub-process is a

process itself), modeled by the Process model,

which represent main functionalities/procedures of

the target organization; (ii) atomic activities,

modeled by the Activity class, which are atomic

entities describing elementary operations which are

conceptually no further decomposable into simpler

operations (i.e., activities do not have a proper

structure); (iii) associations to actors, modeled by

the ActorReference class pointing to the

BusinessActorSchema model previously-defined;

(iv) associations to archives, modeled by the

ArchiveReference class pointing to the

ArchiveSchema model previously-defined; (v) a

dynamic diagram, captured by the

DynamicDiagram model, which enable us to model

dynamic aspects of processes, thus the activity flow

of the information system, along with pre-conditions

and post-conditions useful to connote and make

richer the overall dynamicity of the information

system.

In particular, a DynamicDiagram model allows us

to model dynamic aspects of those processes

composed by multiple activities. Therefore,

activities, modeled by the Activity class, are also

basic components of dynamic diagrams, like for

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

392

processes, but with the difference that a

DynamicDiagram model focuses on dynamic

aspects of the information system, whereas a

Process model focuses on static aspects of the

information system. In a DynamicDiagram model,

each Activity class is labeled by a label indicating

the action to be performed by the activity itself.

Furthermore, an Activity class can be labeled as

Start Activity (respectively, Final Activity),

representing a starting (respectively, final) activity

of a process. A DynamicDiagram model may also

include so-called conditional branches, which are

instances of the class Branch. Conditional branches

allow us to specify alternative flows of execution of

the process, which are activated based on the

Boolean value of pre-defined conditions.

Conditional branches are graphically represented by

a diamond having a single input transition, denoted

by T

, and two or more output transitions, denoted

out

, such that i ∈ {0, 1, …, n}. Each output

transition

out

is associated with a branching

condition, denoted by Cond(

out

). Branching

conditions are required to be mutually exclusive,

which imposes that only one condition at a time can

be satisfied. More formally, output transitions

out

are required to satisfy both the following equalities:

(i)

1)( =∨

out

TCond

and (ii)

1)( =⊕

out

TCond

, such that symbols

∨

and

⊕

denote the logical OR and XOR operators,

respectively. Semantics associated with the branch

component is as follows. Conditions associated to

output transitions are evaluated upon the activation

of the input transition, and, among all the possible

(n) ones, only the singleton output transition having

the Boolean condition equal to TRUE is activated.

Likewise, it is possible to compose multiple

transitions to capture more complex (logical)

conditions by means of a Merge class. A

DynamicDiagram model may also include parallel

executions of transitions. This of course requires

somewhat synchronization. To this end, we make

use of the construct Fork and Join. Fork has a

singleton input transition and two or more output

transitions. Fork’s semantics is as follows: as soon

as the input transition is activated, all the output

transitions are started in parallel. Conversely, Join

has two or more input transitions and one (singleton)

output transition

, which is activated when all the

input transitions are activated.

4 CONCEPTUAL DESIGN

As highlighted in Section 1, the Conceptual Design

phase produces in output the ProjectModel model.

In turn, a ProjectModel model consists of the

following four models (see Figure 3): (i)

ProjectActorSchema model, (ii) DataSchema

model, (iii) ViewSchema model, and (iv)

FunctionSchema model. Similarly to the

hierarchical organization of the BusinessModel

model (see Section 3), each of these models are then

instantiated as four corresponding schemas that aim

at representing, according to logically-separated

areas, concepts characterizing the second design

phase of the information system.

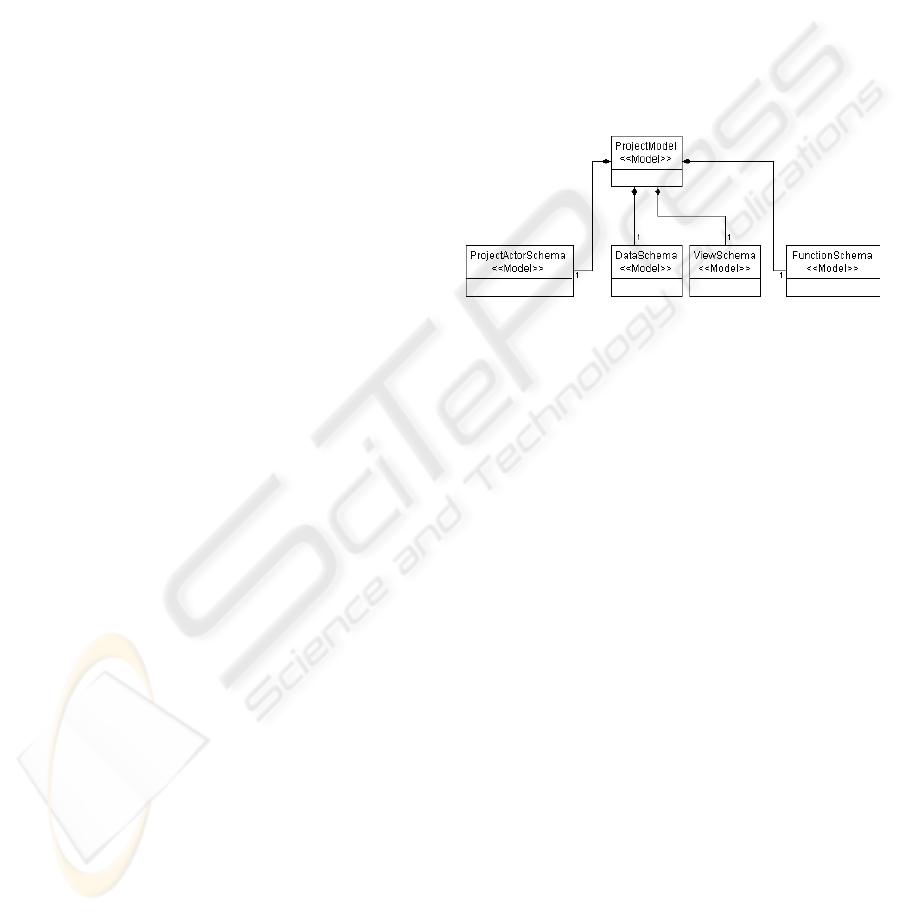

Figure 3: Meta-Model of the model ProjectModel.

Let us now focus on each of the (sub-)models of the

ProjectModel model. A ProjectActorSchema

model represents so-called active actors of the

information system, i.e. those actors that interact

with the information system effectively, along with

their hierarchical relations. A DataSchema model

captures conceptual representations of data sources

handled by the information system. These

conceptual representations are similar to well-known

ER models from DBMS technology. In every

conceptual representation of data sources further

levels of abstraction are necessary. This in order to

cope with the different views over the data sources

themselves used by different

functionalities/procedures of the information system.

These views are captured by the ViewSchema

model, which comprises a set of View classes, each

one being a projection over the whole data source

targeted to support a specific functionality/procedure

of the information system. A FunctionSchema

model describes functions and dependencies among

functions by means of an approach similar to the one

used to model processes (see Section 3). The meta-

model of the model FunctionSchema is shown in

Figure 4.

A FunctionSchema model comprises the

components Function and FunctionDependency.

Function is a model that describes information

A PROCESS-DRIVEN METHODOLOGY FOR MODELING SERVICE-ORIENTED COMPLEX INFORMATION

SYSTEMS

393

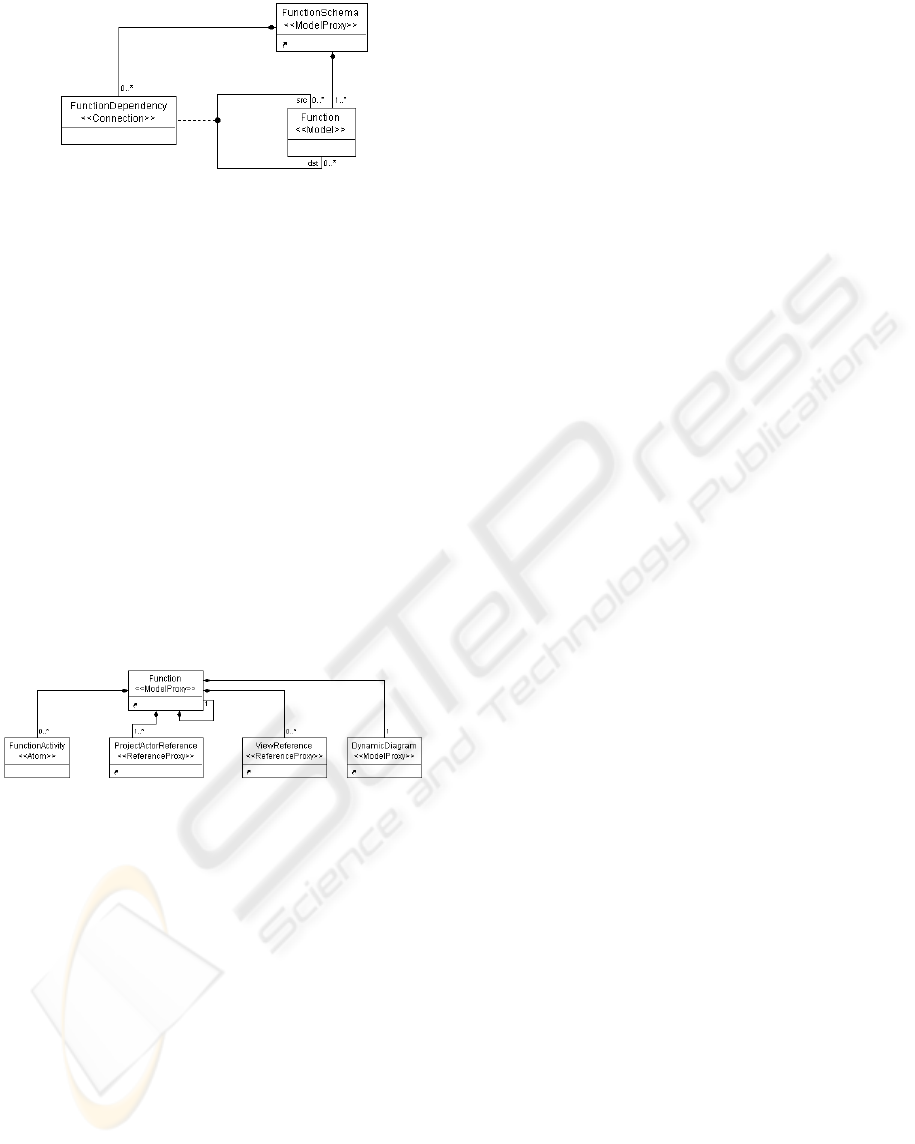

Figure 4: Meta-Model of the model FunctionSchema.

system functionalities/procedures by means of a

hierarchical composition of sub-functions and

elementary functions, just like processes are

organized into sub-processes and atomic activities

(see Section 3). FunctionDependency is a class

that models dependencies among sub-functions and

elementary functions, respectively, such as pre-

conditions to alternative executions. For the sake of

explanation, a FunctionDependency class is able

to formally express conditions in the form of:

“before function F

is executed, function F

must

have completed”.

Analogously to what happens with processes (see

Section 3), the static description of a function is

modeled by the meta-model of the model Function

depicted in Figure 5, which allows us to capture the

associations of a function with components needed

during its execution.

Figure 5: Meta-Model of the model Function.

In particular, as illustrated in Figure 5, a Function

model consists of the following components: (i)

functions and sub-functions (a sub-function is a

function itself), modeled by the Function model,

which represent functionalities/procedures of the

information system; (ii) elementary functions,

modeled by the FunctionActivity class, which are

atomic entities describing elementary procedures

implemented by the information system (e.g.,

accessing a database); (iii) associations to actors,

modeled by the ProjectActorReference class

pointing to the ProjectActorSchema model

previously-defined; (iv) associations to views,

modeled by the ViewReference class pointing to

the ViewSchema model previously-defined; (v) a

dynamic diagram, captured by the

DynamcDiagram model, which enables us to

model the dynamic behavior of functions, similarly

to what happens in modeling dynamic aspects of

processes (see Section 3).

Constructing a ProjectModel model is an

incremental and iterative task that comprises several

well-separated steps. The first step consists of a raw

modeling of views. In the second step, the global

ProjectModel model is sketched, based on views of

the previous step. On the basis of the global

ProjectModel model so far obtained, the first step is

re-executed iteratively until a refined modeling of

views is achieved. At this point, a refined definition

of the global ProjectModel model can be obtained

based on the refined definition of views, and so

forth, in a feedback-like manner. This (sub-)task is

iterated until a sufficient degree of detail in the

definition of the global ProjectModel model is

achieved. It is worth to remark that the task of

modeling a ProjectModel model is intrinsically

non-deterministic, and a gap between the

BusinessModel model and the ProjectModel

model exists. This gap must be filled by means of

best modeling practices, project experiences,

technological know-how and engineering

methodologies.

5 LOGICAL DESIGN

As illustrated in Section 1, the Logical Design phase

of our proposed methodology produces in output the

ImplementationModel model, which consists of the

following five models (see Figure 6): (i)

RelationalSchema model, (ii) ControlSchema

model, (iii) InterfaceSchema model, (iv)

ComponentSchema model, and (v)

ArchitectureSchema model.

Similarly to what happens with BusinessModel and

ProjectModel models, each model in the

ImplementationModel model is then instantiated

by means of a corresponding schema which aims at

representing, according to logically-separated areas,

concepts characterizing the third design phase of the

information system.

In the remaining part of this Section, we provide an

in-depth explanation of each model characterizing

the meta-model of the ImplementationModel

model. A RelationalSchema model contains

elements necessary to describe the structure of the

relational database underlying the information

system being modeled. Such a model is designed on

the basis of the DataSchema model defined in the

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

394

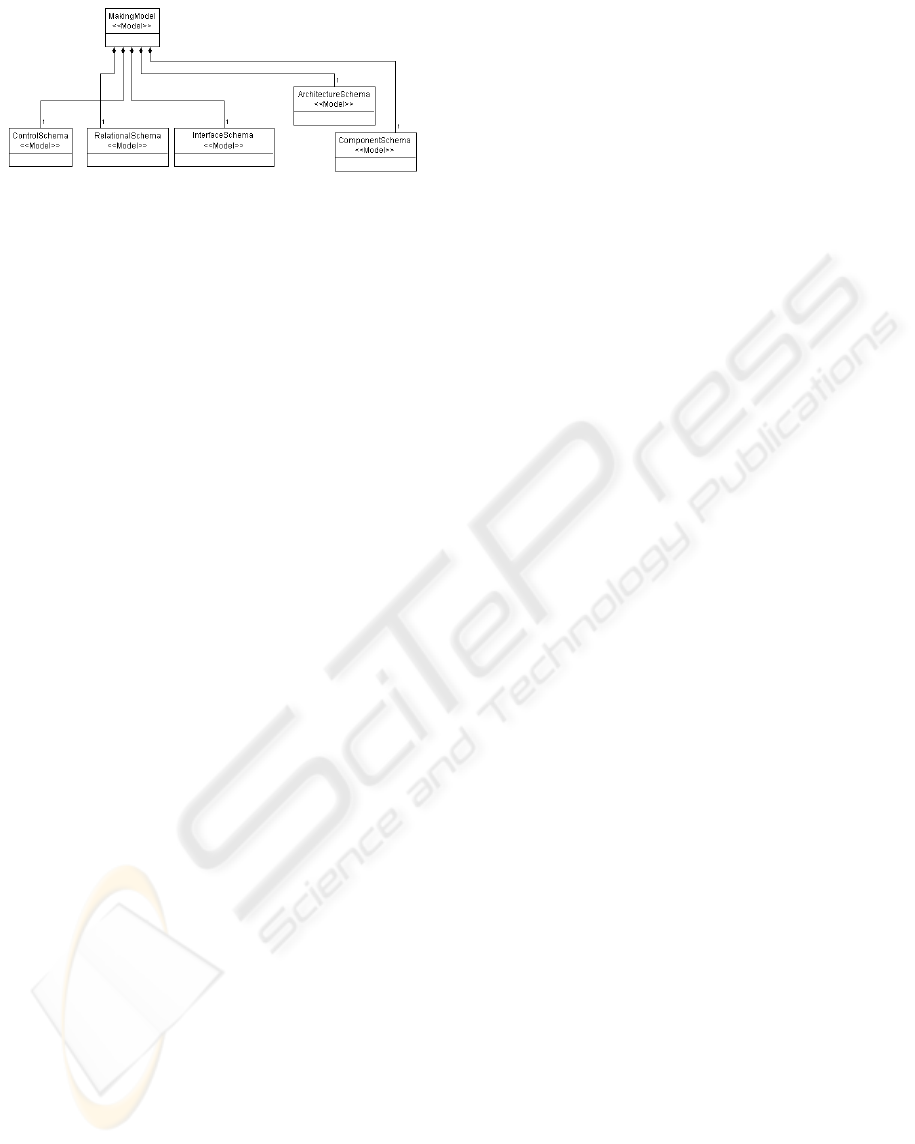

Figure 6: Meta-Model of the model

ImplementationModel.

ProjectModel model. In this modeling phase, for

each entity previously-defined in the DataSchema

model a relational table with the same name is

created in the RelationalSchema model Tables

created in this phase are characterized by the

presence of some additional and more-detailed

information than the corresponding entities defined

in the DataSchema model, such as type and range

of values of attributes, referential constraints, and so

forth. In addition to this, relations among tables and

constraints over such relations, like cardinality and

foreign-key constraints, are modeled as well.

A ControlSchema model is used to design a

middleware layer between the user interface layer

and the database layer, respectively, in order to

achieve a greater degree of independence among

(software) components of the information system

being modeled. A ControlSchema model describes

functionalities/procedures of the information system

that perform read/write operations on the data

sources defined in the RelationalSchema model.

Each function described in the ControlSchema

model is also linked to the table on which it executes

in the RelationalSchema model, by means of a

dependence relation. When functions operate on

multiple tables rather than only one, they may be

linked to a View class from the ViewSchema

model of the ProjectModel model.

An InterfaceSchema model defines the

structural requirements of the interface used by the

information system, and models the interactions

occurring between the interface layer and the control

layer, respectively. Forms, captured by the Form

class, are the main components of this modeling

phase. In our proposed methodology, a Form class

is modeled as an aggregation of Unit classes. A Unit

class represents a logical/physical portion of the

Form and can be one of the following (specialized)

classes: (i) DisplayUnit, (ii) EntryUnit, and (iii)

DataUnit class, respectively. A

DisplayUnit class is

intended to model static data, i.e. data that are not

retrieved by the underlying relational database, but,

instead, is simply inserted into the Form class as

static unmodifiable field, i.e. titles of menus,

descriptions of fields, and so forth. On the other

hand, EntryUnit instances capture input fields by

means of which users submit data, such as

parametric fields, query-aware dates, and so forth. A

DataUnit class models data extracted from the

underlying relational database that must be

displayed to the user. Typically, a DataUnit instance

is displayed on behalf of users throughout queries

submitted by means of EntryUnit instances.

In order to enrich the expressive power of the

InterfaceSchema model, Form instances can be

linked one another by means of the component Link,

with the goal of modeling possible interaction

scenarios. Instances of the Link class can be one of

the following specialized (sub-)classes: (i)

SimpleLink, or (ii) ParamLink class, respectively.

In more detail, a SimpleLink represents an oriented

link between two instances of Form class, whereas a

ParamLink models an oriented link where

somewhat information exchange between source

Form and destination Form needs to be performed.

As an example, the use of ParamLink makes it

possible to model the interaction scenario in which a

user submits a query to the information system by

means of the source Form instance, and then he/she

visualizes the query answer by means of the

destination Form instance.

Furthermore, in order to achieve a much modular

and cleaner representation, it is advisable to group

together all Form instances related to the same

logical area (or sub-area) into an Area model. Each

Area model can contain further Area instances

along with Form instances and other elements from

the ControlSchema model previously-defined, and

belonging to the same functional area. When

modeling Area instances, with a little abuse of

notation, a Link

instance can even occur between a

Form instance and an Area instance as well.

A ComponentSchema model describes a set of

software components along with their mutual

interdependency relations, thus giving a high level

view of the entire information system. Such an

abstraction allows the designer to: (i) model the

different layers of the information system; (ii) group

together several control elements previously-

defined; (iii) represent software objects located of

the information system, such as executable

programs, libraries, files, and so forth.

Finally, an ArchitectureSchema model is exploited

to model the hardware/software architecture of the

information system to be deployed. In particular, a

network-based architecture is very-often advocated,

so that a set of architecture nodes, captured by the

A PROCESS-DRIVEN METHODOLOGY FOR MODELING SERVICE-ORIENTED COMPLEX INFORMATION

SYSTEMS

395

class Node, are determined, and ad-hoc

interconnections/protocols among them are derived

accordingly. A Node class models an abstract

computational unit, usually being a hardware device.

In turn, each Node class may contain a number of

atomic elements captured by the class Component,

usually being software modules modeled in the

ControlSchema model.

6 SERVICES DESIGN

The fourth phase of our proposed methodology is

the Services Design phase, which produces in output

a ServiceModel model (see Section 1). This phase

is introduced in order to address the following two

issues: (i) make it possible to model

procedures/functionalities exposed by the

information system by exploiting the service-

oriented paradigm; at the same time, (ii) enable the

development of service-oriented applications

without affecting the models developed by means of

the three previous design phases of the proposed

methodology.

In particular, the aim of our proposal is to devise

a flexible information systems design methodology

capable of easily supporting the conversion of a

traditional information system into a service-

oriented one, thus adding a “service-oriented flavor”

to legacy information systems, and enabling an easy

transition from a traditional three-phase design

methodology to a four-phase one accordingly, where

the final product is represented by the

ServiceModel model.

The ServiceModel model produced as output by

the Services Design phase is structured on a

hierarchy comprising the following four models (see

Figure 7): (i) ServiceSchema model, which

describes functionalities exposed by the information

system in forms of services deployed in the context

of a service-oriented architecture; (ii)

ServiceDataSchema model, which represents data

sources on top of which the previous service-

oriented procedures/functionalities execute; (iii)

ServiceControlSchema model, which captures a

sub-set of hidden-to-the-user service-oriented

functions necessary to support the

procedures/functionalities exposed by the

information system; (iv) ServiceInterfaceSchema

model, which models user interfaces and their

interactions with service-oriented

procedures/functionalities defined in the

ServiceSchema model.

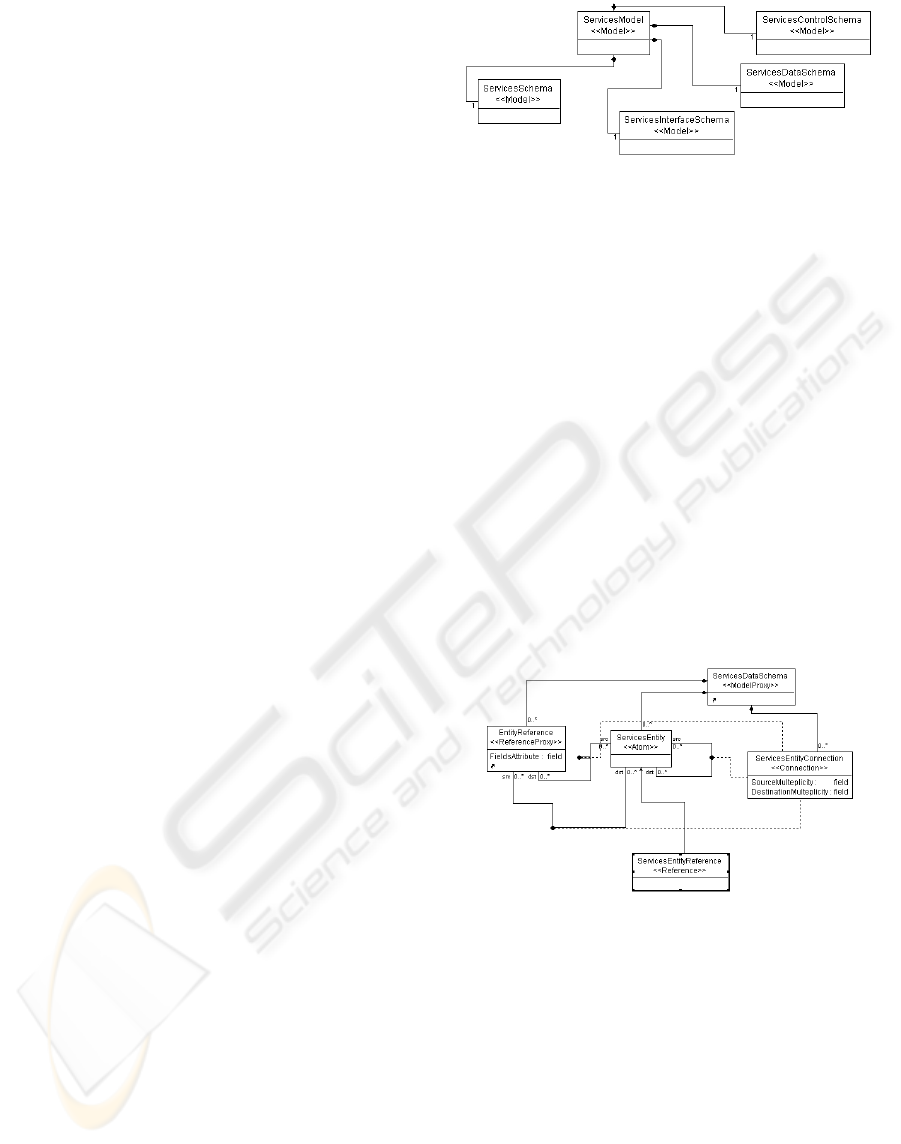

Figure 7: Meta-Model of the model ServiceModel.

In more detail, the ServiceDataSchema model

allows us to model data sources on which service-

oriented procedures/functionalities execute. As

illustrated in Figure 8, data sources modeled by the

ServiceDataSchema model fall into the following

broad categories. The first category comprises

references to relational tables modeled in the

RelationalSchema model of the

ImplementationModel model. This kind of data is

captured by means of the class EntityReference.

On the other hand, data belonging to the second

category models information/metadata necessary to

the proper service management and control, and are

modeled within the ServiceDataSchema model by

means of the class ServiceEntity. The class

ServiceEntityConnection is instead exploited to

create and manage logical references between

services and relational tables on top of which

services execute.

Figure 8: Meta-Model of the model

ServiceDataSchema.

The ServiceControlSchema model (see Figure 9)

is introduced to model baseline services necessary to

support the same service-oriented paradigm. This

component of the proposed methodology makes use

of well-known reference-based service deployment

and orchestration paradigms.

The ServiceSchema model allows us to model

procedures/functionalities exposed by the

information system in a service-oriented manner. As

shown in Figure 10, the ServiceSchema model is

composed by the following three models, each of

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

396

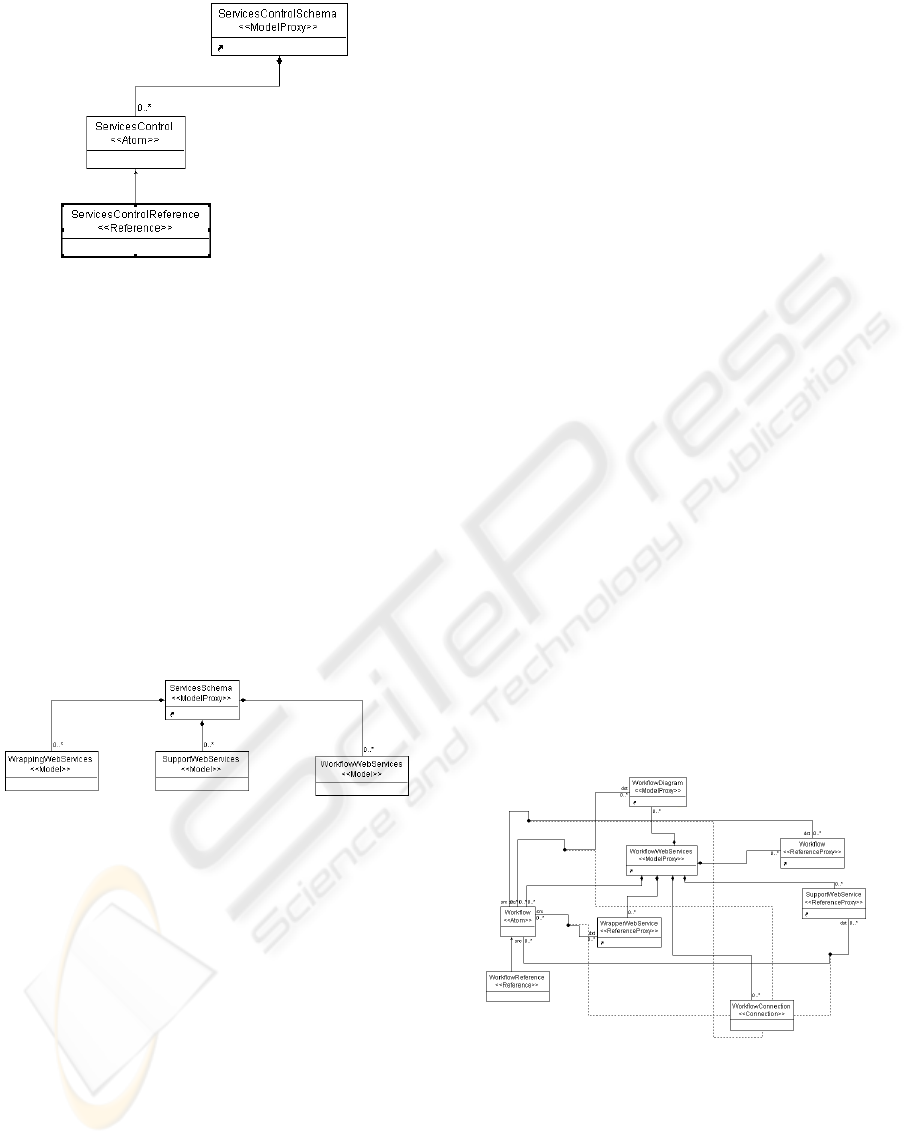

Figure 9: Meta-Model of the model

ServiceControlSchema.

them identifying a specific class of services: (i)

WrappingWebServices model, which models in a

service-oriented manner procedures/functionalities

previously defined as control components within the

ControlSchema model of the

ImplementationModel model; (ii)

SupportWebServices model, which models

services supporting the service-oriented architecture

itself; (iii) WorkflowWebServices model, which

enables us to model orchestration and coordination

primitives for particular kind of services such as

wrapper services and support services, based on the

formalism and the wide availability of constructs of

workflows (e.g., (Greco et al., 2005)).

Figure 10: Meta-Model of the model ServiceSchema.

Let us focus in great detail on all these kinds of

services captured by the design methodology we

propose, and modeled within the ServiceSchema

model. As mentioned before, Wrapping Web

Services represent the service-oriented

implementation of procedures/functionalities

exposed by the information system, via directly

looking at control components of the

ControlSchema model (which, in turn, is contained

by the ImplementationModel model). This

particular deployment mechanism imposes us to

define ad-hoc wrapping components with suitable

state-parameters and methods, beyond to implement

the corresponding control components in the

ImplementationModel model devoted to

effectively make the middleware between

procedures/functionalities of the information system

and its service-oriented realizations. Support Web

Services are needed to support the service-oriented

paradigm at run time. Similarly to the case of

Wrapping Web Services, designing Support Web

Services involves in designing ad-hoc support

(software) objects within the software infrastructure,

beyond to the corresponding control components

within the ImplementationModel model. Finally,

Workflow Web Services are the most critical services

in our proposed design methodology as they deal

with the issue of providing orchestration and

coordination primitives to both Wrapping Web

Services and Support Web Services, respectively.

The complete meta-model of the

WorkflowWebServices model is shown in Figure

11. Due to its inherent complexity and for space

reasons, we only provide a description of its

(interior) model that plays the major role, i.e. the

WorkflowDiagram model.

The WorkflowDiagram model focuses on the

modeling of orchestration and coordination

primitives over services implemented within the

information systems via well-consolidated workflow

formalisms. From this evidence, a clear hegemony

of the WorkflowDiagram model follows.

Finally, coming back to the description of

components of the ServiceModel model, the

ServiceInterfaceSchema model allows us to

capture and describe ad-hoc interfaces that are in

charge of supporting interactions between users and

services. In particular, this is achieved via the design

of suitable forms that directly build on the

workflows defined in the WorkflowDiagram model.

Figure 11: Meta-Model of the model

WorkflowWebServices.

7 CONCLUSIONS AND FUTURE

WORK

Starting from actual limitations of state-of-the-art

A PROCESS-DRIVEN METHODOLOGY FOR MODELING SERVICE-ORIENTED COMPLEX INFORMATION

SYSTEMS

397

service-oriented information systems design

methodologies in capturing both complexity and

new requirements dictated by the emerging service-

oriented paradigm, in this paper we have introduced

an innovative methodology for modeling service-

oriented information systems, which embeds several

points of research innovation with respect to the

active literature.

The essence of our proposal relies in a process-

driven modeling of the information system

functionalities/procedures, which are then enclosed

in ad-hoc routines exposed as services by the

reference architecture on top of which the target

information system is deployed. This strategy has

already demonstrated its effectiveness and reliability

in a number of real-life realizations of complex

service-oriented information systems.

Future work of our research is actually oriented

towards two different goals: (i) devising a complete

suite able to support all the design phases of service-

oriented information systems by also including

additional features such as monitoring and

continuous re-engineering of the at-work

information system; (ii) adding novel characteristics

to our methodology, such as the amenity of

automatically generating wrapper (software)

components for functionalities/procedures of the

information system from the business modeling

layer directly, and the amenity of embedding active

behaviors (like in the style of well-known ECA rules

of DBMS) across all the modeling phases of the

methodology.

REFERENCES

Arni-Bloch, N., and Ralyté, J., 2008. Service-Oriented

Information Systems Engineering: A Situation-Driven

Approach for Service Integration. In Proc. of the 20

CAiSE Int. Conf., pp. 140-143.

Castela, N., Tribolet, J.M., Silva, A., and Guerra, A.,

2001. Business Process Modeling with UML. In Proc.

of the 3

ICEIS Int. Conf., Vol. 2, pp. 679-685.

Chung, S., Byung Chul An, J., and Davalos, S., 2007.

Service-Oriented Software Reengineering: SoSR. In

Proc. of 40

IEEE HICSS Int. Conf., pp. 172-181.

Cuzzocrea, A., Gualtieri, A., and Saccà, D., 2008. A

Process-Driven Methodology for Continuous

Information Systems Modeling. In Proc. of the 10

ICEIS Int. Conf., Vol. 2, pp. 82-88.

Davenport, T. H., and Short, J. E., 1990. The New

Industrial Engineering: Information Technology and

Business Process Redesign. In Sloan Management

Review, Vol. 31, No. 4, pp. 11-27.

Earl, M. J., 1994. The New and the Old of Business

Process Redesign. In Journal of Strategic Information

Systems, Vol. 3, No. 1, pp. 5-22.

Giaglis, G.M., 2001. A Taxonomy of Business Process

Modeling and Information Systems Modeling

Techniques. In International Journal of Flexible

Manufacturing Systems, Vol. 13, No. 2, pp. 209-228.

Greco, G., Guzzo, A., Manco, G., and Saccà, D., 2005.

Mining and Reasoning on Workflows. In IEEE

Transactions on Knowledge and Data Engineering,

Vol. 17, No. 4, pp. 519-534.

Grover, V., Fielder, K.D., and Teng, J.T.C., 1994.

Exploring the Success of Information Technology

Enabled Business Process Reengineering. In IEEE

Transactions on Engineering Management, Vol. 41,

No. 3, pp. 276-284.

Herold, S., Rausch, A., Bösl, A., Ebell, J., Linsmeier, C.,

and Peters, D., 2008. A Seamless Modeling Approach

for Service-Oriented Information Systems. In Proc. of

IEEE ITNG Int. Conf., pp. 438-446.

Kim, K-H, Yoo, H.-J., and Kim, H.-S., 2005. A Process-

Driven E-Learning Content Organization Model. In

Proc. of 4

IEEE ACIS Int. Conf., pp. 328-333.

MacArthur, P.J., Crosslin, R.L, and Warren, J.R., 1994. A

Strategy for Evaluating Alternative Information

System Designs for Business Process Reengineering.

In International Journal of Information Management,

Vol. 14, No. 4, pp. 237-251.

van Meel, J.W., Bots, P.W.G., and Sol, H.G., 1994.

Towards a Research Framework for Business

Engineering. In IFIP Transactions A: Computer

Science and Technology, Vol. 54, pp. 581-592.

zur Muehlen, M., 2001. Process-Driven Management

Information Systems - Combining Data Warehouses

and Workflow Technology. In Proc. of the 4

ICECR-

4 Int. Conf., pp. 550-566.

Neves, J., Vasconcelos, A., Caetano, A., Sinogas, P.,

Mendes, R., and Tribolet, J.M., 2001. Unified

Resource Modelling: Integrating Knowledge into

Business Processes. In Proc. of the 3

ICEIS Int.

Conf., Vol. 2, pp. 898-904.

Papazoglou, M.P., and van den Heuvel, W.-J., 2006.

Service-Oriented Design and Development

Methodology. In International Journal of Web Engi-

neering and Technology, Vol. 2, No. 4, pp. 412-442.

Papazoglou, M.P., and van den Heuvel, W.-J., 2007.

Service Oriented Architectures: Approaches,

Technologies and Research Issues. In VLDB Journal,

Vol. 16, No. 3, pp. 389-415.

Royce, W.W., 1970. Managing the Development of Large

Software Systems. In Proc. of the 1970 IEEE

WESCON Int. Conf., pp. 1-9.

Serrano, A. 2003. Capturing Information System’s

Requirement Using Business Process Simulation. In

Proc. of the 15

ESS Int. Conf.

Vasconcelos, A., Caetano, A., Neves, J., Sinogas, P.,

Mendes, R., and Tribolet, J. M., 2001. A Framework

for Modeling Strategy, Business Processes and

Information Systems. In Proc. of the 5

IEEE EDOC

Int. Conf., pp. 69-80.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

398
