COMMON SERVICES FRAMEWORK

An Application Development Framework

Jeanette Bruno, Michael Kinstrey and Louis Hoebel

Computing and Decision Sciences GE Global Research, Niskayuna, NY, U.S.A.

Keywords: Frameworks, Architecture, Design patterns.

Abstract: The Common Services Framework (CSF) is developed by GE’s Global Research Center (GRC) as a design

pattern and framework for application development. The CSF is comprised of a set of service-oriented

API’s and components that implement the design pattern. GE GRC supports a wide diversity of R&D for

GE and external customers. The motivation was for a reusable, extensible, domain and implementation

agnostic framework that could be applied across various research projects and production applications. The

CSF has been developed for use in finance, diagnostics, logistics and healthcare. The design pattern is an

extension of the Model-View-Controller pattern and the reference implementation is in Java.

1 INTRODUCTION

Developed at GE’s Global Research Center (GRC),

the Common Services Framework (CSF) is a design

pattern and framework for application development.

The CSF is comprised of a set of service-oriented

framework API’s and components that implement

the design pattern. GE GRC supports a wide

diversity of R&D for GE and external customers.

The motivation is for a reusable, extensible, domain

and implementation agnostic framework that could

be applied across the research projects and

production applications. The CSF has been

developed for use in finance, diagnostics, logistics

and healthcare.

The CSF emerged from the desire to stop

“reinventing the wheel” with every new software

application. Most software projects start by “lifting”

ideas, patterns, and functionality from past projects.

Since most project teams consist of a new and

sometimes changing group of people, the influx of

differing experience needs to be merged and

organized for each new project. New projects tend

towards unique, if somewhat similar, designs where

the uniqueness of the design does not typically

improve the product. The unique features often

detract from the design since they make the lifecycle

maintenance more expensive, either in terms of

integration with other projects or extensible in its

own right.

The key motivations for the Common Services

Framework are reuse, interoperability and design for

maintainability. By reuse we mean the use of

existing software or software knowledge, to build

new software applications and systems. Although

many software development projects reuse concepts

and code from previous projects it is usually done ad

hoc. The existing designs and software code cannot

be “lifted systematically” nor can new contributions

be made back to the original code base in a

structured way. Frameworks such as Java’s Spring

[http://www.springsource.org] and Hibernate

[https://www.hibernate.org] promote more organized

reuse in the functional areas they cover, but software

applications cover a wider range of functionality

beyond the focus of these frameworks.

Designing software systems to withstand the

inevitable changes is a constant challenge.

Development and deliverable schedules often

conflict with the time needed to predict change and

design appropriate solutions to manage change.

Most design teams try to balance the effort, but

aggressive schedules and looming deadlines often

result in maintainability being compromised.

The CSF fosters reuse by defining a common

pattern and framework that can be applied across

any software project. The CSF pattern is based on

common design patterns prevalent in the industry

today and is positioned for agility and longevity. It

covers the routine aspects of functionality in (nearly)

every software project and has extension areas for

the project-specific nuances. Adopting the CSF

pattern provides a solid foundation for each new

project, allowing for quick focus on domain-specific

project aspects.

Bruno J., Kinstrey M. and Hoebel L. (2010).

COMMON SERVICES FRAMEWORK - An Application Development Framework.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 87-94

DOI: 10.5220/0003011900870094

 SciTePress

The CSF design pattern is based on the common

Model-View-Controller pattern and incorporates

existing frameworks including Spring, Struts and

Java Server Faces (JSF). CSF provides standard

approaches to their use and promotes encapsulation

of the provided functionality thus reducing

dependency on them. A key tenet of the CSF is to

build software solutions with well-defined and well-

encapsulated functional boundaries for the various

components in the solution. This characteristic

supports replacing existing components with new

versions as the industry evolves, thus avoiding

vendor or component “lock-in”.

This paper describes the CSF, how it is used and

its relationship with other well-known frameworks.

Section 2 discusses the concepts of design patterns,

frameworks and architecture. Section 3 provides

specific details on the CSF. Section 4 presents some

of the benefits from productivity and risk reduction

and Section 5 wraps up with conclusions and next

steps.

2 ARCHITECTURES, DESIGN

PATTERNS, AND

FRAMEWORKS

In the prior section, the terms design pattern and

framework are used as if an unambiguous meaning

existed. Unfortunately, the meanings very often

differ from person to person. In an effort to reduce

any confusion with respect to this paper, the

following subsections defining our meaning of

design patterns, frameworks, and architecture.

2.1 Architecture

Architecture is a thing’s or artifact’s fundamental

underlying design and its structure

[http://dictionary.reference.com/browse/architecture]

A software system’s architecture describes the

components in the system, how they interact with

each other and with elements outside the system. It

is important to realize that “the architecture” of an

application is an abstract notion. One cannot point to

a single document and say “that is the architecture”.

Instead views are used to show specific perspectives

of the design to convey the architecture.

Just as architectural drawings for a residential

home show different views of the structure, software

architectures are typically described using a number

of views of the system. Functional, component,

hardware, behavioral, and user interaction are

common views used to describe a software system’s

architecture. Functional or logic views describe how

the computation embodied in the system is

decomposed into functional blocks. Component

views describe the software components that are

developed or used in the implementation. Hardware

views show the hardware used to deploy the system

and how the various functional blocks and

components are distributed on the hardware.

Behavioral views describe the computational flows

through the system. User interaction views show

how the users interact with the system. Finally, data

views show how the system manages its data. Other

views are also used, as appropriate. Some views,

such as a functional view and the component view

are commonly used, but there is no standard set of

views that all software systems use to document

their architecture.

To summarize, the architecture of an application

is the (abstract) definition of the form and function

of the application. Each application will have its

own architecture. It may be the case that multiple

systems have similar architectures, and thus share

common architectural views for some aspect(s) of

the architecture but, unless multiple systems do

exactly the same thing with the same structure, each

will have some unique aspect(s) to its architecture.

2.2 Design Pattern/Architectural

Pattern

A design pattern is a formal way of documenting a

solution to a design problem in a particular field of

expertise

[http://en.wikipedia.org/wiki/Design_pattern_(comp

uter_science)]. It is a common pattern or structure

that is reused across multiple software systems.

Many identified and well-known design patterns are

commonly used in software system design. Some of

the well-known design patterns with respect to

functional encapsulation include: factory

mechanisms, object managers, loggers, adapters,

mediators and GUI patterns. Others, such as web

services, distributed, federated and cloud patterns

are with respect to the deployment features of the

components. Design patterns establish common

architectural features across the applications that

adopt them.

The term design pattern started becoming widely

used around the time the book Design Patterns by

the “Gang of Four” was published [Gamma et al,

1995]. Before this, design patterns existed but prior

to adopting the term, design patterns were not

recognized and explicitly called out as design

patterns. Perhaps the most commonly known design

pattern is the Model-View-Controller (MVC) pattern

[http://en.wikipedia.org/wiki/Model_view_controller

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

]. The MVC pattern was in use well before the

publication of [Gamma et al, 1995] and was

commonly referred to as an architecture, or

architectural pattern.

2.3 Framework

A software framework provides implemented

functionality and structure that can (generically) be

used as-is or overridden, extended and specialized to

provide specific functionality. Frameworks typically

implement targeted areas of functionality that are

common to many systems. Spring

(http://www.springsource.org), J2EE

[http://java.sun.com/j2ee/overview.html], .NET

[http://msdn.microsoft.com/en-

us/library/zw4w595w(VS.71).aspx], JSF

[http://java.sun.com/javaee/javaserverfaces/overvie

w.html], Struts

[http://struts.apache.org/1.0.2/userGuide/introductio

n.html], Hibernate [https://www.hibernate.org] and

AJAX [http://glm-ajax.sourceforge.net] are

commonly known and used frameworks.

Frameworks carry specific APIs for interacting

with them. These APIs establish the design pattern

for interfacing with the application components.

2.4 Architectures, Design Patterns,

Frameworks, and the CSF

As we have stated, design patterns define common

structural patterns (design) for a software

application, frameworks provide standard

functionality (implementation) and thus a common

design pattern for the framework’s area of focus, and

the architecture of an application includes a

description of the design patterns and frameworks

used in the application.

Given these definitions, the CSF is a framework

that defines a comprehensive design pattern that

covers all the functional aspects of a software

application.

The design pattern embodied by the CSF is the

most important aspect of the CSF. The CSF extends

and refines the MVC design pattern and is not a new

design pattern. The CSF is derived by canvassing

and combining existing, commonly used design

patterns. Existing design patterns target specific

functional areas of an application, but do not provide

a comprehensive application pattern. The CSF

defines focused sub-tiers of functionality within the

MVC pattern. Where appropriate, these sub-tiers

correspond with the design patterns in existing

frameworks.

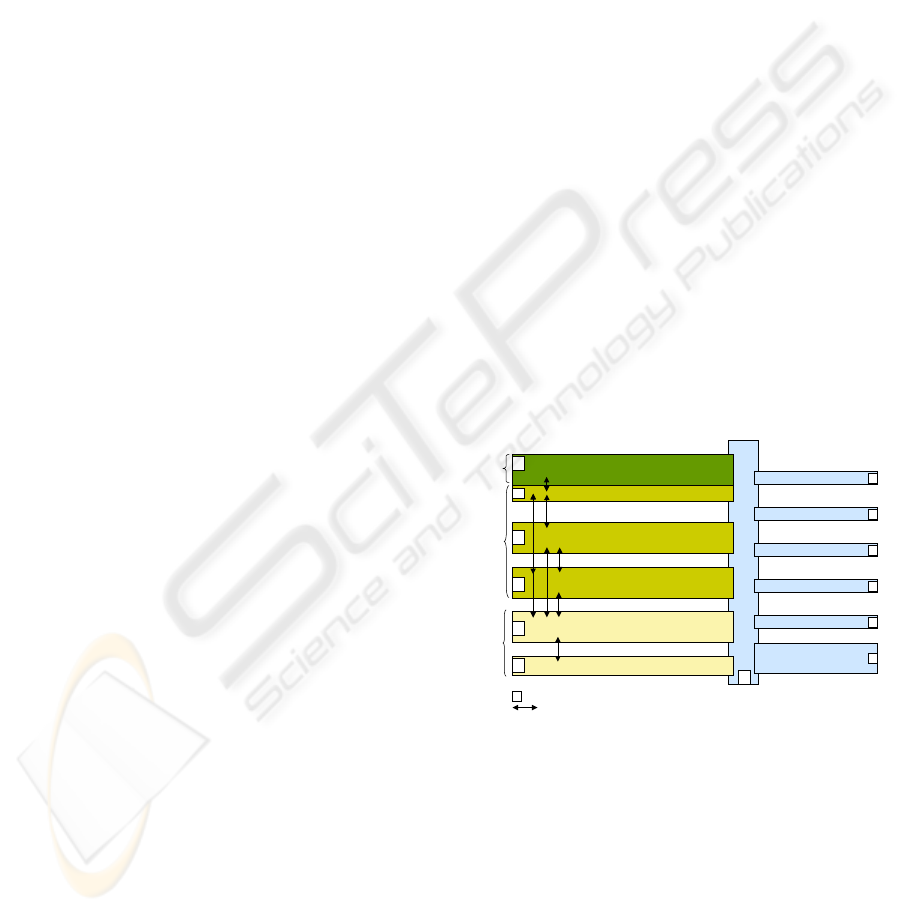

3 OVERVIEW OF THE CSF

CSF uses the MVC design pattern as valuable

guidance for segregating Model, View and

Controller functionality from each other. If we

simply ended there, a great deal of chaotic

organization would still exist within each of these

layers. The CSF refines the MVC concepts to

explicitly extend and segregate multiple layers for

shared application functionality that cannot be easily

pigeonholed into one of the MVC layers. The result,

shown in Figure 1 CSF Design Pattern below,

presents the CSF design pattern and illustrates its

relationship to the MVC pattern. The left-most, or

Application Domain, tiers of the CSF design pattern

refine the MVC layers into five (5) more focused

functional areas. These are: Executive Control,

Application Control, Domain Modules, Information

Model and Data I/O. The right-most tiers explicitly

call out the more generic functionality that tends to

span the MVC tiers.

Two sets of criteria motivate establishing

refinements to the MVC pattern and boundaries to

the common areas. The first criterion is functional

encapsulation to minimize the impact of changes to

the system. The MVC pattern of model, view, and

controller establishes an initial pattern for dividing

applications into tiers that insulate functionality

from the typical changes to an application.

Co nt e xt / f ac t o r i es

Application Control

Domain Modules

Information Model

Dat a I/ O

model

view

control

Application Domain Utility Domain

Configuration

com.ge.grc.csf.app.domain

com.ge.grc.csf.infom odel

com.ge.g rc.csf .mod el .io

com.ge.grc.csf.app.control

com.ge.grc.csf.app.exec.action

com.ge.gr c.csf.app.exec.f or ms

com.ge.grc.csf.context

com.ge.g rc.csf .fac tory

com.ge.grc.csf.util.logging

com.g e.gr c.c sf.ut il.secu rit y

com.ge.grc.csf.util.logging.metrics

logging

securit y

metrics

communications

protocol

notification

reporting

com.ge.gr c.csf.util.notification

com.ge.gr c.csf.util.reporting

Dominant interaction paths (other pat hs discour aged)

Executive Control

Figure 1 CSF Design Pattern.

CSF refines the control aspects to encapsulate and

discriminate between the top layer “GUI-based”

control, a middle tier “Application Control” and

middle tier “Domain Modules”. CSF also refines the

MVC model layer by encapsulating and

discriminating between an “Information Model” and

“Data I/O” layers. And finally CSF explicitly calls

out the standard interaction paths between the layers.

The second criterion for the refinements is

compatibility with concepts already established by

available industry frameworks such as Spring

COMMON SERVICES FRAMEWORK - An Application Development Framework

[http://www.springsource.org], Hibernate

[https://www.hibernate.org], and Log4J

[http://logging.apache.org/log4j/1.2/index.html].

There is no compelling reason to “reinvent the

wheel”, as these frameworks already establish well-

known and proven design patterns.

As described, the Application Domain tiers in

Figure 1 represent encapsulations that insulate each

other from the typical changes encountered as a

software application is maintained. At the core are

the domain modules, which are specialized

functional blocks that give the application its

behavior. By having these concepts with their own

defined boundaries, changes to core domain specific

computations in the application should have minimal

effect on other areas of the application. Any ripple

effects should be confined to the interaction paths

defined in the image. When the control flow is

separated from domain computations, adding new

computations should only affect the part of the

control that invokes the computation and the related

aspects of information production and consumption.

If other ripple effects exist, they remain localized to

the specific presentation and data persistence layers

dealing with the new or altered information.

The information model tier provides a buffer

between the rest of the application and the data

persistence (read/write) interfaces. This allows

persistence structures (database schemas, file

structures, and/or sensor inputs) to change without

disrupting the rest of the application.

The Utility tier (including context/factories) is

derived based on existing framework concepts. As

we canvassed existing frameworks, the pattern

shown above emerged. When we took a step back

and looked at the pattern, we agreed that these were

functional areas that tended to be used by all of the

left-most MVC tiers, and that this definition of

layers provided a good description of the functional

boundaries and characteristics of the right-most tier.

The “Utility Domain” tiers of Figure 1 are

comprised of frameworks that encapsulate functional

areas that could be used by any of the “Application

Domain” tiers in the diagram. Each functional area

can be thought of as a general handler that is

responsible for coordinating and implementing the

underlying functionality. For example, many

components of an application will want to utilize the

logging functionality. Various application

components may require different logging behaviors

or even multiple logging mechanisms (e.g. file

logging for general information and console logging

for the most important information). The CSF

framework provides a common API to these

mechanisms. This approach isolates the

implementation details from the invoking

components. The same can be said for security,

where different security mechanisms may be needed

at the different tier levels. The security API provides

the interface to the handler, and the implementation

details are isolated from the invocation points. The

same holds for metrics and the other utility domain

components identified. These commonly used

features are grouped together as “ Domain Utilities”.

In order for the tiers and components to access

the utility domain components and potentially share

the utilities between tiers, the Context and Factory

patterns are utilized. “Application Domain” tier

components request the utility components via these

patterns, where the discovery and instantiation

operations occur. The requestors merely expect an

instance of the component to be returned. The

Context and Factory patterns enable plug-and-play

flexibility and configurability without needing to

modify code. This allows applications to change

utility behaviors by merely changing configuration

options. An example is replacing a console-based

logger with a file-based logger. The application

component that needs a logger requests the logger

mechanism from the context. Based on the

application’s configuration, the context will return

one type of logger vs. another.

3.1 Using CSF for Application Design

Following the CSF design pattern will result in a

speed up of the design process, sometimes dramatic.

Some initial CSF projects show savings of 25% for a

4 week design phase in a small project and up to

85% code reuse for a larger project, with a similar

design and existing domain functionality.

Once the top-level requirements for a project

have been established, the designers simply start

defining the functional blocks for the solution

application in relation to the CSF tiers. Working

through the Functional tiers the designers can focus

on the domain-specific aspects of the solution,

putting the right-hand more general concepts

mentally “off to the side”. The predefined tiers help

guide the designer through developing the functional

architecture of the solution. At first the user simply

outlines the functional components for the solution,

following the CSF’s recommended functional layers.

An example of a resulting design is shown in Figure

2 Product Monitoring Functional Components.

Once the key functional components have been

identified, the associations and interactions between

the components and detailed refinements of the

components are defined as shown in Figure 3

Product Monitoring Functional Architecture.

Graphical images are then produced that use a

consistent visual representation and layout of the

CSF tiers to communicate the top-level design of the

system. With this approach designers simply follow

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

Product Monitoring Application

Fu n c t i o n al v i ew

Aler t r esponse

Parsing control

flow

Health assessment

control flow

Informat ion Model

Domain Models

Applicat ion Control

Dat a I/ O

Web-base alert

interactions

Message Parser

Healt h

assessment

Dat a

Manipulat ion

Prognostics

Advisory

Gen er at i on

Pa r si ng

Performance

Information

Product

Configuration

Informat ion

Product Healt h

Informat ion

Performance

Information I/O

Product Advisory

Information

Pr od uc t

Configuration

and Health I/O

Product Advisory

I/O

Executive Control – contr ol layer

Executive Control – view layer

Figure 2 Product Monitoring Functional Components.

the pattern for functional encapsulation cutting the

design time in many cases in half or even more. In

addition, using a consistent pattern for the functional

tiers and representation helps reviewers and

developers new to the project come up to speed

more quickly.

The functional encapsulation and well-

established interaction patterns between the

functional tiers allow the effort to be distributed to

sub-teams and the refinement of the design and

implementation of the solution can then proceed in a

more orderly and efficient manner.

3.2 Using CSF for Application

Development

The CSF pattern also promotes implementing the

solution with a package structure that corresponds

with the functional tiers. This provides developers

with the knowledge needed to organize their code

and for others to find the various functional pieces.

The CSF also provides a number of implemented

functional pieces that can be reused across

applications. The majority of the CSF functionality

covers standard behavior in the Utility Domain

(since these tiers tend to be independent of domain

behavior). Most of the implemented functionality

simply wraps standard capabilities that have already

been published in open source (example: the Spring

Context mechanism [http://www.springsource.org/

Product Monitoring Application

Functional view

Alert r esponse

Parsing control

flow

Heal t h assessment

control flow

Information Model

Domain Models

Applicat ion Contr ol

Data I/ O

Web-base alert

interactions

Message Parser

Per f o r ma nc e

Information

Product

Configuration

Informat ion

Product Healt h

Informat ion

Per f or m a nc e

Informat ion I/ O

Product Advisory

Informat ion

Product

Configuration

and Health I/ O

Product Advisory

I/O

Executive Control – control layer

Executive Control –view layer

Fleet Summary Unit Summary

Adhoc Reports

Heal t h

assessment

Dat a

Manipulation

Prognostics

Advisor y

Gen er a t i o n

Pa r s i ng

Message Type

Message

Pa r s e

…

Message

Pa r s e

Figure 3 Product Monitoring Functional Architecture.

and the Hibernate ORM

[https://www.hibernate.org]).

If a generic pattern is established for application

domain behavior (such as with the OSA-CBM

[http://www.mimosa.org] pattern for implementing

condition-based maintenance analysis), a higher

order framework can be defined that extends the

base CSF pattern with the domain-specific pattern.

3.3 CSF, SOA and Distributed

Architectures

The articulation of the CSF design pattern often

raises questions regarding the CSF’s relationship to

other design patterns and frameworks. The general

answer is that CSF does not compete with the other

patterns. Instead, it incorporates and combines the

most prevalent patterns into a comprehensive pattern

that covers all aspects of a software application. The

following sections describe the CSF’s relationship to

some of the more common patterns and frameworks

in use today.

A Service Oriented Architecture (SOA) calls for

segmenting application functionality into blocks that

can be exposed as services so they can be reused in

other applications and/or distributed across various

pieces of hardware. There are many mechanisms for

exposing/deploying and connecting to a service.

Perhaps the most common mechanism is via a web-

based interface such as REST

[http://en.wikipedia.org/wiki/Representational_State

_Transfer] or SOAP [http://en.wikipedia.org/

wiki/SOAP]. Other non-web based connection

protocols exist such as JMS

[http://java.sun.com/developer/technicalArticles/Eco

mmerce/jms/index.html]. The CSF design pattern

promotes the SOA concept.

COMMON SERVICES FRAMEWORK - An Application Development Framework

In order to maximize the usefulness of a service,

the design must find the right balance of

encapsulation and generalization of functionality.

Typically, as the behavior becomes more complex,

its usefulness becomes more focused and only

applicable to specific situations. The services that

experience broader use tend to provide general

functionality and are implemented to use input

parameters to configure and tailor the computation

based on the service user’s needs.

The CSF pattern promotes separating domain

logic from control flow and data i/o. This

encapsulation pattern tends to produce domain logic

and data i/o services. It should be noted that services

can be achieved with the tighter coupling or

intermingling of these areas of functionality, but as

mentioned above, as the underlying functionality in

a service become more complex, the opportunities to

reuse the service decrease.

A key concept promoted in the CSF pattern is

the separation of the connection protocol from the

underlying functionality, and use of dependency

injection for runtime assembly of the desired

connection mechanisms. With this approach a single

implementation of a service can be deployed using

various connection protocols thus achieving even

more reuse. When the service is initially developed,

it is written as a well-encapsulated set of

functionality and exposed using a tight coupling

mechanism such as a plain-old-java-object (POJO).

The invoker of the service merely calls a method on

the object. Once the module’s API is established,

two wrappers can be written for the connection

protocol. One wrapper will expose the module and

desired methods via the desired protocol as a service

on the server machine. The other wrapper will be

injected at runtime on the client (calling) platform to

establish the connection (again using the desired

protocol) with the module that is now deployed as a

service. To the invoker of the service, the calling

mechanism is the same – it appears to be a local

method call. The client wrapper mimics the API,

instead passing the method parameters through the

communication protocol to the remote service.

Return values are passed back in the same manner.

By following these layers of encapsulation, a single

instance of a module can be exposed via multiple

connection protocols.

Following this design and development pattern

also simplifies and speeds up the development

process. A standard pattern, with “cookbook”

instructions and examples for wrapping and

deploying modules as services is provided in the

CSF documentation. With this, the developer can

focus on getting the desired functionality working,

and then simply follows the instructions for

exposing the module as a service. Having a standard

pattern for achieving the connection protocol

reduces the risk of errors in this area of the code,

makes it easier for other developers to understand

the code, and speeds up the development time.

3.4 CSF and Spring

The CSF is not intended to replace Spring. A

framework, by the nature of its APIs, defines a

design pattern. CSF is a design pattern that includes

the Spring design pattern. The CSF adds a number

of layers that are not provided for in the Spring

framework (information model, communication

protocol, metrics, reporting, etc.), but it otherwise

embodies the main Spring concepts such as

dependency injection, data i/o, and the security

layer. Spring’s embodiment of JSF and Ajax also

correspond with the form and action sub-tiers of the

executive control layer.

In fact, many aspects of the APIs in the CSF

were derived from the Spring Framework

functionality. Some of the reference implementation

components directly use the Spring functionality and

the CSF recommends using these modules whenever

possible. The CSF does provide alternate (and

typically less functional) implementations to the

Spring components. The main reason for providing

these alternatives is for situations where full control

of all the source code is required for testing or

certification requirements. Additionally, simpler

versions of the functionality may be entirely

adequate.

One of the CSF’s secondary benefits is that it

provides a lightweight introduction to Spring and its

framework code. The reference implementation

components, the training modules, and test code all

provide samples of how to use Spring.

3.5 CSF, 2-tier, and 3-tier

Architectures

The often used concepts of 2-tier and 3-tier

architectures are sometimes misused and confused

concepts. At their most basic level, they address

segmentation of functionality into two or three main

areas. A 2-tier architecture most often refers to

applications whose functionality is segmented into a

client-server distribution. Such applications typically

have the GUI functionality on a client machine and

the rest on a server machine. The term 3-tier

architecture is often applied to those applications

that have been built with the MVC pattern.

Unfortunately, the terms 2-tier and 3-tier are very

general descriptions and it is not uncommon for

applications to have their own “custom” definition

of the split between the tiers. For instance another

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

definition of 2-tier is to segment data i/o from the

rest of the application.

The CSF does not conflict or compete with these

tier concepts. Rather, it extends encapsulated

functionality to an N-tier model.

4 PRODUCTIVITY AND RISK

REDUCTION

Adopting a common design pattern across software

applications has a huge positive impact on the

development and maintenance of the applications.

As we have described, the development teams do not

have to reinvent the routine aspects of new

applications. They are able to immediately focus on

the special nuances of that project. Nor would

maintenance teams need to “come up to speed” on

custom application designs as all the projects have a

similar structure. They would already understand the

layout of the code and, more importantly, the

common pattern establishes guidelines for changing

the code.

A commonly used analogy is in the residential

home construction field when one compares the time

and costs of building a custom house to the time and

cost of building houses in a development where

multiple copies of the same design are being built.

The custom homes are by far more expensive to

build (both in time and money). In addition, custom

homes may turn out to be less appealing in reality

than they were on the architect’s drawings. This

doesn’t happen with homes in a development

neighborhood, because we don’t have to rely on

architecture drawings to understand what the home

would look like. We can simply look at one of the

homes that already exists to understand what a new

one would look like.

The analogy continues to the long-term

maintenance aspect. Making changes to any home

carries a certain amount of risk because many details

of the construction are hidden behind the exterior

decorations. Most times these details only become

apparent as the changes are being made. Many home

remodelling and maintenance efforts have to adjust

their plans as they go because they encounter

unexpected “features” as they open up walls. With

development homes, if common contractors are used

across multiple homes, these contractors will be

more familiar with the structures and the risk of

finding surprise “features” is reduced.

The benefits of a using a common pattern also

extend to preventing code structure from decaying

into a unorganized, tangled mess. As the code is

being maintained, if the maintenance efforts adhere

to the design pattern, the code will not evolve into

your typical “spaghetti” or “ball of mud” anti-

pattern.

5 CONCLUSIONS AND NEXT

STEPS

This paper describes a design pattern and reference

implementation that provides a strong framework

and methodology for application development. The

CSF framework provides benefits of consistent look

and feel for code development, application

architecture and code structure. The framework

encourages and enables reuse by design and

extensions of existing domain areas as well as

supports forays into new domain application spaces.

Finally, applications have been built using the CSF

across domains such as Monitoring and Diagnostics,

Maintenance Estimation for Service Contracts, as

well as Logistics and Text Processing. The approach

has proven to be both cost effective and successful.

Our immediate goal is to extend the core reference

implementation and accomplish integrations of CSF-

based applications with non-CSF applications,

including extensions into the space of embedded

applications.

ACKNOWLEDGEMENTS

We acknowledge the thoughtful contributions of

Julian Chultarsky, Sumita Desai, Helena Goldfarb,

Marc Laymon, Iassen Hristov, and Bowden Wise

without which the CSF would not be as robust as it

is today. We also thank Robert Donaldson and John

Shorter for championing this work and its adoption

within the General Electric Company.

REFERENCES

AJAX, accessed Feb. 25, 2010, <http://glm-

ajax.sourceforge.net>

Dictionary.Com, accessed Feb. 25, 2010,

<http://dictionary.reference.com/browse/architecture>

Gamma, Erich; Richard Helm, Ralph Johnson, and John

Vlissides, 1995. Design Patterns: Elements of

Reusable Object-Oriented Software. Addison-Wesley,

Hibernate, Relational Persistence for Java and .NET,

accessed Feb. 25, 2010, <https://www.hibernate.org>

Jakarta Project: Struts, accessed Feb. 25, 2010,

<http://struts.apache.org/1.0.2/userGuide/introduction.

html>

COMMON SERVICES FRAMEWORK - An Application Development Framework

Logging Services, LOG4J, accessed Feb. 25, 2010,

<http://logging.apache.org/log4j/1.2/index.html>

Mimosa, OSA-CBM, accessed Feb. 25, 2010,

<http://www.mimosa.org>

MSDN, Overview of the .NET Framework, accessed Feb.

25, 2010, <http://msdn.microsoft.com/en-

us/library/zw4w595w(VS.71).aspx>

Oracle, Sun Developer Network (SDN), Getting Started

with Java Message Service (JMS), accessed Feb. 25,

2010,

<http://java.sun.com/developer/technicalArticles/Eco

mmerce/jms/index.html>

Oracle, Sun Developer Network (SDN), Java 2 Platform,

Enterprise Edition (J2EE) Overview, accessed Feb. 25,

2010, <http://java.sun.com/j2ee/overview.html>

Oracle, Sun Developer Network (SDN), JavaServer Faces

Technology Overview, accessed Feb. 25, 2010,

<http://java.sun.com/javaee/javaserverfaces/overview.

html>

Spring Source Community, accessed Feb. 25, 2010

<http://www.springsource.org>

Wikipedia: Design Pattern (computer science), accessed

Feb. 25, 2010,

<http://en.wikipedia.org/wiki/Design_pattern_(comput

er_science)>

Wikipedia: Model-View-Controller, accessed Feb. 25,

2010

<http://en.wikipedia.org/wiki/Model_view_controller>

Wikipedia: Representational State Transfer, accessed

Feb.25, 2010,

<http://en.wikipedia.org/wiki/Representational_State_

Transfer>

Wikipedia: SOAP, accessed Feb. 25, 2010,

<http://en.wikipedia.org/wiki/SOAP>

ICSOFT 2010 - 5th International Conference on Software and Data Technologies
