Integrating RFID and Security Devices for an Innovative

System to Manage Classified Documents

Elena Stringa, Claudio Bergonzi and Graziano Azzalin

European Commission – Joint Research Centre, Via Fermi 2749, 21027 Ispra, Italy

Abstract. This paper presents an innovative RFID solution to manage sensitive

document archives. The system aims at: i) automatically tracing all document

accesses at level of each page (who read the document and when); ii) knowing

at any time where a document is; iii) providing periodical archive inventory;

and iv) automatically signaling anomalies detected in the archive. The system

represents an important tool for national/international security, as it allows a

quick document recovery in case of emergencies. Moreover, with the proposed

system the institution in charge of sensitive document archives can demonstrate

the secure management of the entrusted material. This paper describes how the

system has been implemented and reports tests performed in laboratory by

simulating different scenarios, showing that the solution allows a reliable

management of sensitive documents.

1 Introduction and State of the Art

According to European Commission decision 2001/844, classified documents are

marked "RESTRICTED", "CONFIDENTIAL", "SECRET" or "TOP SECRET"

depending on the impact that their content diffusion may have on the security of the

European Union or of its Member States. Sensitive documents should be treated

according to the following requirements:

− the original document and all its authorized copies should be authenticated,

− all the documents should be archived in a restricted and controlled access area,

− only authorized persons can consult the documents and the document access

should be registered,

− the inventory of the archive should be performed periodically.

Currently, all the operations to manage classified documentation are carried out by

operators with the only support of database technology for document archive

organization. Database updating, archive inventory, document authentication and

integrity verification are carried out manually; therefore, there is the need to develop a

system to support the security archive responsible in the document management tasks.

On the market, Radio Frequency Identification (RFID)-based systems for library

management can be found [1], [2], [3]. They are based on high frequency (HF) low

cost tags, allowing theft prevention and more efficient tracking and inventory of

Stringa E., Bergonzi C. and Azzalin G.

Integrating RFID and Security Devices for an Innovative System to Manage Classiﬁed Documents.

DOI: 10.5220/0003007300890096

In Proceedings of the 4th International Workshop on RFID Technology - Concepts, Applications, Challenges (ICEIS 2010), page

ISBN: 978-989-8425-11-9

items [4]. Unfortunately, available systems do not verify document authentication and

integrity, e.g. the replacement of a document page with another one. On the market it

is possible also to find high frequency (HF) RFID tags (Magellan PJM Stack tags ®)

that can be overlapped without generating mutual interference problems. These tags

would allow document tracing at level of single pages, but so far such application

does not exist. Moreover, a solution similar to the one we are presenting in this paper,

integrating security features to document management, satisfying the previously

mentioned requirements is not yet present in the state of the art.

2 The Implemented System

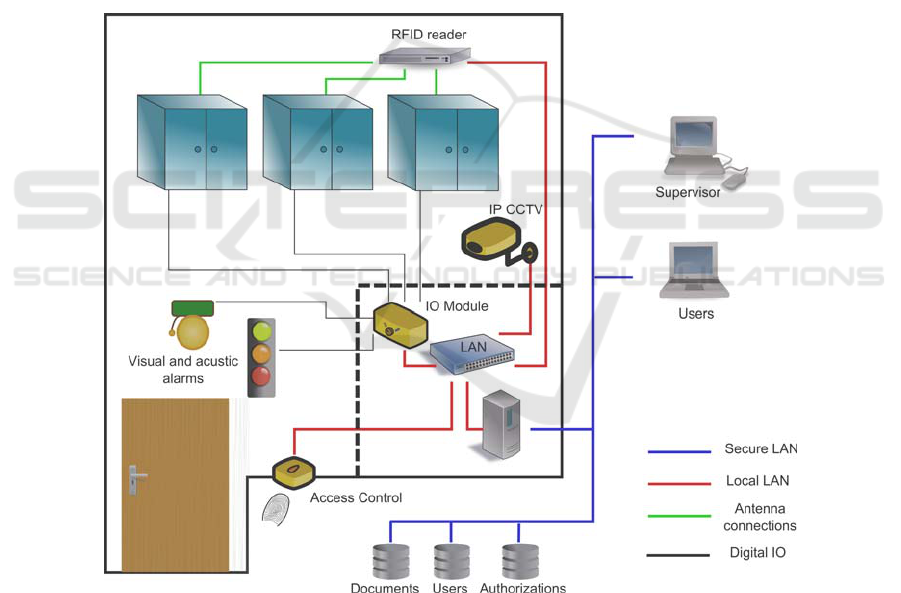

Fig. 1 shows the scheme of the setup document archive. The archive mock-up consists

of three bookshelves, each of them composed of four cells. The shelf doors are

equipped with magnetic contacts, controlled by an input/output device (Adam 6060W

from Advantech) to detect door opening.

Fig. 1. System architecture.

Behind each cell, a HF RFID antenna has been placed. The antennas are powered

whenever the doors of the related shelf are opened and are managed by Magellan

MARS 24 RFID readers allowing:

− real time detection of document (or part of document) removal/replacement and

related positioning in the archive,

− performing the archive inventory periodically, indicating if documents (or parts of

documents) are present, missing and if they are in the correct cell.

User identification is performed through a fingerprint scanner (EFIS321 from ABS

Applied Biometric Systems GmbH) allowing to authorized personnel to enter the

archive room. As no more than one person can stay at a time in the archive room, the

user identification device identifies who accessed confidential documents and when.

One IP camera, whose image acquisition is triggered by motion detection, is used to

monitor the archive. When anomalies are detected, i.e. a document is being replaced

in the wrong position or a document for which an authorization has not been granted

is being removed, visual and audio alarms are activated.

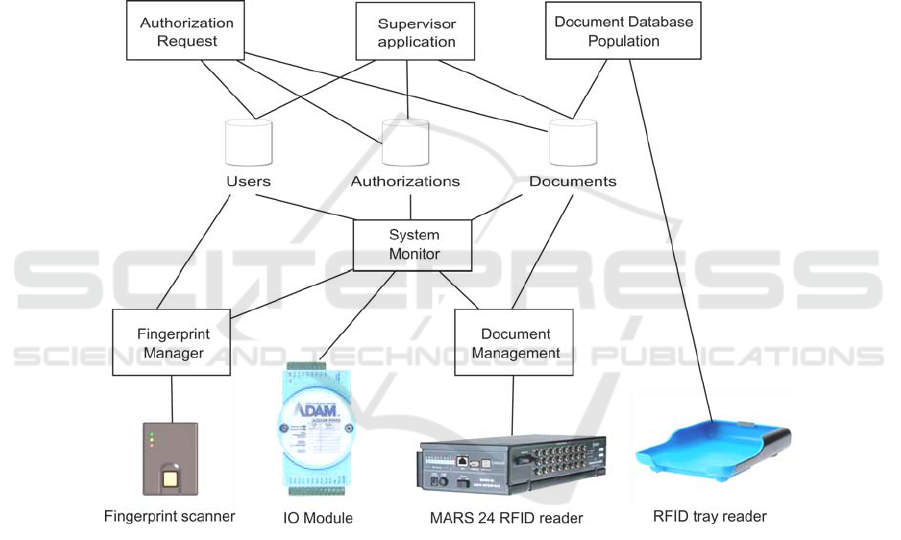

Fig. 2. Software architecture.

The software modules developed to manage the system components are shown in

Fig. 2. The software modules synchronize their activities through socket

communication exchanges and are the following:

Document Database Population. The document database population application is a

useful tool to insert tagged document information in the document database. The

application connects to the Document Tray Reader (a tray reader equipped with RFID

antenna) and to the document database. The user inserts document information

(document title, authors and date, number of pages, EU classification, position in the

archive, etc.) through a form; then, for each document page, the user is prompted to

place the tagged document sheet on the tray, the related tag is read and the database is

updated accordingly.

Authorization Request and Supervisor Applications. Two form based applications

have been developed to respectively ask authorization to consult a document

(Authorization Request) and to approve/reject requests (Supervisor Application).

These applications update the database containing the authorization requests after

having checked through the information contained in the user database that the person

asking to consult a document has the appropriate credentials.

Fingerprint Manager. This module manages the fingerprint scanner. It allows to

enter new users in the user database and it verifies user identity when a person tries to

enter the archive room.

Document Management Application. This module manages the RFID archive,

indeed it controls the Magellan Mars24 RFID readers connected to the antennas

placed behind the bookshelves. The application receives from the RFID readers

information on any tag that is found by the antennas or that goes out of the range of

the antennas (expired). The application is configured to perform a logical mapping

between the antennas and the shelf cells, allowing to know which documents are

present/missing in the archive and in which position they are/should be.

The application is also aware of which tags belong to a document through the

information stored in the document database. In this way the program updates

continuously the state of the documents that are stored in the shelves. When a

document is taken out, tags expire in groups. When one document is introduced, tags

are discovered in groups. The program is able to detect when all the tags of a

document are present, or when all the tags are out of range. In both condition a

message is sent to the system monitor application through a TCP/IP connection,

indicating which document entered or left the cabinet. To detect incomplete

documents, the application uses a timer: all the tags that belongs to the same

document should enter or leave the cupboard in a specific time lapse. If the

application detects an incomplete document, it sends a special message to the system

monitor application, specifying which pages are missing. The use of timers allows

also solving the problem of “instable tags”. Indeed, when the quality of the tag is not

very good, the signal is continuously detected and lost. Without a filter this instability

would lead to a continuous “false alarm” messaging with the system monitoring

application, as each time the message from a tag is lost it is considered that the related

page has been removed from the shelf.

The software performs also a complete inventory of the document archive upon

request (local request or from remote application). This feature can be also

programmed in such a way that an inventory is performed periodically. The inventory

result, organized by document, is sent to the system monitor application that

compares the received information to the expected ones to detect any document

missing or displacement.

System Monitor Application (SMA). This application is the core of the system.

Through the user interface (Fig. 3) it provides a picture of what is happening in the

restricted access area, performs all the checks needed to detect in real time anomalies

in the document management and records all the accesses and operations performed

on the documents. A pane in the left part indicates the room status; in particular, it

indicates the presence of a user in the room and her/his name, the status of the archive

doors (locked/open) and the shelves that the user is authorized to open. To visualize

these data, when a person enter the archive room, SMA needs to retrieve user data

from the user database and document data from the document information database;

then, with the retrieved data, SMA performs a cross check with the list of approved

authorizations. On the right side of the screen there is a tabbed interface that shows all

the available bookshelves cells and their content. The background becomes red if a

document is missing or incomplete. On the bottom part of the screen there is a real

time log of every event in the room. The same information is saved in a log file and

verified in case of need.

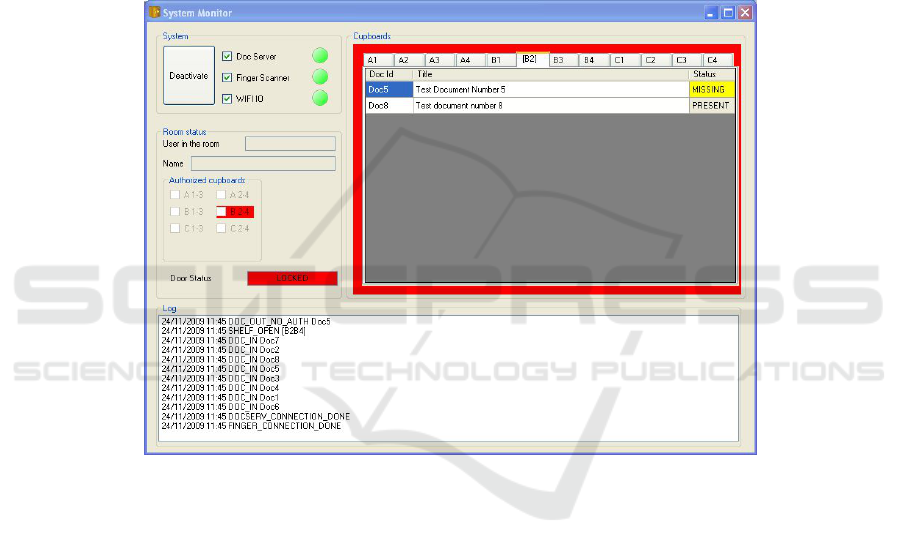

Fig. 3. System monitor application interface. A pane on the left shows the room status. A pane

on the right shows the bookshelf cell status: archive position B2 is selected (see upper tabs) and

the related content is visualized. As a document is missing the panel has a red frame.

3 Tests and Results

Two kinds of tests have been performed: document detection tests and functionality

tests. Tags on document sheets were placed in such a way that they were perfectly

overlapped and are programmed in such a way that they continuously answer when

are in the range of field of the antennas (worst case scenario for tag mutual

interference).

For document detection tests we considered three documents with different number

of pages (8, 18 and 106 respectively) and we measured the range distances of the

RFID tags from the antenna (i.e. the back of the shelf) in which a document is

correctly detected (100% COMPLETE), partly detected (INCOMPLETE) and not

detected (100% MISSING). The results are reported in Table 1.

Table 1. Document detection performance.

Number of tagged

pages

Document detection Distance from the

antenna [cm]

100% COMPLETE <11.0

INCOMPLETE 11.0-14.0

100% MISSING >14.0

100% COMPLETE <7.0

INCOMPLETE 7.0-10.0

100% MISSING >10.0

106

100% COMPLETE <1.5

INCOMPLETE 1.5-6.0

100% MISSING >6.0

For the functionality tests, a document database has been setup by tagging 8

documents for a total of 106 tagged sheets as shown in Table 2. The considered

scenarios and the related expected system reaction are listed in Table 3.

Table 2. Document database for system functionality tests.

Doc ID Number of pages EU classification Position in the

archive

Doc1 16 TOP SECRET A2

Doc2 14 SECRET B3

Doc3 15 TOP SECRET A4

Doc4 18 TOP SECRET A3

Doc5 8 SECRET B2

Doc6 10 TOP SECRET A1

Doc7 15 CONFIDENTIAL C2

Doc8 10 SECRET B2

The standard procedure (Scenario 0) is the following:

1. The user asks the authorization to access a document for a given period of time

2. The supervisor validates the request

3. The user, in the right time window, enters the room after identification

4. The user opens the door of the shelf containing the document of interest

5. The user takes the document and read it

6. The user replaces the document in the original position in the shelf

7. The user identifies her/himself to leave the secure area

8. The system unlocks the door and the user leaves the room.

Each scenario has been tested at least 30 times by four different users: three users

have been inserted in the user database, and the fourth was unknown to the system.

The only error occurred during tests was due to the fact that a known user has not

been recognized by the fingerprint scanner.

Table 3. Tests scenarios and related system reaction.

Scenario Description System reaction

0 Standard procedure (see text) Logging of all the operations

1 An unknown user tries to access the

document room

Alarm generation

2 A known user tries to access the room

without an authorization

Alarm generation. User ID is logged.

3 Authorized user tries to enter the

document room in the wrong time

Alarm generation. User ID is logged.

4 The authorized user opens the wrong

shelf

Alarm generation. User ID and shelf

door coordinates are logged.

5 The authorized user takes the wrong

document

Warning generation. User and

document IDs are logged.

6 The authorized user replaces a

document in the wrong shelf.

Warning generation and indication

of the correct document position.

User and document IDs, and

document position are logged.

7 The authorized user replace an

incomplete document.

Alarm generation and indication of

the missing pages. User, document

and missing pages IDs are logged.

8 The authorized tries to leave the

archive when the archive is not

complete (missing pages or

documents)

Alarm generation and indication of

the problem. User and involved

document IDs are logged.

4 Conclusions and Future Work

In this paper we have shown the feasibility of integrating RFID technologies and

security devices for the reliable management of sensitive document archives. There

are still some open issues that need to be further investigated.

The first issue is related to the setup optimization, in particular for what concern

the tag answering time. As mentioned in Section3, currently we have used the default

setup (worst case scenario), with the tags answering continuously whenever

illuminated. The used tags can be programmed in such a way to reduce the answering

rate. For example, it would be possible to reduce by 4 the answering time of the

illuminated tags; this is equivalent to reduce, theoretically, the active tag population to

¼ of the total amount making possible to have four times more tagged items placed

inside a cell of the bookshelf without affecting detection performances. Regarding

setup optimization, we expect that detection performances improve if tags of adjacent

document pages are not overlapped. Next activity will therefore investigate the

detection performance by varying the tag answering time and by changing position of

tags in adjacent document pages.

Another issue regards the management of electronic document copies. In

particular, there is the need to trace also document copies by logging who made the

copy and especially to give only to authorized personnel the possibility to physically

copy the document for which (s)he has the authorization. To solve this question, we

are going to add to our prototype a commercial document scanner that will operate

only if the person using it has the authorization to copy documents. We will equip the

scanner with an RFID antenna in order to verify that the copied document is exactly

the one for which a copy authorization has been requested. The same adaptation will

be done in the future for a copy machine working with tagged paper.

Acknowledgements

Authors wish to thank the colleagues from DG TREN, end users of the system, for the

fruitful discussions on the procedures and rules in force for managing classified

document archives.

Moreover, authors are particularly grateful to the colleagues of the SILab (Seals

and Identification techniques Laboratory) for the provided support in implementing

and testing the system; in particular, authors wish to thank François Littmann, leader

of the SILab team, Michel Chiaramello and Graziano Renaldi.

References

1. Smart, L.: Making Sense of RFID. Netconnect (Fall, 2004)

2. Boss, R. W.: RFID Technology for Libraries. Library Technology Reports (Chicago:

American Library Association, 2003)

3. Boss, R. W.: RFID Technology for Libraries, ALA Tech Notes. (2005)

4. NagaLakshmi, V., Rameshbabu, I., Lalitha Bhaskari, D.: A Security Mechanism for library

management system using low cost RFID tags. Journal of Systemics, Cybernetics and

Informatics, Vol5, No.1 (2007) 92-96
