SHARE VS. OWN

Software Reuse using Product Platforms

Paul Abraham, Vishal Sikka

Office of the CTO, SAP AG., Dietmar Hopp Allee, NeurottStrasse16, D-69190 Walldorf, Germany

Gordon Simpson

Independent Enterprise Technologist, San Francisco, CA, U.S.A.

Keywords: Software reuse, Product platform, Application platform, Technology platform, Product line architecture.

Cost-benefit analysis.

Abstract: SAP is a complex multi-national development organization with a large number of diverse products and

changing target markets. Effective allocation of resources is a difficult at the best of times. Of late, the

target markets, and supporting technologies, change every couple of years exponentially increasing the

complexity, necessitating a way of recalibrating that keeps pace with new realties. SAP, with a mature

understanding of functional, software and technical relationships, has adopted a platform approach covering

both functional and technology capabilities. However, a variety of factors, many in the management space,

prevent that from being effective. This paper will explain why product-line/platform is a better strategy than

platform or custom product strategies, in a way that can be understood, proven and adopted by management

and developers alike. Specific recommendations of practices for delivering reuse effectively are also

provided.

1 PROBLEM CONTEXT

SAP spends a great deal of time examining how to

allocate resources among its development groups.

This allocation is made most efficient by sharing

resources among products; dedicating resources only

when dictated by necessity. The advent of

groundbreaking technology changes or changes in

the marketplace force us to re-evaluate this

allocation. The acceleration of these previously slow

moving factors requires SAP to develop a systematic

way of matching pace with evaluation. These change

factors and associated resource issues are, to some

degree, applicable in turn to SAP‘s ecosystem i.e.

development partners, technology vendors and

customers.

When, how and what to share, of software

components, processes, infrastructure, people and

knowledge, will need to be continuously evaluated

as SAP products go through several cycles of

renovation. SAP has thus far adopted reuse primarily

through a product platform strategy, using both

technology and applications platforms in its

products. This paper presents the business reasoning

for reuse of software and processes in a product-

line/platform vs. dedicated to a product and attempts

to fully understand the reasoning and economics

behind making such a decision.

Practice has shown that many inhibitors lie in the

realm of management and decision-making. The

most common causes of these failures are: resource

constraints, lack of incentive, single-project view,

time constraints, lack of clarity on reuse utility, and

lack of education. Software project managers and

developers need to achieve better understanding,

estimation, evaluation, and quantification of the

software reuse and associated business factors as

well as their predictive relationship to software

effort and quality.

Contemporary software reference models for

reuse do not consider many of the technical and non-

technical factors in their quantitative models. To

mitigate this, the paper also explores the broader,

industrial engineering perspective and its concepts

of product platforms, product lines and other

relevant methodologies to proposes strategies for

245

Abraham P., Sikka V. and Simpson G. (2010).

SHARE VS. OWN - Software Reuse using Product Platforms .

In Proceedings of the International Conference on e-Business, pages 245-255

DOI: 10.5220/0003006302450255

 SciTePress

designing and building reusable application software

components.

We present a rigorous, cost benefit analysis

based methodology for the evaluation of well-

defined metrics to measure the benefits of a

particular strategy and the associated costs. We

recognize that the decision-making is essentially

probabilistic, leveraging imperfect data, making

such decision-making shades of gray among

alternatives rather than black and white. The

presented methodology accounts for these

imperfections in the analysis.

Guidelines are developed to help a decision-

maker decide when the long-term benefits involved

in implementing and maintaining reusable coding

procedures outweigh the short-term benefits of a

dedicated implementation. Specific recommend-

ations are made for coding practices, software

design, documentation and management procedures

that encourage and result in successful code reuse

practices.

2 SOFTWARE REUSE

INVESTMENT SUCCESS

FACTORS

The industrial (manufacturing) world has been

successful for many years in implementing a

product-line approach to reuse using pre-fabricated

(pre-manufactured, interchangeable) components.

Product-line is closely related to the concepts of

horizontal and vertical reuse. Horizontal reuse

provides generic reusable components that can

support a variety of products. Vertical reuse focuses

on developing the preferred parts supporting a given

family of related products or product-line. It is

regular practice for these industries to assemble parts

into products and use the same parts in more than

one product within a "product-line" family.

Can this same "manufacturing" approach be

used in software engineering?

SAP has certainly embraced parts of this

philosophy with its Business Process, Application

and Technology Platform strategies that serve as the

foundation on which our Business Suite (Suite) and

Business By Design (BYD) products are built.

2.1 Managing Diverse Software

Products

To run any software component requires the use of

other software and hardware artefacts that may be

owned by SAP or shared among its partner

ecosystem. It is reiterated that, for this paper, the

topic of reuse also includes artefacts used in the run

time for the software components. Assuming we

have the relevant tools, processes and technologies

for effective software component reuse, the

evaluation of whether to reuse a software component

(share) or develop it (own) is dependent on the

particular reuse strategy we adopt.

There are two dimensions to the strategy.

• On one hand, we look at the product

platform strategy and decide where a

particular component should reside: in

which architectural layer, using what

technology etc.

• On the other hand, we look at the time

horizon for the business initiative the

software component is in support of: i.e.

today's business, the next generation of

emerging businesses, and the longer-term

options out of which the next generation of

businesses will arise.

At SAP, we have adopted multiple strategies

depending on the nature, size, location and

technology associated with the software component

being reused. We briefly outline the problem

environment in the graphic below:

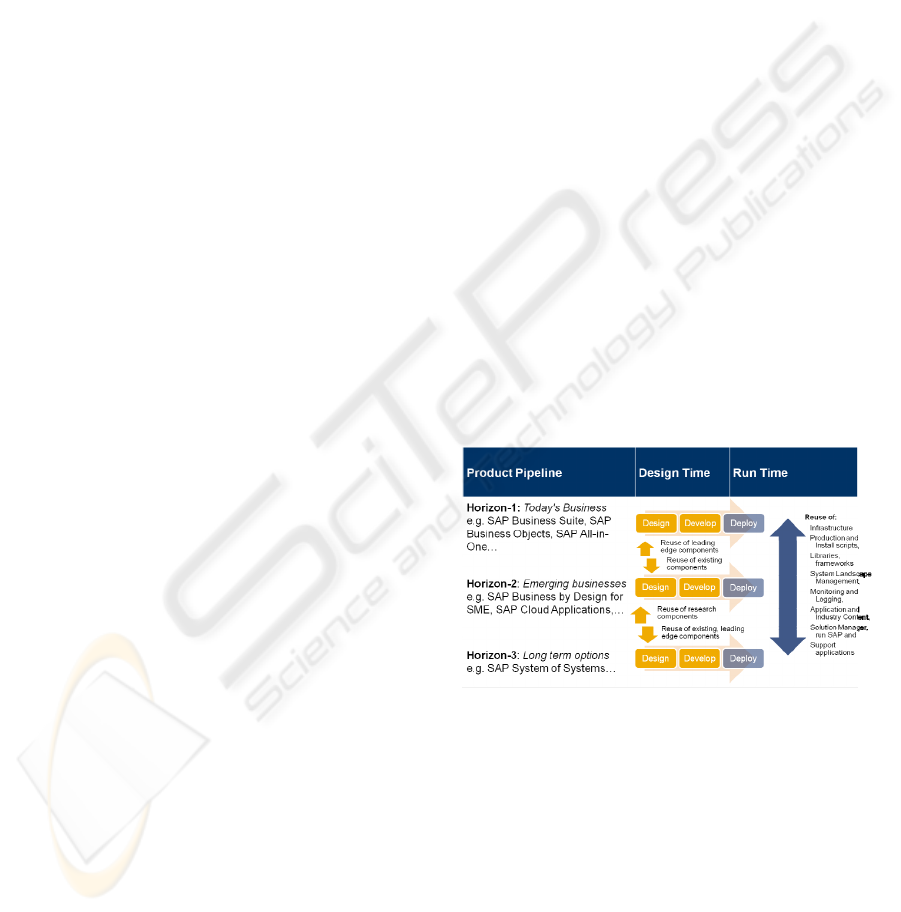

Figure 1: Shared vs. Own problem environment.

Note that there are two cycles in play. Across the

functional cycle of design, develop, deploy,

components change based on fit to purpose with

upgrade and rebuild as the scope of the purpose

changes over time. The vertical cycle is a much

longer and slower moving one based on use density.

As components are more frequently reused, they

sediment down through the platform layers. This

sedimentation can often include 3

party

infrastructure layers, who adopt technical

capabilities initially developed for a single

application solution. In the most effective model the

ICE-B 2010 - International Conference on e-Business

246

reverse flow is also managed, with components

being factored out of the platform and back into

products as the reuse decreases over time. This

allows for the complexity and overhead of the

platforms to remain optimal over time.

2.2 Balancing Commonality

and Distinctiveness

At a fundamental level, product variety and fit is

valuable in the marketplace. The need for superior

performance of the products and the desire to

preserve distinctiveness (e.g. custom features,

control etc.) promotes product organizations to own

certain key components. On the other hand, it is

costly to deliver, as cost benefits are driven through

commonality. The balanced sharing of assets across

products allows companies to manage this trade-off.

This balance has however, temporarily resulted

in an unwanted side effect in SAP: total cost of

ownership (TCO) increases due to the complex

configuration that we provide customers to tailor our

software products to their needs. As mentioned

above, parameterization is a valuable tool in

leveraging shared assets to fit different solutions.

However, the current architecture leverages the same

parameterization for both SAP engineering product

fit and on-premise customer fit (customization). The

effect is to trade off customer complexity for the

power of reusing, and therefore only having to

support, a single mechanism.

Changing the product architecture can influence

the nature of the trade-off. For example by the use of

pre-configured and interchangeable software

component for a particular industry vertical or

customer group which hide the complexity of

configuration will lower costs of customization.

Another technology solution is the use of model-

based methodologies that lower the fixed cost of

developing software, and/or delivering the software

as a service. The hypothesis is that this type of reuse

promotes mass-customization, shortens the time to

market and promotes consistency in products.

2.3 Common Architecture Strategy

The sharing or owning of software components is

dependent on the architectural strategy. The

architecture relates software components to a

physical problem space (hardware, operating system,

and application packages such as database or user

interface). A common architecture lessens the need

to make reusable software components highly

generic because the environment in which they will

be used is well defined. The architecture defines the

rules for developing software components and

provides standard interfaces and data formats. This

aids in the inter-changeability of reusable software

components across the product-line.

SAP had elements of a common architectural

strategy from its inception. SAP uses this approach

for the lower level technological platform and to

support the user interface. However, there is

considerable difference in higher layers of the

architecture between our Business Suite and

Business by Design (BYD) products, which leverage

the same technology platform but are targeted at

different markets. It should be reiterated that the

platforms should be different if they are

fundamentally different and that the determination

of that “fundamental difference” is at the heart of

SAP’s challenges.

2.4 Product Platform Strategy

Product platform strategy is the foundation of the

existing SAP product strategy, which has multiple

products related by common technology platform. It

defines the cost structure, capabilities, and

differentiation of the resulting products. When the

market and products were less diverse, and the

technology considerations more unified, separating

product platform strategy from product line and

individual product strategy allowed SAP to

concentrate on its most important strategic issues of

reliability and scale. As the diversity and rate of

change has increased, the question as to which

components products share and which are dedicated

has ultimately tied to the product platform strategy

more closely to the product line.

2.5 What is a Software Product Line?

A software product line is a set of software-intensive

systems, satisfying the specific needs of a particular

market segment, that share a common, managed set

of capabilities and that are developed using a

common methodology and leveraging common

skills sets.

This definition is consistent with the traditional

product line definition. But it adds more: it puts

constraints on the way in which the systems in a

software product line are developed. Substantial

production economies are achieved when the

systems in a software product line are consistently

developed from a common set of assets in contrast to

being developed separately, from scratch, or in an

arbitrary fashion. It is exactly these production

SHARE VS. OWN - Software Reuse using Product Platforms

247

economies that make the software product line

approach attractive.

Production is made more economical when each

product is primarily formed from existing

components, tailored as necessary through pre-

planned variation mechanisms such as

parameterization or inheritance, adding any new

components only when necessary, and assembling

the collection according to the rules of a common,

product-line-wide architecture. Building a new

product (system) becomes more a matter of

assembly than one of creation; the predominant

activity is integration rather than programming. For

each software product line, there is a predefined

guide or plan that specifies the exact product-

building approach.

Software product lines give economies of scope,

which means that we take economic advantage of

the fact that many of our products are very similar–

not by accident, but because we planned it that way.

We make deliberate, strategic decisions and are

systematic in effecting those decisions. This concept

must be contrasted with the specifics of a product

platform, which is described next.

3 THE PRODUCT PLATFORM

We define a product platform as a collection of core

assets that are shared by a set of products. These

assets can be divided into four categories:

Software components – A software component is a

unit of composition with contractually specified

interfaces and explicit context dependencies. A

software component can be deployed independently

and is subject to composition by third parties.

Processes and infrastructure - used to make or to

assemble software components into products

Knowledge base – design know-how, mathematical

models, testing methods and data sets

People and relationships – teams, relationships,

between members and between teams

In certain manufacturing systems, these process

and systems are themselves machinery like assembly

lines or manufacturing centres etc. In the software

arena new ideas like software factory embody this

principle. Most companies do have parts of this

automated with production and installation scripts,

configuration of system landscapes etc. However, a

coherent methodology and infrastructure is yet to

emerge. The organizational aspects also need to be

facilitated by automated systems much like

manufacturing centres. This encompasses the

knowledge base since a large part of the knowledge

resides in people. Web 2.0 holds a lot of promise in

this area and is being integrated into development

and production tooling.

A product platform is primarily a definition for

planning, decision-making, and strategic thinking. A

product platform is not a product; it is a collection of

the common elements, especially the underlying

defining technology, implemented across a range of

products. So in a sense this definition is broad, a

generalization of the concept in SAP where we have

of a technology platform and application platform

but in another sense it is distinct, as it results in a

collection of common elements. These common

elements need not necessarily be complete in the

sense that they are something that could be sold to a

customer.

SAP markets and builds its products (Suite and

BYD) as platforms for running the business

processes of large enterprises (LE) and small to

medium enterprises (SME) respectively. The

defining technologies used to implement this

business process platform will evolve over time, at

different velocities and hence it is imperative to

manage this effectively. The platform's unique

differentiation provides a sustainable competitive

advantage. Therefore it may be argued that all

components that are related to business processes

such as orchestration must necessarily be part of the

platform and cannot be owned by an application or

industry solution built on top of it.

3.1 The Platform Influence on SAP’s

Ecosystem

In the context of SAP’s ecosystem, a platform may

be viewed as a realization of the technology strategy

that is made available through a set of access points

or interfaces (APIs). Partner ecosystem members

(ISV’s and SI’s) then leverage these interfaces as a

kind of toolkit for building their own products and

solutions, and think of them as the starting point for

their own value creation. The platform is the

“mechanism” through which the platform

organizations share value with their ecosystem. Any

product contains elements specific to a given use or

solution and elements that are shared with many

other products in the development ecosystem within

and outside SAP development. The latter represent

an opportunity that can be leveraged by other

members of the ecosystem to eliminate redundant

effort.

ICE-B 2010 - International Conference on e-Business

248

The architecture of products and services has a

profound effect on the evolution of ecosystems.

Well-managed platforms shape ecosystem dynamics

as they grow to incorporate new functionality and

create opportunities for SAP to expand its

ecosystem. How a platform evolves and responds

over time, shapes the ecosystem that depends on it:

what firms survive, where diversity can exist, what

will be easy to do and what will be hard, which

things in the ecosystem will do well with little effort,

and which things will be challenging. This happens

because platforms serve as an intermediary between

the underlying technology and the ways in which it

can be easily exploited.

3.2 Platform Architectures

The choice of a defining technology as a platform

strategy is perhaps the most critical strategic

decision for a high-technology company. Typically,

the defining technology of a platform differentiates

the products that are based on that platform. While

SAP is more defined by its business process

centricity, the technology aspect of the platform

strategy is still significant. Business applications can

be classified in different operational or technical

archetypes, based on their characteristics and

requirements at run-time. A few examples of these

archetypes are:

• Online transaction processing systems

(OLTP): characterized by low latency, high

responsiveness, data integrity, predefined UI

workflows. Instances of this archetype are e-

commerce sites, CRM, e-banking systems.

• Analysis systems or online analytic

processing (OLAP): characterized by their

ability to produce complex analytical and highly

customizable queries on large multidimensional

datasets, with low latency responses. Business

Intelligence (BI) systems fall into this category.

• Batch systems: capable of performing

operations on large datasets efficiently,

coordinating jobs to maximize CPU utilization

and energy consumption with recovery policies

when exceptions occur.

• Networked systems: software that integrates

different applications and services into more

complex solutions. It differentiates itself by

delivering a business solution (e.g. Supply

Chain Management) that manages the

information and control flow across many other

systems (Inventory Management, Order

Processing).

SAP has products or components that cover all

of these archetypes. Each of these application

families has its own constraints, characteristics, and

optimal design patterns that can be applied to solve

the specific challenges they present. Very often,

these challenges have conflicting goals. For

example: OLTP will optimize for low latency,

whereas latency for batch or networked systems is

not as important. OLTP scales better horizontally

and benefits from a stateless architecture, while

batch systems scale vertically and tend to be stateful.

The technical infrastructure and services to support

each is consequently significantly different. The key

point is that a platform’s effectiveness is highly

dependent on the archetype served. The more

knowledge of the application a platform has, the

greater its ability to increase the efficiency of

running and operating it, and the greater the degree

of sharing. Thus having multiple platforms that are

tailor made to its constituency (by archetype, mode

of delivery or size: LE, SME Micro) one could

substantially lower the TCO.

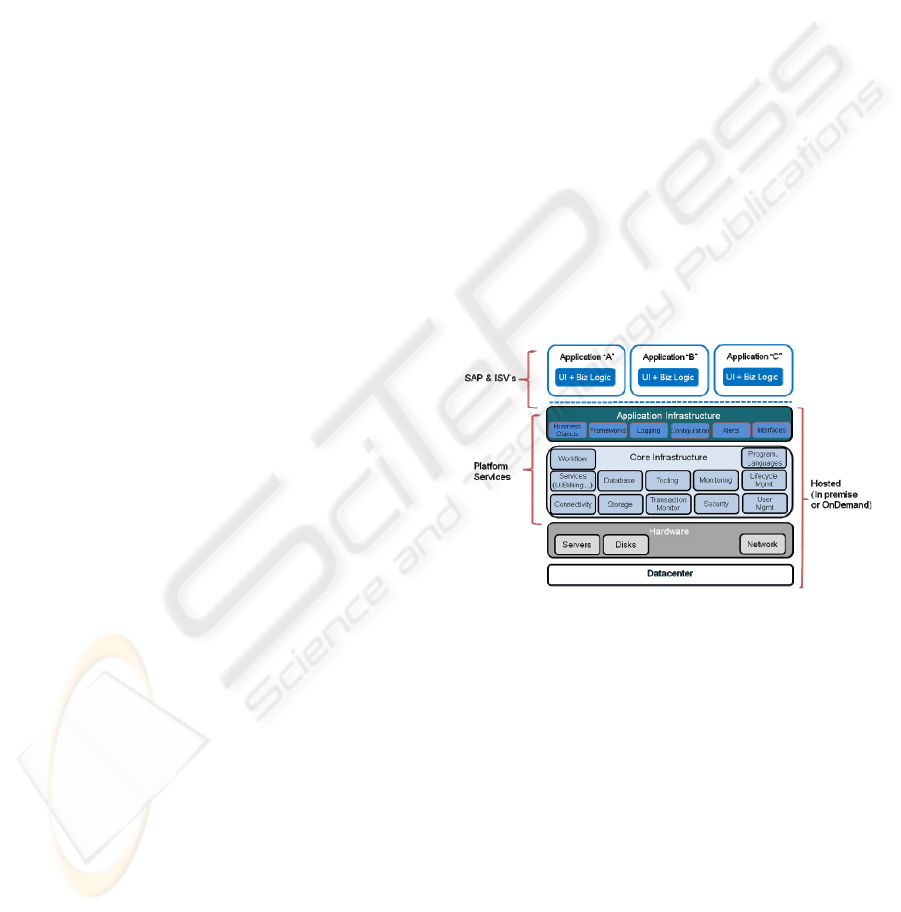

Figure 2: Increased reuse through an application runtime

infrastructure.

An increased amount of shared components

leads to higher levels of efficiency, so the question is

which are the most natural candidates to be

"extracted" from applications into the platform? The

obvious candidates are those referred to application

infrastructure services viz. application configuration,

run-time exception, logging etc. Refer example

above. Every application needs them, yet they are

frequently written repeatedly for each platform.

By exposing these basic services publicly or by

sharing them across platforms as libraries or

frameworks, the platform has an increased ability to

automate common procedures and offer more

advanced operational management capabilities and

lower the TCD by sharing the common platform

SHARE VS. OWN - Software Reuse using Product Platforms

249

services. Thus, finer-grain tuning, customization and

troubleshooting are made available. In the example

above, notice that the hosting method does not need

to understand in detail what the application does, but

instead how it does it. (e.g., where are connection

strings to the database stored? How is run-time

exceptions logged and notified?)

4 COST-BENEFIT ANALYSIS

FRAMEWORK

Finally, given one or more credible product platform

strategies for reuse, we would like to evaluate these

alternatives to estimate the immediate economic

benefits of reuse. The following CBA methodology

is adapted from various publications and is presented

for illustrating the benefits of a platform strategy and

for completeness.

4.1 Metrics to Measure Benefits of

Reuse

In this section, we present a conventional cost

benefit analysis. Benefits of reuse are difficult to

measure objectively and hence we present the

current state of the art for it. Cost on the other hand

is easier to compute and only a high-level view of

what is pertinent pointed out. In addition, enterprises

have developed their own methodology for cost

accounting, which are uniform in spirit but not in

detail. Software metric is any measurement that

relates to a software system, process, or related

documentation. Metrics are distinguishing traits,

characteristics, or attributes that are both static and

dynamic. The reuse metrics mentioned below are

those developed by research teams at George Mason

University in Fairfax, Virginia (see Rine & Nada

1998). These relate to the benefits of software reuse

in the cost benefit analysis calculations that is

introduced further down the paper. We also use the

term module in place of software component as the

basic unit for applying metrics. The distinction is

somewhat academic but a software component may

be too coarse grained for meaningful measurements.

In order for a metric value to be statistically

valid, it is necessary to have a reasonable quantity of

data. This data collection is unlikely to be successful

unless it is automated and integrated into the

development process. Finally, product data should

be kept as an organizational asset and historical

records of all projects should be maintained. Once

an appropriate data set is available, model evaluation

involves identifying the parameters that are to be

included in the model and calibrating these using

existing data. Such model development, if it is to be

trusted, requires significant experience in statistical

techniques.

The software reuse metrics are grouped into five

major categories: general, quality, parameterization,

coupling, and cohesion, which are also software

engineering principles that correspond to the reuse

attributes. The general category is for attributes that

are not in the four software engineering categories.

The following table lists the popular reuse metrics:

Table 1: Metrics to Mesure benefits of Reuse.

Category

Metric Measures

General

Metrics

Time to market Reduction in

development time

New Product

Opportunity

Opportunities

Potential for long

tail solutions etc.

Understandability Ease of adoption

Size Extent of the

module

Type of module e.g. Specification,

functional

Quality

Metrics

Consistency for centralized

maintenance

Ease of Change The degree to

which it can be

changed

Comments Usefulness,

understandable.

accuracy

Formatting Readability of the

code

Parameter-

ization

Functional

Data

Coupling

Metrics

Coupling the strength of the

interconnection

and dependency

among modules

System

External Coupling

Cohesion

Metrics

Functional

cohesion

degree to which

each part of the

module is

necessary for

performing a

single function.

Data cohesion degree to which it

has a single-data

type associated

with it

4.2 Cost Calculations

The methodology proposed here is an amalgamation

of methodology proposed by the Software Institute

in HP Labs and the Software Engineering Institute in

CMU (see Clements et al., 2005, Petersen, 2004 and

Malan & Wentzel, 1993).

ICE-B 2010 - International Conference on e-Business

250

4.2.1 Development Costs

Setup and Overhead. New systems will be needed

to support a full-fledged systematic reuse program.

It includes ongoing costs of expanding and

maintaining reuse layer or system, a management

support structure to ensure systematic reuse, and

training programs, and should be assessed as indirect

overhead.

Producer. The reusability of software components

depends on a number of factors such as the degree of

generality, complexity, and fit to expected use, as

well as the quality of the component, and the extent

and utility of documentation and accompanying test

suites. Further, the component has to be available,

and hence must be certified and entered in a

platform, library, as software services or broadcast

by some other means. Therefore, component

producers face additional costs over and above the

usual development-cycle costs, and these are

estimated to be anywhere from 30% to 200% higher

than the cost of producing a component not intended

for reuse. This is true even for a component that is

re-engineered from existing code.

Consumer. Selection, specialization and integration

for reuse entails articulation of the component

requirements in a suitable form, search and retrieval

of the component, understanding of what the

component does, and verification that it does indeed

fit the purpose. The component may need to be

specialized to fit the consumer's current needs. This

involves adaptation (with co-requisite program

understanding and subsequent testing). Lastly, the

component must be integrated into the system under

development, and tested.

Lifecycle Costs. The view of maintainability as a

form of reusability is novel and important. It

captures the idea of reusability in time within a

dynamically evolving system. Evolutionary dynamic

systems require reusability in time of unchanging

parts of the system while other parts of the system

evolve. By centrally maintaining the reuse

components, managing their evolution, and

propagating upgrades to new products as well as

updated versions of older products, the organization

can exploit further opportunities to reduce

duplication of effort. Moreover, centralized

enhancements to black box components enable a

whole platform of derivative products to be

produced more quickly at lower cost.

4.2.2 Probabilistic Nature of Calculating

Cost

Time value of Money. When the reuse instances are

expected to occur over a longer time horizon, the

timing of the cash flows should be taken into

account. This is done by incorporating a standard

present value analysis into the model. One typically

uses the Discount Cost Function (DCF) analysis.

Typically Horizon-1 (today’s businesses)

components described previously fall into this

category. In case of Horizon-2 & 3 (emerging

businesses, and the longer term options)

components, more market based approach such as

real options valuation (ROV) may be used to

account for the high uncertainty.

Uncertainty in Reuse Instances. The degree of

uncertainty about the evolution of a product family

tends to increase as the time horizon is stretched.

Thus, anticipated reuse opportunities arising from

products or upgrades planned in a multiyear horizon

is likely to be much more uncertain than those in the

current one-year business plan. To incorporate the

uncertainty as to whether the component will indeed

be reused, the probability of each reuse instance

should be estimated, and the expected consumer

savings computed. This is essentially a DCF

calculation of the NPV and optionally decision tree

analysis .

Future upgrades of Components. The maintenance

and management of evolving components increases

the cost to the producer/maintenance group.

Consumers of the component benefit from not

having to duplicate corrective and evolutionary

maintenance activities, though they do have to incur

some cost to incorporate upgraded component(s)

into their products. This also is essentially a DCF

calculation of the net present value (NPV).

4.3 Cost Benefit Analysis

It is clear from the discussion above that for some

components the choice of strategy dictates whether it

is shared or dedicated for a particular product. In

many cases however software components may not

have a predestined position in the architecture or is

not obvious and hence a cost benefit analysis of

shared versus own using historical data on similar

projects should be performed. Since reuse involves

multiple products evolving through their respective

life-cycles, an assessment of the economic impact of

a systematic reuse program must incorporate cost

and revenue projections that extend beyond that of a

single development project. A template such a cost

SHARE VS. OWN - Software Reuse using Product Platforms

251

benefit analysis that should be performed for each

component based on the research from the Software

Engineering Institute (SEI) at CMU for is presented

below.

Table 2: Cost functions used to compare building a reuse

platform versus building stovepipe products

Function



Output



org

()

Cost to setup and run an organization

to adopt the product line approach for its

products

cab

()

Cost to develop a core asset base

suited to satisfy a particular scope

Cunique()

Cost to develop the unique parts (both

software and non-software) of a product

that are not based on core assets

Creuse()

Costs to build a product reusing core

assets from a core asset base

Cprod()

Cost of building a product in a stand-

alone fashion. It relies on historical data

or general software engineering cost

models for its evaluation.

Note: We assume that these functions accommodate

influencing factors such as the time value of money,

uncertainty in reuse instances and the probability

future upgrades. Specific formula’s are available in

the research from several institutions like SEI, HP

Labs etc. (see citations).

This cost can be expressed by Equation 1.

Cost of building a product line =

org cab

C () C () ( ( ) ( ))

unique i reuse i

C product C product

++ +

∑

(1)

This equation says that the cost of fielding a

product line is the cost of organizational adoption

plus the cost of building the core asset base plus the

cost of building each of the n products. The cost of

building a product is the cost of building the unique

part of that product plus the cost of incorporating the

core assets into the product. The cost of building n

products independently, is expressed in Equation 2.

Cost of building n stovepipe products =

(( ))

prod i

Cproduct

∑

(2)

4.3.1 Evolution and Upgrade

To account for a cycle of product evolution—that is,

the time in which a product appears in a new

version, probably with new or at least improved

features—under the non-product-line, the model

introduces a new cost function, C

evo(). This function

is parameterized with product and version numbers

and returns the cost of producing that version. One

might make a first approximation by assuming that

the cost to produce a new version is some percentage

of producing the original product; for example C

evo()

= 20% * Cprod()

To calculate the analogous cost under a product

line regime, we introduce a new function, C

cabu().

This function returns a measure of how much it costs

to update the core asset base as a result of releasing a

new version of a product. Changes to the core asset

base can occur because the new version required

changes to or exposed bugs in existing core assets.

Changes can also occur when new features expose

new commonalities with other products that were

considered unique but now can be refactored into

commonalities.

4.3.2 Benefits Calculation

Software product lines bestow benefits to the

developing organization besides direct cost savings.

For example, they often allow an organization to

bring a product to market much more quickly. We

can accommodate these other factors by using

benefit functions that are similar to the cost

functions introduced in the basic model. Unlike the

cost functions, there is no fixed number of benefit

functions. However, the metrics discussed

previously help one establish a list of benefits ( =

nbrBenefits) to be factored in the analysis as given in

Equation 3.

Benefits of building n products using a product

platform approach =

(())

nbrBenefits

ben

∑

(3)

where

ben j is a specific benefit and B ben j () is the

benefit function for that benefit. Each benefit

function is parameterized by the time period of

interest since the benefits may vary over time.

The contributions of the benefits are summed

and then used to build a model equation as needed.

For example, to express the development cost

savings (or loss) from using the product platform

approach as opposed to one-off development for

each product equals [Equation 2] – [Equation 1]. A

more complete picture of the cost benefit of using a

product platform approach adds Equation 3 to that

result.

4.3.3 Illustrative Examples of Reuse in the

Design Time

The following example illustrates the impact of the

approach in a new product line. The new product

ICE-B 2010 - International Conference on e-Business

252

line is targeted for the SME space and consists of

about five components called distribution units

(DU). Since this product line was targeted for a

business user and in an effort to maintain the look

and feel across product lines, it was decided that the

current technology platform use for LE space called

NetWeaver is the appropriate platform for this

product line. However, experience has shown that

there was potential to reuse a lot of features and

services among the five DU’s. Thus it was decided

another (sixth) component called the application

platform was to be developed by a producer group

for this product line.

Challenge. Beyond building the initial business

case, there is normally a low confidence level in any

data related to the future success and adoption

timeframe of a new software product line. This tends

to drive the design decision making away from

reusable/platform towards single use components -

“get the first product out of the door and worry

later”. This can have potentially damaging effects on

the actual ability to grow the product line in a cost

effective manner but has always required subjective

judgement on the part of the solution manager. Use

of the CBA would allow the initial solution

managers to “run the numbers” associated with

making certain “reasonable estimates” around

different componentization strategies and the short,

medium and long term financial impact.

Solution. Based on measured data obtained from

many prior software development projects, estimates

show that with a 50% reuse level and a 5x quality

improvement in the

reused component over new

code. However, Producer effort was increased by

108% and consumer effort reduced by 40% during

the development phase. During the maintenance

phase it is estimated

that producer effort was

increased by 25%. and consumer effort reduced by

42%.

These effort factors (assuming a 50% reuse

level) are used together with the following

assumptions to estimate reuse benefits:

• Hourly rate for software engineers

(including basic salary $75 and

administration overhead)

• Project team size 20

• Development cycle time without reuse

(months) 12

• Annual inflation in labour rate 5%

A simplifying assumption that all of the products

are comprised of the same amount of new and

reused code is made to better demonstrate, a number

of points. We have also simplified the cost benefit

calculations and used only NPV calculations. We

divide the calculations into four models that have

self-explanatory titles. The model results are shown

in the table below.

Table 3: Examples of Reuse in the design time.

Model 1: Basic Development Phase Costs

Producer Cost Product1 Product2 Product3 Product4 Product5

Year of Release

0 1 1 2 2 3

Without Reuse

300,000 630,000 630,000 661,500 661,500 694,575

With Reuse

624,000 378,000 378,000 396,900 396,900 416,745

Reuse specific Overhead

35,000 25,000 25,000

Consumer Saving

252,000 252,000 264,600 264,600 277,830

Cumulative Net Saving

(-)624,000 (-)407,000 (-)155,000 84,600 349,200 602,030

Model 2: Taking the Time Value of Money Into Account

Consumer Saving after Discounting

234,419 234,419 228,967 228,967 223,642

Cumulative Discounted Net Saving

(-)624,000 (-)422,140 (-)187,721 19,613 248,580 452,098

Model 3: Taking Uncertainty In Reuse Instances Into Account

Probability of Reuse

1 1 0.90 0.75 0.50

Consumer Saving with Discounting & Uncertainty

234,419 234,419 206,070 171,725 111,821

Cumulative Discounted Expected Net Saving

624,000 422,140 187,721 3,284 168,441 260,138

The interest rate may be the prevailing bank rate, reflecting the interest that the investment would earn if it was deposited instead of invested in reuse, or the

company's hurdle rate, reflecting what the investment would earn in some alternative use within the company.

SHARE VS. OWN - Software Reuse using Product Platforms

253

Table 4: Examples of Reuse in the design time. (cont.)

Model 4: Including a Future Upgrade

Producer Cost Product1 Product2 Product3 Product4 Product5

Year of Release

1 2 2 3 3 4

Probability of Reuse

1 1 0.68

0.38 0.25

Upgrade without Reuse

75,000 157,500 157,500 165,375 165,375 173,644

Upgrade with Reuse

93,750 91,350 91,350 95,918 95,918 100,713

Reuse specific Overhead

10,000 10,000 10,000

Additional Consumer Saving

57242 57242

38019 21246 13653

Cumulative Discounted Expected Net Saving

(-)717,750 (-)467,301 –175,641

iii

38,766 231,737 329,599

5 CONCLUDING REMARKS

SAP, the world’s largest provider of enterprise

applications software, originally architected its reuse

strategy around horizontal application and

technology platforms that provided focus on the

scaling and reliability desired by its mainly

homogenous enterprise market. On top of this

strategy, it built a large and geographically

distributed organization and a large portfolio of

diverse products.

Recently, an increased rate of change in market

needs and supporting technology innovations has

stressed that strategy. Solution managers,

development decision makers, are challenged to

effectively handle the conflicts of rapid solution

delivery while identifying candidate components for

application or infrastructure reuse. This complexity

extends out beyond the company into its ecosystem

of partners and customers as they fit the applications

to specific business needs. Thus, guidelines should

be developed and specific recommendations made to

streamline this evaluation process.

It is our position that a product-line approach,

supported by provable cost benefit analysis, is a

more effective model for delivering reuse benefits in

this dynamic market environment. As software

industry models of reuse are not sufficiently robust,

we have looked to traditional manufacturing

industries for guidance; moulding their models to fit

the imperfect data base of software decision making.

This paper proposes a cost benefit analysis based

model which, when combined with a methodology,

software engineering tooling and organizational

guidelines, will enable the engineering management

to effectively balance product specific and platform

reuse requirements, in a cost and market effective

manner.

As this model has not yet been adopted, the

paper also describes the steps necessary to fit the

proposed approach to a specific organization and

how the calculus would provide objective

componentization and reuse data. Solution

management in the design of new product lines

would leverage this. Comparative examples are

given covering the first product in a new line, new

market segment and the first product in a product

line largely similar to an existing line. These two

scenarios have significantly different subjective

influences, requiring different use of the cost/benefit

analysis.

REFERENCES

Clements, Paul C., McGregor, John D., Cohen, Sholom

G., 2005. The Structured Intuitive Model for Product

Line Economics (SIMPLE), Software Engineering

Institute, Carnegie Mellon University, Pittsburgh, PA.

Dale R. Peterson, F. van der Linden (Ed.), 2004.

Economics of Software Product Lines, PFE 2003,

LNCS 3014, pp. 381–402, 2004. Springer-Verlag

Berlin Heidelberg.

Iansiti, Marco and Levien, Roy., 2004. The Keystone

Advantage: What the New Dynamics of Business

Ecosystems Mean for Strategy, Innovation, and

Sustainability, Harvard Business Press.

Malan, Ruth, Wentzel, Kevin, 1993. Economics of

Software Reuse Revisited, Software Technology

Laboratory.

Conditional on Product 3 being produced, the probability of its upgrade

being produced is assessed as 0.75. Thus, the

robability of producing the

upgrade is 0.9*0.75 = 0.68. Similarly, the conditional probability o

upgrades to products 4 and 5 being produced is 0.5.

iii

This is the cumulative saving for the first product plus its upgrade.

Overhead for the year is assumed to be incurred regardless of whether the

next reuse instance is actualized (i.e. a semi-fixed cost, such as salaries).

ICE-B 2010 - International Conference on e-Business

254

McGrath, Michael E. 2001. Product Strategy for High-

Technology Companies: Accelerating Your Business

to Web Speed, McGraw-Hill.

Rine, David C., Nada, Nader 1998. Software Reuse

Manufacturing Reference Model: Development and

Validation, School of Information Technology and

Engineering, George Mason University, Fairfax,

Virginia.

Robertson, David, Ulrich, 1998. Karl Planning for

Product Platforms, Sloan Management Review.

Viguerie, Patrick, Smit, Sven and Baghai, Mehrdad,

2008. The Granularity of Growth: How To Identify

The Sources Of Growth And Drive Enduring Company

Performance, John Wiley & Sons (US).

SHARE VS. OWN - Software Reuse using Product Platforms

255
