ANOVA-BASED RF DNA ANALYSIS

Identifying Significant Parameters for Device Classification

Kevin S. Kuciapinski, Michael A. Temple and Randall W. Klein

Department of Electrical and Computer Engineering, US Air Force Institute of Technology, Dayton, OH, U.S.A.

Keywords: RF Fingerprinting, Network security, Anti-spoofing, Analysis of variance, ANOVA.

Abstract: Analysis of variance (ANOVA) is applied to RF DNA fingerprinting techniques to ascertain the most

significant signal characteristics that can be used to form robust statistical fingerprint features. The goal is to

find features that enable reliable identification of like-model communication devices having different serial

numbers. Once achieved, these unique physical layer identities can be used to augment existing bit-level

protection mechanisms and overall network security is improved. ANOVA experimentation is generated

using a subset of collected signal characteristics (amplitude, phase, frequency, signal-to-noise ratio, etc.)

and post-collection processing parameters (bandwidth, fingerprint regions, statistical features, etc.). The

ANOVA input is percent correct device classification as obtained from MDA/ML discrimination using three

like-model devices from a given manufacturer. Full factorial design experiments and ANOVA are used to

determine the significance of individual parameters, and interactions thereof, in achieving higher

percentages of correct classification. ANOVA is shown to be well-suited for the task and reveals parametric

interactions that are otherwise unobservable using conventional graphical and tabular data representations.

1 INTRODUCTION

The proliferation of 4G wireless Radio Frequency

(RF) devices will provide unlimited world-wide

access for millions of global communication and

internet users. However, greater access does come at

a cost as users will experience greater exposure and

increased security risk, i.e., there is greater

opportunity for unauthorized users to monitor their

RF emissions (intended and unintended) and

intercept, identify, geolocate, and/or track them using

bit-level processes. To counter bit-level attacks,

research emphasis has begun to shift toward

techniques using RF signatures (fingerprints) that are

unique to specific hardware devices.

Previous proof-of-concept demonstrations using

802.11 (Klein et al., 2009a, 2009b) and GSM signals

(Reising et al., 2010a, 2010b) with RF “Distinct

Native Attribute” (RF DNA) fingerprinting has

provided some promise for improving access

authentication and enhancing overall network

security. The goal of these earlier works and the

work presented here is to use RF physical layer

attributes to augment bit-level security mechanisms

that have been routinely “hacked” and which remain

under attack (Blau, 2009; Kassner, 2009). It is

believed that this augmentation will help mitigate bit-

level impersonation attacks such as spoofing given

that replication of device dependent, unique RF

fingerprint characteristics is very difficult.

Earlier works used statistical Time Domain (TD)

features (Reising et al., 2010a, 2010b) and Wavelet

Domain (WD) features (Klein et al., 2009a, 2009b)

that were generated from specific regions of collected

RF signals. These works demonstrated reliable

device discrimination (80% or better) at reasonable

signal-to-noise ratios (SNR). Unsurprisingly, the

device classification performance was directly

impacted by typical signal collection and post-

collection processing parameters such as Signal-to-

Noise Ratio (SNR), sample frequency (f

), filter

bandwidth (BW), etc. The basic goal of these earlier

works (proof-of-concept demonstration) mitigated

the need for optimization and parameter selection

was based on empirical practices.

When considering SNR, f

, BW, and other

parameters in the RF fingerprinting process, e.g., the

number of fingerprints used for training and

classification, the number of signal fingerprint

regions, the number of statistical features per

fingerprint region, etc., the number of parametric

combinations grows quickly. In this case, assessing

S. Kuciapinski K., A. Temple M. and W. Klein R. (2010).

ANOVA-BASED RF DNA ANALYSIS - Identifying Signiﬁcant Parameters for Device Classiﬁcation.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 47-52

DOI: 10.5220/0002994100470052

 SciTePress

the impact of given parameters or parameter

combinations on device classification performance

presents a problem that is well-suited for an Analysis

of Variance (ANOVA) experiments.

The results presented here are based on applying

ANOVA methods to device classification results

obtained from RF fingerprinting. As a first step, the

overall process is developed and verified using a

previously developed TD fingerprinting process

(Klein et al., 2009b). Output TD classification results

are used with a 3-way ANOVA that is initially

implemented using three factors: Device, SNR and

BW. Initial ANOVA results are consistent with

behavior previously observed in single parameter

variation plots (e.g., percent correct device

classification versus SNR and BW). More

importantly, the ANOVA analysis reveals the effects

of parametric interaction that were not previously

observable. Given these early favorable results, work

continues to extend the ANOVA analysis to include

1) more than three factors simultaneously, and 2) the

use of Spectral Domain (SD) fingerprinting. These

extensions are important to the overall success and

subsequent implementation of RF fingerprinting to

augment bit-level security mechanisms.

2 SYSTEM AND EXPERIMENT

The focus here is on applying ANOVA to device RF

fingerprinting classification results as shown in

Figure 1. As input to the ANOVA process, intra-

manufacturer classification results were generated for

three like-model Cisco Aironet 802.11a/b/g wireless

adapters operating in 802.11a mode. The devices

were identical except for serial number (last four

digits of N4U9, N4UD, N4UW). These specific

serial numbered devices were chosen for initial

ANOVA experimentation because previous research

showed that this particular combination of devices

presented the most challenging classification problem

(Klein et al., 2009a).

Signals were collected using an RF Signal

Intercept and Collection System (RFSICS). The

RFSICS is an Agilent E3238S-based system and

collects signals spanning 20 MHz to 6 GHz (Agilent,

2004). The overall collection and processing method

is shown in Figure 2, where the dashed boundaries

delineate between hardware and software processes.

Device B

Device C

Signal

Collection

MDA/ML

Fingerprint

Classification

Device A

ANOVA

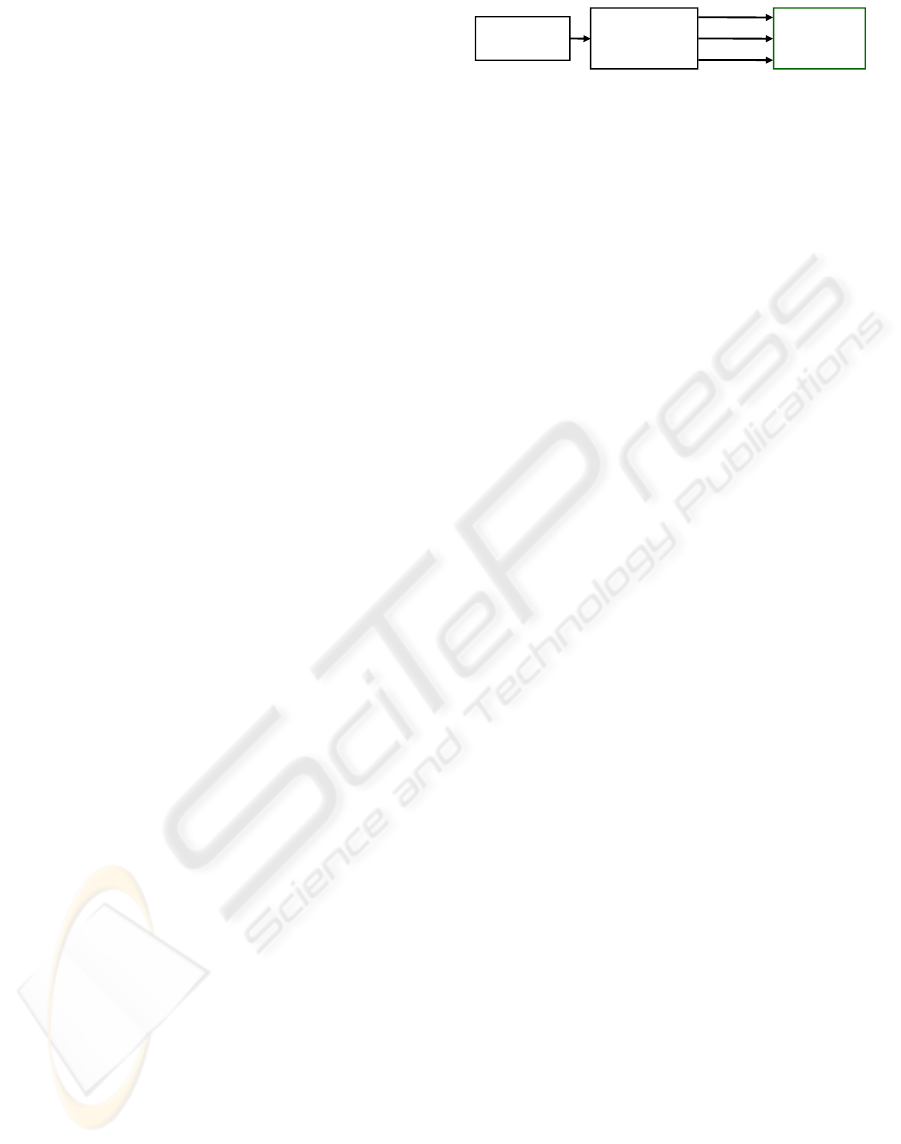

Figure 1: ANOVA experimentation process with signal

collection and MDA/ML RF fingerprint classification

results provided per the process in Figure 2.

The 802.11a adapter to be tested was placed in a

laptop and signals from the device were collected by

the RFSICS (Klein et al., 2009a, 2009b). The

RFSICS has a W

= 36 MHz RF bandwidth that is

down-converted to a f

= 70.0 MHz IF, digitized

using a 12-bit ADC at f

= 95 Msps, digitally

filtered, sub-sampled (Nyquist maintained), and

resultant samples stored as complex In-Phase and

Quadrature (I-Q) components. The 802.11 wireless

adapters and RFSICS were collocated in an anechoic

chamber for all signal collections.

As shown in Figure 2, the collected signals were

post-processed using MATLAB. Following burst

detection using a t

= – 3 dB amplitude threshold, the

collected signal was digitally filtered using a base-

band filter (bandwidth W

) and combined with like-

filtered noise that is scaled to achieve the desired

analysis SNR. For initial concept validation, W

and SNR were the ANOVA factors that were

incrementally varied and statistical fingerprints were

used to generate classification results.

Bandwidth variation was simulated using a 3rd-

order Butterworth digital filter having a – 3 dB

bandwidth of BW = 5.5, 6.5, 7.5 and 8.5 MHz.

Given the selected filter, SNR variation was

simulated using randomly generated AWGN that was

like-filtered (same filter used for the signal) and

scaled to achieve the desired analysis SNR (Klein et

al., 2009a, 2009b). The range of SNRs considered

was based on previous works and included 1) lower

values where SNR was suspected to dominate correct

classification performance, and 2) higher values

where SNR changes produced minimal impact. This

range enabled both validation of the ANOVA process

as applied to RF Fingerprinting and investigation of

lesser dominant parameters in higher SNR regions.

Device classification is accomplished using a

Fisher-based MDA/ML process with statistical

fingerprint features extracted from physical wave-

form characteristics of instantaneous amplitude,

phase, and/or frequency. The features are generated

using common statistics of standard deviation,

variance, skewness, and/or kurtosis (Klein et al.,

2009a, 2009b). As parameters (factors) are altered

during simulation and processing, classification

errors occur when the analysis signal in Figure 2 is

classified as the wrong device signal.

WINSYS 2010 - International Conference on Wireless Information Networks and Systems

Agilent

E3238S

System

Signal Collection

(RFSICS)

Generate

Statistical

Fingerprint

Post-Collection Processing

(MATLAB)

Classify

Signal

“Perfect”

Burst

Extraction

Digital

Filtering

AWGN

Generation

Sum

Power

Scale

Analysis

Signal

Power

Normalize

Noise

Locate

Burst

Start

SNR

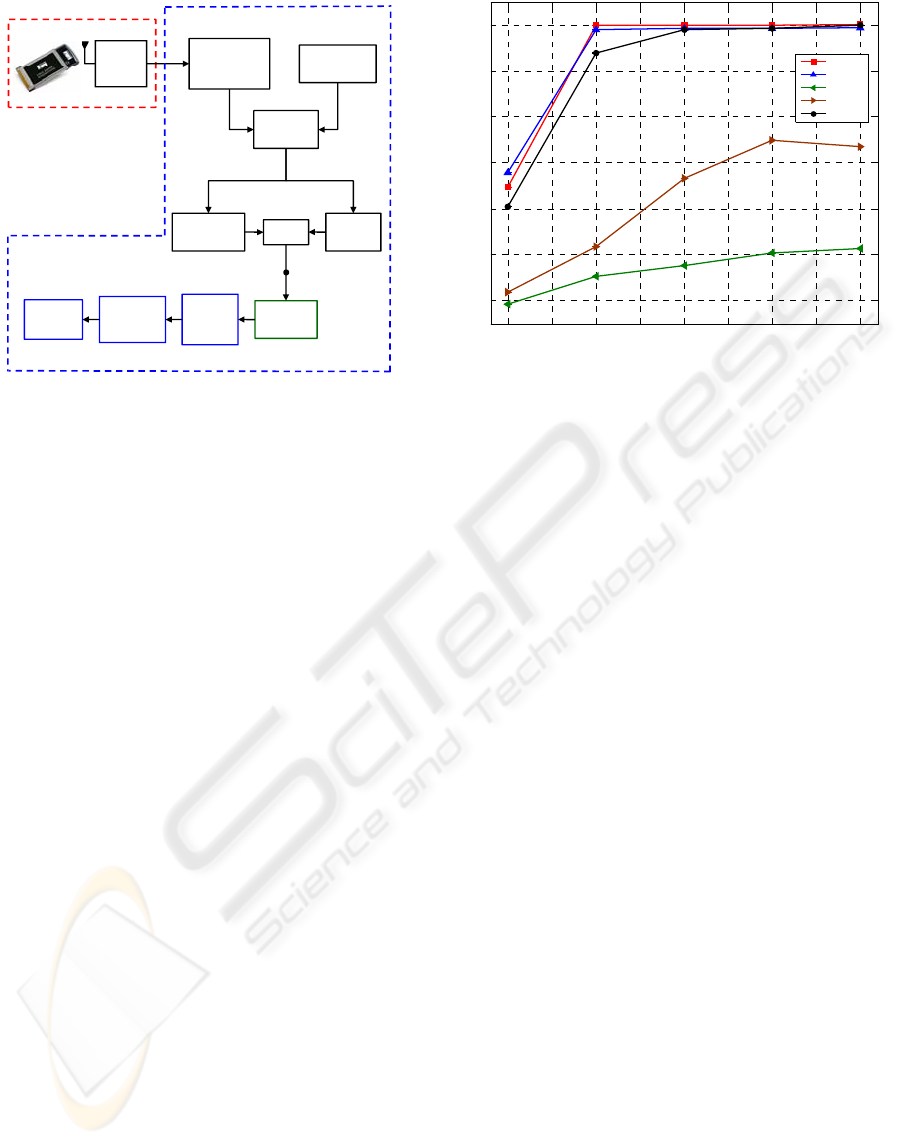

Figure 2: Signal collection and MDA/ML fingerprint

classification (Klein et al., 2009a).

The results of MDA/ML device classification

generally indicate some predictable performance

trends for parametric (factor) variation. These trends

were used to verify and validate results from the

ANOVA process. As obtained from the MDA/ML

classification process, these performance trends are

illustrated in Figure 3 which shows that average

percent correct classification (average across all three

devices) is dependent upon both SNR and BW.

2.1 3-Way ANOVA

The statistical model uses a 3-Way ANOVA with

input data generated using a full factorial

experimental design approach with three factors,

including: specific device, BW, and SNR. The

ANOVA Fixed Effects Model was used to complete

the analysis and is given by (Montgomery 2009):

ijk

= u + α

+ β

+ τ

+ (αβ)

+ (ατ)

+ (βτ)

+ (αβτ)

+ ε

(1)

where

is the overall mean, α is the specific device

effect, β is the Bandwidth (BW) effect, τ is the SNR

effect, αβ is the Device-BW interaction effect, ατ is

the Device-SNR interaction effect, βτ is the BW-

SNR interaction effect, αβτ is the Device-BW-SNR

interaction effect, and ε is the random error.

The Fixed Effects Model compares each

parameter and parameter combination to the mean

correct classification value. If varying a given

parameter or parameter combination does not result

in a divergence from the mean, that parameter or

parameter combination does not have a significant

effect on correct classification.

20 25 30 35 40 45 50 55 60

100

% Correct

SNR

(

)

4.5 MHz

5.5 MHz

6.5 MHz

7.5 MHz

8.5 MHz

Figure 3: Average Percent Correct Classification (Across

All Devices) for various SNR and BW values.

Otherwise, if varying a given parameter or

parameter combination results in a deviation from

the mean, that parameter or parameter combination

does have a statistically significant effect on correct

classification results. This can be expressed using

hypothesis notation:

:...0

αα

== =

(2)

::0

Hsomei

∃

≠

(3)

:...0

ββ β

== =

(4)

::0

Hsomej

∃

≠

(5)

: ... 0

ττ

== =

(6)

::0

Hsomek

∃

≠

(7)

1,1 1,2

:( ) ( ) ... ( ) 0

oij

αβ

== =

(8)

:,:()0

Aij

Hsomeij

αβ

∃

≠

(9)

1,1 1,2

:( ) ( ) ... ( ) 0

ojk

== =

(10)

:,:()0

Ajk

Hsomejk

∃

≠

(11)

1,1 1,2

:( ) ( ) ... ( ) 0

oik

τατ ατ

== =

(12)

:,:()0

Aik

Hsomeik

∃

≠

(13)

1,1,1 1,1,2

:( ) ( ) ... ( ) 0

o ijk

αβ

τα

== =

(14)

:,,:()0

A ijk

Hsomeijk

αβ

∃

≠

(15)

The hypothesis tests in (2)–(15) are designed to

show whether or not a given parameter or parameter

combination has an effect on percent correct

classification. For example, the null hypothesis H

in (2) states that for any given device among the

three being considered, the effect on the mean

correct classification will be zero. The alternative

hypothesis H

in (3) states that for at least one of the

ANOVA-BASED RF DNA ANALYSIS - Identifying Significant Parameters for Device Classification

devices being used, there is a statistically significant

effect on percent correct classification.

For final experimental results presented in this

paper, the 3-factor interaction term

αβτ

in (1) was

not considered. Preliminary results indicated that

the 2-factor interactions were more significant for

correct classification than three factor interaction.

Thus, all combinations of 2-factor interaction effects

(

αβ, ατ, βτ

) for the three parameters (Device, SNR,

BW) were the focus of this work.

3 RESULTS

The device classification process in Figure 2 allows

variation of any given number of parameters. To

enable validation of the ANOVA RF fingerprinting

experimentation process, the parameters that were

varied included Device, BW, and SNR. In addition,

performance analysis was limited to using only the

802.11a preamble signal region, with classification

accomplished using three statistical fingerprint

regions as shown in Figure 4 (Klein et al., 2009a).

Signals were collected, RF statistical fingerprints

extracted, MDA/ML classification performed and

resultant classification data analyzed for three

devices using selected BW and SNR values. The

specific device, BW and SNR parametric

combinations are shown in Table 1 along with

corresponding classification results that were used

for generating ANOVA results in Section 3.1.

3.1 ANOVA Results

To determine the statistical significance of a given

parameter or parameter combination, an F-Test was

applied and a P-Value calculated. The P-Value is the

probability that the test statistic will have a value that

is at least as extreme as the observed value when the

null hypothesis is true (Montgomery 2009). Thus, if

a P-Value (Prob > F) is at or near zero, the null

hypothesis is rejected in favour of the alternative.

Alternately stated, if the P-Value for a given

parameter or parameter combination is at or near

zero, that parameter or parameter combination has a

statistically significant effect on correct

classification. Results of the ANOVA analysis using

data in Table 1 is presented in Table 2.

10 Short OFDM Symbols

( ≈ 8

sec)

2 Long OFDM Symbols

(≈ 8

sec)

Entire 802.11a Preamble

(≈ 16

sec)

Fingerprint Region

Three Statistical Fingerprint Regions

Fingerprint Region 2

Fingerprint Region

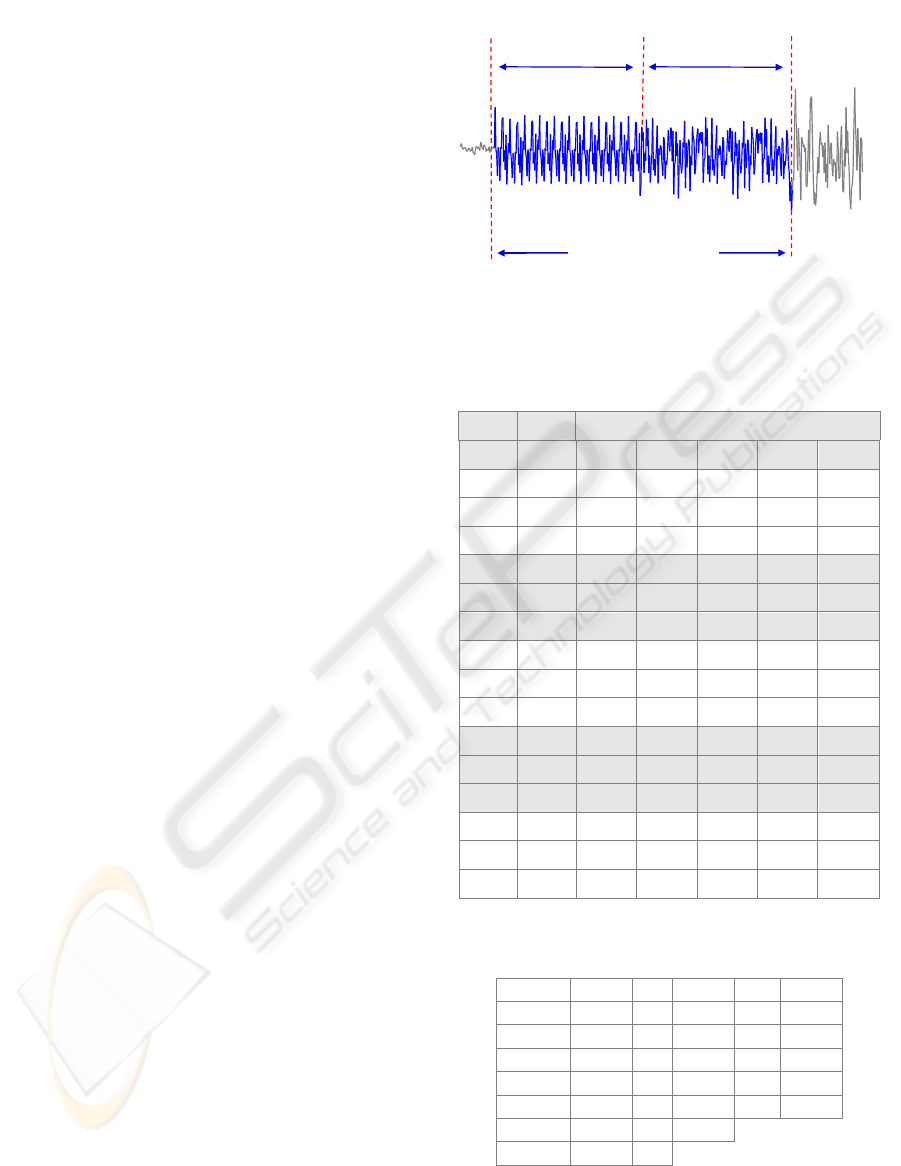

Figure 4: Preamble structure showing modulated signal

response and fingerprint regions for the 802.11a signals

(Klein et al., 2009a).

Table 1: MDA/ML percent correct classification for each

device and specific combination of BW and SNR factors.

BW Dev# SNR (dB)

MHz

20 30 40 50 60

4.5

1 67.00 99.92 99.86 99.92 99.96

2 82.30 99.96 100 100 100

3 44.36 99.78 99.76 99.78 99.80

5.5

1 72.78 97.24 98.38 98.00 98.24

2 88.48 99.66 99.84 100 100

3 42.24 99.64 99.28 99.64 99.56

6.5

1 22.84 17.60 19.04 25.42 28.36

2 63.00 74.94 80.78 82.76 83.86

3 31.72 43.22 42.74 42.68 41.76

7.5

1 37.42 70.78 86.06 81.50 81.56

2 44.94 71.62 67.82 80.28 79.84

3 42.92 12.56 45.78 62.68 58.96

8.5

1 73.96 88.52 96.94 99.74 99.78

2 89.42 100 100 100 100

3 17.76 92.86 99.64 97.66 99.60

Table 2: Analysis of Variance Results.

Source Sum

D.F. Mean

F P-Value

Dev 0.47044 2 0.23522 18.45 0.0000

SNR 0.95996 4 0.24149 18.94 0.0000

BW 2.75173 4 0.68793 53.95 0.0000

Dev-SNR 0.12833 8 0.01604 1.26 0.2994

Dev-BW 0.62613 8 0.07827 6.14 0.0001

SNR-BW 0.19087 16 0.01193 0.94 0.5411

Error 0.40806 32 0.01275

Total 5.54152 74

WINSYS 2010 - International Conference on Wireless Information Networks and Systems

3.2 Application of ANOVA

According to the ANOVA results in Table 2, the

Device, BW, and SNR factors all have a statistically

significant effect on overall correct classification for

parameter values considered. This is indicated by

the P-Values approaching zero for each parameter.

This conclusion is consistent with previous

empirical assessment based on varying a single

parameter (Klein et al., 2009a, 2009b) and serves as

proof-of-concept validation for the ANOVA

experimentation process.

3.2.1 2-Factor Interactions

Also of significance and not directly represented in

previous research are the Device-BW interaction

effects. As shown in Table 2, the P-Value for this

interaction is very near zero which indicates that

Device-BW interaction is statistically significant to

correct classification. This result was investigated

further and qualitatively assessed using results in

Figure 5. It is clear that classification performance

varies considerably as a function of BW (30-80%

degradation across devices) with Device 2 being

least sensitive and Device 1 being most sensitive for

the BWs considered.

The classification performance “dip” in Figure 5

was observed between BW = 6.5 and 7.5 MHz for

all SNR values considered, i.e., SNR = [20dB to

60dB]. The cause of this was analyzed by

considering MDA/ML classification confusion

matrix data. A representative confusion matrix for

BW = 7.5 MHz and SNR = 40 dB is shown in

Table 3. The diagonal entries represent percent of

correct classification for each device. The off-

diagonal entries represent percent of

misclassification (confusion) between devices. As

evident in the highlighted (red text) off-diagonal

entries in Table 3, Device 1 and Device 3 are the

most often confused. With one exception, similar

behaviour was reflected in confusion matrices for all

SNRs as well as BW = 4.5, 5.5 and 8.5 MHz. The

one difference occurred for BW = 6.5 MHz which

produced the confusion matrix results shown in

Table 4. In this case, Device 1 and Device 2 are the

most often confused and both Device 1 and Device 3

are misclassified as Device 2 most often.

4.5 5 5.5 6 6.5 7 7.5 8 8.5

100

BW (MHz)

% Correct Classification

Device 1

Device 2

Device 3

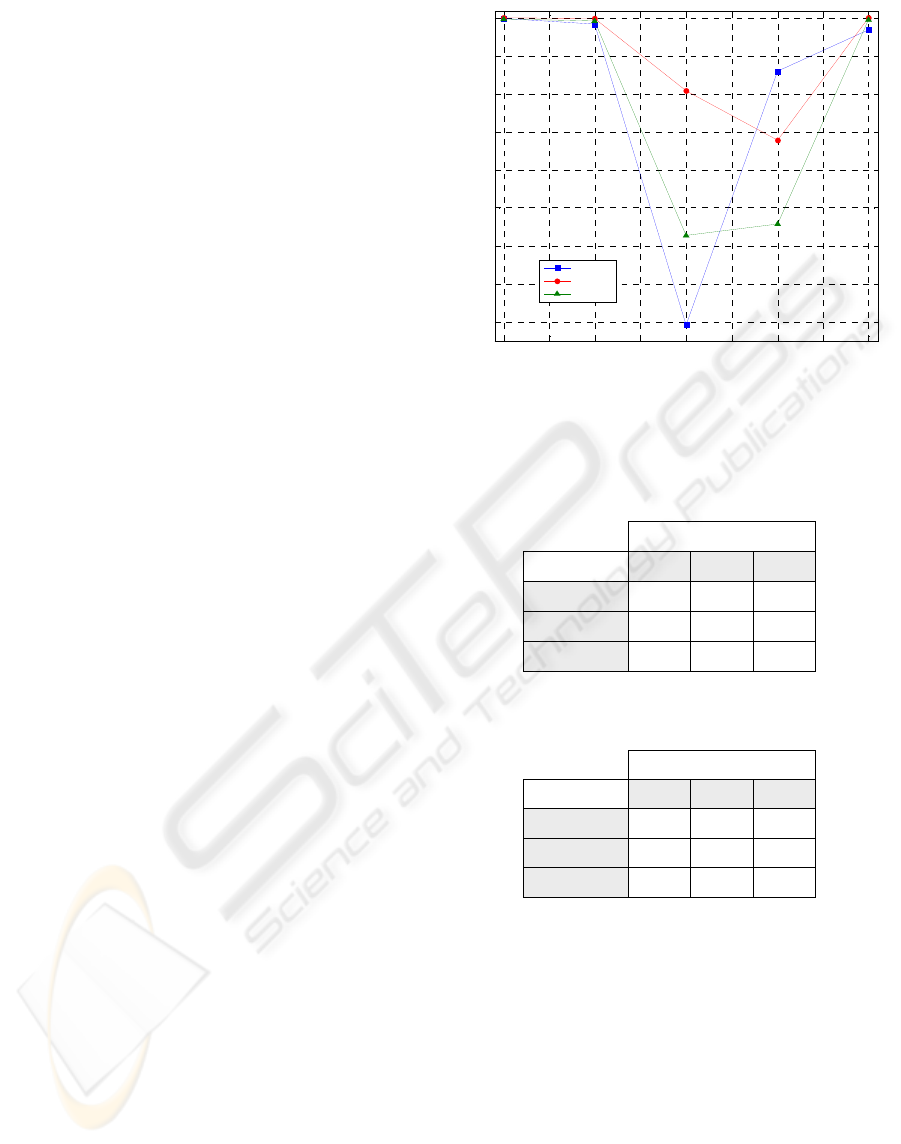

Figure 5: Percent correct classification vs. BW for each

device and the average across devices for SNR = 40 dB.

Table 3: MDA/ML classification confusion matrix for

BW = 7.5 MHz and SNR = 40 dB.

Estimated Device

Actual Device

1 2 3

86.06%

1.26%

12.68%

2 22.84%

67.82%

9.34%

53.70%

0.48%

45.78%

Table 4: MDA/ML classification confusion matrix for

factor combination of BW = 6.5 MHz and SNR = 40 dB.

Estimated Device

Actual Device

1 2 3

19.04% 65.06%

15.90%

2 15.04%

80.78%

4.18%

3 19.40%

37.86% 42.74%

4 CONCLUSIONS

As 4G wireless communication technology

continues to proliferate and users become

increasingly exposed to bit-level attacks, RF DNA

fingerprinting may emerge as the preferred physical

layer method for improving network security. As

introduced in previous work and adopted here, RF

fingerprinting performance is driven by a myriad of

signal collection, post-collection processing, and

device classification parameters. Thus, the end-to-

end process is well-suited for ANOVA

experimentation and parametric analysis aimed at

ANOVA-BASED RF DNA ANALYSIS - Identifying Significant Parameters for Device Classification

“The views expressed in this paper are those of the author(s) and do

not reflect official policy of the United States Air Force, Department

of Defense, or the U.S. Government.”

identifying key factors, or combinations thereof, for

predicting and implementing efficient and robust

fingerprinting.

Initial results validate applicability of ANOVA

for enhancing RF fingerprinting development. This

was done using three factors (Device, SNR and BW)

and corresponding 2-factor interaction effects which

provide additional insight into fingerprint process

design. The range of ANOVA factors included three

like-model 802.11a/b/g Cisco wireless devices

operated in the 802.11a configuration, SNR = [20

60] dB in 10 dB steps, and BW = 4.5, 5.5, 6.5, 7.5

and 8.5 MHz. The Device-BW interaction provided

the greatest insight into discriminating information

and showed that greatest device confusion (poorest

overall classification accuracy) occurs within the

BW = 6.5 to 7.5 MHz region. While the exact cause

of this remains under investigation, this result is

consistent with previous comparisons made using

time domain (TD) and wavelet domain (WD)

techniques (Klein et al., 2009a).

The ANOVA also revealed that specific serial-

numbered devices were more susceptible to BW

variation, i.e., classification performance varied

considerably as a function of BW and 30-80%

degradation was observed across devices. The

ANOVA process also revealed some semi-

significant effects based on Dev-SNR interaction.

Although not as strong as the Device-BW

interaction, specific like-model devices were shown

to be more susceptible to SNR variation.

Given preliminary favorable results, research

activity continues and work has begun to extend the

ANOVA analysis process by 1) considering more

than three ANOVA factors simultaneously,

2) extending applicability to Spectral Domain (SD)

fingerprinting, and 3) identifying significant

parameters from among those not considered in this

initial proof-of-concept demonstration. These

extensions are important to the overall success and

subsequent implementation of RF fingerprinting to

augment bit-level security mechanisms.

REFERENCES

Agilent (2004). Agilent E3238 Signal Intercept and

Collection Solutions: Family Overview. Publication

#5989-1274EN, Agilent Technologies Inc., USA.

Blau, J. (2009). Open-source effort to hack GSM.

spectrum.ieee.org/Telecom/Wireless/Open-Source-

Effort-to-Hack-GSM.

Kassner, M. (2009). Cracking GSM encryption just got

easier. blogs.techrepublic.com.com/wireless.

Klein, R., Temple, M., and Mendenhall, M. (2009a).

Application of wavelet-based RF fingerprinting to

enhance wireless network security. Jour of Communi-

cations and Networks. Vol. 11, No. 6, 544-555, Dec.

Klein, R., Temple, M., Mendenhall, M., and Reising, D.,

(2009b). Sensitivity analysis of burst detection and

RF fingerprinting classification performance. IEEE

Int. Conf on Communications (ICC09), Germany, Jun.

Montgomery, D., (2009). Design and Analysis of

Experiments, John Wiley & Sons Inc. Hoboken,

Edition.

Reising, D., Temple, M., and Mendenhall, M. (2010a).

Improved wireless security for GMSK-based devices

using RF fingerprinting. Int. J. Electronic Security and

Digital Forensics. Vol. 3, No. 1, 41-59, Mar.

Reising, D., Temple, M., and Mendenhall, M. (2010b).

Improving intra-cellular security using air monitoring

with RF fingerprints. IEEE Wireless Comm and

Networking Conf (WCNC10), Australia, Apr.

WINSYS 2010 - International Conference on Wireless Information Networks and Systems
