NARFO* ALGORITHM

Optimizing the Process of Obtaining Non-redundant

and Generalized Semantic Association Rules

Rafael Garcia Miani

IBM Brazil Software Laboratory, 04753-080, São Paulo, Brazil

Cristiane Akemi Yaguinuma, Marilde Terezinha Prado Santos and Vinícius Ramos Toledo Ferraz

Department of Computer Science, Federal University of São Carlos, P.O. Box 676, 13565-905, São Carlos, Brazil

Keywords: Data Mining, Generalized Semantic Association Rules, Redundant Rules, Fuzzy Ontology.

Abstract: This paper proposes the NARFO* algorithm, an algorithm for mining non-redundant and generalized

association rules based on fuzzy ontologies. The main contribution of this work is to optimize the process of

obtaining non-redundant and generalized semantic association rules by introducing the minGen (Minimal

Generalization) parameter in the latest version of NARFO algorithm. This parameter acts on generalize

rules, especially the ones with low minimum support, preserving their semantic and eliminating redundancy,

thus reducing considerably the amount of generated rules. Experiments showed that NARFO* produces

semantic rules, without redundancy, obtaining 68,75% and 55,54% of reduction in comparison with

XSSDM algorithm and NARFO algorithm, respectively.

1 INTRODUCTION

Many approaches on mining association rules are

motivated by finding new ways of dealing with

different attribute types or increasing computational

performance. In the mean time, a crescent number of

approaches have been developed concerning

semantics of mined data, aiming at improving the

quality of obtained knowledge. In this sense,

ontologies have been widely employed to represent

semantic information defined by knowledge experts,

and can also be applied to enhance association rule

mining. Some researches, like (Srikant and Agrawal,

1995) and (Hou, et al., 2005), have extended the

process of mining association rules in order to mine

association rules that represent relation between

basic data items, as well as between items at any

level of the related taxonomy (is-a hierarchies) or

ontology, resulting in the so called generalized

association rules.

The use of traditional ontologies based on

propositional logic is a common point in approaches

to generalize association rules. Such restriction

becomes inappropriate to represent some concepts

and relationships of the real world. Therefore, some

researches have used fuzzy ontologies in order to

extract semantically richer association rules, such as

(Chen, et al., 2003), extended SSDM (Escovar, et

al., 2006) and NARFO algorithm (Miani, et al.,

2009). However, in cases, by adopting either crisp or

fuzzy ontologies in generalized association rule

mining, the process of extracting association rules

usually brings to users a great amount of rules.

Many of these rules represent the same information

and are considered redundants. Therefore, it is

interesting to avoid mining unnecessary rules that

express redundant knowledge, while focusing on the

semantic richness provided by fuzzy ontologies.

Considering this context, this paper proposes the

NARFO* algorithm to mine non-redundant and

generalized association rules based on fuzzy

ontologies. The main contribution of this research is

the introduction of minGen (minimal generalization)

parameter. This works on generalizing rules,

especially with low minimum support, preserving

their semantic and eliminating redundancy.

320

Garcia Miani R., Akemi Yaguinuma C., Terezinha Prado Santos M. and Ramos Toledo Ferraz V. (2010).

NARFO* ALGORITHM - Optimizing the Process of Obtaining Non-redundant and Generalized Semantic Association Rules.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

320-325

DOI: 10.5220/0002968803200325

 SciTePress

2 RELATED WORK

Many researches have been employing taxonomies

and ontologies as background knowledge in mining

association rules in order to enhance the knowledge

discovery process. (Hou, et al., 2005) uses domain

knowledge to generalize low level rules discovered

by traditional rule mining algorithms, in order to get

fewer and clearer high level rules. In (Brisson, et al.,

2005), domain knowledge is used in pre and post-

processing steps. The preprocessing step uses

ontology to guide the construction of specific

datasets for particular mining tasks. In the post-

processing step, mined rules are interpreted and

filtered, as terms are generalized based on the

ontology.

“However, in many real-world applications, the

taxonomic structure may not be crisp but fuzzy.”

(Chen, et al., 2000, p.47). For this porpose, (Chen, et

al., 2000) developed an algorithm to mine

generalized association rules with fuzzy taxonomic

structures. The algorithm considers the R-interest

measure, which is used to eliminate redundants and

inconsistent rules. Fuzzy association rule mining,

developed by (Farzanyar, et al., 2006), is driven by

domain knowledge in order to make the rules more

visual, more interesting and understandable.

(Escovar, et al., 2006) have proposed another

approach that uses fuzzy ontologies to represent the

semantic similarity relations among mined data. In

this case, the mining algorithm (XSSDM algorithm)

considers a new measure, called minimum similarity

(minsim). If two itens have the similarity degree

greater than or equal the minsim, fuzzy associations

are made and can be expressed in the association

rules extracted by the algorithm. For example, if

item

and item

have the degree of similarity greater

than or equal minsim in the fuzzy ontology, a fuzzy

association is made and a fuzzy itemset is created

(represented as item

~item

Although generalized association rule mining

approaches based on fuzzy ontology express

semantically richer information, they may result in a

great amount of extracted rules and redundant rules.

Then, redundancy treatment has been an interesting

research topic. In (Han and Fu, 1999) a multiple

level association rule was proposed to reduce the

number of generalized association rules. This

consists in defining different minsup values for each

level of a given taxonomy. Higher levels have bigger

minsup values. Other approaches like (Kunkle, et al.,

2008) implement its method to reduce the amount of

generalized association rules and redundant rules

during the pattern extraction process. (Kunkle, et al.,

2008) implemented the MFGI_class algorithm based

on maximal frequent itemset theory (Bayardo,

1998). (Chen, et al., 2000), and (Oliveira, et al.,

2007) are some approaches that treat the problem

after the processing stage. The first one does the

generalization process based on the R-interest

measure. This measure prunes redundant rules, only

considering the rules which degree of support or

confidence is R times the expected degree of support

or confidence. (Oliveira, et al., 2007) generalizes

only if the descendents of an ancestor generate rules,

and the rule of the ancestor has support value x%

greater than the descendent that generate a rule with

the biggest support among its siblings. (Miani, et al,

2009) proposed NARFO algorithm, which decreases

the number of redundancy rules by its generalizing

and redundancy treatment.

NARFO* and NARFO have the same features,

but NARFO* reduces the amount of NARFO’s rules

by the introduction of minGen parameter, with more

semantic and no equivocated information.

3 NARFO* ALGORITHM

This section explains the NARFO* algorithm. The

introduction of minGen parameter is the main

contribution of this work. MinGen works especially

generalizing rules with low minimum support,

without semantic lost. If X% of descendents is

included in rules, the generalization is done, and the

items that are not part of the generalization are

showed to avoid wrong information. Considering the

fuzzy ontology of figure 1, if minGen value is 0,6

and rules like Apple

Turkey, Kaki

Turkey are

generated, the algorithm generalizes these rules to

Fruit

Turkey, since Apple and Kaki are more than

60% of Fruit’s descendents (minGen value is 0,6).

The rule are showed as Fruit(-Tomato)

Turkey, indicating that the item tomato did not

compose the generalization.

Besides minGen parameter, the algorithm also

eliminate redundant rules, preserving their semantic.

If both Apple~Tomato

Chicken and Apple

Chicken are extracted, NARFO* only considers the

first one, exhibiting with a plus (+) the item more

relevant in the fuzzy itemset of the rule

Apple(+)~Tomato

Chicken.

3.1 Data Scanning

This step identifies the items in the database

generating itemsets of one size (1-itemset).

Considering the fuzzy ontology of figure 1, this

NARFO* ALGORITHM - Optimizing the Process of Obtaining Non-redundant and Generalized Semantic Association

Rules

321

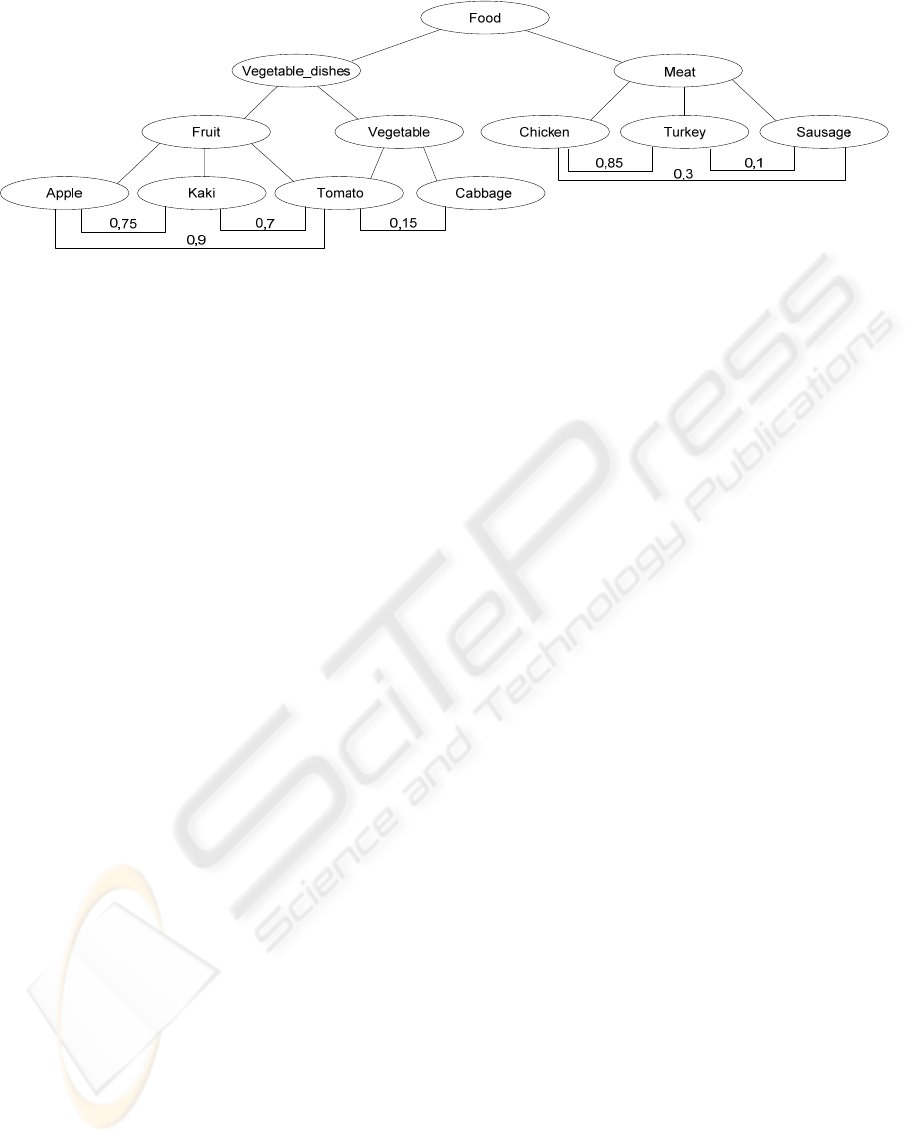

Figure 1: Example of Fuzzy Ontology with fuzzy similarity degrees between items.

step identified the following items: Apple, Kaki,

Tomato, Cabbage, Chicken, Turkey and Sausage.

3.2 Identifying Similar Items

The similarity degree values between items are

supplied by a fuzzy ontology, which specifies the

semantics of the database contents. This step

navigates through the fuzzy ontology structure to

identify semantic similarity between items. If the

similarity degree between items is greater than or

equal to the minsim parameter explained in section

2, a semantic similarity association is found and this

association is considered similar enough. A fuzzy

association of size 2 is made by these pair of items

found and are expressed by fuzzy

items, where the

symbol ~ indicates the similarity relation between

items, for example, Kaki~Tomato.

After that, this step verifies the presence of

similarity cycles as proposed in (Escovar, et al.,

2005). The similarity cycles involve only sibling

items. The minimum size of a cycle is 3, and the

maximum is the number of descendents that the

ancestor of its items has.

3.3 Generating Candidates

The generation of candidates in this algorithm is

similar to Apriori algorithm. However, in NARFO*

algorithm, besides the items identified in the step

described in section 3.1, fuzzy items, which

represent fuzzy associations, are added to generated

itemsets candidates.

At the end of this step, the algorithm has all

itemsets candidates of size k that are sent to calculate

the weight of itemsets candidates.

3.4 Calculating the Weight of

Candidates

If a candidate itemset is fuzzy, the weight of

candidates is calculated based on the Fuzzy weight

equation proposed in (Escovar, et al., 2005). This

equation was created due to the presence of fuzzy

logic concepts.

The weight reflects the number of occurrences of

an itemset in the database. In this step, the database

is scanned, and each of its rows is confronted with

the set of candidate itemsets, one after one. For each

occurrence of a non-fuzzy candidate itemset in a

row, its weight is incremented by 1. Otherwise, it is

incremented by the fuzzy value, obtained by the

Fuzzy weight equation.

Finished this step, the itemsets candidates are

ready to be used in next step.

3.5 Evaluating Candidates

In this step, the support of each itemset is evaluated.

If the item set is fuzzy, the algorithm divides the

fuzzy weight to the total of transactions. If a

candidate itemset is frequent, its support is greater

than or equal minsup.

However, during the process, besides verifying if

each candidate itemset is frequent or not, the

algorithm also verifies the non-frequent itemsets, as

implemented on NARFO algorithm.

In the end of this step, we have all frequents

itemsets of size k, where k is the size of the itemset.

The algorithm return to the step explained in section

3.3 to generate the candidate itemsets of size k + 1.

If k is equal to the number of domains, NARFO*

algorithm goes to step 3.6.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

322

3.6 Generating Rules

In this step, the association rules are generated for

each itemset of the set of frequent itemsets. All

possibilities of antecedents and consequents are

generated for each itemset of the set of frequent

itemsets. The rules containing the confidence value

greater than or equal minconf are considered strong.

Then, the algorithm verifies these rules in order

to check if a fuzzy item can be generalized. A fuzzy

item can be generalized if all descendents of an

ancestor are contained in the fuzzy item. If the rule

Tomato~Cabbage

Turkey exists, then the rule

Vegetable

Turkey is generated, since Vegetable

comprises Tomato and Cabbage as descendant

concepts.

3.7 Rules Generalization Treatment

After all rules have been generated by the previous

step, they receive generalizing and redundancy

treatment. The generalization here is different from

NARFO algorithm in resulting of minGen

introduction. The pseudo-algorithm of these

treatments is showed in table 1.

Table 1: Pseudo-algorithm of rules generalization

treatment.

for each rule generated

if rule can be generalized considering minGen

//generalization on both antecedent and/or consequent

generalize rule

end if

add rule to v // v is a vector of rules

end for

For all rules, the algorithm verifies if the antecedent

/ consequent of each rule can be generalized (lines 1-

8 in table 1) considering minGen parameter. For

example, if the algorithm generated the rules Kaki

Sausage and Apple~Tomato

Sausage, then the

algorithm does the generalization to Fruit

Sausage because all descendants of Fruit occurred in

rules (including fuzzy items) with the Sausage

concept as consequent. The generalization process

happens not only if all descendents of an ancestor

are in a fuzzy item, but also if all descendents of an

ancestor are in different rules that have the same

correspondent antecedent or consequent. This can

happen at the antecedent or consequent of a rule.

Besides that, NARFO* algorithm included the

minGen parameter on the previous algorithm.

MinGen performs on generalizing rules, especially

the ones with low minimum support. It generalizes

rules if a minimal percentage of descendents of an

ancestor appears in different rules containing the

same antecedents and consequents, except by the

descendent. For example, consider minGen value 0,6

(60%). Suppose the rule Apple~Tomato

Sausage

was generated. This rule contains two items of the

ancestor Fruit and, as they are sufficiently similar,

they can be considered the same. In this way,

66.67% of Fruit’s descendents, approximately, are

included. So, the rule is generalized to Fruit (-

Kaki)

Sausage. Kaki was showed between

parentheses, after a minus symbol, to indicate that

this item do not make part of the generalization.

Consequently, the introduction of minGen

reduces the amount of rules, generating semantically

richer rules, without erroneous information.

3.8 Redundancy Treatment

In the redundancy treatment, the algorithm deals

with two redundancy issues. The pseudo-algorithm

for this treatment is described in table 2. The first

kind of redundancy is when a rule is sub-rule of

another one (lines from 1 to 8 in table 2). A sub-rule

is a rule that has the same items in antecedent and

consequent considering another rule r

, except that r

has at least one item

that is descendent of an item in

, in the same side of the rule (antecedent or

consequent). Then, r

is eliminated.

Fuzzy redundancy is also treated by NARFO*

(lines 9-15 in table 2). This kind of redundancy

occurs when a rule is fuzzy sub-rule of another rule

that contain a fuzzy item in the same side, in r

Table2: Pseudo-algorithm of redundancy treatment.

Verify = false / verifies sub-rules

for each rule from v // vector of table 3

verify = sub-rule(rule, v)

//verify if rule is a sub-rule in v

if verify == false

add rule to v1 // another vector of rules

end if

end for

for each rule from v1

verify = fuzzy_sub-rule(rule, v1)

//verify if rule is a sub-rule in v1

if verify == false

add rule to v2 // another vector of rules

end if

end for

NARFO* ALGORITHM - Optimizing the Process of Obtaining Non-redundant and Generalized Semantic Association

Rules

323

Figure 2: Fuzzy Ontology of IBGE2.

4 EXPERIMENTS

This section shows some results of NARFO*

algorithm and compares NARFO* to XSSDM and

NARFO algorithms.

In these experiments, data from the Brazilian

Demographic Census 2000, provided by IBGE

(Brazilian Institute of Geography and Statistics),

were used. This database contains information about

demographic characteristics of the Brazilian

population, Years of study and Marital status

information, called IBGE1.

The tests were done considering the fuzzy

ontology IBGE1, which is illustrated in figure 2.

The tests were done with constant minconf and

minsim, whose values are, respectively, 0.2 and 0.6.

The minsup value varies from 0.05 to 0.5, increasing

it by 0.05. MinGen value is 0.6 (60%).

Figure 3 presents a comparative between the

generated rules extracted by NARFO* and XSSDM

algorithms. Figure 3 shows that the number of rules

reduced approximately 68,75%. This is the result of

rules generalization and redundancy treatment.

0,5 0,45 0,4 0,35 0,3 0,25 0,2 0,15 0,1 0,05

Núm ero de Regras

minsup

NARFO*

XSSDM

68.75%of

red uc t ion

Figure 3: Comparison between NARFO* and XSSDM

using IBGE2 database.

If only NARFO* and NARFO algorithm is

considered, the reduction is 55,54%. The results are

illustrated on figure 4. Note that between 0,1 and

0,05 minsup values, NARFO* decreases the amount

of rules. This is an effect of the generalization

process through minGen parameter. NARFO

generates rules like Less_then_three_years

Single, Four_to_ten_years

Single and Eleven-

years_or_more

Single but does not generalize

them. Instead, NARFO* generalizes these rules to

Years_of_study

Single, once the antecedents of

those rules are more than 60% of Years_of_study

descendents. In this way, not only NARFO* reduces

the amount of rules but generates more semantic

association rules.

Both algorithms generates the same number of

rules until minsup value 0,15. After that, minGen

parameter has much effect, generalizing rules that

were not generalized before. The first two rules are

generalized to Less_then_three_years

Marital_status(-Married) on NARFO*.

By the results, it could be observed that

not only NARFO* reduces the number of

0,5 0,45 0,4 0,35 0,3 0,25 0,2 0,15 0,1 0,05

Número de Regra s

minsup

NARFO*

NARFO

55,54%of

reducti on

Figure 4: Comparison between NARFO* and NARFO

using IBGE1 database.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

324

non-redundant and generalized association rules, but

also generates semantically richer rules., without

erroneous information.

5 CONCLUSIONS AND FUTURE

WORK

This paper proposed NARFO* algorithm, an

algorithm for mining non-redundant and semantic

generalized association rules based on fuzzy

ontologies. The main contribution of this work is the

introduction of minGen parameter in the latest

version of NARFO algorithm.

The experiments proved that NARFO* generates

semantically richer rules, with no erroneous

information, reducing the amount of rules in 67,05%

and 55,54% in comparison to XSSDM and NARFO

algorithms, respectively.

It is being developed a method to automatize

minsup and minconf values, without the need of final

user know what these parameters means. A fuzzy

membership degree, which considers how much an

ancestor belongs to one or more ancestors, is also

being added to NARFO*, so the generalization

process can be improved.

ACKNOWLEDGEMENTS

IBM, UFSCar, CAPES, FAPESP and CNPq.

REFERENCES

Bayardo, J. R. J. (1998). Efficiently mining long patterns

from databases. In Proceedings of the 1998 Annual

Conference on Management of Data. Seattle, USA. 2-

4 June 1998.

Brisson, L., Collard, M., Pasquier, N. (2005). Improving

Knowledge Discovery Process Using Ontologies. In

International Workshop on Mining Complex Data.

Houston, USA. 27-30 November 2005.

Chen, G., Wei, Q., Kerre, E. E. (2000). Fuzzy Data

Mining: Discovery of Fuzzy Generalized Association

Rules. In: G. Bordogna and G. Pasi, eds. Recent Issues

on Fuzzy Databases. Wurzburg: Physica-Verlag. 45–

66.

Chen, X., Zhou, X., Scherl, R. B., Geller, J. (2003). Using

an Interesting Ontology for Improved Support in Rule

Mining. In 5

InternationalConference on Data

Warehousing and Knowledge Discovery. Prague,

Czech Republic. 3-5 September 2003.

Escovar, E. L. G., Biajiz, M., Vieira, M. T. P. (2005).

SSDM: A Semantically Similar Data Mining

Algorithm. In 20

Brazilian Symposium of Databases.

Uberlândia, Brazil. 3-7 October 2005.

Escovar, E. L. G., Yaguinuma, C. A., Biajiz, M. Using

Fuzzy Ontologies to Extend Semantically Similar Data

Mining. In 21

Brazilian Symposium of Databases.

Florianópolis, Brazil. 16-20 October 2006.

Farzanyar, Z., Kangavari, M., Hashemi, S. (2006). A New

Algorithm for Mining Fuzzy Association Rules in the

Large Databases Based on Ontology. In Sixth IEEE

International Conference on Data Mining –

Workshops. Hong Kong, China. 18-22 December

2006.

Han, J., Fu, Y. (1999). Mining Multiple-Level Association

Rules in Large Databases. IEEE Transactions on

Knowledge and Data Engeneering, 11(5), 798-805.

Hou, X., Gu, J., Shen, X., Yan, W. (2005). Application of

Data Mining in Fault Diagnosis Based on Ontology. In

Third International Conference on Information

Technology and Applications. Sydney, Australia. 4-7

July 2005.

Kunkle, D. Zhang, D. H., Cooperman, G. (2008). Mining

Generalized Frequent Itemsets and Generalized

Association Rules Without Redundancy. Journal of

Computer Science and Technology, 23(1), 77-102.

Miani, R. G., Yaguinuma, C. A., Santos, M. T. P., Biajiz,

M. (2009). NARFO Algorithm: Mining Non-

redundant and Generalized Association Rules Based

on Fuzzy Ontologies. In 11 International Conference

on Enterprise Information Systems. Milan, Italy. 6-10

May 2009.

Oliveira, V. C., Rezende, S. O., Castro, M. (2007).

Evaluating Generalized Association Rules Through

Objective Measures. In Proceedings of 25

International Multi-Conference on Artificial

Intelligence and Applications . Innsbruck, Austria. 12-

14 February 2007.

Srikant, R., Agrawal, R., (1995). Mining Generalized

Association Rules. In Proceedings of the International

Conference of Very Large Data Bases. Zurich, Suíça.

11-15 September 1995.

NARFO* ALGORITHM - Optimizing the Process of Obtaining Non-redundant and Generalized Semantic Association

Rules

325
