DCT BASED BLIND AUDIO WATERMARKING SCHEME

Charfeddine Maha, Elarbi Maher, Koubaa Mohamed and Ben Amar Chokri

REGIM, Research Group on Intelligent Machines, University of Sfax

National School of Engineers (ENIS), BP 1173, Sfax, 3038, Tunisia

Keywords: Data Security, Discrete Cosine Transforms, Neural Network, Hamming Codes.

Abstract: During these recent years, different digital audio media are available due to internet and audio processing

techniques. This is beneficial to our daily life but it brings the problem of ownership protection. As a

solution, audio watermarking technique has been quickly developed. It consists of embedding information

into digital audio data. This paper proposes an audio watermarking scheme operating in frequency domain

using Discrete Cosine transforms (DCT). We take the advantage of hiding the mark in the frequency domain

to guarantee robustness. To increase robustness of our schemes, the watermark is refined by the Hamming

error correcting code. We study the band used to hide the watermark bits according essentially to the effects

of the MP3 compression on the watermarked audio signal. To assure watermark embedding and extraction,

we use neural network architecture. Experimental results show that the watermark is imperceptible and the

algorithm is robust to many attacks like MP3 compression with several compression rates and various

Stirmark attacks. Furthermore, the watermark can be blind extracted without needing the original audio.

1 INTRODUCTION

Today, music distribution over the Internet is an

increasingly important technology. Most of the

music content is compressed in order to save disk

space and speed up transmission over band limited

channels. However, controlling the use of the

distributed works or tracking illicit copies still

presents major problems.

Within this context, the digital watermarking

(Bender, Gruhl, Morimoto, and Lu, 1996), art of

hiding information into the audio signal, can provide

a useful mechanism to track such illicit copies or to

attach property right information to the material.

Watermarking covers any type of digital

documents that include text, sound, image and video

(Cox, I., Miller, M., and Bloom, 2002).

Inaudibility (perceptual transparency), robustness

and capacity of the hiding algorithm are three

contradictory requirements for any audio

watermarking scheme, called “the magic triangle”

(Barnett, 1999).

Research in audio watermarking is not as mature,

compared to research in image and video

watermarking (Arnold, M., Wolthusen, S. and

Schmucker, 2003). This is due to the fact that, the

human auditory system is much more sensitive than

the human visual system, and that inaudibility is

much more difficult to achieve than invisibility for

images (Al-Haj and Mohammad, 2010). Even so,

many audio watermarking techniques have been

proposed in literature in recent years. Most of these

algorithms attempt to satisfy watermarking

requirements by exploiting the imperfections of the

human auditory system (Katzenbeisser, S., and

Petitcloas, 2000).

In this paper, we present a blind audio

watermarking scheme operating in the frequency

domain (Martin and Burg, 2007). The original audio

is divided into 512 block samples. Some blocks are

chosen randomly and then transformed to the DCT

domain to embed watermark. Watermark embedding

and extraction are based on memorizing the

relationships between a transformed central sample

and its 8 neighbours using Neural Network NN

architecture (Haykin, 1995). The band used to hide

the watermark bits is studied according to the effects

of the MP3 compression on the watermarked audio

signal and to the inaudibility watermarking

propriety. The extraction is the inverse process and

is based on blind technique (Hsieh and Tsou, 2002).

In fact, we are capable of recovering the watermark

data without requiring access to the original audio.

The rest of this paper is organized as follows:

section 2 describes the proposed audio watermarking

139

Maha C., Maher E., Mohamed K. and Amar Chokri B. (2010).

DCT BASED BLIND AUDIO WATERMARKING SCHEME.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 139-144

DOI: 10.5220/0002922101390144

 SciTePress

scheme. Section 3 shows the obtained results.

Finally, section 4 concludes the paper.

2 THE PROPOSED AUDIO

WATERMARKING SCHEME

Similar to static image, the realizable audio

watermarking has two approaches: time domain and

transform domain. In fact, some schemes embed the

watermark directly in the time domain (Laftsidis,

Tefas, Nikolaidis and Pitas, 2003), and others

operate in the transform domain usually using

Discrete Fourier Transform DFT (Malik, Khokhar,

Rashid and A, 2003), Discrete Cosine Transform

DCT (Wang, Ma, Cong, Yin, 2005) or Discrete

Wavelet Transform DWT (Wu, S.Q., Huang, J.W.,

Huang, D.R., Shi and Y.Q., 2004).

According to the audio watermarking related

work survey, we contribute by proposing an

algorithm which not only assures blind detection

without resorting to the original digital audio

signals, but also exploits the DCT domain to assure

robustness property thanks to the advantages of this

domain. Besides, it uses the NN for both insertion

and detection process to ameliorate robustness

contrary to many schemes that exploit the NN only

for the detection process (Wang et al., 2005). The

algorithm adds also an Error Correcting Code to

refine the embedded watermark during detection.

Details of the proposed audio watermarking scheme

are described in the following subparts.

2.1 Watermark Embedding

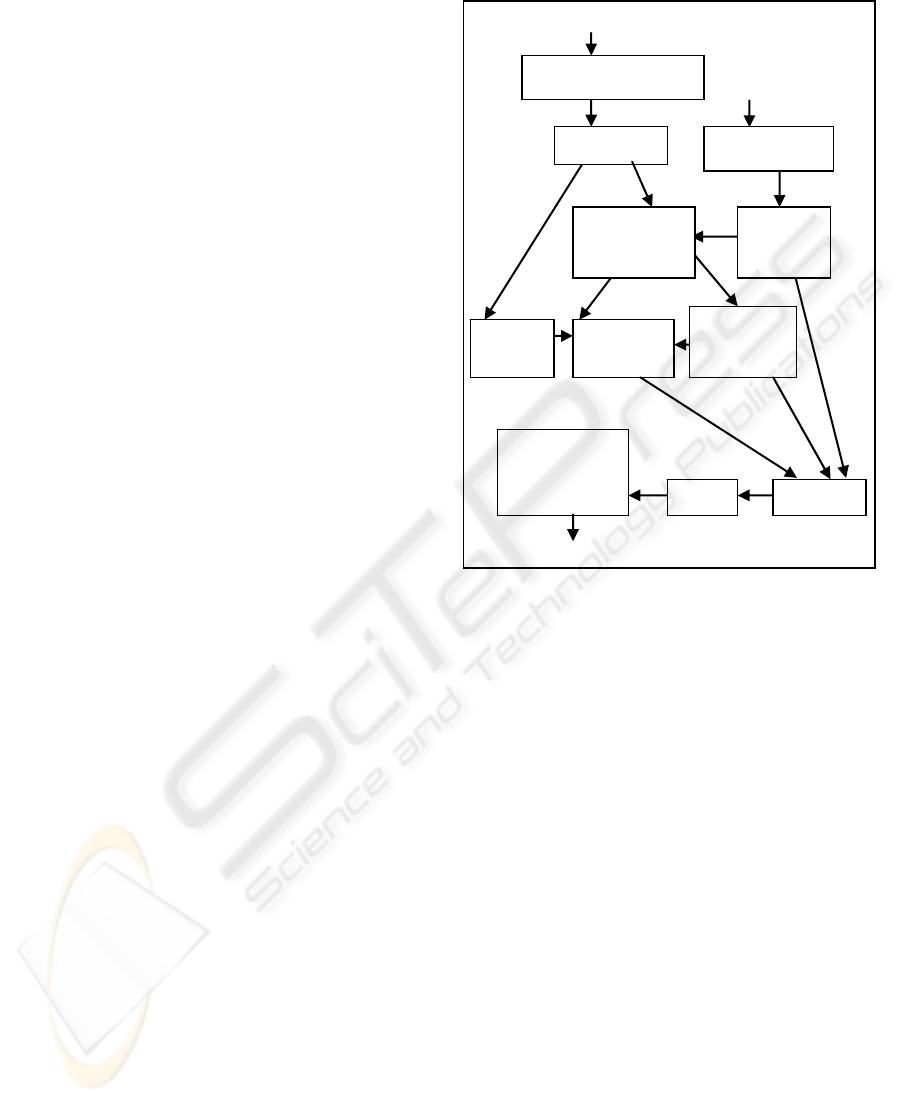

The main steps of the embedding procedure

developed are depicted in figure 1.

First, an original audio signal is divided into non-

overlapping blocks of 512 samples. This number is

chosen because a signal of 512 samples is constantly

stable. Next, a DCT transform is applied to those

blocs. At the same time, a watermark is decomposed

into sets of length 8. Each set is encoded with a

Hamming error correcting code (12, 8) (W and

Hamming, 1950). After that, we generate a pseudo-

random index sequence Z(x) where x  (1,…..,pq),

is the encoded watermarking size. Simultaneously, a

NN is trained to be used later in the watermark

insertion and extraction process. Given the pq

selected blocks, we locate the band of middle

frequencies of each block and we proceed then to the

watermark insertion using NN. Finally we construct

the watermarked audio signal after performing the

IDCT transform.

Watermark

pq

Watermarked

Signal

construction

IDCT

Insertion

Watermarkedaudiosignal

Is

Bs

512blocksdivision

Training

NN

Originalaudiosignal

NBblocs

DCT

Random

Generator

NN

Simulation

Preprocessing

Hamming

Code

ResearchMF

positions

Figure 1: DCT embedding process.

2.1.1 Locating Middle Frequencies and

Finding the Position of Insertion

For each block, we locate the band of middle

frequencies MF to insert the watermark bit contrary

to various algorithms that choose both low and MF

(Wang et al., 2005) (Zhiping, Lihua, 2007). In fact,

we choose to hide the watermark bits in the MF

while the high frequencies will be modified and

even deleted by signal manipulations such as MP3

compression, therefore we will lose our bits if we

hide them in the high frequencies. Moreover, if we

insert the bits in the low frequencies, we will get a

distinguishable watermark and so an affected audio

signal. We have studied for several blocks the PSD

power spectral density before and after MP3

compression.

The figure 2 shows that the MP3 compression

with 128Kbps rate modifies the signal sampled at

44.1 KHz starting with a frequency of 11 Khz which

corresponds to the index band [100:258] from a

block of 512 samples. For each block and after

obtaining the band of MF, we locate the closed

sample value to the average value of the actual band

and we deduct its index position.

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

140

Figure 2: The power spectral density before and after MP3

compression (128Kbps).

2.1.2 Watermark Insertion Strategy

We use the Hamming error correcting code (12,8) to

enhance the robustness. The Hamming code can

surmount the corruption of a watermark, and can

help it endure serious attacks.

We establish the relationship between frequency

samples around a frequency central sample by using

the back-propagation neural networks (BPNN)

model. The BPNN architecture contains three layers:

the input layer with eight neurons, the hidden layer

with nine neurons, and the output layer with a single

neuron. For a selected sample I(x), the network is

trained with its 8 neighbours as input vector and the

value of the sample as output. Since the training

process for the NN is completed, a set of synaptic

weights, characterizing the behaviour of the trained

neural network, can be obtained and used in the NN

simulation process. Each watermark bit Wi is

embedded in a selected block by modifying the

frequency sample at the position of insertion. The

insertion is based on a comparison between Bs and

Is values where Bs is the NN output and Is the value

of the original central sample at the position of

insertion. We use an adaptive watermarking strength

st, equal to abs (Bs-Is) to accentuate the difference

between Bs and Is. Then we perform a substitute

insertion depending on the result of this difference

and the watermark bit values (1 or 0).

After performing the IDCT transform, we get the

audio watermarked signal.

Figure 3: The Insertion strategy.

2.2 Watermark Retrieval

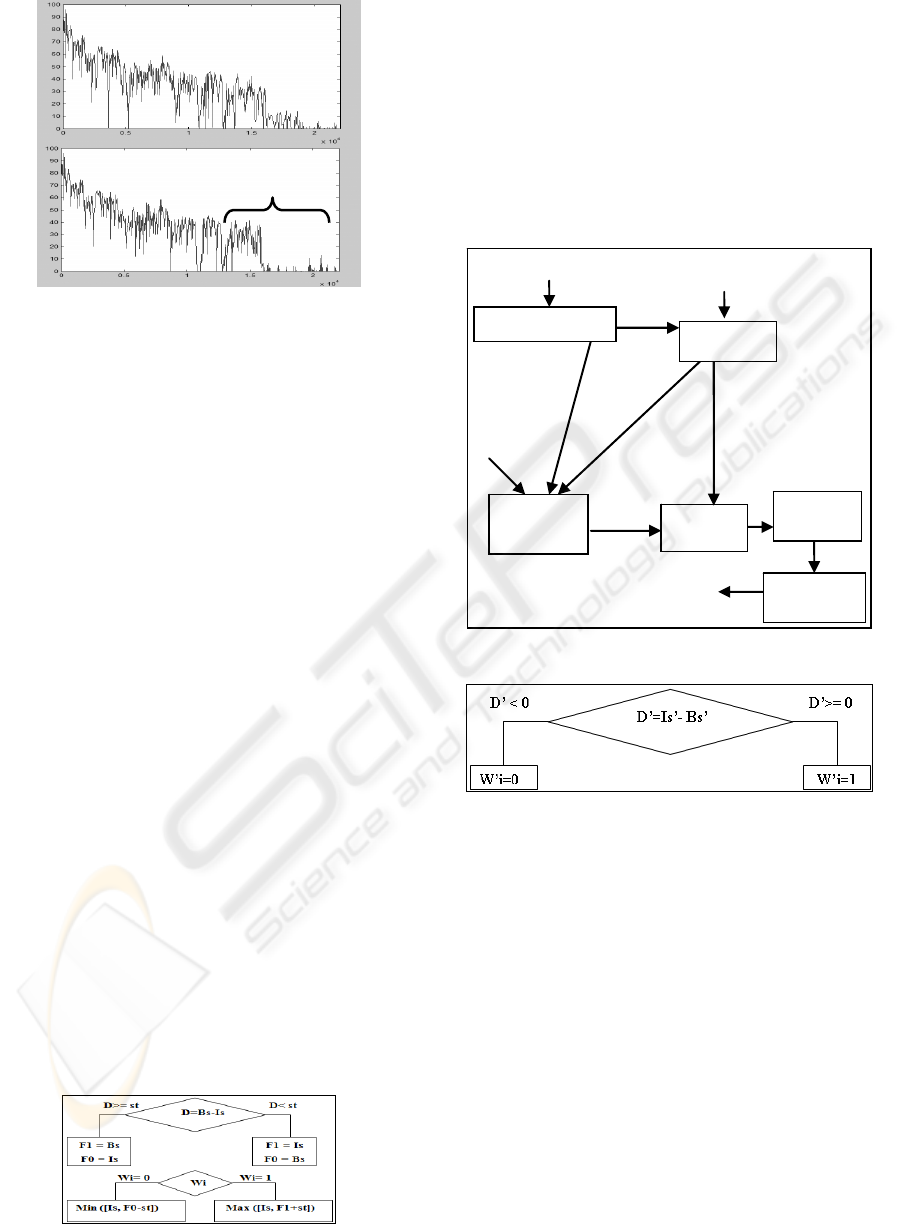

The detection process showed in figure 4 is the

inverse embedding one and does not need the

original audio signal. We require in this process all

NN synaptic weights, random generator results and

pq inaudible positions. Those parameters constitute

the secret key of our technique. Through the

watermark-extraction process, the NN is employed

to estimate the central sample.

Detected

NNsynaptic weights

pqMFpositions

Is’

Bs’

Hamming

Watermark

treatment

NN

Simulation

Detection

Randomblocknumbers

Watermarkedaudiosignal

512blockdivision

DCT

Figure 4: DCT retrieval process.

Figure 5: The detection strategy.

The length of the mark detected is compulsory a

multiple of 12 because of the Hamming coding.

We extract the watermark bits and we correct

them using Hamming decoding. We get ultimately a

corrected watermark multiple of 8.

3 EXPERIMENTAL RESULTS

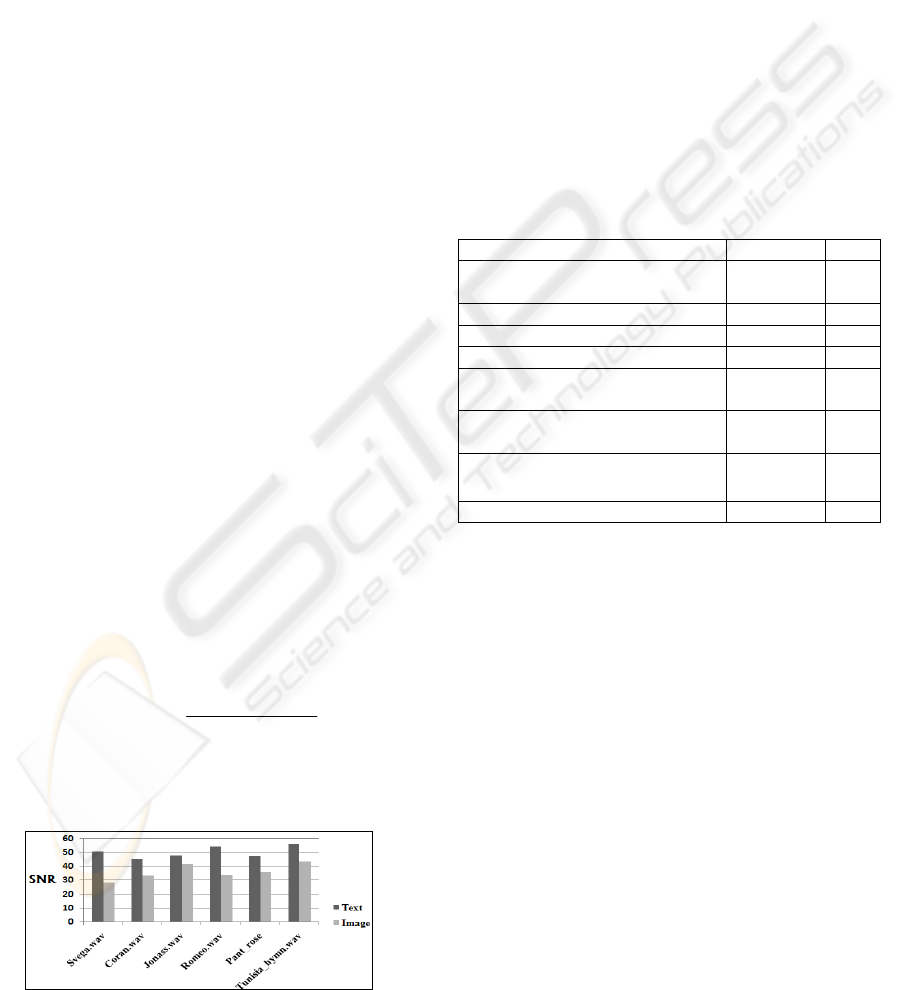

In order to test the inaudibility and the robustness of

the proposed algorithm, we perform several

experiments. Various audio “wav” files with 44.1

KHz sampling rate and 16 bits per sample are used

in our tests and some files are presented in table 1.

The chosen watermark can be a text “author_n” or a

binary image of size 32×32 showed in figure 6.

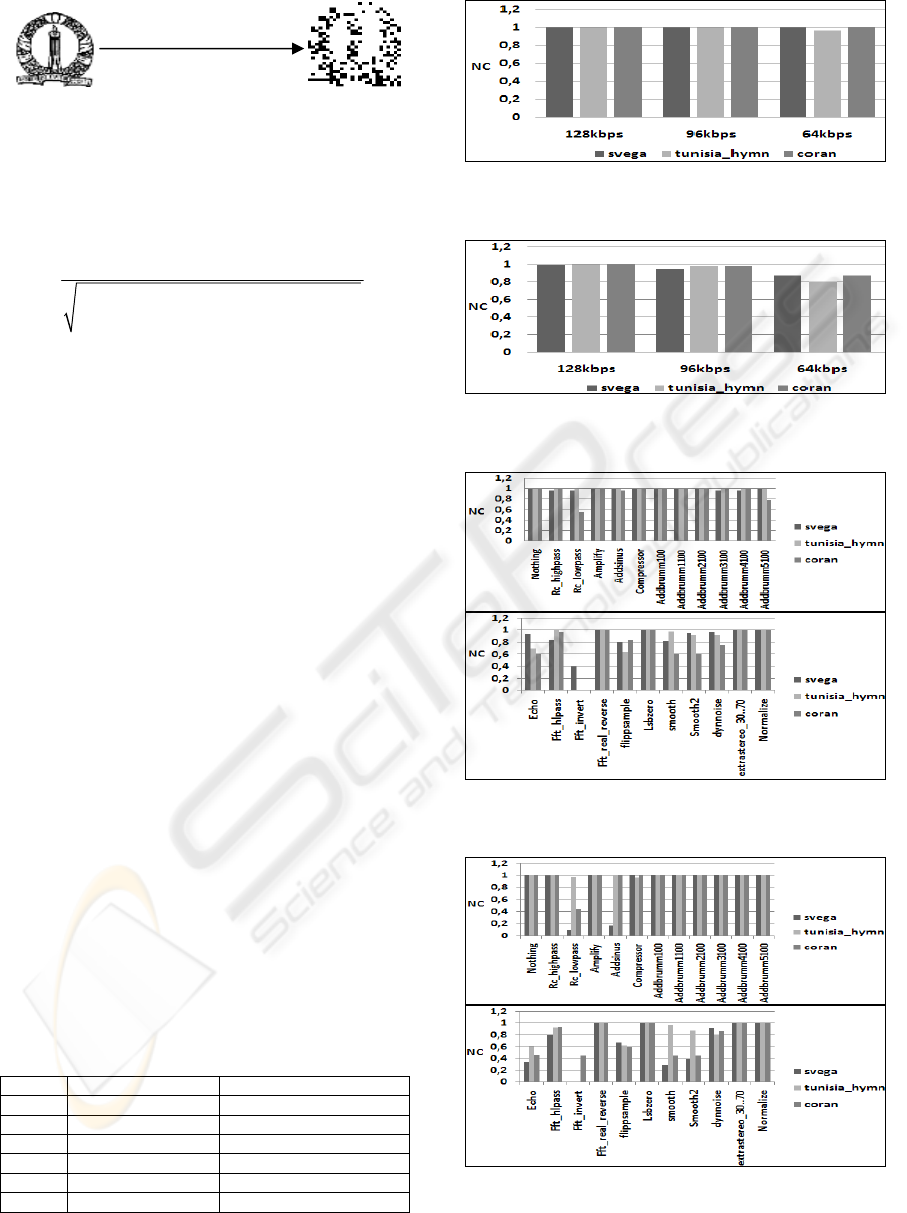

Before compression

PSD

After compression

DCT BASED BLIND AUDIO WATERMARKING SCHEME

141

Figure 6: Image watermark.

The normalized cross-correlation (Tung and

Ling, 1997) NC is calculated to evaluate similarity

between the extracted and the inserted watermarks.

(, )* '(, )

'( , ) ( , )

,1 ,1

bin i j bin i j

ij ij









(1)

The more NC is close to 1, the more binary

detected watermark "bin’" is similar to the binary

inserted watermark "bin". Our technique guarantees

free error detection (NC=1) in the case of an ideal

exchange (without signal processing manipulations).

In order to regard these eventual operations and to

evaluate the robustness performance of the scheme,

we performed several tests in which the

watermarked audio is subjected to frequently

encountered degradations. To estimate the audio

quality after watermark embedding, we use signal-

to-noise ration (SNR) as an objective measure, and

listening tests as a subjective measure.

3.1 Robustness Results

The manipulations used to evaluate our scheme

include MP3 compression with three compression

rates 128kbps, 96kbps and 64kbp and a variety of

stirmark attacks (Lang, Dittmann, Spring and

Vielhauer, 2005). Robustness has been assessed

using the NC correlation measure between the

embedded watermark and the identified watermark

consecutively from the watermarked and

manipulated signals. Figure 7, figure 8, figure 9 and

figure 10 summarize the watermark detection results

for these degradations. In this paper, we present the

robustness results for the audio files “svega.wav”,

“Tunisia_hymn.wav” and “coran.wav”.

Table 1: Audio signals and theirs descriptions.

Signal Name Description

1 Svega.wav Female song voice

2 Coran.wav Male spoken voice

3 Jonass.wav Piano with basic music

4 Romeo.wav Violin

5 Tunisia_hymn.wav Rhythmic music

6 Pant_rose.wav Cartoon song

Figure 7: NC values after MP3 compression (watermark is

a text).

Figure 8: NC values after MP3 compression (watermark is

an image).

Figure 9: NC values after Stirmark attacks (watermark is a

text).

Figure 10: NC values after Stirmark attacks (watermark is

an image).

Preprocessing

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

142

We note that the technique is robust to MP3

compression in the rates 128, 96 and 64 kbps when

the mark is a text and in the rates 128, 96 kbps when

the mark is an image. For Stirmark attacks, we

observe that the technique is robust to several signal

manipulations. For example, for the rc_highpass,

amplify, compressor, addbrummn with different

values, Fft_real_reverse, lsbzero, extrastero and

normalize attacks, we have good robustness results

whatever the mark is a text or an image. On the

contrary, we can conclude that the method cannot

resist the echo and fft_invert attacks. It is necessary

to note that adding for example echo, affects greatly

the watermarked signal which isn’t interesting for

the watermarker to have a watermarked signal very

different to the original one.

In general, if we compare the robustness results

against the attacks proposed in this paper versus the

results against the same attacks in the paper (Al-Haj

and Mohammad, 2010) based on DWT and SVM,

we can remark that the performance of the proposed

algorithm is better than the (Al-Haj and Mohammad,

2010), the (Cox, I., Kilian, J., Leighton, T. and

Shamoon. 1997), and the (Ozer, H., Sankur, B. and

Memon. 2005) algorithms, especially in the MP3

compression with different rates and addbrumn with

different values.

3.2 Inaudibility Results

To measure imperceptibility, we use the signal-to-

noise ration (SNR) as an objective measure, and

listening tests that involved 10 persons after

watermark embedding as a subjective measure. The

listeners are presented with the original and the

watermarked audio and are asked to report any

differences between the two signals. No listener has

noticed remarkable difference between the two

signals. The SNR formula is:



10 log

SN R













(2)

Where Y and y are original audio signals and

watermarked audio signals respectively.

Figure 11: SNR values for DCT technique.

According to the International Federation of the

Phonographic Industry (IFPI), the SNR of the

watermarked audio signal should be greater than 20

dB (Sriyingyong and Attakitmongcol, 2006). It is

remarkable that our technique possesses high SNR

values and then presents good inaudibility results. In

addition, if we observe the inaudibility results of the

(Al-Haj and Mohammad, 2010) scheme (the mean

of the SNR values presented in this paper is 25.24

dB) and of some traditional techniques (Sehirli, M.,

Gurgen, F and Ikizoglu, 2004) (each SNR value is

computed as the mean of the SNR values of different

audio signals each marked by different watermarks),

showed in the table 2, we can deduct that our

proposed DCT technique presents the highest SNR

values (the mean of the SNR values presented in

figure 11 is 43.10 dB) except for the LSB method

with a 67.91 SNR but poor robustness results.

Table 2: SNR values of traditional techniques.

Reference Algorithm SNR

(Uludag, U., Arslan and L, 2001)

DC-level

Shifting

21.2

(Bender et al.,1996) Echo 21.47

(Bender et al.,1996) Phase 12.20

(Bender et al.,1996)

LSB 67.91

(Cox et al. ,1997)

Spread

Spectrum

28.59

(Swanson, M., Zhu, B., Tewfic,

A. and Boney, 1998)

Frequency

Masking

12.87

(Al-Haj and Mohammad, 2010) DWT SVM 25.24

Our DCT technique DCT NN 43.10

4 CONCLUSIONS

In this paper, we proposed an imperceptible and

robust audio blind watermarking technique based on

DCT transform. Operating in this domain makes the

watermark more resistant to wide range of attacks.

This robustness is improved by using Hamming

code because it overcomes the corruption of the

watermark. It’s instructive to point out that the

proposed algorithm satisfies the desired features of

optimal audio watermarking, which have been set by

the IFPI. IFPI states that the watermark should not

degrade perception of audio, the algorithm should

offer more than 20 dB SNR, the watermark should

be able to resist the most common audio processing

operations and attacks, and the watermark should

prevent unauthorized removal unless the quality of

audio becomes very poor. Referring to the figures

above, it’s easy to conclude that the performance of

DCT BASED BLIND AUDIO WATERMARKING SCHEME

143

the proposed algorithm fulfils the desired IFPI

required performance.

The proposed scheme can be improved by

studying others error correcting codes like the

convolution-codes, to enhance the robustness of the

watermark.

ACKNOWLEDGEMENTS

The authors would like to acknowledge the financial

support of this work by grants from General

Direction of Scientific Research (DGRST), Tunisia,

under the ARUB program.

REFERENCES

Al-Haj and Mohammad, (2010). Digital Audio Water-

marking Based on the Discrete Wavelets Transform

and Singular Value Decomposition. European Journal

of Scientific Research Vol.39 pp.6-21

Arnold, M., Wolthusen, S. and Schmucker, (2003).

Techniques and applications of digital watermarking

and content protection. Artech House. ZwickerE, Fastl

H. Psychoacoustics:Facts and models. Springer-

Verlag.

Barnett, (1999). Digital watermarking: applications,

techniques and challenges, Electronics and

Communication Engineering Journal, pp. 173–183.

Bender, Gruhl, Morimoto and Lu, (1996). Techniques for

data hiding, IBM Systems Journal, vol35, pp.313–336.

Cox, I., Kilian, J., Leighton, T. and Shamoon, (1997).

Secure spread spectrum watermarking for multimedia.

IEEE Transactions on Image Processing; 6(12): 1673-

1687.

Cox, I., Miller, M. and Bloom, (2002). Digital

Watermarking, USA: Academic Press.

Haykin, (1995). Neural Networks: a comprehensive

foundation, Macmillan College Publishing Company,

New York, NY, USA.

Hsieh and Tsou, (2002). Blind cepstrum domain audio

watermarking based on time energy features. 13th

International Conference on Digital signal Processing

Proceeding, Greece: Santorini, pp. 705-708.

Katzenbeisser, S.and Petitcloas, (2000). Information

Hiding Techniques for Steganography and Digital

Watermarking. USA: Artech House.

Laftsidis, Tefas, Nikolaidis and Pitas, (2003). Robust

multibit audio watermarking in the temporal domain.

ISCAS (2), pp. 933-937.

Lang, Dittmann, Spring and Vielhauer, (2005). Audio

Watermark Attacks: From Single to Profile Attacks.

Malik, Khokhar, Rashid and A, (2003). Robust audio

watermarking using frequency selective spread

spectrum theory, (ICASSP ’03), pp.385-388.

Martin and Burg, (2007). Digital Audio Representation,

Comparison of DCT and DFT. Supplement to Chapter

4 of The Science of Digital Media .

Ozer, H., Sankur, B. and Memon, (2005). An SVD-based

audio watermarking technique. Proceedings of the

Multimedia and Security Workshop, NY, 51-56.

Swanson, M., Zhu, B., Tewfic, A. and Boney, (1998).

Robust audio watermarking using perceptual masking.

Signal Processing; 66(3): 337-355.

Sehirli, M., Gurgen, F. and Ikizoglu. (2004). Performance

evaluation of digital audio watermarking techniques

designed in time, frequency and cepstrum domains.

Proceedings of the International Conference on

Advances in Information Systems, 430–440.

Sriyingyong and Attakitmongcol, (2006). Wavelet-Based

Audio Watermarking Using Adaptive Tabu Search,

Wireless Pervasive Computing, 2006 1st International

Symposium on 16-18 an. 2006 Page(s):1 – 5.

Tung and Ling, (1997). Digital watermarking for video,

Proceedings 1997 13th International Conference on

Digital signal Processing, Vol: 1, pp. 217 -220, 2-3.

Uludag,U., Arslan and L., (2001).Audio watermarking

using DC-level shifting. Project report, Bogazici

University

http://busim.ee.boun.edu.tr/~speech/public

ations/audio_watermarking/uu_la_audio_wm2001.pdf

W and Hamming, (1950). Error detecting and error

correcting codes, Bell Syst. Tech. J.26(2), pp.137–160.

Wang, Ma, Cong, Yin, (2005). An Audio Watermarking

Scheme with Neural Network. Advances in Neural

Networks–ISNN 2005 Springer.

Wu, S. Q., Huang, J. W., Huang, D. R., Shi and Y, (2004)

Selfsynchronized audio watermark in dwt domain,

Proceedings of the 2004 International Symposium on

Circuits and Systems (ISCAS ’04), pp.712-715.

Zhiping, Lihua, (2007). A Novel Algorithm for Robust

Audio Watermarking Based on Quantification DCT

Domain, Third International Conference on

International Information Hiding and Multimedia

Signal Processing, vol.1, pp.441-444.

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

144
