A UNIFIED WEB-BASED FRAMEWORK FOR JAVA CODE

ANALYSIS AND EVOLUTIONARY AUTOMATIC

TEST-CASES GENERATION

Anastasis A. Sofokleous, Panagiotis Petsas

Department of Computer Science, University of Cyprus, 75 Kallipoleos Str., P.O.Box 20537, CY1678, Nicosia, Cyprus

Andreas S. Andreou

Department of Electrical Engineering and Information Technologie, Cyprus University of Technology

31 Archbishop Kyprianos Str., 3036 Lemesos, Cyprus

Keywords: Automatic test-case generation, Edge/condition coverage, k-Tuples coverage, Genetic algorithms.

Abstract: This paper describes the implementation and integration of code analysis and testing systems in a unified

web-enabled framework. The former analyses basic programs written in Java and constructs the control-

flow, data-flow and dependence graph(s), whereas the testing system collaborates with the analysis system

to automatically generate and evaluate test-cases with respect to control flow and data flow criteria. The

present work describes the design and implementation details of the framework and presents preliminary

experimental results.

1 INTRODUCTION

Most work on software testing uses control and data

flow graphs for examining the program under

testing, extracting paths of interest and retrieving

other important program information that can

improve the efficiency of the testing process.

Program models, such as control-flow graphs, can

present useful information to the experienced

programmers. Combined with automated test-case

generation tools, control flow graphs can assist in

the evaluation of testing adequacy, e.g. with the

definition and use of a code coverage criterion. Code

Analysis Systems can be used in both random and

dynamic test data generators (Bertolino 2007,

Godefroid et al 2005). Several test data generation

schemes have been proposed, the most recent of

which use genetic algorithms for exploring the huge

search spaces of input values and determine the near

to optimum solutions (Ghiduk et al 2007).

Many approaches have been proposed over time

as standalone systems, console application and tools,

presenting the core features of software testing

systems. This work integrates core software testing

subsystems into a web-enabled framework and

expands the functionality of previous studies

(Sofokleous and Andreou 2008b).

The rest of the paper is organized as follows:

Section 2 presents related work and compares

similar frameworks and tools. Section 3 describes in

detail the proposed testing framework and section 4

introduces the reader to the supporting prototype

software application and describes the evaluation

procedure and some preliminary experimental

results. Section 5 concludes the paper and proposes

future research steps.

2 RELATED WORK

The proposed framework analyzes source-code

written in Java and creates and visualizes control-

flow, dataflow and dependence graphs. Dedicated

modules of the framework generate test-cases in

relation to a variety of coverage adequacy criteria

defined on the control-flow and dataflow graphs of

the selected source-code. Most test-data generation

approaches use the source code to analyze the

program under testing and guide the test process

(Andrews et al 2006), whereas other approaches

407

A. Sofokleous A., Petsas P. and S. Andreou A. (2010).

A UNIFIED WEB-BASED FRAMEWORK FOR JAVA CODE ANALYSIS AND EVOLUTIONARY AUTOMATIC TEST-CASES GENERATION.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

407-410

DOI: 10.5220/0002911704070410

 SciTePress

generate test-cases using the binary code or the Java

Bytecodes, often with the assistance of the JVM

Debugger Interface. This framework extends

previous work, and specifically, it integrates

components which analyze the code and create the

control-flow, data-flow and dependence graphs

(Sofokleous and Andreou 2008b, Sofokleous and

Andreou 2008a). The proposed framework utilizes

genetic algorithms for generating test cases

according to the to edge/condition and the k-tuples

criteria (Zhu et al 1997, Ntafos 1984). Genetic

algorithms (GA) have gained their reputation in the

area of test data generation in the last ten years as

they are able to search a large search space of

possible program inputs and reach to a set of near to

optimal solutions, resulting in high code coverage.

This work studies and compares some of the

most popular software testing and analysis

frameworks currently available: Clover – CL

(Clover 2009), Java Quality Solution - JQS (Java

Quality Solution 1996), Parasoft Jtest – JT (Jtest

2007), Java Coverage Validator – JCV (Java

Coverage Validator 2002), Quilt – QU (Quilt 2001),

JCover – JC (JCover 2009), ispace – IS (ispace

2006) and Byecycle – BC (Byecycle 2008). Most of

these tools focus on test-case generation and code

coverage; ispace and Byecycle focus on creating

dependence graphs.

Clover (Clover 2009), Jtest (Jtest 2007) and Java

Coverage Validator (Java Coverage Validator 2002)

frameworks execute on the bytecode-level unlike

our framework which uses directly the source code.

Analyzing the source-code is more difficult

compared to bytecode-based analysis, which is

neither programming language-specific, nor is

associated with a certain programming style. Source

code based analysis, however, allows better

comprehension and maintenance of the program

under testing, as it is closer to the programmer’s

logic and the business level (e.g. requirements).

Many compilers offer graphs constructed on

intermediate, bytecode or low code. The framework

presented here works on the source code to create

the code graphs necessary for its operations.

Java Quality Solution (Java Quality Solution

1996) and Quilt (Quilt 2001) are capable of creating

data-flow and control-flow graphs, respectively. In

terms of testing coverage, most of the tools use

statement testing coverage; JCover and JTest use up

to branch coverage. The majority of these

frameworks present the coverage results in reports,

e.g. exercised code, in terms of LOC, and the

selected test cases. Some tools, such as Clover, JTest

and JCover produce reports in HTML/XML and/or

charts and diagrams. Our framework presents the

results using both reports and graphs created during

execution. Some of the presented frameworks utilize

built-in rules to minimize design mistakes,

regression testing, thread integrity testing, etc.

Byecycle (Byecycle 2008) is an Eclipse (Eclipse

2009) plug-in and can create a dependence graph

illustrating the dependencies between packages,

classes and interfaces. ispace (ispace 2006) creates

dependence graphs as well, but these graphs show

dependencies not only in an inter-package and inter-

class level but also in more depth, and specifically

between methods of a class. The proposed

framework offers an even more analytic dependence

graph; it can explore in more depth the methods of a

class and can how the dependencies among

statements, methods, inputs of methods,

constructors, classes, control structures and outputs.

3 THE FRAMEWORK

The framework uses a program analyzer that creates

and visualizes Control Flow Graphs (CFG), Data

Flow Graphs (DFG) and Program Dependence

Graphs (PDG) at the class level. The testing system

uses genetic algorithms in order to generate test

cases according to control flow or/and data flow

criteria. The test data generation uses a set of

adequacy criteria, e.g. the branch/condition coverage

criterion and the k-tuples data flow criterion.

The program analysis and test data generation

systems of the framework work closely together so

as to satisfy the coverage criterion selected as

follows:

The user invokes the Load Wizard (User Level,

Figure 1) to select the source code and the type of

graph(s) The Testing System Level of Figure 1

describes the testing layer. The option of testing is

enabled after the analysis of the source code and the

creation of the graph(s). Depending on the graph

created, different types of coverage criteria can be

used; the DF test-case Generation and the CF test-

case Generation Systems are currently supported.

The main difference between these two systems is

the form of the fitness function that evaluates the

generated test data, which, of course, as adapted to

reflect each time the criterion used.

The two systems search for the near to optimum test

cases and present the results to the user; apart from

the optimum set of test cases, the user may view the

coverage percentage, the evolutions and time needed

and the coverage achieved with direct mapping of

execution on the graphs . A test case/path may be

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

408

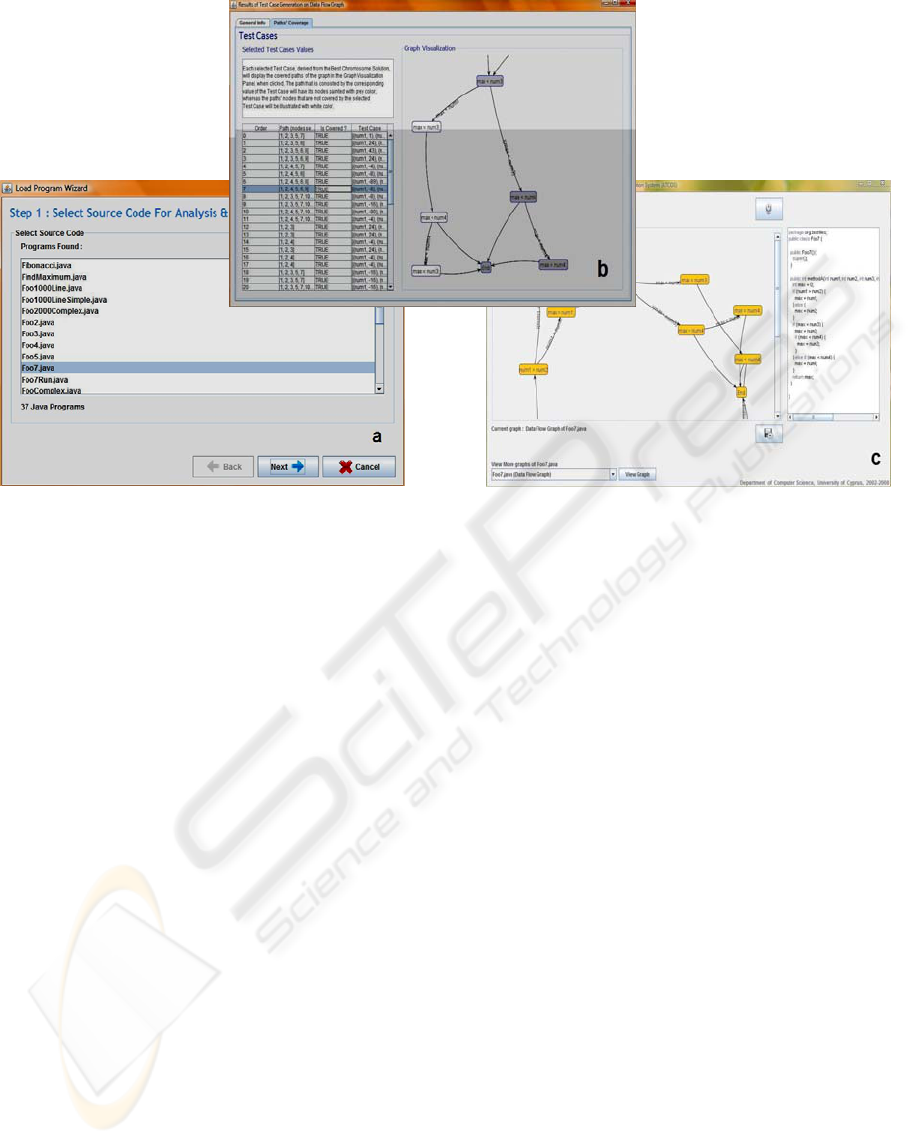

Figure 1: The prototype software application: a) Load Wizard: Step 1 (Source Code selection), b)Viewing test-cases and

code coverage (Covered Paths), c) Viewing Graph and java syntax-highlighted editor.

highlighted on the graph through an interactive user

interface.

4 PROTOTYPE SOFTWARE

APPLICATION AND

EVALUATION

The framework can run over the internet (online

BPAS 2009). Using the Load Wizard (see figure 1),

the user can select the JAVA source code for testing

and the settings of the analysis, such as the type of

graph to produce. The framework allows the user to

select a program from a list of JAVA files; the

source code of the selected program is downloaded

over the internet and the framework utilizes the

analysis modules and creates and visualizes the

selected graphs. The graph is displayed in an

interactive graph panel. Then the user may

customize settings related to the testing process.

When the test-case generation is over, the results are

presented to the user. The results include

information regarding the GA’s execution and

details of all of the successful test-cases produced in

the chromosomes. This section presents the

preliminary results of experiments carried out with

the framework on a pool of standard and randomly

generated JAVA programs. Each experiment cycle

reported in this section assumes the following

phases: sample source code downloading, parsing,

graph construction and presentation of the graph in

the Graph Panel. Note that this framework is able to

parse large programs in terms of LOC, construct and

graphically represent graphs of source code

consisting of thousands of LOC (our experiments

tested source code of up to 2000 LOC - see Table 1).

Table 1: Experiments on a selection of sample java

programs with varying LOC.

LOC

Graph Creation Time (in milliseconds)

CFG DFG PDG

9 1279 1014 1342

12 1341 998 1294

16 1404 1092 1420

31 1545 1186 1466

35 1810 1451 1700

100 2606 24788 2512

5000 64768 61335 63578

5 CONCLUSIONS

This paper presented a web enabled framework that

integrates program analysis and testing systems.

Experiments conducted with a selection of input-

programs show the efficiency of the framework on

the unit testing.

Future work will attempt to enhance the

framework by utilizing other forms of computational

A UNIFIED WEB-BASED FRAMEWORK FOR JAVA CODE ANALYSIS AND EVOLUTIONARY AUTOMATIC

TEST-CASES GENERATION

409

intensive or/and intelligent techniques for automatic

test data production like the Particle Swarm

Optimization and Fuzzy Logic. Furthermore, future

steps will consider integration of the framework with

widely-used development tools and projects such as

NetBeans, (Eclipse 2009), JBuilder and Project

Maven.

REFERENCES

Andrews, J. H., Briand, L. ., Labiche, Y. and Namin, A.

S., 2006, Using Mutation Analysis for Assessing and

Comparing Testing Coverage Criteria, IEEE

Transactions on Software Engineering, 32(8), pp. 608-

624.

Bertolino, A., 2007, Software Testing Research:

Achievements, Challenges, Dreams, in: Proceedings

of the 29th International Conference on Software

Engineering (ICSE 2007): Future of Software

Engineering (FOSE '07), Minneapolis, MN, USA,

May 2007, (IEEE Computer Society: Los Alamitos,

CA, USA), pp 85-103.

BYECYCLE, 2008, byecycle, http://

byecycle.sourceforge.net/ [Date accessed: 2 June

2009].

CLOVER, 2009, clover, http://

www.atlassian.com/software/clover/ [Date accessed:

15 April 2009].

ECLIPSE, 2009, eclipse, http://

www.eclipse.org [Date accessed: 15 May 2009].

Ghiduk, A. S., Harrold, M. J. and Girgis, M. R., 2007,

Using Genetic Algorithms to Aid Test-Data

Generation for Data-Flow Coverage, in: Proceedings

of the 14th Asia-Pacific Software Engineering

Conference (APSEC '07), Nagoya, Japan, December,

(IEEE Computer Society: Washington, DC, USA), pp

41-48.

Godefroid, P., Klarlund, N. and Sen, K., 2005, Dart:

Directed Automated Random Testing, in: Proceedings

of the 2005 ACM SIGPLAN conference on

Programming Language Design and Implementation

(PLDI '05), Chicago, IL, USA, June 2005, (ACM

Press: New York, NY, USA), pp 213-223.

ISPACE, 2006, ISPACE, http://ispace.stribor.de/

index.php?n=Ispace.Home [Date accessed: 28 April

2009].

JAVA COVERAGE VALIDATOR, 2002, java coverage

VALIDATOR - software verification, http://

www.softwareverify.com/java/coverage/feature.html

[Date accessed: 18 April 2009].

JAVA QUALITY SOLUTION, 1996, java quality solution,

http://www.parasoft.com/jsp/solutions/java_solution.js

p [Date accessed: 5 May 2009].

JCOVER, 2009, JCOVER, http://

www.codework.com/JCover/product.html [Date

accessed: 23 May 2009].

JTEST, 2007, jtest, http://

www.parasoft.com/jsp/products/home.jsp?product=Jte

st [Date accessed: 18 April 2009].

Ntafos, S. C., 1984, On required element testing, IEEE

Transactions on Software Engineering, 10(6), pp. 795-

803.

ONLINE BPAS, 2009, online BPAS, http://

www.cs.ucy.ac.cy/~cs04pp2/dist/launch.html [Date

accessed: 15 January 2010].

QUILT, 2001, QUILT, http://quilt.sourceforge.net/ [Date

accessed: 3 May 2009].

Sofokleous, A. and Andreou, A., 2008a, Dynamic Search-

based test data generation focused on data flow paths,

in: Proceedings of the 10th International Conference

on Enterprise Information Systems (ICEIS 2006),

Barcelona, Spain, June, (INSTICC Press: Porto,

Portugal), pp 27-35.

Sofokleous, A. A. and Andreou, A. S., 2008b, Automatic,

evolutionary test data generation for dynamic

software testing, The Journal of Systems & Software,

81(11), pp. 1883-1898.

Zhu, H., Hall, P. and May, J., 1997, Software Unit Test

Coverage and Adequacy, ACM Computing Surveys,

29(4), pp. 366-427.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

410
