A FLEXIBLE FRAMEWORK FOR APPLYING DATA ACCESS

AUTHORIZATION BUSINESS RULES

Leonardo Guerreiro Azevedo, Sergio Puntar, Raphael Thiago, Fernanda Baião and Claudia Cappelli

NP2Tec – Research and Practice Group in Information Technology

Federal University of the State of Rio de Janeiro (UNIRIO), Av Pasteur 458, Rio de Janeiro, Brazil

Keywords: Database Security, Data Access Authorization Business Rules, VPD, TPC-H Benchmark.

Abstract: This work proposes a flexible framework for managing and implementing data access authorization

business rules on top of relational DBMSs, in an independent way for the applications accessing a database.

The framework adopts the RBAC policy definition approach, and was implemented on Oracle DBMS.

Therefore, data access security is managed by the data server layer in a centralized manner, rather than in

each application that accesses data, and is enforced by the database server. Experimental tests were executed

using the TPCH Benchmark workload, and the results indicate the effectiveness of our proposal.

1 INTRODUCTION

Business rules are policies which define and

describe business logic. According to the taxonomy

defined by BRG (2009), one type of business rules is

authorization action assertion rule, or authorization

rule for short, which restricts who is allowed to

perform a certain action in an organization.

Authorization rules are gaining major importance

in organizations, since they are central in most data

access security initiatives. The definition and control

of who may have access to each piece of information

during the execution of a business process is vital to

prevent frauds and to conduct controlling initiatives.

An authorization rule is composed by: (i) Data

on which the rule is applied; (ii) The user (or profile

or user group) whose access to the data is controlled

by the rule; and (iii) the rule description.

Applications have tended to define their own

security policies and enforce them at the client layer.

However, this is not a properly solution when it

comes to very frequent scenarios in which large

companies are required to adhere to a whole new set

of authorization rules defined by controlling

initiatives derived by SOX (SOX, 2009) or other

security demand. Therefore, there is a need of a

flexible framework for the implementation of

authorization rules on top of existing databases,

which minimizes the changes required on the legacy

applications that manipulate existing data.

This work proposes a flexible framework for

managing and implementing authorization rules on

top of relational DBMSs, in an independent way for

the applications accessing the database. The

framework adopts the RBAC (Role-based access

control) policy definition approach, and was

implemented on top of Oracle 10g DBMS using its

VPD (Virtual Private Database) features.

Experimental tests were performed on top of the

TPCH Benchmark (TPC Council, 2008).

This work is divided as follows. Section 2

presents database security concepts. Section 3

presents the proposed framework. Section 4 details

its implementation, while section 5 presents the

experimental results. Section 6 and 7 presents

related work, and conclusions and future works,

respectively.

2 DATA SECURITY CONCEPTS

Data access control is one of the major components

of database security, and has been the focus of

several database security approaches provided by

most DBMS vendors. Typically, those security

mechanisms consist of defining users (a database-

level identity to anyone connected to the database),

profiles (group of users with similar privileges to

database structures and data) and database sessions

(which allows the DBMS to identify and control the

sequence of commands performed by a single user

275

Guerreiro Azevedo L., Puntar S., Thiago R., Baião F. and Cappelli C. (2010).

A FLEXIBLE FRAMEWORK FOR APPLYING DATA ACCESS AUTHORIZATION BUSINESS RULES.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

275-280

DOI: 10.5220/0002909602750280

 SciTePress

in each connection).

Murthy and Sedlar (2007) argue that those access

control mechanisms, although simple and frequently

used, present significant drawbacks. Firstly, the

same underlying data may have to be accessed via

many different applications and it is hard to

reconcile different application security mechanisms.

Secondly, many data warehousing and data mining

tools require direct access to the database (via SQL)

and it is impossible to enforce application level

security during direct SQL access. Thirdly, the lack

of a common security framework makes it very hard

to administer the policies and increases the risk of

security holes. Finally, there is a significant

performance impact by always evaluating data

access authorization rules at the application layer.

The mechanisms for access control can be

classified into: DAC (Discricionary Access Control),

MAC (Mandatory Access Control), both proposed

by DoD (1983), and RBAC (Role-Based Access

Control) (Ferraiolo and Khun, 1992).

DAC policies are based on the identity of the

requestor and on access rules stating what requestors

are (or are not) allowed. They can be implemented

by an access matrix model which regulates the

privileges that a subject can have on an object. An

object can be a table, a view, a procedure or any

other database object. Yang (2009) presents that

DAC policies do not enforce any control on the flow

of information, thus making it possible for processes

to leak information to users not allowed to read it.

SQL Server, MySQL, Oracle Database, DB2 and

Sybase DBMSs support the implementation of DAC

policies through access matrix models.

MAC policies, also known as label security, are

based on mandated regulations determined by a

central authority. The most common form of MAC

is the multilevel security policy using classification

of subjects and objects in the system. In multilevel

mandatory policies, an access class is assigned to

each object and subject. MAC policy controls flow

of information, thus preventing leakages to

unauthorized subjects. However, it does not address

actions that users are allowed to execute over data

(Ferraiolo and Khun, 1992).Most database vendors

offer label security supporting features, such as

Oracle, Sybase and Microsoft SQL Server.

MAC policies assume that each label is applied

to the whole table row, thus preventing the definition

of authorization rules on a subset of the row

attributes. Besides, since a label is attached to each

table row, if many policies are applied, management

and maintenance costs may be high.

An RBAC access rule states which actions and

subjects are allowed to users in a given role. RBAC

is a common paradigm to ensure that users have

sufficient rights to perform various operations

(Fischer et al., 2009), and is typically used by

organizations to specify and enforce specific

security policies in a way that maps naturally to the

organization structure. Ferraiolo et al. (2001)

propose a pattern for RBAC in order to consolidate

different RBAC reference models, commercial

products and research prototypes. Both SQL Server

and Oracle databases support concepts of roles.

RBAC policies are more flexible than MAC

ones, and therefore are the focus of our proposed

framework. Nevertheless, defining and enforcing

RBAC policies is not simple in real scenarios, since

it requires a lot of effort and knowledge from the

user responsible to create and assign rules and roles,

usually a Database Administrator (DBA). Therefore,

there is a need of a flexible and easy to use

mechanism to aid database administrators in

defining and managing RBAC policies to implement

database security.

3 PROPOSED FRAMEWORK

This section presents a framework for managing and

controlling authorization rules of applications on top

of corporative databases. The framework is

composed of two modules: (i) Authorization rule

management (ARM) and (ii) Authorization rule

execution (ARE). The authorization rule

management module is responsible for creating,

changing, viewing, composing, testing, and

simulating rules. All authorization rules defined in

this module are stored in a business rule database.

The authorization rule execution module follows

the RBAC policy described in section 2, and is

responsible for assuring that the previously defined

rules are enforced during the execution of every

application accessing the corporative database. In

other words, the execution module controls all

applications so that all data retrieved by them will

surely adhere to the authorization rules stored in the

business rule database.

To prevent changes in the source code of legacy

applications, the ARE module should be

implemented in an independent way for the

applications accessing the DBMS.

Defining and executing an authorization rule are

tasks performed in two distinct moments and,

ideally, by two distinct teams. Typically, the ARM

functions will be handled by business users, while

ARE functions should be monitored by IT users.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

276

Firstly, business users of the authorization rule

definition team uses the ARM module to define and

create the set of rules that reflects RBAC policies

over corporative data. Through the ARM module,

they may access the conceptual schema of the

organization, which represents a business (high-

level) definition of all the concepts and relationships

stored in the database. To define a new authorization

rule for a RBAC policy, the ARM user should define

a profile (for example, LocalManager), choose the

concept to be controlled (for example, Order), each

concept attribute that will be of restricted access (for

example, totalValue), along with its range interval

(for example, totalValue < 1,000.00), and the

operations that should be controlled (select, insert,

update, delete) (Figure 1). The ARM module should

therefore provide a graphical interface with usability

concerns so as to enable business users to self-

manage their authorization rules and RBAC policies.



< 1

000

Order

identifier

totalValue

LocalManager

GlobalManager

Select

Update

Delete

Insert

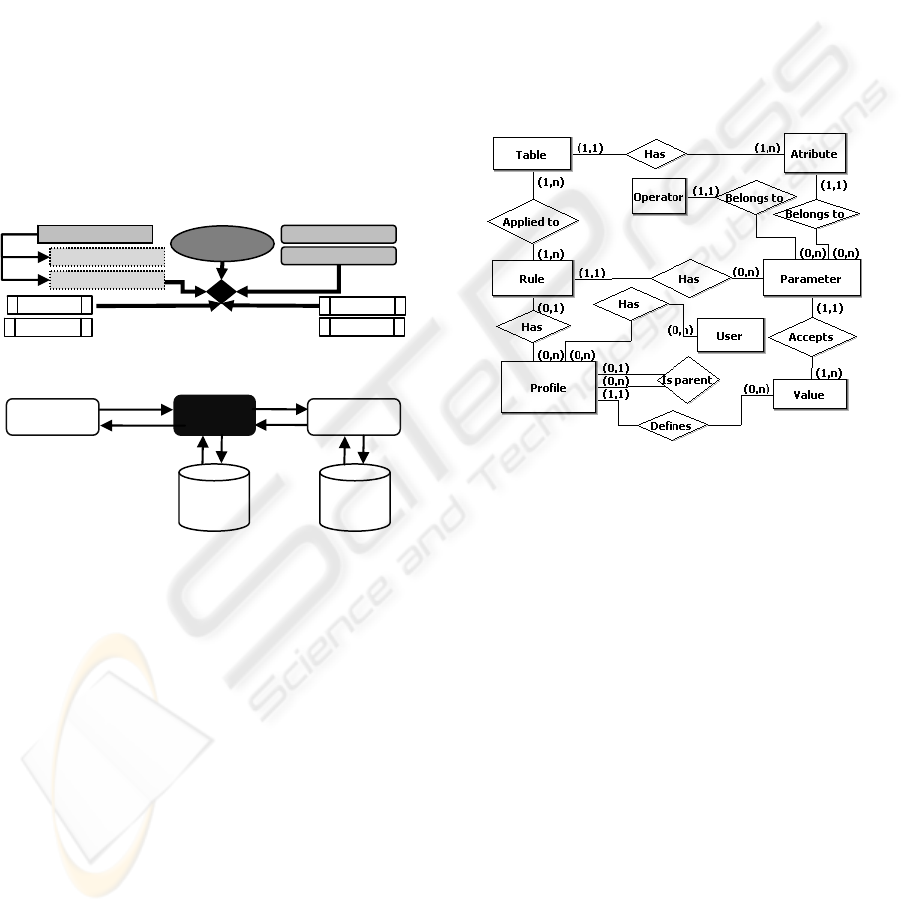

Figure 1: Architecture of ARM component.

Client

Application

ARE

User+Query

Data

DBMS

Data

Query’

Business

Rule

Database

Corporate

Database

Figure 2: Architecture of ARE component.

In execution time (Figure 2), ARE module

captures every connection from a client application

to the corporative database, transforms it (say,

“Query”) into a modified one (say, “Query´”)

according to the authorization rules present in the

business rule database for the connected user. The

ARE module then sends Query´ to the DBMS and

forwards its returned data to the client application.

3.1 Metamodel for Authorization Rules

The authorization rules are stored in the business

rule database as follows (

Figure 3).

Users are grouped into profiles, where each User

may be assigned to several Profiles, and each Profile

groups several Users. The self-relationship of Profile

entity allows the representation of a Profile

hierarchy. For example, Sales Manager of America

and Asia and Sales Manager of Europe profiles may

be specializations of the Sales Manager profile. This

denotes that authorization rules assigned to the more

general profile (SalesManager) should also be

enforced to all its descendents. Additionally,

descendent profiles may determine specific values

for range predicates. The Sales Manager profile may

be restricted to access Orders based on its

originatedFromContinent attribute; the Sales

Manager of America and Asia specifies the specific

(list of) values of the controlled attribute that the

profile is allowed to access (“(America, Asia)”),

thus enabling the RBAC policy to enforce access

only to Orders where “originatedFromContinent in

“(America, Asia)”).

Figure 3: Framework model.

Rule statements are stored as predicates (in

Struct Query Language (SQL) format) in table

“Rule”. The predicate is to restrict user access

returning a subset of a table. So, there is a

relationship “Rule × Table”. The same query

can be used to define an authorization rule over

different tables, and each Table may have more

than one rule statement.

A Parameter denotes an expression of the

form “Attribute operator value” in the

corresponding entities (Attribute, Operator

and Value). Attribute is a database attribute

with restricted access. Operator is a binary

operator (including “=”, “<>”, “>”, “>=”, “<”, “<=”,

AND, “OR” and “IN”). Value is specific values (or

values lists) within the attribute domain. It is used to

delimit value ranges of predicate Parameters. It is

represented by the entity Parameter which relates

the entities Attribute × Operator ×

Value. The relationship Table ×

Attribute indicates to which Table the

A FLEXIBLE FRAMEWORK FOR APPLYING DATA ACCESS AUTHORIZATION BUSINESS RULES

277

Attribute belongs. This relationship may appear

controversial, and it denotes a high-level

representation of the database schema (tables and

attributes) to which the authorization rules are

applied and that are referred as predicates'

parameters in a rule definition.

The same user can have more than one

Profile related to the same Table. For example,

the user has the profile Manager and Customer

which are related to Orders. So, when executing the

authorization rule, more than one rule (SQL for

restriction) will be returned, and they must be

composed in order to restrict access. This

composition can be executed using OR or AND

operators. Using OR operator the composition is for

permissive rules, since the user will have access to

the union of subsets of restrict table. For example,

the subset corresponding to Manager profile and the

subset corresponding to Customer profile. However,

using AND operator, it is a restrictive composition,

since the user will have access to the intersection of

the subset tables corresponding to each rule. The

proposed framework can be used to handle

permissive or restrictive rules, and it is upon the

organization to decide which composition operator

to use. Our tests applied the OR operator.

Therefore, rules created using ARM module

must be stored. During authorization rule execution,

ARE reads rules which are related to user’s profiles

and executes the restrictions.

4 IMPLEMENTATION

ARCHITECTURE AND

DETAILS

In this work, we implemented the ARE proposal on

top of Virtual Private Database (VPD), which also

follows the RBAC approach.

4.1 Virtual Private Database (VPD)

VPD enables define authorization rules for tables,

views and synonyms. When a user tries to access

(directly or indirectly) a table, view, or synonym

protected by a VPD policy (implemented in a

PL/SQL function), the server dynamically changes

the user command. This creates a predicate

(condition for the WHERE clause) returned by the

function implementing the security policy. Policies

can be set for SELECT, INSERT, UPDATE,

INDEX, and DELETE commands.

For example, a user makes the following query

in a table emp: “SELECT name, ssn FROM

emp;”. Considering that table emp has a protecting

policy, where each user can view only their own

information, then authorization VPD function

returns the following predicate ssn = 'my ssn' and

the command is rewritten as “SELECT name,

ssn FROM emp WHERE ssn='my ssn';”.

VPD is not simple to use in real scenarios. It

requires a lot of effort and knowledge from the user

responsible to create rules, usually a Database

Administrator (DBA). For example, for each rule, a

function should be implemented to return the rule

predicate. SQL, PL/SQL and the database structure

must be very well understood.

4.2 Generic Authorization Function

This work proposes a generic function for

authorization rules. This function must be applied to

all secured tables, and accordingly to information

stored in tables of the framework model, it will

return the predicate for table access restriction.

When executing the authorization rule, the

framework receives the user and the query, and

executes the following steps considering data stored

in tables of the framework (Figure 3):

 From the user in table User, it discovers the

Profiles the user has.

 From the query the user wants to execute, it

discovers which Tables are considered by the

query (tables in “from” clauses).

 From Profiles and Tables, it identifies

which rules must be applied to each table (stored in

Profile SQL).

 From the Profile and Rule, it is identified

which predicates (Attribute × Operator ×

Value) must be used by the rules to filter data.

 Finally, a predicate to restrict the queried table

is returned and the query submitted by the user (say

Query) is transformed to a restricted query (say

Query’) which is used to return only the data the

user is allowed to access.

5 EXPERIMENTAL RESULTS

We evaluated our implementation using the TPC-H

Benchmark scenario (TPC Council, 2008). The

TPC-H is a benchmark specification of broad

industry-wide relevance that simulates a scenario of

a representative decision support application.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

278

This scenario has a realistic context. It consists

of a database schema description and a suite of

business-oriented, ad-hoc OLAP queries. The TPC-

H Benchmark was chosen to show the effectiveness

and generality of our proposed framework, since it

examines large volumes of data, executes queries

with a high degree of complexity and answers

critical business questions. TPC-H model includes

Suppliers and Customers, and Nation and Region

were they are located. Suppliers supply items (table

Part), and table Partsupp stores relationship between

Part and Supplier. Customers make orders (table

Order) of line items (table LineItem) from suppliers.

In the experimental tests, some TPC-H

Benchmark queries were chosen to cover several

user access patterns on the database, and used to

evaluate the following operations: simple queries,

queries with subqueries, queries with group by and

queries with having. Besides, we evaluated the

framework for the insert, update, and delete

operations, and for trigger. Some tests descriptions

are presented to illustrate the proposal.

Q1 – Local supplier volume. Lists the revenue

volume done through local suppliers.

Q2 – Pricing summary report. Reports the amount

of business billed, shipped, and returned.

For the tests, we have added an attribute (named

N_HEMISPHERE) to the NATION table.

T1. Authorization rule designed to Q2 query:

Restricts the access of Customers to the line itens

from Mozambique, India or Russia nations.

For this example, we created a hierarchy of

profiles Customer > Customer of Mozambique, India

or Russia. The predicate of Figure 4 was created as a

Rule related to Customer profile and Table

LINEITEM. The “?user” is replaced by the user

“n_name” of Table “Nation” using

Operator “IN”. Related to this Parameter and

profile Customer of Mozambique, India or Russia,

Values Mozambique, India, Russia were created.

l_orderkey in (

select o_orderkey

from orders, customer, nation

where lower(c_name) = lower(?user))

and c_custkey = o_custkey

and n_nationkey = c_nationkey

and

Figure 4: Predicate for profile Customer.

After profile configuration, query Q2 was

executed by a user without restrictions, and a user

with Customer of Mozambique, India or Russia

profile. For the first user, all data was returned.

However, for the second user, the generic function

generated the right predicate, restricting accessed

data to tuples from Mozambique, India and Russia.

For the insert operation test, we tried to insert data in

a restricted table in a range that do not belong to the

user profile. In this case, the predicate is computed

and used to evaluate if the user still have access to

data after the insertion. If it can access data, then the

insertion is performed, otherwise insertion is not

executed. The same reasoning was used in update

and delete tests. So, data that do not belong to subset

corresponding to user profile was not updated or

deleted as well.

The trigger test executed on top of NATION

table. A profile was created restricting user to access

suppliers only of his nation. Table Nation did not

have restrictions. A user from Brazil trying to update

the field comment of nation Germany succeeded;

however, suppliers of Germany were not updated.

When the same user updated the comment of Brazil,

all suppliers of Brazil were updated.

6 RELATED DATABASE

SECURITY APPROACHES

Fischer et al (2009) argue that traditional RBAC

approaches does not easily express parameterized

security requirements. They proposed a generalized

RBAC model (called Object-sensitive RBAC –

ORBAC) to solve this expressiveness limitations of

RBAC by allowing roles to be parameterized by

properties of the business objects being manipulated.

ORBAC is applicable in scenarios where the

accessing application is programmed in an OO

language, which is not the case in several legacy

systems; our approach may be applied independent

of the application programming language.

Vimercati et al. (2008) present that significant

amount of research has recently focused on the

problem of processing distributed queries under

access restrictions, based on the concept of access

pattern and chase and data dependencies. Calì and

Martinenghi (2008) define the access pattern as an

approach to mark each attribute of a relation/view as

“i” (input) or “o” (output). The relation/view can

only be accessed if constants can bind the input

attributes. Data from output attributes are returned.

This approach restricts access to data, but handles

only attributes of relations, and not range of attribute

values nor relationships between relations. In our

proposal, both issues are handled. Besides, supply

input attributes to execute the access policy is not

A FLEXIBLE FRAMEWORK FOR APPLYING DATA ACCESS AUTHORIZATION BUSINESS RULES

279

feasible because of the many ways data can be

accessed, and different operations executed.

Vimercati et al. (2008) present that the chase

process exploits a specific data structure, called

tableau, to represent a query or a relation. It is

usually adopted to study and identify functional

dependencies within a relation schema, to check if a

decomposition is lossy or lossless, to evaluate if the

result of a query q

is contained in the result of

another query q

(or vice versa) without explicitly

computing the queries. When the verification returns

false, the user receive no data, and the application

must be change to comply with the rule. In RBAC

approach, query is rewritten in order to return only

data user has access. No error is returned, and the

user receives only data he has access to. They

propose a graph model approach to model

authorization rule, database schema and queries,

using authorization compositions and coloring the

graph. This approach has the following drawbacks:

it handles authorization for read operations (queries)

and not write operations; it does not handle

authorization on specific tuples of tables; it does not

handle cyclic schemas, so it requires to remove all

cycle from existing schemas which can be very

expensive, and not feasible in practice. Medium and

large companies usually cannot change their

database to comply with this requirement.

7 CONCLUSIONS

Data access security is an important issue for

enterprises. Authorization rules are traditionally

implemented into IT applications, which define their

own security policies and enforce them at the client

layer. However, if a rule change, all applications that

implemented the rule must be updated. So, it is a

very complex problem in a scenario with lot o

legacy systems.

In order to improve this environment, there are

solutions for authorization control on top of

databases, such as Discretionary access control

(DAC), Mandatory access control (MAC), and Role-

based access control (RBAC). However, such

implementations are difficult to manage, thus

requiring skilled professionals.

In this work, we presented a flexible and easy to

use framework for managing and controlling

authorization rules of applications on top of

corporative databases. The framework has two

components (i) Authorization rule management

(ARM) and (ii) Authorization rule execution (ARE).

ARE component was implemented using Virtual

Private Database (VPD) in Oracle, and evaluated

using TPC-H Benchmark queries and data. The

results showed the effectiveness of the proposal.

Further experiments are being conducted, beyond

the scope of this work, addressing the performance

impact of our proposal.

As future work, we point the implementation of

ARM and the evaluation of the ARE in a real

scenario. For the first, we are evaluating if existing

Business Rule Management System comply with

ARM requirements. For the second, we are

executing experimental tests in real scenarios.

REFERENCES

BRG, 2009. The Business Rules Group. http://www.

businessrulesgroup.org/home-brg.shtml.

Calì, A., Martinenghi, D. 2008. Querying data under

access limitations. In ICDE 2008, Cancun.

DoD, 1983, Trusted Computer Security Evaluation

Criteria. Department of Defense, DoD 5200.28-STD.

Ferraiolo, D., Khun, D. 1992, Role-Based Access Control.

In: 15th Nat´l Computer Security Conf, pp. 554-563.

Ferraiolo, D.F., Sandhu, R., et al., 2001, Proposed NIST

standard for role-based access control. ACM

Transactions on Information and System Security 4

(3), pp. 224-274.

Fischer et al., 2009, Fine-Grained Access Control with

Object-Sensitive Roles, In: Drossopoulou (Ed.):

ECOOP 2009, LNCS 5653, pp. 173–194

Murthy, R., Sedlar, E., 2007. Flexible and efficient access

control in oracle. In ACM SIGMOD 2007, pp. 973-

980, Beijing.

ORACLE. 2003. Oracle Label Security Administrator's

Guide. Oracle Corporation.

http://download.oracle.com/docs/cd/B14117_01/netwo

rk.101/b10774.pdf.

ORACLE, 2008. Oracle Database Security Guide, Oracle

RDBMS 10gR2. Oracle Corporation. http://download.

oracle.com/docs/cd/B19306_01/network.102/b14266.p

df.

SOX, 2009. Sarbanes-Oxley: Financial and Accounting

Disclosure Information. http://www.sarbanes-

oxley.com/section.php?level=1&pub_id=SOA-Manual

TPCH, 2008. TPC Benchmark H Standard Specification

Revision 2.8.0. Transaction Processing Perfermance

Council. http://www.tpc.org/tpch/spec/tpch2.8.0.pdf.

Vimercati, S., Foresti, S. et al., P. 2008. Controlled

information sharing in collaborative distributed query

processing. In Proc. of ICDCS 2008, Beijing.

Yang, L. 2009. Teaching database security and auditing.

ACM SIGCSE 1(1), pp. 241—245.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

280
