ASSESSING THE INTERFERENCE IN CONCURRENT

BUSINESS PROCESSES

N. R. T. P. van Beest, N. B. Szirbika and J. C. Wortmann

Department of Business & ICT, Faculty of Economics and Business, University of Groningen

Landleven 5, P.O. Box 800, 9700 AV Groningen, The Netherlands

Keywords: Business process interference, Inconsistencies, Data overlap.

Abstract: Current Enterprise Information Systems support the business processes of organizations by explicitly or

implicitly managing the activities to be performed and storing the data required for employees to do their

work. However, concurrent execution of business processes still may yield undesired business outcomes as

a result of process interference. As the disruptions are primarily visible to external stakeholders, organiza-

tions are often unaware of these cases. In this paper, a method is presented along with an operational tool

that enables to identify the potential interference and analyze the severity of the interference resulting from

concurrently executed processes. This method is subsequently applied to a case to verify the method, and re-

inforce the relevance of the problem.

1 INTRODUCTION

There have been only a few recent research ap-

proaches (Xiao and Urban, 2007), (Sundari et al.,

2007), (Trčka et al., 2009) to provide a systematical

discovery of data-flow errors in business processes

supported by various Process Aware Information

Systems (Dumas et al., 2005). As observed by (Sun

et al., 2006), existing commercial workflow systems,

for example, do not yet provide adequate tools for

data-flow analysis at design time.

Although the analysis of data dependencies and

process interference itself is investigated (see e.g.

(Xiao et al., 2008), the presented methods apply only

in the context of failing processes and refer to highly

distributed environments or Service-Oriented envi-

ronments (Xiao et al., 2008). In practice, however,

these interfering processes do not necessarily fail.

Rather, they may execute correctly with respect to

design constraints, (resulting in no internal error

messages) but provide the wrong business result,

especially from a customer perspective.

In addition, these situations are not limited to

those processes that include choice and parallelism,

but also appear when multiple sequential processes

are executed concurrently. Furthermore, this prob-

lem does exist independent from technical imple-

mentation details.

In this paper, an investigative method is pre-

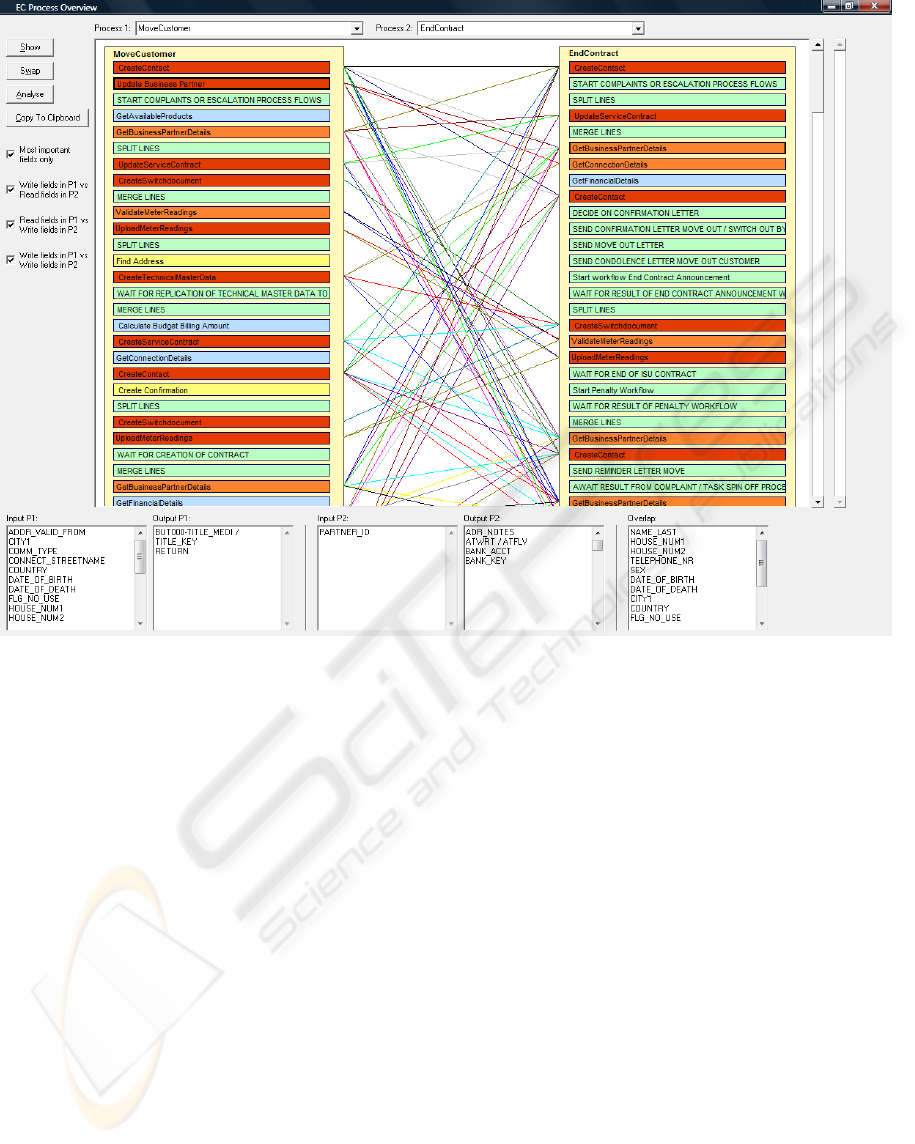

sented. To support the method, an operational tool

has been developed and used to discover data /

process interdependencies. This method was tested

on a case of an Energy Supply company and results

have been analyzed in order to assess the severity of

the problem.

The remainder of this paper is organized as fol-

lows. Section 2 provides a background showing the

problem under investigation, related work and the

research methodology. The investigative method is

presented in section 3. This method is applied to a

case using an operational tool in section 4. The fin-

dings of the analysis performed on the case are pre-

sented in section 5. These results are discussed in

section 6, followed by a conclusion in section 7.

2 BACKGROUND

2.1 Interference in Concurrent

Processes

Concurrent execution of business processes that

share no common activities (that is, processes that

are “flow-wise” isolated) is common in most organi-

zations, although these processes may (partially) use

the same resources in terms of the information re-

261

R. T. P. van Beest N., B. Szirbika N. and C. Wortmann J. (2010).

ASSESSING THE INTERFERENCE IN CONCURRENT BUSINESS PROCESSES.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

261-270

DOI: 10.5220/0002907502610270

 SciTePress

quired. In data-centric transactional systems used in

process support, this is described as “relaxed isola-

tion”, potentially leading to various anomalies.

However these are typically mitigated by supple-

mentary activities named “compensation activities”

(Eder et al., 1995).

Therefore, when enacting separate models of

various processes that are to be supported by various

Enterprise Information Systems, concurrent proces-

ses and their instances (cases) are assumed to be

independent. However, multiple processes may re-

quire the same data over a certain timeframe, and for

many of these process definitions various kinds of

negative process interference might occur. Process

interference is defined in this paper as the situation

where data mutations by one process affect other

concurrently executing processes, which potentially

causes an undesired process outcome. In the worst

case scenario, such processes may constitute a po-

tential risk of failed cases (which hang due to control

flow errors). These affect directly the internal re-

sources involved in the process and are immediately

considered by the organization as a threat for the

business process execution. This is usually resolved-

by means of an integration effort within the organi-

zation, which “aligns” the interfering processes. In

this way, most of the control flow errors are elimi-

nated.

A more subtle anomaly exists, which is rooted in

the relaxed data isolation of parallel processes. Even

if the process finishes regularly without any system

errors (from an internal perspective), the final result

is undesirable from a business perspective. That is,

customer satisfaction is negatively affected in the

long run. The customer is seen here as an external

resource involved in the execution of the concurrent

business processes, which is spread over more or-

ganizations.

For example, a customer of an energy company

may decide at a moment in time to change his ener-

gy provider and meanwhile move as well. After the

customer address has been changed, the process re-

sponsible for handling the switch of the energy pro-

vider may use the outdated address. Consequent-ly,

there may be a discrepancy between the actual ad-

dress of the customer and the address that is used for

his invoices. As a result, the customer may repeated-

ly receive an invoice charging an amount that is too

high according to the actual meter readings. None-

theless, in these cases the rather regular finish of the

business process implies only small internal disrup-

tions and does not affect visibly the performance

parameters that are monitored. These process envi-

ronments lead to those problems that are initially not

necessarily experienced inside the organization, as

no error messages – like a dynamic deadlock de-

tected – are signaled. The external part of the disrup-

tion however, has a considerable effect as the data

interference induced problem is primarily noticed by

the external stakeholders (mostly customers). There-

fore, the problem described is only detected by the

customer.

2.2 Related Work

Since the database management systems of the past

started to have multiple, concurrent access, it was

obvious that consistency problems may occur if in-

dependent processes access and change the same

data without global coordination. From the perspec-

tive of the design-time data-flow analysis, the exis-

ting business process modeling paradigms can be

roughly divided into two categories. One is rooted in

the initial focus on activity sequencing and coordina-

tion (i.e. the control flow perspective), using Petri-

nets (Aalst, 1998) and (or) activity-based workflow

modeling (Bi et al., 2003) where syntactic errors of

the model such as deadlock, livelock and orphan

activities are discovered through modeling and ana-

lysis. The other perspective is rooted in the more

recent service composition research but also with a

strong influence from the classic normalization of

databases of transaction-based systems, where the

focus has been primarily on implementing ACID

transaction semantics (for a review, see Xiao et al.,

2006).

Based on the current literature research, three

main solution categories can be identified:

a. Build a global database of object history ex-

ecution (as the PHCS – process history cap-

ture system – in Xiao et al., 2006), which is

appropriate in a transactional environment

with dynamic service composition (thus

without a designed process model), with fre-

quent rollbacks and cascading compensated

activities.

b. Build a data-flow model (like the data-flow

matrix used by (Sun et al., 2006) and inte-

grate the data-flow model in the control-flow

(or workflow) model.

c. Extend the control-flow model with data

elements (like WFD – workflow nets with da-

ta – used by Trčka et al., 2009) and use tem-

poral logic for the data-flow analysis.

Solution categories b. and c. consider that the data-

flow anomalies are strongly influenced by the two

Atomicity, Consistency, Isolation and Durability

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

262

typical modeling patterns that appear in business

process models: parallelism and choice (typically

modeled by using AND or XOR constructs). Their

research is oriented towards finding an analysis me-

thod that covers as many patterns as possible. More-

over, all three approaches tend to find a generic so-

lution, which is not specially tailored to a certain

business process environment.

These three approaches are not suited for envi-

ronments where comparatively simple sequential

processes run independently (concurrently). In many

organizations, there is a strong semantic overlap

between the various data repositories of these pro-

cesses, which leads to anomalies. From a practical

point of view, no methods or tools exist that enable

the identification of the severity of these problems.

The presented research shows how such a me-

thod was developed. An experimental tool provides

the functionality that automatically identifies all the

data related overlaps between two business proces-

ses, showing as a result a map of data/process inter-

dependencies. The method was tested in a case in-

volving a real company. The case study serves the

following purposes: it verifies the appropriateness of

the method, it validates the utility of the tool, and

reinforces the relevance of the problem.

2.3 Research Methodology

The research methodology adopted in this paper is a

triangulation strategy (Benbasat et al, 1987). The

related case study was performed at a large energy

company in Europe, which interacts with other

smaller companies. This energy company (which

will be referred to as EC in the remainder of the pa-

per) is a major supplier of gas, electricity, heat and

other energy services. The case study is used in two

ways. First it is used to verify and validate whether

the proposed method in section 3 is capable of iden-

tifying the interference of two processes. Second, it

is used to identify the severity of the problem for a

large company, which is strongly dependent on the

consistency and the correctness of data used by “in-

dependent” processes.

3 METHOD DESIGN

The methodology concerns a number of distinct

steps that are executed to prepare the available

process documentation: (i) initial data gathering, (ii)

data structuring and cleaning and (iii) analysis.

3.1 Initial Data Gathering

Two basic sources of information about the process

can be identified: process documentation and infor-

mation gathered from process mining based on exis-

ting systems (Aalst et al., 2003). Although the latter

concerns a number of additional steps prior to the

actual data gathering (as described in e.g. (Măruşter

et al., 2009)), the information to be extracted from

the documentation during data gathering is indepen-

dent of the actual source of the information (i.e.

process mining or process documentation).

First, for each process, the activities need to be

identified in order to show the overlap in detail. In-

consistencies may occur when the same data is read

and written in two distinct processes whose execu-

tion time overlap. Inconsistencies do not occur when

both processes only read from certain data, as noth-

ing is changed. As a result, it is necessary to distin-

guish for each datafield used by an activity whether

it is read or written. That is, the read-write distinc-

tion is to be made at datafield level, because an ac-

tivity may contain both readfields and writefields.

For example, a write activity makes an update to a

certain data object and may return a result (usually

an ok, sometimes an error message). The update is

defined by the writefields, which indicate what is

going to be updated, whereas the returned result is

read by the process execution engine. Therefore,

such a write activity does not exclusively contain

writefields; it contains both readfields and write-

fields.

This distinction between readfields and write-

fields depends on both the fieldtype (input- or out-

putfield) and the nature of the activity itself. Conse-

quently, an activity needs to be categorized as either

a read activity or a non-read activity. A read activity

requires a key as input. The resulting output contains

the fields of the object that are returned. A non-read

activity makes a change to the data, by means of a

CREATE, UPDATE or DELETE operation. A

CREATE operation alone cannot result in any prob-

lems, as the object does (obviously) not exist before

the CREATE operation. Therefore, there cannot be

any dependency on that data by another process. As

a consequence, CREATE operations are not taken

into account in the analysis. In contrast to an UP-

DATE operation, a DELETE operation applies to an

entire object, rather than a single field. Deletion of a

record will be based on a key, deleting the asso-

ciated object. However, regardless whether it con-

cerns an update or delete, some data is changed.

Therefore, a non-read activity will be referred to as a

write activity for the remainder of this paper.

ASSESSING THE INTERFERENCE IN CONCURRENT BUSINESS PROCESSES

263

Once all activities have been categorized, the da-

ta used in each of these activities can be marked as

either a readfield or a writefield. Table 1 shows an

overview of the distinction made within fields used

by an activity.

Table 1: Overview of read and write indicators

Activity type

Fields used by

process engine as

Fields used by

analysis tool as

Read

(Get / retrieve)

Input -

Output Read

Write

(Set / update)

Input Write

Output Read

Outputfields of a write-activity are the result af-

ter writing the inputfields. Therefore, outputfields of

a write-activity are treated as readfields, whereas

inputfields of a write-activity are treated as write-

fields. Similarly, outputfields of a read-activity are a

result as well. However, the inputfields of a read-

activity are used to determine which data to retrieve

(i.e. an input parameter). These inputfields are not

written and, therefore, not treated as writefields or

readfields. They are not taken into consideration

during the analysis.

3.2 Data Cleaning and Structuring

Existing process documentation may contain incon-

sistencies concerning naming policies of activities

and data. For example, telephonenr may also be re-

ferred to as telnr or tel_no. Although these refer se-

mantically to the same concept in reality, i.e. tele-

phone number, they are represented differently in

the documentation. Nevertheless, the field can be

stored consistently in a single database. That is, the

inconsistencies in naming policies usually only oc-

cur in the documentation. As a result, they cannot be

marked automatically as being the same field.

Therefore, these synonyms need to be found and

provided with a univocal name.

Subsequently, all fields need to be marked with a

rating indicating the severity of overlap. That is, the

severity of the business implications in case these

fields are inconsistent. This rating will allow to cre-

ate a layered representation of the analysis, because

some fields are more important than others.

Finally, different overlapping properties need to

be defined, in order to be able to identify activities in

different processes that require and change the same

data. Due to differences in the representation in

process documentation, three distinct possibilities

are defined to identify overlap:

• Full field Overlap.

If the inputs and outputs are specified on a low

level, like a database field, full field overlap will

suffice. If and only if two fields are entirely the

same, they are considered to overlap.

• Keyword Overlap.

If inputs and outputs are only specified by natu-

ral language (which does occur in some cases),

a full match between fields is not convenient, as

these fields provide a description of the infor-

mation used. In these cases, for every field

keywords are identified and the overlap is de-

tected based on a certain percentage of equal

keywords between two fields. For instance, if

two fields are compared with 5 keywords each

and 3 keywords overlap, then these fields can be

considered to have 60% overlap.

• Document Code Overlap.

If inputs and outputs originate from a document

(i.e. an activity requires information from a

written document), the document code can be

used to detect overlap.

3.3 Analysis

In the analysis step, the fields of the activities are

compared, based on the overlapping criteria de-

scribed above, to identify all potential data overlap

between two processes. If data is read only by both

processes, no problems can occur as the data is not

changed. Overlap in data use is considered potential-

ly harmful if one of the processes (or both) is (are)

changing certain data that is also required by the

other process. In the example given in section 2, the

address change is written to the database, whereas

the supplier change requires the address for connec-

tion data. In order to identify such cases, three dis-

tinct comparisons need to be done:

1. Writefields in process 1 compared to readfields

in process 2.

2. Readfields in process 1 compared to writefields

in process 1.

3. Writefields in process 1 compared to writefields

in process 2.

4 METHOD APPLICATION

The method described in section 3 is applied to the

business process of EC. In this section, the specific

application and details for each analysis step will be

explained, along with the tool support created for

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

264



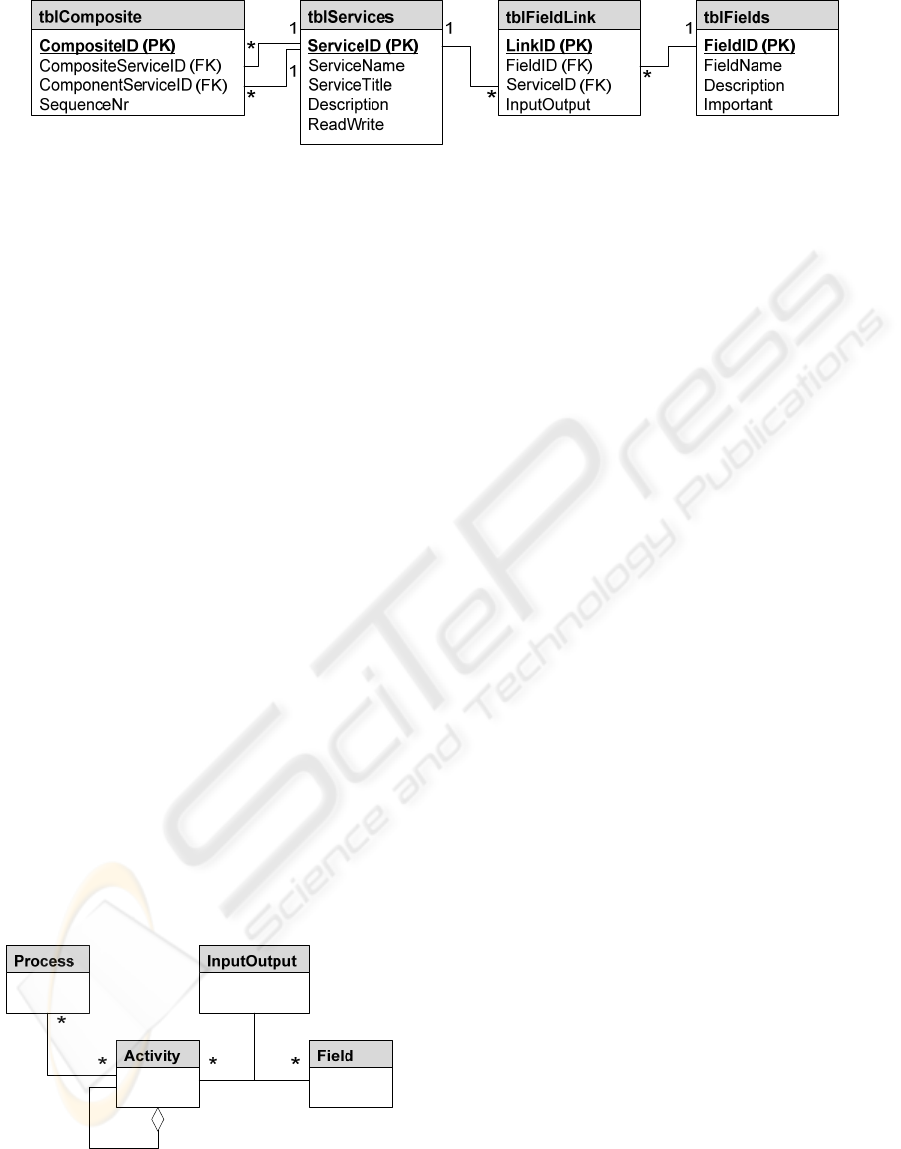

Figure 1: Data structure of the analyzed process.

automated analysis.

4.1 Case: Initial Data Gathering

The documentation about the business process of the

energy company contained a detailed description of

all processes and activities. The processes were re-

ferred to as services that were provided to the cus-

tomer. These services were nested and are, therefore,

comparable to the process and activity structure used

in process modelling. For each service, the inputs

and outputs were provided along with a detailed

description of the functionality of the service.

4.2 Case: Data Cleaning

and Structuring

The structure of the documentation is reflected in the

data structure used for analysis. Conceptually, the

data structure corresponds to the model shown in

Figure 2. The actual implementation, however, is

slightly different, as shown in Error! Reference

source not found.. All activities are represented as

non-composite services, having the read/write dis-

tinction represented as a field in tblServices.

Processes are represented in the documentation as

high-level composite services (i.e. composite servic-

es that can execute autonomously). Inputfields and

outputfields are both represented as fields, where the

junction table tblFieldlink specifies whether the field

is used as inputfield or outputfield.



Figure 2: Data structure of reworked process documenta-

tion.

Every service was defined as either a write-

service or a read-service. All information has been

structured into a relational database, containing the

services, composite definitions, and all input- and

outputfields. The fields of the tables in the analysis

database are shown in Table 2.

4.3 Case: Analysis and Tool Support

Due to the complexity of the comparisons done in

the analysis, a software tool was deemed necessary

and has been developed. This tool is capable of de-

termining overlap between datafields used by two

processes. As a main result, this software tool

enables to assess the severity of the interference be-

tween two processes. The three ways of comparing

shown in section 3.3 ensure that the overlap is iden-

tified independent from the order in which the

processes are selected in the tool. That is, there is no

difference between comparing process 1 with

process 2 and comparing process 2 with process 1

(the comparison is commutative).

The analysis tool shows a graphical representa-

tion of two selected processes, including individual

activities. After the automatic analysis has been per-

formed by the tool, potential overlap is represented

by activities marked in red and connection lines be-

tween all interfering activities. For each process an

activity can be selected, to show the inputs and out-

puts of these activities and their specific overlap.

The overlap can be determined by multiple layers of

severity. Due to the three possible comparisons, a

distinction can be made between read overlap and

write overlap. An example of the usage of the expe-

rimental tool is shown in Figure 3.

The severity of the overlap between an address

change and a provider change is immediately sug-

gested by the haywire of lines between the two

processes and the large amount of interfering activi-

ties. At a deeper level of analysis, the severity is also

given by the fact that data concerned with the over-

lap comprises essential datafields, like address in-

formation and connection information.

ASSESSING THE INTERFERENCE IN CONCURRENT BUSINESS PROCESSES

265

Table 2: Explanation of contents of the analysis database.

Table Field Purpose

tblComposite CompositeID Primary Key of tblComposite.

SequenceNr Indicates the execution order of the services that are part of the composite

service.

tblServices ServiceID Primary Key of tblService.

ServiceName Name of the service (internal code).

ServiceTitle Title of the service.

Description Short description containing the functionality of the service in natural lan-

guage. Although not used for automatic analysis, it may be used as lookup.

ReadWrite Indicates whether it concerns a read or a write service.

tblFieldLink LinkId Primary Key of tblFieldLink.

InputOutput Indicate whether field with FieldID is used as input or output field.

tblFields FieldID Primary Key of tblFields.

FieldName Name of the field.

Description Short description of the field in natural language.

Important Indicates the importance of the field. The higher the value, the more severe

and harmful data-interference will be.

5 FINDINGS

5.1 Results

Based on the provided documentation, eleven main

high-level processes were identified and analyzed.

For each pair of processes, the amount of overlap

and the severity of the overlap were analyzed. First

of all, a distinction has been made between different

grades of overlap: severe overlap, overlap, mild

overlap and non-important overlap. This distinction

is made based on the data involved and the amount

of interfering activities in both processes.

The data is assessed on the amount of customer

data (Address, Financial data), meter data, and con-

nection data used. These types of data are considered

to be the essential data to the business processes of

the EC. If the overlap does not concern data related

to these, it is marked as non-important overlap. The

type of overlap in case of involvement of essential

data depends on the amount of interfering activities.

If less than 10% of the activities concerns essential

data, the overlap is marked as mild overlap. If more

than 30% of the activities concerns essential data,

the overlap is marked as severe overlap. Further-

more, if any of the three comparisons described in

section 3.3 applies to the pair of processes, the over-

lap is marked as severe overlap as well. An over-

view of the analyzed processes along with the results

of this analysis is shown in Table 3.

The numbers in the column-headings refer to the

same processes shown in the row-headings. The

analysis revealed that 42 out of 55 process pairs

were likely to occur concurrently. In a natural way,

the NewCustomer process does not occur concur-

rently with other processes. As a result, no other

processes will be executed and interfere with the

NewCustomer process. In a similar way, the

processes ChangeContract, CancelContract and

EndContract are also mutually exclusive processes.

Processes that are very unlikely to occur simulta-

neously are denoted by “X”.

All other pairs of processes are likely to occur

simultaneously. It shows that all pairs of these pro-

cesses show overlap. The distinct types of overlap

are denoted with “N” (non-important overlap), “M”

(mild overlap), “O” (overlap) and “S” (severe over-

lap).

In 37 out of 42 different process pairs that were

compared, overlap concerning essential data was

found.

Furthermore, 16 of these cases were considered

severe based on the amount of interfering activities

and the involvement of essential data. It was ob-

served that these situations occur under certain spe-

cific conditions; every interference case concerned a

co-occurrence of one or more of the basic properties

listed below:

• Heavily Data-dependent Processes. This con-

cerns parts of processes for which certain infor-

mation is assumed to be correct and unchanged,

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

266

Figure 3: Example of the experimental tool, developed to automatically identify the overlap.

and there is a strong need for external data –

that is, data that is stored far from the environ-

ment of the resources that execute the process –

to proceed.

• Data-interconnected Processes where Diffe-

rent Time Events are often the Main Activity

Triggers. This concerns those concurrent pro-

cesses (that are assumed in the organization to

be independent, due to the relaxed isolation

view), which use the same data at a particular

point in time or within a certain timeframe.

• Long-running Processes. This concerns a

chain of activities that affect the same business

object over a long time period. As a result, lock-

ing of data objects is highly undesirable from a

pro-cess design point of view and, therefore, is

avoided in practice by the modelers.

5.2 Example of Severe Overlap

Using the tool, the severe cases could easily be iden-

tified. Although the specific details of the processes

of the EC are beyond the scope of this paper, a sim-

plified outline of the processes will illustrate the

potential business consequences of the identified

overlap.

For example, as indicated by Figure 3 and Table

3, an address change (denoted by MoveCustomer)

and a supplier change (denoted by EndContract)

have severe overlap when executed concurrently.

The following essential data is affected by both

processes: customer data (address), connection data

(EAN code linked with address) and meter data

(which is essential for the energy consumption to be

charged at the final invoice). Both processes can be

considered heavily data-dependent, as they require

essential data to remain correct and unchanged over

time. In both processes, this data is read and written.

As a result, the property of data-interconnected

processes applies as well.

The process of a supplier change consists of two

parts. The first part is located at the old supplier (end

of contract). The second part is located at the new

supplier (new contract / new customer). This exam-

ple will focus on the first part. That is, EC will be

the old supplier where the EndContract process will

be executed. In case of a concurrent execution of

ASSESSING THE INTERFERENCE IN CONCURRENT BUSINESS PROCESSES

267

Table 3: Overview of overlap between processes.

Process 1 2 3 4 5 6 7 8 9 10 11

1. NewCustomer

X X X X X X X X X X

2. MoveCustomer

O M N S N M S S S

3. UpdatePaymentDetails

S N S M O S S S

4. UpdateBBP

S O O M S O S

5. AddMeterReadings

N N O O O S

6. UpdateCustomerDetails

O O S O S

7. CreatePaymentArrangement

M M M M

8. HandleCustomerComplaints

S O O

9. ChangeContract

X X

10. CancelContract

11. EndContract

MoveCustomer and EndContract, two basic sce-

narios are possible: MoveCustomer is triggered be-

fore the end of EndContract, or MoveCustomer is

triggered after the end of EndContract. In the first

scenario, the concurrency of both processes is entire-

ly within the responsibility of EC and, therefore, the

least likely to fail. However, a number of atomic

transactions appear, where information is read and

required for some of the subsequent activities.

The potential difference between the timestamp

of the request for switch and the requested switch-

date (this may be up to 6 months) implies that this

process can be characterized as a long-running

process. When a switch is proposed, the delivery of

energy by the desired energy provider is linked to a

certain address (that is, the address of the customer

is retrieved and coupled to the connection data). If

the address changes after this part of the process, the

address change is updated to the customer data.

Consequently, the new address will be correctly up-

dated, but the change of the energy supplier will not

be actualized for this customer. Instead, the desired

energy supplier change will apply for the old ad-

dress. As a result, the new inhabitant of the old

house of the customer, will have the energy supplier

as requested by the customer.

As presented in Section 2.1, this final result of

the execution of both processes (without error mes-

sages) is highly undesired.

5.3 Validation of the Results

For each analyzed process pair it was assessed

whether the results represented a realistic sequence

of events in the execution of the actual business

processes. Furthermore, it was assessed whether the

problems were known inside the organization.

The results of the analysis were validated by

means of interviews with the process experts at the

EC. The validation consisted of informal interviews

with 4 different process experts. First, the individual

processes obtained by the analysis were shown to

process experts of the EC, to verify the process re-

presentation used by the analysis with the execution

of these processes in reality. It showed that all

processes as represented were reflecting the execu-

tion of business processes reality.

Subsequently, the analyzed process pairs were

assessed with the execution of business processes in

reality. That is, the concurrent execution as

represented by the analysis tool was validated with

the potentiality of such a co-occurrence in reality.

This assessment revealed that process 9, 10 and 11

in Table 3 would not co-occur in reality, as these are

mutually exclusive. The remainder of the processes,

however, executed concurrently (with the exception

of process 1, NewCustomer, which does – naturally

– not interfere with other processes, as discussed in

section 4).

Finally, the organization’s awareness of each

troublesome case was evaluated. The interviews

with the process experts clearly revealed the busi-

ness nature of the problem, as the majority of the

results was unknown to the EC. The most characte-

ristic example of such an unknown case is presented

in section 5.2.

Most of the problems emerging from the over-

lapping scenarios concerned customer data or con-

nection data without resulting in failing processes.

Consequently, the problems primarily affected the

external stakeholders (customers), whereas they did

not directly affect the internal resources. As a result,

most of these scenarios were past the awareness of

the organization and no mechanisms or procedures

were in place to prevent, correct or identify these

errors.

Two of the severe cases were within the aware-

ness of the organization. These processes were

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

268

equipped in an ad-hoc manner with various mechan-

isms designed to minimize the risk for these errors.

The most typical cases of data interference were

intercepted by custom-built triggers to either enforce

alignment between the processes or provide a

process lock. That is, one of the processes is not

allowed to proceed until completion of the other

process or not allowed to start at all. The results of

the analysis, and the interviews showed a confirma-

tion of the hypothesis expressed in section 2.

6 DISCUSSION AND FUTURE

RESEARCH

The tool presented can be interpreted as a methodo-

logical instrument that have been applied in a case

study (i.e. EC) to successfully identify data-flow

related errors. This application of the tool verifies

the technical implementation of the proposed me-

thodology. Experts from the company have been

consulted to ascertain the practical relevance of the

data-flow errors identified by the tool. This has fur-

ther established the added business value of the tool.

Moreover, from a design science perspective (Hevn-

er et al., 2004), the established criteria for artifact-

driven research regarding evaluation have been sa-

tisfied (Jones et al., 2007).

Within this methodology-based context, one of

the most important findings is that two of the seven

identified cases of severe data-flow errors where

known to the process experts. Highlighting these

findings in front of the experts lent immediately

more credibility to this work, and expanded their

effort to identify symptoms and causes of the other

tool-identified errors. Furthermore, revealing the

basic nature of the error eased the finding of solu-

tions for these errors.

However, the application of the methodology

does not reveal whether the problems can be preven-

ted by means of coordination or a better software

implementation, as this would imply that every sin-

gle possibility and exception should be modeled.

Rather, application of the methodology identifies the

potential interfering processes. Moreover, it provides

insight in the severity of potential interference be-

tween concurrently executed processes, which pro-

vides the opportunity to resolve or prevent these

situations in the Enterprise Information System.

Correspondingly, the overlap found in the analy-

sis of EC is not a result of a poor software imple-

mentation. The analysis has been performed inde-

pendent from any implementation. In this respect,

this paper has gone beyond past research, by analyz-

ing the process flow along with the information re-

quired in each of the distinct activities. The results

of the application of the methodology to the case

clearly show the importance and relevance of these

business problems, as severe overlap in concurrent

processes (but apparently independent) is widely

spread.

In addition to the theoretical deduction of the po-

tential consistency issues, this paper contributes in-

directly to the area of business intelligence as well.

If data-flow errors remain undetected, business strat-

egies formulated from mining transactional data

would be ineffective. For example, if organizations

are planning to tailor business strategies according to

the geographical distribution of customers, then in-

accurate addresses would translate to wrongful in-

terpretations of consumer preferences. Therefore, the

methodology does not only improve operational

efficacies (i.e., better customer service), but it also

augments strategic decision making (i.e., data min-

ing in formulating business strategies).

Foreseen future research can be described as fol-

lows. The development of a context-independent

categorization of data can contribute to the generali-

zability of the method. If essential data is

represented in terms of data hierarchies, i.e. the more

a piece of data is required for the smooth running of

one or more business processes within and/or across

corporate hierarchies, the more “essential” it is. Fur-

thermore, in defining essential data according to data

hierarchies, it might be possible to incorporate addi-

tional tracing capabilities into the tool that enable

process experts to trace the impact caused by specif-

ic data-flow errors.

Furthermore, this methodology should be applied

to multiple case studies, as this may not only contri-

bute to generalize the presented methodology, but

also provide a confirmation of the usability of the

experimental tool. In addition, the agile model-

driven framework presented in (Van Beest et al.,

2009) can be applied to the EC case, in order inves-

tigate whether the problems identified in this paper

can be overcome.

7 CONCLUSIONS

In this paper, a methodology is presented that

enables to identify and analyze the potential incon-

sistency issues resulting from concurrently executed

processes. This methodology is applied to a case,

showing the severity of the problem for that organi-

zation.

ASSESSING THE INTERFERENCE IN CONCURRENT BUSINESS PROCESSES

269

The analysis showed that concurrently executed

processes may indeed interfere in practice. Further-

more, the validation with process experts revealed

that the unknown problems as indicated by the anal-

ysis tool are common practice in reality as well. The

amount and severity of the overlap identified con-

firms the premised frequency of occurrence of the

problems as well as the according relevance for or-

ganizations.

Compared to other methods, this is a rather

lightweight method. That is, it does not require the

availability of a formal representation of the busi-

ness process. Instead, it is applicable using semi-

structured process documentation, providing results

that are legible by users without in-depth knowledge

of implementation specifics.

The methodology showed its ability to efficiently

provide a representative and valuable insight in the

interference between concurrent processes and the

potential disruptions emerging.

REFERENCES

Aalst, van der, W.M.P., 1998. The application of petri nets

to workflow management. The Journal of Circuits,

Systems and Computers, (8:1), pp. 21–66.

Aalst, van der, W., van Dongen, B., Herbst, J., Măruşter,

L., Schimm, G., Weijters, A., 2003. Workflow Min-

ing: A Survey of Issues and Approaches. Data and

Know. Eng. (47:2), 237-267.

Beest, van, N.R.T.P., Szirbik, N.B., Wortmann, J.C., 2009.

A Vision for agile Model-driven Enterprise Informa-

tion Systems. In Proc. of the 11th Int. Conf. on EIS,

vol. "Inf. Syst. Analysis and Specification”, pp. 188-94.

Benbasat, I., Goldstein, D. K., Mead, M., 1987. The Case

Research Strategy in Studies of Information Systems,

MIS Quarterly, (11:3), pp. 369-386.

Bi, H. H., and Zhao, J. L., 2003. Mending the Lag Be-

tween Commercial Needs and Research Prototypes: A

Logic-Based Workflow Verification Approach. In

Proc. of the 8th INFORMS Computing Society Conf.,

pp. 191-212.

Dumas, M., Aalst, W.M.P. van der, Hofstede, A.H. ter,

2005. Process-aware information systems: bridging

people and software through process technology, John

Wiley & Sons, Inc., New York, USA.

Eder, J., & Liebhart, W., 1995. The workflow activity

model WAMO. In Proc. of the 3rd Int. Conf. on Co-

operative Information Systems.

Hevner, A.R., March, S.T., Park, J., Ram, Sudha., 2004.

Design Science in Information Systems Research. MIS

Quarterly (28:1), pp 75-105.

Jones, D. and Gregor, S. The Anatomy of a Design

Theory, 2007, Journal of the Association for Informa-

tion Systems, (8:5), pp. 312-335.

Măruşter, L., Beest, van, N.R.T.P., 2009. Redesigning

business processes: a methodology based on simula-

tion and process mining techniques. Journal Know.

and Inf. Syst., (21:3), pp 267-398.

Sun, S.X., Zhao, J.L., Nunamaker, J.F., Sheng, O.R.L.,

2006: Formulating the Data-Flow Perspective for

Business Process Management. Inf. Sys. Research, 17,

pp. 374- 391.

Sundari, M.H. ,Sen, A.K., and Bagchi., A., 2007. Detect-

ing Data Flow Errors in Workflows: A Systematic

Graph Traversal Approach. In 17th Workshop on Inf.

Technology & Syst. (WITS-2007), Montreal.

Trčka, N., Aalst, van der, W.M.P., and Sidorova, N., 2009.

Data-Flow Anti-Patterns: Discovering Data-Flow Er-

rors in Workflows. In Proc. of CAiSE’09, LNCS 5565,

Springer.

Xiao, Y., Urban, S.D., 2006. A Process History Capture

System for Analysis of Data Dependencies in Concur-

rent Process Execution. In Data Engineering Issues in

E-Commerce and Services, LNCS 4055, pp. 152-166,

Springer.

Xiao, Y., Urban, S.D., 2008. Using Data Dependencies to

Support the Recovery of Concurrent Processes in a

Service Composition Environment. In Proc. of the

Coop. Inf. Syst., Monterrey, Mexico.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

270
