BIDIRECTIONAL HIERARCHICAL NEURAL NETWORKS

Hebbian Learning Improves Generalization

Mohammad Saifullah, Rita Kovordanyi and Chandan Roy

Department of Computer and Information Scince, Linköping University, Linköping, Sweden

Keywords: Generalization, Image Processing, Bidirectional Hierarchical Neural Networks, Hebbian Learning, Feature

Extraction, Object Recognition.

Abstract: Visual pattern recognition is a complex problem, and it has proven difficult to achieve satisfactorily in

standard three-layer feed-forward artificial neural networks. For this reason, an increasing number of

researchers are using networks whose architecture resembles the human visual system. These biologically-

based networks are bidirectionally connected, use receptive fields, and have a hierarchical structure, with

the input layer being the largest layer, and consecutive layers getting increasingly smaller. These networks

are large and complex, and therefore run a risk of getting overfitted during learning, especially if small

training sets are used, and if the input patterns are noisy. Many data sets, such as, for example, handwritten

characters, are intrinsically noisy. The problem of overfitting is aggravated by the tendency of error-driven

learning in large networks to treat all variations in the noisy input as significant. However, there is one way

to balance off this tendency to overfit, and that is to use a mixture of learning algorithms. In this study, we

ran systematic tests on handwritten character recognition, where we compared generalization performance

using a mixture of Hebbian learning and error-driven learning with generalization performance using pure

error-driven learning. Our results indicate that injecting even a small amount of Hebbian learning, 0.01 %,

significantly improves the generalization performance of the network.

1 INTRODUCTION

Generalization is one of the most desired attributes

of any object recognition system. It is unreasonable

and impractical to present all existing instances of an

object to a recognition system for learning. A well-

designed system must be robust enough to learn the

appearance of an object from a few available

instances and to generalize the learnt response to

novel instances of the same object.

Humans are generally flexible and quite good at

generalization. For example, we can easily recognize

any legible English letter, no matter who wrote it. In

tasks such as this, we use our past knowledge of the

shape of a letter for recognizing it. This capability of

the human visual system attracts researchers to find

out the underlying mechanism of the primate visual

cortex and to emulate these mechanisms when

developing artificial object recognition systems.

The human visual system is hierarchically

organized, and has many layers. Consecutive layers

are connected in both feed forward and feedback

directions (Callaway, 2004). The interactive

property of these biological networks is nicely

captured by bidirectional hierarchical artificial

neural networks, which are considered to be

biological plausible, and are often used for

modelling human vision.

Backpropagation of error is a powerful error-

driven learning algorithm. Biologically-based forms

of backpropagation of error are therefore a good

candidate for learning algorithm that can be used in

human-like bidirectional hierarchical networks.

Error-driven learning is widely used in artificial

neural networks for image processing and object

recognition tasks. However, error driven learning in

these networks is often used to drive weight changes

on the level of individual pixels in the input image.

This technique, on the one hand helps to learn a task

very well; on the other hand, it creates a risk for

overfitting. This risk increases as the network size in

terms of number hidden layers and number of units

in each layer increases.

There are different ways to overcome the risk of

overfitting. One way is to increase the training input

to the network. But this option is not always a

feasible option due to obvious reason of limited

105

Saifullah M., Kovordanyi R. and Roy C. (2010).

BIDIRECTIONAL HIERARCHICAL NEURAL NETWORKS - Hebbian Learning Improves Generalization.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 105-111

 SciTePress

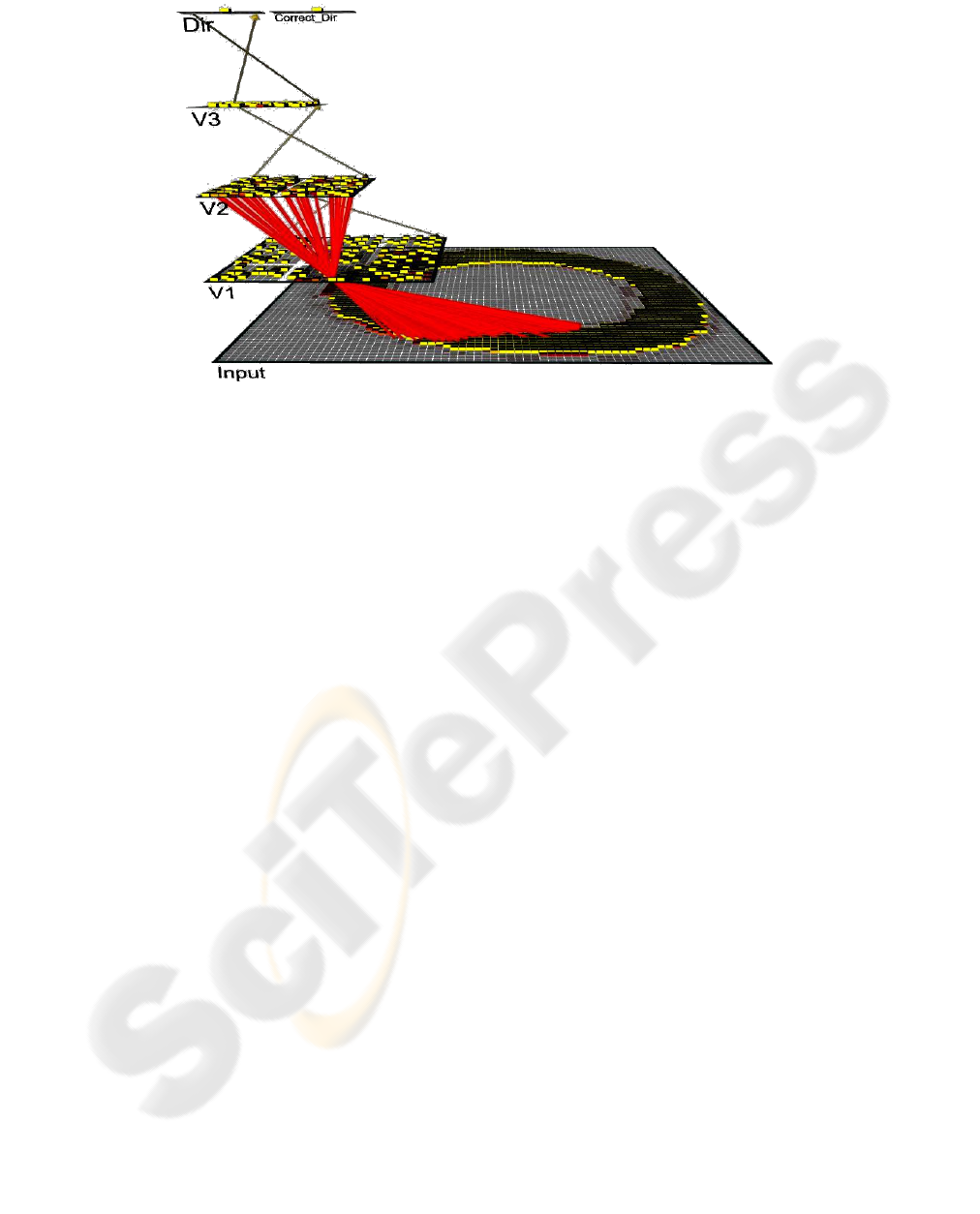

Figure 1: The bidirectional hierarchical network used for testing various learning mixes. Highlighted lines show the

connectivity pattern of a unit in layer V1. As can be seen, units in V1 received input from a limited patch of the image.

resources and time for training.

Second, one could keep down the degrees of

freedom in the network, either through careful

choice of hidden layer size and number of weights,

or by introducing a bias on weight development

during training for example, using weight decay to

kill off weak weights that tend to encode noise in the

input, or by actually pruning the network structure,

cutting off small weights.

Third, one can use a network structure that

facilitates feature extraction that is, encoding of

local features in the input (Fukushima, 1993).

Encoding of local features is necessary if the

network is to recognize novel input where individual

features are combined in a new way.

In this study we will mix amount of Hebbian

learning with the error driven learning to see how it

affect the generalization performance of the

network.

2 HIERARCHICAL NETWORKS

Hierarchical networks for image processing are

inspired by the human visual system and have been

demonstrated to be especially well suited for

extracting local features from an image (Fukushima,

2008). In hierarchical networks, the hidden layers

are selectively connected to the previous layer, so

that groups of units in layer k send signals to a

smaller number of groups in layer k+1. This

connectivity pattern will yield a hierarchical

communication structure, where contiguous patches

of the input image are processed by an array of

receiving groups in the first hidden layer. These

groups in turn project to a smaller number of groups

in the subsequent layer, and so on, until a single

group of units covers the complete input (see figure

1 for an illustration). The advantage of such a

connectivity pattern is that it forces the network to

look at local features in the input image.

A bidirectional hierarchical network is a

hierarchical network with bidirectional connection

between adjacent layers. Bidirectional networks are

quite powerful, but may also be difficult to

understand due to the relatively complex attractor

dynamics that can arise as a result of the

bidirectional connectivity.

2.1 Hebbian Learning

In its original form, Hebbian learning rewards the

co-activation of pairs of receiving and sending units,

increasing the weights of co-activated units (Hebb,

1949). In addition to this, modified Hebbian learning

rules can also decrease the weights of nodes that are

inconsistently activated, one node being activated

and the other not (O'Reilly, 2000). These modified

Hebbian learning rules turn out to capture the

statistical regularities in the input space, and will

develop a weight structure that promotes the

detection of local features in the input (McClelland,

2005).

The question is: What role does Hebbian

learning play for the generalization capability of

these networks?

Previous research suggests that Hebbian lear-

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

106

ning is important for generalization in

bidirectionally connected networks (O'Reilly, 2001).

The role of Hebbian learning has, however, not been

investigated in bidirectional hierarchical networks.

Bidirectional hierarchical networks are used in

human vision and account for many important

biological vision phenomena like attention, pattern

completion, and memory (Wallis, 1997). It is

therefore motivated to investigate these networks’

learning and generalization performance.

2.2 Our Network Architecture

A bidirectional hierarchical network was developed

in Emergent (Aisa, 2008). It consists of five layers,

namely Input V1, V2, V4 and Dir (Figure 1). An

additional layer correct_dir was introduced. This

layer does not take part in actual processing of the

data, but allow us to visually compare the network’s

output with desired output. Input layer consists of

66X66 units. This layer is divided into nine

rectangular receptive fields each of size 26 X 26

with an overlap of 6 units on each side. Second layer

V1, containing 24 X 24 units, is divided into 9 equal

rectangular parts. Where as each part consists of 8 X

8 units. Each part receives input from a

corresponding receptive field from input layer. Third

layer V2 is of size 16 X 16. This layer is divided into

4 equal parts. Each part receives input from a group

of 16 X 16 units from the previous layers. Fourth

layer V3 is of size 12 X 12. It is fully connected with

the previous V2 layer. The last layer, Output layer,

contains eight units. Each represents one of the eight

English alphabets for recognition.

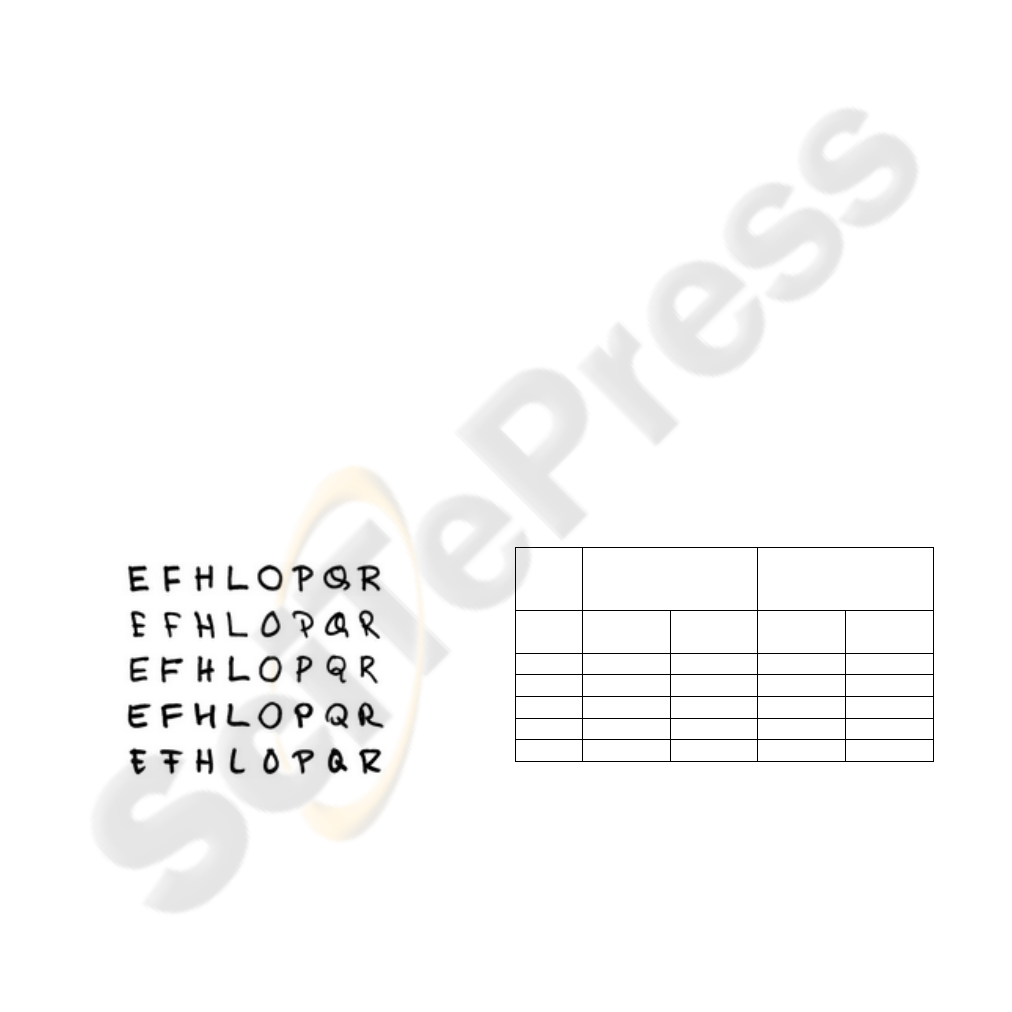

Figure 2: Data sets used for testing and training.

3 TESTING PROCEDURE

The network’s task was to recognize eight different

categories of handwritten English capital letters. The

choice of the letters was made on the basis of their

structure. We wanted to use letters that shared some

features, in order to make the categorization task

more difficult. The problem that could arise in a

badly trained network is that the constituent features

or one letter were recombined and gave rise to false

recognition of another letter. For example, letters ‘E’

and ‘H’ share the vertical line ‘I’ and horizontal

line’-’as feature. We got five different hand written

letter sets from five different persons, where as each

set consist of eight letters. The original images were

resized and shifted in four steps in eight directions,

producing about 3600 images. Out of the six set of

images, we kept aside one set of images (600

images) for testing with trained network as novel

images. From the remaining five sets, we used 75 %

of images as training the network and 25 % for

testing the trained network. In this way we wanted to

evaluate the performance of the network on trained

as well as entirely novel set of images.

We ran systematic tests of pairs of identical

networks, the only difference being the amount of

Hebbian learning in the learning mix for various

connections. For some network pairs, we used the

same learning mix for all connections. In the

particular test described here, we let the first level of

connections, going from the input layer to the first

hidden layer, V1, use 1% Hebbian learning, and let

subsequent connections use 0.1% Hebbian learning.

In contrast, for the no_Hebb version of the network,

we removed Hebbian learning from the learning mix

for all connections.

Table 1: Results from the generalization tests using both a

5% testing set reserved, i.e., excluded from the training set

(same handwriting), and a novel set of handwritten letters.

With 5% testing set

(Count error in %)

New set of 600

letters

(Count error in %)

Batch

Hebbian

3.16

1.33

18.5

3.9

0.66

14.16

4.1

1.66

0.66

20.33

11.98

1.66

0.66

15.33

2.03

0.76

16.16

7.04

Emergent offers a sigmoid-like activation

function, and saturating weights limited to the

interval [0, 1]. Learning in the network was based on

combination of Conditional Principal Component

Analysis, which is a Hebbian learning algorithm and

Contrastive Hebbian learning (CHL), which is a

biologically-based error-driven algorithm, an

alternative to backpropagation of error

(O'Reilly,2000):

BIDIRECTIONAL HIERARCHICAL NEURAL NETWORKS - Hebbian Learning Improves Generalization

107

CPCA:



hebb

= y

− w

)

(1)

= activation of sending unit i

= activation of receiving unit j

= weight from unit i to unit j

CHL:

w

= (x

− x

−

) = 

err.

(2)

= activation of sending unit i

= activation of receiving unit j

, y

= act when also output clamped

−

, y

−

= act when only input is clamped

Learning mix:

w

= c

hebb



hebb

+ (1 − c

hebb

) 

err

]

(3)

 = learning rate

hebb

= proportion of Hebbian learning

For the Hebb case we used c

hebb

= 0.01 for

connections from Input to V1 and c

hebb

= 0.001 for

all subsequent connections. For the No-Hebb case

we used c

hebb

= 0 for all connections. The low

amount of Hebbian learning is motivated by

previous experience and the fact that Hebbian

learning exerts a powerful influence on learning

(O'Reilly, 2000).

4 TEST RESULTS

We tested the network’s generalization capability in

two ways: First, by using the 5% testing set and

second by using translations (size, orientation, and

position variations) of one remaining set of alphabet

set. We recorded the number of errors and calculated

the percent errors that were made (table 1). It is clear

from the table 1 that Generalization performance of

the network improved for both 5% testing set as well

as novel set of images when we used both error

driven and Hebbian learning.

In addition to the above tests we analyzed the

weight structure developed during training using an

indirect method called activation-based receptive

field analysis. This analysis is based on the co-

activation of input-units and a particular receiving

unit. The average co-activation taken over all input

images reflects a tendency of this particular

receiving unit to react to particular forms of input.

The plots in figure 3 represent the sixty-four

units of the lower left group in V1 organized in the

same order as they appear within the layer. The plot

on the top of figure 3 shows receptive fields from

the input layer into the sixty-four units in V1. Note

that all these sixty-four units have the same

receptive field that is, they take input from the same

image-patch (marked with white squares). The

patterns in the large boxes are the weighted averages

of input patterns over the activation of respective V1

unit. Thus, input patterns that the receiving unit

became strongly activated for are represented with a

larger weight in the weighted average. The part of

the pattern in the big box which is delineated with

the small white box is the actual pattern which

appears in the receptive field of the given unit. The

plot on the bottom of figure 3 shows the projection

fields from the same units in V1 into the output

layer. Each unit-size rectangle in the projective

fields represents the average co-activation of a given

V1unit and the corresponding output unit, calculated

for the full set of input patterns. Thus, the projective

field show how strongly a given V1 unit signals

indirectly to each output category. As can be seen,

most units have developed useful feature

representations, and project to a small number of

directional units in the output layer.

4.1 Hebbian Learning Mix

Looking at the receptive field analysis for these

networks (figure 3) it can be seen that most of the

averaged patterns in the large boxes originate from a

specific character, or a few similar characters. This

indicates that the detector units are sensitive to

useful features that are part of similarly shaped

letters. This conclusion can be further verified by

looking at the projective field of the same units. For

example, the unit in the second row from the bottom

and fourth column from has learnt to specialize for

feature that is part of the letter ‘Q’. If we look at the

corresponding projective field pattern in the second

row and fourth column, the rectangle shows only a

single active unit (marked with intensive yellow).

This means that this particular unit in V1 is

indirectly) contributing to the recognition of only

one category of letters, namely the letter ‘Q’. There

are some units which are sensitive to a feature which

is part of more than one class of letters, but in a

graded fashion. For example the weighted average

pattern at the eighth row and first column is a mix of

‘Q’ and ‘O’. If we look at the corresponding

projection field, there are two output units that

receive activation from this unit, but in a graded

way. Hence, the feature that is extracted by this unit

is available in both letters. The final decision about

which output category should be activated is made

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

108

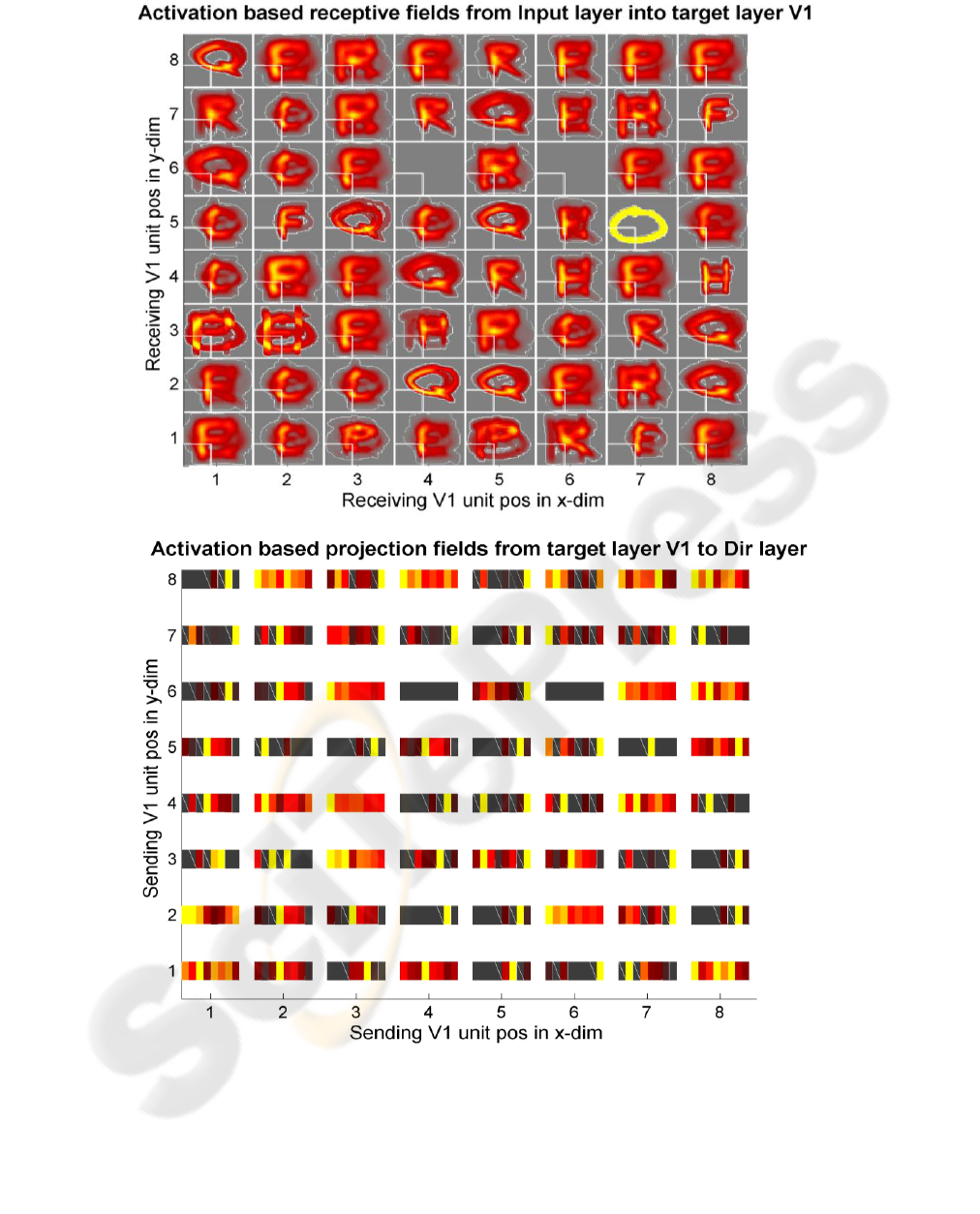

Figure 3: Activation-based receptive field and projective field analysis for layer V1, when Hebbian learning was included in

the learning mix. (top) Each big box in the plot represents the input layer and the small white box within each big box

signifies the actual receptive field for the units of a given V1 group. (bottom) Each rectangle in the plot represents the

output layer with eight units. Gray color is default background color. Pattern colors from red to yellow (dark to light)

signify the increasing activation/intensity value. Light (yellow) color represents high pixel and dark (red color) low pixel

values.

BIDIRECTIONAL HIERARCHICAL NEURAL NETWORKS - Hebbian Learning Improves Generalization

109

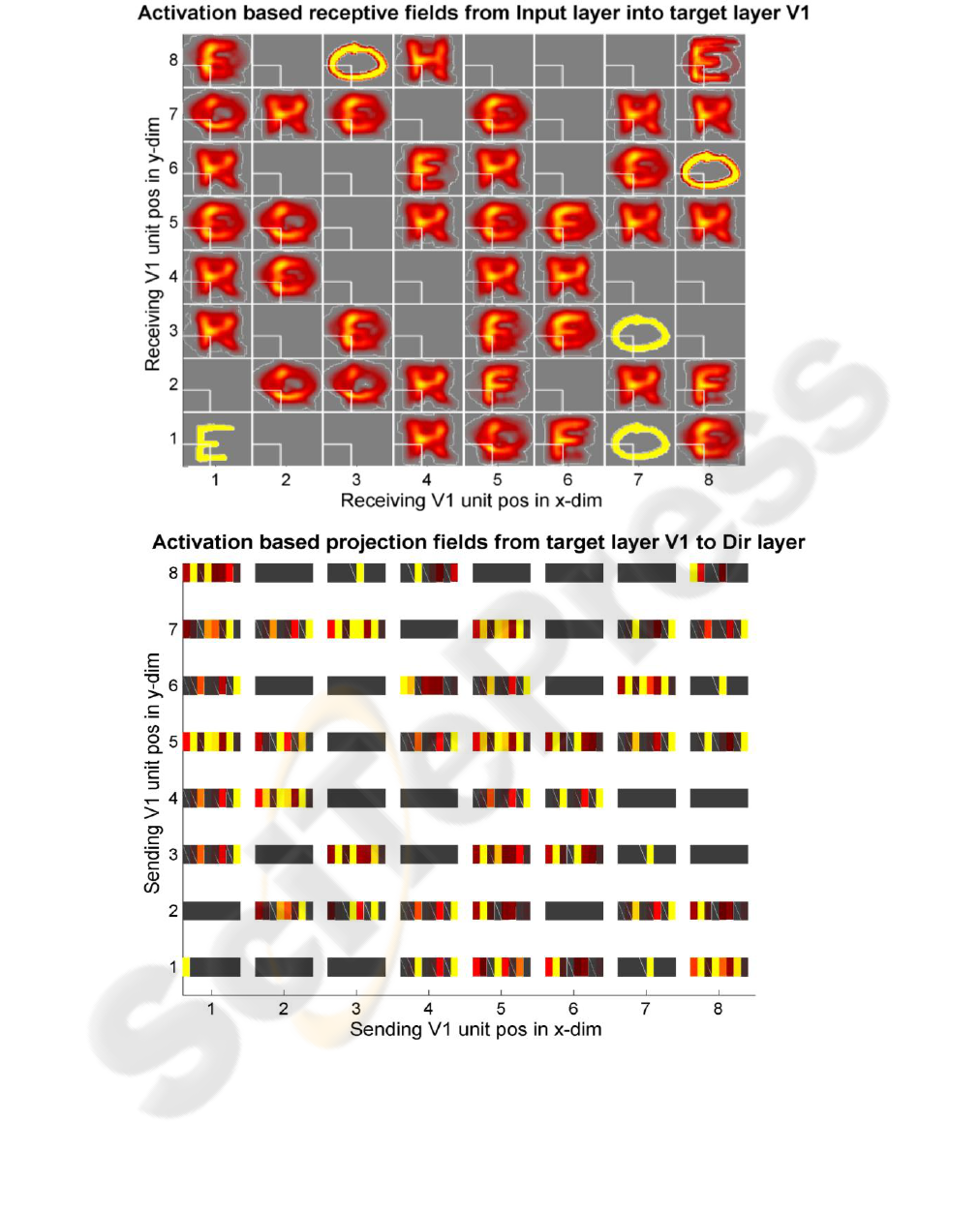

Figure 4: Activation-based receptive field and projective field analysis for layer V1, when Hebbian learning was not used

for training. The figure is organized in the same way as figure 1 and same unit group of V1 layer is used for analysis.

in later layers by combining the processing of all

other units.

Finally, we note that there are some units which

have not developed any useful features. For example

the unit in the second row and first column is not

selective for any particular class of letters. The

corresponding projective field of the unit shows that

the V1 unit in question projects to several output

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

110

units, and thus is likely not to play a useful role in

the task.

4.2 Pure Error-driven Learning

Figure 4 presents the activation-based receptive field

and projective field analysis for the lower left unit

group in layer V1 when pure error-driven learning

was used for training (no Hebbian injected).

Compared to the previous figure, there are many

units here that have not developed any useful feature

representation, and project equally strongly to a

large number of output units. In addition, quite a few

units are never activated during processing. This is

probably why generalization performance suffered

when Hebbian learning was excluded from the

learning mix (Equation 3; Figures 4).

5 CONCLUSIONS

In this article, we have studied the effect of mixing

error driven and Hebbian learning in bidirectional

hierarchical networks for object recognition. Error

driven learning alone is a powerful learning

mechanism which could solve the task at hand by

learning to relate individual pixels in the input

patterns to desired perceptual categories. However,

handwritten letters are intrinsically noisy as they

contain small variations due to different

handwritings, and this increases the risk for

overfitting—especially so in large networks. Hence,

there is a risk that error-driven learning might not

give optimal generalization performance for these

networks.

We run systematic training and generalization

tests on a handwritten letter recognition task using

pure error-driven learning as compared to using a

mixture of error-driven and Hebbian learning. The

simulations indicate that mixing Hebbian and error-

driven learning can be quite successful in terms of

improving the generalization performance of

bidirectional hierarchical networks in cases when

there is much noise in the input, and an increased

risk for overfitting.

Additionally, we also believe that Hebbian

learning can be a good candidate for generic, local

feature extraction for image processing and pattern

recognition tasks. In contrast to pre-wired feature

detectors, for example, Gabor-filters, Hebbian

leaning provides a more flexible means for detecting

the underlying statistical structure of the input

patterns as it has no a priori constraints on the size or

shape of these local features.

REFERENCES

Callaway, E. M., 2004. Feedforward, feedback and

inhibitory connections in primate visual cortex. Neural

Network, 17, 625-632.

Fukushima, K., 1993. Improved generalization ability

using constrained neural network architectures,

Proceedings of the International Joint Conference on

Neural Networks, 2049-2054.

Fukushima, K., 2008. Recent advances in the

neocognitron. Neural Information Processing, Lecture

Notes In Computer Science, 1041-1050,

Berlin/Heidelberg: Springer Verlag.

Hebb, D. O., 1949. The Organization of Behavior: A

Neuropsychological Theory. New York: Wiley.

O'Reilly, R. C. and Munakata, Y., 2000. Computational

Explorations in Cognitive Neuroscience:

Understanding the Mind by Simulating the Brain.

Cambridge, MA: MIT Press.

McClelland, J., 2005. How far can you go with Hebbian

learning, and when does it lead you astray? In

Munakata, Y. and Johnson, M.H. (eds) Attention and

Performance XXI: Processes of Change in Brain and

Cognitive Development. Oxford: Oxford University

Press.

O'Reilly, R., 2001. Generalization in interactive networks:

The benefits of inhibitory competition and Hebbian

learning. Neural Computation, 13, 1199-1241.

Wallis, G. and Rolls, E. T., 1997. Invariant face and object

recognition in the visual system. Progress in

Neurobiology. 51(2), 167-194.

Aisa, B., Mingus, B. and O'Reilly, R., 2008. The emergent

neural modeling system. Neural Networks, 21, 1146-

1152.

BIDIRECTIONAL HIERARCHICAL NEURAL NETWORKS - Hebbian Learning Improves Generalization

111
