GRAPH-BASED RULES FOR XML DATA

CONVERSION TO OWL ONTOLOGY

Christophe Cruz and Christophe Nicolle

Laboratory Le2i, UMR-5158 CNRS, Université de Bourgogne, B.P. 47870, 21078, Dijon Cedex, France

Keywords: Ontology population, Ontology enrichment, OWL ontology, XML data, RDF, Semantic annotation.

Abstract: The paper presents a flexible method to enrich and populate an existing OWL ontology from XML data

based on graph-based rules. These rules are defined in order to populate automatically a new version of an

OWL ontology. Today, most of data exchanged between information systems is done with the help of the

XML document. Leading researches in the domain of database systems are moving to semantic model in

order to store data and its semantics definition. This flexible method consists in populating an existing OWL

ontology from XML data. In paper we present such a method based on the definition of a graph which

represents rules that drive the populating process.

1 INTRODUCTION

Ontologies are aimed at representing knowledge

about a specific domain that are understandable by

both developers and computers. For this, ontologies

enumerate concepts and relations between concepts

(Guarino, 1995) and define properties, functions,

constraints and axioms (Studer, 1998). The major

issues in ontology development include ontology

representation, ontology acquisition, evaluation and

ontology maintenance (zhou, 2007). Ontology

representation is the main issue in ontology

development because its representation has to be

understandable by computers and humans.

Consequently, an ontology representation language

should provide representation adequacy for humans

and inference efficiency for computers. Ontology

dialects based on description logic (DL) provide a

frame-based knowledge representation and profit

from the expressiveness of DL reasoning systems.

Ontology acquisition refers to the process of the

ontology creation such as concepts, relations,

individuals and axioms. From an empirical point of

view, there are two kinds of ontology modeling

processes. The first one is the ontology modeling,

which is traditionally carried out by knowledge

engineers or domain experts. Actually, these

ontologies are built by humans for humans. The

second one is in fact the point of view of the

semantic Web according to which ontologies are

built automatically by computers for computers

within sources such as dictionaries, Web documents

and database schemas. It has to be noticed that the

resulting ontologies are still understandable by

humans. As a result, ontology acquisition can benefit

significantly from ontology learning (Ding, 2002).

Ontology evaluation aims at enhancing the quality of

ontologies in order to improve the interoperability

among systems and to increase the adoption of

ontologies. Ontologies can be evaluated in different

ways (Staab, 2004) using measures such as

completeness, consistency and correctness (Gomez,

1995). Ontology maintenance concerns the

organization, the search and the update process on

existing ontologies. The constant evolution of the

environment of ontologies makes it very important

for ontologies to be evaluated and maintained (Sure,

2002) in order to keep up with the change.

To reach this goal, this article presents an

automatic population process from XML data to

OWL ontologies, a process which is based on a

manual mapping between the XML schema

elements and the OWL schema elements. If the

OWL schema does not contain the required elements

then the ontology has to be enriched by the system

manager. The ontology enrichment is the activity of

extending an ontology by adding new elements (e.g.

concepts, relations, properties, axioms) (Castano,

2007). Our enrichment process consists in

annotating knowledge which is contained in XML

schemas in order to define the ontology schema

(Faatz, 2004). Some automatic processes from

175

Cruz C. and Nicolle C.

GRAPH-BASED RULES FOR XML DATA CONVERSION TO OWL ONTOLOGY.

DOI: 10.5220/0002791501750178

In Proceedings of the 6th International Conference on Web Information Systems and Technology (WEBIST 2010), page

ISBN: 978-989-674-025-2

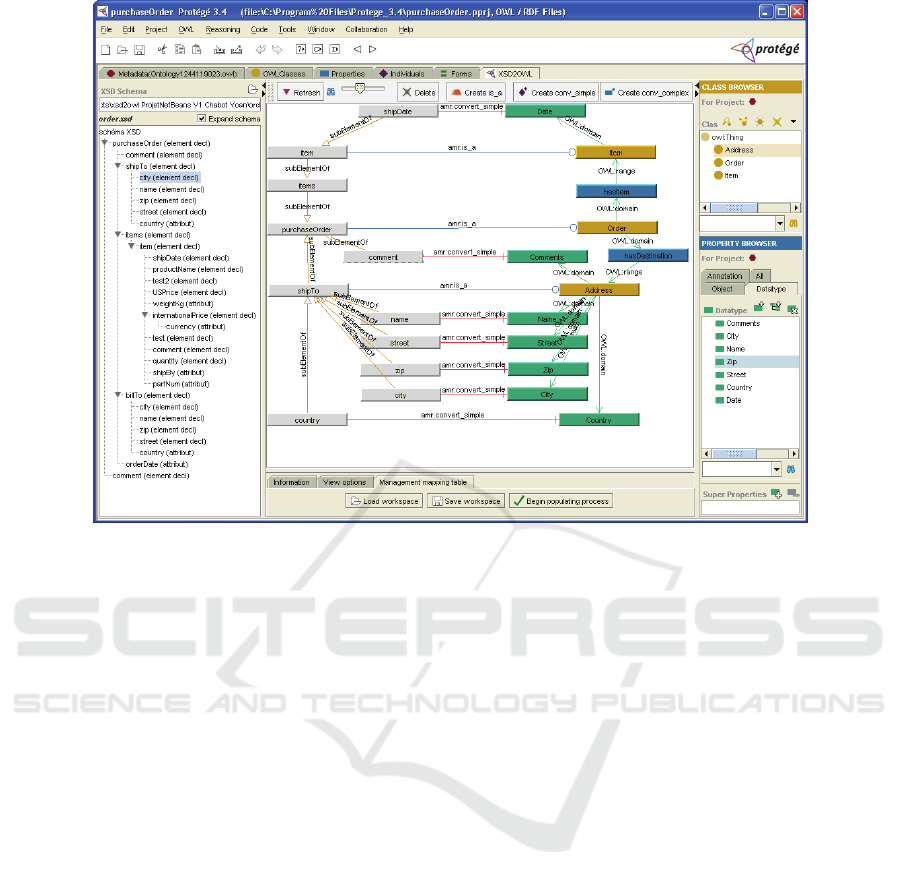

Figure 1: Snapshot of the XSD2OWL plug-in.

ontology learning can be used but this point is

beyond the scope of this paper. The ontology

population is the activity of adding new instances or

individuals to an ontology (Castano, 2007).

2 THE XSD2OWL TOOL

The principle of our solution (Matthias, 2004),

(Bohing, 2005) consists in annotating and linking

the semantic level (OWL schema) and the schematic

level (XML schema). The graphical interface used to

realize this is incorporated in the tool “protégé” from

Stanford as a plug-in (e.g. fig 1) in order to populate

an existing ontology. Once the graph of mapping

rules has been defined, the population process is

automatic. The user has only to select a list of XML

documents which can be validated by the XSD

schema.

2.1 The Graph-based Rule Definition

The process of annotating consists in defining

“Basic Mapping Rules” (BMR) which appear in the

graph as nodes or boxes. These boxes represent

annotations on the XSD and OWL documents. Some

of the annotations are defined on the XSD schema

and are represented by grey boxes. (“xsd:element”,

xsd:attribute”). The other boxes are annotations on

the OWL-DL schema (“owl:Class”,

“owl:ObjectProperty”, “owl:DatatypeProperty”).

The color of these boxes follows the colors defined

in the application “protégé” (orange for “Concept”,

blue for “ObjectProperties” and green for

“DatatypeProperties”, e.g. figure 1).

The links between XSD annotations are

“subElement” relationships which are added

automatically by the process because these

relationships already exist in the XSD schema. In

addition, links between OWL annotations are also

added automatically because these relationships

already exist in the OWL ontology.

The process that consists in defining links between

annotations of the XSD schema and annotations of

the OWL-DL is called “Advanced Mapping Rules”.

These rules which are represented graphically are

added manually by the user.

An RDF document is generated from the defined

rules. This document is used to store all information

required during the population process.

The objective of figure 2 is to describe the

relationships between the components of the RDF

rules. They are composed of BMR on XML schemas

and BMR on OWL schemas. These BMR are used

to identify elements required for the mapping

process. Advanced Mapping Rules are defined in

order to allow the conversion of data from XML

data to OWL instances.

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

176

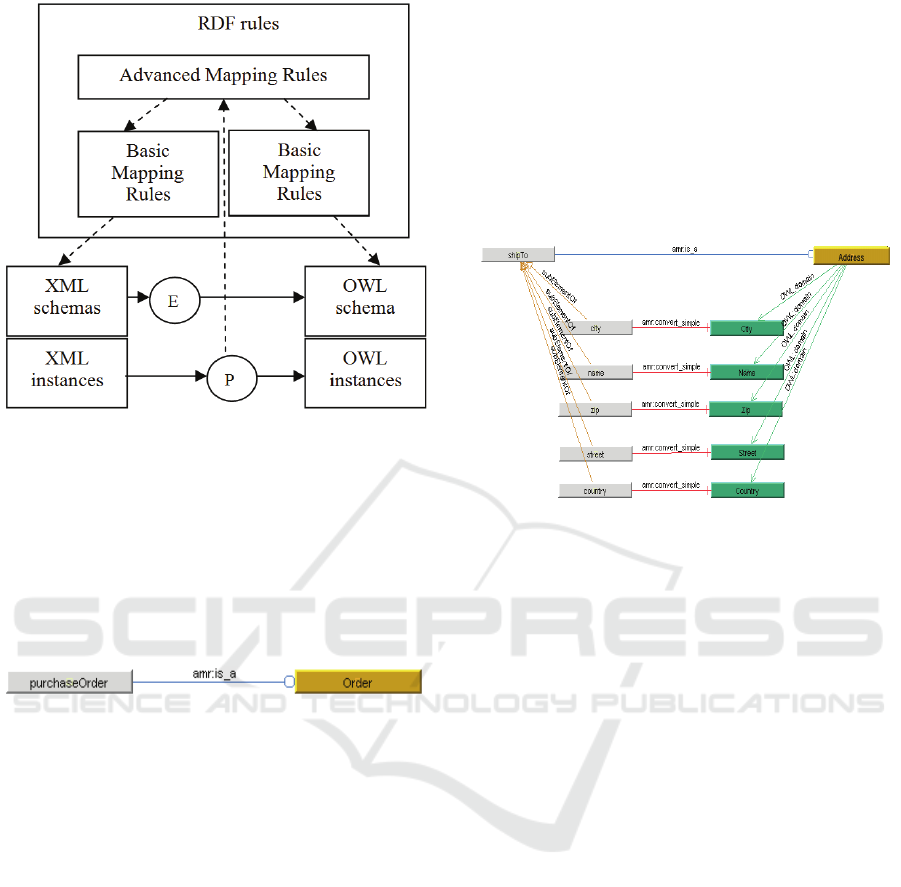

Figure 2: Relations between processes and RDF rules.

2.2 Population Process

Concerning the population process more than ten

cases of use have been identified, but due to a lack

of space only few of them can be presented.

Case 1. Population of an isolated concept from an

XSD element

Figure 3: Use case 1.

In this graph the grey box “purchaseOrder”

contains an annotation of the XSD element

“purchaseOrder”. In addition the orange box

“Order” contains an annotation to the concept

“Order” in the OWL schema. In order to populate

the concept “Order” from the “purchaseOrder”

element data, a link “amr:is_a” between both boxes

is defined. This link is an advanced mapping rule.

Case 2. Population of a concept associated to n

“DatatypeProperties” (n not null) from an XSD

complex element that contains m sub-elements

simple and (n-m) attributes.

The population of the ontology is an automatic

process based on the mapping graphs. To realize this

process, we have defined an algorithm that takes into

account the type “bmr:id” in order to avoid

duplicated instances of the ontology. First, it

determines all classes that have to be populated.

Secondly, all “datatypeProperties of each concept

are provided to the instances. In the example given

in this paper no references are made to the

management of restrictions on the properties. Some

rules can be defined in order to specify which

constraints have to be verified. If these rules are not

defined then the restrictions are not checked. The

limitation of our solution becomes apparent by the

fact that we do not generate an XSL document in

order to enrich and populate the ontology. However,

the process is complex enough so that, for the

moment, it is not relevant to add the generation of an

XSL document for the population process.

Figure 4: Use case 2.

3 CONCLUSIONS

This paper presents a flexible method to enrich and

populate an OWL ontology for the integration of

XML data. Basic mapping rules and advanced

mapping rules are defined by users and can be

reused for other conversions and populations of

ontologies. This conversion is the first part of our

work. The second part consists in improving the

process and in making some suggestions in order to

facilitate the mapping to the user. The RDF rules can

be used for the automatic extraction of certain

elements of the XML schemas that can be converted

in order to help users during the mapping. For

instance, a string that contains a date can be detected

automatically to guide the user during the

conversion.

According to (Cruz, 2004), (Klein, 2002),

(Lakshmannan, 2003), (Cruz, 2006), data integration

can be undertaken by defining rules of mapping

between information sources and the ontological

level. These rules consist in adding a semantic layer

to source elements. They thus provide these

elements with semantic definition with regard to a

consensual definition of the meaning. For that

purpose, ontologies are useful in order to define a

common semantic. Furthermore, schema matching is

a well studied field that allows to find out

automatically identical resources in the different

GRAPH-BASED RULES FOR XML DATA CONVERSION TO OWL ONTOLOGY

177

schemas. Schema matching is a manipulation

process on schemas that takes two heterogeneous

schemas as input and produces as output a set of

mapping rules that identifies relations between the

elements of the two schemas (Huynh, 2008). This is

required in many database applications, such as

integration of web data sources, data warehouse

loading and XML message mapping. As a future

work, we would like to focus to an automatic

process by reusing a set of previous RDF rules. In

fact, it consists in reusing the mapping knowledge

capitalized during different mapping processes. In

addition the concatenation rules and the regular

expression rules are being prototyped. This implies

that new boxes have to be defined and will be

connected to XSD boxes and OWL boxes.

ACKNOWLEDGEMENTS

Authors would like to thank Romain Brochot, Yoan

Chabot, Florian Genton for their important

contribution on the application instantiation.

REFERENCES

Bohring, H.; Auer, S., 2005. Mapping XML to OWL

Ontologies, Leipziger Informatik-Tage (LIT 2005),

Sep. 21-23, 2005, Lecture Notes in Informatics

Castano, S., Espinosa, S., Ferrara, A., Karkaletsis, V.,

Kaya, a., Melzer, S., Moller, R., Montanelli S.,

Petasis, G., 2007. Ontology Dynamics with

Multimedia Information: The BOEMIE Evolution

Methodology, International Workshop on Ontology

Dynamics (IWOD) ESWC 2007 Workshop,

Innsbruck, Austria

Cruz, C., Nicolle, C., 2006. Ontology-Based Integration of

XML data, Webist, Setubal, Portugal, pp. 30-37

Cruz, I. F., Xiao, H., Hsu, F., 2004. An Ontology-based

Framework for Semantic Interoperability between

XML Sources, In Eighth International Database

Engineering & Applications Symposium (IDEAS)

Ding, Y., 2002. Ontology research and development part1

– A review of ontology generation, Journal of

Information Science, 28, 123–136

Faatz, A., and Steinmetz, R., 2004. Precision and recall

for ontology enrichment. ECAI-2004 Workshop on

Ontology Learning and Population, Valencia, Spain,

Aug.

Gomez-Perez, A., 1995. Some ideas and examples to

evaluate ontologies, Artificial Intelligence for

Applications

Guarino, N., 1995. Formal ontology, conceptual analysis

and knowledge representation, International Journal of

Human-Computer Studies 43, 625–640

Huynh Quyet Thang, Vo Sy Nam, 2008. XML Schema

Automatic Matching Solution, International journal on

Information Systems Science and Engineering, vo.l 4,

number 1

Klein, M., 2002. Interpreting XML via an RDF schema. In

ECAI workshop on Semantic Authoring, Annotation

& Knowledge Markup (SAAKM 2002), Lyon, France

Lakshmannan, L. V., Sadri, F., 2003, Interoperability on

XML Data, In Proceeding of the 2nd International

Semantic Web Conference.

Matthias Ferdinand and Christian Zirpins and D. Trastour,

2004, Lifting XML Schema to OWL, 4th International

Conference, ICWE 2004, Munich, Germany, July 26-

30, Proceedings, Springer Heidelberg, pp. 354-358

Staab, S., Gomez-Perez, A., Daelemana, W., Reinberger,

M.-L. and Noy, N.F., 2004. Why evaluate ontology

technologies? Because it works!, Intelligent Systems,

IEEE 19, 74–8

Studer, R. Benjamins, R. and Fensel, D., Knowledge

engineering: Principles and methods, Data and

Knowledge Engineering 25, 161–197

Sure, Y., Staab, S. and Studer, R., 2002. Methodology for

development and employment of ontology based

knowledge management applications, SIGMOD Rec

31, 18–34

Zhou, L., 2007, Ontology learning: state of the art and

open issues, Information Technology and

Management archive Volume 8, Issue 3, 241 – 252

WEBIST 2010 - 6th International Conference on Web Information Systems and Technologies

178
