Moreover, we distinguish between intrinsic and
extrinsic semantic drift.
Intrinsic drift means that a concept’s semantic
value is changed with respect to other concepts in
the ontology.  This will typically be reflected in
changes to the relationships in the ontology.
Extrinsic drift is when a concept’s semantic value is
changed with respect to the phenomena it describes
in the real world.  In the ontology an extrinsic drift
may cause all kinds of changes.
Figure 1 sums up the nature of semantic changes
associated with intrinsic and extrinsic drift. If a
concept is exposed to extrinsic, but no intrinsic drift,
it means that the whole ontology is undergoing a
collective consistent drift that may not necessitate
any changes to the ontology.  On the other hand, no
extrinsic drift and substantial intrinsic drift means
that a concept’s relationships to other concepts in the
ontology may no longer be correct, even though the
concept itself has not changed its meaning.  In cases
of both extrinsic and intrinsic drift we are dealing
with inconsistent collective drift of concepts in an
ontology that is no longer valid.
3  CONCEPT SIGNATURES
An ontology consists of inter-related concepts and
normally has a sound logical foundation that allows
some reasoning and verification checks.  The
meaning of an individual concept is however not
entirely clear.  Providing a taxonomic structure and
adding associations between concepts give us some
semantic clues, though it is not sufficient to
recognize the concept in the real world.  Logically,
we assume the existence of an interpretation that
maps for example the concept Computer to the set of
all computers in the world, though for all practical
purposes these interpretations are not available and
machine-processable to us.
Most ontologies, thus, provide informal textual
descriptions that try to help us understand how the
concept is to be interpreted. In the petroleum
ontology for ISO15926 there is a concept Christmas
tree that is modeled as an artefact and decomposed
into a number of specialized Christmas trees (Gulla
2009).  These structures do not help us recognize
Christmas trees in the petroleum business, though a
simple natural language comment linked to the
concept may give us an impression of what it is: “An
artefact that is an assembly of pipes and piping
parts, with valves and associated control equipment
that is connected to the top of a wellhead and is
intended for control of fluid from a well.”
3.1  Definition
For our purposes it is more useful to link concepts to
our linguistic world than to an imaginary
interpretation function that points to real world
phenomena. The textual description of Christmas
tree above is not accurate, but is available and can be
analyzed linguistically and statistically. As long as
languages are used fairly consistently, the analysis
of linguistic expressions can tell us how a
community deal with a concept at particular points
in time.
We define a concept signature as follows:

A concept signature S
c,t
is a materialization of
the concept C through linguistic forms at some
time t.

The signature is not a semantic representation of
the concept. It merely shows how words and
linguistic expressions are used to refer to and discuss
the concept.  The signature thus can be used to relate
concepts at a linguistic level without being forced to
formalize a mapping to real-world phenomena.

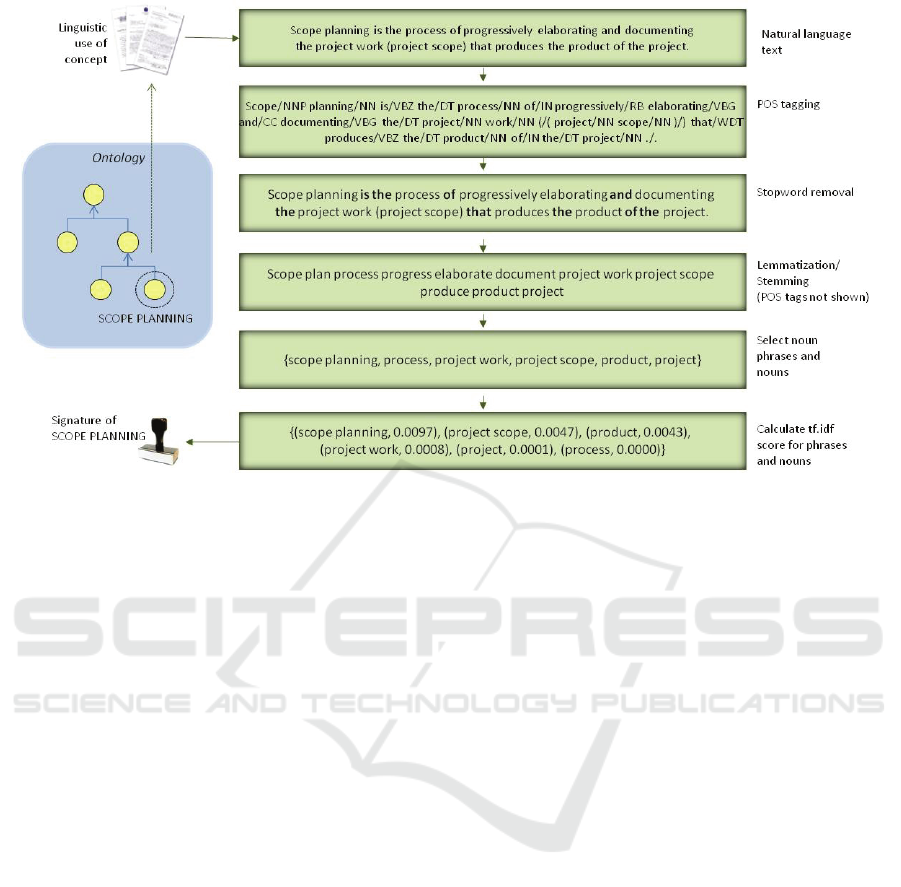

A concept signature is represented as a vector

S
c,t
 = (u
1
,.., u
n
),

where u
i
 is the weight of linguistic unit i.
Linguistic units may be individual words, phrases,
argument structures, or any other linguistic structure
that can be systematically extracted from text.
Examples of concept signatures from our DNV
study are given in Figure 3.  The linguistic units in
this case are individual nouns and noun phrases, and
their weights indicate their relative importance in
understanding the concept. For Consulting in 2004,
the top-ranked phrases process industry and
advanced cross-disciplinary competence tell us that
consulting was considered a cross-disciplinary
activity with a primary focus on the process
industry. The bottom-ranked phrase environmental
performance reveals that DNV only rarely thought
of consulting as related to environmental issues.
4  CONSTRUCTING SIGNATURES
FOR DNV CASE
Det Norske Veritas (DNV) is an international
company specializing in risk management and
certification.  As an industrial conglomerate DNV is
involved in a number of business segments that each
constitute a subdomain within risk management and
