CONEMAF: A MODULAR MULTI AGENT FRAMEWORK

FOR AUTONOMIC NETWORK MANAGEMENT

Julien Boite, Gérard Nguengang

Advanced Information Technology Lab, Thales Communications SA, 160 Bd de Valmy, 92704 Colombes, France

Maurice Israël, Vania Conan

Advanced Information Technology Lab, Thales Communications SA, 160 Bd de Valmy, 92704 Colombes, France

Keywords: Autonomic network management, Cognitive agents, Situated knowledge, OSGi, Jess, OWL.

Abstract: Communication networks are growing both in terms of size and complexity. Because of the huge amount of

monitored data to analyse and correlate, the management task that relies mostly on human operators is

becoming time-consuming, labour-intensive and costly. The centralized management paradigm adopted by

current management systems is no longer suitable for such networks. A distributed management with more

autonomy delegated to network devices is therefore paramount to master this complexity efficiently.Multi-

agent systems characteristics fit the requirements that must be taken into account to integrate autonomicity

in networks. This paper presents CONEMAF, a novel modular multi-agent platform for autonomic network

management. CONEMAF is fully distributed, allows situated knowledge analysis and implements a

cognitive cycle for autonomic management. Implemented on top of OSGi, the present release makes use of

well-proven Java-based COTS. CONEMAF has been deployed on Linux routers and is demonstrated for

autonomic routing in a wireless mesh network.

1 INTRODUCTION

The management systems of future networks are

expected to embed autonomic capabilities (Strassner

J. K., 2006) in order to face the increasing

complexity of communication networks (Ganek,

2003). This autonomic enablement implies that

networks are able to self-manage (e.g., self-

configure, self-heal, self-optimize, self-protect)

(Horn, 2001). Their behaviour is set from high-level

policies that they implement by dynamically

adapting network parameters (routing, protocols,

queue sizes, radio frequencies…) to the varying

network conditions (changes in topology, resource

availability, traffic demands…).

Designing an autonomic system for networks

management involves several technologies and

disciplines (Kephart, 2003) and has received

significant research effort in the past five years. The

generic architecture for autonomic information

systems management proposed by IBM (IBM, 2006)

is a common base for various works. FOCALE

(Strassner J. A., 2006) adds semantics to this

architecture. Algorithmic issues including learning

capabilities (Tesauro, 2007), event correlation

(Sterritt, 2002), data mining (Garofalakis, 2001), or

bio-inspired mechanisms (Agoulmine, 2006) are

under investigation to provide the expected

autonomic capabilities.

On the implementation side, attempts are made

to add more flexibility in network protocol design:

(Keller, 2008) proposes a framework for self-

composing protocol stacks in multiple compartments

to replace the existing non-flexible Internet layers,

and (Manzalini, 2006) provides a platform for

autonomic service composition.

Focused on the middleware part of the

framework, another research trend consists in

integrating mobile agents in the network to collect

distributed information or perform remote

computations (Lefebvre, 2005). A combination of

both mobile and stationary agents to manage mobile

ones is proposed in (Ray, 2008).

Starting from the network administrator’s

viewpoint, our aim is to provide a software platform

224

Boite J., Nguengang G., Israël M. and Conan V. (2010).

CONEMAF: A MODULAR MULTI AGENT FRAMEWORK FOR AUTONOMIC NETWORK MANAGEMENT.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Agents, pages 224-231

DOI: 10.5220/0002735502240231

 SciTePress

that supports autonomic self-management of the

network governed by high-level policies set by the

operator. Multi-agent architecture principles support

coordination of distributed intelligent components,

which match our requirements. The most popular

multi-agent implementations, such as JADE, Zeus or

Cougaar (Ricordel, 2000) (Fang, 2005) follow the

FIPA specifications for interoperability purposes

(FIPA, 2005). These efforts, and Jade in particular,

have guided some of the choices we have made.

However, these implementations do not fulfil one of

the main requirements for a scalable and robust

network management system. Indeed, they rely on a

centralized component (the FIPA Agent

Management System) that does not meet the full

distribution characteristic we need.

The major contribution of this work is the

specification and design of CONEMAF (COgnitive

NEtwork MAnagement Framework), a flexible and

fully distributed platform that facilitates the

implementation and the dynamic deployment of

autonomic control loops in network elements.

CONEMAF is able to scale to large networks in a

robust and fault-tolerant way. It can be deployed on

a large variety of network equipments (routers,

home-gateways, or even terminals). A first release

has been implemented and deployed on Linux

routers to demonstrate enhanced routing features in a

wireless mesh network.

The paper is organized as follows: section two

describes the autonomic networking challenges in

terms of architecture and software requirements.

Section three introduces the modular CONEMAF

platform, the baseline technologies used, and details

its components. Section four demonstrates the use of

CONEMAF to support autonomic congestion

management in a mesh environment. Section five

concludes with future works.

2 THE AUTONOMIC

NETWORKING CHALLENGE

Networks are complex and costly systems that

cannot be changed overnight. Enhanced

management capabilities of converged future

networks must be introduced gradually. The

corresponding architecture and implementations

must thus address the conflicting requirements of

providing new management features and of

deploying on legacy networks.

2.1 Autonomic Network Architecture

In the autonomic network vision, each network

equipment (be it a router, a gateway…) is potentially

considered as an autonomic element. An autonomic

element is capable of monitoring the network state

and modifying it based on conditions that

administrators have specified. This “cognitive

cycle”consists in constantly monitoring the network

state, making decisions and executing

reconfiguration actions.

To support gradual introduction of autonomic

capabilities, the cognitive cycle is implemented in

software. In the remainder of the paper, this software

add-on embedded in network equipments and

executing the cognitive cycle is referred to as the

“cognitive network manager” (CNM).

Network equipments are physically distributed

and the configuration of a given equipment often

interplays with that of other equipment

configurations. So, the representation of the network

context that every CNM makes cannot be limited to

its local point of view. Using a centralized approach

to provide this complete picture is not feasible as it

would not scale and be tolerant to faults. This means

that communication between distributed autonomic

elements is required to exchange relevant

information as input for the decision making

process.

Broadcasting messages throughout the entire

network is not an option and the autonomic network

management system must limit the communications

to a defined range. Considering that knowledge

about an entire network is not necessary to make fast

local decisions either, information exchange is

limited to compartments (subsets of neighbouring

network elements). As a consequence, each CNM

has a situated knowledge corresponding to its

compartment view. Decisions are made locally,

based on information gathered and exchanged

between neighbouring entities in the defined

compartment view.

Because of the variety of capabilities of network

elements, some CNMs may be more complex than

others. These particular CNMs could deal with

higher-level knowledge collected by a set of CNMs

in the specified domain they manage. With this

knowledge, possibly complemented by exchanges

with other domain managers, they could make

global decisions solving problems that standard

CNMs cannot address locally, control and adjust

policies to fit the desired system behaviour, and

learn from previous experience (Figure 1).

CONEMAF: A MODULAR MULTI AGENT FRAMEWORK FOR AUTONOMIC NETWORK MANAGEMENT

225

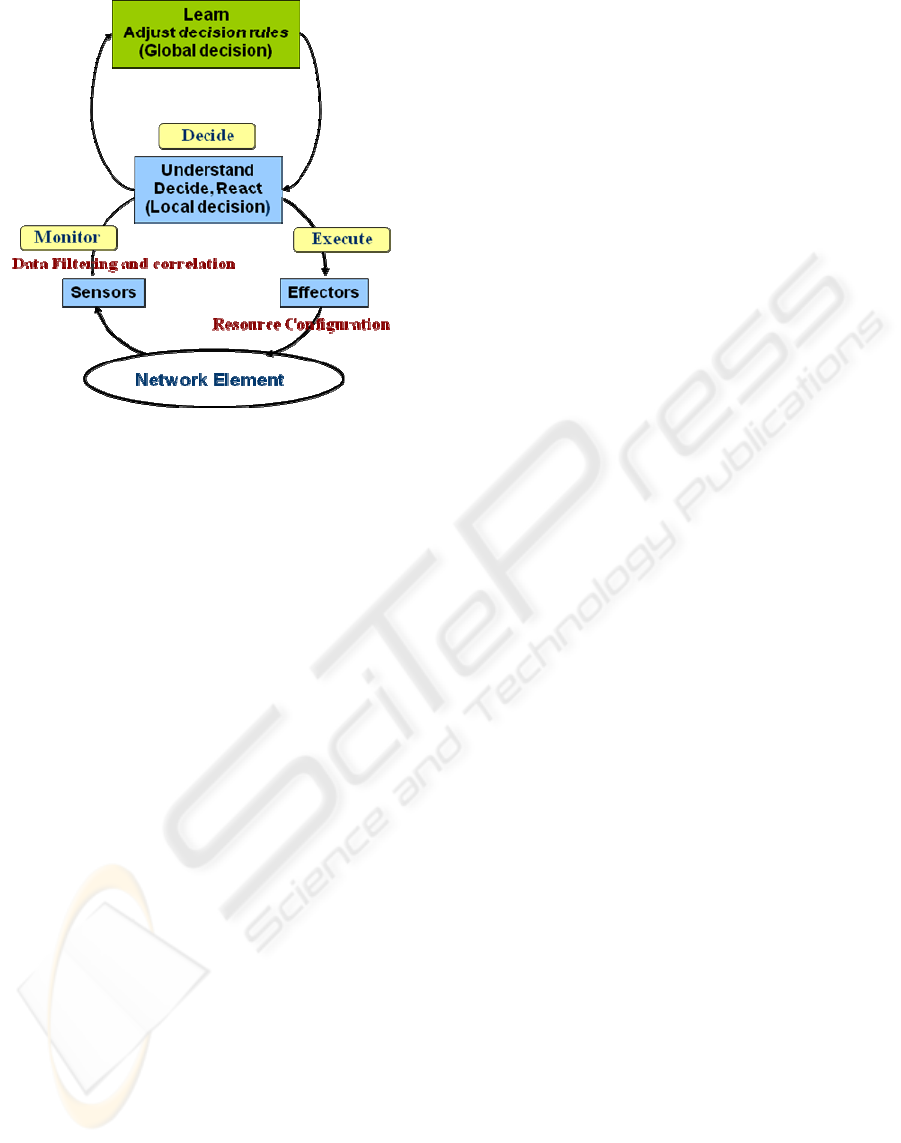

Figure 1: Multi-layered cognition and decision

capabilities.

The autonomic network management

architecture must thus support flexible and dynamic

compartment definition.

2.2 Software Requirements

Implementing the architecture described above leads

naturally towards multi-agent platforms since they

aim to include communication, perception and

action functions (Ferber, 1995). Each CNM is

embedded in a network element and the autonomic

network management framework should provide it

with the following functionalities:

• network topology discovery

• neighbourhood discovery

• semantic communication

• network element control, via services which are

declined to sensors and effectors

• scheduling (in order to plan behaviours

execution).

The multi-agent implementation must satisfy further

requirements. First of all, the autonomic network

management system needs to be fully distributed in

order to scale up to large or constrained networks

and to be fault tolerant. Then, considering that

CNMs are embedded in heterogeneous hardware

devices with sometimes hard constraints implies that

the solution must be lightweight and easily

adaptable.

Moreover, the system must support reasoning

capabilities to make fastdecisions in order to deal

with applications or services that are not tolerant to

delays. This means they must manipulate knowledge

(situation, operator policies). The distribution of

entities implies that knowledge is distributed. As a

consequence, the knowledge representation must be

uniform in order for entities to exchange

understandable information.

Finally, the system must provide communication

functions for entities to cooperate and collaborate.

Modular sensors and effectors that cognitive

network managers will use to gather data and

configure equipments are also necessary.

3 CONEMAF PLATFORM

The CONEMAF platform has been designed to

address the software requirements previously stated.

It is composed of robust baseline COTS, which,

once combined in the CONEMAF framework,

provide the CNMs with the expected capabilities.

Developed in Java, it can be easily integrated in

various network equipments running a JVM (routers,

home gateways, end devices) and allows fully

distributed autonomic management of different types

of networks such as wired or wireless.

3.1 Baseline Technologies

3.1.1 OSGi

Because CNMs aim at being embedded in network

devices where the computational resources are

devoted to routing, they should be designed in such

a way that the required modules are only activated

depending on devices capabilities. OSGi, for Open

Services Gateway initiative (OSGi Alliance, 2009),

is a Java platform providing functionalities for

service-oriented programming. It allows developing

smaller independent modules that can dynamically

provide services to other modules and consume

those that other modules offer. In this framework,

modules, called bundles, can be loaded, started,

replaced or stopped at runtime. Moreover, this

platform allows developing bundles with clear

separation between interfaces and their

implementation in a natural way. To summarize,

OSGi makes programming service-oriented

applications easier and provides high adaptation

capabilities, which is a required property for

integrating autonomic elements in future network

equipments.

Other assets of the OSGi platform are the ease of

bundle version management and, above all, the

plugin deployment facilities. In fact, launching the

OSGi framework is straightforward: some tools like

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

226

PaxRunner (PaxRunner, 2009) ease the management

of bundle provision inside interchangeable OSGi

framework implementations. Managing bundles life

cycle (install, run, stop, uninstall) is also simple.

Another important benefit of the OSGi

technology is that Cisco network equipments already

integrate an implementation of the OSGi platform

(Cisco, 2008). Remote deployment of OSGi bundles

is the only thing to do to integrate the autonomic

network management system in a Cisco piece of

equipment.

3.1.2 Web Ontology Language and Semantic

Web Rule Language

A cognitive network manager needs to have a

“world” representation and capture the technical

know-how in order to work autonomously with

respect to the operator objectives. Therefore, a tool

that allows the network expert to express its

knowledge in a machine-readable way is required.

An ontology is a « shared and common

understanding of a domain that can be

communicated between people and heterogeneous

and distributed systems » (Fensel, 2001). It enables

representing domain background knowledge in a

machine understandable form (Studer, 1998). Using

such a formal model within our distributed

architecture is appropriate. An ontology defines a set

of concepts, properties, relationships, constraints and

axioms that provide rules that govern them.

The Web Ontology Language (OWL) (W3C,

2004) is the W3C standard for ontological

modelling. It has been designed to provide a

common way to process the content of web

information. The OWL standard defines three

increasingly expressive dialects: OWL Lite, OWL

DL and OWL Full. OWL Full contains all the OWL

language constructs but has no computation

guarantees because it introduces too many

possibilities. OWL DL is a sublanguage of OWL

Full and relies mostly on description logics (DL).

OWL DL is computationally decidable and more

appropriate for knowledge representation when

inference is needed. OWL Lite is a subset of OWL

DL and suits well for expressing basic classification

hierarchy and simple constraints. Although

originally defined as an important part of the

semantic Web suite, OWL is emerging as the major

standard for knowledge representation.

However, OWL constructs do not allow the

formalization of rules on top of the ontology.

Among many proposals aiming at enhancing OWL

knowledge bases with rules, the Semantic Web Rule

Language (SWRL) (W3C, 2004) is probably the best

known and most established. SWRL provides the

means to define rules that extends the OWL set of

axioms.

3.1.3 Jess Inference Engine

Cognitive network managers need reasoning

capabilities to make decisions according to policies

defined by network administrators. An inference

engine performs reasoning from declarative facts.

Jess, for Java Expert System Shell (Friedman-Hill,

2003), is a fast and powerful rule engine for the Java

platform, which supports development of rule-based

systems that can be tightly coupled to code entirely

written in Java. Jess has been integrated with several

agent frameworks and other tools like the popular

ontology editor Protégé (Protégé, 2009). Jess, which

supports both forward and backward chaining, has

been integrated in the CONEMAF platform to

provide such reasoning capabilities.

3.2 Modular Framework

CONEMAF is built on top of OSGi and follows the

modular principles that OSGi enables. Software

upgrade, deployment over heterogeneous network

elements are thus facilitated.

3.2.1 Framework Components Overview

Figure 2 represents the different components the

CONEMAF platform is made of from a software

point of view. The core framework is composed of

components that are essential for the cognitive

network manager to play its role. This includes a

scheduler to trigger the execution of behaviours, an

inference engine for decision-making, and a

blackboard, which acts as an organized common

space for information sharing. Topology, discovery

and communication services are also implemented

as modules. The main benefit of the framework

resides in the simplicity of adding, deleting or

changing one of its components. Behaviours and

network element controllers that may be adapted to

the type of device they are embedded in particularly

aim at exploiting such a benefit. All these

components are individually described in the

following section.

3.2.2 Modules Description

Each component of the cognitive network manager

is implemented as a module, called bundle in the

OSGi terminology. The present release of

CONEMAF: A MODULAR MULTI AGENT FRAMEWORK FOR AUTONOMIC NETWORK MANAGEMENT

227

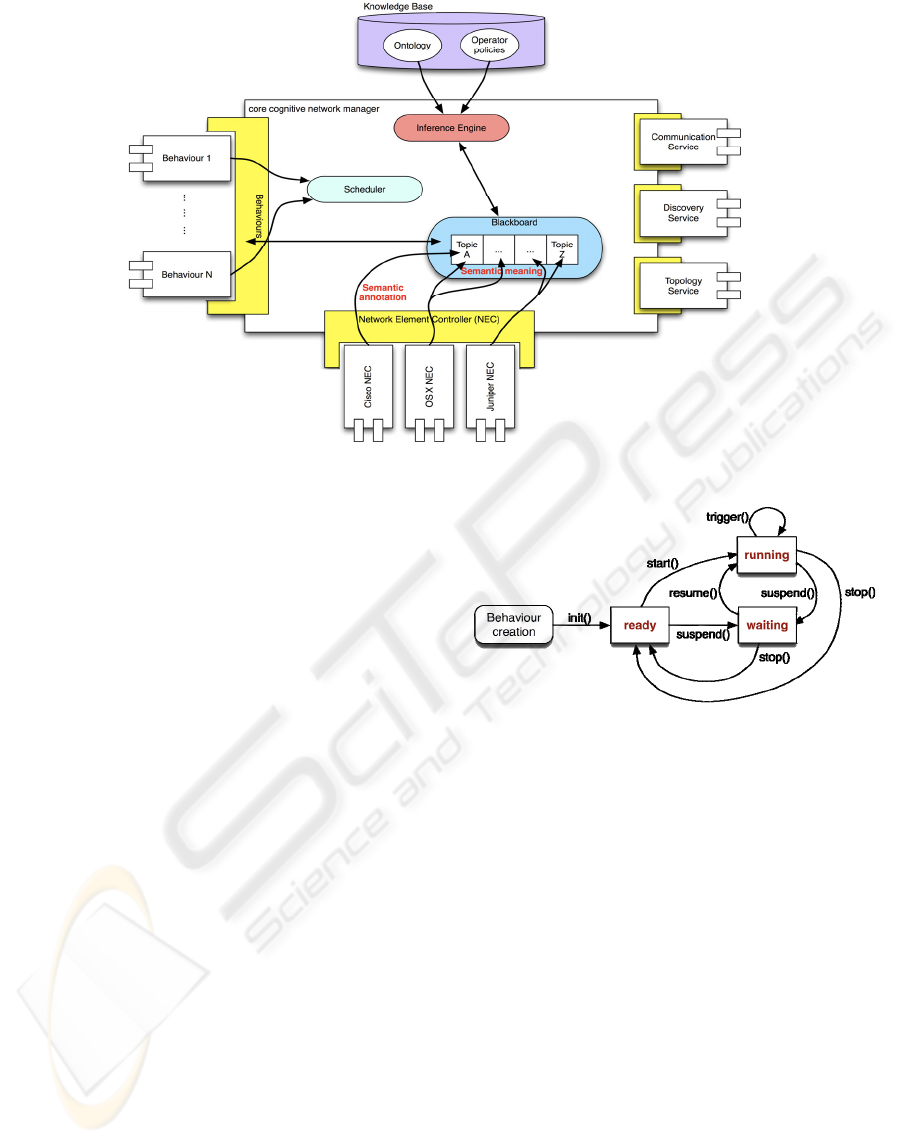

Figure 2: CONEMAF components.

CONEMAF includes a first implementationof the

following modules:

• Topology service: based on a regular exchange

of hello messages, constructs, updates and

exchanges adjacency tables that reflects the

physical network topology

• Discovery service: maintains information

concerning neighbouring cognitive network

managers (IP addresses, network interfaces used

to reach them…)

• Communication service: fundamental service

that provides communication functions with

high-level semantics (communication acts,

content identification)

• Network element controller: gathers network

equipment status and publishes these different

pieces of information (interfaces, routing…) in

the blackboard. It also provides means to enforce

reconfigurations in the network equipment.

• Behaviours: a behaviour realizes tasks or

computations that are inherent to a specific

objective. Two kinds of behaviours have been

developed, differentiated on how often they are

executed:

- one shot: is executed only once

- periodic: is executed at regular intervals.

The execution of behaviours is triggered by the

scheduler. Their life cycle, depicted in Figure 3,

can be controlled.

• Scheduler: schedules the execution of

schedulable components registered beside it

(behaviours basically)

Figure 3: Behaviour life cycle.

• Blackboard: provides writing and reading

functions in a shared space. We have extended

LighTS (Picco G. P., 2005) (Picco G. P., 2001), a

light Java implementation of the Linda model of

tuple spaces (Wells, 2003). The blackboard

contains different topics semantically linked to

concepts of the ontology. Each topic is

implemented as a tuple space

• Inference engine: in charge of making high-level

decisions, it can be considered as the brain of a

cognitive network manager. The ontology and

the operator policies are loaded inside it, so as

declarative facts representing the situation.

Regarding to defined policies, decisions can be

made as rules are triggered. The inference engine

makes decisions that may need additional

information for reconfiguring the network

equipment and delegates these kind of specific

processes to behaviours.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

228

4 AUTONOMIC CONGESTION

MANAGEMENT IN A

DYNAMIC ENVIRONMENT

The purpose of this experiment is to offer an initial

validationof the applicability of CONEMAF to

perform autonomic network management. The

objective of using autonomic management is to

provide faster adaptation of the network to varying

load conditions. This experiment aims to highlight

the use of the framework to overcome congestion

problems in wireless networks, where bandwidth

often fluctuates. In this specific case, CONEMAF

provides proactive route selection on top of the

legacy routing protocol. The experiment has been

carried out with a virtualization tool that emulates

network equipments and links. The same scenario is

run without and with CONEMAF and performances

are compared in both cases.

4.1 Initial Situation

Let’s consider the mesh network in Figure 4. It is

composed of five routers and the scenario also

involves two end devices. OSPF (Moy, 1998), one

of the standard Internet routing protocol, is executed

in this mesh network. A video flow is running across

the network from a server to a client. In this context,

the scenario consists in evaluating the visual impact

of different failures or disruptions without and with

CONEMAF cognitive network managers.

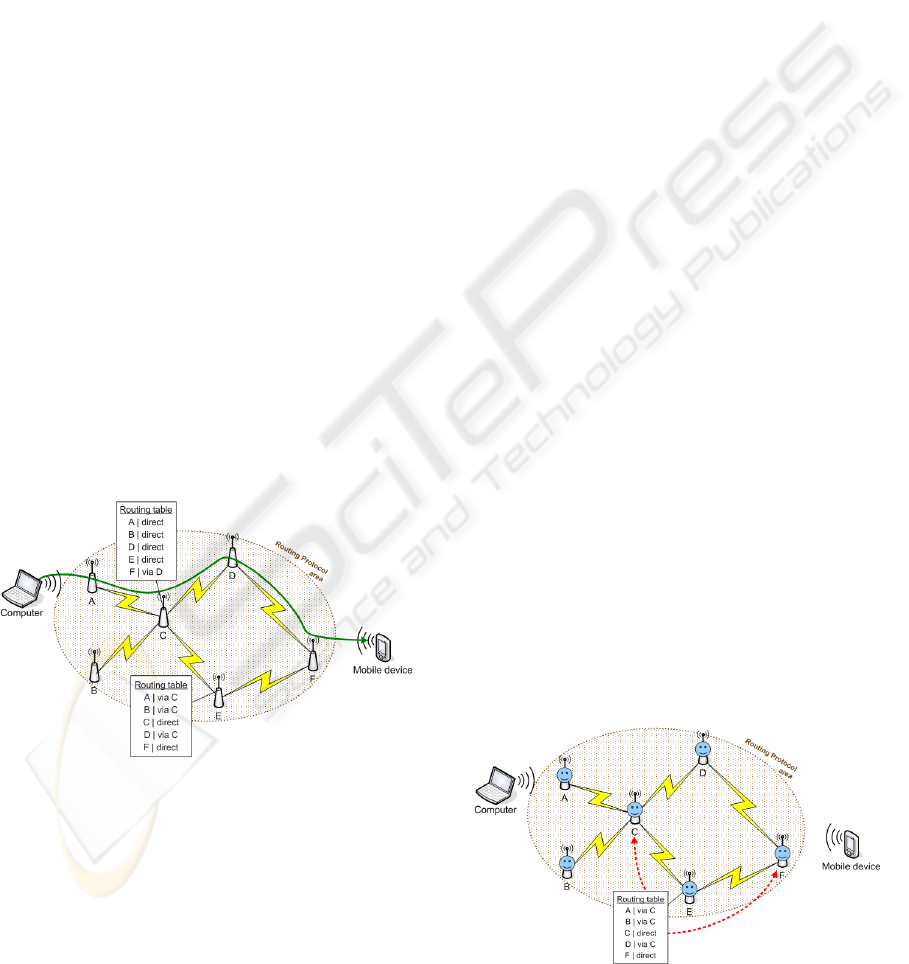

Figure 4: Initial situation.

4.2 Without CONEMAF

First of all, without cognitive network managers,

when a link fails on the path from source to

destination, the routing protocol is able to detect the

failure and converges back. The video flow is

affected (stopped) and its diffusion restarts when the

routing protocol has converged (this can be quick).

Then, still without cognitive managers, limiting

bandwidth capacity on a link between source and

destination simulates a link disruption. This is the

most interesting situation because, as there is no link

failure, the routing protocol cannot do anything (it is

not able to detect this disruption). The quality of the

video flow remains affected (e.g., blocks still

appear).

4.3 CONEMAF in Action

Cognitive network managers aim at anticipating

corrective actions to problems that can arise in a

network. This first demonstration using the

framework consists in detecting a link disruption and

reacting to this problem as soon as it occurs by

redirecting the video flow.

To achieve this, a policy defining a threshold for

available bandwidth on network interfaces is

included as a rule in the inference engine. It looks

like this:

(interface ?name … ?availableBW …)

^ (?availableBW <= threshold)

=> (changeRoute ?name)

The network element controller regularly gathers

and publishes information on interfaces (name, state,

available bandwidth…) in the blackboard. These

factual pieces of information concerning every

interface are retrieved by the inference engine and

inserted into it under that form:

(interface <name> <state>

<availableBW> <otherParameters>)

Simple behaviours realize the following actions:

• exchange local routing table with direct

neighbours (Figure 5)

• use received neighbouring routing tables to

compute alternative paths (the algorithm is

illustrated in Figure 7) to reach each destination

contained in the local routing table (Figure 6).

Figure 5: Local routing table exchange between

neighbours.

CONEMAF: A MODULAR MULTI AGENT FRAMEWORK FOR AUTONOMIC NETWORK MANAGEMENT

229

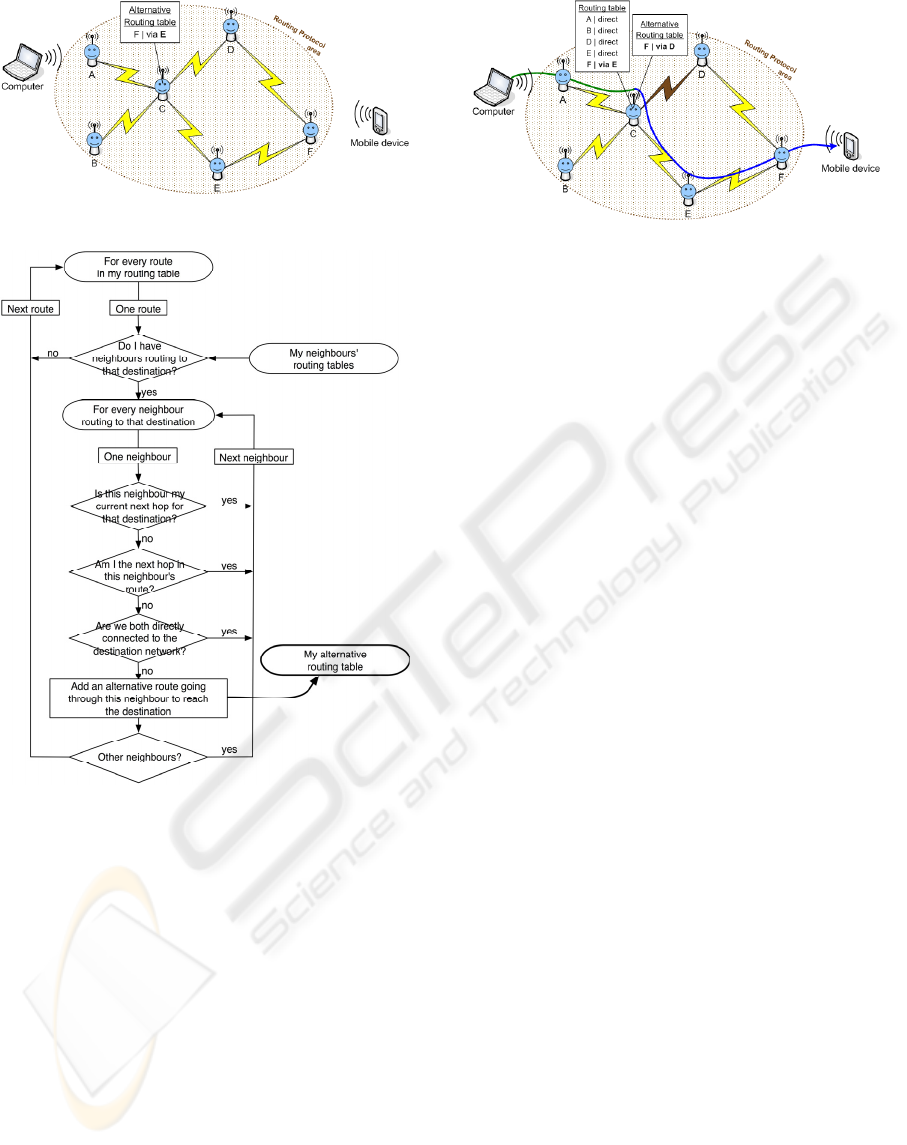

Figure 6: Alternative routing table computing.

Figure 7: Alternative routing table computation algorithm.

When a disruption occurs on a given link and the

defined threshold is reached, the rule inserted in the

inference engine is triggered and a fact is published

in the blackboard topic associated to orders. The

network element controller then reads this order for

changing the route(s) using the relevant interface

(whose name is given in the inference result). It

makes use of alternative routes computed by the

behaviour in charge of this task to select one to be

applied. If existing, this alternative route is enforced

in the network equipment routing table and the flow

is instantaneously redirected (Figure 8).

Enforcing an alternative route is a solution to

face the disruption. Other solutions could be

envisaged and the cognitive network manager would

have to choose the most appropriate according to the

situation. This simple reaction gives quite good

results: even if we can see small pixels for less than

one second, the video remains fluent.

Figure 8: Facing the disruption by redirecting the video

flow.

5 CONCLUSIONS AND FUTURE

WORKS

This paper has presented CONEMAF, a platform

that implements Cognitive Network Managers in

Java. CONEMAF emphasizes autonomous

distributed cognitive network managers that are able

to monitor and act on the network equipment they

are embedded in. They share an ontology that allows

them to understand information they gather and

exchange. Following high-level policies defined by

operators, they can reason, make decisions and

cooperate autonomously.

Based on the OSGi platform, CONEMAF is

made up of easily deployable components and

provides the modularity required to manage

heterogeneous equipments in future converged

networks. The first release has demonstrated

autonomic routing capabilities in a simple use case.

Further work on the ontology and the inference

engine is the next step towards extended autonomic

capabilities. While still paying a particular attention

to the framework modularity, further developments

will then focus on giving the cognitive network

managers learning capabilities to evaluate and adjust

decisions based on their past experiences.

REFERENCES

Agoulmine, N. B. (2006). Challenges for Autonomic

Network Management. First Conference on Modelling

Autonomic Communication Environment (MACE'06).

Cisco. (2008). Cisco OSGi Add-On as Universal

Middleware for Your Applications. Retrieved from

http://www.cisco.com/en/US/prod/collateral/routers/ps

9701/data_sheet_c02_459075.html

Fang, F. R. (2005). Technology Review of Multi-Agent

Systems and Tools. Navy Personnel Research Studies

and Technology.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

230

Fensel, D. (2001). Ontologies: Silver Bullet for Knowledge

Management and Electronic Commerce. Springer

Verlag.

Ferber, J. (1995). Les systèmes multi-agents : Vers une

intelligence collective. Paris, France: InterEditions.

FIPA. (2005). FIPA Specifications. Retrieved from

Foundation for Intelligent Physical Agents:

http://www.fipa.org/specifications/index.html

Friedman-Hill, E. (2003). Jess in action : rule-based

systems in Java. Greenwich, CT, USA: Manning

Publications Co.

Ganek, A. G. (2003). The dawning of the autonomic

computing era. IBM Systems Journal.

Garofalakis, M. R. (2001). Data Mining Meets Network

Management: The NEMESIS Project. Proceedings of

DMKD’2001 http://www.dataspaceweb.net.

Horn, P. (2001). Autonomic computing: IBM's perspective

on the state of Information Technology.

IBM. (2006). An architectural blueprint for autonomic

computing. White paper.

Keller, A. H. (2008). A System Architecture for Evolving

Protocol Stacks. Computer Communications and

Networks, 2008. ICCCN '08 (Invited paper), 1-7.

Kephart, J. C. (2003). The Vision of Autonomic

Computing. IEEE Computer, 36, 41-50.

Lefebvre, J. C. (2005). A Network Management

Framework Using Mobile Agents. Journal of

Computer Science.

Manzalini, A. Z. (2006). Towards Autonomic and

Situation-Aware Communication Services: the

CASCADAS Vision. Proceedings of the IEEE

Workshop on Distributed Intelligent Systems:

Collective Intelligence and Its Applications (DIS’06),

383-388.

Moy, J. (1998). RFC 2328 - OSPF Version 2. Retrieved

from www.ietf.org/rfc: http://www.ietf.org/rfc/

rfc2328.txt

OSGi Alliance. (2009). OSGi - The Dynamic Module

System for Java. Retrieved from http://www.osgi.org

PaxRunner. (2009). Pax Runner. Retrieved from

http://paxrunner.ops4j.org

Picco, G. P. (2001). LighTS. Retrieved from LighTS:

http://lights.sourceforge.net

Picco, G. P. (2005). LighTS: a lightweight, customizable

tuple space supporting context-aware applications.

Proceedings of the 20th ACM symposium on Applied

computing, 413-419.

Protégé. (2009). Protégé. Retrieved from Protégé Home

Page: http://protege.stanford.edu

Ray, P. P. (2008). Distributed Autonomic Management:

An Approach and Experiment towards Managing

Service-Centric Networks. International Conference

on Service Systems and Service Management, 2008, 1-

Ricordel, P.-M. D. (2000). From Analysis to Deployment:

A Multi-agent Platform Survey. Proceedings of the

First International Workshop on Engineering Societies

in the Agent World (ESAW'00), 1972, 93-105.

Sterritt, R. B. (2002). Towards Autonomic Computing:

Effective Event Management. Proceedings of the 27th

Annual NASA Goddard/IEEE Software Engineering

Workshop (SEW-27’02), 40-47.

Strassner, J. A. (2006). FOCALE - A novel autonomic

networking architecture. Latin American Autonomic

Computing Symposium (LAACS).

Strassner, J. K. (2006). Autonomic Systems and

Networks: Theory and Practice. 10th IEEE/IFIP

Network Operations and Management Symposium,

2006. NOMS 2006, 588-588.

Studer, R. B. (1998). Knowledge Engineering: Principles

and Methods. Data Knowledge Engineering, 25, 161-

197.

Tesauro, G. (2007). Reinforcement Learning in

Autonomic Computing: A Manifesto and Case

Studies. IEEE Internet Computing, 22-30.

W3C. (2004). OWL Web Ontology Language Overview.

Retrieved from http://www.w3.org/TR/2004/REC-

owl-features-20040210/#s1.3

W3C. (2004). SWRL: A Semantic Web Rule Language

Combining OWL and RuleML. Retrieved from

http://www.w3.org/Submission/SWRL

Wells, G. C. (2003). Linda implementations in Java for

concurrent systems. Concurrency and Computation:

Practice & Experience.

CONEMAF: A MODULAR MULTI AGENT FRAMEWORK FOR AUTONOMIC NETWORK MANAGEMENT

231
