CREATION AND MANAGEMENT OF A CONCEPTUAL

KNOWLEDGE BASE IN AN INDUSTRIAL DOMAIN

Gian Piero Zarri

University Paris-Est/Paris12, LiSSi Laboratory, Vitry sur Seine, France

Keywords: Knowledge representation, Knowledge engineering, Ontologies, Inference, Gas/oil industry.

Abstract: This paper describes the implementation and test of an experimental knowledge base in the framework of a

European project in the gas/oil domain. The base has been built up by using the NKRL (Narrative

Knowledge Representation Language) conceptual tools to formalize and manage the information content of

two different ‘Storyboards’ or ‘Historians’: these describe sequences of ‘gas/oil’ events like the detection of

gas leakage alarms or the activation of a gas turbine.

1 INTRODUCTION

This paper supplies some information about the

work done by the author at the Milan Polytechnic

(Italy) – between June 1

, 2008 and January 31

2009 – to implement and test an experimental

knowledge base in the framework of the EC

VIRTHUALIS project (“New Production Processes

and Devices” n. 515831-2). The base has been built

up by using the NKRL conceptual meta-model/

environment, see (Zarri, 2005; 2009a) to formalize

and manage the information content included in two

VIRTHUALIS ‘Storyboards’, the “StatoilHydro

Case Study Specifications” and the different

versions of the “Sonatrach Case Study

Specifications”. ‘Storyboard’ is a term borrowed

from filmmaking industry to describe in written a

series of interactive events; a synonymous is

‘historian’. The knowledge base is fully supplied in

Appendix A of (Zarri, 2009b).

In the StatoilHydro case, the Control Room

operators recognize a gas leakage alarm. They

interact then with a Field operator who searches for

the leakage position and tries to quantify its severity.

She/he notifies her/his findings to the Control Room

operators and, all together, they take decisions about

the operations to be performed.

The Sonatrach storyboard illustrates the twelve

sequences of operations needed for the activation of

a gas turbine used to drive the compressor of a

propane chilling section. For example, the Seq3

sequence concerns the start up of the turning gear,

Seq5 describes the acceleration of the main turbine,

Seq6 deals with the starting of the ignition

operations, etc. This section of the knowledge base

is completed by the description of an example of

anomaly detected during the start-up procedures.

In the following, Section 2 will introduce the

general context of the experiment. Section 3

describes some of the results obtained. Section 4 is a

short “Conclusion”.

2 GENERAL CONTEXT

2.1 ‘Static’ and ‘Dynamic’ Information

A fundamental differentiation about the storyboard

‘knowledge’ concerns the separation between

‘static’ and ‘dynamic’ information.

‘Static’ information corresponds to notions to be

considered, in a sense, as ‘a-temporal’ and

‘universal’. This means that their formal definitions

are seldom subject to change, at least within the

framework of a given application; these notions

define, typically, the general context of the

application. Examples can concern the definition of

the working functions of the personnel

(

control_room_operator), the description of the

installations (

plant_, valve_, alarm_), of the general

environmental conditions (

level_of_temperature), of

the critical conditions for failure, etc.

A simple ‘binary’ approach can then be used for

their conceptual representation: in this approach, the

‘properties’ or ‘attributes’ that define a given

concept are expressed as binary (i.e., linking only

214

Piero Zarri G. (2009).

CREATION AND MANAGEMENT OF A CONCEPTUAL KNOWLEDGE BASE IN AN INDUSTRIAL DOMAIN.

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development, pages 214-219

DOI: 10.5220/0002300802140219

 SciTePress

two arguments) relationships of the ‘property/value’

type, independently from the fact that these

relationships are organised into frame format or take

the form of a set of ‘property’ statements used to

define a ‘class’ in a W3C language like OWL.

‘Dynamic’ information consists, on the contrary,

of structured, temporal sequences of (not

predetermined) ‘elementary events’ that describe the

active or passive ‘behaviour’ of given ‘characters’,

‘actors’ or ‘personages’ (not necessarily human see,

e.g., the ‘behaviour’ of a faulty valve or of a start-up

turbine). Examples of dynamic information in a

VIRTHUALIS context are ‘elementary events’ like

“The Control Room operator presses the start-up

button”, “The oil extractor moves from the state

‘idle’ to the state ‘running’”, “The Field operator has

heard the working noise of the oil extractor”, “The

field operator has visually checked the correct

progression of ignition in chambers 1 and 4”, etc.

The necessity of making use i) of ‘conceptual

predicates’ for specifying the basic type of state,

action etc. described in each ‘elementary event’

included in the (dynamic) temporal sequence, and ii)

of the notion of ‘role’ to denote the logical and

semantic function of each of the ‘characters’

involved in the different events – in “The Control

Room operator presses a button …”, the ‘individual’

CONTROL_ROOM-OPERATOR_1 is the SUBJ(ect)

of the action of ‘pressing’ and the individual

BUTTON_1 the OBJ(ect) – makes it impossible to

make use of the common binary approach to

represent correctly the dynamic knowledge. In this

last case, it is necessary to have recourse – to

represent each one of the elementary events that

make up the global dynamic situation – to the well-

known ‘n-ary’ schema denoted by Eq. 1:

) (R

) … (R

))) (1)

where

is the symbolic label identifying the

particular n-ary structure (e.g., that corresponding to

the representation of “The Control Room operator

presses a button …”, example),

is the conceptual

predicate, R

is the generic role and a

the

corresponding argument (e.g.,

CONTROL_ROOM-

OPERATOR_1

), see (Zarri, 2009a: 14-22).

To represent fully a given dynamic situation, it is

also necessary to have a way of representing the

‘coherence links’ that bring together its different,

constitutive ‘elementary events’. These are normally

expressed through NL syntactic constructions like

causality, goal, indirect speech, co-ordination and

subordination, etc., see the example: “The control

room operators push the reset button in order to

(

GOAL) verify the existence of an alarm situation”.

In this paper, we will use the terms ‘connectivity

phenomena’ to denote this sort of contextual clues.

2.2 Tools for the Gas/oil Industry

The W3C languages have been sometimes suggested

– see, e.g., http://www.w3.org/2008/11/ogws-

agenda.html#papers – as possible solutions for

introducing new semantic/conceptual tools in the

gas/oil industry world. This proposal is

questionable, at least when, as in our case, the

‘knowledge’ to be used is largely based on the

‘narration’ of ‘sequences of events’.

As well known in fact – see (Mizoguchi et al.,

2007; Zarri, 2009a), etc. – the lack of expressiveness

linked with the ‘binary’ nature of the W3C

languages prevents them from representing correctly

the ‘dynamic’ information. When these languages

must represent simple ‘narratives’ like “John has

given a book to Mary” (or “The Control room

operator notifies the situation to the Field operator”

etc.), several difficulties arise. For example, “give”

is an n-ary (ternary) relationship that, to be

represented in a complete way, asks for the presence

of a specific ‘semantic predicate’ in the “give” or

“transfer” style, where the ‘arguments’ “John”,

“book” and “Mary” of the predicate must be labelled

with ‘conceptual roles’ such as, e.g., ‘agent of give’,

‘object of give’ and ‘beneficiary of give’

respectively. An n-ary type of representation in the

style of Eq. 1 is then needed. Note that each of the

) cells of Eq. 1, taken individually, represents a

binary relationship in the W3C (OWL, RDF…)

languages style. The main point here is, however,

that the conceptual structure represented by Eq. 1

can be fragmented for practical purposes like the

concrete storing within a relational database, but

must be considered globally whenever significant

querying/inferencing operations must be envisaged

on the whole structure, see (Zarri, 2009a: 14-33).

In a gas/oil industry context, an obvious

candidate for the set up of conceptual descriptions is

ISO 15926 (“Industrial automation systems and

integration – Integration of life-cycle data for

process plants including oil and gas production

facilities”). Because of the presence of temporal

representational aspects, ISO 15926 is often defined

as a ‘4D(imensions)’, or ‘space-time’, model,

holding that individuals are extended in time as well

as space and dealing then with changes over time,

see (Stell and West, 2004) in this context. In spite of

this, the knowledge representation model of ISO

15926 is essentially ‘binary’, as confirmed by its

two-way, easy conversion into (W3C) OWL terms.

CREATION AND MANAGEMENT OF A CONCEPTUAL KNOWLEDGE BASE IN AN INDUSTRIAL DOMAIN

215

The existence, e.g., of an object labelled as ‘M202’

and classified as a ‘lubrication pump’ is described

using two (RDF-like) binary relationships,

Identification to link PHYSICAL_OBJECT_ to M202,

and Classification to link PHYSICAL_OBJECT_1 to

lubrication_pump. Also the 4D aspects seem to boil

down, in practice, to the use of binary relationships

see, e.g., the relationships

hasBeginning and hasEnd

that, once again in an RDF style, link a physical

object to dates instances like

dayIdentifier entity. A

bridge with more evolved types of representation

can be found in the ISO 15926 so-called templates

A template is a pattern for stating facts, formed

essentially by a ‘predicate’ with its arguments. For

example, a template like

Parts-at-least(C, D, i)

means “Any C has at least i D’s as parts”;

instantiated into, e.g., Parts-at-least(Car, Wheel, 3),

will be then automatically converted by a set of

‘expansion rules’ proper to the template into the

standard binary descriptions. The user can also deal

directly with templates – to query or instantiate them

– using some simple interfaces.

2.3 A Short Review of the NKRL

System

We have then used NKRL to build up the

VIRTHUALIS knowledge base in order to avoid the

‘binary’ limitations examined quickly in the

previous Section. NKRL innovates with respect to

the current ontological paradigms by adding to the

usual ‘ontologies of concepts’ an ‘ontology of

events’, i.e., a new sort of hierarchical organization

where the nodes correspond to n-ary structures

called ‘templates’ that follow the format defined by

Eq. 1 above. This last hierarchy is called HTemp

(hierarchy of templates). Templates are particularly

concerned with the representation of the ‘dynamic

knowledge’ aspects evoked above: they can be

conceived, in fact, as the formal representation of

generic classes of elementary events like “move a

physical object”, “produce a service”, “send/receive

a message”, “make a change of state happen”, etc.

Note that, in NKRL, an ‘ontology of concepts’

(according to the usual, ‘binary’ meaning of these

terms) not only exists, but it represents an essential

component for the correct functioning of the whole

environment. This ontology is called HClass

(hierarchy of classes), see (Zarri, 2009a: 103-137).

When a particular elementary event must be

represented, the corresponding template is

instantiated to produce what is called a ‘predicative

occurrence’. To represent then an event like: “On

October 16

, 2008, the production activities leader

pushes the

SEQ1_BUTTON in the context of a

particular sequence of operations, SEQ1, associated

with the start-up of the turbine”, we must select first

in HTemp the template corresponding to ‘perform a

task or an activity’, represented in the upper part of

Table 1. When creating a predicative occurrence

virt2.c32 (lower part of Table 1), the role fillers

in this occurrence must conform to the constraints

associated with the variables of the father-template.

virt2.c32, e.g., INDIVIDUAL_PERSON_102 is

an ‘individual’, instance of the concept

individual_person; this last is a specialization of

human_being, specialization in turn of

human_being_or_social_body, see the constraint on

the variable (argument)

var1 associated with the

SUBJ(ect) role in the template of Table 1.

What we have expounded until now concerns the

representation of elementary (simple) events.

Table 1: Deriving an occurrence from a template.

name:

Produce:PerformTask/Activity

father:

Produce:

position:

6.3

natural language description: ‘Execution of

Intellectual or Industrial Procedures, etc.’

PRODUCE SUBJ var1: [var2]

OBJ var3

[SOURCE var4: [var5]]

[BENF var6: [var7]]

[MODAL var8]

[TOPIC var9]

[CONTEXT var10]

{ [modulators], ≠abs }

var1, var4, var6 = human_being_or_social_body

var3 = activity_, process_, temporal_development

var8 = activity_, artefact_, process_, etc.

var9 = pseudo_sortal_concept, sortal_concept

var10 = situation_, symbolic_label

var2, var5, var7 = location_

virt2.c32) PRODUCE SUBJ INDIVIDUAL_PERSON_102:

(GP1Z_MAIN_CONTROL_ROOM)

OBJ button_pushing

TOPIC SEQ1_BUTTON

CONTEXT (SPECIF

SEQ1_GREASING_PUMP

(SPECIF member_of

F17_STARTUP_SEQUENCE))

date-1: 16/10/2008/08:26

date-2:

To deal with the connectivity phenomena, the

basic knowledge representation tools have been

complemented by more complex mechanisms that

use second order structures created through

reification of the predicative occurrences'

conceptual labels, see (Zarri, 2009a: 86-98). For

example, the ‘binding occurrences’ are lists of labels

(

in Eq. 1) of predicative occurrences; the lists are

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

216

differentiated making use of specific binding

operators like

GOAL and CAUSE.

Reasoning in NKRL ranges from the direct

questioning of a knowledge base – by means of

search patterns (formal queries)

that unify

information in the base using a Filtering Unification

Module (

Fum), see (Zarri, 2009a: 183-201) – to

high-level inference procedures.

For example, the ‘transformation’ rules try to

‘adapt’ a search pattern

that ‘failed’ (that was

unable to find an unification within the knowledge

base) to the real contents of this base using a sort of

‘analogical reasoning’. Let us then suppose we ask:

“Search for the evidence of the existence of an alarm

situation in some industrial premises”. In the

impossibility of obtaining a direct answer, the

corresponding search pattern can be transformed

into the two logically linked patterns:

: “Search for

information relating that the working staff is moving

massively to a new location”;

: “Search for

information confirming that the new location is

outside the industrial premises”, see Table 2. If the

new patterns are able to unify some occurrences in

the base, we can consider that the information

collected in this way is a sort of indirect answer to

the query originally posited.

Table 2: An example of ‘transformation’ rule.

t2: “working staff moving” transformation

antecedent:

EXIST SUBJ alarm_situation: (var1)

var1 = oil/gas_processing_plant

first consequent schema (conseq1):

MOVE SUBJ var2: (var1)

OBJ var3: (var4)

var2, var3 = company_working_staff

var4 = geographical_location

var3 = var2; var4 ≠ var3

second consequent schema (conseq2):

OWN SUBJ var4

OBJ property_

TOPIC (SPECIF var5 var1)

var5 = outside_

To verify the existence of an alarm situation in some

industrial premises try, along other things, to see i) whether

we can find information concerning the fact that the working

staff moves massively to a new location, and ii) whether the

new location is outside the industrial premises.

With respect now to the hypothesis rules, these

allow us to build up automatically a sort of ‘causal

explanation or context’ for some information (a

predicative occurrence

) retrieved within an NKRL

knowledge base. Let us suppose, e.g., we have

directly retrieved, in a querying-answering mode,

information like: “An operator has activated a piping

segment isolation procedure in the context of an

industrial accident” that corresponds then to

Supposing we can found a hypothesis rule whose

‘premise’ corresponds to

, we should then be able

to automatically construct, using this rule, a sort of

‘causal explanation’ of the triggering event by

retrieving in the knowledge base information in the

style of: i) “someone has attempted to activate a

(milder) corrective maintenance procedure” (

); ii)

“this procedure has failed” (

)

and iii) “the accident

is considered as a serious one” (c

). A detailed,

formal representation of this rule is given in Table 3.

An interesting, recent development of NKRL

concerns the possibility of making use of the two

above modalities of inference in an ‘integrated’ way,

see (Zarri, 2005) and Section 3.2 below.

Table 3: An example of ‘hypothesis’ rule.

h1:

“isolation procedure” hypothesis

premise:

PRODUCE SUBJ var1

OBJ isolation_procedure

CONTEXT var2

var1 = human_being

var2 = industrial_accident

An individual has carried out an isolation procedure in

the context of an industrial accident

first condition schema (cond1):

PRODUCE SUBJ var3

OBJ var4

TOPIC var2

var3 = human_being; var3 ≠ var1; var4 =

corrective_maintenance_procedure

A different individual had carried out a (milder)

corrective maintenance procedure

second condition schema (cond2):

EXPERIENCE SUBJ var3

OBJ var5

TOPIC var4

var5 = failure_

This second individual has experienced a failure in this

corrective maintenance context

third condition schema (cond3):

BEHAVE SUBJ var1

MODAL var6

var6 = control_room_operator

The first individual was a control room operator

fourth condition schema (cond4):

BEHAVE SUBJ var3

MODAL var7

var7 = field_operator

The second individual was a field operator

fifth condition schema (cond5):

OWN SUBJ var2

OBJ property_

TOPIC (SPECIF strength_ var8)

var8 = important_

The industrial accident is considered as a serious one

CREATION AND MANAGEMENT OF A CONCEPTUAL KNOWLEDGE BASE IN AN INDUSTRIAL DOMAIN

217

3 RESULTS OBTAINED

3.1 General Remarks

The NKRL modelling of the StatoilHydro

storyboard/historian has given rise to:

• The insertion in the VIRTHUALIS KB of 86

NKRL conceptual structures:

– 60 predicative occurrences (events);

– 26 binding occurrences (representing

logical/semantic connections among events).

• The addition of about 130 new ‘static concepts’

to the ‘standard’ HClass ontology.

• The addition of a new ‘template’ to HTemp,

Produce:Choice/Decision, as direct specialization

of the high-level

Produce: template.

The added concepts pertain mainly to

sub-branches of HClass like

alarm_tool,

use_of_systems_and_apparatus, industrial_accident,

etc. The addition of Produce:Choice/Decision

derives from the presence, in the StatoilHydro

storyboard, of cyclic formulas like “… the operators

decide to carry out a corrective procedure …”.

For the Sonatrach case, the results are:

• The insertion in the KB of 278 new structures:

– 222 predicative occurrences;

– 73 binding occurrences.

• The addition of about 70 new ‘static concepts’ to

the standard HClass ontology.

In this case, the new concepts pertain mainly to

HClass sub-branches like

industrial/technical_tool,

measurement_unit, industrial/technical_procedure.

Several examples of query/answer operations are

reproduced in (Zarri, 2009b: 22-27).

3.2 Some Inference Results

The simple transformation rule reproduced in Table

4 has been used to answer indirectly questions like:

“Is the oil extractor running?”, see Figures 1 and 2.

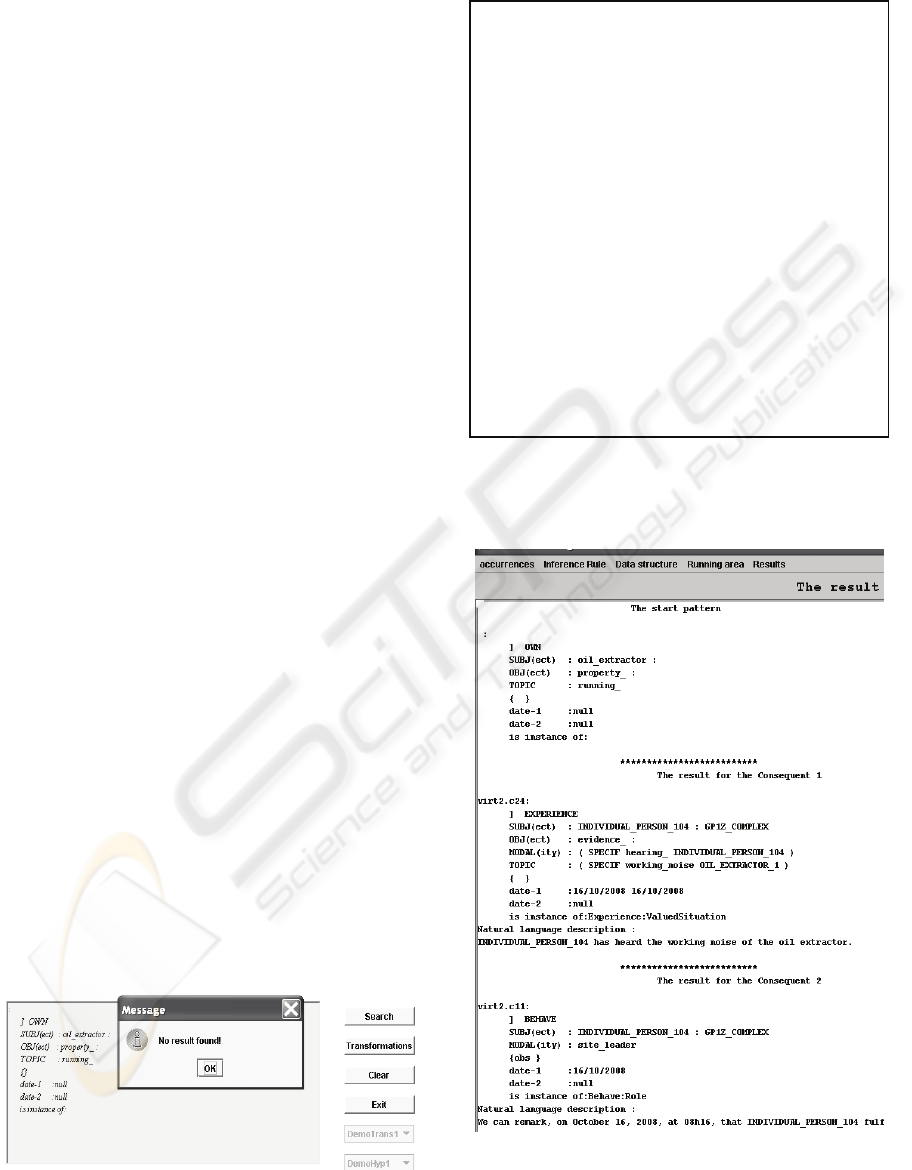

Figure 1: Failure of a formal query (search pattern).

Table 4: The ‘working/noise’ transformation rule.

t5: “working noise/condition” transformation

antecedent:

OWN SUBJ var1

OBJ property_

TOPIC running_

var1 = consumer_electronics, hardware_,

technical/industrial_tool, etc.

first consequent schema (conseq1):

EXPERIENCE SUBJ var2

OBJ evidence_

TOPIC (SPECIF var3 var1)

var2 = individual_person

var3 = working_noise, working_condition

second consequent schema (conseq2):

BEHAVE SUBJ var2

MODAL industrial_site_operator

Faced with the impossibility of proving directly that an

industrial apparatus is running, the fact of, e.g., hearing its

working noise, can be a proof of its running status.

The result of Figure 2 can be paraphrased as:

“The system cannot assert that the oil extractor is

running, but it can certify that the site leader has

heard the working noise of this extractor”.

Figure 2: Indirect answer by transformation procedure.

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

218

With respect now to the hypothesis rules, and to

show the importance of being able to use

transformations and hypotheses in an integrated

way, let us imagine to make use of a trivial

hypothesis that – after having retrieved an event

relating that someone has stopped a given

technical/industrial procedure – tries to find out

whether this stop is related to some accident

affecting the tool concerned by this procedure.

When we go to see, however, if an hypothesis in

this style (hypothesis

h3, not reproduced here) can

be activated starting from a predicative occurrence

virt3.c14 of Table 5, we see that h3 cannot be

used ‘as it is’ because of the impossibility of

demonstrating directly that some sort of accident

has concerned the

GP1Z_TURBINE.

Table 5: Stopping the start-up of the GPIZ_TURBINE.

virt3.c14) PRODUCE SUBJ INDIVIDUAL_PERSON_102:

(GP1Z_MAIN_CONTROL_ROOM)

OBJ activity_stop

TOPIC (SPECIF turbine_startup

GP1Z_TURBINE)

date-1: 1/11/2008/10:20

date-2:

Produce:PerformTask/Activity (6.3)

A given person ends the start-up of the GP1Z_TURBINE.

Table 6: Transformation rule about ‘related’ accidents.

t8: “part of, linked with” transformation

antecedent:

PRODUCE SUBJ var1

OBJ detection_

TOPIC (SPECIF var2 (SPECIF var3 var4))

var1 = individual_person

var2 = industrial_accident

var3 = relational_property, spatial_relationship

var4 = technical/industrial_tool

first consequent schema (conseq1):

PRODUCE SUBJ var1

OBJ detection_

TOPIC (SPECIF var5 (SPECIF var6 var7))

var5 = industrial_accident

var3 = relational_property, spatial_relationship

var7 = technical/industrial_tool; var7 ≠ var4

second consequent schema (conseq2):

OWN SUBJ var7

OBJ property_

TOPIC (SPECIF var8 var4)

var8 = part/whole_relationship, binary_relational_property

If we are unable to detect an accident in the environment (var3)

of an industrial tool (var4), we can try i) to see whether we can

detect an accident involving another tool (var7), and ii) then

prove that this second tool is (var8) either a component of the

original tool or it is strictly connected with this last one.

In this case, the solution consists in making use,

during the processing of hypothesis

h3, of a rule like

transformation

t8 in Table 6. We suppose then that

detecting an accident involving a component of the

tool concerned by a given procedure, or some other

associated device, can be considered as equivalent to

detecting an accident that concerns the tool itself.

Space prevents us from illustrating the different

steps of the integrated hypothesis/transformation

execution, see (Zarri, 2009b: 29-31) for the details.

Very in short, trying to construct automatically a

context/causal explanation for occurrence

virt3.c14

of Table 5 implies necessarily to make use of

transformation

t8 during the processing of

hypothesis

h3. In this way, the detection of an

accident in the environment of

GP1Z_TURBINE is

reduced to i) the discovery of an oil leakage for the

AUXILIARY_LUBRICATION_PUMP_M202, and ii)

the verification of a strict relationship between this

pump and

GP1Z_TURBINE.

4 CONCLUSIONS

In spite of its short duration, we think that the

“VIRTHUALIS Knowledge Base” experiment can

be considered as a success. We can assume, in fact,

that: i) the possibility of implementing an in-depth,

conceptual modelling of the VIRTHUALIS’

‘storyboards/historians’ with the minimum loss of the

original meaning is largely proved; ii) even if the

existing ‘rule base’ is characterized, at the moment,

by a very reduced size, its possible utility in a real

industrial context can be easily inferred – once

again, see (Zarri, 2009b) for the details and for

(several) additional examples.

REFERENCES

Mizoguchi R., Sunagawa E., Kozaki K., and Kitamura Y.

(2007). A Model of Roles within an Ontology

Development Tool: Hozo. Journal of Applied

Ontology 2: 159-179.

Stell, J. G., and West, M. (2004). A 4-Dimensionalist

Mereotopology. In: Formal Ontology in Information

Systems. Amsterdam: IOS Press.

Zarri, G.P. (2005). Integrating the Two Main Inference

Modes of NKRL, Transformations and Hypotheses.

JoDS 4: 304-340.

Zarri, G.P. (2009a). Representing and Managing

Narrative Information – Theoretical Principles and

implementation; London : Springer.

Zarri, G.P. (2009b). Technical Report on the Set Up of a

Knowledge Base for the VIRTHUALIS Project. Milano:

Politecnico di Milano, Virthualis Project.

CREATION AND MANAGEMENT OF A CONCEPTUAL KNOWLEDGE BASE IN AN INDUSTRIAL DOMAIN

219
