Unıversal Wireless Sensor Networks Technology

Platform and its Applications

L. S. Voskov

, P. B. Panfilov

, A. N. Vabischevich

, M. M. Komarov

and S. G. Efremov

VEK-21 Ltd., Startovaya str., 33-105, Moscow, 129336, Russia

Moscow State Institute of Electronics and Mathematics

Wireless Sensor networks Laboratory, Department of Computer Systems and Networks

B. Tryohsvyatitelsky, 3, Moscow, 109028, Russia

Abstract. Wireless sensor networks (WSN) are becoming more and more

popular due to the growing area of their application. However, finding a single

approach to different tasks is rather difficult, as each task has its own

peculiarities. In this paper we propose a universal hardware platform as the first

step to a quicker development of finished solutions based on WSN. We

demonstrate the use of our platform in different types of applications.

1 Introduction

A wireless sensor network [8] is a distributed self-organizing network, consisting of

miniature electronic devices, which exchange data through wireless channels. These

devices (nodes) do not require special installation and do need to be serviced. The key

feature of a sensor network is a possibility of retranslating messages from one node to

another, which allows covering large territories without using high-power

transmitters.

A common node of a WSN uses the ZigBee standard for wireless data

transmission. The ZigBee is an international open standard, which was developed by

the ZigBee Alliance. This standard allows using wireless connection with low-power

consumption for different applications for monitoring and/or management. The

Zigbee supports different network topologies, it has special network functions for

self-organization as well as several methods to ensure secure transmission.

The most popular applications for WSN are different monitoring systems (e.g.

security monitoring), different management and control systems (climate-control,

home automation systems etc.), remote access control and positioning systems

(tracking systems).

2 Universal Platform for WSN [1]

A proprietary universal wireless sensor network (WSN) platform was proposed,

developed and released by the Wireless Sensor Networks Lab (VEK-21 Ltd.) of the

Department of Computer Systems and Networks at Moscow State Institute of

Electronics and Mathematics (MIEM) (Fig. 1) because now it’s necessary to use

Voskov L., Panﬁlov P., Vabischevich A., Komarov M. and Efremov S. (2009).

Unıversal Wireless Sensor Networks Technology Platform and its Applications.

In Proceedings of the International Workshop on Networked embedded and control system technologies: European and Russian R&D cooperation,

pages 11-16

 SciTePress

similar devices in different application areas. We also can save resources by using our

platform because of the universality. It also allows us quickly change priorities of the

system, which makes possible using our platform to achieve different goals by

working with all popular COTS sensors.

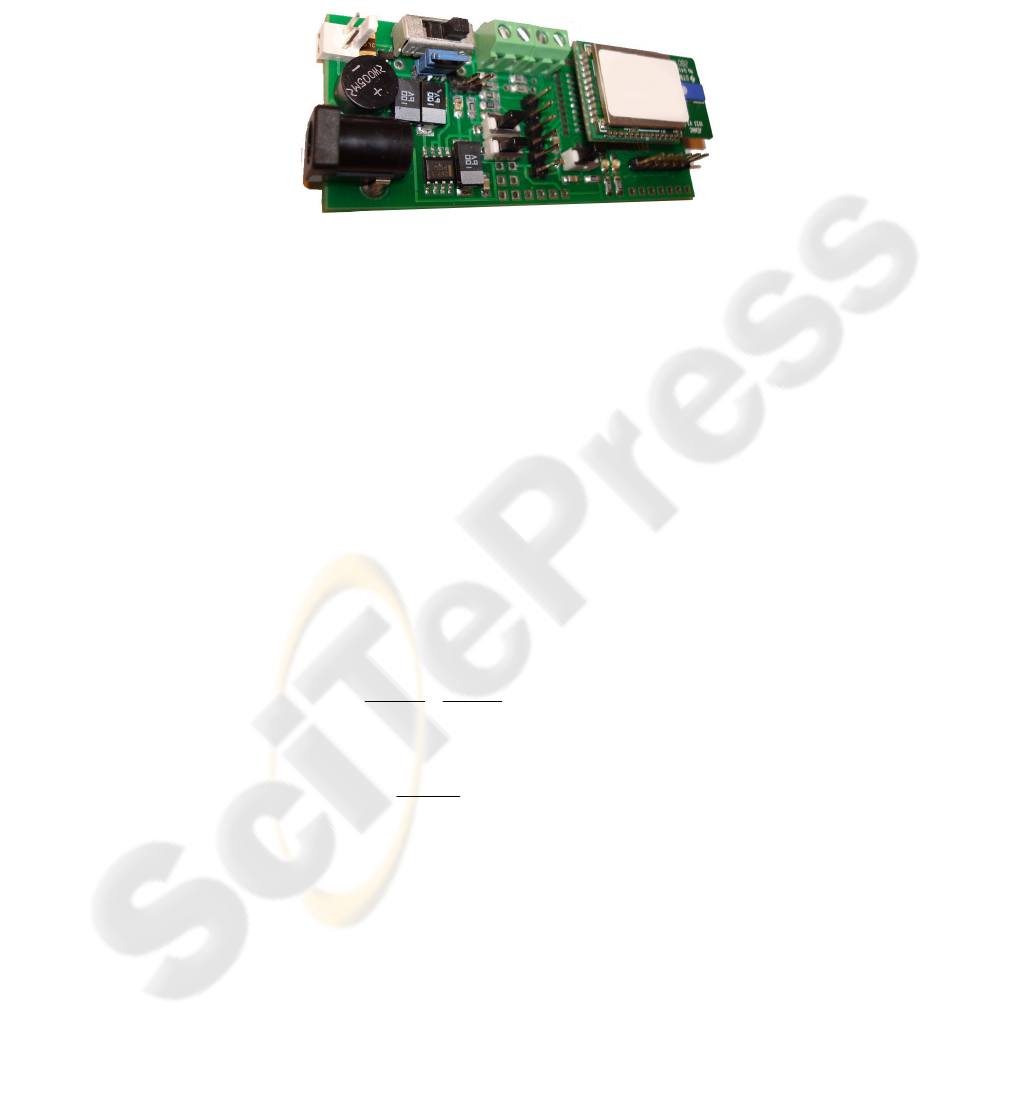

Fig. 1. Universal platform for WSN.

3 Energy Consumption and Lifetime

As sensor network applications depend so much on energy efficiency we want to

analyze energy consumption and lifetime of our platform with microcontroller.

Typical energy consumption for the sensor node: 37 mA – energy consumption for

receiving, 37 mA – energy consumption for sending, 9mA – energy consumption for

the CPU while transceiver is off, 0,002 mA – energy consumption in sleep mode.

The time which is taken to wake from sleep mode is 15 ms and energy consumption

9mA (from the microcontroller data sheet):

015,09 ×

=0,135 mAs (milli Ampere seconds).

(1)

The microcontroller is running at a clock rate of 16MHz which means that a single

cycle takes 1/10

seconds. Let’s assume that the average instruction takes 3 clock

cycles and that we need 7,000 instruction for the measurement, for data processing

and for preparing a packet for transmission over the network. This would result in

7000 3 21

16 10 16 10

××

=1,312 ms.

(2)

The amount of energy consumed at a current of 37mA would be:

0486,0

1016

mAs .

(3)

This means that the battery has to supply amount of energy which is equivalent to

1mA for 48.6ms.

And also the time to transfer data from I2C (for instance) is 5 ms with energy

consumption – 9mA:

005,09

=0,045 mAs .

(4)

Sending data takes place at a speed of 250,000 bits/s. We assume that our own

measurements occupy 32 bytes of memory. A single bit takes 1/250000 seconds to be

sent which sums up to:

mAss

bits

mA 033,0

250000

832

32 ≈

(5)

Time of calculating and sending took:

21/16 ms + 1ms+15ms+5ms ≈22,3ms. (6)

This means that the node can sleep for about:

1-0,022 = 0,978 s. (7)

The node consumes:

0,978×0,002≈0,002 mAs. (8)

The total amount of energy is:

0,135+0,0486+0,045+0,033+0,002≈0,262mAs. (9)

We assume the AA battery delivers about 2300 mAh:

smA

106,31

262,0

36002300

×≈

(365 days).

(10)

4 Our Projects based on WSN

We used our platform in implementation of some “standard” WSN applications as

monitoring systems, SCADA and remote identification systems. Also some “unusual”

applications to WSN technology were demonstrated built around proposed platform.

These include autonomous system of secured wireless audio transmission and a

wireless real-time 3D visualization system (WSN-based Motion Capture application

for virtual environment simulation).

Security Monitoring System [3]. Security monitoring system based on WSN, which

can work with different security sensors and integrated with GSM, can be used with

existent security systems to increase reliability, it’s easier to install this system and it

uses cheap data transmission channel than, for instance, Wi-Fi.

It consists of hardware (WSN devices) and special software (for devices and PC),

which allows you to control object status through Internet.

Examples of using: private home security systems, offices security system.

Climate Control System (Home automation system) (temperature, illuminance,

humidity) [4]. Climate control system based on WSN is a multifunctional system

which gives us possibility to work with different electronic devices (air conditioners,

light systems etc.) and might be integrated with other systems to increase efficiency

of using electricity, water etc.

The main difference of this system from other monitoring applications is the use of

special profiles that allow for using diverse devices with diverse algorithms. It also

can use GSM channel.

Examples of using: climate control systems, home-automation systems etc.

Remote Identification System. Mobile objects wireless identification.

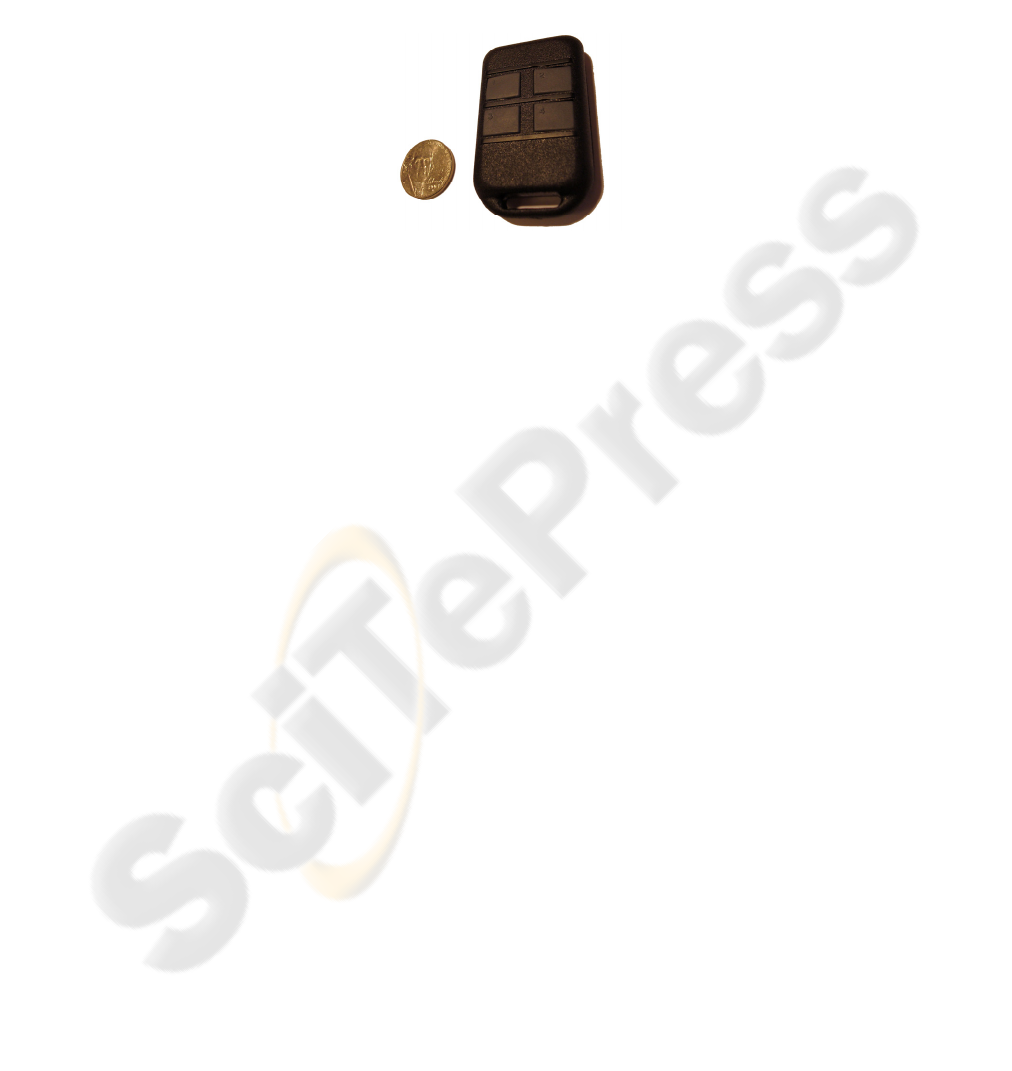

Fig. 2. Wearable sensor for wireless remote identification system.

We’ve developed a prototype of the system, which consists of different number of

sensors. Each sensor measures power level of radio signal and sets up critical power

level. If there is pair of sensors – one of them (base station) always measure power

level, other – sends testing data packets. When someone is trying to walk between

pair of sensors, one of them receives weak radio signal compare it with critical level,

and if power level of the signal is less than critical level it sends interruption

information to the central server and turns on alarm system. But if there is someone

with special WSN device (Fig. 2) is trying to walk between pair of sensors, our

system analyses situation and position of that person with WSN device and if that

WSN device is registered at one of the sensors from that pair, system make a decision

that there is no interrupt.

Base stations can be easily connected to GSM-channel or Internet.

Examples of using: security systems, special exhibition systems, home-automation

systems.

Intellectual System of Wireless Audio Transmission [5]. This system is our first

attempt of using WSN in “unusual” way – multimedia transmission. We have

developed a prototype of a system, which will provide wireless access to different

services using a WSN.

It consists of several base blocks (stations) and portable devices (handsets). A base

block can be connected to a public telecoms network (throw special “bridge”),

internet (VoIP service) or to a mobile phone. A portable device is a low-power

handset using a 10 mW transmitter. Each element of this system is a node of a WSN.

Therefore it contains an internal processor, which allows local data processing. For

example, when a person talking on the phone listens to his (her) interlocutor, the data

from his handset is not transferred thus minimizing the amount of traffic in the WSN.

General features:

• base station translates incoming calls to portable devices;

• portable devices can accept incoming calls, close connection, call a Skype-

account;

• 400 meters distance between base station and portable devices;

• Internet-radio translation with reasonably good quality – up to 100 meters

distance.

Bodynet System [7]. A wireless bodynet system consists of multiple wearable

sensors and a central stationary module, each being a node of a sensor network. This

system has two main applications – telemedicine and motion capture. The first one

has focus on remote health monitoring of people with chronic diseases, patients in

hospitals and elderly people. The task is solved with the use of sensors that measure

blood pressure, pulse rate and other vital parameters.

A wireless tracking system [2] makes it possible to transform real movements of a

person into a virtual 3D environment and visualize them in real-time. This is actually

a first completely wireless system, which means that every sensor has a radio

transmitter attached to it. In comparison, most existing solutions have a single

communication module, which is usually placed in a rucksack, and all the sensors are

connected to it with the help of wires. The system hardware consists of many end

devices equipped with sensors for capturing acceleration and rotation of a certain part

of a human body. A central unit collects all the data and transfers it to the computer,

which performs all calculations and visualization. To measure all parameters we use

MEMS-based accelerometers and gyroscopes, which are notable for their miniature

size, low costs, low energy consumption and high performance. Apart from

visualization, our software can also save all captured information for its future

analysis in simulation programs, e.g. Autodesk 3ds Max, Maya, Blender.

The main applications for the motion capture system include:

- interface to 3D virtual reality;

- research in human-computer interaction;

- remote control of robots and manipulators with real movements;

- motion capture systems for character animation in films, games or television studios.

a) b)

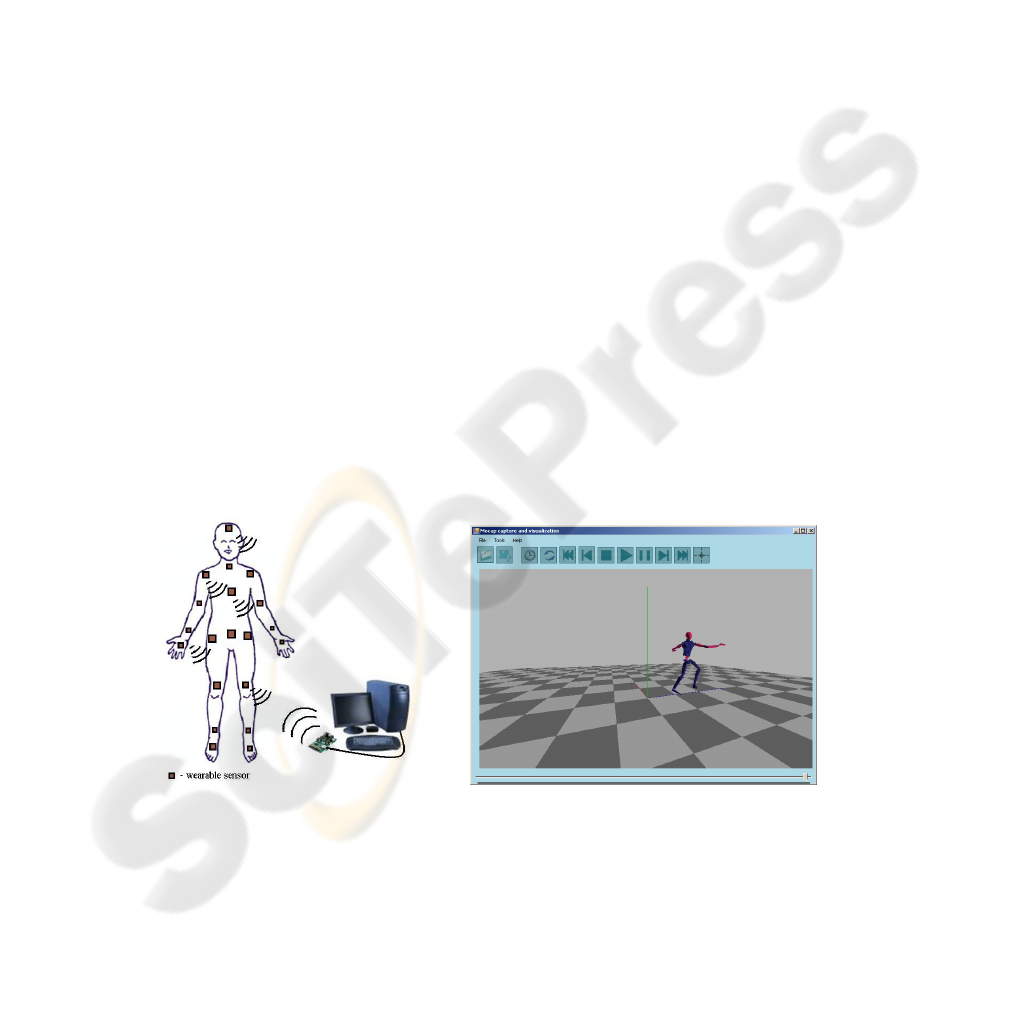

Fig. 3. Wireless bodynet system.

A combination of different wearable sensors can be used for efficient control of police

or fire squads during dangerous operations.

5 Future Work

We’re planning to continue our work and we’re going to develop:

- real time virtual reality system which will provide all possibilities of computer-

human interface interaction;

- full home-automation system;

- sports-monitoring system;

- conveyor monitoring system (getting and analyzing all information about

conveyor and environmental influence on it);

- home gaming systems, which will provide real interaction with the game;

- professional motion capture system for movie-making companies.

References

1. M. Komarov, S. Efremov, “Universal platform for WSN”. Scientific conference at MSIEM.

– M. MSIEM», 2009.

2. A. Vabischevich, “Wireless tracking system”. Scientific conference at MSIEM. – M.

MSIEM, 2009.

3. M.Komarov, “Environmental monitoring system based on wireless sensor network”.

International students, undergraduate students and young scientists conference - "New

Information Technologies", Ukraine, Sudak – 2008.

4. S. Efremov, "Climate-control system with remote control and monitoring based on wireless

sensor network”, International students, undergraduate students and young scientists

conference - "New Information Technologies", Ukraine, Sudak - 2008г.

5. L.Voskov, S.Efremov, M.Komarov “Monitoring systems based on WSN (security

monitoring system, climate control system, autonomous system of wireless audio

transmission, wireless perimeter control system), Russian-German workshop in the field of

ICT, November 6-7, 2008, Moscow, Russia.

6. ZigBee. http://www.zigbee.org/en/index.asp

7. Springer, Guang-Zhong Yang (Ed.) «Body Sensor Networks».

8. Thomas Haenselmann. 2006. Sensor networks. http:// www.informatik.unimannheim.de/

~haensel/sn_book/sensor_networks.pdf
