Minimal Architecture and Training Parameters of

Multilayer Perceptron for its Efficient Parallelization

Volodymyr Turchenko and Lucio Grandinetti

Department of Electronics, Informatics and Systems, University of Calabria

via P. Bucci 22B, 87036, Rende (CS), Italy

Abstract. The development of a parallel algorithm for batch pattern training of

a multilayer perceptron with the back propagation algorithm and the research of

its efficiency on a general-purpose parallel computer are presented in this paper.

The multilayer perceptron model and the usual sequential batch pattern training

algorithm are theoretically described. An algorithmic description of the parallel

version of the batch pattern training method is introduced. The efficiency of the

developed parallel algorithm is investigated by progressively increasing the

dimension of the parallelized problem on a general-purpose parallel computer

NEC TX-7. A minimal architecture for the multilayer perceptron and its

training parameters for an efficient parallelization are given.

1 Introduction

Artificial neural networks (NNs) have excellent abilities to model difficult nonlinear

systems. They represent a very good alternative to traditional methods for solving

complex problems in many fields, including image processing, predictions, pattern

recognition, robotics, optimization, etc [1]. However, most NN models require high

computational load, especially in the training phase (up to days and weeks). This is,

indeed, the main obstacle to face for an efficient use of NNs in real-world

applications. Taking into account the parallel nature of NNs, many researchers have

already focused their attention on their parallelization [2-4]. Most of the existing

parallelization approaches are based on specialized computing hardware and

transputers, which are capable to fulfill the specific neural operations more quickly

than general-purpose parallel and high performance computers. However

computational clusters and Grids have gained tremendous popularity in computation

science during last decade [5]. Computational Grids are considered as heterogeneous

systems, which may include high performance computers with parallel architecture

and computational clusters based on standard PCs. Therefore, existing solutions for

NNs parallelization on transputer architectures should be re-designed. Parallelization

efficiency should be explored on general-purpose parallel and high performance

computers in order to provide an efficient usage within computational Grid systems.

Many researchers have already developed parallel algorithms for NNs training on

weights (connections), neuron (node), training set (pattern) and modular levels [6-10].

The first two levels are a fine-grain parallelism and the second two levels are a

Turchenko V. and Grandinetti L. (2009).

Minimal Architecture and Training Parameters of Multilayer Perceptron for its Efﬁcient Parallelization .

In Proceedings of the 5th International Workshop on Artiﬁcial Neural Networks and Intelligent Information Processing, pages 79-87

DOI: 10.5220/0002265800790087

 SciTePress

coarse-grain parallelism. Connection parallelism (parallel execution on sets of

weights) and node parallelism (parallel execution of operations on sets of neurons)

schemes are not efficient while executing on a general-purpose high performance

computer due to high synchronization and communication overhead among parallel

processors [10]. Therefore coarse-grain approaches of pattern and modular

parallelism should be used to parallelize NNs training on general-purpose parallel

computers and computational Grids [9]. For example, one of the existing

implementation of the batch pattern back propagation (BP) training algorithm [6] has

efficiency of 80% while executing on a 10 processors of transputer ТМВ08.

However, the efficiency of this algorithm on general-purpose high-performance

computers is not researched yet.

The goal of this paper is to research the parallelization efficiency of parallel batch

pattern BP training algorithm on a general-purpose parallel computer in order to form

the recommendations for further usage of this algorithm on heterogeneous Grid

system.

2 Architecture of Multilayer Perceptron and Batch Pattern

Training Algorithm

It is expedient to research parallelization of multi-layer perceptron (MLP) because

this kind of NN has the advantage of being simple and provides good generalizing

properties. Therefore it is often used for many practical tasks including prediction,

recognition, optimization and control [1]. However, parallelization of an MLP with

the standard sequential BP training algorithm does not provide efficient

parallelization due to high synchronization and communication overhead among

parallel processors [10]. Therefore it is expedient to use the batch pattern training

algorithm, which updates neurons’ weights and thresholds at the end of each training

epoch, i.e. after the presentation of all the input and output training patterns, instead

of updating weights and thresholds after the presentation of each pattern in the usual

sequential training mode.

The output value of a three-layer perceptron (Fig. 1) can be formulated as:

⎟

⎠

⎞

⎜

⎝

⎛

−

⎟

⎠

⎞

⎜

⎝

⎛

⎟

⎠

⎞

⎜

⎝

⎛

−=

∑∑

TTxwFwFy

iijj

233

(1)

where is the number of neurons in the hidden layer, is the weight of the

synapse from neuron of the hidden layer to the output neuron, are the weights

from the input neurons to neuron in the hidden layer, are the input values,

are the thresholds of the neurons of the hidden layer and

T is the threshold of the

output neuron [1, 11]. In this study the logistic activation function

is used for the neurons of the hidden ( ) and output layers ( ), but in general case

these activation functions could be different.

j x

)

x−

1/(1) ex +=

The batch pattern BP training algorithm consists of the following steps [11]:

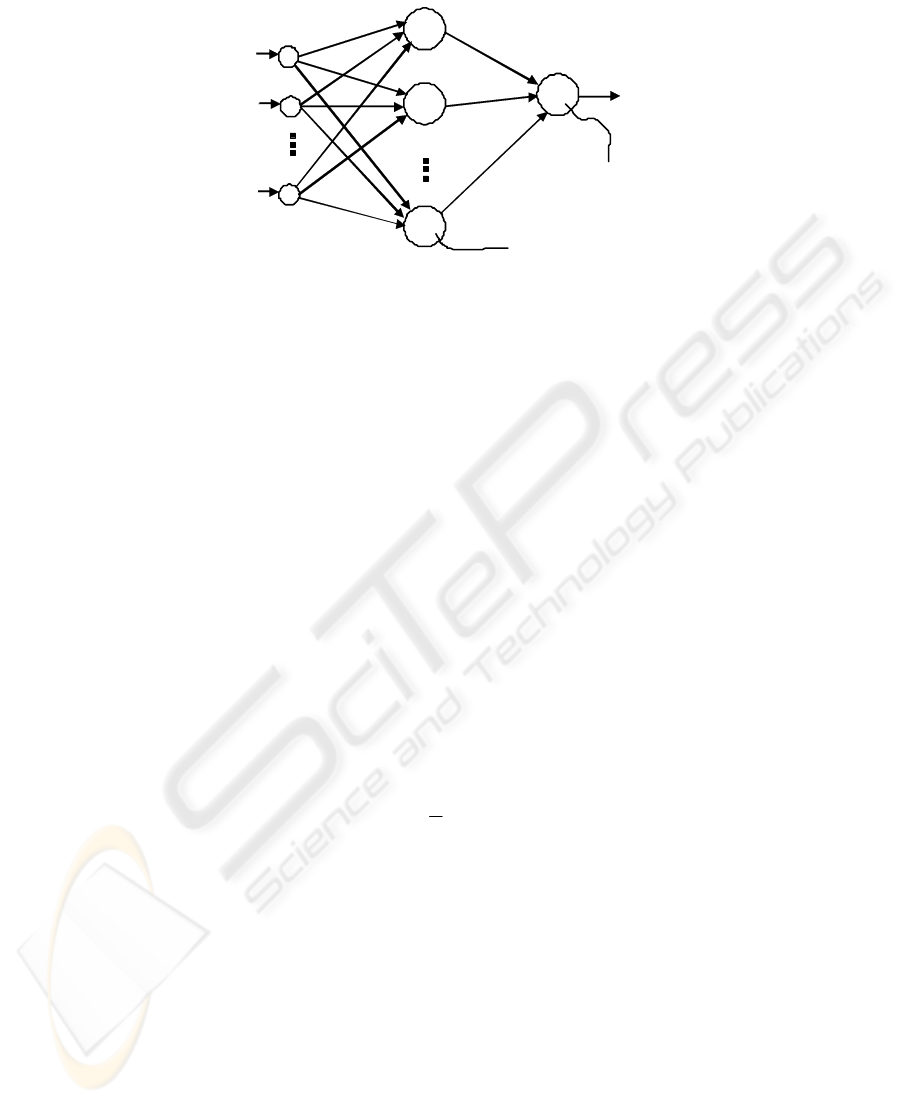

Fig. 1. The structure of a three-layer perception.

1. Set the desired error (Sum Squared Error) SSE=

min

E and the number of training

iterations

;

Initialize the weights and the thresholds of the neurons with values in range

(0…0.5) [12];

For the training pattern pt :

3.1. Calculate the output value )(ty

by expression (1);

3.2.

Calculate the error of the output neuron )() , where

is the output value of the perceptron and

)(td

is the target output value;

()(

tdtyt

ptptpt

−=

)(ty

3.3.

Calculate the hidden layer neurons’ error ))(( ,

where

)(tS

is the weighted sum of the output neuron;

)()()(

333

tSFtwtt

ptpt

′

⋅⋅=

γγ

3.4.

Calculate the delta weights and delta thresholds of all perceptron’s neurons

and add the result to the value of the previous pattern

)())( , ))(( ,

where

)(tS

and )(th

are the weighted sum and the output value of the

hidden neuron respectively;

()(

3333

thtSFtwsws

ptpt

⋅

′

⋅+Δ=Δ

()(

txtSFtwsws

jijij

⋅

′

⋅+Δ=Δ

)(

tSFtTsTs

ptpt

′

⋅+Δ=Δ

)(

tSFtTsTs

jjj

′

⋅+Δ=Δ

3.5.

Calculate the SSE using

()

)()(

)( tdtytE

ptptpt

−= ;

Repeat the step 3 above for each training pattern p

, where

{

}

PTpt ,...,1

∈

the size of the training set;

Update the weights and thresholds of neurons using

ijijij

wstwPTw Δ⋅

−

)()0()(

jjj

TstTPTT Δ⋅+= )()0()(

, where )(t

is the learning rate;

Calculate the total SSE )(tE on the training iteration

using

∑

tE ;

=tE

)()(

7. If

)(tE

is greater than the desired error

min

E then increase the number of training

iteration to

1+t and go to step 3, otherwise stop the training process.

3 Parallel Batch Pattern Back Propagation Training Algorithm

It is obvious from analysis of the batch pattern BP training algorithm in Section 2

above, that the sequential execution of points 3.1-3.5 for all training patterns in the

training set could be parallelized, because the sum operations

and are

independent of each other. For the development of the parallel algorithm it is

necessary to divide all the computational work among the

Master (executing

assigning functions and calculations) and the

Slaves (executing only calculations)

processors.

TsΔ

The algorithms for

Master and Slave processors functioning are depicted in Fig. 2.

The

Master starts with definition (i) the number of patterns PT in the training data set

and (ii) the number of processors

p used for the parallel executing of the training

algorithm. The

Master divides all patterns in equal parts corresponding to number of

the

Slaves and assigns one part of patterns to himself. Then the Master sends to the

Slaves the numbers of the appropriate patterns to train.

Each

Slave executes the following operations for each pattern pt among the PT/p

patterns assigned to him:

• calculate the points 3.1-3.5 and 4, only for its assigned number of training

patterns. The values of the partial sums of delta weights

and delta

thresholds

TsΔ are calculated here;

• calculate the partial SSE for its assigned number of training patterns.

After processing all its assigned patterns, each

Slave waits for the other Slaves and

the

Master at the synchronization point. At the same time the Master computes the

partial values of and for its own (assigned to himself) number of training

patterns.

wsΔ

TsΔ

The global operations of reduction and summation are executed just after the

synchronization point. Then the summarized values of the

and

are sent to

all the processors working in parallel. Using a global reducing operation and

simultaneously returning the reduced values back to the

Slaves allows a decrease of

the time overhead in the synchronization point. Then the summarized values of

and are placed into the local memory of each processor. Each

Slave and the

Master use these values and

wsΔ

TsΔ

wsΔ

in order to update the weights and thresholds

according to the point 5 of the algorithm. These updated weights and thresholds will

be used in the next iteration of the training algorithm. As the summarized value of

is also received as a result of the reducing operation, the

Master decides

whether to continue the training or not.

)(tE

The software routine is developed using the C programming language with the

standard MPI library. The parallel part of the algorithm starts with the call of the

MPI_Init() function. The parallel processors use the synchronization point

MPI_Barrier(). The reducing of the deltas of weights

and thresholds is

provided by function

MPI_Allreduce(), which allows to avoid an additional step for

sending back the updated weights and thresholds from the

Master to each Slave.

Function

MPI_Finalize() finishes the parallel part of the algorithm.

TsΔ

Yes

Star

Read the in

ut data

Update

w ,

according to p.5

Reduce and Sum

wsΔ ,

TsΔ

)(tE

from all

Slaves and send it back

to all Slaves

min

)( EtE >

End

)

Star

Read the in

ut data

Receive PT/p patterns

from Master

Define PT and p

Send PT/p patterns to

each Slave

Calculate p.3 and p.4 for

own training patterns

Synchronization with

other Slaves

Reduce and Sum

wsΔ ,

TsΔ , )(tE from all

Slaves and Master

Calculate p.3 and p.4 for

assigned training patterns

Synchronization with

other Slaves and Master

Update

w ,

according to p.5

Fig. 2. The algorithms of the Master (a) and the Slave (b) processors.

4 Experimental Researches

Our experiments were carried out on a parallel supercomputer NEC TX-7, located in

the Center of Excellence of High Performance Computing, University of Calabria,

Italy (www.hpcc.unical.it). NEC TX-7 consists in 4 identical units. Each unit has 4

Gb RAM, 4 64-bit processors Intel Itanium2 with a clock rate of 1 GHz. This 16

processor computer with 64 Gb of total RAM has a performance peak of 64 GFLOPS.

The NEC TX-7 is functioning under the Linux operation system.

As shown in [12], the parallelization efficiency of parallel batch pattern BP

algorithm for MLP does not depend on the number of training epochs. Parallelization

efficiencies of this algorithm are respectively 95%, 84% and 63% on 2, 4 and 8

processors of the general-purpose NEC TX-7 parallel computer for a 5-10-1 MLP

with 794 training patterns and an increasing number of training epochs from 10

As shown in [7], parameters such as the number of training patterns and the

number of adjustable connections of NN (number of weights and thresholds) define

the computational complexity of the training algorithm and, therefore, exert influence

on its parallelization efficiency. Therefore, research efficiency scenarios should be

based on these parameters. In this case the purpose of our experimental research is to

answer the question: what is the minimal/enough number of MLP connections and

what is the minimal/enough number of training patterns in the input data set for the

parallelization of batch pattern BP training algorithm to be efficient on a general-

purpose high performance computer?

The following architectures of MLP are researched in order to provide the analysis

of efficiency: 3-3-1 (3 input neurons × 3 hidden neurons =

9 weights between the

input and the hidden layer +

3 weights between the hidden and the output layer + 3

thresholds of the hidden neurons and

1 threshold of the output neuron = 16

connections), 5-5-1 (36 connections), 5-10-1 (71 connections), 10-10-1 (121

connections), 10-15-1 (181 connections), 15-15-1 (256 connections), 20-20-1 (441

connections). The number of training patterns is changed as 25, 50, 75, 100, 200, 400,

600 and 800. It is necessary to note that such MLP architectures and number of

training patterns are typical for most of neural-computation applications. During the

research the neurons of the hidden and output layers have logistic activation

functions. The number of training epochs is fixed to 10

. The learning rate is constant

and equal

01.0)( =t

The parallelization efficiency of the batch pattern BP training algorithm is

depicted in Figs. 3-5 on 2, 4 and 8 processors of NEC TX-7 respectively. The

expressions

S=Ts/Tp and E=S/p×100% are used to calculate a speedup and efficiency

of parallelization, where

Ts is the time of sequential executing the routine, Tp is the

time of parallel executing of the same routine on

p processors of parallel computer. It

is necessary to use the obtained results as the following: (i) first to choose the number

of parallel processors used (Fig. 3 or Fig. 4 or Fig. 5), (ii) then to choose the curve,

which characterizes the necessary number of perceptron’s connections and (iii) then

to get the value of parallelization efficiency from ordinate axes which corresponds to

the necessary number of training patterns on abscissa axes. For example, the

parallelization efficiency of the MLP 5-5-1 (36 connections) is 65% with 500 training

patterns on 4 processors of NEC TX-7 (see Fig. 4). Therefore the presented curves are

the approximation characteristics of a parallelization efficiency of the certain MLP

architecture on the certain number of processors of a general-purpose parallel

computer.

As it is seen from the Figs. 3-5, the parallelization efficiency is increasing when

the number of connections and the number of the training patterns is increased.

However, the parallelization efficiency is decreasing for the same scenario at

increasing the number of parallel processors from 2 to 8. The analysis of the Figs. 3-5

allows defining the minimum number of the training patterns which is necessary to

use for efficient parallelization of the batch pattern training algorithm at the certain

number of MLP connections (Table 1).

100

Fig. 3. Parallelization efficiency on 2 processors of NEC TX-7.

Fig. 4. Parallelization efficiency on 4 processors of NEC TX-7.

Fig. 5. Parallelization efficiency on 8 processors of NEC TX-7.

25 50 75 100 200 400 600 800

Training patterns

Efficiency on 8 processors, %

16 connections

36 connections

71 connections

121 connections

181 connections

256 connections

441 connections

25 50 75 100 200 400 600 800

100

Training patterns

Efficiency on 4 processors, %

16 connections

36 connections

71 connections

121 connections

181 connections

256 connections

441 connections

25 50 75 100 200 400 600 800

Efficiency on 2 processors, %

16 connections

36 connections

71 connections

121 connections

181 connections

256 connections

441 connections

Training patterns

For example, the Table 1 shows that the number of training patterns should be 100

and more (100+) for efficient parallelization of MLP with the number of connections

more than 16 and less and equal than 36. As it is seen from the Table 1, it is necessary

to use more training patterns in a case of small MLP architectures. The minimum

number of the training patterns is increasing in a case of parallelization on the bigger

number of parallel processors.

Table 1. Minimum number of training patterns for efficient parallelization on NEC TX-7.

2 processors 4 processors 8 processors

Connections

number, C

Training

patterns

Connections

number, C

Training

patterns

Connections

number, C

Training

patterns

16 < C ≤ 36 100+ 16 < C ≤ 36 200+ 16 < C ≤ 36 200+

36 < C ≤ 71 75+ 36 < C ≤ 71 100+ 36 < C ≤ 71 100+

71 < C ≤ 256 50+ 71 < C ≤ 256 50+ 71 < C ≤ 121 75+

C > 256 25+ C > 256 25+ C > 121 50+

5 Conclusions

The parallel batch pattern back propagation training algorithm of multilayer

perceptron is developed in this paper. The analysis of parallelization efficiency is

done for 7 scenarios of increasing the perceptron’s connections (number of weights

and thresholds), in particular 16, 36, 71, 121, 181, 256 and 441 and increasing the

number of training patterns, in particular 25, 50, 75, 100, 200, 400, 600, 800. The

presented results can be used for estimation a parallelization efficiency of concrete

perceptron model with concrete number of training patterns on the certain number of

parallel processors of a general-purpose parallel computer. The experimental research

proves that the parallelization efficiency of batch pattern back propagation training

algorithm is (i) increasing at increasing the number of connections and increasing the

number of the training patterns and (ii) decreasing for the same scenario at increasing

the number of parallel processors from 2 to 8. The results of analysis of minimum

number of training patterns for efficient parallelization of this algorithm show that (i)

it is necessary to use more training patterns in case of small architectures of

multilayer perceptron and (ii) the minimum number of the training patterns should be

increased in a case of parallelization on the bigger number of parallel processors.

The provided level of parallelization efficiency is enough for using this parallel

algorithm in Grid environment on the general-purpose parallel and high performance

computers. For the future research it is expedient to estimate the factors of decreasing

the parallelization efficiency of batch pattern back propagation training algorithm at

small number of training patterns and small number of adjustable connections of

multilayer perceptron.

Acknowledgements

This research is financially supported by a Marie Curie International

Incoming Fellowship grant of the corresponding author Dr. V. Turchenko,

Ref. Num. 221524 “PaGaLiNNeT - Parallel Grid-aware Library for Neural

Networks Training", within the 7

European Community Framework

Programme. This support is gratefully acknowledged.

We wish to thank anonymous referees for thoughtful and helpful comments which

improved the readability of the paper.

References

1. Haykin, S.: Neural Networks. Prentice Hall, New Jersey (1999).

Mahapatra, S., Mahapatra, R., Chatterji, B.: A Parallel Formulation of BP Learning on

Distributed Memory Multiprocessors. Parallel Computing. 22 (12) (1997) 1661–1675.

Hanzálek, Z.: A Parallel Algorithm for Gradient Training of Feed-forward Neural

Networks. Parallel Computing. 24 (5-6) (1998) 823–839.

Murre, J.M.J.: Transputers and Neural Networks: An Analysis of Implementation

Constraints and Perform. IEEE Transactions on Neural Networks. 4 (2) (1993) 284–292.

Dongarra, J., Shimasaki, M., Tourancheau, B.: Clusters and Computational Grids for

Scientific Computing. Parallel Computing. 27 (11) (2001) 1401–1402.

Topping, B.H.V., Khan, A.I., Bahreininejad, A.: Parallel Training of Neural Networks for

Finite Element Mesh Decomposition. Computers and Structures. 63 (4) (1997) 693–707.

Rogers, R.O., Skillicorn, D.B.: Using the BSP Cost Model to Optimise Parallel Neural

Network Training. Future Generation Computer Systems. 14 (5) (1998) 409–424.

Ribeiro, B., Albrecht, R.F., Dobnikar, A., et al: Parallel Implementations of Feed-forward

Neural Network using MPI and C# on .NET Platform. In: Proceedings of the International

Conference on Adaptive and Natural Computing Algorithms. Coimbra (2005) 534–537.

Turchenko, V.: Computational Grid vs. Parallel Computer for Coarse-Grain Parallelization

of Neural Networks Training. In: Meersman, R., Tari, Z., Herrero, P. (eds.): OTM 2005.

Lecture Notes in Computing Science, vol. 3762. Springer-Verlag, Berlin Heidelberg New

York (2005) 357–366.

10.

Turchenko, V.: Fine-Grain Approach to Development of Parallel Training Algorithm of

Multi-Layer Perceptron. Artificial Intelligence, the Journal of National Academy of

Sciences of Ukraine. 1 (2006) 94–102.

11.

Golovko, V., Galushkin, A.: Neural Networks: Training, Models and Applications.

Radiotechnika, Moscow (2001) (in Russian).

12.

Turchenko, V.: Scalability of Parallel Batch Pattern Neural Network Training Algorithm.

Artificial Intelligence, the Journal of National Academy of Sciences of Ukraine. 2 (2009).
