ARCHITECTURAL STYLES QUALITY EVALUATION AND

SELECTION

Smeda Adel and Alti Adel

LINA, University of Nantes

2 Rue de la Houssinière, BP 92208

44322 Nantes Cedex 03, France

Keywords: Evaluation of the software architecture, Quantitative architecture factors, OCL, Metamodel.

Abstract: Today, many architectural styles have been proposed and many others are being defined. An architectural

style provides a domain-specific design vocabulary and a set of constraints on how that vocabulary is used.

Given the increasing complexity of architectural styles, designing a sound and appropriate architectural

style becomes an important and intellectually challenging task. In order to analyze architectural styles

quality factors at architecture level and meta level are needed. In this article we propose a metamodel for

quality evaluation and selection of architectural style. Our metamodel includes a set of metaclasses; these

metaclasses are constrained with formal OCL rules. These constraints allow us to improve the verification

of the properties’ quality of the architectures by modelling styles of the software system. With this

metamodel, all the properties’ quality of the final production are granted by the software architecture.

1 INTRODUCTION

Today, all of the software developers are regarding

the quality of their productions as their own main

purpose. The experiences have showed that

whenever it is necessary to design a product with

high demotion and complexity, a general view that is

called "architecture" is needed. The meaning of

architecture is to provide a formal model of the

system in terms of components and connectors and

how they are composed together. Architecture gives

us an overall point of view of the whole system.

One of the important cornerstones of modern

software architecture is the use of architectural

styles. An architectural style defines a family of

related systems, typically by providing a common

vocabulary for architects, allowing the reuse of

architectures across many products. Consequently

more and more architectural styles are being defined

every day (Buschman, Henney and Schmidt, 2007;

Zudan and Avgeriou, 2008). They became so divers,

that their evaluation becomes problematic.

Unfortunately, despite significant progress in

analysis of the architectures for software systems,

there is relatively little work in styles evaluation and

selection.

This work proposes a novel metamodel called

ArchRQMM (ARCHitecture Requirement Quality

MetaModel) for the evaluation of properties’ quality

of architectures on modelling styles for software

system. The contribution consists in extending the

core concepts of Architecture Description

Languages (ADLs) to integrate the concepts of

quality requirements and quality standards. Our

proposal offers an automatic evaluation and

selection of styles that best meet architects’ needs

and allows a rigorous evaluation to prove the quality

of architectural styles at the architecture level.

The proposal work presented here is the result of

our previous work on using profile transformations

for integrating software architecture concepts into

the Model Driven Architecture (MDA) platform

(Alti, Khammaci, Smeda and Bennouar, 2007). We

identified the need to specifically select an

appropriate style that meets quality expectations.

Our integration process needs a generic metamodel

for the evaluation of architectural styles more

precisely and more objectively.

The rest of this article is organized as follows:

Section 2 presents our motivation and glances at

other related works. Section 3 describes the

ArchRQMM metamodel. Section 4 illustrates the

applicability of the previous metamodel both for

Adel A. and Adel S. (2009).

ARCHITECTURAL STYLES QUALITY EVALUATION AND SELECTION.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 74-82

DOI: 10.5220/0002253100740082

 SciTePress

evaluation and for selection of an architectural style.

Finally, section 5 concludes this article and presents

some future works.

2 MOTIVATION AND RELATED

WORK

2.1 Management of Software

Architecture Qualities

Tibermacine et al. (Tibermacine, Fleurquin &

Sadou, 2006) assisted quality in component- based

software evolution. They used a generic architecture

metamodel ArchMM for architecture design and

used ACL (Architecture Constraint Language) as

means for formally describing architectural choices.

This work concentrated on architecture evolution,

while our proposed approach focuses on

architectural styles available in different ADLs. Our

approach is similar to Tibermacine et al. In our

proposal, quality is placed on top of the system,

which drives the rest of the development process,

plays a central role that defines the structure of our

concrete model’s architecture, and decides which

architectural styles are considered and which are not.

Also closely related to our research is the work on

evaluation of ADLs for their support to model

architecture patterns (Grau and Franch, 2007a).

Their works is focused on the use of patterns to

design software architecture. They explored the

suitability of UML and five ADLs (ACME, Wright,

Aesop, Unicon and xADL) for modeling architecture

patterns. They chose syntax, visualization,

variability, and extensibility as criteria for selecting

ADLs that can represent architecture patterns. They

concluded that most of the ADLs specify strong

notational, analysis and tool support to design

software architectures but they still have

considerable drawbacks like supporting styles.

Recently, (Grau and Franch, 2007b) proposed a

goal-oriented approach for the generation and

evaluation of alternative architectures based on

existing architectural styles. Its approach allows a

well evaluation of architectural styles but lacks a

catalogue of architectural styles and a formal

evaluation of architectural styles. More recently, in

(Zudan and Avgeriou, 2008) presented a new

catalog of architectural primitives for modeling each

architectural style and provides a suitable base to

explicit and formally modeling styles in UML 2.0.

Its approach helps in designing correct styles but

suffered from a formal evaluation of complex

architectures based on multiple styles for achieving

an efficient framework.

2.2 Uses and Reasons of Software

Architecture Importance

To investigate the importance of software

architecture from the technical point of view, for

three reasons (Klein, Clements, Kazman, 2002):

- Possible reusability in architecture:

Patterns and styles are a way to reuse

software development knowledge on

different levels of abstractions. So it is

possible that a given system described with

different styles. Style selection has specific

importance in developing software systems.

- Early decision making of designation:

Software architecture includes high level

decisions and trade–off that leads to

produce a software system and define its

characteristics. The studies show that the

expense of correcting a discovered error

along the requirements recognition phase or

in the architecture phase is more less than

correcting that error when the testing phase.

- Architecture as a means of relation

between the system stakeholders: Software

architecture system can be a common view

of all stakeholders. If they have the same

idea regarding the developed software, they

can have a common base for discussion and

evaluating the system.

2.3 Objectives and Motivations

Currently, the software architecture was designed

with an arbitrary ADL and arbitrary architectural

style and integrated into a given MDA platform.

However, a rigorous quality evaluation of

architectural styles is not considered by the model-

driven software architecture integration. This results

to basic drawbacks:

- The poor architecture quality results from

employing wrong architectural style for

quality improvement,

- Difficulty in meeting quality designs such

as efficiency and maintainability,

- The quality software management depends

on their architectural styles and

implementation platforms.

These disadvantages can be tided, if we

introduce architecture evaluation concerns in the

model-driven software architecture as configuration

inputs and apply a formal quality evaluation at the

ARCHITECTURAL STYLES QUALITY EVALUATION AND SELECTION

architecture design step and not as an afterthought

during the transformation for the final system.

3 PROPOSED METAMODEL

In order to build a solid system, it is essential to

systematically take into account all the reflections

regarding the system at the architecture design step

and not as an afterthought during the transformation.

From this point of view, we can not describe

software systems with an arbitrary architectural style

but we must select one style among various. Of

course, style provides guidance for building a broad

class of architectures in a specific kind of system,

but what are the benefits that the software system

gains? An architectural style, answers the

architecture design needs and its quality

characteristics. Therefore, we suggest placing the

architecture quality evaluation as control-center for

designing software architecture systems.

3.1 Description of ArchRQMM

In order to support the evaluation of quality of

architectural artifacts produced in architectural level,

we have defined mainly three complementary

models. We use software architecture model to

describe architectures based on the core concepts in

each ADL, we use requirement model to represent

architect’s needs and the quality goals and we use

architecture quality model to evaluate and analyse

the quality of the whole software system as well as

its architectural artifacts. The key-idea of the

proposed metamodel is the combination of

measurable standards at the level of architecture

with OCL constraints, resulting to the overall

software system quality increase and conformance.

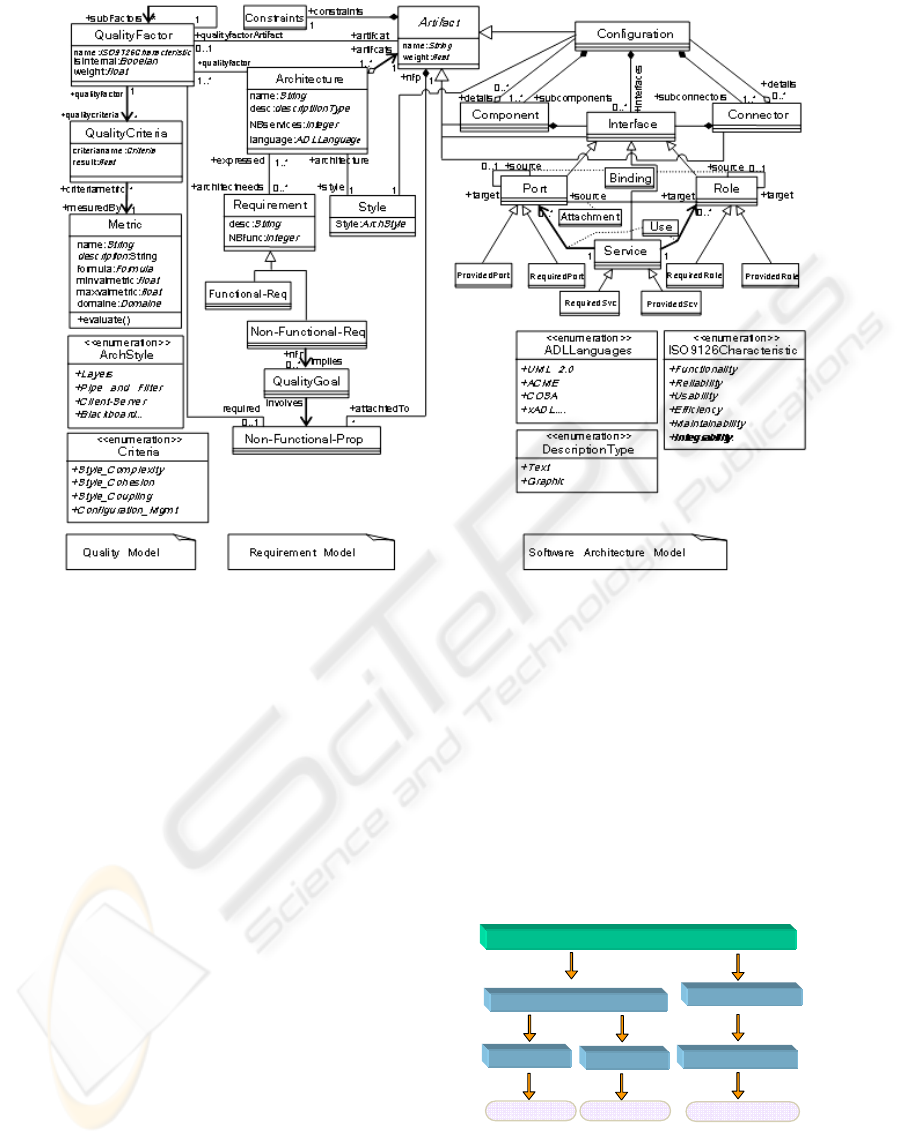

3.1.1 Software Architecture Model

The core elements of the software architecture

model are components, connectors and

configurations; each of these elements has an

interface to interact with its environment as shown

in Figure 1. Besides, the abstract class Artifact

gathers all the structural and behavioral information

that is shared by components, connectors, and

configurations and therefore does not have

conceptual correspondence in traditional

architectural models. Architecture may be composed

of many artifacts. Components are potentially

composite computational encapsulations that support

multiple interfaces known as ports. Ports are bound

to ports on other components using first-class

entities called connectors, which have the so-called

roles that are attached directly to ports.

Configurations are the abstractions that represent

graphs of components and connectors. Attachments

define set of port/role associations. Bindings connect

two interfaces of the same type (two ports or two

roles). Architectural styles define sets of types of

components, connectors, properties, and sets of

constraints on how they can be combined. The

software system can be described by an architecture

with different styles. We have selected four styles

Layers, Pipe-Filter, Blackboard, and Client-Server

(Buschman, Henney and Schmidt, 2007) because

they are the most commonly used in practice and

they represent a number of different domains and

concerns. Layers demands grouping of components,

Pipe-Filter handles streams of data, Client-Server is

frequently used in distributed systems, and

Blackboard is for dynamic configurations. Although,

we limit ourselves to only four styles, we emphasize

that our metamodel is not meant to be exhaustive.

3.1.2 The Requirement Model

The architect’s needs (Requirement class) should

fulfil particular architecture artifacts (Artifact class

in the model). Usually the necessities of a software

system are divided in to two groups: Functional

requirements and Non-Functional requirements.

Functional requirements define the functional and

executive purpose of the system. Non-functional

requirements mostly focus on how a software system

works and performs. In our case, functional

requirements derived from the architect’s needs and

non-functional requirements are more related to the

problem’s environment or context such as the

system’s operational environment and the problem’s

real word. Non-functional-requirements are

associated with a quality goal (QualityGoal class)

that must be satisfied to ensure the accomplishment

of the functionality in the final software product.

The non-functional-properties (Non-Functional-

Prop class), which are related to quality

requirements are formalized using the standard ISO-

9126 (ISO-IEC, 2001). Based on final quality aims,

the developed architecture for a given software

system can be evaluated to satisfy quality goals.

3.1.3 Software Architecture Quality Model

The model defines the quality of the whole software

system as well as its architectural artifacts in terms

of quality factors and associated metrics that are

formal measured attributes of the software. An

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

Figure 1: The ArchRQMM meta-model.

instance of QualityFactor class is the root of quality

factors and sub-factors, and represents a given

quality perspective. Each quality factor is associated

with quality criteria (QualityCriteria class); it shows

the technical concepts that must be investigated at

the level of architecture to ensure quality. Each

quality criteria is associated with quality metrics

(Metric class), which represents values of metric for

a given architectural artifact.

Such model covers the factors and sub-factors

based on the quality standard ISO-9126 (ISO-IEC,

2001). Based on the norm ISO-9126, Losavio et al.

(Losavio, Chirinos, Lévy, Ramdane-Cherif, 2003)

defines six characteristics: functionality, reliability,

usability, efficiency, maintainability and portability.

They address the specification of software

architecture requirements and its quality

characteristics. However, this model has number of

limitations including: many of the factors suggested

by this model are not directly related to the specific

issue of integration contributed to the malfunction

modes of software architecture, it separates the

concepts of modularity and coupling whereas the

modularity of software architecture is related to the

components depending. Making software

architecture more modular is not sufficient if it has

uncouple functions, which will provide low

modularity conditions.

To overcome these limitations we propose a

model that is based on the factor “criteria and

metrics” as shown in Figure 2. The sub-factors of

software architecture may be decomposed into two

quality sub-factors: modularity and analyzability.

Each sub-factor may be further expressed by a set a

set of lower level quality metrics, which are directly

measurable. Although, we limit ourselves to only

three criteria’s, we emphasize that our software

architecture quality model is not meant to be

exhaustive.

Maintainability

Modularity

Coupling

Cohesion

Analyzability

Complexity

Coupling Metric

Cohesion Metric

Complexity Metric

Factors

Sub-Factors

Criteria

Metrics

Figure 2: Software architecture integration framework.

Architecture Modularity. The sub-factor can be

evaluated by controlling the modularity level of the

system. The architecture modularity depends on the

ARCHITECTURAL STYLES QUALITY EVALUATION AND SELECTION

configuration, component and connector modularity.

Indeed an architecture whose configuration has a

good modularity if its components and its connectors

have good modularity. If the system has been

divided correctly to suitable modular, the software

system can be analyzed more easily.

At the architecture level, this factor can be

measured with criteria, named coupling and

cohesion. In paper (Jihuna, Zhenbo, Zhao, Zhenhua

and Ruijin, 2007.) these two metrics are proposed

for measuring architecture stability. We adopted

these metrics and used in our model. The coupling

of the architecture is a global property relative to the

exchanges between two components. Consider T the

set of different artifacts types of the style S, and n is

it’s the set size. The artifact type T

∈T (i = 1,...n) is

instantiated into the set A

= {a

i,1

, … a

i,m

}, and m is

its the set size. The weight of the type T

is its impact

on the architecture reconfiguration by hiding

dependencies at different layer of abstraction. We

use the ROC (Rank Order Centroids) concept to

measure a weight of the artifact type T

(

)

niTweightType

)1()(

∑

(1)

The weight of an artifact a

k,j

is its degree in the

architecture defined as follows:

mTweightTypeaweight

kjk

/)()(

(2)

The architecture-based coupling metric for the

style S is defined as follows:

TTCop

StyleCop

STT

−

∑

∈∀

),(

(3)

where Cop (T

1, T2) is the coupling of the artifact type

1 to the artifact type T2 defined as follows:

∑

∈∀∈∀

2,21

,2,121

),(),(

AaAa

aaCopTTCop

(4)

and Cop (a

1,i

, a

2,j

) is the coupling of an artifact

instance a

1,i

to an artifact instance artefact a

2,j

defined as follows:

∑

jil

aaassoc

aassoc

aaCop

,2,1

),(

)(

),(

(5)

Attachments/bindings associations (assoc)

connect port and role of the different/same types are

assigned same weights (weights = 1). Components,

connectors, configurations stand for artifacts a

and

instantiated of respective types T

and T

. At the

architecture level, low architectural configuration

coupling is considered to be a desirable quality for a

modular software system.

The cohesion expresses the number of

components that depend on other components in a

given architecture. The architecture-based cohesion

metric for the style S is defined as follows:

TCoh

StyleCoh

)(

∑

∈∀

(6)

where Coh (T

) is the cohesion of the artifact type T

defined as:

∑

∈

×=

iji

ijii

aCohaweightTCoh

)()()(

(7)

and Coh (a

i,j) is the cohesion of the artifact instance

i,j defined as:

∑

jil

jik

aassoc

aettassoc

aCoh

)(

)(arg_

)(

(8)

Attachments and bindings represent different

associations (assoc) that join different artifacts

instances together (resp. components instances,

connectors instances, configurations instances) and

assoc_target is the number of provided ports (resp.

provided roles) of an artifact instance "a" connected

as Target ports (resp. Target roles) of

attachments/bindings associations with all other

artifacts in the architecture.

High cohesion and low coupling are the main

facts to take into account for achieving modular

architecture when applying styles. Apply these basic

principles can makes a design understandable,

maintainable, and of higher quality. High cohesion

and low coupling are the main facts to take into

account for achieving modular architecture when

applying styles. Apply these basic principles can

makes a design understandable, maintainable, and of

higher quality.

The architecture-based modularity sub-factor for

the style S is expressed as follows:

StyleCopStyleCohStyleMod

(9)

Architecture Analyzability. Analyzability

emphasizes on possible recognition of manners and

deficiencies of an architecture. This sub-factor also

tries to define the parts that must be corrected. The

complexity indices for conforming style

understandability and analyzability. It is believed

that high complexity architecture should have high

analyzability. The proposed measure of architecture

complexity is based on the criteria, named structural

dependency measures inspired by complexity metric

dedicated to Component-Based Architecture

(Böhme

and Reussner, 2008). We adopted this metric and

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

used in our model. The structural dependency

measure for each artifact a

in the architecture is

obtained as follows:

∑∑

jiDepTjiDepaSDM

max

),,(),()(

(10)

Where components instances, connectors

instances, configurations instances stand for artifact

. The measure of the strength of association

established by a path (i.e. direct and transitive

connection) from an artifact a

to all other artifacts in

the system is defined as its structural dependency

measure. Attachments and bindings represent direct

dependency edges. Consequently, the sum of

weighted structural dependency measures of all

artifact instances of the type Ti is defined as:

∑

∈∀

×=

jii

aSDMaweightTSDM )()()(

(11)

Finally, the style structural complexity,

StyleComp, is defined as the mean SDM of all

artifacts types:

TSDM

StyleComp

∑

∈∀

)(

(12)

The architecture-based analyzability sub-factor

for the style S is the architecture-based complexity

metric defined as follows:

StyleCompStyleAna =

(13)

According to the choice made of the factors of

quality and their measurement, we define the

function Quality which measures the quality of the

architecture for a given architectural style as a linear

combination of each evaluated measure function.

The weight associated with each function allows the

software architect to modify the importance of each

quality sub-factor. The final quality of the style S is

defined as follows:

StylehAn

StyleModQuality ∗+∗=

αα

(14)

With such evaluation, an architectural style that

needs to be revised and improved can be determined

and then given a suitable attention.

3.2 OCL Constraints

In order to assess the quality of software architecture

models on modeling architectural styles in the

context of all requirements as well in the context of

selected requirements or factors, we use OCL 2.0

(Object Management Group, 2005) language to

specify the properties and verify the model.

The focus of rigorous architecture quality

analysis is to prevent the non-required affections

after the design step before the early phases of

system development. For example, the configuration

modularity, architectural style stability and

maintenability are given by the following

constraints:

A configuration provides an acceptable

modularity if all its subcomponents and its

subconnectors present a high level of cohesion and a

low level of coupling.

Context ArchRQMM:Configuration inv: --Constraint C1

self.qualityfactorArtifact.subfactors.qualitycriteria

->exists->(sf|sf.name= #Modularity) implies

(self.subcomponents.qualityfactorArtifact.

qualitycriteria->select(c.criterianame=#Cohesion

implies c.result >=0.5) -> notEmpty() and

select(c.criterianame= #Coupling

implies c.result <=0.66) -> notEmpty()) and

(self.subconnectors.qualityfactorArtifact.

qualitycriteria->select(c.criterianame=#Cohesion

implies c.result >=0.5) -> notEmpty() and

select(c.criterianame= #Coupling

implies c.result <=0.66) -> notEmpty())

An architectural style is stable if all its

architectural artifacts present a high level of

cohesion (i.e. 1)

Context ArchRQMM:Style inv: -- Constraint C2

self.architecture->forall(a|a.artifacts

->forAll(a|a.qualityfactorArtifact.qualitycriteria->

select(c|c.criterianame=#Cohesion implies

c.result=1)->notEmpty())) implies

self.architecture.qualityfactor->includes(#Stability))

An architectural style that provides an acceptable

maintainability must have structural complexity less

than predefined threshold (the result exceeds such a

threshold, a decision should be made about to

elaborate a different (better) architectural style).

Context ArchRQMM:Style inv: -- Constraint C3

self.architecture->forall(a|a.artifacts

->forAll(a|a.qualityfactorArtifact.qualitycriteria->

select(c|c.criterianame=#Complexity implies

c.result<=c.threshold)->notEmpty())) implies

self.architecture.qualityfactor->includes(#Analyzability))

3.3 The Evaluation and Selection of

Architectural Styles

The process of the evaluation and selection started

with designing the architecture model conforms to

the software architecture ArchRQMM metamodel,

next producing the quality model conforms to the

software architecture quality metamodel by

measurement done for each architectural artifact for

a given factor in the context of associated

requirement, for a given criteria with associated

metric. After that, the model is evaluated by the

semantic constraints defined by the ArchRQMM

metamodel. An important feature of the

ArchRQMM metamodel is the possibility of

architecture model(s) checking. This is verified by

OCL constraints that can be checked for a given

requirement, criterion, artifact, and for the whole

software architecture (i.e. set of artifacts). The

ARCHITECTURAL STYLES QUALITY EVALUATION AND SELECTION

results can influence the quality of architecture

model. Two ways of using the ArchRQMM are

possible:

- Formal Verification: The ArchRQMM

metamodel is used for evaluating an

architecture model. The architecture model

is tested and validated with the semantic

constraints defined by the metamodel. If the

verified architecture model gets bad marks

then the design process can be stopped or it

returned to the previous stage either to

change requirements or to elaborate a

different (better) architectural style.

- Quality Evaluation and Selection: The

ArchRQMM metamodel is used for

selecting the best architectural style from

different choices. In this case the values of

a metric are used classifying the models. In

this case a metric formula gives a note for

the architecture with each of the given

styles. The values of the metric function are

used to classify the models and to choose

the suitable one. After that, the selected

architectural style is evaluated by the OCL

constraints to remove any violation.

4 CASE STUDY AND

EVALUATION

In order to validate the proposed metamodel, we

developped ViSAQE: (Visual Software Architecture

Quality Evaluator) prototype in Eclipse 3.2. The

prototype tool supports creating and managing

architectures with different styles, allows graphical

representation of architectures and interoperability

of models using different ADLs through standard

XMI, enables the automatic evaluation of

architectural metrics and offers to the architects the

possibility to elaborate quality models and to

validate its semantics with ArchRQMM.

In current version, it translates the ACME

models (Klein, Clements, and Kazman, 2002)

supported by three styles: Client-Server, Pipes-

Filters, Pipes-Filters and Client-Server and provides

a common language for describing formal semantics

with OCL. To illustrate the application of the

ViSAQE for both evaluation and selection of an

architectural style we use the CaPiTaLiZe system

(

Abi-Antoun, Aldrich, Garlan, Schmerl, Nahas, Tseng,

2005) as an example. The following architect

requirements are considered:

- Recording, rewriting, updating source data

and creating respective target data.

- The system should be easy maintained.

The first requirement is functional requirement

while the second is non-functional. According to

ArchRQMM all these requirements should be

associated with a respective architecture quality

model with selected quality factors. In our case

study, for illustration only non-functional

requirements is taken into account. The architect

developer selected to use the maintainability factor

with analyzability and modularity sub-factors. For

the CaPiTaLiZe system, the model is designed with

the prototype tool using three styles, as shown in

Figure 3, Figure 4 and Figure 5. We have evaluated

each kind of XMI-based models with similar

measurements of the whole architecture of the basic

metrics described in a previous section. The

evaluation results are given in Table 1. According

to the results given in Table 1, Pipe-Filter style turns

out to be the best choice (scored better for coupling

and complexity). This result is practically significant

as well related to maintainability effort, e.g. low

level of coupling, dependencies among all artifacts

are losse, high number of reused artifacts (ex.

number of Pipe connector instances = 4).

Architecture complexity can be simplified by hiding

dependencies at different layers of abstraction. An

example of that is the combination of two

architectural styles: Pipe-Filter and Client-Server.

Table 1: Architectural Styles Evaluation Results.

Metrics C-S Pipe-Filter

C-S and

Pipe-Filter

Coupling 0.748 0.482 0.606

Cohesion 0.450 0.341 0.402

Complexity 0.513 0.362 0.447

From a maintenance perspective, this allows

maintainers to modify and change components

behind other artifacts types (e.g. Connector Pipe)

with minimal impact on the rest of the system.

The selected architectural style (i.e. Pipe-Filter)

for the final mapped system as shown in figure 6 is

tested and validated with the semantic constraints

defined by the ArchRQMM metamodel.

5 CONCLUSIONS

This paper defines ArchRQMM: a metamodel for

evaluating and selecting an appropriate architectural

style and formally evaluating architectural styles.

We have also illustrated the usefulness and

importance of non-functional requirements and

quality criteria in selecting architectural style. We

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

OUT

InstanceOf

PipesAndFilters_Style

ccep

edData: String

LowerT

Upper

OUT

Mer

Upper

Lower

Upper

UpperT

Lower

FilterT

OUT

Lower

SplitterT

Upper

{?} All the connectors used in Pipe and Filter Systems must conform to the PipeT connector type.

Context Configuration inv: self.subconnectors ->forAll (c|c.oclIsKindOf(PipeT))

{?}

A filter cannot be connected to a pipe through more than one IN/OUT port, nor can

connected filters form a loop.

PipeT

Source

Target

Lower

Context PipeT in

self.source->notEmpty() and

self.target ->notEmpty()

Context FilterT inv:

self.IN->notEmpty() or

self.OUT ->notEmpty()

OUT

Source

InputData

OutputData

Capitalization_1: PipesAndFilters_Style

:SpliterT

Upper

Source

:Mer

Lower

:PipeT

Lower

: UpperT

Upper

Lower

: LowerT

Upper

Lower

Upper

Source

Target

:FilterT

Target

OUT

Source

:FilterT

Target

Source

:PipeT

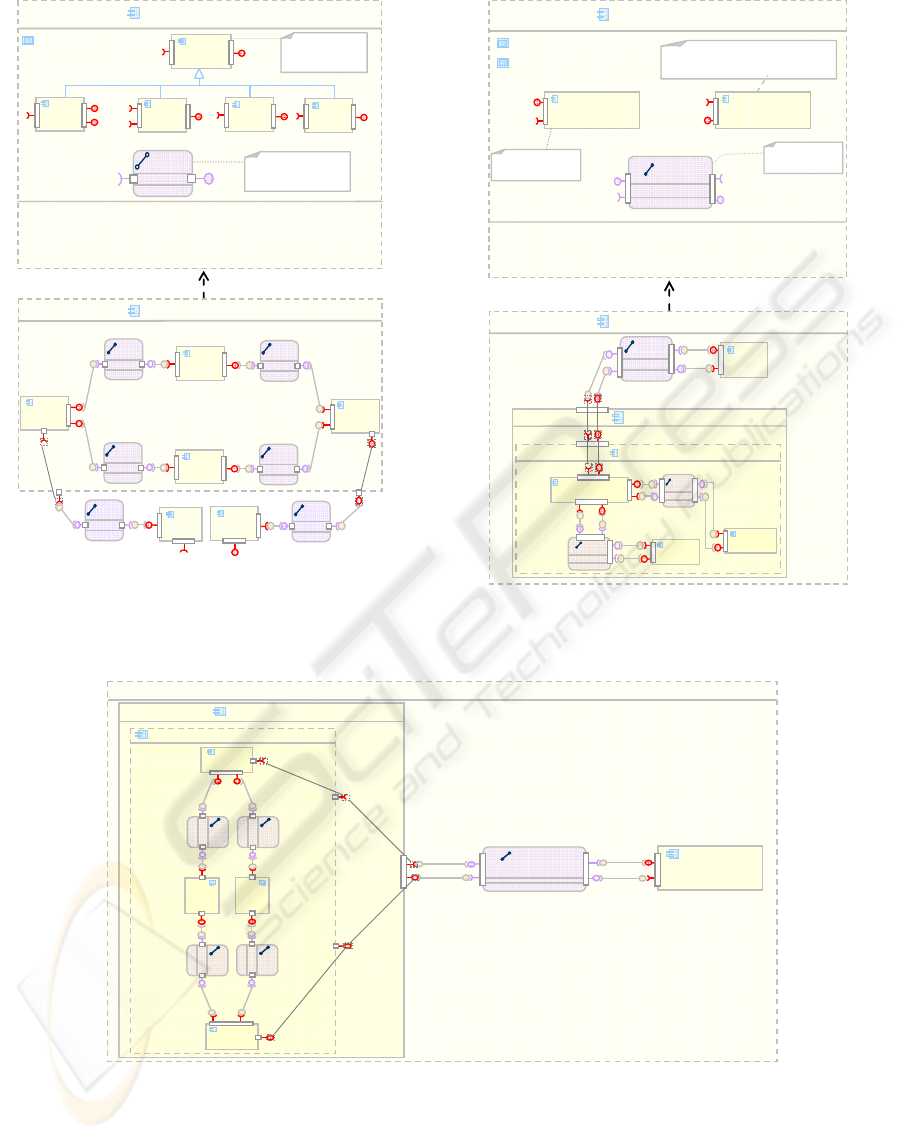

Figure 3: Capitalize System of Client-Server Architectural

Style in ArchRQMM.

InstanceO

[1] One configuration can be defined for the

Server Component

Context Component inv: self.details ->size <=1

: ServerT

: SpAndMg

Capitalization_2: ClientServer_Style

: ClientT

: RPC

Lw: ServerT

Server-Configuratio

rcvResul

sendData

etData

rcvData

sendResult

setResul

setData

etResul

sendResult

rcvData

sendResult

rcvData

sendResult

rcvData

sendResult

setData

etResut

etData

setResut

etLower

setResult

etData

setResult

etResult

setData

:RPC

DemandData: Strin

ClientServer_Style

ClientT

rcvResult

sendData

Request

ServerT

rcvData

sendResult

Response

Context Client inv:

self.Request->notEmpty()

setData

RPC

setResult

getData

getResult

Input

Output

{?}

A client’s sendData provided port is connectable to the RPC’s getData required role, and its

required port rcvResult is connectable to a RPC’s setResult provided role.

{?}

RPC’s setData provided Role is connectable to a server’s rcvData required port and its

required role setResult

is connectable to a server

’

sendResult

provided port

Context RPC inv:

self.output.size() = 1

Figure 4: Capitalize System of PipesAndFilters

Architectural Style in ArchRQMM.

Capitalization_3: PipesAndFilters_and_ClientServer_Style

:SpliterT

:PipeT

:LowerT

:PipeT

:MergerT

:PipeT

:UpperT

:PipeT

SplitterMer

e_PipesAndFilters_Confi

uratio

:RPC

: ServerT

rcvResult

sendData

Result

getData

getResul

sendResul

InputData

OutputData

OUT

Upper

Lower

setData

rcvData

Lower

ourc e

Tar get

Upper

ource

Tar ge t

ource

Tar ge t

ource

Tar get

Lower

Upper

Lower

: ClientT

Figure 5: Capitalize System of PipesAndFilters and Client-Server Architectural Style in ArchRQMM.

presented an illustrative example to show the

applicability of the proposed architecture quality

metamodel. The results of the experiments (based on

the Capitalize system with two known styles through

ACME ADL) are encouraging. Since most ADLs

provide important capabilities to express most

structural aspects of software systems but lack

support for architectural styles verification, having a

semi-automated tool to assist in quality evaluation

and selection of architectural styles is very important

ARCHITECTURAL STYLES QUALITY EVALUATION AND SELECTION

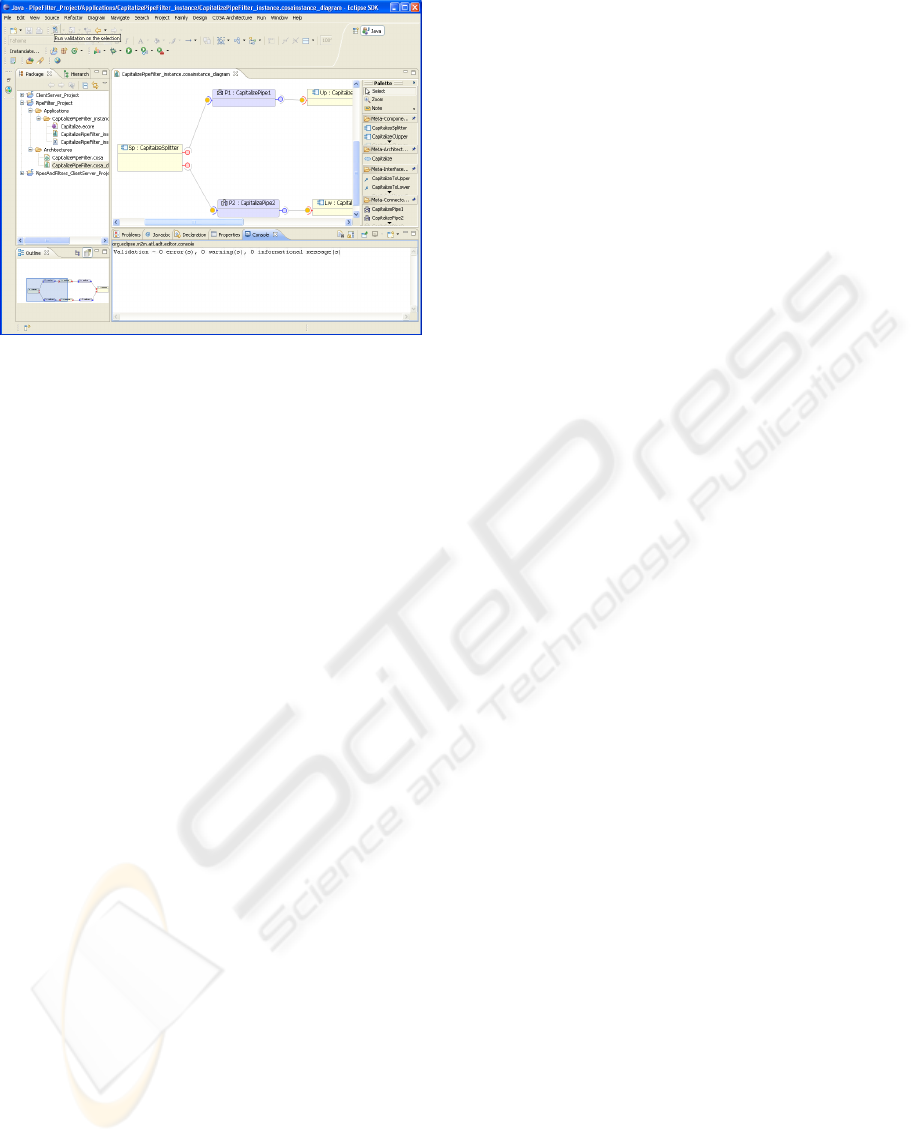

Figure 6: Validating Capitalize system of Pipe-Filter in

ArchRQMM with ViSAQE.

in software architecture research area.

The limitation of our current approach is the fact

that it only deals with structural properties of

architectural styles and, therefore, it does not support

architectural behavior, automatic generation of

alternatives application models. These are open

issues for our future works.

RFERENCES

Abi-Antoun, M., Aldrich, J., Garlan, D., Schmerl, B.,

Nahas, N., Tseng, T., 2005. Modeling and

Implementing Software Architecture with Acme and

ArchJava. In the 27

International Conference on

Software Engineering, pp.663-669, St Luis, USA.

Alessandro G., Thais, A.B., Awais, R.S., 2006. Driving

and managing architectural decisions with aspects.

ACM SIGSOFT Software Engineering Notes, Vol. 31

No. 5, pp. 30-37.

Alti, A., Khammaci, T., Smeda, A., Bennouar, D., 2007.

Integrating Software Architecture Concepts into the

MDA platform. In ICSOFT’2007, 2

Int. Conf. on

Software and Technologies, Barcelona, Spain.

Böhme, R. Reussner, R. 2008. Validation of Predictions

with Measurements three Dependability Metrics.

Springer-Verlag, LNCS 4909, pp.14-18.

Buschman, F., Henney, K., Schmidt, D., 2007. Pattern-

Oriented Software Architecture, on Patterns and

Patterns Languages. Wiley Series in Software Design

patterns, Vol.5, August 2007.

Garlan, D., Monroe, R.T., David, W., 2000. ACME:

architectural description of component-based systems.

In Foundations of component based systems, pp. 47–

67. Cambridge University Press.

Grau, G., Franch, X., 2007a. An Evaluation of ADLs on

Modelling Patterns for Software Architecture. In

RISE’07, 3

Int. Workshop on Rapid Integration of

Software Architecture Engineering, Luxemburg,

LNCS 4063, Springer-Verlag, pp. 24-26.

Grau, G., and Franch, X., 2007b. A Goal-Oriented

Approach for the Generation and Evaluation of

Architectures Alternatives. LNCS, pp. 139-155.

ISO-IEC., 2001. ISO/IEC 9126-1 in Software

Engineering– Part 1: Quality model.

Jihuna, L., Zhenbo, G. Zhao, Z., Zhenhua, Z., Ruijin, P.,

2007. Towards Quantitative Evaluation of UML based

Software Architecture. In 8

ACIS International

Conference, pp.663-669.

Klein, M., Clements, P., and Kazman, R., 2002.

Evaluation Software Architectures: Methods and Case

Studies, Addison Wesley.

Losavio, F., Chirinos, L., Lévy, N., Ramdane-Cherif, A.,

2003. Quality characteristics for software architecture.

Journal of Object Technology, Vol. 2, No.2, pp.133-

150.

Object Management Group., 2005. UML OCL 2.0

Specification: Revised Final Adopted Specification.

http://www.omg.org/docs/ptc /05-06-06.pdf.

Tibermacine, C., Fleurquin, R., and Sadou, S., 2006. On-

Demand Quality-Oriented Assistance in Component-

Based Software Evolution, In the 9th ACM SIGSOFT

CBSE'06, Västeras, Sweden, pp. 294 - 309, LNCS

4063, Springer-Verlag.

Zudan, U., Avgeriou, P., 2008. A Catalog of Architectural

Primitives for Modeling Architectural Patterns,

Information and Software Technology, Vol. 50, pp.

1003F - 1034.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies
