VISUAL ATTENTION IN 3D SPACE

Using a Virtual Reality Framework as Spatial Memory

M. Zaheer Aziz and B

arbel Mertsching

GET Lab, Universit

at Paderborn, 33098 Paderborn, Germany

Keywords:

Visual attention, Virtual reality simulator, 3D space, Spatial memory, Robotic vision.

Abstract:

This paper presents a conceptual framework to integrate a spatial memory, derived from a 3D simulator, with

a visual attention model. The proposed system is inspired from brain research that explicitly accounts for

the use of spatial memory structures in intelligent object recognition and navigation by humans in the three

dimensional space. The experiments presented here extend the capability of visual attention modeling to work

in 3D space by connecting it to simulated maneuvers in virtual reality. The introduction of this concept opens

new directions for work to reach the goal of intelligent machine vision, especially by mobile vision systems.

1 INTRODUCTION

Spatial memory is an important part of the human

brain that is responsible to store three dimensional

structures of environments, landmarks, and objects

(Moscovitch et al., 2005). The stored environments

in this memory help during navigation through known

routes and maps like walking through corridors or

driving through streets of everyday routine. The ob-

ject data in this memory is also useful for collision

avoidance in an automatic way, for example during

car driving a decision to overtake a long vehicle is

made quite involuntarily after estimating the vehi-

cle’s length using its memorized 3D model recalled

by looking at its rear only.

Construction of scenes and objects in the spatial

memory has a close relation with visual attention.

Research on vision systems of primates reveals that

the natural vision views and recognizes objects (es-

pecially large ones) by ﬁxating on their constituent

parts rather than perceiving them as a whole. This is

managed by the visual attention mechanism that se-

lects salient portions of objects (or scenes) and fo-

cuses upon them one after the other. In artiﬁcial vi-

sion systems, such selective viewing can help to ﬁlter

out redundant and non-relevant data.

This paper presents design of a memory driven vi-

sion system that integrates artiﬁcial visual attention

with a 3D spatial memory. A robotic vision system

able to perform overt visual attention will focus on

salient objects or their visible parts and use this vi-

sual information to activate the complete 3D model

of the object from the spatial memory. Utilization of

a virtual reality simulation framework is proposed as

storage mechanism for the learned environments and

objects. Such a proposal not only leads to knowledge

driven machine vision but introduces a very useful

utility of 3D simulation engines as well.

Literature in psychophysics has described the role

of spatial memory and its role in navigation, object

recognition, self localization, and intelligent maneu-

vers. The work presented in (Oman et al., 2000)

shows capability of learning three dimensional struc-

ture not only by looking at the target object or envi-

ronment from different directions but by imagining to

view it from these orientations as well. The ability of

the brain to visualize a scene from an orientation in

space that was not actually experienced by it is shown

in (Shelton and Mcnamara, 2004). A relation between

visual attention and spatial memory is established in

(Aivar et al., 2005) with a conclusion that a detailed

representation of the spatial structure of the environ-

ment is typically retained across ﬁxations and it is also

used to guide eye movements while looking at already

learnt objects. Formation of object representation by

human vision through snapshots taken from different

view angles is discussed in (Hoshino et al., 2008) and

it is suggested that such procedure is followed only

for the objects under visual attention while the unat-

tended scene may be processed as a 2-D representa-

tion bound to the background scene as a texture.

The natural visual attention mechanism rapidly

analyzes the visual features in the viewed scene to

determine salient locations or objects (Treisman and

471

Zaheer Aziz M. and Mertsching B. (2009).

VISUAL ATTENTION IN 3D SPACE - Using a Virtual Reality Framework as Spatial Memory.

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 471-474

DOI: 10.5220/0002247204710474

 SciTePress

(a) (b) (c)

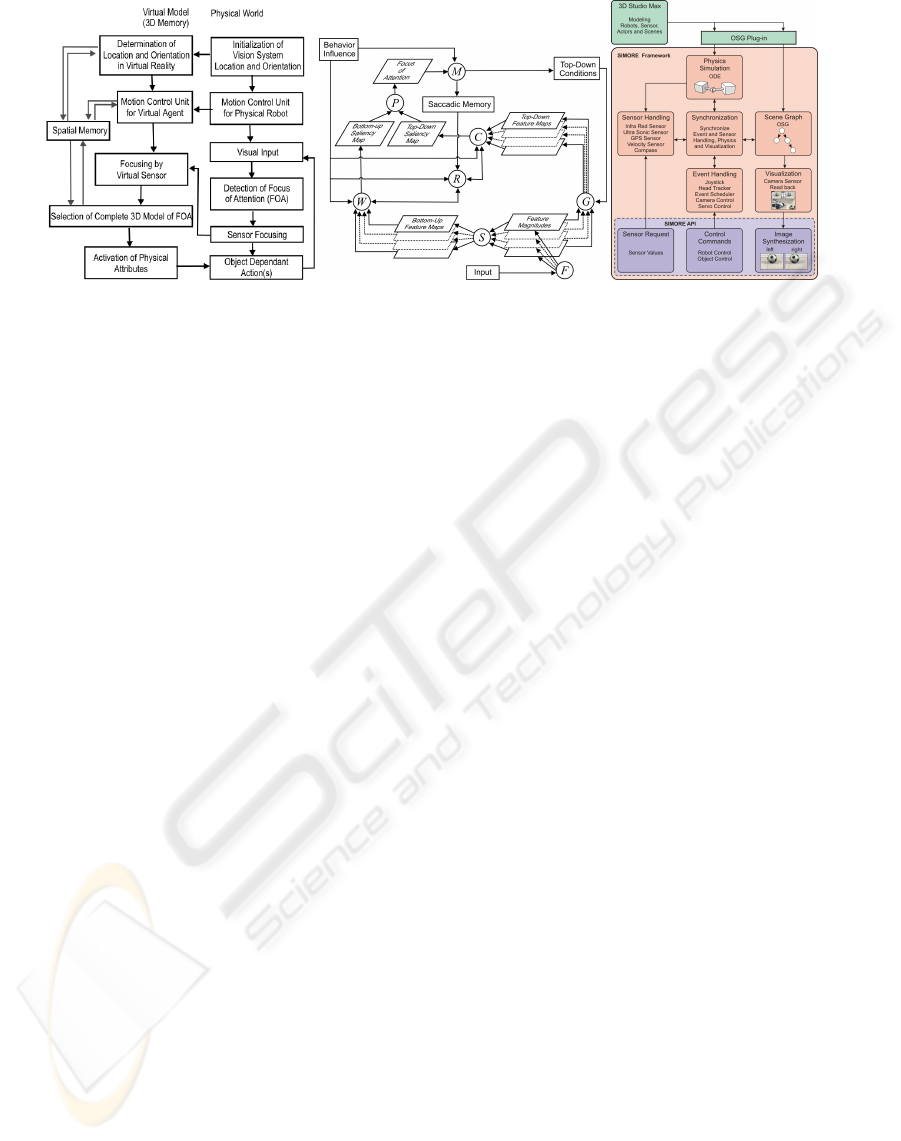

Figure 1: (a) Proposed model for integrating visual attention with 3D spatial memory. (b) Architecture of the region-based

attention model used as the selection mechanism for regions of interest in real world (Aziz and Mertsching, 2007). (c)

Architecture of the simulation framework SIMORE that is used as spatial memory of the mobile robot (Kutter et al., 2008).

Gelade, 1980)(Wolfe and Horowitz, 2004). After at-

tending the current focus of attention a process of in-

hibition of return (IOR) (Cutzu and Tsotsos, 2003)

suppresses the attended location so that other less

salient objects may also get a chance to be attended.

Existing attention models have shown success in se-

lection and inhibition of return in two dimensional

view frames. The natural visual attention, on the

other hand, works in three dimensional world despite

its perception of a two dimensional projection on the

retina. In order to make advancement in the state-of-

the-art, the model proposed in this paper attempts to

integrate a spatial memory with the visual attention

process in order to extend the scope of attention and

IOR towards 3D.

2 PROPOSED MODEL

The objective of the current status of the proposed

model is to associate a spatial memory to the visual

attention process and activate the three dimensional

structure of the attended object for use in decision

making procedures. Figure 1(a) shows the architec-

ture of the proposed model. As this model involves

visual attention and a spatial memory to perform its

task, the design of the two involved components is

also discussed here.

The architecture of the attention model is pre-

sented in ﬁgure 1(b). The primary feature extrac-

tion function F produces a set of regions (Aziz and

Mertsching, 2006) and associates feature magnitudes

of color, orientation, eccentricity, symmetry, and size

with each region. Computation of the bottom-up

saliency using rarity criteria and bottom-up contrast

of region features with respect to its neighborhood

is performed by the group of processes S (see (Aziz

and Mertsching, 2008a) for details) whose output is

combined by the procedure W . The function G con-

siders the given top-down conditions to produce ﬁne

grain saliency maps that are combined by the function

C. The function P combines the saliency maps into

a master conspicuity map and applies a peak selec-

tion mechanism. Inhibition of return (IOR), denoted

by R, suppresses the already attended location(s) us-

ing a saccadic memory. Explanation of the internal

steps and functions of this attention model can be

seen in (Aziz and Mertsching, 2007) and (Aziz and

Mertsching, 2008b).

The simulation system used as spatial memory is

a 3D robot simulation framework SIMORE (SImula-

tion of MObile Robots and Environments) developed

in our group (Mertsching et al., 2005) (Kutter et al.,

2008). Figure 1(c) shows its architecture with its ma-

jor components exposed. The core of simulator is

based upon the open source library Open Scene Graph

(OSG) (Burns and Osﬁeld, 2004) which is a hierarchi-

cal graph consisting of drawable meshes in a forward

kinematic order. The physics simulation component

represents the dynamic engine for collision detection

and force based physics using Open Dynamics En-

gine (ODE) which is an open source library for simu-

lating rigid body dynamics (Smith, 2009). Extensions

for sensor and meta information have been done using

specialized nodes for these purposes. These enhance-

ments of the existing scene graph allows to rely on an

existing library and enables the system to import and

export from available 3D modeling software such as

3D Studio Max.

The simulation framework SIMORE has the abil-

ity to maneuver a simulated robot in the virtual en-

vironment by driving, taking turns, rotating its cam-

era head, and turning other movable sensors by con-

trol commands from an external computer program.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

472

The master control program, for example a compu-

tational model of visual attention, manipulates the

physical robot in the real world and maneuvers the

virtual agent in the simulation framework. Therefore

the simulated robot can act as an agent of the real plat-

form. The readings from the simulated sensors are ob-

tained according to their position and direction in the

virtual environment while they are aligned with the

physical ones. Such a mechanism allows the vision

system to recall a complete 3D model of an attended

object even by looking at only a part visible from the

current view angle.

According to the proposed model, the vision sys-

tem selects an object to attend from its viewed scene

and performs overt attention using its pan-tilt camera.

Whenever the vision system ﬁnds an object of interest

(or its part) it consults the spatial memory by look-

ing at the virtual scene through its simulated camera.

The visible features of the attended object in the real

camera view, information about location of robot (in

real and virtual environment), and angles of camera

direction can guide to pick the right object from the

virtual scene matching with the object under the fo-

cus of attention. Knowing the identity of the modeled

object its complete set of attributes will be loaded into

the working memory. Using the current status of our

experimental platforms we demonstrate a spatial inhi-

bition of return on the previously focused object(s) so

that they remain inhibited even after the robot motion

in 3D space.

3 CURRENT SYSTEM STATUS

In the current status, the interface between the visual

attention module and the simulation engine is suc-

cessfully established and work is underway to enable

the synchronized selection of the attended objects

from the spatial memory. We are able to present here

the expected results from the proposed model with

manual conﬁgurations in the synchronization part.

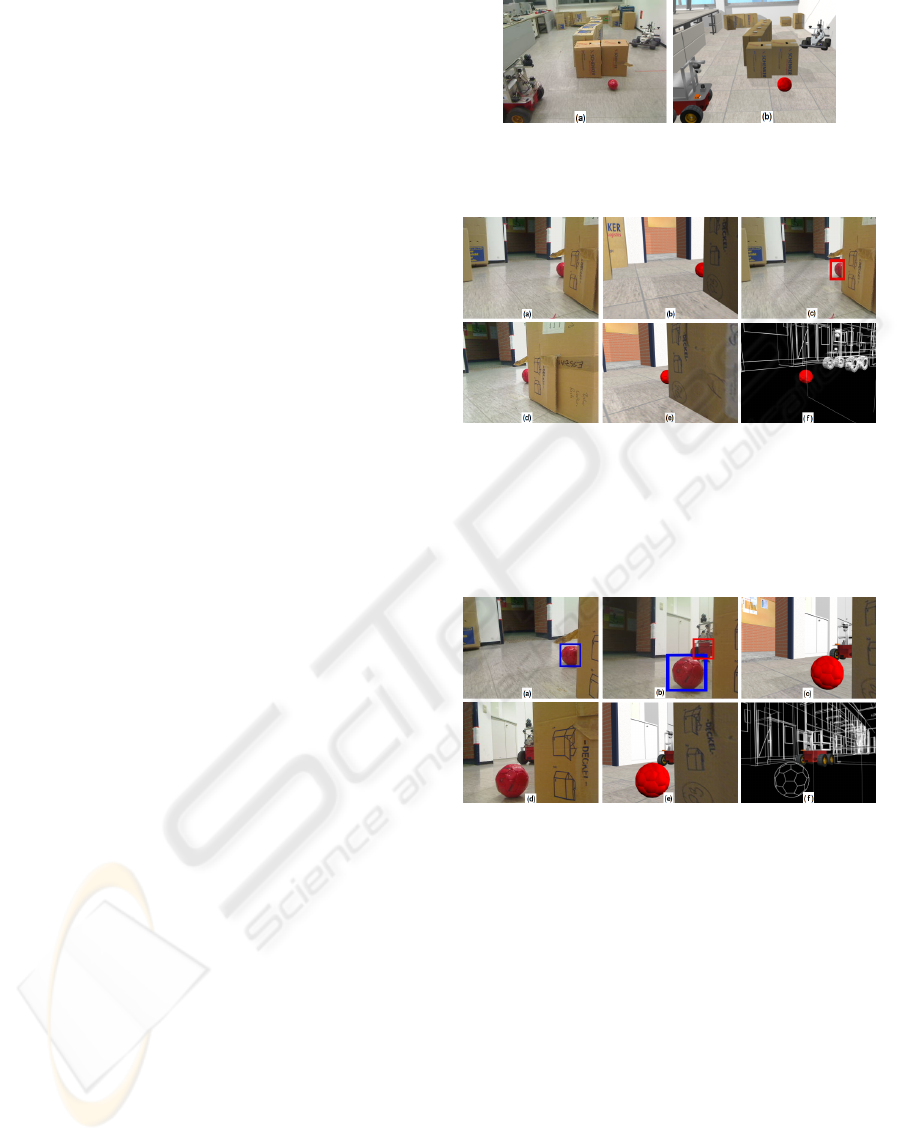

Figure 2 shows the arrangement in which the vi-

sion system appearing at the right side of the subﬁgure

(a) drives forward while searching for red objects (the

ball and the robot in the left-bottom corner). Figure

2(b) shows the global camera view of the arrangement

in the simulation framework.

Results of the ﬁrst attempt of attentional search

are provided in ﬁgure 3 in which subﬁgure (a) shows

camera view of real robot and (b) is the view from

the aligned simulated camera. Figure 3(c) shows the

region selected by the attention mechanism and (d)

shows the camera view after bringing the ball into

center of view frame. Figure 3(e) shows the virtual

Figure 2: Initialization of the robotic platform and align-

ment of the agent in terms of location and orientation. (a)

Real robot at initialization (b) Global view in virtual reality.

Figure 3: Results of ﬁrst attempt of attention. (a) Camera

view of real robot (b) Camera view of virtual robot (c) Fo-

cus of attention detected by real robot (d) Overt attention

to object of interest (e) View of the simulated environment

(spatial memory) after synchronized rotation of the simu-

lated camera (f) 3D model of ﬁrst FOA activated (inactive

objects are shown in wireframe).

Figure 4: Results of second attempt of attention. (a) Cam-

era view of real robot after moving ahead (previous FOA

inhibited). (b) After moving further ahead the second target

found (previous FOA still remains inhibited). (c) Aligned

camera view of virtual robot. (d) Overt attention to second

object of interest. (e) Orientation synchronization of simu-

lated camera. (f) 3D model of second FOA activated.

camera view after aligning it with the current status of

the real camera. Figure 3(f) demonstrates the selected

3D model from the spatial memory whose activation

not only exposes its hidden portion to the vision sys-

tem but its volume information as well.

Figure 4 shows results of the second attempt of

attention after moving ahead subsequent to attending

the ﬁrst target (the ball). The ﬁrst focus of attention

remains under inhibition of return during this attempt

(shown by dark (blue) rectangle). In subﬁgure (a) the

vision system moves ahead but no new object of inter-

est comes into view, whereas the already attended ball

VISUAL ATTENTION IN 3D SPACE - Using a Virtual Reality Framework as Spatial Memory

473

remains under inhibition of return due to the use of

spatial memory even when its 2D location in the view

frame and size has changed with respect to its last at-

tended instance. Figures 4(b) shows attention on the

second target whereas the ball is still under inhibition.

The subﬁgure (c) shows the view in the spatial mem-

ory after aligning its sensors to the real world. Fig-

ures 4 (d) and (e) demonstrate views in the real world

and the simulation framework after overt attention on

the second target while the activated model of the at-

tended object (the robot) can be seen in ﬁgure 4(f).

4 DISCUSSION

A conceptual framework of integrating a spatial mem-

ory with the vision procedures has been presented

here and the feasibility of using a 3D simulator as a

spatial memory is introduced. The area of integration

of vision and spatial memory, their interaction, and

cooperation needs to be explored further as there are

many issues to be resolved. For example the phys-

ical system can gain error of localization and orien-

tation over time due to inaccuracy in its sensors and

wheel slippages that lead to synchronization problem

between the real robot and its agent.

Using the spatial memory can increase the poten-

tials of vision in 3D world and intelligence in au-

tonomous decision making. Work needs to be done

for handling further complexities in the scenario. For

example, activation of the 3D models of objects will

be more useful when positions of movable objects

are not known in advance. Using the visual informa-

tion from the camera, the robot could recognize an

object and activate its whole model there. This can

be helpful in navigation planning while roaming in

known environments in which a bunch of known ob-

jects are moving around or located at arbitrary loca-

tions, for example 3D models of different types of ve-

hicles could be used for intelligent autonomous drive

on a known road map.

ACKNOWLEDGEMENTS

We gratefully acknowledge the funding of this work

by the German Research Foundation (DFG) under

grant Me 1289/12-1(AVRAM).

REFERENCES

Aivar, M. P., Hayhoe, M. M., Chizk, C. L., and Mruczek, R.

E. B. (2005). Spatial memory and saccadic targeting

in a natural task. Journal of Vision, 5:177–193.

Aziz, M. Z. and Mertsching, B. (2006). Color segmenta-

tion for a region-based attention model. In Workshop

Farbbildverarbeitung (FWS06), pages 74–83, Ilme-

nau - Germany.

Aziz, M. Z. and Mertsching, B. (2007). Color saliency and

inhibition using static and dynamic scenes in region

based visual attention. Attention in Cognitive Systems,

LNAI 4840, pages 234–250.

Aziz, M. Z. and Mertsching, B. (2008a). Fast and robust

generation of feature maps for region-based visual at-

tention. Transactions on Image Processing, 17:633–

644.

Aziz, M. Z. and Mertsching, B. (2008b). Visual search in

static and dynamic scenes using ﬁne-grain top-down

visual attention. In ICVS 08, LNCS 5008, pages 3–12,

Santorini - Greece. Springer.

Burns, D. and Osﬁeld, R. (2004). Tutorial: Open scene

graph. In Proceedings Virtual Reality, pages 265–265.

Cutzu, F. and Tsotsos, J. K. (2003). The selective tun-

ing model of attention: Psychophysical evidence for

a suppressive annulus around an attended item. Vision

Research, pages 205–219.

Hoshino, E., Taya, F., and Mogi, K. (2008). Memory forma-

tion of object representation: Natural scenes. R. Wang

et al. (eds.), Advances in Cognitive Neurodynamics,

pages 457–462.

Kutter, O., Hilker, C., Simon, A., and Mertsching, B.

(2008). Modeling and simulating mobile robots envi-

ronments. In 3rd International Conference on Com-

puter Graphics Theory and Applications (GRAPP

2008), Funchal - Portugal.

Mertsching, B., Aziz, M. Z., and Stemmer, R. (2005). De-

sign of a simulation framework for evaluation of robot

vision and manipulation algorithms. In International

Conference on System Simulation and Scientiﬁc Com-

puting, Beijing-China.

Moscovitch, M., Rosenbaum, R. S., Gilboa, A., Addis,

D. R., Westmacott, R., Grady, C., McAndrews, M. P.,

Levine, B., Black, S., Winocur1, G., and Nadel, L.

(2005). Functional neuroanatomy of remote episodic,

semantic and spatial memory: a uniﬁed account based

on multiple trace theory. Journal of Anatomy, pages

35–66.

Oman, C. M., Shebilske, W. L., Richards, J. T., Tubr

e, T. C.,

Bealli, A. C., and Natapofﬁ, A. (2000). Three dimen-

sional spatial memory and learning in real and virtual

environments. Spatial Cognition and Computation,

2:355–372.

Shelton, A. L. and Mcnamara, T. P. (2004). Spatial mem-

ory and perspective taking. Memory & Cognition,

32:416–426.

Smith, R. (last accessed March 2009). Open Dynamics En-

gine, Version 0.8. http://www.ode.org.

Treisman, A. M. and Gelade, G. (1980). A feature-

integration theory of attention. Congnitive Psychol-

ogy, 12:97–136.

Wolfe, J. M. and Horowitz, T. S. (2004). What attributes

guide the deployment of visual attention and how do

they do it? Nature Reviews, Neuroscience, 5:1–7.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

474
