Ontology Engineering: Co-evolution of Complex

Networks with Ontologies

Francesca Arcelli Fontana

, Ferrante Raffaele Formato

and Remo Pareschi

Università degli Studi di Milano Bicocca, viale Sarca 336, 20126 Milano, Italy

Università del Sannio, Benevento, Italy

Università del Molise, Italy

Abstract. Our assumption here is that the relationships between networks of

concepts (ontologies) and people networks (web communities) is reciprocal and

dynamic. ontologies identify communities and communities through practice

define ontologies. Ontologies describe complex domains and therefore are

difficult to create manually. Our investigation aims at building tools and

methodologies to drive the process of ontology building. In particular we

define a model by which ontologies evolve through Web community extraction.

In this paper, we observe that tags in Web 2.0 are mathematical objects called

clouds and studied in [11]. And we introduce NetMerge, an algorithm for

transforming an ontology into a complex network.

1 Introduction

Ontology design is actually performed by a panel of experts. The organization of

design follows the structure of the ontology. Ontology engineering is defined as the

set of methods used for building from the scratch, enriching or adapting an existing

ontology in a semi-automatic fashion, using heterogeneous information sources

([15]). This data-driven procedure uses text, electronic dictionaries, linguistic

ontologies and structured information to acquire knowledge.

Recently, with the enormous growth of the Information Society, the Web has

become a valuable source of information for almost every possible domain of

knowledge. This has motivated researchers to start considering the Web as a valid

repository for Information Retrieval and Knowledge Acquisition. However, the Web

suffers from problems that are not typically observed in classical information

repositories: human oriented presentation, noise, untrusted sources, high dinamicity

and over-whelming size. Even though, it also presents characteristics that can be

interesting for knowledge acquisition: due to its huge size and eterogeneicity it has

been assumed that the Web approximates the real distribution of the information in

humankind. The present research aims to introduce a novel approach for ontology

design and learning, presenting new methods for knowledge acquisition from the

Web. The adaptation of several well known learning techniques to the web corpus, the

exploitation of particular characteristics of the Web environment and the search for

Arcelli Fontana F., Raffaele Formato F. and Pareschi R. (2009).

Ontology Engineering: Co-evolution of Complex Networks with Ontologies.

In Proceedings of the 1st International Workshop on Ontology for e-Technologies OET 2009, pages 33-40

DOI: 10.5220/0002222300330040

 SciTePress

Web community unsupervised by a semi-automatic and domain independent approach

distinguishes the present proposal from previous works ([18], [.22]).

In [1],[2] we sketched a model in which ontologies are generated by human

expertize and then they evolve according to laws of complex networks in Web 2.0.

We built also an algorithm that extracts some Web communities using a combination

of HITS ([17]) and a visual Web Crawler called TouchGraph. In that paper we started

by giving some definitions and propositions in order to show how to merge semantic

web into complex networks and then we showed how to interpret ontologies with a

network of Web communities. Then we described the dynamic process of the

interaction between an ontology and Web communities through a max-flow based

approach to Web communities discovery.

In this paper, we refine our model by which ontologies evolve through Web

community extraction and we observe that tags in Web 2.0 are mathematical objects

called clouds (studied in [11]). We introduce NetMerge, an algorithm for transforming

an ontology into a complex network, by associating a Web community to some nodes

of a network. We have analysed several other tools and applications that assist experts

in the generation of ontologies, that help the knowledge engineer to build a taxonomy

or enrich an existing one, among them we analysed OntoGen [14], KAON and

Text2Onto [7], OntoLearn, [8] Jatke and Ontobuilder [21].

The paper is organized through the following sessions: in Section 1 we introduce

some aspects and concepts related to ontologies engineering and learning; in Section

3 we discuss some problems on ontologies learning through the web; in Section 4 we

formulate our hypothesis that an ontology can be interpreted by a complex and

dynamic network and we introduce the prototype we have developed, called

NetMerger, based on focus crawling and able to merge an ontology and a significant

portion of the web. Finally in Section 5, we conclude and outline some future

directions of this research, in particular relating to an an algorithm for cloud

extraction.

2 Ontology Engineering and Ontology Learning

The set of activities that concern the ontology development process, the ontology life

cycle, the principles, methods and methodologies for building ontologies, and the tool

suites and languages that support them, is called Ontology Engineering ([8,15,18]).

With regard to methodologies, several proposals have been reported for developing

ontologies manually.

Considering Guarino’s classification ([16), philophical ontologists and artificial

intelligence logicians are usually involved in the task of defining the inalterable basic

kinds and structures of concepts (objects, properties, relations and axioms) that are

applicable in every possible domain. Those basic principles are contained in the

mentioned Top-level ontologies, also called Fondational or Upper ontologies.

On the contrary, Application ontologies have a very narrow context and limited

reusability as they depend on the particular scope and requirements of a specific

application. These ontologies are typically developed ad hoc by the application

designers.

At an intermediate point, Task and Domain ontologies are the most complex to

develop: on one hand, they are general enough to be required for achieving consensus

between a wide community of users and, on the other hand, they are concrete enough

to present an enormous diversity with many different and dynamic domains of

knowledge and millions of possible concepts to model.

A global initiative such as the Semantic Web ([5, 6]) relies heavily on domain

ontology. The Semantic Web tries to achieve a semantically annotated Web in which

search engines could process the information contained on web resources from a

semantic point of view, increasing drastically the quality of the information presented

to the user. This approach requires a global consensus in defining the appropriate

semantic structures, -i.e. the domain ontologies- for representing any possible domain

of knowledge. As a consequence, there is a wide agreement that a critical mass of

ontologies is needed for representing semantics on the Semantic Web.

The construction of domain ontologies relies on domain modellers and knowledge

engineers that are typically overwhelmed by the potential size, complexity and

dynamicity of a specific domain. As a consequence, the construction of an exhaustive

domain ontology is a barrier that very few projects can overcome.

It turns out that, although domain ontologies are recognized as crucial resources for

the Semantic Web, in practice they are not available, and when available they are

used outside specific research environments.

Due to all this reasons, nowadays there is a need of methods that can perform, or at

least ease, the construction of domain ontologies. In this sense, Ontology

Learning([18.22]) is defined as the set of methods and techniques used for building

from scratch, enriching, or adapting an existing ontology in a semi-automatic fashion

using distributed and heterogeneous knowledge and information sources. This allows

a reduction in the time and effort needed in the ontology development process.

3 Ontology Learning through the Web

In the last years, as well known, the Web has become a valuable source of

information for almost every possible domain of knowledge. However, the Web

suffers from many problems that are not typically observed in the classical

information repositories. Those sources even written in natural language, are often

quite structured in a meaningful organisation or carefully selected by information

engineers and as a consequence, one can assume that the trustiness and validity of the

information contained in them is reliable and valid. In contrast, the Web raises a

series of new problems that need to be tackled:

• Web resources are presented in human oriented semantics –natural language-

and mixed with a huge amount of information about visual representations.

This adds a lot of noise over the really valuable information and makes

difficult a machine-based processing approach. There have been several

attempts to improve the machine interpretability of the Web content like

using XML notation to represent concepts and hierarchies, or the definition

of some HTML extensions –like SHOE- to include tags with semantics

information, but none of them has been widely accepted.

• All kinds of documents for almost every possible domain coexist. Some of

them offer valuable –up-to-date information from reliable sources; others are

simply spam that even tries to confuse the user. Everyone can post any kind

of information –fake or real- without any control and, in consequence, the

Web becomes a completely untrustable environment.

• It presents a highly dynamic and uncontrolled changing nature. Web sites are

rapidly modified, updated or deleted, making difficult and outdating any

attempt of structuring the information.

• The amount of available resources on one hand, can overwhelm the final

user or information engineer that tries to search specific data; on the other

hand, it makes nonviable a complex machine-biased processing for

extracting data in an automated way.

Ontology learning is performed by defining and maintaining two levels in the

ontology: a lower one that is scale-free and connects the ontology to the web sites, a

top one with a random distribution that is the proper ontology.

Usually, classical ontologies are designed by a panel of experts that gathers to

negotiate classes and relations. But this is not the way in which knowledge is

acquired. By so doing, Semantic Web is static and is being phagocyted by the

complexity and homeostatic response of Web 2.0.

4 Using Complexity to Beat Complexity

The basic research hypothesis that we formulate is that an ontology can be interpreted

by a complex and dynamic network and –at the same time- maintain the granularity

level that make ontologies abstract enough to beat complexity ([19]). By so doing,

ontologies are transformed into “meta-ontologies”, an object that grows by the law of

preferential attachment and at the same time maintains a “democratic” random

distribution of concept sufficient to abstract complex knowledge.

To investigate our hypothesis, we formulate a computable model in which

ontology classes are linked to the Web via a supervised classifier. We try to show BIB

that –in our model- the distribution of arches is exponential, according to the

asymptotic law formulated by [3,4].

In our model, ontology classes are linked to a scale-free dynamic network via

focused crawling. Each concept-or class-generates a set of URLs that are the positive

outcomes of a supervised/unsupervised classification process. Successively, these

sites are used as seeds to discover a web community focused upon the concept of the

class. Finally, the community is attached to the corresponding concept in a random

way. By so doing, the uniform distribution of the ontology is preserved.

Finally, new concepts are added to the ontology by knowledge synthesis as

follows: after a given time, the community is checked for connection and –if splitted-

two new seeds are extracted and the corresponding concepts are added to the

ontology and the process continues cyclically. This approach grants the merging of

Semantic Web into Web 2.0.

4.1 Preliminary Results

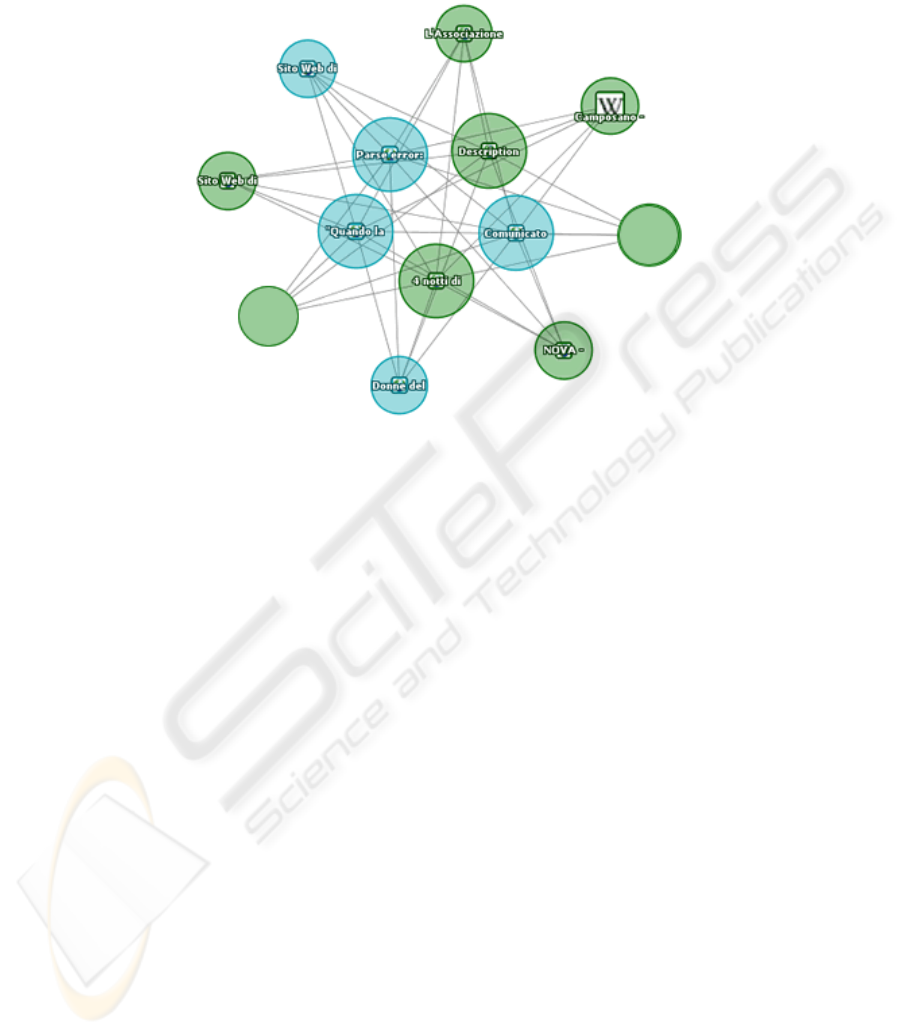

We used Gelsomino [13] a focused crawler developed according to Chakrabarty’s

architecture ([12]), Gelsomino has been used to find several communities through

the Web. Gelsomino has four modules: the first one is a classic web crawler, the

second is a Bayesian classifier, the third is the HIT algorithm and the fourth is a

module for the extraction of Web communities. Web communities are strategic

because a web site inside a web community is a highly connected site with high

business potential. On the contrary, isolated sites are mostly ignored. Therefore, tools

for extracting Web communities are the favourite candidates to replace search

engines in Web 2.0.

A Web community is a subgraph of the Web such that for any node, the number of

inner edges is greater than the number of outer edges. For example, Figure 1

illustrate a typical example of Web community Extracted from the Web through

Gelsomino and TouchGraph.

4.2 Tokenizing Concepts through Web Community Trawling

Tags have been diffused in Web 2.0 after folksnomies [23]. In [11] a mathematical

object was introduced that corresponds to tags:, called clouds.

Given a set S, a cloud is a finite subset of S. Clouds are given a geometric structure

through a similarity. A similarity is an application R: S ×S→[0,1] such that R(x,x)=1,

R(x,y)=R(y,x) and R(y,z) ≥R(x,y)*R(y,z). Then we can associate to every subset X of

S a number μ(X) expressing the “worst” degree of similarity between pairs of

elements in X, i.e.

).',()(

xxRX

Xxx ∈

∧

For instance, if S = {square, polygon, rectangle} And R(square,polygon) = 0.5,

R(polygon,rectangle)=0.4 and R(polygon,square)=0.3, then μ({square, polygon,

rectangle}) =0.3. We can regard a non-empty cloud X as a sparse point and the

number μ(X) as a many valued evaluation of the claim that X is a point. Clouds have

the following interesting geometrical properties:

),()()( YXIncXY

∧

≥

),()()()( YXOverYXYX

∧

∪

Where

),(sup),(

yxRYXOver

YyXx ∈∈

),(),( yxRYXInc

YyXx ∈∈

∨

∧

Once we have extracted a cloud of concepts through ontology learning, we must

choose the concepts that are reflected into Web 2.0. To such an extent, we perform

Web community trawling upon each concept, and we discard the concepts that do not

refer to any Web community. By so doing we obtain a scale-free meta-ontology.

Fig. 1. The Web community around the event agency IsideNova discovered with Gelsomino

and TouchGraph.

4.3 The Prototype

We are working on NetMerger: a software that is based on proven classification

techniques (Bayesian inference, SVM) with the aim to merge two networks, given by,

respectively, a domain ontology (which corresponds to a lattice or a random graph)

and a significant portion of the Web, such as the portion of the Web induced by a

corresponding domain directory of Web sites (which corresponds to a scale free

network with hubs and preferential attachments).

NetMerger is a software based on the focused crawler Gelsomino and it is applied to

an ontology. The architecture of NetMerger is described in Figure 2.

Here is a brief description of the architecture’s modules:

Ontology Builder. A tool for building ontology –like Ontobuilder- with facilities for

concept generation and relation estabilishment.

Focused Crawler. A module for extracting communities and associating them to

concepts. It is based on focused crawling

Network Merger. A module for merging several Web communities focused on the

same concept. In our implementation, a network merger is just a link-based graph

merger.

Fig. 2. NetMerger architecture.

The result is a scale-free meta-network (or a meta-Web), where the ontology adds to

the sub-Web, a set of conceptual nodes, which provide an interpretation for the nodes

in the scale free network, clustering them into “interest” groups, which can be used as

channels for e-commerce and e-business agents.

4 Conclusions and Future Developments

This research aims at the integration of Semantic Web technologies into the

theoretical framework of complex dynamic network. If successful, Web 2.0 will be

open to semantic hulls that will make the Web 2.0 not only socially inhabitable, but

also machine understandable. As a consequence, knowledge will be continuously

negotiated between corporate standards of panels and Web community. Software

agents will not be clutched to static knowledge, but can enjoy the flexibility of

dynamic networks.

In the future research we aim to develop a tool, called Concept-Seeder: able to

extracts new concepts from the Web by identifying “communities” (namely highly

linked regions of the Web) and creates concepts identifiable with the content of the

sites belonging to such communities. Thus these concepts come as already “trained”

with the content they are identified with, and provide a way of evolving domain

ontologies from the “bottom-up”, by observing how the world effectively goes, as

opposed to the traditional way of evolving them “top-down” through the decision of a

committee of experts. On the other hand they provide in any case input to the experts

for revising the general architecture of the ontology.

References

1. F.Arcelli, F.Formato, R.Pareschi,: Networks as interpretation of Networks, Tech.Report

University of Milano Bicocca –TD 23/08, May 2008.

2. F.Arcelli, F.Formato, R.Pareschi,: Reflecting Ontologies into web Communities, IEEE

Proceedings of IAWTIC 2008, Vienna, December 2008

3. A.L. Barabasi, A. Réka and Hawoong J.,: The diameter of the World Wide Web, Nature,

Vol 401, September 1999, pp130-131.

4. A.L.Barabasi and A. Réka, Emergence of Scaling in Random Networks, Science,n. 286,

October 1986, pp. 509-512.

Ontology Builder

Community

Trawler

Network Merger

5. T. Berners Lee, N. Shadboldt and W. Hall, The Semantic Web Revisited, IEEE Intelligent

Systems, 21 (3), 2006, pp. 96-101.

6. A. Broder, R Kumar, F.Maghoul, R. Prabhakar, Rajagopalan, R. Stata, A. Tomkins and J.

Wiener, The Web as a Graph, Proc. of the 9th International Web Conference, Amsterdam

May 5h 1999. http://www9.org/w9cdrom/160/160.html.

7. P. Cimiano and J. V¨olker. Text2onto - a framework for ontology learning and data-driven

change discovery. In Proceedings of the 10th International Conference on Applications of

Natural Language to Information Systems (NLDB’2005), 2005.

8. A. De Nicola, M. Missikoff, R. Navigli (2009). "A Software Engineering Approach to

Ontology Building". Information Systems, 34(2), Elsevier, 2009, pp. 258-275.

9. G.W. Flake S. Lawrence and C.L. Giles, Efficient Identification of Web Communities,

Proc. Sixth ACM SIGKDD international conference on knowledge discovery and data

mining, Boston, MA, 2000.

10. L. R. Ford; D. R. Fulkerson, Maximal flow through a network. Canadian Journal of

Mathematics 8, 1956. pp. 399-404.

11. Ferrante Fomato,: On similarity and extensions of logic Programming, PhD Thesis,

University of Salerno, 1999.

12. Chakrabarty S. M. van den Berg and B. Dom Focused Crawling, A new approach to

topic-specific Web resource discovery. Proceeings of www8, Toronto, May, 2008

13. Gelsomino Focused Crawler Diogene Project, Moma & DIIMA University of Salerno

Tech. Report 2008.

14. B. Fortuna, M. Grobelnik, D. Mladenic. OntoGen: Semi-automatic Ontology Editor. HCI

International 2007, July 2007, Beijing

15. Gruber (2008). "Ontology". To appear in the Encyclopedia of Database Systems, Ling Liu

and M. Tamer Özsu (Eds.), Springer-Verlag, 2008.

16. Guarino, N. Formal Ontology, Conceptual Analysis and Knowledge Representation,

International Journal of Human-Computer Studies, 43(5-6):625–640, 1995.

17. N. Imafuji,. M. Kitsuregawa Finding a web community by maximum flow algorithm with

HITSscore based capacity, Proceedings of the Eighth International Conference on

Database Systems for Advanced Applications, Kyoto, 2003.

18. Maedche, A. & Staab, S. (2001). "Ontology learning for the Semantic Web". In: Intelligent

Systems. IEEE, 16(2): 72-79.

19. H.Morin, Restricted Complexity vs. General Complexity” Philosophy and Complexity

Carlos Gershenson, Diederik Aerts (editors), World Scientific, 2005.

20. R. Navigli and P. Velardi. Learning domain ontologies from document warehouses and

dedicated web sites. Comput. Linguist., 30(2):151–179, 2004.

21. OntoBuilder: Fully Automatic Extraction and Consolidation of Ontologies fromWeb

Sources using Sequence Semantics, EDBT 2006 Workshops

22. Gómez-Pérez, A., Manzano-Macho, D.: An overview of methods and tools for ontology

learning from texts. Knowledge Engineering Review 19 (2005) 187–212

23. VanderWal T. Folsonomy at www.vanderwal.net/folksonomy.html
