FUZZY LOGIC BASED QUADROTOR FLIGHT CONTROLLER

Syed Ali Raza and Wail Gueaieb

School of Information Technology and Engineering, University of Ottawa

800 King Edward Avenue, Ottawa, ON, Canada

Keywords:

Quadrotor, Fuzzy Logic, Flight Controller.

Abstract:

Quadrotor unmanned aerial vehicles (UAVs) have gained a lot of research interest in the past few years, due to

the clear advantages posed by their vertical take-off and landing (VTOL),hovering capability, and slow precise

movements. These characteristics make quadrotors an ideal candidate for applications that require traversing

through difﬁcult environments with many obstacles. Belonging to the helicopter rotorcraft class, quadrotors

are highly nonlinear systems that are difﬁcult to stabilize. This paper proposes a fuzzy logic based ﬂight con-

troller for an autonomous quadrotor. Two types of fuzzy logic controllers are implemented. The developed

ﬂight controllers are tested in a quadrotor simulator and simulation results are presented to demonstrate the

performance of each controller. The controllers performances are also benchmarked against conventional con-

trol based techniques such as input-output linearization, backstepping and sliding mode control. In comparison

with other conventional control techniques mostly designed for indoor applications, the proposed fuzzy logic

based controllers showed satisfactory control of the quadrotor in the presence of various disturbances such as

sensor noise and high wind conditions.

NOMENCLATURE

The following notations are used in the paper:

F

n

represents the reference frame where the subscript

n ∈ {i,b,v,φ,θ}.

()

F

n

represents a point or a vector in reference frame

F

n

.

˙

(),

¨

() represent ﬁrst and second time derivatives, re-

spectively.

R

F

2

F

1

∈ R

n×n

is the rotation matrix that maps frame F

1

to frame F

2

.

sθ = sinθ, cθ = cosθ.

I is the identity matrix.

COG is the quadrotor’s center of gravity.

P

T

= [p

x

p

y

p

z

] is the position of the quadrotor’s

COG.

M is the mass of quadrotor (including the motors).

m is the mass of one motor.

l is the length of the arms of quadrotor.

J

T

= [ j

x

j

y

j

z

] is the moment of inertia vector of the

quadrotor.

φ,θ,ψ are the quadrotor’s roll, pitch, and yaw angles,

respectively.

Ω

T

= [φ θ ψ] is the quadrotor’s orientation vector.

K

T

and K

τ

are motor constants.

T

motor

,τ

motor

,PWM

motor

are thrust, drag and PWM

value for motor ∈ { f, r, b, l}, the subscripts f, r, b,

and l, denote front, right, back, and left, motors re-

spectively.

1 INTRODUCTION

The motivation for employing robots in search and

rescue operations is multifaceted. However, the tech-

nology is still in its infancy and there are many issues

which need to be addressed. Search and rescue mis-

sions, as well as simulations, have demonstrated sev-

eral areas in which robot contributions need to be im-

proved(Fincannon et al., 2004). Advancesin comput-

ing, MEMS inertial measurement sensors, and com-

munications technology make it possible to achieve

autonomous performance and coordination of these

vehicles in test environments (Waslander et al., 2005).

But, achieving complete autonomous performance in

real environments is a milestone yet to be reached.

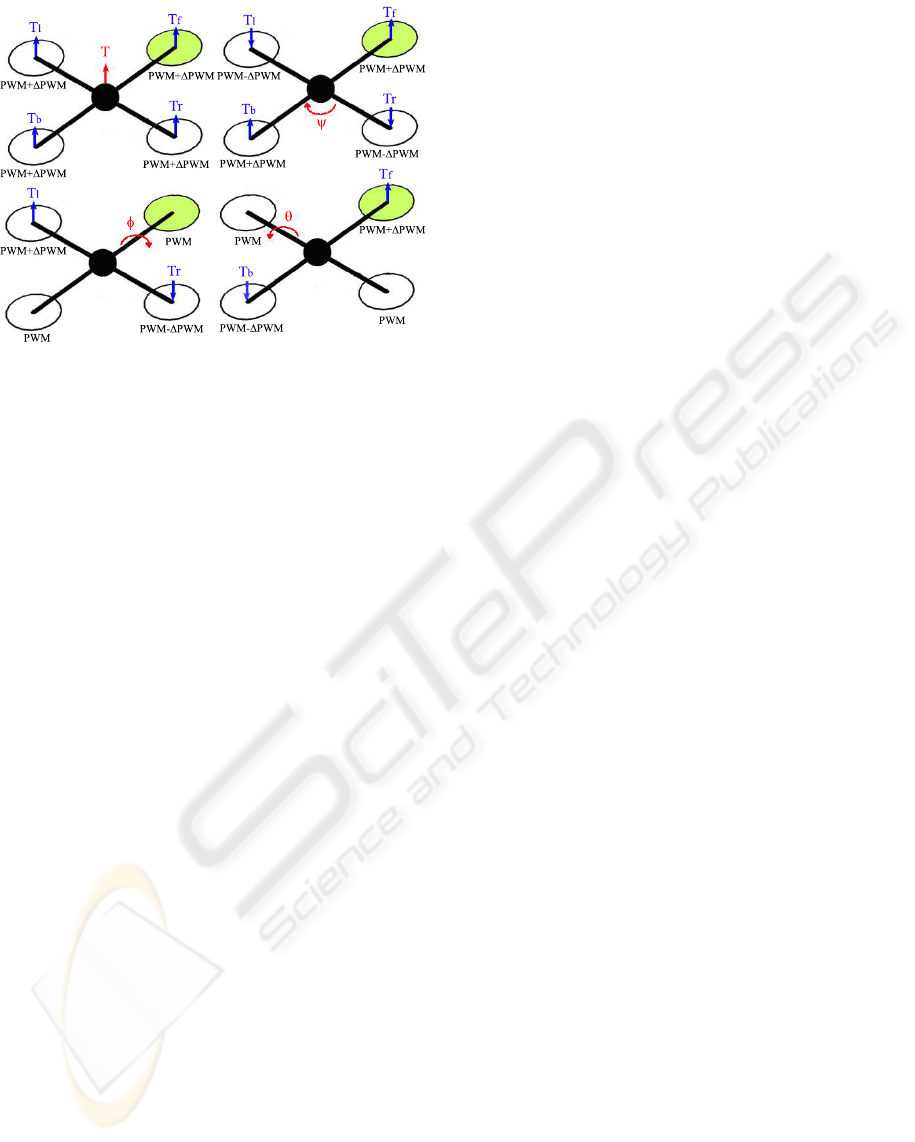

A quadrotor, as depicted in Figure 1, is a rotary

wing UAV, consisting of four rotors located at the

ends of a cross structure. By varying the speeds of

each rotor, the ﬂight of the quadrotor is controlled.

Quadrotor vehicles possess certain essential charac-

teristics, which highlight their potential for use in

search and rescue applications. Characteristics that

105

Raza S. and Gueaieb W. (2009).

FUZZY LOGIC BASED QUADROTOR FLIGHT CONTROLLER.

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics - Intelligent Control Systems and Optimization,

pages 105-112

DOI: 10.5220/0002216601050112

Copyright

c

SciTePress

Figure 1: Conceptual diagram of the quadrotor.

provide a clear advantage over other ﬂying UAVs in-

clude their Vertical Take Off and Landing (VTOL)

and hovering capability, as well as their ability to

make slow precise movements. There are also deﬁ-

nite advantages to having a four rotor based propul-

sion system, such as a higher payload capacity, and

impressive maneuverability, particularly in traversing

through an environment with many obstacles, or land-

ing in small areas.

The quadrotor is an under-actuated system, in that

the four forces applied on the body result in move-

ments achieved in six degrees. Being a non-linear

system it offers an interesting and challenging con-

trol problem. The ﬂight controller is responsible for

achieving the desired attitude, i.e. the orientation

(roll, pitch and yaw angles) of the quadrotor and also

the desired position of quadrotor in the space.

In past few years, a lot of research has already

been conducted on the modeling and control of a

quadrotor. Many control techniques are proposed in

the literature, however, their primary focus is mostly

for indoor ﬂight control and therefore does not ac-

count for uncertainties. Lyapunov stability theory is

used for stabilization and control of the quadrotor in

(Bouabdallah et al., 2004a) (Dzul et al., 2004). Con-

ventional PD

2

feedback, and PID structures are used

for simpler implementation of control laws and com-

parison with LQR based optimal control theory is

presented in (Tayebi and McGilvray, 2006) (Bouab-

dallah et al., 2004b). Backstepping control is also

proposed with the drawback of higher computational

loads in (Guenard et al., 2005). Visual feedback is

used in many cases using onboard or offboard cam-

eras for pose estimation by (Altug et al., 2002) (Gue-

nard et al., 2008). And ﬁnally some fuzzy logic based

control techniques (Coza and Macnab, 2006), neural

networks (Tarbouchi et al., 2004) and reinforcement

learning (Waslander et al., 2005).

Fuzzy logic based control offers a great advan-

tage over conventional control, speciﬁcally in deal-

ing with nonlinear systems with uncertainties. In this

paper two fuzzy logic based ﬂight controllers for an

autonomous quadrotor are proposed. Implementation

of the proposed control is carried out using Mamdani

and Sugeno fuzzy inferencing methodologies. The

advantage of the proposed methodology over other

conventional methods is the ability to achieve sta-

ble ﬂight control under disturbances that are com-

mon in outdoor environments. Also the implemen-

tation is lighter in terms of computational loads as

compared to techniques such as backstepping control.

Both controllers are simulated and their performances

are benchmarked against various conventional con-

trol techniques. The results are presented to show the

satisfactory performance of the proposed fuzzy logic

based controllers despite the presence of various dis-

turbances, such as sensor noise and high wind condi-

tions.

2 QUADROTOR’S KINEMATICS

AND DYNAMICS

The ﬂight behavior of a quadrotor is determined by

the speeds of each of the four motors, as they vary

in concert, or in opposition with each other. Hence,

a mathematical representation of the system can be

used to predict the position and orientation of the

quadrotor, based on its inputs. The same can further

be used to develop a control strategy, whereby ma-

nipulating the speeds of individual motors results in

the achievement of the desired motion. To derive a

mathematical model of the quadrotor, we need to de-

ﬁne its kinematics and dynamics. The kinematics of

the quadrotor gives a relation between the position of

the vehicle in the inertial frame, and its velocity in the

body frame. The dynamics of the quadrotor provides

the relation between the applied body forces and the

resulting accelerations.

Three frames of reference are adopted;

1. The inertial frame, F

i

= (

−→

x

i

,

−→

y

i

,

−→

z

i

), is an earth-

ﬁxed coordinate system with the origin located on

the ground, for example, at the base station. By

convention, the x-axis points towards the north,

the y-axis points towards the east, and the z-axis

points towards the center of the earth.

2. The body frame, F

b

= (

−→

x

b

,

−→

y

b

,

−→

z

b

), with its ori-

gin located at the center of gravity (COG) of the

quadrotor, and its axes aligned with the quadrotor

structure such that the x-axis

−→

x

b

is along the arm

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

106

with front motor, the y-axis

−→

y

b

is along the arm

with right motor, and the z-axis

−→

z

b

=

−→

x

b

×

−→

y

b

.

3. The vehicle frame, F

v

= (

−→

x

v

,

−→

y

v

,

−→

z

v

), is the inertial

frame with the origin located at the COG of the

quadrotor. The vehicle frame has two variations,

F

φ

and F

θ

. F

φ

, is the vehicle frame, F

v

, rotated

about its z-axis

−→

z

v

by an angle ψ so that

−→

x

v

and

−→

y

v

are aligned with

−→

x

b

and

−→

y

b

, respectively. F

θ

is the F

φ

frame rotated about its y-axis,

−→

y

φ

, by a

pitching angle, θ, such that

−→

x

φ

and

−→

z

φ

are aligned

with

−→

x

b

and

−→

z

b

, respectively.

With the knowledge of the inertial frame position

state variables P

i

and the body frame speed state vari-

ables

˙

P

F

b

, the translational motion relationship is de-

rived as

˙p

x

˙p

y

− ˙p

z

F

i

=

h

R

F

b

F

v

i

T

˙p

x

˙p

y

˙p

z

F

b

where

h

R

F

b

F

v

i

T

∈ R

3×3

is the rotation that maps frame F

b

to

frame F

v

and is deﬁnes by

h

R

F

b

F

v

i

T

=

cθcψ sφsθcψ− cφsψ cφsθcψ+ sφsψ

cθsψ sφsθsψ+ cφcψ cφsθsψ− sφcψ

−sθ sφcθ cφcθ

The rotational motion relationship is also derived us-

ing the state variables involved:

˙

φ

˙

θ

˙

ψ

F

v

=

1 sφtanθ cφtanθ

0 cφ −sφ

0 sφ/cθ cφ/cθ

˙

φ

˙

θ

˙

ψ

F

b

.

The quadrotor’s dynamics is obtained by applying

Newton-Euler formulation.

MI

3×3

0

0 I

3×3

¨

P

F

b

¨

Ω

F

b

+

˙

Ω

F

b

M

˙

P

F

b

˙

Ω

F

b

I

˙

Ω

F

b

=

F

F

b

τ

F

b

where F

T

= [ f

x

f

y

f

z

] and τ

T

= [τ

φ

τ

θ

τ

ψ

] are ex-

ternal force and torque vectors applied on the quadro-

tor’s COG. τ

φ

, τ

θ

, and τ

ψ

are the roll, pitch and yaw

torques respectively. Hence, the models for the trans-

lational and rotational motion are

¨p

x

¨p

y

¨p

z

F

b

=

˙

ψ ˙p

y

−

˙

θ ˙p

z

˙

φ ˙p

z

−

˙

ψ ˙p

x

˙

θ ˙p

x

−

˙

φ ˙p

y

F

b

+

1

M

f

x

f

y

f

z

F

b

¨

φ

¨

θ

¨

ψ

F

b

=

j

y

− j

z

j

x

˙

θ

˙

ψ

j

z

− j

x

j

y

˙

φ

˙

ψ

j

x

− j

y

j

z

˙

φ

˙

θ

F

b

+

1

j

x

τ

φ

1

j

y

τ

θ

1

j

z

τ

ψ

F

b

where j

x

= j

y

= j

z

=

2Mr

2

5

+ 2l

2

m. The moment

of inertia is calculated by assuming the COG of the

quadrotor as a sphere of radius r and mass M. Also,

each motor is represented by a point mass m with arms

length l. The relationship between the quadrotor’s

overall thrust and drag produced by individual thrust

of the motors is deﬁned by

T = T

f

+ T

r

+ T

b

+ T

l

, τ

ψ

= (τ

f

+ τ

b

) − (τ

r

+ τ

l

)

τ

φ

= l(T

l

− T

r

) , τ

θ

= l(T

f

− T

b

)

with

T

motor

= K

T

× PWM

motor

and τ

motor

= K

τ

× PWM

motor

for motor ∈ { f,r,b,l}. In matrix form, we get

PWM

f

PWM

r

PWM

b

PWM

l

= G ×

T

τ

φ

τ

θ

τ

ψ

where

G =

K

T

K

T

K

T

K

T

0 −l × K

T

0 l × K

T

l × K

T

0 −l × K

T

0

−Kτ Kτ −Kτ Kτ

−1

.

Including the forces and torques acting on the system,

the equations of motion become as deﬁned in (1), with

g being the gravitational force.

3 FLIGHT CONTROLLER

DESIGN

Using the knowledge of the quadrotor’sbehaviorfrom

its equations of motion, a rule base is developed,

which serves as a starting point for developing the

fuzzy logic control strategy. These IF-THEN rules

will later be combined to form a fuzzy controller,

where fuzzy logic is used in a direct control scheme

applied for the ﬂight control of the quadrotor.

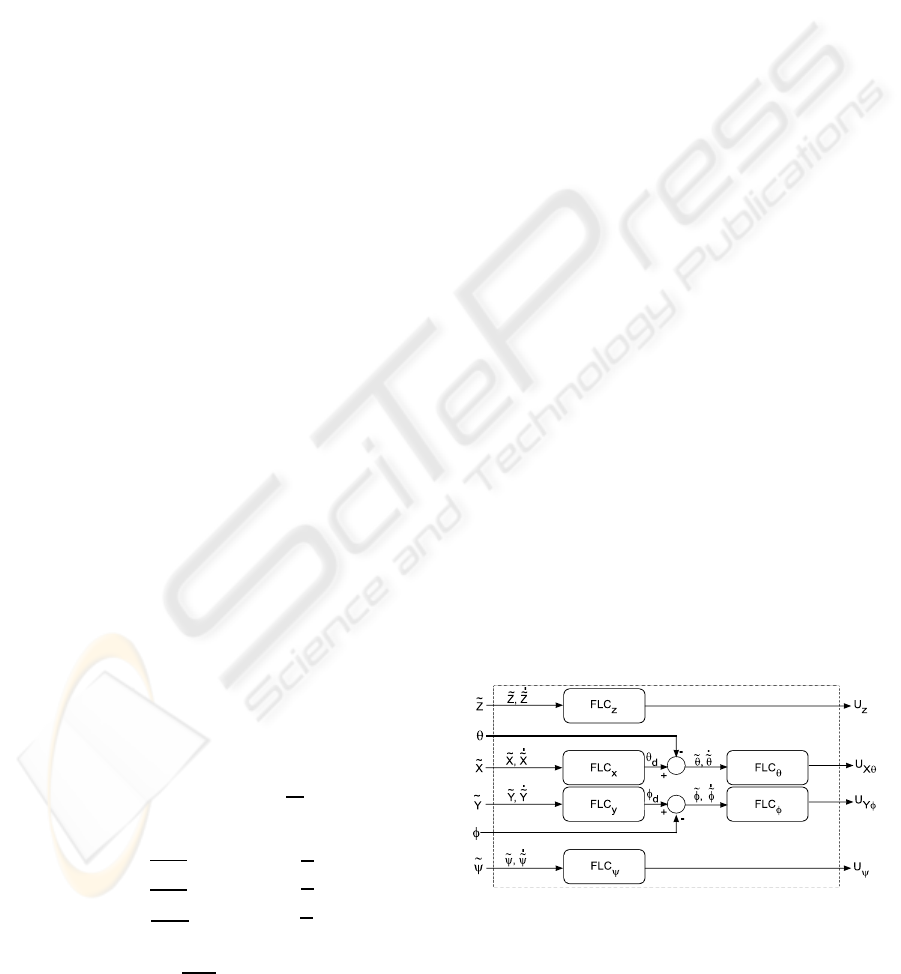

Figure 2: Block diagram of fuzzy logic based ﬂight con-

troller.

For attitude control, three fuzzy controllers are

designed to control the quadrotor’s roll (φ), pitch (θ)

FUZZY LOGIC BASED QUADROTOR FLIGHT CONTROLLER

107

¨p

x

¨p

y

¨p

z

F

b

=

˙

ψ ˙p

y

−

˙

θ ˙p

z

˙

φ ˙p

z

−

˙

ψ ˙p

x

˙

θ ˙p

x

−

˙

φ ˙p

y

F

b

+

−gsθ

gcθsφ

gcθcφ

+

0

0

− f

z

M

,

¨

φ

¨

θ

¨

ψ

F

b

=

j

y

− j

z

j

x

˙

θ

˙

ψ

j

z

− j

x

j

y

˙

φ

˙

ψ

j

x

− j

y

j

z

˙

φ

˙

θ

F

b

+

1

j

x

τ

φ

1

j

y

τ

θ

1

j

z

τ

ψ

F

b

(1)

and yaw (ψ) angles. Here FLC

φ

and FLC

θ

fuzzy

controllers are implemented in order to achieve

attitude stabilization. Three fuzzy controllers are

further designed for controlling the quadrotor’s

position. All the six fuzzy controllers, as depicted in

Figure 2, have the same structure with two inputs and

one output. The inputs are the error e, which is the

difference between the desired and the actual state

normalized to the interval [−1,+1], and the error

rate ˙e normalized to the interval [−3,+3]. Three

membership functions are used to fuzzify e, ˙e, and

the output U: µ

N

(e) = trapezoid(−1,−0.15,0),

µ

Z

(e) = triangle(−0.15,0,0.15),

µ

P

(e) = trapezoid(0,0.15,1), µ

N

( ˙e) =

trapezoid(−3,−1.5, 0), µ

Z

( ˙e) =

triangle(−1.5,0,1.5), µ

P

( ˙e) = trapezoid(0,1.5,3),

µ

N

(U) = trapezoid(−1,−0.85, 0), µ

Z

(U) =

triangle(−0.1,0,0.1), µ

P

(U) = trapezoid(0,0.85,1).

A uniﬁed rule base comprising nine IF-THEN

rules is developed for all the controllers. The devel-

oped rules are presented in Table 1.

Table 1: The rule base of the fuzzy controller.

e

N Z P

N N N Z

˙e Z N Z P

P Z P P

For the fuzzy controller to be independent of

the quadrotor’s parameters, the input and output sig-

nals of the designed fuzzy logic controllers are pre-

processed and post-processed, respectively. The pre-

processing process calculates the error e and error

rate ˙e and normalize them accordingly. The post-

processing process calculates the individual motor

PWM values by combining the outputs from the fuzzy

logic controllers and adding a priori-deﬁned offset

to counter balance the weight of the quadrotor. The

PWM value of each motor is then computed as fol-

lows:

PWM

f

= Sat(U

Z

+U

Xθ

−U

ψ

+ Offset)

PWM

r

= Sat(U

Z

+U

Yφ

+U

ψ

+ Offset)

PWM

b

= Sat(U

Z

−U

Xθ

−U

ψ

+ Offset)

PWM

l

= Sat(U

Z

−U

Yφ

+U

ψ

+ Offset)

Being independent of the plant’s parameters sets

the pure fuzzy controllers apart from the conventional

control systems, which depends on the plant’s param-

eters. The fuzzy controllers are designed in light of

the behaviors extracted from the mathematical model

of the quadrotor, whereas conventional control tech-

niques are designed using the mathematical model of

the plant. Any change in the plant dynamics or param-

eters results in the failure of such conventional control

systems. In such situations, fuzzy systems are advan-

tageous over conventional control techniques.

Two different fuzzy inference procedures are im-

plemented: (i) a Mamdani fuzzy model, and (ii) a

Takagi-Sugeno-Kang (TSK) fuzzy model. The Mam-

dani fuzzy inference method uses a min-max opera-

tor for the aggregation and centroid of area method

for defuzziﬁcation. One problem with the designed

Mamdani fuzzy control is the high computational bur-

den associated to it when implemented on an embed-

ded system. To alleviate this problem, a zero order

Sugeno fuzzy model is implemented. In this model,

the output membership functions of the Mamdani

type FLC are replaced with fuzzy singletons N = −1,

Z = 0 and P = +1.

4 NUMERICAL RESULTS

To test the proposedfuzzy ﬂight controllers, and study

their performances, a simulation environment is de-

veloped. The desired inputs from the user are the

translatory coordinates P

F

i

with respect to the inertial

frame, and the yaw angle ψ. The pitch and roll angles

are set to zero for achieving the desired attitude stabi-

lization, as shall be shown later.

To make the simulations more realistic, sensory

noise and environmental disturbances such as winds

are also taken into account. Different wind conditions

are generated based on the actual data from Canada

Weather Statistics, representing high, medium and

low wind conditions (Statistics, 2009). The angular

accelerations

¨

φ,

¨

θ, and

¨

ψ are degraded with a white

noise and then used as a feedback to the fuzzy con-

troller.

Several experiments are conducted on the two de-

signed fuzzy controllers. Due to the space limita-

tion, only three experiments are presented here. The

controllers performances are benchmarked against

those of similar control schemes found in the liter-

ature. The values used as the quadrotor’s dynamic

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

108

0 5 10 15 20 25 30

−2

0

2

4

6

8

10

12

14

16

X−axis motion (m)

time (sec)

No noise, no wind

Noise, no wind

Noise and wind

(a)

0 5 10 15 20 25 30

−5

0

5

10

15

20

25

30

Y−axis motion (m)

time (sec)

(b)

0 5 10 15 20 25 30

−5

0

5

10

15

20

25

Z−axis motion (m)

time (sec)

(c)

0 5 10 15 20 25 30

−10

−5

0

5

10

15

20

25

30

Pitch angle (deg)

time (sec)

(d)

0 5 10 15 20 25 30

−40

−35

−30

−25

−20

−15

−10

−5

0

5

10

Roll angle (deg)

time (sec)

(e)

0 5 10 15 20 25 30

−5

0

5

10

15

20

25

30

35

Yaw angle (deg)

time (sec)

(f)

Figure 3: Experiment 1, Mamdani FLC’s performance with and without disturbances. Quadrotor states: (a) x-axis; (b) y-axis;

(c) z-axis (altitude); (d) pitch (θ); (e) roll (φ); and (f) yaw (ψ).

parameters are: M = 1.56 Kg, l = 0.3 m, J

x

=

J

y

= 0.08615 Kg·m

2

, J

z

= 0.1712 Kg·m

2

, K

T

= 5.45,

K

tau

= 0.0549, Offset = Mg/(4K

T

) = 0.7018.

In our ﬁrst experiment the system’s initial states

are set to zero and the desired quadrotor’s position

and orientation are P

T

F

i

= [10,10,25] m and Ω

T

F

i

=

[0,0,30] degrees. The purpose of the experiment is to

show the performance of both controllers under dif-

ferent disturbance conditions. The experiment is re-

peated three times for each controller, ﬁrst time with-

out any disturbances, second time with sensor noise

only, and third time with sensor noise and medium

north and east wind of 10m/s. The experimental re-

sults presented in Figures 3 and 4, demonstrate the

ability of both controllers to perform satisfactorily

despite the presence of sensor noise and wind dis-

turbances. The Mamdani fuzzy controller converges

to the desired states relatively faster than the Sugeno

fuzzy controller, however Sugeno shows better atti-

tude stabilization, specially in the presence of the sen-

sory noise and wind disturbances. The yaw angle

drift under wind disturbance is clearly visible in the

Sugeno results.

In second experiment, the position and attitude

stabilization of the proposed controllers are bench-

marked against feedback linearization based conven-

tional control technique, where a series of mode-

based, feedback linearizing controllers are imple-

mented for the stabilization and control of a quadro-

tor (Altug et al., 2002). The system’s initial states

are considered to be P

T

F

i

= [40,20,60] m and Ω

T

F

i

=

[45,−45, 0] degrees. In the presence of sensor noise

and winds, the system is supposed to stabilize all the

states back to zero. The experimental results are de-

picted in Figures 5 and 6. The stabilization achieved

by both proposed fuzzy controllers convergeto the de-

sired state faster than the feedback linearization tech-

nique. It is worth pointing out that the controller pro-

posed in (Altug et al., 2002) did not consider any type

of noise or external disturbances.

The third experiment benchmarks the proposed

fuzzy controllers with simulation results of a back-

stepping controller tuned for optimized nonlinear

control of a tethered quadrotor (Bouabdallah et al.,

2004b). The backstepping control offers high robust-

ness against large disturbances as compared to the

feedback linearization technique which is clear from

the results. To test the attitude stabilization of the

proposed fuzzy controllers, the system is initialized

with severe rotational angles Ω

T

F

i

= [45,45,45] de-

grees. Again, the sensory noise and winds are intro-

duced as disturbances. The experimental results show

FUZZY LOGIC BASED QUADROTOR FLIGHT CONTROLLER

109

0 5 10 15 20 25 30

−5

0

5

10

15

20

X−axis motion (m)

time (sec)

No noise, no wind

Noise, no wind

Noise and wind

(a)

0 5 10 15 20 25 30

−5

0

5

10

15

20

25

Y−axis motion (m)

time (sec)

(b)

0 5 10 15 20 25 30

−5

0

5

10

15

20

25

Z−axis motion (m)

time (sec)

(c)

0 5 10 15 20 25 30

−5

0

5

10

15

20

25

30

Pitch angle (deg)

time (sec)

(d)

0 5 10 15 20 25 30

−30

−25

−20

−15

−10

−5

0

5

10

15

Roll angle (deg)

time (sec)

(e)

0 5 10 15 20 25 30

−5

0

5

10

15

20

25

30

35

40

Yaw angle (deg)

time (sec)

(f)

Figure 4: Experiment 1, Sugeno FLC’s performance with and without disturbances. Quadrotor states: (a) x-axis; (b) y-axis;;

(c) z-axis (altitude); (d) pitch (θ); (e) roll (φ); and (f) yaw (ψ).

0 10 20 30 40 50

−10

0

10

20

30

40

50

60

70

80

X−axis motion (m)

time (sec)

Noise, no wind

Noise and wind

(a)

0 10 20 30 40 50

−10

0

10

20

30

40

50

Y−axis motion (m)

time (sec)

(b)

0 10 20 30 40 50

−10

0

10

20

30

40

50

60

70

Z−axis motion (m)

time (sec)

(c)

0 10 20 30 40 50

−50

−40

−30

−20

−10

0

10

20

30

40

Pitch angle (deg)

time (sec)

(d)

0 10 20 30 40 50

−40

−30

−20

−10

0

10

20

30

40

50

Roll angle (deg)

time (sec)

(e)

0 10 20 30 40 50

−12

−10

−8

−6

−4

−2

0

2

4

Yaw angle (deg)

time (sec)

(f)

Figure 5: Experiment 2, Mamdani FLC’s performance with a different initial condition. Quadrotor states: (a) x-axis; (b)

y-axis; (c) z-axis (altitude); (d) pitch (θ); (e) roll (φ); and (f) yaw (ψ).

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

110

0 10 20 30 40 50

−10

0

10

20

30

40

50

60

X−axis motion (m)

time (sec)

Noise, no wind

Noise and wind

(a)

0 10 20 30 40 50

−10

0

10

20

30

40

50

Y−axis motion (m)

time (sec)

(b)

0 10 20 30 40 50

−10

0

10

20

30

40

50

60

70

Z−axis motion (m)

time (sec)

(c)

0 10 20 30 40 50

−50

−40

−30

−20

−10

0

10

20

30

Pitch angle (deg)

time (sec)

(d)

0 10 20 30 40 50

−40

−30

−20

−10

0

10

20

30

40

50

Roll angle (deg)

time (sec)

(e)

0 10 20 30 40 50

−20

−15

−10

−5

0

5

10

Yaw angle (deg)

time (sec)

(f)

Figure 6: Experiment 2, Sugeno FLC’s performance with a different initial condition. Quadrotor states: (a) x-axis; (b) y-axis;;

(c) z-axis (altitude); (d) pitch (θ); (e) roll (φ); and (f) yaw (ψ).

0 2 4 6 8 10

−0.4

−0.2

0

0.2

0.4

0.6

0.8

1

Pitch angle (rad)

time (sec)

Noise, no wind

Noise and wind

(a)

0 2 4 6 8 10

−0.8

−0.6

−0.4

−0.2

0

0.2

0.4

0.6

0.8

Roll angle (rad)

time (sec)

(b)

0 2 4 6 8 10

−0.1

0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

Yaw angle (rad)

time (sec)

(c)

Figure 7: Experiment 3, Mamdani FLC’s attitude stabilization. Quadrotor orientation: (a) pitch angle (θ); (b) roll angle (φ);

and (c) yaw angle (ψ).

0 2 4 6 8 10

−0.2

0

0.2

0.4

0.6

0.8

1

1.2

Pitch angle (rad)

time (sec)

Noise, no wind

Noise and wind

(a)

0 2 4 6 8 10

−0.8

−0.6

−0.4

−0.2

0

0.2

0.4

0.6

0.8

Roll angle (rad)

time (sec)

(b)

0 2 4 6 8 10

−0.1

0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Yaw angle (rad)

time (sec)

(c)

Figure 8: Experiment 3, Sugeno FLC’s attitude stabilization. Quadrotor orientation: (a) pitch angle (θ); (b) roll angle (φ); and

(c) yaw angle (ψ).

FUZZY LOGIC BASED QUADROTOR FLIGHT CONTROLLER

111

the performance of the fuzzy controllers as compared

to a robust backstepping technique for nonlinear con-

trol in Figures 7, 8. Both Mamdani and Sugeno fuzzy

controllers are able to stabilize the quadrotor from

the critical initial conditions. The settling times are

slightly longer than the backstepping controller, spe-

cially for the ψ angle which can be improvedwith fur-

ther tuning of the FLC’s membership functions. How-

ever, this is overlooked because the fuzzy controllers

are stabilizing both position and attitude despite the

presence of strong wind conditions as high as 30m/s

and sensory noise of −55dB.

5 CONCLUSIONS

A fuzzy logic approach was proposed for the au-

tonomous control of quadrotors without the need for a

mathematical model of their complex and ill-deﬁned

dynamics. The fuzzy technique was implemented

through Sugeno and Mamdani inference engines for

comparison. The controller comprises of six indi-

vidual fuzzy controllers designated for the control of

the quadrotor’s position and orientation. The investi-

gation on the two types of control methodologies is

conducted in a simulation environment, where distur-

bances such as wind conditions and sensor noise are

incorporated for a more realistic simulation. The re-

sults demonstrated a successful control performance

of the quadrotor with both Mamdani and Sugeno

fuzzy controllers despite the disturbances. When

compared with other control techniques presented

in the literature for the same purpose, the proposed

method showed a higher robustness and faster con-

vergence, where satisfactory attitude stabilization is

achieved despite stringent initial conditions and se-

vere disturbances. The future work will be directed

towards a real-world implementation of the proposed

fuzzy controllers. Furthermore, the online adaptation

of controllers will be investigated.

REFERENCES

Altug, E., Ostrowski, J., and Mahony, R. (2002). Control of

a quadrotor helicopter using visual feedback. In Pro-

ceedings of the 2002 IEEE International Conference

on Robotics and Automation, pages 72–77.

Bouabdallah, S., Murrieri, P., and Siegwart, R. (2004a). De-

sign and control of an indoor micro quadrotor. In Pro-

ceedings of the International Conference on Robotics

and Automation.

Bouabdallah, S., Noth, A., and Siegwart, R. (2004b). PID

vs LQ control techniques applied to an indoor micro

quadrotor. In International Conference on Intelligent

Robots and Systems.

Coza, C. and Macnab, C. (2006). A new robust adaptive-

fuzzy control method applied to quadrotor helicopter

stabilization. In Annual meeting of the North Amer-

ican Fuzzy Information Processing Society, pages

454–458.

Dzul, A., Castillo, P., and Lozano, R. (2004). Real-time

stabilization and tracking of a four-rotor mini rotor-

craft. IEEE Transaction on Control System Technol-

ogy, 12(4):510–516.

Fincannon, T., Barnes, L. E., Murphy, R. R., and Rid-

dle, D. L. (2004). Evidence of the need for so-

cial intelligence in rescue robots. In Proceedings of

2004 IEEE/RSJ International Conference on Intelli-

gent Robots and Systems, pages 1089–1095.

Guenard, N., Hamel, T., and Mahony, R. (2008). A practical

visual servo control for an unmanned aerial vehicle.

IEEE Transactions on Robotics, 24(2):331–340.

Guenard, N., Hamel, T., and Moreau, V. (2005). Dy-

namic modeling and intuitive control strategy for an

X4-ﬂyer. In International Conference on Control and

Automation, pages 141–146.

Statistics, C. W. (2009). courtesy of environment canada.

[Online] Available. http://www.weatherstats.ca/.

Tarbouchi, M., Dunﬁed, J., and Labonte, G. (2004). Neu-

ral network based control of a four rotor helicopter.

In International Conference on Industrial Technology,

pages 1543–1548.

Tayebi, A. and McGilvray, S. (2006). Attitude stabiliza-

tion of a vtol quadrotor aircraft. IEEE Transaction on

Control System Technology, 14(3):562–571.

Waslander, S. L., Hoffmann, G. M., Jang, J. S., and Tomlin,

C. J. (2005). Multi-agent quadrotor testbed control

design: integral sliding mode vs. reinforcement learn-

ing. In International Conference on Intelligent Robots

and Systems, pages 468–473.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

112
