SCHEME FOR EVALUATION AND REDUCTION OF MOTION

ARTIFACTS IN MOBILE VISION SYSTEMS

Christoph Walter

, Felix Penzlin

and Norbert Elkmann

Fraunhofer Institute for Factory Operation and Automation

Sandtorstrasse 22, 39106 Magdeburg, Germany

Otto-von-Guericke-University Magdeburg

Universitätsplatz 2, 39106 Magdeburg, Germany

Keywords: Vision, Motion Blur, Mobile Robot, Congestion Control.

Abstract: Artifacts like motion blur are a common problem for vision systems on mobile robots, especially when

operating under low light conditions or when using high-resolution sensors. In this contribution we present a

scheme for estimating the degree of motion artifacts, especially motion blur, present in a stream of

individual camera images. A single quality estimate is derived per frame using data from an inertial

measurement unit. Considering limited image processing capacity of resource-constrained mobile robots,

we show a number of data processing strategies that are based upon the idea of congestion control by

adaptive image rejection.

1 INTRODUCTION

While the presence of motion artifacts in images

from moving cameras can also be exploited in

several ways, it is usually a troublesome effect.

Objects may become unrecognizable because of

blur; visual SLAM algorithms may yield poor results

because of difficulties when finding corresponding

image points or due to geometric distortion of the

whole image.

At the same time, image processing tasks usually

require significant resources and may easily exceed

the capabilities of the computer hardware present on

a mobile robot.

In the following sections we describe our

approach to lessen the effects of both problems. At

first we evaluate motion artifacts in greater detail.

After discussing related work we present our method

for estimating the image quality regarding the

presence of motion artifacts. We then show data

processing strategies including an approach to

congestion control in persistent overload situations.

We also present improvements of a specific vision

task achieved with our system.

2 MOTION ARTIFACTS

Cameras acquire images by exposing a light-

sensitive element for a given period of time. Camera

movement while the sensor is exposed may result in

a number of image artifacts. Lens distortion is

considered to have a negligible impact and is

therefore not modeled here.

2.1 Motion Blur

Motion blur can be induced by moving either objects

in the camera’s field of vision or the camera itself.

For simplicity we consider only a static scene and

disregard any moving objects.

Camera Translation. We distinguish between two

kinds of camera movement. On the one hand there is

translation in direction of the optical axis; on the

other hand there is motion in the plane orthogonal to

that axis. In the second case, the magnitude of blur b

on the image sensor for an object is in inverse

proportion to the distance to the camera plane d

cam

(See Figure 1).

238

Walter C., Penzlin F. and Elkmann N. (2009).

SCHEME FOR EVALUATION AND REDUCTION OF MOTION ARTIFACTS IN MOBILE VISION SYSTEMS.

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 238-243

DOI: 10.5220/0002209102380243

 SciTePress

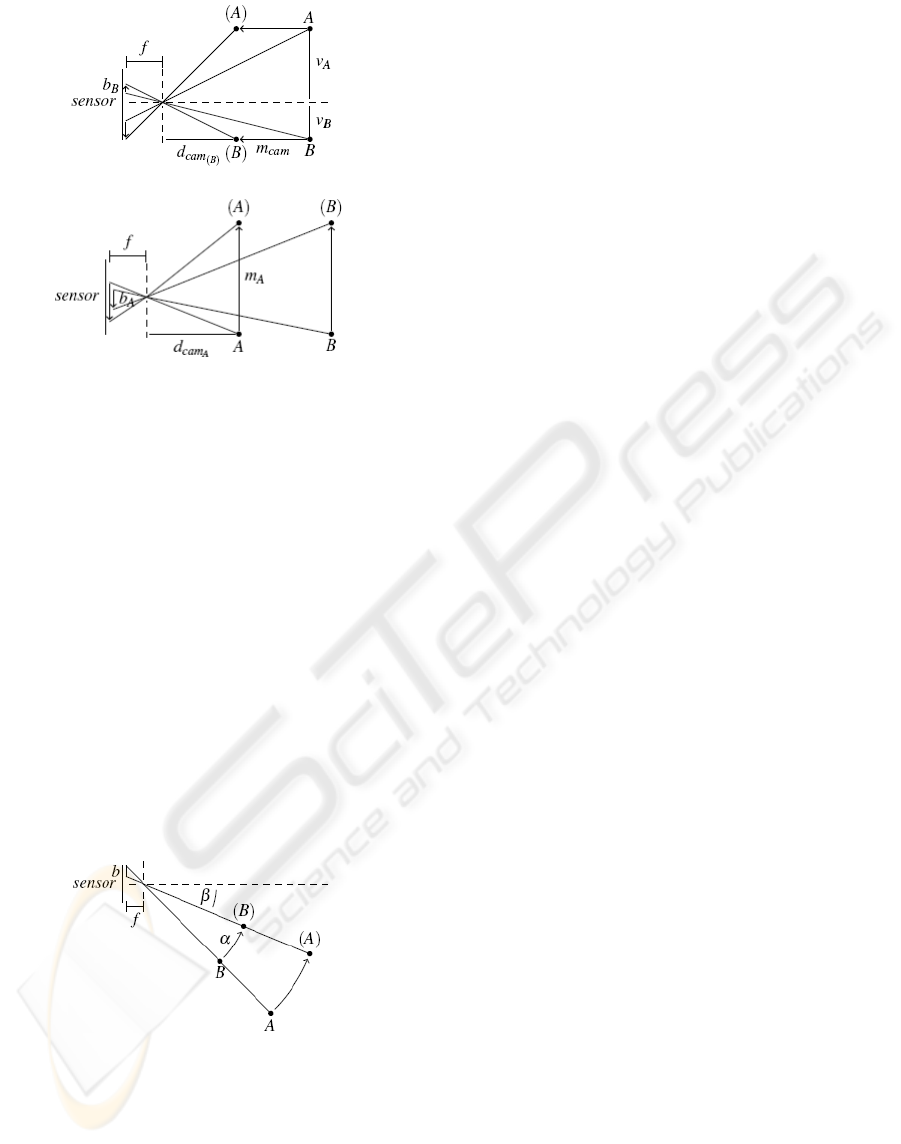

Figure 1: Motion blur in case of translation parallel to the

optical axis (upper part) and vertical or horizontal

translation (lower part).

For movements parallel to the optical axis the

intensity of blur b for an object depends on its

distances from line of view v and camera plane d

cam

and the displacement m

cam

. For a point at the optical

axis, this kind of translation has no impact. If objects

are relatively far away from the camera, translation

becomes insignificant.

Camera Rotation. When rotating the camera, the

magnitude of blur also depends on the position of a

given object relative to the optical axis. Figure 2

shows that such a camera rotation results in a blur b

roughly perpendicular to the axis of rotation. Its

strength depends on the actual angle of rotation and

on the angle between the rotation axis and the view

direction. The distance to an object does not matter

for rotational blur (See Figure 2).

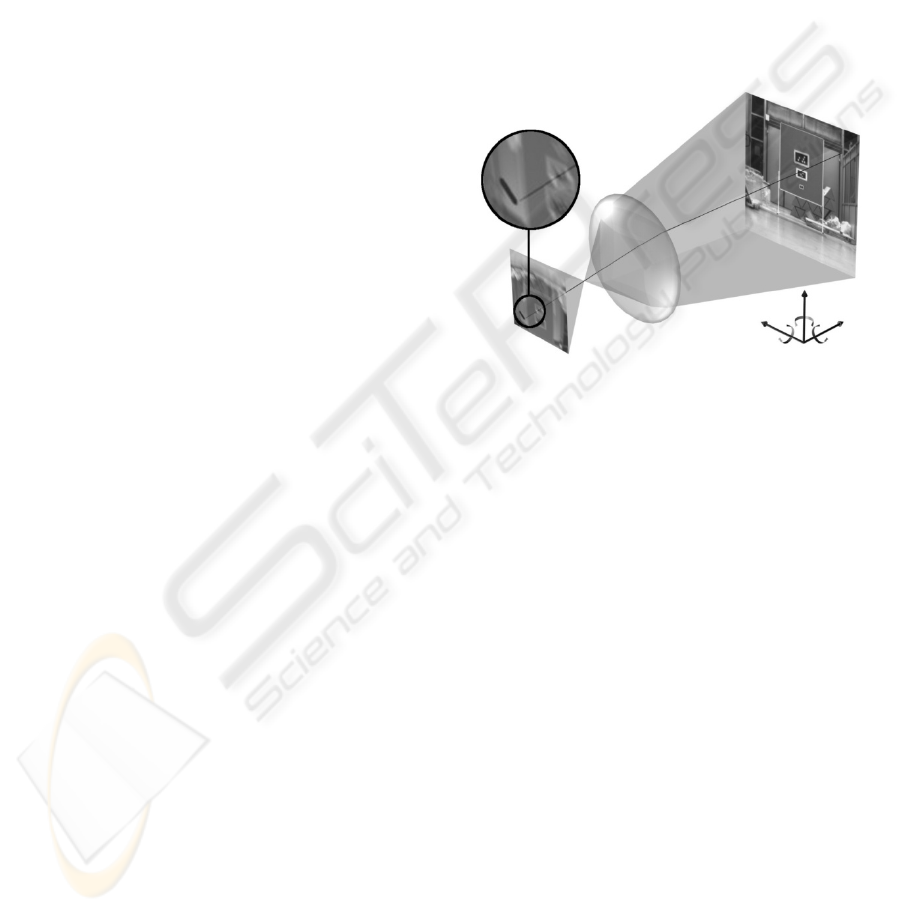

Figure 2: Motion blur in case of rotation.

2.2 Distortion

Geometrical image distortion is another common

artifact that can be found with moving cameras. It

occurs when different portions of the image sensor

are exposed sequentially to light. This “rolling

shutter”-mode is implemented in a number of

CMOS-based cameras.

A sudden change in illumination may influence

only portions of the image. If the camera is moved

horizontally or rotated around the vertical axis, skew

can be observed. Vertical lines appear to lean to the

left for moving to the left or the right side for the

opposite direction of movement. Vertical

movements as well as rotations around the

horizontal axis result in stretching respectively

shrinking of objects vertically. Altering the direction

of movement at a high speed (in case of vibrations)

is called “wobble”. When rotating the camera

around the optical axis, straight lines get bent around

the image center.

3 RELATED WORK

Two categories of techniques that are concerned

with the problem of motion artifacts can be

identified.

The first group of approaches is concerned with

avoiding artifacts in the first place. Here, special

hardware with accurate actuators is required. One

solution is to stabilize the whole camera on a special

platform, as shown in (Schiehlen, 1994). Other

solutions are shiftable image sensors (Yeom, 2007),

(Cardani, 2006), (Chi-Wei Chiu, 2007) that

counteract camera shake or agile optical components

like a variable fluid prism (Sato, 1993), a movable

mirror (Günther, 2006) or an additional lens between

scene and sensor.

A quite simple solution found in some recent

hand-held cameras tries to delay image exposure in

case of camera shaking. Camera movement is

determined using acceleration sensors.

A different group of solutions is not concerned

with preventing artifacts during image acquisition,

but tries to undo artifacts at a later stage by using

image processing techniques. For instance one

approach (Choi, 2008) merges blurred and sharp but

under-exposed images of the same scene to obtain

an overall improved image. In general, a correction

in software is time-consuming and consists of two

steps. In the first step the artifacts are identified, in a

second step they are removed from the image. A

number of algorithms for global shutter (Ji, 2008),

(Fergus, 2006) and for rolling shutter (Cho, 2008),

(Nicklin, 2007), (Chun, 2008) cameras have been

developed. In contrast to our implementation, most

of these approaches are, beside their excessive

computational cost, limited to simple motions.

SCHEME FOR EVALUATION AND REDUCTION OF MOTION ARTIFACTS IN MOBILE VISION SYSTEMS

239

4 IMAGE QUALITY

ESTIMATION

We estimate motion artifacts by measuring the

movement of the camera during image exposure.

This eliminates the need for additional image

processing to detect artifacts, which is beneficial for

resource constraint mobile systems.

4.1 Sensor Configuration

In our system, motion tracking is done by an inertial

sensor containing a MEMS gyroscope which can

measure three-dimensional angular velocity and a

MEMS three-axis-accelerometer. Measurements are

discretized in time. As discussed in section 2, the

effect of motion varies depending on the setup.

Camera translation results only in marginal artifacts

for objects at medium and large distances, which we

consider prevalent in the vast majority of mobile

robot scenarios. Additionally, the direction of view

often is in coincidence with the driving direction.

Here, camera movement as a result of the robot’s

linear motion can also be ignored. The position of

the sensor relative to the camera is irrelevant for the

measured angular speed as long as they are both

firmly mounted on a rigid frame.

4.2 Tracing Motion Artifacts

In our approach we consider the intrinsic camera

parameters and the position and orientation of the

camera relative to the gyroscope. The direction of

the view vector varies over the image. Therefore the

effect of camera motion is different at every image

point. It is calculated by first projecting points from

image space into world space by using the camera’s

intrinsic matrix while considering its lens distortion

(See Figure 3). The camera’s depth of field could be

used as a rough clue. As discussed earlier, rotation is

the main cause of artifacts in many scenarios. Here,

solely the view vector at the considered image points

is relevant.

In a second step the measured motion is applied

successively to the virtual camera while tracing the

path in image space described by the projected point.

The quality estimate for an image point is

determined by the length of the path as well as by

the maximum distance between any of two points on

that path. We map the strength of motion artifacts to

the interval from 0.0 to 1.0, where 1.0 stands for an

immobile camera. The quality reaches 0.0 for

infinitely high motion artifact strength.

As stated above, the direction of sight rays and

thus the quality estimate varies over different image

points. To get a single estimate for the entire image,

several possibilities exist to combine the data. The

simplest method is to only consider quality at the

image center. Depending on the application, it is

also possible to sample quality values over the entire

image or from predefined areas of interest and then

use the average or the lowest quality as the overall

quality measure. When combining samples over a

larger area it is possible to account for rotation

around the optical axis, which could not be detected

when only considering the image center.

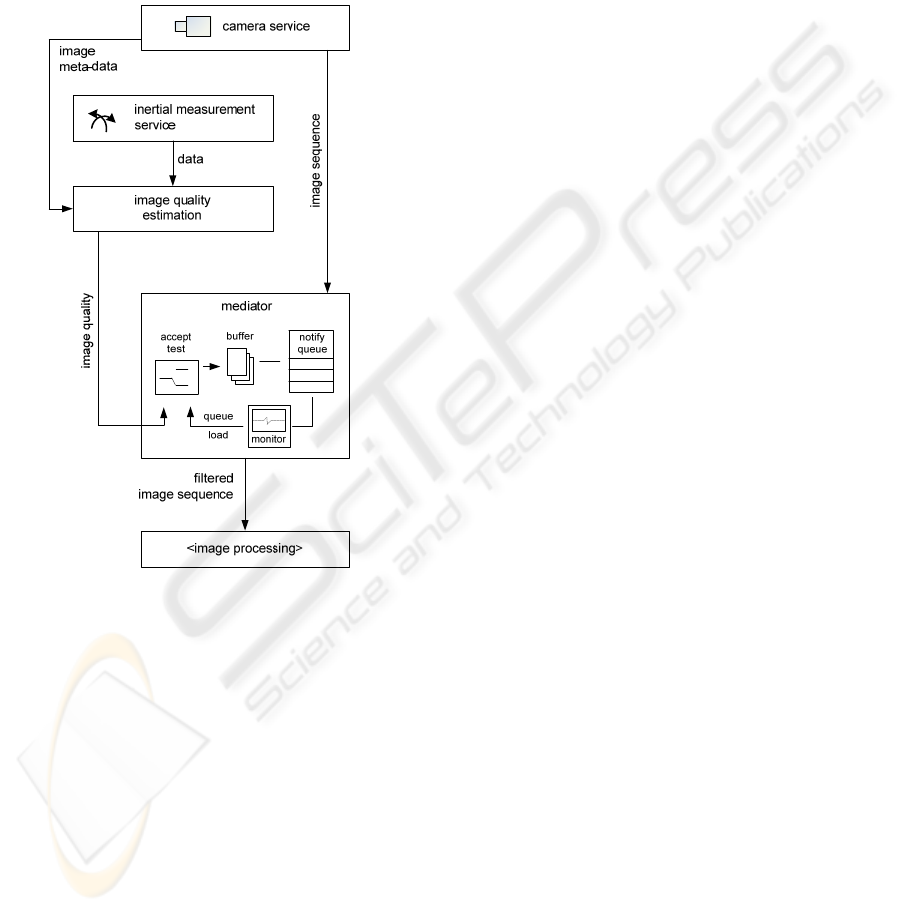

Figure 3: Basic principle of tracing motion artifacts.

5 DATA PROCESSING SCHEME

While researchers made various efforts to deal with

motion artifacts, many of them are not well suited

for mobile robot applications. Undoing blur is a slow

and cumbersome process. Adaptive triggering of

image acquisition depending on current camera

movement is a promising and computationally

inexpensive approach. However, a sudden increase

in camera movement during exposure cannot be

predicted.

In our system, we chose to continuously acquire

images as well as motion data and apply a selection

process at a later stage. One advantage is that the

actual movement of the camera during image

exposure is known for every individual image.

Another advantage is that ‘bad’ pictures are not

prevented from being acquired. A scheme for

rejecting individual frames at an early processing

stage is applied instead. Depending on the

application, blurry images may still be used if

continuous image degradation happens for a

prolonged period of time.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

240

5.1 Image Acceptance Test and

Congestion Control

We consider mobile platforms to have in general a

limited computing capacity. At the same time we

assume that image processing tasks consume

significant resources. Here, the frame rate of a

camera may easily exceed the image processing

capacity.

Figure 4: Structure of a system containing a mediator

service for congestion control.

As shown in Figure 4, instead of dropping

random frames, we can apply a simple, yet effective

congestion control scheme. Having a normalized

image quality value available for every frame

enables us to compare it directly to the current

system load. Images are only accepted for further

processing if their image quality is greater than the

system load indicator. This implies that in case the

system is idle, even images containing heavy motion

artifacts are accepted for further processing. This

ensures that it is not possible to reject every image

for an extended period of time. The system load

indicator is derived from the percentage of utilized

space in the image queue right before the image

processing stage mapped to the interval from 0.0 to

1.0.

5.2 Data Processing Strategies

The basic data processing scheme has been

described in the previous section. However, as in the

computation of a global quality estimate for the

entire image, some variations or extensions are also

possible at this stage.

Minimum Quality. If an application requires that

the degree of motion artifacts doesn’t exceed a

certain degree, it is possible to specify a minimum

quality value at the mediator to prevent it from

accepting low quality images.

Binning Images. Scenarios where degraded images

can still be useful if they are processed in an

alternative way compared to artifact-free images can

also be supported. Here, the mediator shown in

Figure 4 can be extended to route images with

quality estimates below a certain threshold to

another processing module. An example of such a

scenario may be a system for visual odometry where

images are too blurry to match corresponding

features in successive frames but can be used to

derive camera motion from blur instead. Another

scenario is the combination with deblurring

algorithms. To prevent starvation of image

processing in case of unacceptable blurry images for

a long period of time, it is possible to route

individual images through a deblurring stage when

the load indicator becomes low.

Reusing Quality Estimates. It may also be

desirable of course to include the quality estimate or

even the computed paths of movement at individual

image locations in later processing stages. The

overall quality measure can be easily included in the

image metadata at the mediator stage. If access to

more detailed data is required, it is more suitable to

establish an additional connection between the

quality estimation module and the processing stage

and access desired data on demand.

6 SYSTEM EVALUATION

In this section we show results achieved with our

approach to image quality estimation. We also

present improvements of a scenario where markers

are to be detected by a mobile robot while driving on

a bumpy floor.

SCHEME FOR EVALUATION AND REDUCTION OF MOTION ARTIFACTS IN MOBILE VISION SYSTEMS

241

6.1 Evaluation of Motion Artifact

Detection

In a first experiment we examined the correlation

between motion blur in camera images and the

computed quality based on angular rate

measurement. A mobile robot was equipped with a

front facing camera and was driving towards a board

placed in front of it. The robot passed various bumps

of a maximum height of 1 cm, which resulted in

displacement as well as rotation of the robot. Figure

5 shows the correlation between blur radius at the

image center and computed quality values. The blur

radius was measured manually in each individual

image.

Figure 5: Correlation between quality estimate and actual

strength of motion blur.

In Figure 6 small parts of a blurry and a non-

blurry image is shown. The red dots indicate the

motion calculated using inertial data only.

Figure 6: Motion blur traced by inertial data.

6.2 Improving a Marker Detection

Scenario

We applied our approach to a scenario where optical

markers were to be recognized by a moving mobile

robot. The computing capacity onboard the robot is

limited. Therefore not all images acquired by the

onboard camera can be processed. The lights were

set to about 300 lux, which resulted in an average

integration time of 60 ms. A 2/3 inch monochrome

CCD sensor and a 4.8 mm fixed focus C-Mount lens

were used in the experiment.

The robot was approaching a board from a

distance of approximately 13 meters. Markers of

different sizes were attached to the board (See

Figure 7). The goal when approaching the board was

to recognize the markers as frequently as possible.

Figure 7: Test setup of the marker detection scenario.

Images and motion data were recorded in order

to compare results achieved with uncontrolled frame

drops due to queue overflow against results with

dynamic congestion control. The total number of

images acquired during the approach was 319. The

average processing time per frame required by the

marker detection algorithm was approximately 1.6

times the interarrival time of new images. Table 1

shows the number of images in which a marker

could be identified for one particular approach. In

general, markers could not be recognized in all 319

frames because at first they were too far away, went

partially outside of the image, or they were obscured

by motion blur. It can be seen that the improvement

in the total number of images with recognized

markers increases with the decreasing size of the

marker. This is because smaller markers are easily

obscured by blur.

Table 1: Improvements of recognition results when

applying dynamic filtering.

Marker Large Medium Small

recognizable 246 272 99

recognized(uncontrolled) 154 159 62

recognized(filtered) 161 178 71

Improvement [pct.] 4.5 11.9 14.5

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

242

7 CONCLUSIONS

Here we presented an approach to improve the

performance of image processing tasks on mobile

robots equipped with common fixed focus, low-cost

cameras. The basic idea presented was to improve

the quality of images processed by arbitrary vision

algorithms by estimating the amount of motion

artifacts for every image and rejecting bad ones

while also considering a system load indicator.

Our system is suitable for resource-constrained

robots where the camera’s frame rate usually

exceeds the processing capabilities of the onboard

computer. Based on improvements we have seen in

an example scenario, we are confident that the

performance of a number of different image

processing tasks can be improved through this

approach.

ACKNOWLEDGEMENTS

This work has been funded in part by the German

Federal Ministry of Education and Research under

grant 01IM08002.

REFERENCES

Schiehlen, J., Dickmanns, E. D.: Design and control of a

camera platform for machine vision, In: Proc. of IEEE

Int. Conf. on Intelligent Robots and Systems ’94, pp.

2058-2063, 1994.

Yeom, D., Park, N., Jung, S.: Digital controller of novel

voice coil motor actuator for optical image stabilizer,

In: Proc. of Int. Conf. on Control, Automation and

Systems ‘07, pp. 2201-2206, 2007.

Cardani, B.: Optical image stabilization for digital

cameras, In: IEEE Control Systems Magazine vol. 26

no. 2, pp. 21-22, April 2006.

Chi-Wei Chiu, Chao, P. C. - P., Din-Yuan Wu: Optimal

Design of Magnetically Actuated Optical Image

Stabilizer Mechanism for Cameras in Mobile Phones

via Genetic Algorithm, In: IEEE Transactions on

Magnetics vol. 43 no. 6, pp. 2582-2584, June 2007.

Sato, K., Ishizuka, S., Nikami, A., Sato, M.: Control

techniques for optical image stabilizing system, In:

IEEE Transactions on Consumer Electronics vol. 39

no. 3, June 1993.

Günthner, W., Wagner, P., Ulbrich, H.: An inertially

Stabilised Vehicle Camera System. Hardware,

Algorithms, Test Drives, In: Proc. of IEEE Conf. on

Industrial Electronics ‘06, pp. 3815-3820, 2006.

Ji, H., Liu, C.: Motion blur identification from image

gradients, In: IEEE Conf. on Computer Vision and

pattern Recognition ‘08, pp. 1-8, 2008.

Fergus, R., Singh, B., Hertzmann, A., Roweis, S. T.,

Freeman, W. T.: Removing camera shake from a

single photograph, In: Proc. of ACM SIGGRAPH ’06,

pp. 787-794, 2006.

Cho, W. H., Hong, K.-S.: A fast CIS still image

stabilization method without parallax and moving

object problems, IEEE Transactions on Consumer

Electronics vol. 54 no. 2, May 2008.

Nicklin, S. P., Fisher, R. D., Middleton, R. H.: Rolling

Shutter Image Compensation, In: Lecture Notes in

Computer Science vol. 4434/2007, Springer, 2007.

Chun, J.-B., Jung, H., Kyung, C.-M.: Suppressing rolling-

shutter distortion of CMOS image sensors by motion

vector detection, IEEE Transactions on Consumer

Electronics, vol.54, no.3, 2008.

Choi, B.-D., Jung, S.-W., Ko, S.-J.: Motion-blur-free

camera system splitting exposure time, IEEE

Transactions on Consumer Electronics, vol.54, no.3,

2008.

SCHEME FOR EVALUATION AND REDUCTION OF MOTION ARTIFACTS IN MOBILE VISION SYSTEMS

243
