Trade-offs for Model Inconsistency Resolution

Anne Keller, Hans Schippers and Serge Demeyer

University of Antwerp

Middelheimlaan 1, 2020 Antwerp, Belgium

Abstract. With the advent of model-driven software development, models gain

importance in all steps of the software development process. This makes the

problem of consistency between models an important challenge. Models in large

projects typically contain many inconsistencies, where each of them can be re-

solved in multiple ways with different effects on the system, thus making the

decision on a resolution strategy a hard one. In this paper, we present metrics

that assess the impact of a resolution operation on the model and the computa-

tional cost of a resolution operation. We propose to use these metrics to compare

different resolution strategies.

1 Introduction

In a model-driven process, as for example Model-Driven Architecture (MDA), mod-

els are the main software development entities and artefacts. On the one hand, models

change in time, e.g., model elements are added or removed. On the other hand, high-

level platform-independent models are transformed into low-level platform-speciﬁc mod-

els that are the basis for code generation. In a software development process that so

heavily relies on models, consistency management of these models is crucial.

Inconsistencies between models occur when a prior deﬁned consistency rule is

checked and violated. The cause for inconsistencies ranges from distributed work on

the models, over incomplete speciﬁcations, to evolution of models.

For each inconsistency there exist a number of resolution operations that resolve

the inconsistency completely. However, the resolution operations are not equivalent.

Additional to their differences in semantics (i.e., how they actually resolve the incon-

sistency), they can differ in the impact they have on the model, as well as in the compu-

tational cost of their application. Choosing a resolution operation that implies the least

changes to the overall model (i.e., low impact) can be an as relevant decision as choos-

ing one that is applied in few steps (i.e., low computational cost). The difﬁculty lies in

assessing the effects of a resolution operation and incorporating this knowledge into the

choice of resolution operation.

In this paper we introduce metrics to judge the impact and computational cost of a

resolution operation and propose to use these metrics to choose a resolution operation

with a favourable trade-off point.

The paper is structured as follows, in Section 2 we introduce the metrics, Section 3

contains the related work, and Section 4 concludes the paper.

Keller A., Schippers H. and Demeyer S. (2009).

Trade-offs for Model Inconsistency Resolution.

In Proceedings of the 1st International Workshop on Future Trends of Model-Driven Development, pages 48-51

DOI: 10.5220/0002201800480051

 SciTePress

2 Metrics for Inconsistency Resolution

Evaluating Impact. Our starting observation is that applying changes to model ele-

ments which are heavily used by other model elements should be avoided. Thus, to

avoid changing heavily used model elements the resolution operation with the lowest

impact would be preferred. The rationale behind this idea is that changing such model

element is likely to cause changes in the other model elements as well. Such changes

include modiﬁcations to a semantically important class (’god class’) and changes to a

referenced model element. Changing a semantically important class will also modify

the expected semantics for the related model elements (e.g., for all classes connected

by association). Changes to a referenced model element result in having to check, and

possibly modify, the existing references. In Table 1 we present a preliminary collection

of impact relationships that capture a number of these relevant connections between

model elements in UML Class and Sequence Diagrams. To calculate the impact we

check how often each model element involved in a resolution operation is taking part

in such a impact relationship. In order to put the amount of connections in relation with

the design of the overall model, we divide the number of occurrences of a speciﬁc im-

pact relationship by the maximum number of occurrences in the model. For resolution

operations consisting of several operations to different model elements the impact val-

ues are added. The more impact relationships a model element takes part in, the higher

the impact of this model element in the given model.

Computational Cost. Whereas the impact metric allows for determining model el-

ements which we would like to avoid applying changes to, it fails to take into account

how hard it is, computationally, to actually carry out a certain resolution operation. In

other words, we would like to express the idea that a resolution operation which involves

a small number of computational steps is preferable over a more expensive alternative.

To this end, we introduce the computational cost as a second metric. This is especially

relevant when dealing with large and complex models that contain many inconsisten-

cies. In such models an often applied, computationally expensive resolution will lead

high execution time and thus to poor performance.

Computational cost considers modiﬁcation and navigation operations on the model

as a data structure. The computational steps which we take into account are on the one

hand operations on the data structure, i.e., modiﬁcations, creations, deletions of model

elements and on the other hand navigational steps in the model. Thus, the steps needed

to execute a resolution depend on the UML meta-model.

Example. We explain the usage of the metrics on a short example. Figure 2 shows

an example of the ’Dangling Connectable Feature Reference’ inconsistency as speciﬁed

in [5]. This inconsistency occurs when a message in a sequence diagram references an

operation not found in the corresponding class. In the example the AddEventRequest

operation is not found in the Calendar class. The available options to resolve this in-

consistency are to 1) add a new operation to the Calendar class in the class diagram

(AddOp), 2) remove the message AddEventRequest from the sequence diagram

(RmvMsg), 3) change an existing operation in the class diagram to match the exist-

ing AddEventRequest message (ChngOp) and 4) change the AddEventRequest

message in the sequence diagram to refer to an existing operation in the Calendar

Class

· is type of an attribute

· has instance

· has association to other

class

· contains an operation

· contains an attribute

· is generalisation

Operation

· is called by a message

· is inherited

Attribute

· is parameter of an opera-

tion

· is inherited

Object

· is instance of a class

· has message calls to it

Message

· references an operation

· is create or delete mes-

sage

· has reply message

Table 1. Impact Relationships.

Operation

+ UserID: Integer

+ Name: String

+ Email: String

User

+ checkUser()

+ EventID: Integer

+ Description: String

+ Time: String

+ Date: String

+ Location: String

+ Participant : User

Calendar

+ addNewEvent()

+ iEventID: Integer

+ iTime: String

+ iDate: String

CalendarUser

Interface

+ sendEmail()

+ UserID:

Reminder

+user +eventCalendar

+user

+calUserInterface

+reminder

+calUserInterface

+eventCalendar

: UserInterface

: Calendar

addNewEvent

addEventRequest

loginForm

userLogin

checkUser

checkUserLogin

displayNewEventForm

insertEventDetail

saveNewEvent

saveEvent

addingEventComplete

+ login()

WebInterface

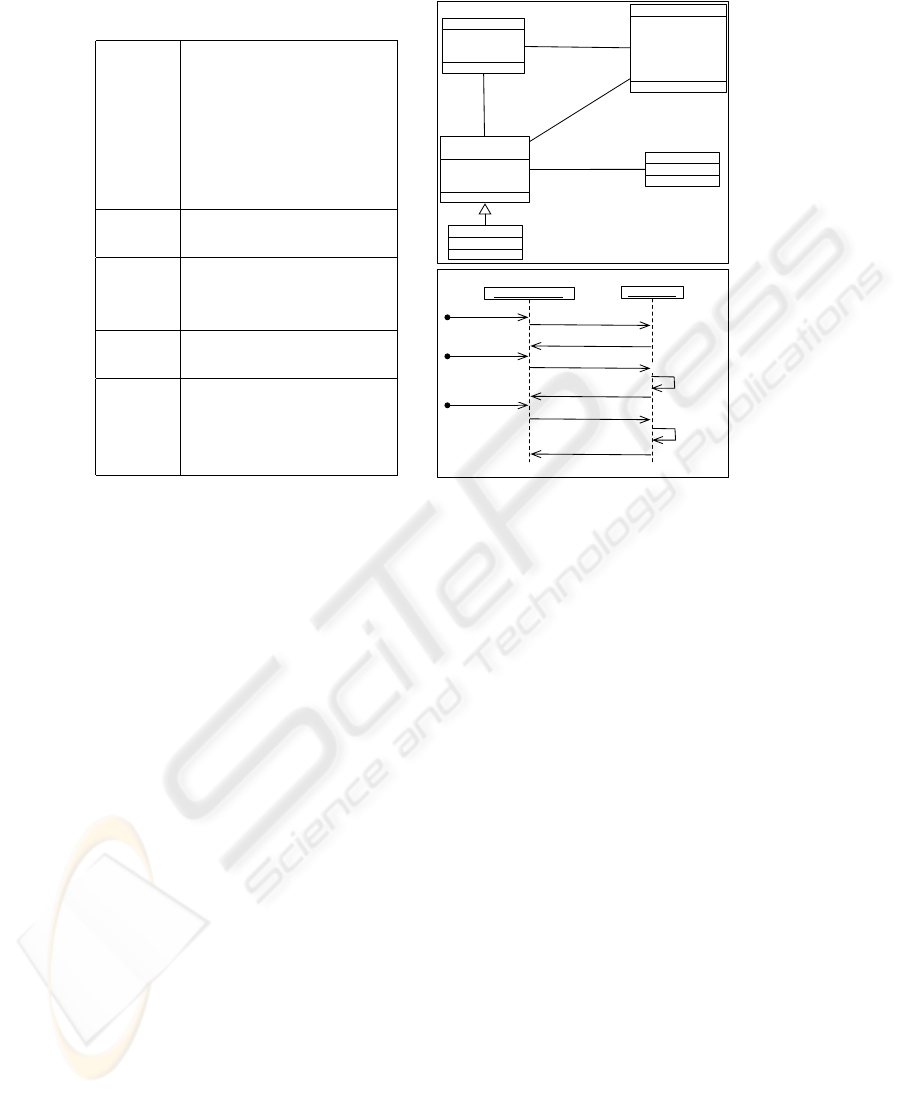

Table 2. Inconsistent UML Class and

Sequence Diagram.

class (ChngMsg). Each resolution operation consists of several steps. For example, Ad-

dOp consists of the steps: a) create a new operation, b) name the operation, c) assign

the operation to a class.

Calculating impact for the example, we obtain AddOp (1.1), RmvMsg (0), ChngOp

(1.1) and ChngMsg (0). The computational cost is AddOp (5), RmvMsg (11), ChngOp

(6) and ChngMsg (4). Comparing the results for impact and computational cost we see

that each metric values the application of the shown resolution operations differently.

For example, while according to the impact RmvMsg and ChngMsg are preferred, the

computational cost metric ranks RmvMsg as the operation with the highest cost. That

is, while the AddEventRequest message is a model element whose modiﬁcation is

judged to have a low impact, it is deﬁned in such a way that its removal is a costly

operation.

3 Related Work

Kuester et al. [1] evaluate inconsistency resolutions based on side-effect expressions

and the resolution’s overall cost reduction. Different to this approach, we do not relate

the resolution operations to a set of deﬁned inconsistencies. Instead, we compare the

resolutions based on the changes they pose to the whole model.

In [2], [3] Mens et al. describe how they use critical pair analysis of graph transfor-

mation rules in order to evaluate dependencies between inconsistency resolutions such

as mutual exclusion and sequential dependency. Different to their work, we do not re-

late inconsistency resolutions of different consistency rules with each other. Instead, we

evaluate each resolution independent of other possible inconsistencies.

Spanoudakis et al. [4] use object-oriented metrics to evaluate the signiﬁcance of

inconsistencies. Spanoudakis et al. analyse the signiﬁcance of inconsistencies rather

than single resolution operations. A similarity exists in the premise that signiﬁcance of

inconsistencies depends on the signiﬁcance of the involved model elements.

4 Conclusions and Future Work

In this paper, we introduced two metrics to support the process of inconsistency resolu-

tion. The impact metric determines to which extent a resolution operation will cause a

model to change. The computational cost of a resolution operation expresses how hard

it is, technically, to actually perform the operation. We consider these metrics an im-

portant step towards reifying the trade-offs involved in the complex process of deciding

which resolution operation to apply in a given situation of inconsistency.

There are two main parts of future work. In a ﬁrst phase, the process of calculating

our metrics will be automated by means of a tool which operates on a model repository.

In a second phase, using this tool, we want to show the relevance of our metrics for

inconsistency resolution. This validation will need to take place on large scale case

study.

Once the metrics are automated and validated, there is room to reﬁne the metric

calculation functions. For example, the impact calculation can be reﬁned by assigning

a weight to each impact relationship and thus respecting the fact that different impact

relationships have different semantics. (For example, compare the semantics of a UML

composition and aggregation.) Also, adding weights to the different kinds of resolution

operations (e.g., add, remove) can prevent that one kind of resolution operation (e.g.,

an addition) is always preferred over another type of resolution operation. For the com-

putational cost, weights should be assigned to each operation, for example, deletion

computational costs more than navigation. All of this remains to be investigated and is

future work.
