C3: A METAMODEL FOR ARCHITECTURE DESCRIPTION

LANGUAGE BASED ON FIRST-ORDER CONNECTOR TYPES

Abdelkrim Amirat and Mourad Oussalah

LINA Laboratoy CNRS, University of Nantes, France

Keywords: Architecture, First class connector, Connection manager, Modeling software architecture, C3 Metamodel.

Abstract: To provide hierarchical description from different software architectural viewpoints we need more than one

abstraction hierarchy and connection mechanisms to support the interactions among components. Also,

these mechanisms will support the refinement and traceability of architectural elements through the different

levels of each hierarchy. Current methods and tools provide poor support for the challenge posed by

developing system using hierarchical description. This paper describes an architecture-centric approach

allowing the user to describe the logical architecture view where a physical architecture view is generated

automatically for all application instances of the logical architecture.

1 INTRODUCTION

The representation of software architecture is based

on the concepts of component (loci of computation),

connector (loci of communication), and

configuration (arrangement of components and

connectors, and properties of that arrangement) in

order to describe the structure of the system at a

higher level of abstraction than objects or lines of

code. This representation provides several

advantages over the life cycle of a software (Garlan

et al., 2000).

Although the use of connectors is widely

accepted at the conceptual level, their explicit

representation at the implementation level is not

always left to be necessary. However, we feel that

distinct conceptual entities should correspond to

distinct implementation entities, so that they can

truly become first-class and be manipulated as such.

In fact, as argued in (Medvidovic et al., 2000), the

current level of support that architecture description

languages (ADLs) provide for connector building is

still far from the one awarded to components. For

instance, although a considerable amount of work

can be found on several aspects of connectors

(Dashofy et al., 2005; Medvidovic et al., 2007; and

Garlan et al., 2000), further steps are still necessary

to achieve a systematic way of constructing new

connectors from existing ones. Yet, the ability to

manipulate connectors in a systematic and controlled

way is essential for promoting reuse and incremental

development, and to make it easier to address

complex interactions.

Certainly, having a representation of the software

architecture allows an easy exchange between the

architect and programmer. Also, during the phases

of maintenance and evolution, this representation

helps to locate defects and reduces the risk of

improper assembly of a new feature in the system. In

addition, the distinction which exists between

components and connectors allows a more explicit

representation between the functional aspects and

these of communication and therefore, makes the

system easier to understand and to change. Finally,

architecture-based components are also useful to

facilitate the reuse of certain parts of the system

represented by configurations (Garlan et al., 2000).

In contrast the industrial world, which offers

components strongly linked to servers, systems or

models owners (Dashofy, 2005), the academic

approach is interested in formalizing the notion of

software architecture language. The ADLs provide a

high level of abstraction for the specification and

development of software systems.

In this article, we take a step towards this goal by

proposing a metamodel for the description of

software architecture called C3 (Component,

Connector, and Configuration). The specificity of

this metamodel based on the definition of two types

of architecture. A logical architecture defined by the

user and a physical architecture built by the system

and conforms to the logical architecture. The

Amirat A. and Oussalah M. (2009).

C3: A METAMODEL FOR ARCHITECTURE DESCRIPTION LANGUAGE BASED ON FIRST-ORDER CONNECTOR TYPES.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages 76-81

DOI: 10.5220/0001957500760081

 SciTePress

metamodel will make its contribution towards the

following objectives: 1- provide a higher abstraction

level for connectors in order to make them more

generic and more reusable; 2- take into account the

semantics of several types of relationships. In our

case; we explore the association relationship

between components, the composition relationship

among architectural elements, and the propagation

relationship to describe software systems at different

levels of details; 3- by using the physical and the

logical architecture, we can separate the functional

aspects of architectural elements and the non-

functional aspects related to the management of their

connections and consistency.

After this introduction and the motivations of our

research, the remainder of this article is organized as

follows: In section 2 presents the concept of a

logical architecture with the key elements of the

proposed metamodel. The physical architecture is

defined in section 3. The last section concludes this

work.

2 LOGICAL ARCHITECTURE

The large majority of ADLs consider components as

entities of first class. So, they make distinction

between component-types and component-instances.

However, this is not the case with other concepts

such as connectors and configurations. In our

metamodel we consider each concept recognized by

the C3 metamodel as architectural element of the

first class citizen. So, each architectural element

maybe positioned on one of the three abstraction

levels defined in the following section. We believe

that it is necessary to reify the core architectural

elements in order to be able to represent and

manipulate them and let them evolve easily.

2.1 Abstraction Levels

In our approach, software architectures are described

in accordance to the first three levels of modelling

defined by the OMG. The application level (A0)

which represents the real word application (an

instance of the architecture), the architecture level

(A1) which represents the architecture model and the

meta-architecture level (A2) which represents the

meta-language for the description of the logical

architecture.

2.2 C3 Architectural Elements

An architectural element may have several

properties as well as constraints on these properties,

as it may have one or more possible

implementations. The interaction points of each

architectural element with its environment are the

interfaces. Each architectural element is defined by

its interfaces through which they publish its required

and provided services to and from its environment

(Figure 1).

ArchitecturalElement

+name

composed of

0..*

implem e n tation

realised by

1..*

Co ns tra i nt es

0..*

Properties

1..*

Inter face

Port Service

RequiredService ProvidedService

Use

RequiredPort ProvidedPort

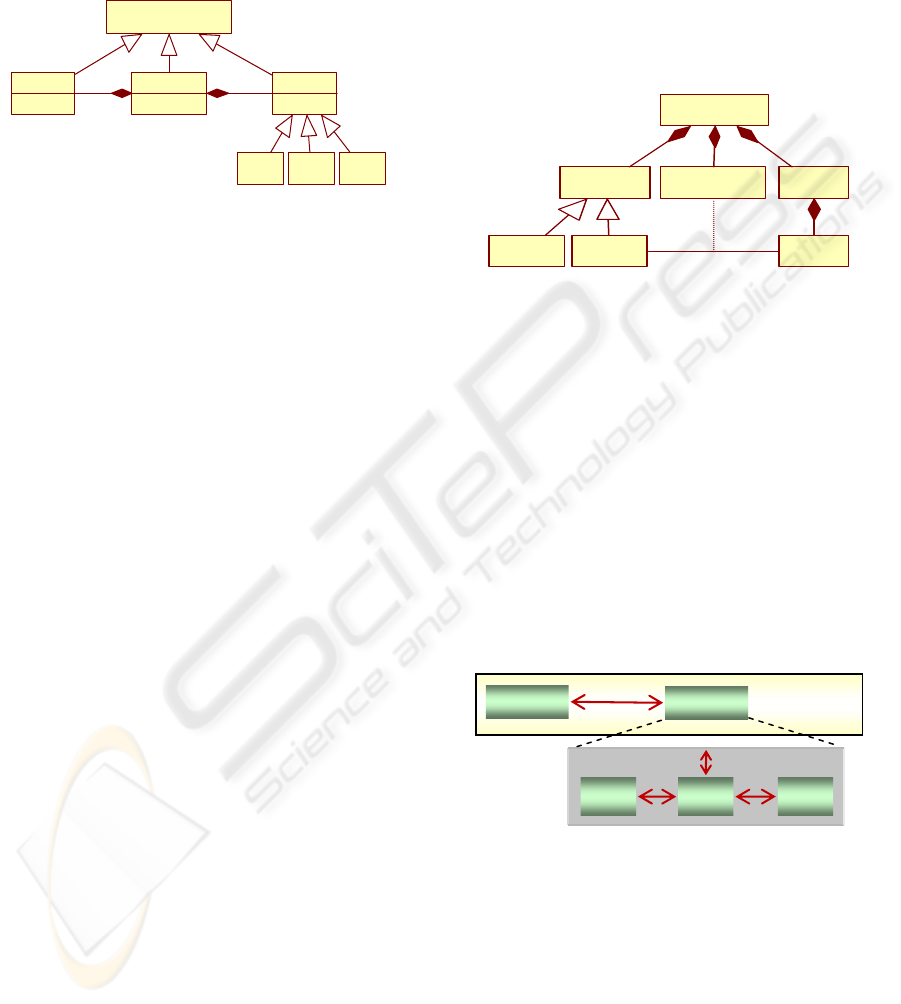

Figure 1: Structure of an architectural element in C3.

2.2.1 Component

A component is that it is a software unit with

provided services and required services. The

provided services are operations performed by the

component. The required services are the services

needed by the component to produce the provided

services. The interface of a component consists of

the specifications of its provided and required

services. It should specify any dependencies

between its provided and required services.

2.2.2 Connector

Connectors are architectural building blocks used to

model the interactions between components and

rules that govern these interactions. They correspond

to lines in box-line descriptions. Unlike components,

connectors may not correspond to compilation

entities. However, the specifications of connectors in

an ADL may also contain rules to implement a

specific type of connectors. Current ADLs can be

classified into three different kinds: ADLs without

connectors, ADLs with predefined set of connectors,

and ADLs with explicit connector types.

2.2.3 Configuration

A configuration represents a graph of components

and connectors. Configuration specifies how

components are connected with connectors (Figure

2). This concept is needed to determine if the

components are well connected, whether their

C3: A METAMODEL FOR ARCHITECTURE DESCRIPTION LANGUAGE BASED ON FIRST-ORDER

CONNECTOR TYPES

interfaces agree, and so on. A configuration is

described by an interface which enables the

communication between: the configuration and its

external environment, and the configuration and its

internal components.

ArchitecturalElement

Configura tio n

+name

Component

+name

Connecto r

+name

1..*

ECCACCDC

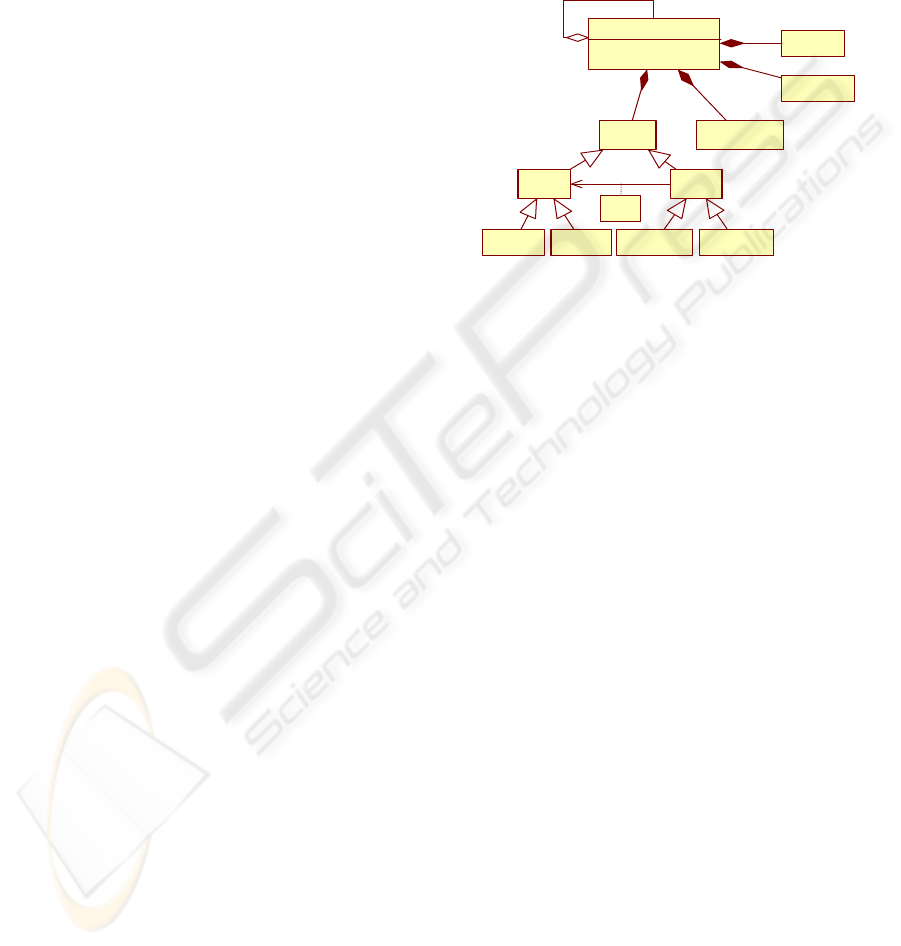

Figure 2: Component, connector, and configuration in C3.

2.3 Connectors in C3 Metamodel

A connector is mainly represented by an interface

and a glue specification (Amirat, 2007). Basically,

the interface shows the necessary information of the

connector, including the number of interaction

points, service type that a connector provides,

connection mode, transfer mode etc. In C3

interaction points of an interface are called Ports. A

port is the interface of a connector intended to be

tied to a component interface (a component’s port).

In the context of the frame, a port is either a

provided or a required port. A provide port serves as

entry point to a component interaction represented

by a connector type instance and it is intended to be

connected to the require port of a component (or to

the require port of another connector). Similarly, a

require port serves as the outlet point of a

component interaction represented by a connector

type instance and it is intended to be connected to

the provide port of a component (or to the provide

role of another connector). The number of ports

within a connector denotes the degree of a connector

type. For example, in client-server architecture a

connector type representing procedure call

interaction between client and server entities is a

connector with degree two. The glue specification

describes the functionality that is expected from a

connector. It represents the hidden part of a

connector. The glue could be just a simple protocol

links ports or it could be a complex protocol that

does various operations including linking,

conversion of data format, transferring, adapting,

etc.

2.3.1 Connector Structure

attachment links (Figure 3). So, the application

builder will have to spend no effort in connecting

connectors with its compatible components and/or

configurations. Consequently, the task of the

developer consists only in choosing from the library

the suitable type of connectors where its interfaces

are compatible with the interfaces of

component/configuration types of which are

expected to be assembled.

Connector

Our contribution at this level consists in enhancing

the structure of connectors by encapsulating the

Interface Connection Glue

Port

Se rvice Role

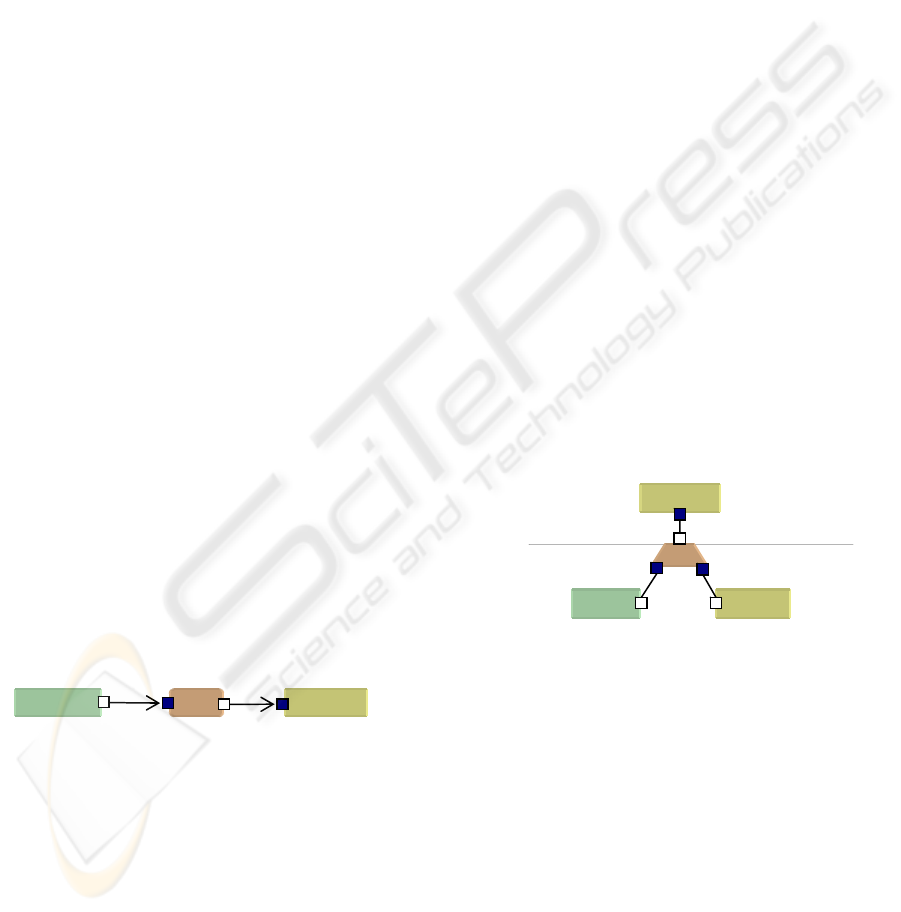

Figure 3: Connector structure.

In order ies of C3

metamodel a case study is going to be used

thr

Figure ent–se itectu

In a p a new

structure of a connector where attachment are

enc

to illustrate the propert

oughout the paper. The case study is a client-

server configuration (CS-config) organized around a

client-server relationship. In this configuration we

have a client and a server. The server component

itself is defined by a configuration (S-config) whose

internal components are Coordinator (Coor.),

securityManager (SM) and dataBase (DB). These

elements are interconnected via connector services

that determine the interactions that can occur

between the server and client on one hand and

between the server and its internal elements on the

other hand (Figure 4).

4: Cli rver arch re.

revious work we have introduced

apsulated inside connectors and having well

defined connector interfaces with previously known

element types to be connected by each connector

type components and/or configurations are

assembled in an easy and coherent way in the form

of an architectural puzzle (Lego Blocks) without any

effort to describe links among components and

CS-

onfig. C

-Config. S

Client

Server

SM DB

Coor.

ICEIS 2009 - International Conference on Enterprise Information Systems

2.3.2 Connector Taxonomy

In C3 metamodel we have defined three connector

Connection Connector (CC). This type of

ame ({X

.requiredPort}, {Y

.providedPort})

aximum number of

ele

con

(portC1, portS1);

Figure 5: Connector CC1 in client-server architecture.

Composition/Decomposition Connector (CDC).

semantic roles with two different glue protocols.

});

dPort );

nn rts,

t r

cor

pectively used

to he

ser

Figure 6: Possible links of CDC1 connector.

Expansion/Compression Connec th

ECC en a

Name ({Y .requiredPort}, X.providedPort);

≤ number of internal elements.

connectors or between configurations and

connectors (Amirat, 2007).

types: the connection connector, the composition

decomposition connector, and expansion

compression connector. The signature of each

connector type is defined by: the requiredInterf

representing all required ports and services and

providedInterf representing all provided ports and

services of a connector. Where each service can uses

one or more ports of the same interface. In the

following we give the exact function of each type of

connector in C3 metamodel.

connector is used to connect components and

configurations belonging to the same level of

hierarchy. The ports of this type of connector can be

“required” or “provided”. The signature of a CC

connector is:

Connector CC N

where X

, Y

⊂

{component, configuration},

, Y

⊂ L

; / the same hierarchical level (L

With i = 1, 2, .., M ; j = 1, 2, .., N,

(M+N) represents the m

ments which can be linked by CC connector. The

mapping between the inputs and outputs is described

by the glue defined inside of the connector.

Figure 5 represents the CC1 connectio

nector type used to link a client component with

s-config configuration of the previous example. This

type connector has two ports: portC1 in client side

and portS1 in server side. Hence, the interface CC1

will be defined as follows:

Connector CC AC1

This type of connector is used to realize a top-down

refinement (i.e. to link a configuration with its

internal elements) also we call this relationship a

decomposition model. Likewise CDC connector can

be used to realize bottom-up abstraction (i.e. to link

a set of elements to their container or configuration

also we call this relationship a composition model.

However, this type of connectors can play two

// decomposition of a configuration X to its internals

Connector CDC Nom (X.requiredPort , { Y

.providedPort

// composition of Y elements to constitute a configuration

Connector CDC Nom ( {Y

.requiredPort} , X.provide

X is a configuration, Y

⊂ {component, configuration},

i =1,..,N ; X

⊂ L

and Y

⊂ L

k-j

, L is the hierarchical level.

Thus, a CDC co ector will have (N+1) po

where N is he numbe of internal elements in the

responding configuration. This type of connector

has the following functions: first it allows us to

shape the genealogical tree of the different elements

deployed in an architecture, second it enables a

configuration to spread information to all these

internal elements without exception (to-down

propagation) and inversely (i.e. it allows any internal

element to send information to its configuration.

Figure 6 represents CDC1 a decomposition

composition connector type used to link client-

server configuration (CS-config) defined at the

hierarchical level (L

) with its internals namely

client component (Client) and server configuration

(s-config) defined at the lower hierarchical level

). Consequently, the interface of CDC1 connector

type will be specified as follows:

Connector CDC CDC1 ( portCS, portC2, portS2);

portC2, portS2, and portCS are res

connect CDC1 with the client component, t

ver configuration, and client-server configuration

(CS-config).

tor (ECC).

is used to establish a service link betwe

configuration and its internal elements. Also, ECC

can be used as an expansion operator of services to

several sub-services and it can be used in reverse as

a compression operator of set of services to a global

service. The CDC may have an interface for

expansion and another for compression. So, these

interfaces are defined as follows:

// expansion

Connector ECC Name (X.requiredPort, {Y .providedPort });

// compression

Connector ECC

tion, Y

⊂ {component, configuration}, X is a configura

i =1,2,..,N, and N

CS-Config

S-Config

Client

CDC1

portCS2

portS2 portC2

CC1

Client

portS1portC1

S-Config

C3: A METAMODEL FOR ARCHITECTURE DESCRIPTION LANGUAGE BASED ON FIRST-ORDER

CONNECTOR TYPES

yp ng

e or

p r for

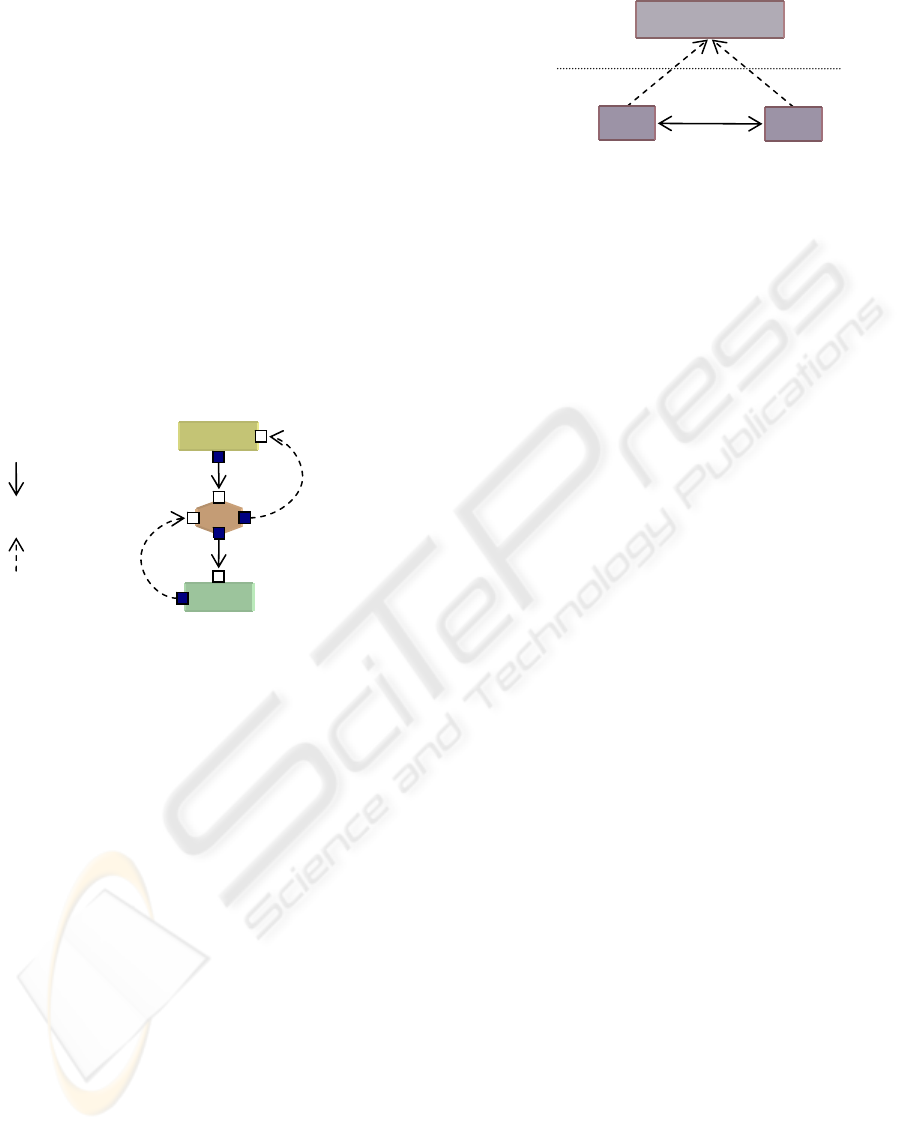

exp

: ECC1 connector chitecture.

3 P

image is built in the form of a graph whose nodes

The physical architecture is described using only

d t

instance level as illustrated in Figure 8.

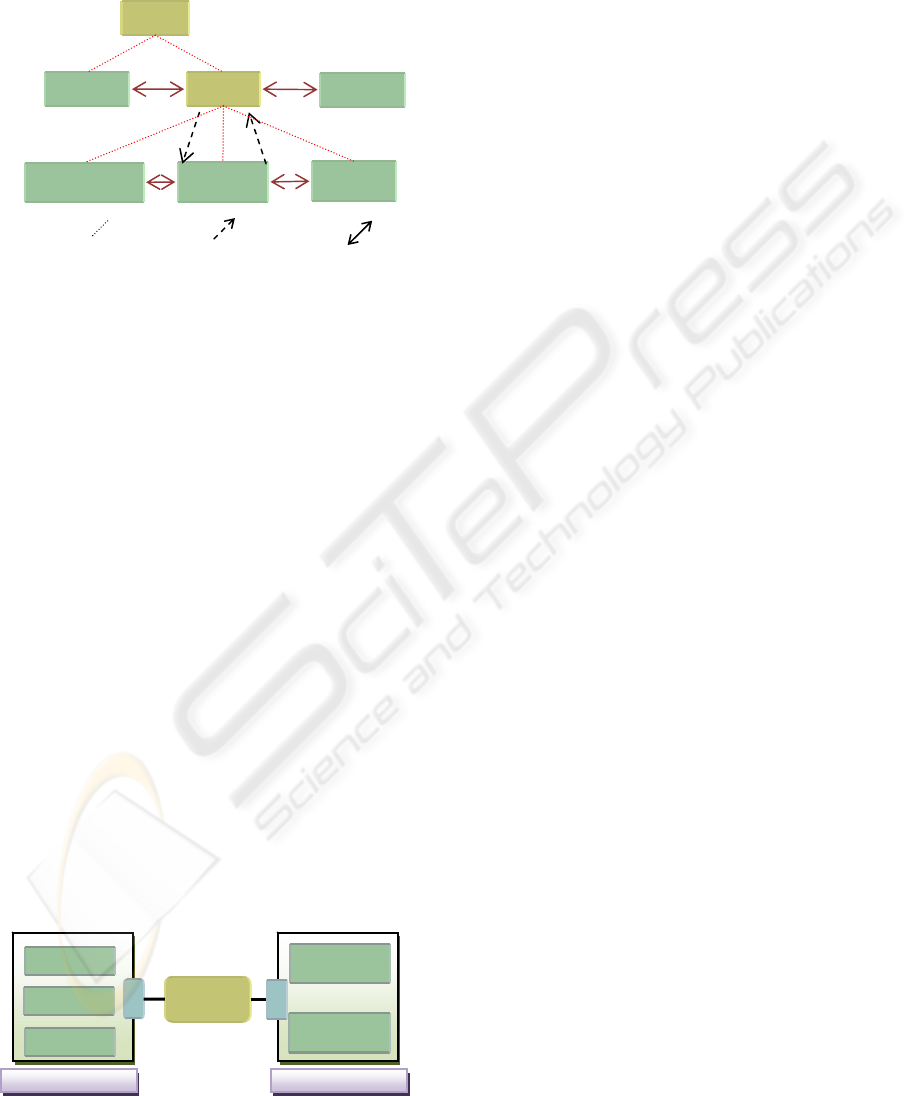

Figure 8: Abstraction levels in physical architecture.

In t odel l we ha he co ections

manager type enc ing e ation

on the links that a component onfiguration m y

a name and has for attributes as follows:

Ele name of the

arc this CM;

CC ted to the

ele C_link: the

nam he element

ions on the connections manager are:

n architectural element

ion level the

assoc created in the

alled at

on is built by the user, the

cor

⊂ L

et Y

⊂ L

k-1

; L is the hierarchical level.

ECC connector t e can be implemented usi

eith r single glue for one function (expansion

com ression) o using two separate glues

ansion and compression functions. This will

depend on the design decision. Figure 7 illustrates

the connector type ECC1 which allows exchange of

information between the server configuration (S-

Config) and the coordinator component (Coor.). To

achieve a bidirectional communication between the

server and the coordinator, ECC1 must have the

following ports: portS3 and portCo1 are used to

ensure the expansion function from the server to

coordinator. portCo2 and portS4 are used to ensure

compression function. So, the interface of this ECC1

connector type will be as follows:

Connector ECC ECC1(portS3,portCo1,portS4, portCo2);

Figure 7 in CS ar

HYSICAL ARCHITECTURE

The physical architecture is a memory image of the

application instance of the logical architecture. This

are instances of a connections manager. Each

instance created corresponds to a component or a

configuration instantiated to construct the real

application. Nodes of this graph are connected by

arcs. We have three types of arcs. Each type of arc

corresponds to specific type of connector. The

physical architecture is built to serve as support for

updating and evolution operations of the application

instance like addition, removal, and replacement of

elements in the application instance.

3.1 Connections Manager (CM)

htwo levels of abstractions; the model level an e

The physical architecture corresponding to the

application instance of client-server architecture is

illustrated in Figure 9. In this application we assume

having two clients connected to a single server.

Once the applicati

he m evel

apsulat

ve t nn

nt informall differ

or a c a

ve with its environment. Each CM is identified by

ConnectorManager Name {

ElementName: string;

CDC_Link:list_of_CMs;

CC_Links:list_of_CMs;

ECC_Link:list_of_CMs}

mentName: represents the

hitectural element associated with

_Links: list of CC names connec

ment associated with this CM; CD

e of the CDC connected to t

associated with this CM; ECC_Link: the name of the

ECC connected to the element associated with this

CM;

3.2 Operations on

Connections Manager

Operat

• Instantiation: Whenever a

is instantiated at the applicat

iated CM is automatically

physical architecture.

• Installation: each time a connector is inst

the application level between a set of element

instances, so the attributes of the associated CMs

are updated with the necessary information about

this connector instance.

• Propagation: the mechanism of propagation is

used to update information about links needed

between CMs. These links are published by the

interface of the connector installed at the

application level.

responding physical architecture is also built in

parallel. Thereafter if we need to maintain or evolve

Instance level

(

)

Model level

(

)

Link

Instance-Of

Connections Manager

CM1

CM2

S-Config

ECC1

Coor.

portS3

portCo1

portS4

portCo2

Com

ression

ansion

Expansion

Compression

ICEIS 2009 - International Conference on Enterprise Information Systems

Figure 9: Physique architecture of CS application.

rep ogical ture

(LA) a

rela

C3 re

represented by two components and the relationship

bet

evel.

s corresponding to all

Figure 10: Architectures relationship. LI: logical interface;

PI: physical interface.

4 CONCLUSIONS

Our h y n architectural

meta describ architectures, where

a log itecture is described tect

using most commonly accepted concepts by all

components, d

he structure of connectors.

This new structure allows us to assemble connectors

ed in its interface.

s of connectors: CC

Garlan, D., Monroe, R.T., and Wile, D., 2000. Acme:

Architectural Description Component-Based Systems,

Component-Based Systems.

Press, pages 47-68.

Medvidovic, N. and. Taylor, R.N., 2000. A Classification

Me .N., 2007.

the application we must locate the concerned

elements on the physical architecture using a graph

searching routines and a graph updating operations

like add (node), delete (node) or replace (node).

approac

model to

is defined b a

e software

ical arch by the archi

CM_CS

CMserver

CMclient1

ADLs namely connectors an

Finally we can resent the l architec

nd the physical architecture (PA) and the

tionship between them by a model described in

metamodel where the LA and the PA a

ween the by a CC connector (Figure 10). Any

action performed at the LA level causes a sending a

message to the PA. This message will be interpreted

as an action to be performed by the PA. So, among

these actions we have:

• A component instantiation at the LA level causes

sending a message “CM_creation” to the PA.

When this message is received by the PA a CM

instance will be created to represent this

component at the PA l

• A connector instantiation at the LA level causes

sending a message “CM_connection” from LA to

PA. When this message is received by the physical

architecture a set links are created to link

connection manager instance

components connected by this connector instance.

• Any updating action at the logical architecture

causes sending a message “CM_update” from LA

to PA. So, this message will be interpreted as set

of updating operations performed to rearrange

links among the corresponding CMs.

configurations, and we found interesting to give a

new structure for connectors in which attachments

are encapsulated within t

only with elements that are defin

We have identified three type

connector which refer to the links among elements

belonging to the same level of decomposition, CDC

connector which refer to the links between a

configuration and its internal elements, ECC

connector which refer to the links used to realize any

transformation of information or data exchanged

between a configuration and its internal elements.

Also, we have defined a physical architecture as

a graph whose nodes are CMs associated with

architectural elements and arcs represent links that

correspond to the connectors. The physical

architecture reflects the application architecture

which is an instance of the logical architecture and

serves as a support for maintenance and evolution

operations applied on architecture of the application.

REFERENCES

Amirat, A., Oussalah, M., and Khammaci, T., 2007.

Towards an Approach for Building Reliable

Architectures. In Proceeding of IEEE IRI’07, Las

Vegas, Nevada, USA, pages 467-472.

Dashofy, E., Hoek, A.v.d., Taylor, R.N., 2005. A

comprehensive approach for the development of

XML-based software architecture description

languages. Trans. on Soft. Eng. Methodology.

Foundations of

Cambridge University

and Comparison Framework for Software Architecture

Description Languages. IEEE Transactions on

Software Engineering, volume 26, issue 1.

dvidovic, N., Dashofy, E., and Taylor, R

Moving Architectural Description from Under the

Technology Lamppost. Information and Software

Technology, volume 49, issue 1, pages 12-31.

Level

Instance Level

Level

System Level

Connection

Connector

Legend: : CDC : ECC : CC

coordina

securit

Mana

dataBase

CMclient2

ical Architecture

Physical Architecture

C3: A METAMODEL FOR ARCHITECTURE DESCRIPTION LANGUAGE BASED ON FIRST-ORDER

CONNECTOR TYPES
