AN APPROACH TO MODEL-DRIVEN DEVELOPMENT

PROCESS SPECIFICATION

Rita Suzana Pitangueira Maciel

1,2

Universidade do Estado da Bahia, Salvador, Brazil

Bruno Carreiro da Silva, Ana Patrícia Fontes Magalhães

Faculdade Ruy Barbosa, Salvador, Brazil

Nelson Souto Rosa

Centro de Informática, Universidade Federal de Pernambuco, Recife, Brazil

Keywords: MDA, MDD, Process Specification, SPEM.

Abstract: The adoption of MDA in software development is increasing and is widely recognized as an important

approach for building software systems. Meanwhile, the use of MDA requires the definition of a software

process that guides developers in the elaboration and generation of models. While first model-driven

software processes have started to appear, an approach for describing them in such way that they may be

better communicated, understood, reused and evolved systematically by the development team is lacking. In

this context, this paper presents an approach for the specification of MDA processes based on

specializations of some SPEM 2 concepts. In order to support and evaluate our approach a tool was

developed and applied in a particular MDA process for specific middleware services development.

1 INTRODUCTION

The Model Driven Engineering (MDE) is an

approach specially focused on modelling techniques,

alleviating the complexity of platforms and

expressing domain concepts effectively (Schmidt

2006). MDE advocates that the models of a software

system are not only used for documentation, but they

actually serve as basis for the implementation phase.

Each activity of the development process requires a

number of input models that produce further models

as output. In this way, the development of an

application is viewed as a set of transformations that

lead to the final system.

One of the most well known initiatives in this

scenario is the Model-Driven Architecture (MDA)

[OMG 2003]. MDA separates subject matters so that

application-oriented models are independently

reusable across multiple implementations and vice

versa through the construction of three categories of

models (CIM – Computational Independent Model,

PIM – Platform Independent Model and PSM –

Platform Specific Model). Current MDA supporting

tools are particularly interested in defining

transformations that produce code and deployment

artefacts from design models (e.g. AndroMDA

oAW

, etc.). Another research direction in the MDA

context is the definition of software development

processes for specific domains (Maciel 2006a),

(Koch, 2006).

The description of a software process is called

process model. A process model can be expressed

through any specific language or notation which is

called Process Modeling Language (PML). A

process model can be enacted when a development

team follows the process model during the

development life cycle. The use of MDA requires

the definition of a software process that guides

developers in the elaboration and generation of

software models (Mellor 2004). In addition to well-

http://www.andromda.org

http://www.openarchitectureware.org/

Pitangueira Maciel R., Carreiro da Silva B., Fontes Magalhães A. and Souto Rosa N. (2009).

AN APPROACH TO MODEL-DRIVEN DEVELOPMENT PROCESS SPECIFICATION.

In Proceedings of the 11th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages 27-32

DOI: 10.5220/0001862700270032

 SciTePress

known processes such as RUP, XP, OSDP, etc., an

MDA process requires the selection of metamodels

and mapping rules for the generation of the

transformation chain that produces models and

application code (Maciel 2006a).

Several MDA processes have been proposed

such as for Middleware Services (Maciel 2006a),

Web Applications (Koch 2006), E-learning (Wang

2003) and a version of the Open Unified Process for

MDD (OpenUP 2008). However, there is a lack of

consistent terminology since there is no unified

language to specify MDA processes: each one

adopts ad hoc notations and different concepts are

used to define the activities and artefacts for the

software development life cycle. The software

process modelling through the use of a unified and

consistent terminology should make communication,

understanding, reutilization, evolution, management

and standardization of the process possible

[Humprey 1989].

PMLs, such as SPEM (Software Process

Engeneering Metamodel Specification) (OMG 2008)

and E

language (Jaccheri 1999) were proposed in

recent years but they do not focus specifically on

MDA processes.

This paper presents an approach to MDA process

specification based on the SPEM 2 standard

concepts. Our work defines an approach and a

supporting tool which can be used to instantiate an

MDA process for a given domain. Using this

approach, developers can describe the steps and

associate artefacts to perform MDA modelling and

transformation chain.

There is a specific process called OpenUP/MDD

(OpenUP 2008) built on Eclipse Process

Framework

(EPF) which focuses specially on the

model driven development. However, the

OpenUP/MDD is a process instance of the SPEM

metamodel concepts, while our approach is placed at

a higher abstraction level. We address the MDA

process concepts at the metamodel level.

Consequently, we provide a more flexible and

extensible way to model and specify (instantiate)

model driven software processes according to SPEM

2 and MDA standards.

Bendraou et al. (2007) proposed an extension to

the SPEM 2.0 specification, called xSPEM, in order

to allow process enactment. Although their work

targets the enactment of process models they don’t

focus particularly on the process modelling or

enactment of MDA development process.

http://www.eclipse.org/epf/

The rest of this paper is organized as follows:

section 2 presents the basic principles about the

SPEM and MDA standards; section 3 describes the

approach to model-driven development process

specification; section 4 shows a case study prepared

in order to evaluate the proposed approach; the

related work is discussed on section 5; section 6

makes some final remarks and proposes future work.

2 OVERVIEW OF SPEM AND

MDA CONCEPTS

MDA is an OMG standard aiming at facilitating

MDD (Model-Driven Development). Metamodels

define an abstract syntax for modelling languages.

Models should be instances of some metamodel,

following its syntactic and semantic specification,

that is, they should be written according to the

corresponding metamodel of the modelling

language.

Using the MDA approach, models and

metamodels are expressed through the Unified

Modeling Language (UML). The UML lightweight

extension mechanism, also known as UML profile

mechanism, is used to extend the metamodel

elements using stereotypes and tagged values.

Model transformation languages are used to

specify how source metamodel elements are

transformed into target metamodel elements; CIM to

PIM, PIM to PSM, are examples of transformation.

Transformations may be automatic, semi-automatic

and manual. We also can have transformations from

model to code in addition to model to model.

SPEM 2 (OMG 2008) defines a metamodel

based on MOF and a UML profile, specified by

OMG and used to define software process and their

components. According to SPEM 2 it is possible to

create a knowledge base independent of any process,

using elements such as Packages, Roles, Tasks,

WorkProducts and Disciplines (from the method

content package) to reuse in the specification of

many different processes. A Process has a sequence

of Phases expressing the life cycle of a product

under development. It represents a significant period

in a project, ending with major management

checkpoint, milestone or set of deliverables.

For

each Phase there might be at least one Iteration that

groups a set of pieces of work that are repeated more

than once. It represents an important structuring

element to organize work in repetitive cycles.

ICEIS 2009 - International Conference on Enterprise Information Systems

3 MDA PROCESS

SPECIFICATION

The use of MDA requires process definitions

associated to modeling activities and transformation

rules to compose the transformation chain. These

elements are not usually found in software

development processes. Therefore an approach was

specified covering these aspects.

OMG suggests model layers to represent a

process and their meta languages (Figure 1). As can

be seen, our approach is situated at level M2 (meta

model level). Based on it, any MDA process model

(located in level M1), can be specified and will be

available to be used on the development of new

projects in level M0. The proposed approach

includes the following elements: (1) SPEM

metamodel slice with a specialization of some

concepts according to MDA; (2) indication of a set

of diagrams for modelling method content and

processes.

MOF

SPEM, UML,

MDA process meta model

RUP, XP

MDA Process

Specific Project

Meta Meta model level

Meta model level

Process model level

Process development level

Figure 1: OMG model layers (adapted from (OMG 2008)).

3.1 Metamodel and Diagrams

Our approach is based on the metamodel illustrated

in Figure 1. This metamodel extends some of the

SPEM 2 concepts specializing them for the MDA

context.

The process specification needs static and

reusable definitions such as Disciplines, Tasks,

Roles and WorkProducts (from the method content

package in Figure 2). A Role defines a set of related

skills, competencies and responsibilities of an

individual or a set of individuals. Individuals should

play their Roles performing Tasks that can be

associated to input and output WorkProducts. A

Task may comprise many Steps to describe a

meaningful and consistent part of the overall work.

The Discipline represents a collection of Tasks that

are related to a major ‘area of concern’ within the

overall project. WorkProducts are in most cases

tangible artefacts consumed, produced, or modified

by Tasks.

In our approach, the WorkProduct is specialized

into four kinds of artefacts: UMLModel, produced

by a process role or automatically generated by a

transformation during the process execution;

TransformationRule contains the rules for model

transformation and code generation during the

process execution; ExtraModel, used only for

documentation and are based on text or

supplementary notations; and Profile to represent an

UML profile to base the UML modelling on each

phase. Transformation rules are used in MDA

process to automatically transform UML models.

Each transformation rule should refer to at least one

source model and generate one or more target

models. Based on the above definitions, the MDA

process structure is specified according to the

metamodel shown in the second part of Figure 1. As

illustrated, a Process has a life cycle composed of a

set of sequential Phases performed in Iterations. In

terms of MDA, these phases represent the modelling

of CIM, PIM, PSM and Codification. Each

Modelling Phase is associated to a UML profile

defined to address specific characteristics of a

particular domain or platform.

Based on the metamodel presented in Figure 1,

the MDA process should be specified by the

construction of three kinds of UML diagrams: class,

use case and activity diagrams.

Table 1 presents the SPEM 2 stereotypes (second

column) extended in our metamodel and their usage

in the three indicated UML diagrams (first column).

The third column refers to the UML base element

according to each SPEM stereotype. For example, in

a use case diagram Tasks are modelled as use cases,

while in the activity diagram they are modelled as

action states.

In this case, the class diagrams are used to

specify the elements of a knowledge base (method

content) and the process life cycle overall static

structure. This is the first diagram that should be

constructed as the elements are used to elaborate

later diagrams.

The use case diagrams are used to provide a

specific view associating a

Task to a Role and also to

used/produced WorkProducts.

The activity diagrams are used to model the

process workflow, i.e, the behaviour associated to

the process execution in terms of Phase/Iterations

and the selected Steps (TaskUse). This last diagram

is also important because it defines when the

AN APPROACH TO MODEL-DRIVEN DEVELOPMENT PROCESS SPECIFICATION

Figure 2: Specialized metamodel from some SPEM 2 concepts.

transformations should be applied. It is important to

define the sequence of activities for example, when

developer intervention in the diagrams to enable

transformation execution is necessary.

Table 1: Stereotypes of SPEM 2 associated to UML

diagrams (adapted from (OMG 2008)).

Diagram SPEM Stereotype UML

Element

Class

Package, Role,

WorkProduct, Task,

Step, Discipline, Phase,

Iteration, TaskUse

Class

Use Case

Role Actor

Task, WorkProduct Use Case

Activity

Task Action

WorkProduct Object

3.2 An Environment for Model-Driven

Process Modelling

An environment called Transforms has been

developed to support the modelling and enactment

of the proposed approach for MDA process

specification. This environment is divided into two

main modules: the MDA Process Edition and the

MDA Developer Edition as illustrated in Figure 3.

As we are focusing initially on the MDA process

modelling, we shall only present the Process Edition

module.

The Process Edition module is an environment

which provides authoring and customization of

MDA processes. As shown in Figure 3, the Process

Edition module encompasses four components:

process editor, profile editor, rule editor, and process

repository. The process editor is divided into three

diagram editors based on the UML: a class diagram

editor; a use case diagram editor; and an activity

diagram editor. This set of editors allows engineers

to model their processes according to the proposed

approach presented in Section 3. It is also possible to

specify a process using a breakdown structure and

automatic generated diagrams to represent it

visually. Examples from a case study are given in

the following section.

Both Profile and Rule editors are third party

software components attached to our solution in

such a way that users can create their own UML

profiles and/or write their own transformation rules

without going to another tool. The Process

Repository stores the information related to the

modelled process. After process definition the MDA

Developers Edition should be used.

ICEIS 2009 - International Conference on Enterprise Information Systems

Briefly, the MDA Developer Edition aims to

enact a process stored in the repository. A software

team should assume the process roles specified and

perform the Tasks defined in each discipline across

the process phases. Models should be produced and

generated until the achievement of code generation.

Process

Repository

Process Editor

MDA Process Edition MDA Developer Edition

Rule Editor Profile Editor

Code

PSM

PIM

CIM

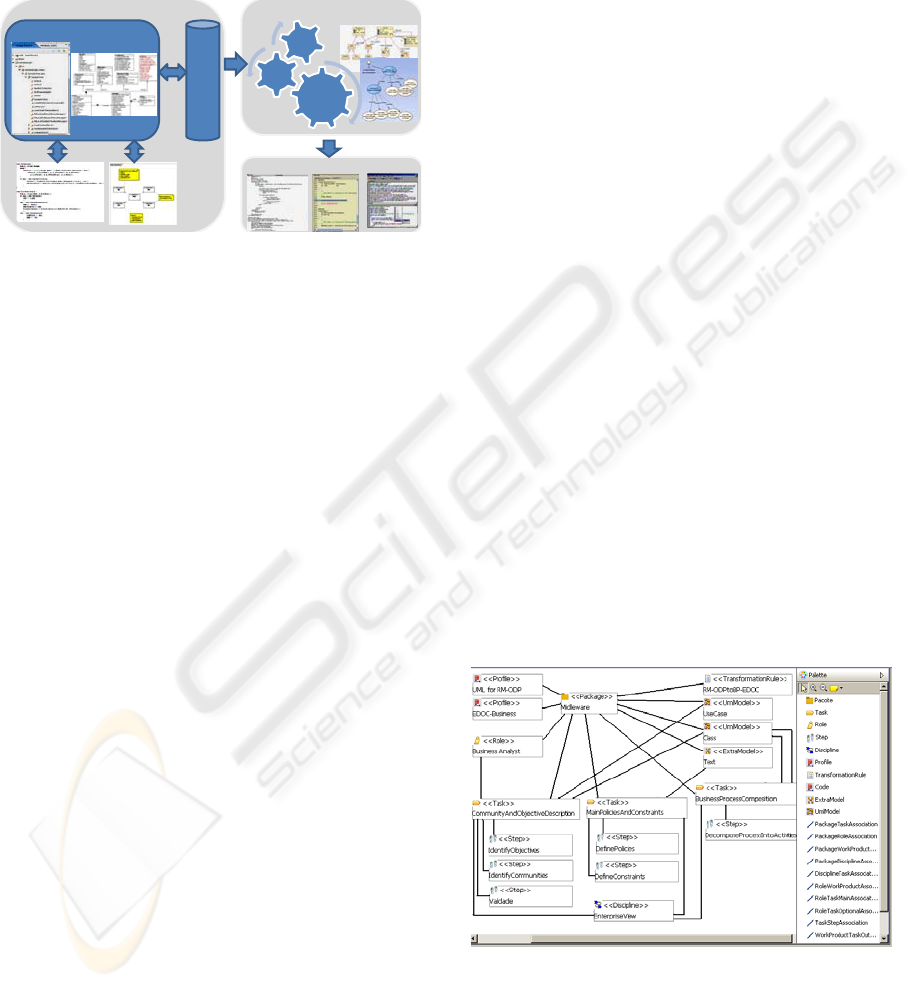

Figure 3: Transforms solution.

4 A CASE STUDY: SPECIFYING

AN MDA PROCESS

In order to evaluate our approach, we specified the

MDA process proposed in (Maciel 2006a). In this

process, specific middleware services are defined

and implemented in EJB and CorbaCCM platforms.

4.1 Overview of the MDA Process for

Middleware Specific Services

Specific middleware services consist of a layer

above the common middleware services that

embody knowledge of a specific domain within the

middleware. Domain-specific middleware services

are not standardized. Their implementations are

usually tightly coupled to the middleware platform.

This implementation modelling requires

considerable effort that certainly would not be

rewarded if the service use were restricted to a

specific middleware platform (Schantz 2001). The

MDA process goals encompass the specification and

implementation of portable specific middleware

services. This process was applied to the

development of the InterDoc (Reference

Architecture for Interoperable Services in

Collaborative Writing Document Environments)

(Maciel 2005; Maciel 2006a).

The proposed MDA process includes the

following elements: (1) Three categories of

modelling phases according to the MDA

specification (CIM, PIM and PSM) (2) metamodels

with UML profiles (3) indication of a set of

diagrams for each modelling phase (4) a sequence of

steps to guide the modelling tasks and (5) mapping

rules among the UML models.

4.2 The MDA Process Specification

The MDA process introduced in the previous

subsection was originally described without any

standard language. Tables, illustrations and textual

documents were used to represent the process

specification. Tools were developed to support the

automation of model transformations related to the

process (Silva 2006; Pasini 2008). However, the

difficulty in understanding, reusing and evolving the

process structure and behaviour across development

teams became evident.

In order to adopt the approach presented in

Section 3.1, we mapped the process characteristics

to the concepts and associations of our metamodel

(Figure 2). Six disciplines were defined to group

related tasks: Enterprise View; Information View;

Computational View; Engineering View; Technology

View; and Services Implementation.

As described in section 3.1 the class diagram is

the first to be specified. It defines the overall

structure of the MDA process. Two class diagrams

were designed: one representing the method content

and the other representing the process structure.

Figure 4 illustrates the class diagram editor of the

Transforms tool. Due to the lack of space we present

only a piece of the method content modelling (in the

left side). The right palette organizes the necessary

buttons to model the structural and static view of the

method content. The editor only allows modelling

according to the metamodel defined in Figure 2.

Figure 4: CIM phase static structure.

The process life cycle is divided into three

modelling phases (CIM. PIM, PSM) and

codification. Each phase may comprise several

iterations allowing incremental process

AN APPROACH TO MODEL-DRIVEN DEVELOPMENT PROCESS SPECIFICATION

development. TaskUses are selected, according to

the steps previously defined in the method content,

to be performed during the iterations. At least one

activity diagram should be modeled for each phase

in order to compose the behaviour in terms of task

using and work products usages.

5 CONCLUSIONS AND FUTURE

WORKS

This paper has presented an approach for process

specification and enactment based on the concepts of

the SPEM 2 and MDA standards. We have

specialized some of the SPEM 2 metamodel

elements to provide a specific language to define

model-driven processes. As the SPEM metamodel

has a UML profile, our metamodel can be used

through any UML modelling tool. Moreover, we

have developed an environment with diagram

editors specific for the modelling which conforms to

our metamodel.

In addition to process modelling, our ongoing

work encompasses the tool-support of the process

enactment which includes the execution of model

transformations and code generation. In future work

our intention is twofold: to provide traceability

mechanisms across the process artefacts; and to

support other model transformation languages and

technologies. We are also planning a larger case

study to strengthen the evaluation of the proposed

environment in an organization which uses MDA.

ACKNOWLEDGEMENTS

This work is partially funded by Fapesb, project

number 8694/2006, and grant number 0002/2007.

REFERENCES

Humprey, W., Kelner,M. (1989) Software Modeling:

Principles of Entity Process Models. SEI - Carnegie

Mellon University. Pittsburgh, Pennsylvania,

(CMU/SEI-89-TR-2).

Jaccheri, M. L., Baldi M., Divitini M. (1999). Evaluating

the requirements of software process modeling

languages and systems, Process Support for

Distributed Team-based Software Development. In:

PDTSD99, Orlando, Florida, pages 570-578, August.

Koch, N. (2006). Transformation techniques in the model-

driven development process of UWE. In: Workshop

Proc. of the 6th intl Conference on Web Engineering

(Palo Alto, California). ICWE '06, vol. 155. ACM,

New York, 3.

Maciel, R., Ferraz, C., Rosa, N. (2005). InterDoc:

Reference Architecture for Interoperable Services in

Collaborative Writing Environments. In: 9

Intl.

Conference on CSCW in Design, May, England.

Maciel, R. S. P., Silva, B. C. e Mascarenhas, L. A.

(2006a). An Edoc-based Approach for Specific

Middleware Services Development, In: 4

Workshop

on MBD of Computer Based Systems, Postdam,

Germany. Proc. IEEE Press, p:135–143.

Maciel, R., Rosa, N., Ferraz, C. Silva, B. (2006b). Um

Processo MDA para o Desenvolvimento de

Componentes e Serviços Específicos de Middleware,

In: VI Workshop de Desenvolvimento Baseado em

Componentes, Recife, Brazil.

Pasini, K., Peixoto, R., Maciel, R., Duran, A. (2008). Uma

solução para apoiar um processo de desenvolvimento

dirigido a modelos usando openArchitectureWare. In:

IX Free Software Workshop / 9th Intl. Forum of Free

Software, Porto Alegre. p. 121-126.

Mellor, S. et al. (2004) MDA Distilled. EUA, Addisson-

Wesley.

OMG (2003). MDA Guide. Version 1.0.1 (omg/2003-06-

01).

OMG (2008). Software Process Engineering Metamodel

Specification, Version 2.0, (formal/08-04-01).

OpenUP Component – MDD (2008). Available at:

http://www.eclipse.org/epf/openup_component/mdd.p

hp.

Silva, B., Maciel, R., Mascarenhas, L. (2006) Transforms:

Uma Ferramenta MDA/EDOC para Desenvolvimento

de Serviços Específicos de Middleware. In: Brazilian

Symposium on Software Engineering – Tools session.

Florianópolis. Proc., p. 19-24.

Schantz, R., Schmidt, D. (2001). Middleware for

Distributed Systems: Evolving the Common Structure

for Network-centric Applications. Encyclopedia of

Software Engineering, Wiley & Sons.

Schmidt, D. (2006). Model-Driven Engineering. In:

Computer Magazine, p. 25-31. IEEE Computer

Society Press.

Wang, H., Zhang, D. (2003). MDA-based Development of

E-Learning System. In: 27

International Computer

Software and Applications Conference, Texas. Proc.

California: IEEE Press, p. 684.pi.

ICEIS 2009 - International Conference on Enterprise Information Systems
