DISCOVERING LINKS INTO THE FUTURE ON THE WEB

Muhammad Tanvir Afzal

Institute for Information Systems and Computer Media, Graz University of Technology

Infelldgasse 16c, 8010 Graz, Austria

Keywords: Personalized search, Links into the future, Information supply, Digital journals.

Abstract: Current search engines require the explicit specification of queries in retrieving related materials. Based on

personalized information acquired over time, such retrieval systems aggregate or approximate the intent of

users. In this case, an aggregated user profile is often constructed, with minimal application of context-

specific information. This paper describes the design and realization of the idea of ‘Links into the Future’

for discovering related documents from the Web, within the context of an electronic journal. The

information captured based on an individual’s current activity is applied for discovering relevant

information along a temporal domain. This information is further pushed directly to the users’ local

contexts. This paper as such presents a framework for the characterization and discovery of highly relevant

documents.

1 INTRODUCTION

As the number of electronic publications expands,

acquiring relevant information to suit particular user

needs becomes a major challenge. The searching for

related or relevant material has to duly consider the

task at hand. This research then focuses on the

identification of relevant documents within a

scholarly publishing environment. As opposed to the

retrieval of a million hits as provided by generic

search engines, we explore the direct provision of

relevant information only.

A related document could mean different things

to different people; e.g. it could be a paper written in

the same area, one written by the same author, or

merely taking about the same research problem. We

use the term ‘Links into the Future’ in this paper to

describe the discovery of related papers based on the

information compiled from a user context while

reading a paper within an electronic journal.

For a reader of an electronic journal, ‘Links into

the Future’ refers to potentially useful papers to the

one that he or she is reading. This idea was

originally proposed by Hermann Maurer in a

presentation entitled “Beyond Digital Libraries” at

the “Global Digital Library Development in the New

Millennium” in Beijing, China (Maurer, 2001) and

was subsequently partially realized (Krottmaier,

2003). In this paper, we consider a paper written by

the same author or team of authors at a later time

(then the current paper) to be related and useful,

particularly if it was also in the same area of

expertise. At the same time, any paper that cited this

paper is also considered related and relevant.

A person reading a paper published in 1995 may

not directly know if the same author has published a

newer paper in year 2000 in the same area or if

anyone has cited this paper. Well, this reader can of

course, search the Web to look for similar papers. In

this case, the reader may then loose the original

context, and also get distracted by the millions of

hits from global search engines. There are also times

when particular related items may not be found as

the formulation of exact query terms can in itself be

a challenge.

Alternatively, the reader has an option to explore

citation indices such as CiteSeer

CiteULike

and

DBLP

to search for related papers. This will also

require a deliberate effort on the part of the reader.

Additionally, results from multiple sources of

information will then need to be compiled and

consolidated.

The implementation of such a feature within the

context of the Journal of Universal Computer

http://citeseerx.ist.psu.edu/

http://www.citeulike.org/

http://www.informatik.uni-trier.de/~ley/db/

123

Afzal M.

DISCOVERING LINKS INTO THE FUTURE ON THE WEB.

DOI: 10.5220/0001821701230129

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

Science (J.UCS)

was described in (Afzal,

Kulathuramaiyer & Maurer, 2007). This paper then

explores the extension of ‘links into the future’ for

papers published beyond the closed database of

J.UCS. The discovery of related links within a

closed database has only partially addressed user

concerns, in providing starting points for further

exploration. By extending the notion of links into the

future to also cover relevant papers from the Web, a

more comprehensive solution can be obtained. The

links discovered as such will also be more reflective

of the state-of-the-art in this field.

J.UCS, an electronic journal covering all areas of

Computer Science with more than 1,200 peer

reviewed research contributions, serves as an

excellent platform for the discovery of related papers

on the Web. Papers within J.UCS are categorized

and tagged according to the ACM categories

. A

number of additional categories have been recently

added to J.UCS to reflect the development in

Computer Science discipline. These extended

categories would be referred to as topics in the rest

of the paper.

2 DEFINITION OF LINKS INTO

THE FUTURE

A future link from paper “a” to paper “b”

(Future_Link (a,b)) exists, if a semantic relationship

can be established between them. For example: if

paper “b” is written by the same team of authors of

paper “a” and the topics of both papers are similar,

then paper ‘b’ is considered to be related to paper

‘a’. Alternatively if there exists a citation from paper

b to a, there is a highly likely relationship. Current

systems tend to perform similarity matches without

considering semantic similarity, based on the task

characteristics. The equation 1 describes the

definition of “Links into the Future”.

(Authors (b) € Authors (a)

Topics (b) € Topics

(a))

Citation (b, a) Future_Link (a, b) (1)

3 RELATED WORK

Most related work explores the servicing of users

within a present-context, making use of limited

information, captured in-vivo. Our work, on the

other hand, describes the augmentation and

http://www.jucs.org

http://www.acm.org/class/1998/

annotation of documents created in the past with

information that became available later. In this way,

a research paper is not seen as a static document, but

rather one that is constantly updated and kept up-to-

date with relevant links.

A number of past studies make use of user’s

context and activity to provide them the most

relevant information. For example, typical search

engines return relevant results based on the small

amount of information from user queries and a

measure of web site popularity, rather than

considering individual user interest and context

(Speretta & Gauch, 2005). Spretta & Gauch

employed user profiles based on user queries, search

activities and the snippets of each examined result to

refine search result rankings. With this context

specific ranking of search results, an improvement

of 34% in the rank order has been obtained

Rhodes and Maes (Rhodes & Maes, 2000)

described a new class of software agents called Just-

in-Time Information Retrieval Agents (JITIRs),

which has an ability to proactively present

potentially valuable information based on a person’s

local context in a non-intrusive manner.

Another related work pushes the most relevant

Web URLs based on the user activity and context.

User context is determined by examining active

personal desktop documents (Chirita, Firan & Nejdl,

2006). Similarly by observing user activity and

context while reading a particular article, our notion

of ‘Links into the Future’ presents the most related

papers of the same team of authors within a local

context. This paper discus how this concept can be

extended to the WWW as a mechanism for

contextual information supply for academic

publications along a temporal dimension.

Existing approaches for finding related papers

uses citation analysis, text similarity, bibliographic

analysis and context based relatedness. For example,

CiteSeer has employed three methods for finding

related papers a) word vectors b) string distance c)

and citations (Giles, Bollacker & Lawrence, 1998).

PubMed (PubMed, 2008) on the other hand

computes the relatedness between two papers using

text-based similarities between paper titles,

abstracts, and assigned MeSH terms (“Medical

Subject Headings”, 2008). For the focused paper,

PubMed provides a list of related papers according

to their relatedness scores.

Ratprasartporn (Ratprasartporn & Ozsoyoglu,

2007) have made use of context (topics) of research

publications to determine the related papers. An

ontology consisting of terms were utilized as a

context of publications. A publication is assigned to

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

124

one or more contexts with the context represents the

publication topics.

Digital libraries are traditionally built largely by

a massive human effort. Example of these include

INSPEC for engineering, PubMed for medicine and

DBLP for Computer Science. Alternatively

automated approaches are being employed to

construct large citation indices. Examples of these

efforts include CiteSeer and Google Scholar. The

limitations of these automatic approaches are that

human effort is often required in verifying entries in

the index. Fully automated techniques have

problems in disambiguating entries while traditional

constructed digital libraries are limited in their

number of scientific publication.

Google Scholar has mistakenly identified name

of places as authors of scientific publications

(Postellon, 2008). Although Google Scholar has

improved gradually, it continues to find citations

backward in time (Jacsó, 2008). Their index covers a

large collection of peer-reviewed papers (Google

Scholar, 2008). It however also considers false

positive citations like citations to press releases,

resumes, and links to bibliographic records for

cookbooks (Price, 2004). CiteSeer claims that 80%

of the publications titles can be extracted accurately

while their word and phrase matching algorithm

further has an error margin of 7.7% (Giles,

Bollacker & Lawrence, 1998).

Our system is fully automated in extracting

papers from the Web and from citations. It also

computes a conceptually enhanced similarity score

between a source paper and candidate future papers.

4 IDENTIFYING FUTURE LINKS

FROM WEB

The APIs for Google

, Yahoo

and MSN Live

were

used for the experiments

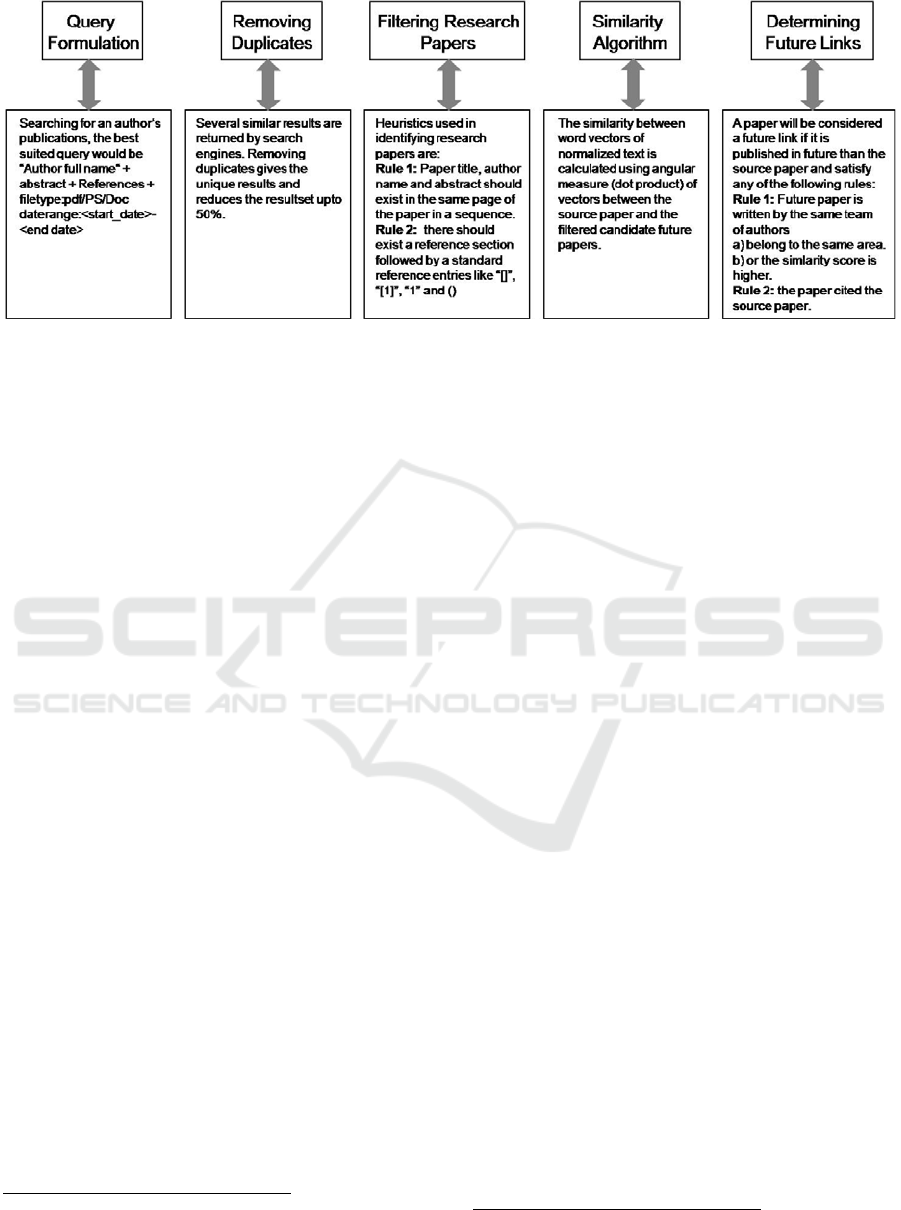

. The identification of

future links from the web includes the following

steps: query formulation, removing duplicates,

filtering papers only, similarity algorithm and

determining future links. The description of each is

shown in Figure 1.

4.1 Link Extraction

When querying a search engine, the formulation of

http://code.google.com/apis/soapsearch/reference.html

http://www.programmableweb.com/api/yahoo-search

http://msdn2.microsoft.com/enus/library/bb266180.aspx

The SOAP based search API has been used since Dec 5, 2006

with permission.

query terms strongly affects the results. SOAP APIs

have been used by our Web search service to seek

Web documents. In performing a search it was found

that the use of all available semantic information

was able to narrow down search space significantly.

The effects of query formulation and choice of query

terms is shown in Table 1.

Table 1: Query Formulation.

4.2 Removing Duplicates

As a further pre-processing step, duplicates are

filtered reducing the results by more than 50%.

Documents are then downloaded in parallel into java

threads. The importance of removing duplicates is

shown in Table 2.

4.3 Identifying Research Papers

Even by specifying document formats to be either

PDF, Doc or PS and also explicitly querying with

formulated query terms, the retrieved documents

also contains:

I. Theses supervised by the author.

II. Curriculum Vitae, Home page and Business

cards of the author.

III. Conference programmes where the author’s

name was mentioned.

IV. Documents edited by the author.

V. Presentation files

VI. The author’s publication list.

VII. The author may be listed in the reference

entries or in the acknowledgement section of

a research paper.

As we are only interested in actual research papers at

this point, a further filtering step was performed.

This process is important in potentially automating

the discovery of Web-pages and publication lists.

Query Google Hits Yahoo Hits

MSN

Live Hits

Hermann

Maurer

1,68,000 1,260,000 4,48,000

“Hermann

Maurer”

25,600 92,800 27,000

abstract

references

"Hermann

Maurer”

918 1,720 446

abstract

references

"Hermann

Maurer”

filetype:PDF

193 775 114

DISCOVERING LINKS INTO THE FUTURE ON THE WEB

125

Figure 1: Rules for finding candidate future links from the Web.

Docments in PS and doc file formats are first

converted to PDF using MiKTeX

and Openoffice

tool

respectively. Then pdfbox

, a java library is

used to convert PDF to plain text for further

analysis.

A heuristic approach is applied in the actual

identification of research papers. The heuristic used

are as follows:

1. Title of the paper followed by author name and

abstract should exist in the same page. (need not be

in the first page). Authors’ full name is then

searched to disambiguate author names.

2. Word “reference” or “references” is found

followed by proper sequence starting with one of the

them “[author]”, “[1]”, “1” and ().

Documents that were classified as research papers is

shown in Table2 for selected authors.

4.4 Similarity Algorithm for Checking

that Papers are in the Same Area

When we considered links into the Future for the

articles published in Journal of Universal Computer

Science only, the former implementation was

straightforward. All articles are categorized

according to ACM topics and metadata is already

available. But when we locate papers from the Web,

documents are not categorized according to the

ACM topics and metadata cannot be expected to be

found. We then performed similarity detection to

automatically discover topics of documents.

We measured similarity by taking dot product of

vectors from the source and the candidate paper. The

results were, however, not satisfactory due to the

http://www.miktex.org/

http://www.openoffice.org/

http://www.pdfbox.org/

following reasons: 1) Author’s writing style was

usually the same in his/her set of documents. A

similar use of common terms produced impression

of there being a larger similarity between documents

2) Paper’s headers share the similar text such as

author name, affiliation etc 3) The Reference List at

the end of both documents make use of similar text.

To overcome these problems, we pre-processed

the text removing the paper’s header (section before

abstract) and the reference section of the paper to

focus only on the original text. We performed Yahoo

Term Extraction

to extract key terms. This

extraction scheme has been used in the number of

past studies for extracting facet terms (Dakka, Dayal

& Ipeirotis, 2006) (Dakka & Ipeirotis, 2008) and

building expertise profile (Aleman-Meza, Decker,

Cameron, & Arpinar, 2007). In our case, the results

from Yahoo Term Extraction was seen to be not

convincing until we removed the header and the

references sections. The similarity measured on

these terms was able to filter the most relevant

papers as can be seen in Table 2 and Figure 4. For

example, in Table 2, for the author “Vadim Bulitko”,

the relevant papers are only 3 out of 17 unique

candidate papers found by the paper classification

module. The manual inspection revealed that these

three were the only papers in the same area.

4.5 Determining Future Links

A paper published later is considered a link into the

future for a paper if it is also written by the same

team of authors and is content wise in a similar area

or cites the previously written paper.

http://developer.yahoo.com/search/content/V1/termExtraction.h

tml

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

126

Table 2: Links into the Future results for selected authors.

Papers determined to be relevant from multiple

sources are then compiled and consolidated as

annotations to each paper residing on the J.UCS

server.

We have extracted all citations from papers

published in J.UCS. These were 15,000 in number

and links were created in the papers that have cited

the J.UCS papers (Afzal, 2008). After extraction of

future links for the focused paper, the future link

ontology (Afzal & Abulaish, 2007) is updated (see

Figure 2).

Figure 2: Future link ontology.

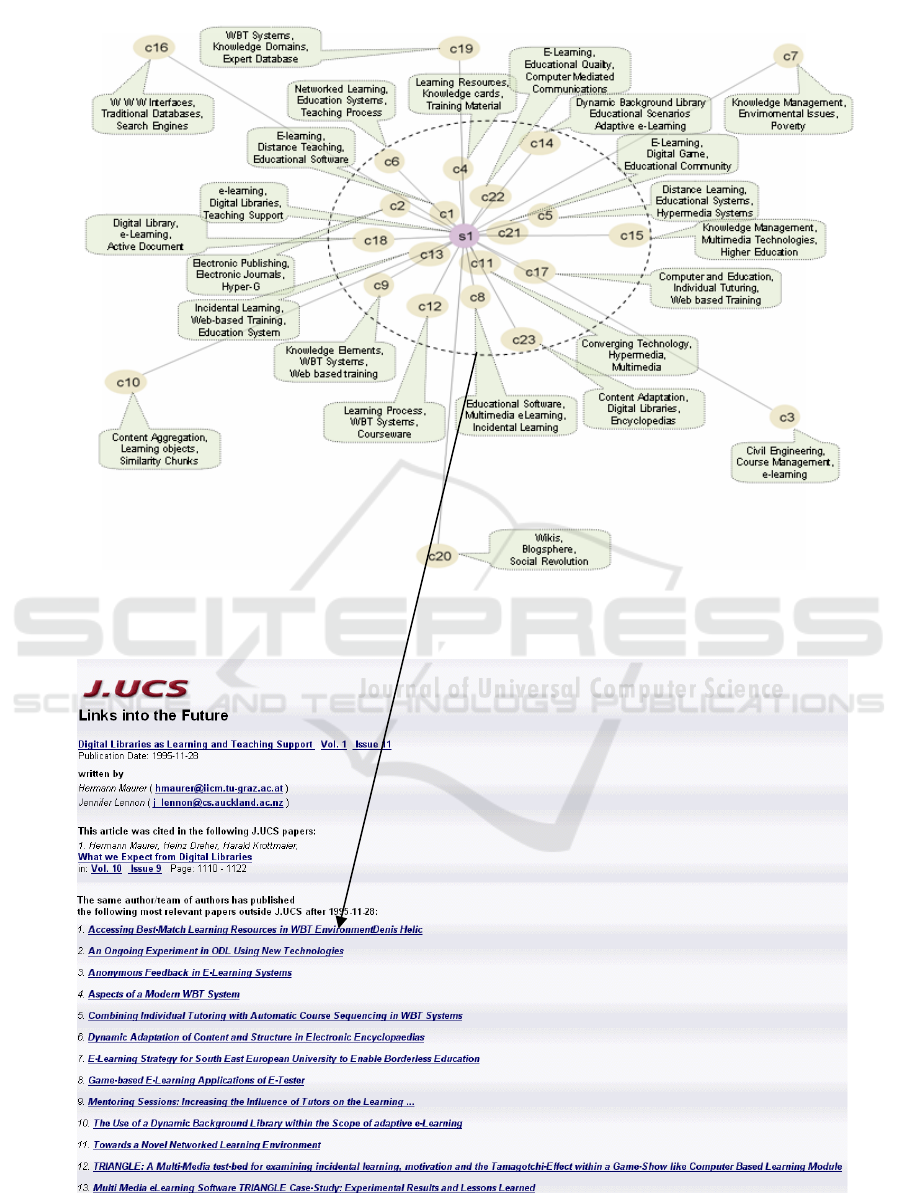

Figure 3 represents an example of a source paper

and its candidate future papers. All of these

candidates are acquired from Web by using SOAP

APIs as discussed earlier. Candidates “C1, C2, C7,

C11, C18” were published in J.UCS. The remaining

18 papers were published outside J.UCS. Figure 3

has been created by using “Graphviz” toolkit. The

link distance between source “S

” and candidate

“C

” node is inversely proportional to the term

similarity. The figure is further annotated using key

terms from the associated papers. Based on the

visual representation it is possible to manually

ascertain a threshold for candidate papers that

belong to the same area. Threshold for this example

has been represented by a dotted circle from source

paper to the candidate future papers. In this way, it

filters 17 papers out of 23. Here the source paper

belongs to the topical areas of E-Learning, digital

libraries and teaching support. It is obvious that the

papers within the closed circle also belong to the

topics of source paper. The threshold can be altered

to refine the closeness of fit of target documents

based on usage or application.

Figure 4 represents the user interface for this

feature. The user viewing the source paper entitled

“Digital Libraries as Learning and Teaching

Support” at

, clicked on “Links into Future” button

and was shown the screen as in Figure 4. In Figure

4, the future links from J.UCS database (based on

metadata similarity and citations) are consolidated

with the future links extracted and filtered from web

(as shown in figure 3). Readers are encouraged to

explore this feature in Journal of Universal

Computer Science (http://www.jucs.org).

This feature is currently fully implemented for

the J.UCS papers and it suggests future related

papers that are also published in J.UCS or cited in

J.UCS papers. As we are also extending Links into

the Future for documents published outside J.UCS,

this prototype is being updated.

5 DISCUSSION

To evaluate the research, we have compared the

citations extracted from our technique with citations

extracted from CiteSeer. The dataset used for

http://www.jucs.org/jucs_1_11/digital_libraries_as_learning

Author Focused paper in J.UCS

Engine

Formulated

Query

After

Duplicate

Removal

Classified

Papers

Unique

paper

Actual

Future

Links

Maurer H.

Digital Libraries as Learning and

Teaching Support vol. 1 Issue 11

Google 112 75 12

23 17

Yahoo 495 86 19

Abraham A.

A Novel Scheme for Secured Data

Transfer Over Computer

Networks Vol. 11 Issue 1

Google 148 62 13

33 22

Yahoo 263 87 41

Bulitko V

On Completeness of

Pseudosimple Sets Vol.1 issue 2

Google 21 21 7

17 3

Yahoo 45 28 13

Shum S. B

Negotiating the Construction and

Reconstruction of Organisational

Memories Vol. 3 issue 8

Google 103 81 11

28 21

Yahoo 546 104 26

Abecker A.

Corporate Memories for

Knowledge Management in

Industrial Practice: Prospects and

Challenges Vol. 3 Issue 8

Google 69 59 9

17 15

Yahoo 335 65 14

DISCOVERING LINKS INTO THE FUTURE ON THE WEB

127

evaluation comprised of citations from J.UCS to

J.UCS papers. We performed this experiment in the

month of May, 2008. There were 92 unique papers

that were cited by other J.UCS papers and numbers

of citations for these 92 papers were 151. Citeseer

indexed 67 papers (73%) out of 92 focused papers

and citations found by CiteSeer were only 38 (25%)

out of 151. It was due to citations that were in non-

compliant formats in the original papers. Our local

heuristics employed for J.UCS gave better results.

Our technique was able to disambiguate authors

by looking for author’s full name in the text of

paper. This approach also avoids the mistaken

identity of names of places as author of scientific

publications as discussed earlier.

Table 2 highlights the retrieval results for Links into

the Future that was determined from the Web for the

paper “Digital Libraries as Learning and Teaching

Support” published in J.UCS vol. 1 Issue 11.

When user performs a query on search engines,

he/she is returned with millions of hits as can be

seen in Table 1. The best formulated query for

finding PDF/PS/Doc documents was applied to

reduce the results to a few hundreds of documents.

The process of removing duplicates then reduced

the number of documents by up to 50%. Our

heuristic rules filtered 12 out of 75 as papers from

Google’s results and 19 out of 86 from Yahoo

respectively. The similarity based on key terms was

then further applied to select 17 out of 23.

Although a user has an option to explore citation

indexes to search for related papers. But there are

two issues 1) times when papers do not exist on

these citation indexes like the source paper in our

case study was not indexed by CiteSeer. While

Google Scholar indexes it but suggests hundreds of

related papers. 2) A deliberate effort is thus needed

to find related papers outside the user’s local

context.

6 CONCLUSIONS

We have in this paper described the extension of the

idea of links into the future to cover documents on

the Web. The results are promising in providing

candidates for future links. The key term similarity

detection has further filtered the most relevant

papers. As further works, we are currently

developing a tool based on sentiment analysis of

citations to evaluate the context of citations. We are

also further exploring the discovery of future related

papers from digital libraries like DBLP and

CiteSeer.

REFERENCES

About Google Scholar, http://scholar.google.at/intl/en/

scholar/about.html (accessed 23, May 2008).

Afzal, M.T. (2008). Citation Mining Technique for

creating Links into the Future. submitted to

International Journal on Digital Libraries.

Afzal, M. T., Abulaish, M. (2007). Ontological

Representation for links into the Future. ICCIT

Gyeongju-Korea, published by IEEE (CS).

Afzal. M. T., Kulathuramaiyer, N., & Maurer H. (2007).

Creating Links into the Future. Journal of Universal

Computer Science, vol. 13, issue 9.

Aleman-Meza, B., Decker, S.L., Cameron, D., & Arpinar,

I.B. (2007). Association Analytics for Network

Connectivity in a Bibliographic and Expertise Dataset.

book chapter in Semantic Web Engineering in the

Knowledge Society.

Chirita, Paul-A., Firan, C.S., & Nejdl, W. (2006). Pushing

Task Relevant Web Links down to the Desktop.

WIDM’06, November 10, 2006, Arlington, Virginia,

USA.

Dakka, W., Dayal, R., & Ipeirotis, P. (2006). Automatic

discovery of useful facet terms. ACM SIGIR

Workshop on Faceted Search.

Dakka, W., Ipeirotis, P. (2008). Automatic extraction of

useful facet hierarchies from text databases.

Proceedings of ICDE.

Emamy, K., Cameron, R. (2007). CiteULike: A

Researcher's Social Bookmarking Service. Ariadne,

Issue 51.

Giles, C.L., Bollacker, K.D., & Lawrence, S. (1998).

CiteSeer: An Automatic Citation Indexing System.

proceedings of Third ACM Conference on Digital

Libraries, pp. 89-98.

Jacsó, P. (2008). Reference Reviews. http://

www.gale.cengage.com/reference/peter/200708/Sprin

gerLink.htm (accessed 23, May 2008)

Krottmaier, H. (2003). Links to the Future. Journal of

Digital Information Management, Vol. 1, No. 1.

Maurer, H. (2001). Beyond Digital Libraries, Global

Digtial Library Development in the New Millenium.

Proceedings NIT Conference, 165-173.

Postellon, D. C. (2008). Hall and Keynes join Arbor in the

citation indices. Nature, 452, 282.

Price, G. (2004). Google Scholar Documentation and

Large PDF Files, http://blog.searchenginewatch.

com/blog/041201-105511 (accessed 23, May 2008).

PubMed, http://www.ncbi.nih.gov/entrez/query.fcgi

Medical Subject Headings (MeSH), http://

www.nlm.nih.gov/mesh/

Ratprasartporn, K., Ozsoyoglu, G. (2007). Finding Related

Papers in Literature Digital Libraries. ECDL, LNCS

4675, pp. 271–284.

Rhodes, B.J., Maes, P. (2000). Just-in-time information

retrieval agents. IBM Syst. J., 39(3-4):685–704.

Speretta, M., Gauch, S. (2005). Personilized Search Based

on User Search Histories. IEEE/WIC/ACM

International Conference on Web Intelligence.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

128

Figure 3: Similarity measure score for a source paper and its candidate future links.

Figure 4: Links into the Future interface.

DISCOVERING LINKS INTO THE FUTURE ON THE WEB

129
