Writing Open Source SunXACML Access Control in

Electronic Health Record with Acceptable Performances

Snezana Sucurovic

and Dejan Simic

Institute Mihajlo Pupin, Volgina 15, 11 000 Belgrade, Serbia

Faculty of Organisational Sciences, Computer Science Department

Jove Ilica 154, 11 000 Belgrade, Serbia

Abstract. OASIS is a non–for-profit consortium that drives the development

convergence and adoption of open standards for the global information society.

It involves more than 600 organizations and individuals as well as IT leaders

Sun, Microsoft, IBM and Oracle. One of it’s standard is XACML which ap-

pears a few years ago and now there are about 150 000 hits on Google.

XACML (eXtensible Access Control Markup Language) is not technology re-

lated. Sun published in 2004 open source Sun XACML which is in compliance

with XACML 1.0. specification and now worked to be in compliance with

XACML 2.0. The heart of XACML are attributes values of defined type and

name that is to be attached to a subject, a resource, an action and an environ-

ment in which subject request action on resource. On that way XACML is to

replace Role Based Access Control which dominated for years. The paper ex-

amines performances in CEN 13 606 and ISO 22 600 based healthcare system

which use XACML for access control.

1 Related Work on using XACML

At the RSA 2008 Conference, members of the OASIS open standards consortium, in

cooperation with the Health Information Technologies Standards Panel (HITSP),

demonstrated interoperability of the Extensible Access Control Markup Language

(XACML) version 2.0. Simulating a real world scenario provided by the U.S. De-

partment of Veterans Affairs, the demo showed how XACML ensures successful

authorization decision requests and the exchange of authorization policies. The

XACML Interop at the RSA 2008 conference utilizes requirements from Health Lev-

el Seven (HL7), ASTM International, and the American National Standards Institute

(ANSI). The demo features role-based access control (RBAC), privacy protections,

structured and functional roles, consent codes, emergency overrides and filtering of

sensitive data. Vendors show how XACML obligations can provide capabilities in the

policy decision making process. The use of XACML obligations and identity provid-

ers using the Security Assertion Markup Language (SAML) are also highlighted.

According to the ANSI/HITSP announcement, the multi-vendor demonstrations

"highlight the use of OASIS standards in HITSP-approved guidelines, known as

Sucurovic S. and Simic D. (2009).

Writing Open Source SunXACML Access Control in Electronic Health Record with Acceptable Performances .

In Proceedings of the 1st International Workshop on Open Source in European Health Care: The Time is Ripe, pages 59-68

DOI: 10.5220/0001813400590068

 SciTePress

'constructs,' to meet healthcare security and privacy needs. The Panel's security and

privacy specifications address common data protection issues in a broad range of

subject areas, including electronic delivery of lab results to a clinician, medication

workflow for providers and patients, quality, and consumer empowerment. HITSP is

a multi-stakeholder coordinating body designed to provide the process within which

affected parties can identify, select, and harmonize standards for communicating

health care information throughout the health care spectrum. As mandated by the U.S.

Department of Health and Human Services (HHS), the Panel's work supports Use

Cases defined by the American Heath Information Community (AHIC)[1].

2 Related Work on Access Control Standards

2.1 Commite European de Normalisation (CEN) Standard ENV 13606 [2]

In 2008 ISO has given ISO 13 606 on Electronic Healthcare Record Architecture.

This standard is revised Comitte European de Normalisation standard CEN ENV 13

606. This standard is base for access control in European standards and developed

systems. The main item in the CEN healthcare information system architecture (CEN,

2002) standard is an Architectural Component. The Architectural Components are

organized in a hierarchical structure. Each Architectural Component has a reference

to access control list for that component defined as Distribution Rules. A Distribution

Rule comprises classes Who, Where, When, Why and How which define who, where,

when, why and how is allowed to access the component (Table 1). To access the

system a user presents his attributes that correspond to attributes of class Who, When,

Where, Why and How. Classes Who, When, Where, Why and How are processed

with operator AND. There can be one or more DR attached to AC and they are

processed with operator OR.

2.2 ISO 22 600 Standard [3]

ISO/TS 22600-1:2006 is intended to support the needs of healthcare information

sharing across unaffiliated providers of healthcare, healthcare organizations, health

insurance companies, their patients, staff members and trading partners. It is also

intended to support inquiries from both individuals and application systems. ISO/TS

22600-1:2006 supports collaboration between several authorization managers that

may operate over organizational and policy borders.

Table 1. Distribution Rules attributes.

Class Attribute Type

Who Profession

Specialisation

Engaged in care

Healthcare agent

String

Boolean

Class

When Episode of care

Episode reference

String

Where Country

Legal requirement

String

Boolean

Why Healthcare process

code

Healthcare process

text

Sensitivity class

Purpose of use

Healthcare party role

String

Class

How Access method

Consent required

Signed

Encrypted

Operating system

security rating

Hardware security

rating

Software security

rating

String

Class

Boolean

String

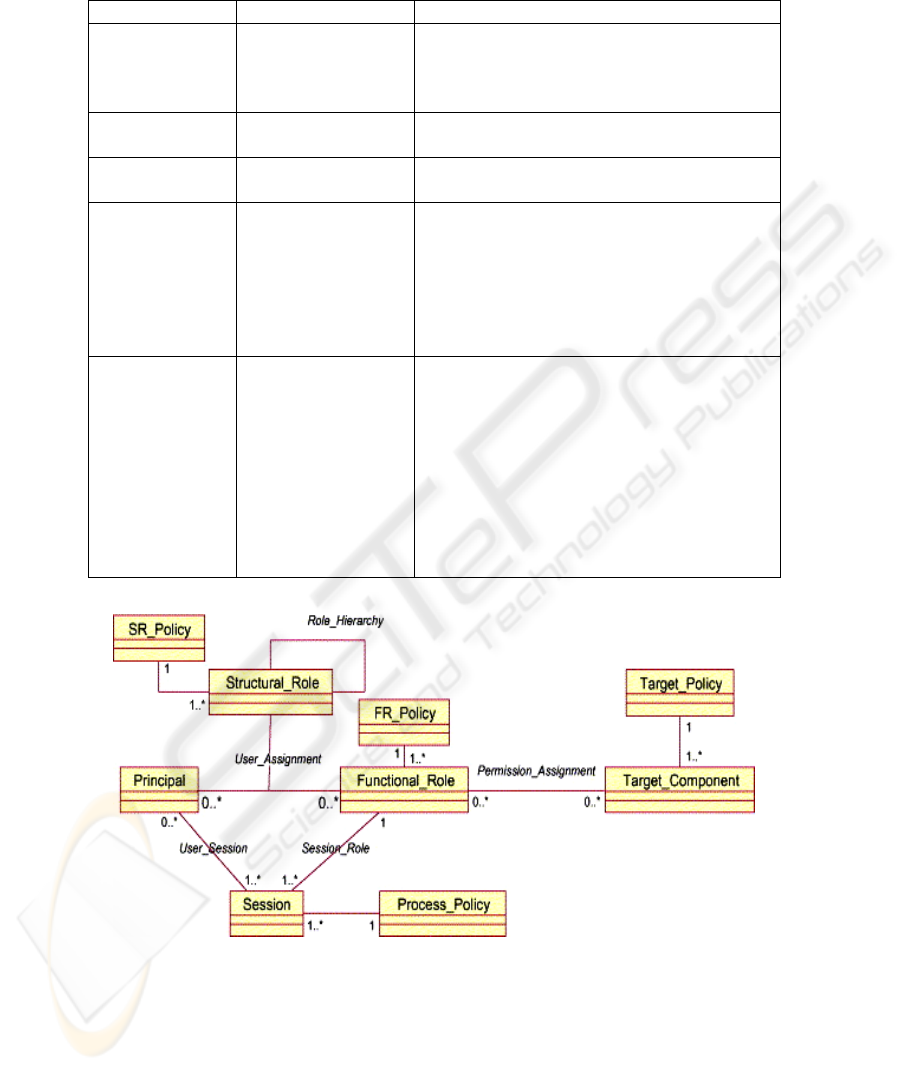

Fig. 1. ISO 22 600 access control policies.

3 eXtensible Access Control Markup Language (XACML)

XACML is an OASIS [4] standard that describes both a policy language and an

access control decision request/response language (both written in XML). The typical

setup is that someone wants to take some action on a resource, so the elements of

request are user’s atttributes, action and resource to be accessed. The request/response

language lets you form a query to ask whether or not a given action should be al-

lowed and interpret the result.

The currency that XACML deals in is attributes. Attributes are named values of

known types. Specifically, attributes are characteristics of the Subject, Resource,

Action or Environment in which the access request is made. A user’s name, their

security clearance, the file they want to access, and the time of day are all attribute

values. When a request is sent to a Policy Decision Point (PDP) (which makes deci-

sion), that request is formed almost exclusively of attributes, and they will be com-

pared to attribute values in a policy to make the access decision.

3.1 SunXACML

This paper presents work with Sun’s version of XACML [5]. Sun’s XACML has

supported only XACML 1.0 and not XACML 2.0 yet. XACML 2.0 supports Securi-

ty Access Control Markup Language (SAML) protocol which is enveloping protocol

and provides standardized protocol for encryption and decryption of attributes and

policies on the net.

Since Sun XACML is in developing phase (toward version XACML 2.0) in order

to work with it, it is necessary to download form Code Version System (CVS) ( from

sourceforge.net) the last version of java classes and then compile them using given

build.xml file. Finally it is necessary to build jar archive using Apache’s Ant tool. In

that way, we can obtain the most stable version of Sun’s XACML, since code for

version 2.0 is added in this phase of development.

3.2 Writing Access Control Policies using XACML

A policy is a Policy Set which comprises one or more policies, where a policy com-

prises one or more rules. There are also combining algorithms for policies and rules.

For example if the combining algorithm is “ordered-permit-overrides” the firstly rules

that permit access have advantage. In that case the last rule is

that means that if there is not previously written permit rule access is forbidden.

There is also another case when we write as the last rule

Besides Rules, a Policy comprises a Target which is necessary to find correspon-

dent policy to the given request. A target comprises <Subject> attribute, <Resource>

attribute and <Action> Attributes, where subject and resource are mandatory and

action can be <AnyAction/>. Subject attribute has to be of datatype RFC 822 (for

example users.example.com), and resource attribute has to be of type <anyURI>(for

example http://server.example.com

It can be several Subject and Resource attributes in Request (besides ones that are

part of Target in Policy). An example of XML segment which represents Target

Resource attribute has been given as follows:

<AttributeValue

DataType=anyURI>http://server.example.com<AttributeValue/>

<ResourceAttributeDesignator

DataType=anyURI

AttributeID=resource_id>

It means that matching evaluation operator is anyURI-equal, that attribute is of type

anyURI and that its value is http://server.example.com . Also, name of the attribute is

resource_id, that is how it is compared with attributes from Request.

In a Policy a Target is followed by one or several Rules. While a target is

simplified condition for access decision, the heart of most Rules is a Condition which

is mostly boolean or set function. If the Condition evaluates to true, then the Rule's

effect (a value of Permit or Deny that is associated with successful evaluation of the

Rule) is returned. A Condition can be quite complex, built from an arbitrary nesting

of non-boolean functions and attributes. The following XML segment presents a

complex Condition:

<SubjectAttributeDesignator

DataType=string

AttributeId=group />

<AttributeValue

DataType=string>GP<AttributeValue/>

<AttributeValue

DataType=string>SCP<AttributeValue/>

</Apply>

</Condition>

It means that this is attribute of subject with name group and type string. Set

function string-at-least-one-member-of means «at least one member of set whose

elements are of type string». This segment means that attribute of subject with name

group has to have at least one of given values (GP, SCP) in oder to access decision

evaluates to Permit.

4 Performance Examination

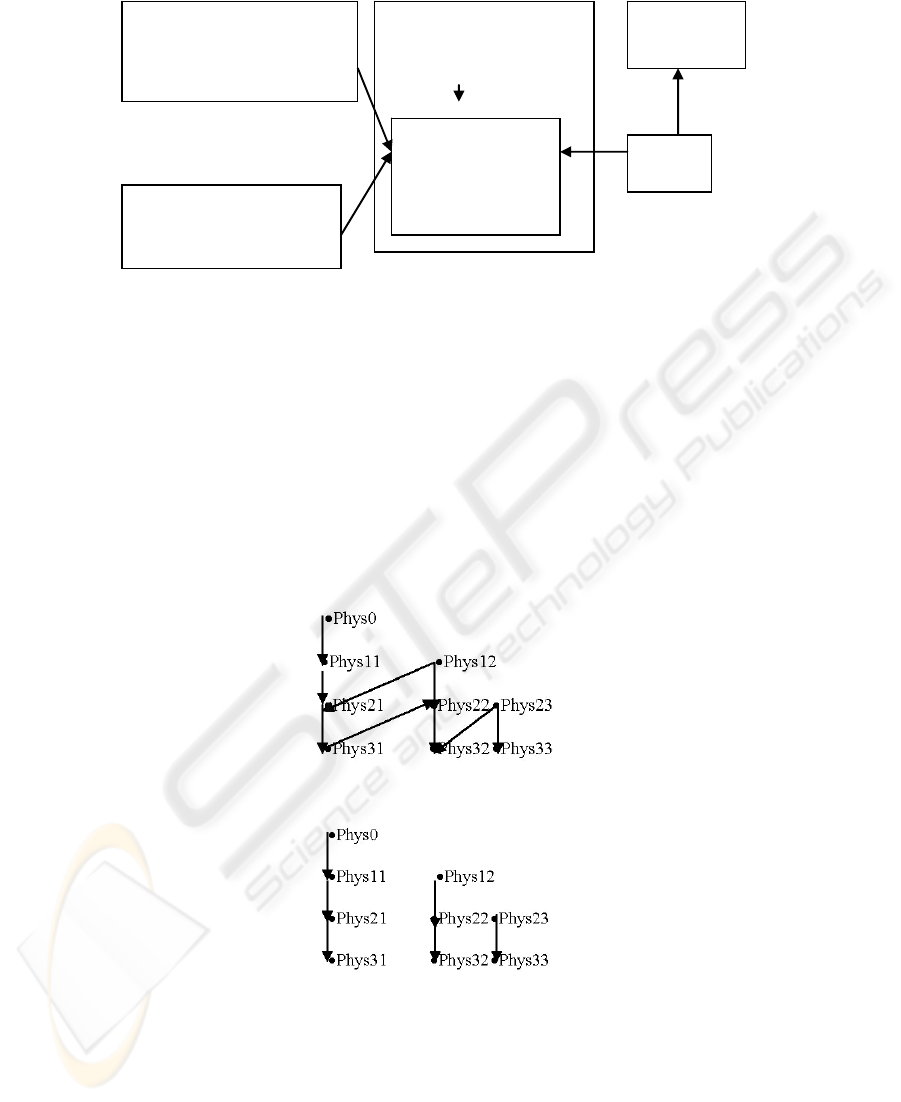

4.1 Related Work on Hierarchy Access Control Policies

ARTEMIS is an EU funded project that are developing a semantic web service based

on P2P interoperatibility infrastructure for healthcare information systems [6]. An

ARTEMIS pilot application is being clinically deployed by healthcare providers

located in two European countries to demonstrate the interoperatibility of healthcare

information systems across organizational and country boundaries. The pilot applica-

tion includes healthcare providers South East Belfast Healthcare Trust (SEBT) in

Belfast, Northern Ireland and Hacettepe Hospital in Ankara, Turkey. In ARTEMIS,

healthcare providers define privacy policies that state which healthcare professionals

are able to access specific medical data. The initial approach is to allow a healthcare

provider to develop role ontology that defines the clinical occupations for healthcare

professionals within their organization. These roles are then attached to concepts in

the clinical concept ontology. As medical data is described using the clinical con-

cepts, authorization is enforced based on the role of the healthcare professional and

the clinical concept being accessed. The Clinical Concept Ontology has been derived

from the Unified Medical Language System (UMLS) semantic network [7] and meta-

thesaurus [8] to provide a rich set of terminology for describing medical data seman-

tics. The Semantic Network consists of a set of broad subject categories, or Semantic

Types, that provide a consistent categorization of all concepts represented in the

UMLS Metathesaurus, and a set of useful and important relationships, or Semantic

Relations, that exist between Semantic Types. The Metathesaurus is a very large,

multi-purpose, and multi-lingual vocabulary database that contains information about

biomedical and health related concepts, their various names, and the relationships

among them. The Metathesaurus is organized by concept or meaning. In essence, it

links alternative names and views of the same concept and identifies useful relation-

ships between different concepts. There are efforts to implement mechanisms for

parsing free text into UMLS concepts [12].

Event

Activity

Behavior

Social Behavior

Individual Behavior

Daily or Recreational Activity

Occupational Activity

Healthcare Activity

Laboratory Procedure

Diagnostic Procedure

Therapeutic or Preventive Procedure

Research Activity

Molecular Biology Research Technique

Governmental or Regulatory Activity

Educational Activity

Machine Activity

The ARTEMIS mediator can broker between privacy policies using ontology

mappings linking organisational role ontologies with clinical concept ontologies.

When a web service is invoked the mediator translates the role of the healthcare pro-

fessional in the requesting organisation to the equivalent role in the providing organi-

sation.

5 MEDIS (Medical Information System) Prototype Approach

MEDIS [9] prototype has been developed as EHR when integration from very begin-

ning is needed. It has been implemented as a federated system.

Clinical Server I

Clinical Server II

Clinical Server N

Central

Server

LDAP

Server

Smart Card

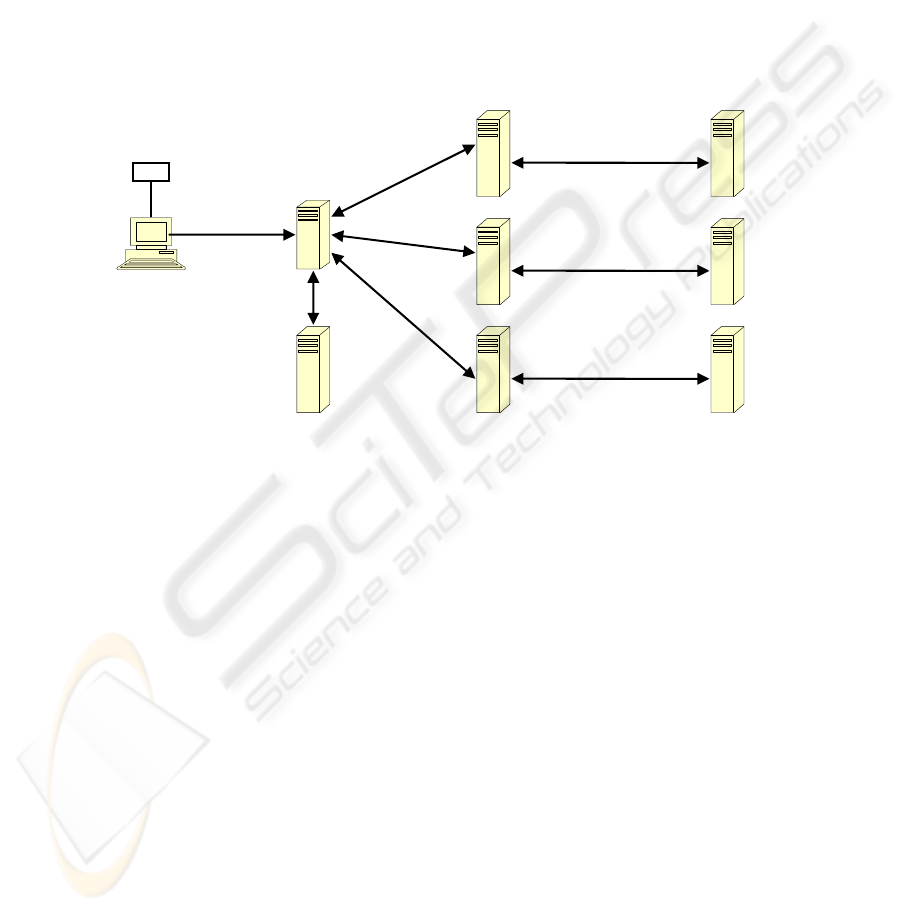

Fig. 2. MEDIS System architecture.

As MEDIS is multidomain system XACML should be applied for access control.

There are master access control policies on central server and local policies on clini-

cal servers. Architectural Components could be seen as resources or target and there

are access control policies attached to them according to ISO 22 600. There are also

subject attributes enveloped in attribute certificates [10]. We did step further: we

supposed that attributes in policies are hierarchically organized (as in ARTEMIS) and

measured performances.

LDAP

Servers

Attribute Certificate’s

Attributes (Subject

attributes)

Clinical Server

SOAP Messages

Local Authorization

Policies

Master Authorization

Policies

Policy

Decision

Point

Target AC

Component

Target

Policy

Fig. 3. Access control policies in MEDIS.

5.1 Performance Examination

Fig 4. presents forest attribute hierarchy, while Fig. 5 presents tree attribute hierarchy.

Results have been obtained on 512 M RAM-a and 800 MHz CPU. Node 1 presents

attribute which is possessed by subject, while node 2 represents attribute which is

attached to resource. For all combinations of node attaced to subject and node at-

tached to resource average access time in forest structure is 1702 ms, while Tmin =

1632ms and Tmax = 1783ms. In tree like access control policy Taverage=1698ms,

while Tmin= 1622ms and Tmax=1942ms.

Fig. 4. Forest attribute hierarchy.

Fig. 5. Tree attribute hierarchy.

Table 2 contains access control time when two attributes (Healthcare Provider and Ep-

isode of Care) are involved. Node 3 is episode of care attached to subject, while Node4 is

attribute attached to resource according to the policy represented at following figure.

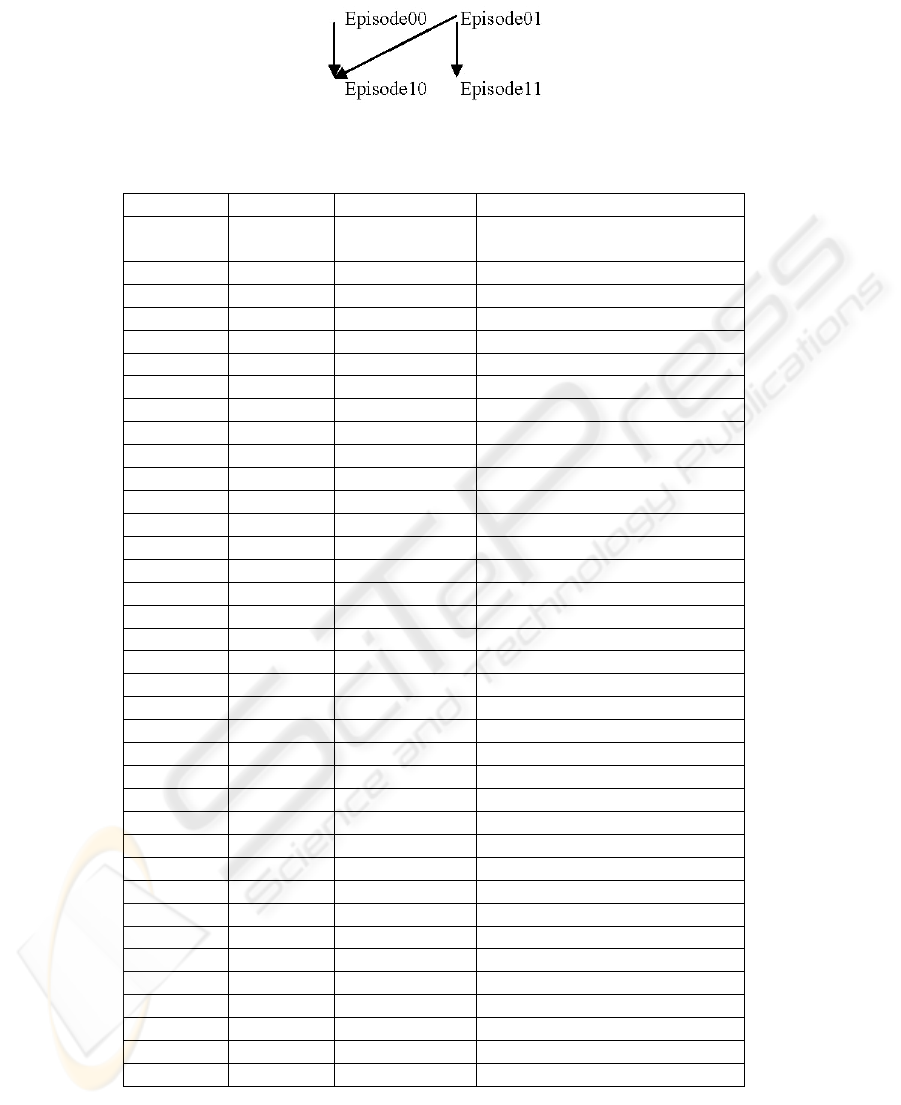

Fig. 6. Episode of care access control policy.

Table 2. Access Control time when two attributes policy is used.

ode1

ode2

ode3/Node4 Access time

00 11 0010/0011/01

10/0111

1903/1792/1712/1823

00 21 1732/1703/1812/1742

00 31 1802/1712/1773/1762

00 12 1782/1793/1782/1722

00 22 1852/1732/1872/1723

00 23 1723/1732/1722/1722

00 33 1762/1682/1732/1712

00 32 1713/1742/1693/1813

11 21 1703/1742/1783/1713

11 31 1793/1722/1723/1712

11 12 1742/1722/1773/1742

11 22 1793/1712/1722/1692

11 32 1733/1782/1742/1773

11 23 1793/1702/1822/1792

11 33 1762/1742/1753/1793

21 31 1712/1783/1783/1712

21 12 1682/1783/1813/1692

21 22 1672/1702/1793/1733

21 32 1723/1712/1683/1702

21 23 1772/1713/1713/1772

21 33 1722/1792/1782/1722

31 12 1782/1752/1672/1673

31 22 1742/1763/1743/1723

31 32 1733/1762/1682/1702

31 23 1672/1772/1772/1762

31 33 1782/1772/1723/1792

12 22 1782/1792/1732/1733

12 32 1723/1712/1783/1682

12 23 1762/1753/1682/1722

12 33 1723/1692/1722/1763

22 32 1692/1782/1702/1753

22 23 1693/1683/1793/1792

22 33 1702/1662/1742/1732

32 23 1712/1762/1713/1832

32 33 1752/1702/1732/1702

23 33 1722/1750/1742/1752

Tavera

e = 1742

6 Conclusions

In it’s first paragraph this paper presents current work on use of OASIS’s XACML in

healthcare, while in the second current standards related to access control in EHR.

The third paragraph deals with writing policies using XACML, while the forth

presents a current project dealing with hierarchical attributes in access control poli-

cies. Finally, the fifth paragraph presents our approach, which includes XACML

policies, current standards and hierarchical attributes. The paper aims at giving con-

tribution to presentation of results of access control time using various SunXACML

access control policies with hierarchical attributes. This results presents a fact that

either we choose tree or forest architecture or if we write policy with several

attributes in hierarchy, performances will not fall down.

References

1. Bussiness Wire, accessed May 2008, http://www.allbusiness.com/technology/software-

services-applications-information/8943546-1.html

2. CEN ENV 13 606 Extended Architecture, URL: http://www.centc251.org/WGI/N-

documents/WGI-N04-24-prEN_13606-1_(E)preENQ.pdf, accessed June 2007.

3. ISO 22 600 “Access Control in Healthcare Information Systems”

4. Anderson A., A comparasion of Two Privacy Policy Languages: EPAL and XACML,

http://research.sun.com/techrep/2005/smli_tr2005-147.pdf

5. Sun's XACML Implementation, http://sunxacml.sourceforge.net/

6. Artemis Project, http://www.srdc.metu.edu.tr/webpage/projects/

7. National Library of Medicine, Unified Medical Language System, Semantic Network,

http://www.nlm.nih.gov/research/umls/meta3.html

8. National Library of Medicine, Unified Medical Language System, Metathesaurus,

http://www.nlm.nih.gov/research/umls/meta2.html

9. S. Sucurovic, “Implementing security in a distributed web based EHCR”, International

Journal of Medical Informatics, May 2007, pp. 491-496, Elsevier

10. S. Sucurovic, Z. Jovanovic, Java Cryptography & Attribute Certificate Management, Dr.

Dobb’s Journal, Octobar 2006
