PCA-BASED SEEDING FOR IMPROVED VECTOR

QUANTIZATION

G. Knittel and R. Parys

WSI/GRIS, University of Tübingen, 72076 Tübingen, Germany

Keywords: Vector quantization, Image compression, Principal component analysis, Clustering.

Abstract: We propose a new method for finding initial codevectors for vector quantization. It is based on Principal

Component Analysis and uses error-directed subdivision of the eigenspace in reduced dimensionality. Addi-

tionally, however, we include shape-directed split decisions based on eigenvalue ratios to improve the visual

appearance. The method achieves about the same image quality as the well-known k-means++ method,

while providing some global control over compression priorities.

1 INTRODUCTION

Vector quantization (Gray, 1984; Gersho and Gray,

1992) has become one of the standard methods for

lossy image compression. Vectors are formed by

non-overlapping blocks of n*m pixels, in case of

RGB images the vector dimension is n*m*3. In VQ,

the potentially large set of image vectors is replaced

by a small set of representative vectors (here called

codevectors), while trying to minimize the overall

error. Often, clustering methods are used to find a

proper set of codevectors (collectively called a

codebook). A frequently used method is k-means

(Lloyd, 1982). Starting from an initial set of random

codevectors (seeds), each vector is assigned to its

nearest codevector, thereby forming clusters. Once

clustering is finished, the codevectors are moved to

the center of their respective cluster, and then

clustering is started anew. This process is repeated

until the system reaches a stable state. Each vector

will now be replaced by the index of its codevector

in the codebook. Decompression merely consists of

a table look-up.

As a number of authors have pointed out, the

accuracy of the clustering algorithm depends to a

large degree on the selection of seeds, since

clustering typically converges to only locally

optimal solutions (Barbakh and Fyfe, 2008; Fritzke,

1997; Ostrovsky et al., 2006). Accordingly, much

research effort has been spent on improved seeding

methods (Bradley and Fayyad, 1998; Pena et al.,

1999). Central to this work, however, is the recently

proposed k-means++ algorithm (Arthur and

Vassilvitskii, 2007).

In this short note we demonstrate one of the

weaknesses of the k-means++ selection method and

propose a method for alleviating these effects. We

compare random selection, k-means++ and the

proposed PCA-based seeding method.

2 PCA-BASED SEEDING

Basically, the method generates a potentially

unbalanced binary subdivision tree. As opposed to

other trees such as kd-trees, our subdivision

algorithm is error-guided and uses image properties

reflected in the eigenvalues. As for all trees, we have

to make decisions about which node to split, and

where the cut should be made. A detailed description

follows.

All image vectors are subjected to a PCA. The

split is made using the principal component of each

pixel block. Several locations to place the cut are

possible, such as a median cut, but best results are

achieved by using the center of gravity. For each of

the two groups the image error contribution is

computed, i.e., the sum of squared errors relative to

their respective centers of gravity. The one with the

larger error is split, using the same procedure as for

the parent. For the split decisions, all subvolumes

generated so far are taken into account. Processing is

finished when there are as many leaf nodes as there

are codevectors to assign.

96

Knittel G. and Parys R. (2009).

PCA-BASED SEEDING FOR IMPROVED VECTOR QUANTIZATION.

In Proceedings of the First International Conference on Computer Imaging Theory and Applications, pages 96-99

DOI: 10.5220/0001808100960099

Copyright

c

SciTePress

This method achieves the same or even slightly

better image quality (in terms of PSNR, see Table 1)

compared to k-means++.

Looking at the decompressed images from

random seeding (Figure 1d), k-means++ seeding

(Figure 2a) and PCA-based seeding (Figure 2f), it is

striking to see how well the smooth color transition

of the sky is reproduced by random seeding.

However, this is not a hidden power of the k-means

algorithm, but simply due to the random choice if

selection is uniformly distributed. This is reflected in

the large number of seeds from sky in the codebook

(see Figure 1e).

In contrast, both the k-means++ and the PCA-

based seeding produce noticeable banding artefacts.

In both cases, this is a direct consequence of the

design intentions, since the involved image vectors

are close to each other and won’t cause significant

image errors. While it is non-obvious how a remedy

could be integrated into the k-means++ algorithm,

we will present a method for reducing these artifacts

in the PCA-based seeding. It takes advantage of the

fact that processing is done in eigenspace.

At some point in the subdivision process the sky

(or similar areas) will have been separated into a

distinct cluster, and will be subjected to a PCA. It’s

quite obvious that the eigenvalues will exhibit a

certain property: they will drop sharply in size since

all image vectors are more or less aligned from dark

to light blue. This property is less pronounced or

absent in more noisy or diverse image areas.

Thus we can use the eigenvalue statistics (cluster

shape) as a further split criterion. As a simple

example, we have used the ratio of the largest (ev1)

and the second largest (ev2) eigenvalues to select the

group to be split next. That is, if ev1/ev2 > T the

subvolume is split regardless of the image error.

For Figure 3a, we have set the threshold T to 2.5,

whereas for Figure 3f T was set to 1.5. As can be

seen in the initial codebooks (see Figure 3b, g), the

allocation of codevectors to sky can be controlled

quite well. Other than reserving more codevectors to

these specially shaped clusters, operation is not

affected and thus most details are still preserved as

in Figure 2f. “Codevector stealing” begins to

become visible in Figure 3f, (see the letter “S” in

Figure 3i). However, T=2.5 seems to be a good

compromise, while T=1.5 appears to be overdone.

Further parameters to include in the split

decision are the population count of a cluster, and

the absolute spatial extent along the principal

component.

It should be mentioned that the method is neutral

in case there are no such areas in the image, since

then a corresponding eigenvalue ratio will not occur.

The opposite doesn’t hold, though. A high ratio

doesn’t mean that there is a smooth transition, as in

the case of the brown building, which nevertheless

gets assigned more codevectors. Excluding these

areas for true unsupervised compression is subject of

future research.

3 RESULTS

To demonstrate the differences in image quality, we

have chosen a set of images from

http://www.imagecompression.info. Each image was

compressed into its own codebook. We have used a

block size of 8x8 pixels for a vector dimension of

192. The number of codevectors was chosen such

that the compression rate was roughly the same for

each image. The results are given in Table 1, in

terms of PSNR [dB].

Table 1: Seeding comparison.

Img. Name Rand KM++ PCA bpp

Artificial 31.8 35.7 37.9 2.2

Bridge 29 29.5 29.5 2.1

Cathedral 32.1 32.4 32.6 2.3

Deer 30.1 30.5 30.7 2.2

Fireworks 29.8 37.3 42.9 2.3

Hdr 35.7 38.5 39 2.2

Leaves 26.3 27 27.1 2.3

As test case for showing the potential of

eigenvalue-based subdivision we have selected an

image with the following properties:

• a large area with a smooth color transition to

make quantization artefacts (banding) visible,

• a high amount of image detail with known

shape such as traffic lights or street signs.

Original image size is 1024x768 pixels, or

12,288 blocks. Since the algorithms perform roughly

the same on small codebooks, we have chosen a

codebook of 1k codevectors to expose the

differences. Processing times and image quality are

summarized in Table 2.

Table 2: Compression time and image quality.

Method Seeding

[s]

Clustering

[s]

PSNR

[dB]

Random 0.016 37.5 24.17

KM++ 10 35.6 24.99

PCA 39.3 36.5 25.07

PCA, T=2.5 67.6 36.8 25.03

PCA, T=1.5 69 36.8 24.85

PCA-BASED SEEDING FOR IMPROVED VECTOR QUANTIZATION

97

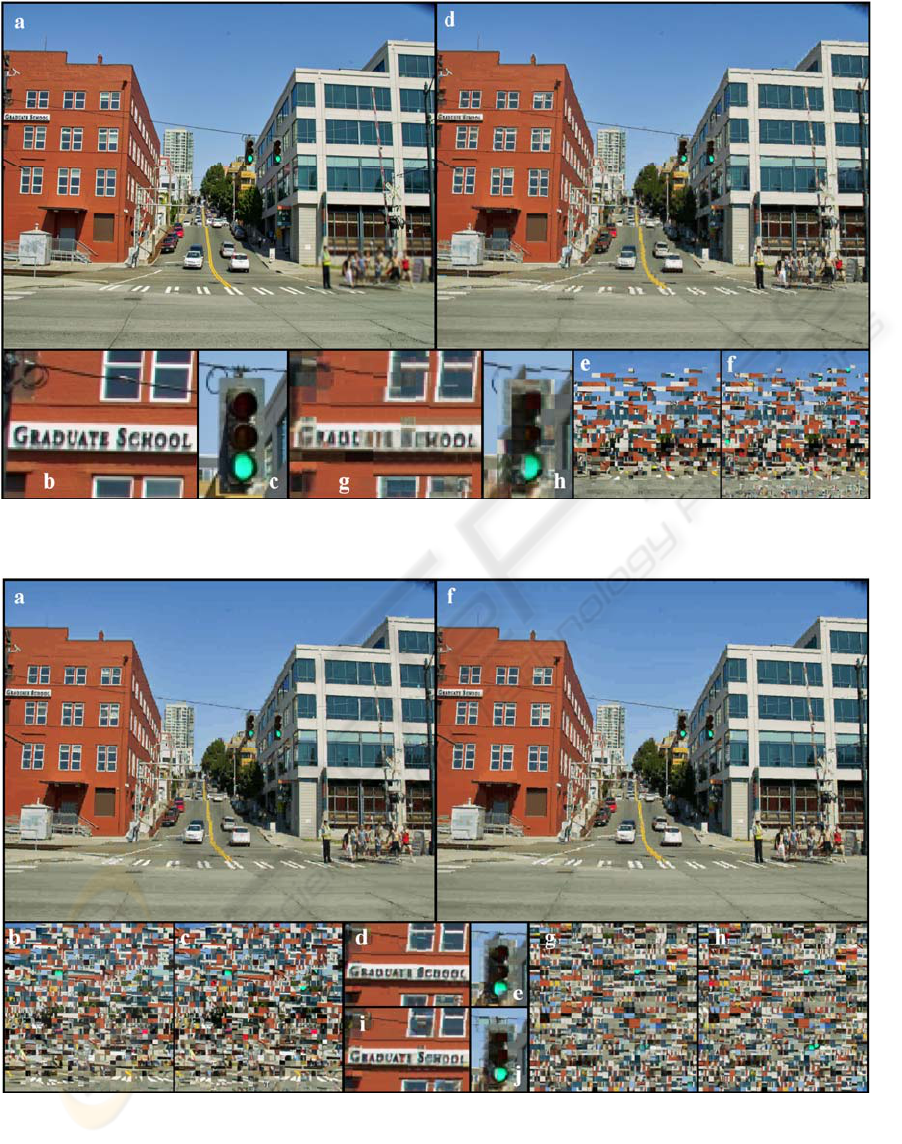

Figure 1: a) original photograph, resolution 1024x768; b) cut-out of size 110x80; c) cut-out 50x80; d) k-means clustering

using random seeds; e) initial codebook (1k codevectors); f) final codebook; g) and h) cut-outs of decompressed image.

Figure 2: a) k-means++ seeding; b) initial codebook; c) final codebook; d) and e) cut-outs from a); f) PCA-based seeding;

g) initial codebook; h) final codebook; i) and j) cut-outs from f).

IMAGAPP 2009 - International Conference on Imaging Theory and Applications

98

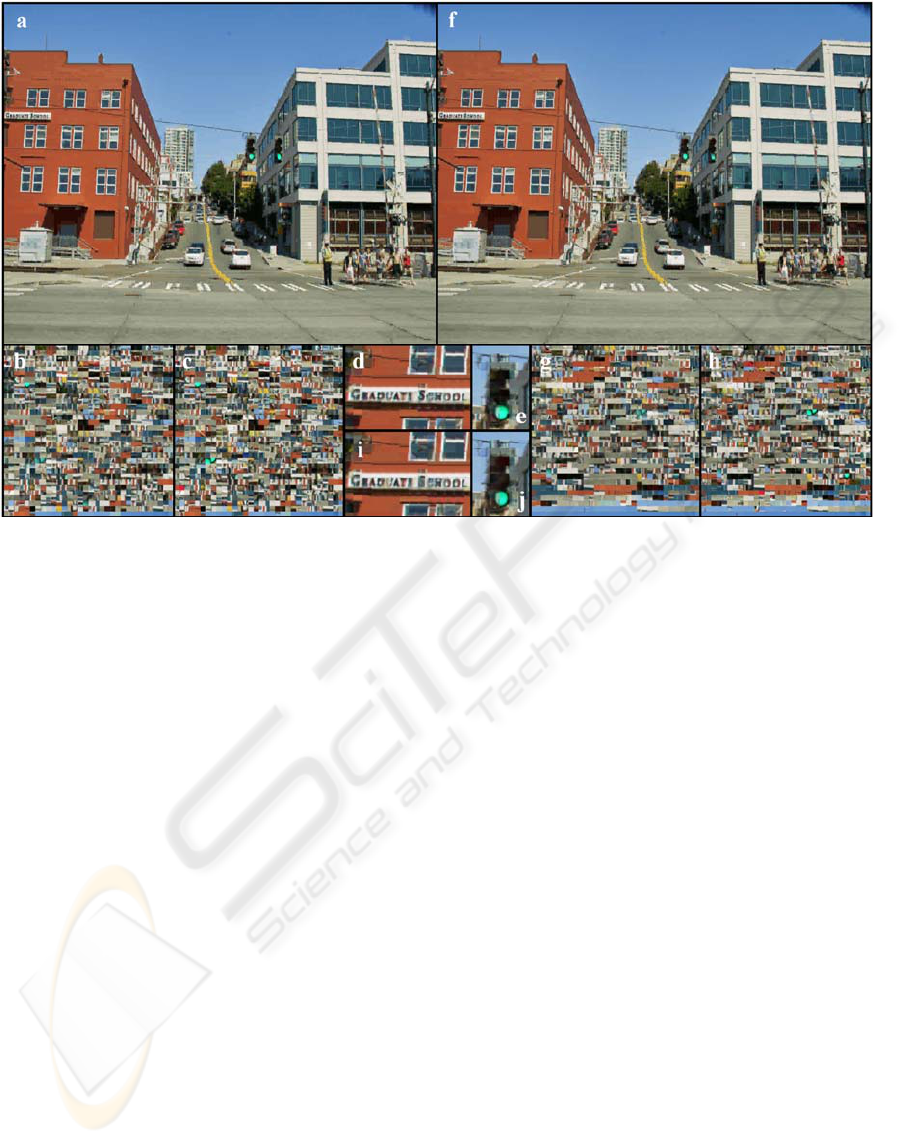

Figure 3: a) PCA-based seeding, T=2.5; b) initial codebook; c) final codebook; d) and e) cut-outs from a); f) PCA-based

seeding, T=1.5; g) initial codebook; h) final codebook; i) and j) cut-outs from f).

4 CONCLUSIONS

We have presented an alternative to k-means++

seeding which performs equally well in terms of

PSNR. It is based on Principal Component Analysis,

and performs error-directed subdivision in

eigenspace. Most notably, the method offers some

global parameters to adjust compression priorities

based on local image properties. These can be used

to reduce quantization artefacts on smooth color

transitions.

It might appear to be somewhat irrelevant to try

to improve the appearance of such image areas,

especially in the view of the image errors

everywhere else. However, for other image material

with less recognizable features like rocks or bushes,

banding on such areas might become the dominant

source of visual image degradation. Also, with

careful use of the compression parameters the

achievable image improvement is free, i.e., it does

not increase the error significantly in other parts of

the image.

REFERENCES

Arthur, D., Vassilvitskii, S., 2007. k-means++: the advan-

tages of careful seeding. In Proc. 18

th

annual ACM-

SIAM symposium on discrete algorithms, pages 1027-

1035.

Barbakh, W., Fyfe, C., 2008. Clustering with alternative

similarity functions. In Proc. 7th WSEAS Int. Conf. on

Artificial Intelligence, Knowledge Engineering and

Data Bases, pages 238-244.

Bradley, P. S., Fayyad, U., 1998. Refining initial points

for K-means clustering. In Proc. 15th Int. Conf. on

Machine Learning, pages 91–99.

Fritzke, B., 1997. The LBG-U method for vector quantiza-

tion - an improvement over LBG inspired from neural

networks. In Neural Processing Letters, Vol. 5, No. 1,

pages 35-45.

Gray, R. M., 1984. Vector quantization. In IEEE ASSP

Magazine, Vol. 1, No. 2, (1984), pages 4-29.

Gersho, A., Gray, R. M., 1992. Vector quantization and

signal compression, Kluwer Academic Publishers.

Lloyd, S. P., 1982. Least squares quantization in PCM. In

IEEE Trans. on Information Theory, Vol. 28, 1982,

pages 129-137.

Ostrovsky, R., Rabani, Y., Schulman, L., Swamy, C.,

2006. The Effectiveness of Lloyd-Type Methods for

the k-Means Problem. In Proc. 47th Annual IEEE

Symposium on Foundations of Computer Science

(FOCS'06), pages 165-176.

Pena, J. M., Lozano, J. A., Larranaga, P., 1999. An empiri-

cal comparison of four initialization methods for the k-

means algorithm. Pattern Recognition Lett., Vol. 20,

No. 10, pages 1027–1040.
