CELL TRACKING AND DATA ANALYSIS OF IN VITRO

TUMOUR CELLS FROM TIME-LAPSE IMAGE SEQUENCES

Kuan Yan, Fons J. Verbeek

Section Imaging and Bioinformatics, Leiden Institute of Advanced Computer Science, Leiden University

Niels Bohrweg 1, 2333 CA Leiden, The Netherlands

Sylvia Le Dévédec, Bob van de Water

Section Toxicology, Leiden/Amsterdam Center for Drug Research, Leiden University

Niels Bohrweg 1, 2333 CA Leiden, The Netherlands

Keywords: Object tracking, Cell tracking, Cellular phenotype, Tumour cell, Time-lapse video, Cell migration analysis,

KDE mean shift, Steepest descent, High-throughput, High-content, Video analysis, Image sequence.

Abstract: In this paper, we address the problem of the analysis of cellular phenotype from time-lapse image sequences

using object tracking algorithms and feature extraction and classification. We discusses the application of

an object tracking algorithm for in the analysis of high content cell-migration time-lapse image sequence of

extremely motile cells; these cells are captured at low time-resolution.. The small size of the objects and

significant deformation of the object during the process renders the tracking as a non-trivial problem. To

that end, the ‘KDE Mean Shift’, a real-time tracking solution, is adapted for our research. We illustrate that

in a simulation experiment with artificial objects, with our algorithm an accuracy of over 90% can be

established. Based on the tracking result, we propose several morphology and motility based measurements

for the analysis of cell behaviour. Our analysis requires only initial manual interference; the majority of the

processing is automated.

1 INTRODUCTION

Cytomics is the study of cell systems, referred to as

the cytome, at the level of the single cell; it attempts

to understand the molecular architecture and the

functionality of the cell system. Much of this is

achieved by using a combination of molecular and

imaging techniques allowing the various components

of a cell to be visualised by time-lapse image

sequence either in vivo or in vitro. When applied to

larger volumes of cells studied under different

experimental conditions, such a study is usually

referred to as a screen.

An automated cell screening for a 200-target

RNA study will result in 400 image sequences; each

of the sequences contains over 100 cells. Manually

analyzing these videos is virtually impossible.

Therefore, video tracking and data analysis are used;

smart application of these techniques is crucial.

Existing studies of cell tracking (Rogers, et al,

2006) illustrate physical solutions to cell tracking;

this research focuses on in vivo cell tracking using

Magnetic Resonance Imaging (MRI). This approach

is complex and requires advanced MRI equipment

suitable for high-resolution imaging. Computer

vision studies

(Li and Kanade, 2007) also show that

level-set based tracking algorithms can produce good

tracking results directly from sequences as captured

from a fluorescence or bright field microscope. In

these studies, the tracking accuracy reaches an

average of 85%. The method can deal with cell

proliferation by splitting trajectories.

To date, measurements on cell-phenotype have

not been extracted from time-lapse image sequences.

Moreover, the phenomena that are captured in time-

lapse in image sequences, e.g. metastatic behaviour

of a target cell-line, are often subtle and therefore it

requires a range of features be evaluated. The image

sequence is captured such that the relevant

observations on behaviour can be deduced from the

measurements. Sampling below the standard video-

rate is also necessary as otherwise; the amount of

data will not be manageable. Challenges regarding

281

Yan K., Verbeek F., Le Dévédec S. and van de Water B. (2009).

CELL TRACKING AND DATA ANALYSIS OF IN VITRO TUMOUR CELLS FROM TIME-LAPSE IMAGE SEQUENCES .

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 281-286

DOI: 10.5220/0001804302810286

Copyright

c

SciTePress

the analysis of such image sequences are addressed

in this paper.

The structure of this paper is as follows: In

section 2, we describe the pre-processing of raw

image data; this includes segmentation of the images

and subsequent object extraction. The objects that we

extract are cells and these behave as non-rigid bodies

while moving. In section 3, we present our approach

to non-rigid objects tracking and explain our

algorithm for a metastatic/motile cell model based on

time-lapse image sequences of sparse time sampling

(6 min/frame). We estimate the robustness and

accuracy by introducing a test with artificial

images/objects. In section 4, we illustrate our method

with a data set typical for cytomics in which cell

migration is analysed using cell tracking and

phenotypic characterisation.

In this paper, sequence images are obtained at a

fixed rate of 6 min/frame from a CCD camera

mounted on a fluorescence microscope. In case of

artificial images, the situation with the fluorescence

microscope is simulated, i.e. bright objects on a dark

background. The algorithm is implemented as an

ImageJ plug-in in JAVA. Data analysis is performed

by PRTOOLS, a pattern recognition library for

MATLAB.

2 IMAGE PREPROCESSING

In order to be able to trace the objects in our image

sequence, i.e. the cells, all objects must be labelled.

Therefore a segmentation algorithm including the

object labelling was developed. The segmentation

and labelling need to operate in concert as sometimes

the objects appear in clusters. In our algorithm, we

identify these clusters are and then properly separate

them.

The original images are slightly smoothed using a

standard Gaussian filter to remove speckle noise.

Imperfections in the illumination of the field of view

are corrected through a rolling ball

algorithm.(Sternber, 1983)

For the visualization of the cells under the

microscope, a staining procedure is applied.

Variations in the staining of individual cells result in

different intensity profiles of the cells. Consequently,

a global segmentation is less effective for the object

extraction. Therefore, instead, we have implemented

a local adaptive version of the isodata method. This

method employs a spherical kernel with a radius in

the range of [15-20] pixels; this radius depends on

settings derived from the imaging protocol. A

convolution with this kernel results in a in a local

threshold value for each pixel. In order to prevent

problems in large areas of background, the global

average intensity is used a lower boundary of the

threshold; pixels evaluated under that boundary are

set to background. Next, we evaluate the set of

labelled objects resulting from the segmentation as

being part of a cluster of cells or not. To that end, the

initial binary objects are used as a mask in the

original image and a gray-value watershed is

employed to provide further separation in case cells

are clustered (cf. Fig.1). The gray-value watershed

results in a more accurate separation as compared to

the binary watershed (cf. Fig.2).

Now, each separated foreground object is labelled as

a cell and the binary mask of these cells with the

corresponding intensity information will be used as

the initial model for KDE Mean Shift tracking

algorithm.

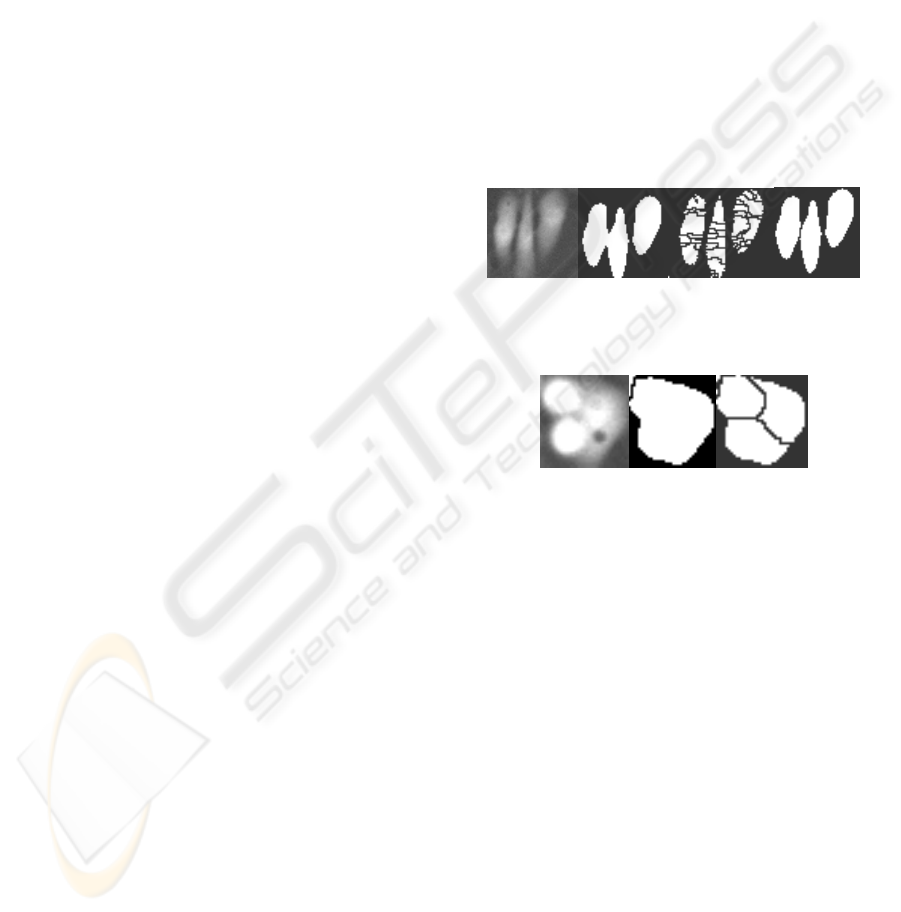

Figure 1: Left to Right (1) Original Image (2) Binary mask

(3) Watershed without Gaussian filter (4) Watershed with

Gaussian filter.

Figure 2: Left to Right (1) Original Image (2) Binary

watershed (3) Gray-value watershed.

3 CELL TRACKING

We chose the Kernel Density Estimation (KDE)

Mean Shift with Steepest Descent Tracking (KDE

Mean Shift) as a tracking solution due to its

robustness and recognized performance in real-time

tracking (Yang et al., 2003). Although initially

designed for real-time tracking, the algorithm

demonstrates outstanding performance in time-lapse

imaging applications as typical for cytomics.

3.1 KDE Mean Shift with Steepest

Descent Tracking

In computer vision, KDE mean shift (Yang, et al,

2003) is a popular kernel based tracking algorithm

and considered as real world application of an

approach to localization. KDE Mean Shift Tracking

consists of two steps:

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

282

non-parametric density estimation using an

initial module.

steepest descent to locate the local maximum in

a gradient space of density estimation.

Each trajectory begins with cells in the first

frame. These cells are converted into initial model

defined in a 3D feature space: (1) the x coordinate of

a binary mask of a cell, (2) the y coordinate of a

binary mask of a cell, (3) the intensity value at each

pixel (x, y).

Given n data points x

n

in the d-dimensional space

R

d

, the kernel density estimator with kernel function

K(x) and window bandwidth h, can be expressed as:

()

∑

=

⎟

⎟

⎠

⎞

⎜

⎜

⎝

⎛

−

=

n

i

i

d

dk

kh

h

xx

K

nh

c

xf

1

2

,

,

ˆ

(1)

A generally used class of kernels is the radial

symmetric kernels, expressed as:

() ( )

2

1

2

1

2

1

2

2

x

d

N

exK

−

∑−

−

−

∑=

π

(2)

The mean shift estimation is completed by

steepest descent through iterative computation of:

• the mean shift vector

(

)

k

xm

• the shift module by

(

)

kkk

xmxx +=

+1

The steepest descent requires estimation of a

gradient space

()

(

)

xkxg '−=

, where term

(

)

k

xm is

the new mean shift (cf. Eq. 3). Due to the shape

change (deformation) of the cells, the steepest

descent does not necessarily converge at the centre

of mass of the true candidate. We chose the cell

closest to the stationary point as a true candidate.

()

x

h

xx

g

h

xx

gx

xm

n

i

i

n

i

i

i

−

⎟

⎟

⎠

⎞

⎜

⎜

⎝

⎛

−

⎟

⎟

⎠

⎞

⎜

⎜

⎝

⎛

−

=

∑

∑

=

=

1

2

1

2

(3)

We perform cell tracking on time-lapse image

sequences with different levels of magnification (cf.

Fig.3 and Fig.4). If proper segmentation is applied to

the cell regions then KDE Mean Shift is resistant to

morphology and motility behaviour of cancer cells.

In Figure 4, an estimation of cell motion is

illustrated. Still, estimation of the performance of

KDE using time-lapse image sequences from real

cells is subjective. Therefore, we have developed an

objective and reproducible estimation method. We

initiated this development by testing tracking

accuracy using a time-lapse series containing

artificially generated objects.

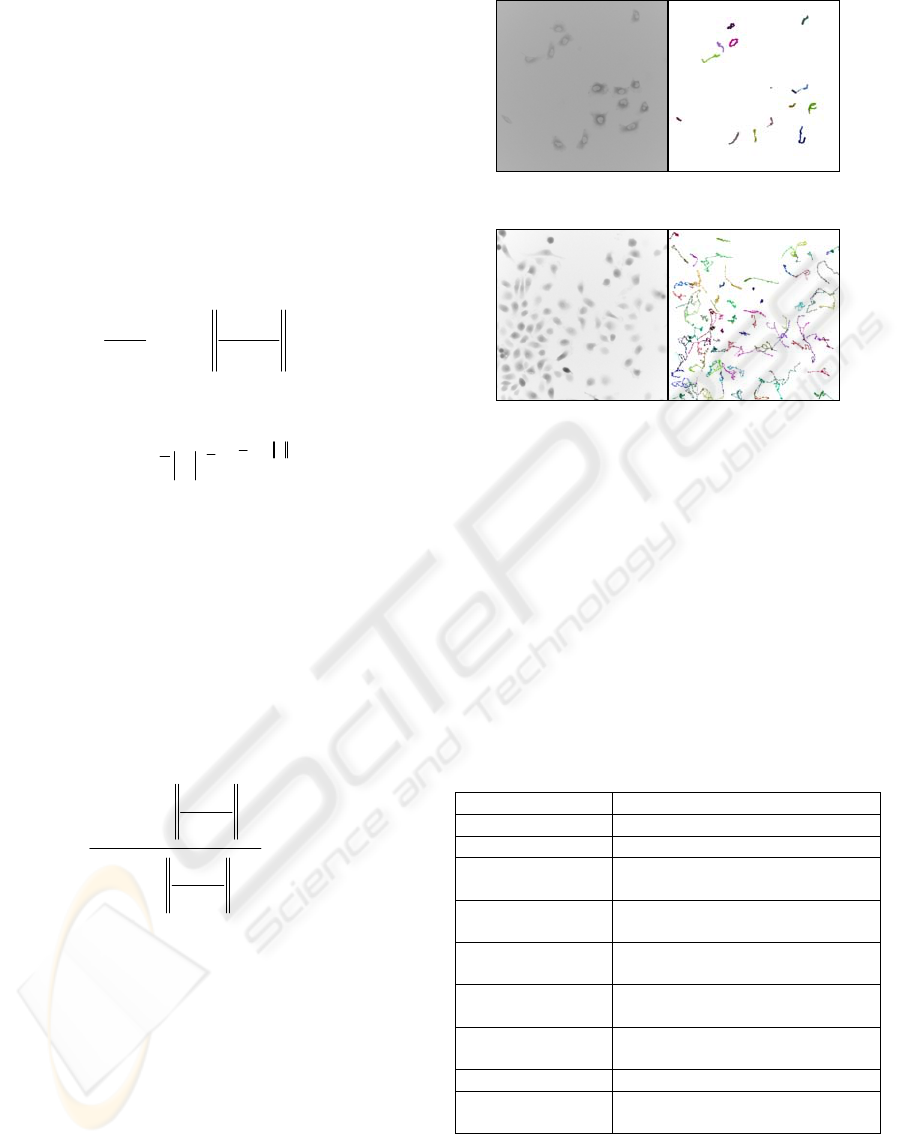

Figure 3: Tracking of tumour cells at 40X fluorescence.

Figure 4: Tracking of tumour cells at 20X fluorescence.

3.2 Error Estimation of the Tracking

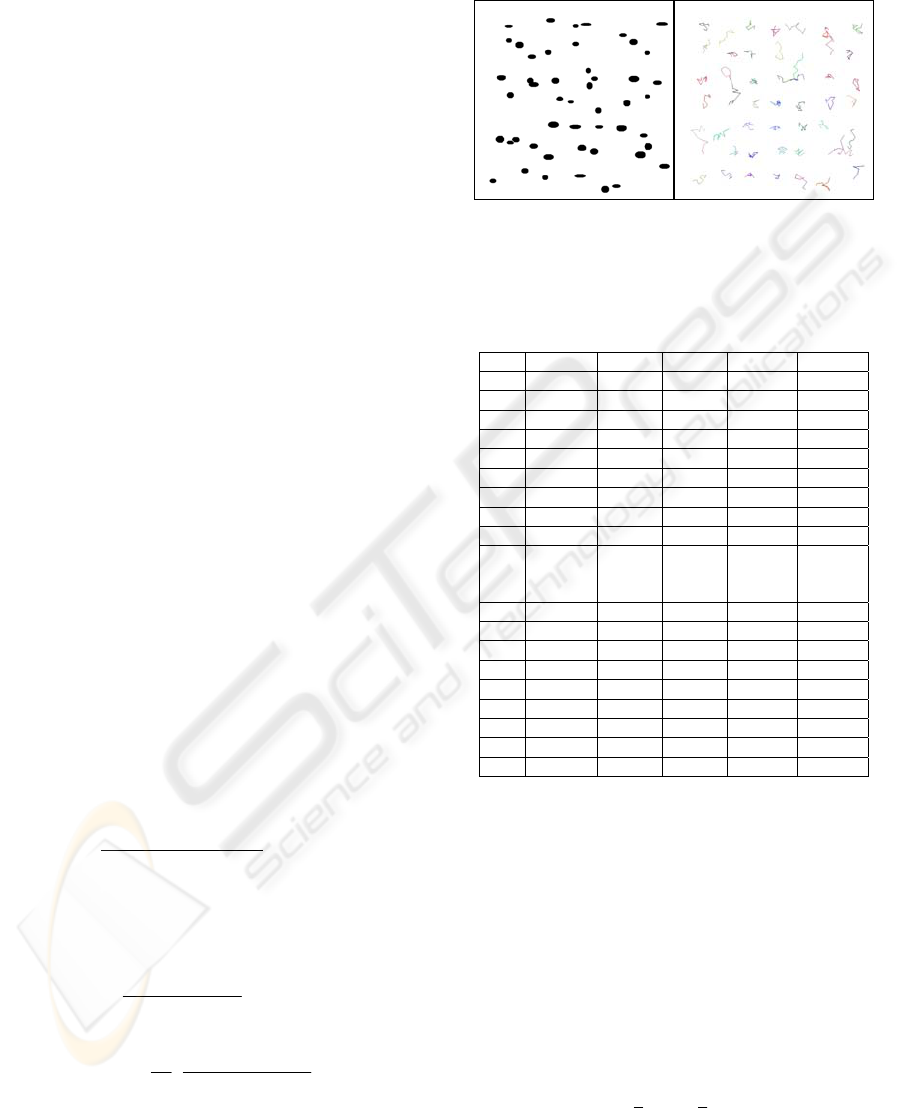

Our artificial object test, referred to as ‘virtual cell

test’, is utilized for error estimation of the tracking

algorithm. The test of artificial objects rules out

complex situations that occur in “live cells”.

Moreover, the imaging is ideal and illumination

deficiencies do not occur whilst the behaviour of the

virtual “cell” can be controlled completely. The

virtual cell test simulates two basic cell migration

behaviours: (1) shifting position and (2) extending

protrusion.

Table 1.

Parameter name Description

minT Minimum travel distance of a cell

maxT Maximum travel distance of a cell

minH

Minimum extension in y-axis

direction, can be shrinkage

maxH

Maximum extension in y-axis

direction

minW

Minimum extension in x-axis

direction, can be shrinkage

maxW

Maximum extension in x-axis

direction

R

Initial radius of virtual cell

(equivalent to size)

Cell Number of virtual cells in video

Seq

Length of the time-lapse

sequence

Each “virtual cell test” object has several

predefined parameters to control their behaviour (cf.

Table 1). Once created, a virtual cell object will

randomly shift or extend and is restricted by these

CELL TRACKING AND DATA ANALYSIS OF IN VITRO TUMOUR CELLS FROM TIME-LAPSE IMAGE

SEQUENCES

283

parameters. The motion and shape change of the

objects is self-organizing without any predefined

motion model (cf. Fig. 5). In pseudo code, this is

expressed as follows:

Pseudo Code: #virtual cell extending

With a existing virtual cell;

Generate a width in (minW, maxW);

Generate a height in (minH, maxH);

Pseudo Code: #virtual cell position

shift

Do{

Generate a step size in (mint, maxT)

If(causes collision){

Discard the step size;

}

Else{

Keep the step size;

}

}while(step size is not feasible);

Pseudo Code: #generate cell shape

For i in x-width to x+width step 1{

For j in y-height to y+height step 1{

If (i,j) in the range of ellipse

defined by width, height, x, and

y position{

pixel(i,j) is given a

intensity value weighted

by the distance between

(i,j) and mass centre

}

}

}

Image sequences are acquired by recording the

motion of these virtual objects; in this manner, the

true trajectory of cell migration can be captured and

used in error estimation. The score system in our

error estimation consists of two factors, i.e.:

(1) The accomplish ratio ‘T’ between the total

number ‘n’ of trajectory determined by tracking

algorithm and the total number ‘N’ of trajectory

captured during the video generation:

(

)

NTrajectory

NnTrajectory

T

∈

∩∈

=

(4)

(2) The percentage ‘O’ of identical ‘Node’

between each trajectory s determined by the tracking

algorithm and trajectory S as captured from the

image frames:

()

S

Node

SsNode

O

∈

∩

∈

=

(5)

From these factors, the final score is computed:

()

SNode

SsNode

N

n

OTScore

∈

∩∈

⋅=⋅=

(6)

By adding the accomplished ratio ‘T’, require the

tracking algorithm to correctly tracking each

trajectory and capable of identify all possible

trajectories (cf. Fig. 5). Under different behaviour

parameters, KDE mean shift shows an overall

performance above 90% (cf. Table 2).

Figure 5: A sample of cell tracking using virtual cell video.

Table 2: Virtual cell test using different parameters. Each

set generate 10 videos with the same length (30 frames).

The mean error is the average of 10 videos, similarly, the

std error.

Set minT maxT minH maxH minW

1 5 10 20 40 30

2 10 20 20 40 30

3 5 10 20 40 30

4 10 20 20 40 30

5 5 10 20 40 30

6 10 20 20 40 30

7 5 10 20 40 30

8 10 20 20 40 30

Set maxW R cell

Avg

Corr

%

Std

Corr

%

1 60 30 5 99.4 1.87

2 60 30 5 96 6.1

3 60 30 20 86.51 3.66

4 60 30 20 74.4 6.89

5 60 30 5 100 0

6 60 30 5 99.26 1.61

7 60 30 20 97.05 2.91

8 60 30 20 89.47 3.91

Mean

92.76 3.37

3.3 Feature Measurements

We have divided the feature measurements into

motility and morphology measurements based on

biological meaning. Area, perimeter, centre of mass

are used as basic features to describe cell size and

position. In addition, shape is described by

Extension, Dispersion and Elongation which are

derived from moment invariants (Huang, et al,

2003)(Gonzalez, et al, 2004)(Verbeek, 1995)( van

der Putten, et al, 2007)

[4][5][7][8]

; These features are

calculated from normalized moments:

()()()

∑∑

−

−

−−=

1

0

1

0

,

sy

sx

qp

pq

yxFyyxx

μ

(7)

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

284

()

∑∑

−

−

=

1

0

1

0

00

,

sy

sx

yxF

μ

(8)

1

2

,

00

+

+

==

qp

r

r

pq

pq

μ

μ

η

(9)

and the first and second moment invariant

20021

η

η

φ

+=

(10)

()

2

11

2

20022

4

ηηηφ

+−=

(11)

henceforth condensed in:

(

)

211

2

φφπλ

+=

(12)

(

)

212

2

φφπλ

−=

(13)

1

ln

λ

=Extension

(14)

21

ln

2

1

λλ

=Dispersion

(15)

2

1

ln

2

1

λ

λ

=Elongation

(16)

These three measurements (cf. Eqs. 14-16) are

shape descriptors, that are, due to internal

normalization, scale-free and resistant to noise.

Extension measures roughness of a long protrusion

and dispersion measures roughness of the small

protrusions. Elongation measures how cell is

elongated in its major axis. An active cell line

intends to have a high value in all three invariants.

Further, Absolute Position Shift is calculated

as the position shift of one cell between first frame

(cell position

()

00

, yx ) and last frame (cell

position

()

mm

yx , ):

()()

2

0

2

0

yyxxs

mma

−+−=

(17)

Trajectory Length is the total length of

trajectory:

Current position

()

ii

yx ,

Next position

()

11

,

++ ii

yx

()()

∑

=

++

−+−=

m

i

iiiit

yyxxs

0

2

1

2

1

(18)

Velocity is calculated by the shift of centre of

mass divided by time-interval:

()( )

t

yyxx

v

iiii

i

2

1

2

1

−+−

=

++

(19)

Motion Linearity is the ratio between absolute

position shift and trajectory length; normalized by

trajectory length, motion linearity is scale-free:

Since we aim to characterize the cellular

phenotype, the study of feature measurements in one

cell in one particular frame has little biological

meaning. Therefore, we generalized the frame-based

measurement into a cell-based measurement.

Considering measurements as a discrete signal (cf.

Fig. 4), it can be generalized by:

(

)

(

)

TtACostf +

+

=

ω

α

(20)

The amplification A, the frequency

α

, and shift

T may well preserve the majority structure of such

discrete signal (measurement vs. time). With these

cell-based measurements (cf. Table 3), we are able to

compare cell behaviour and establish significant

changes in behaviour. In the next section, a test for

reliability of our principles is discussed.

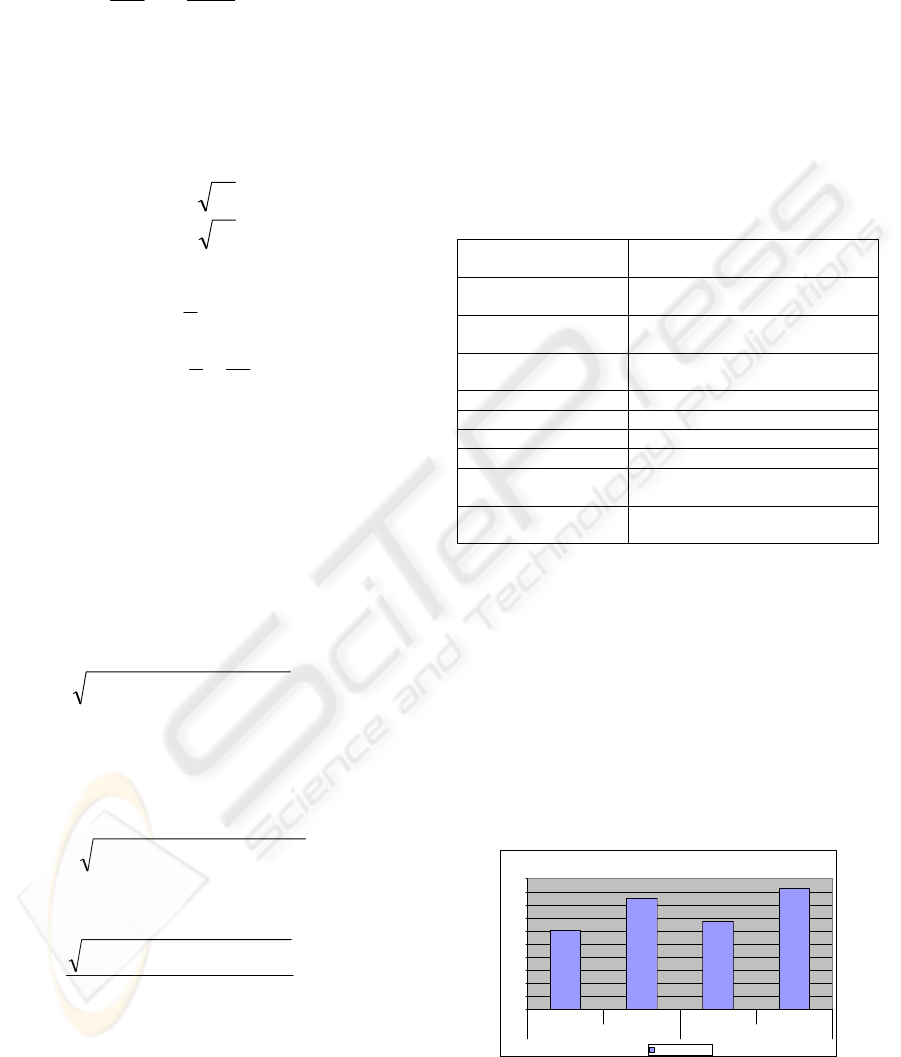

Table 3: The cell-based measurements.

Cell-based

measurement

Description

Average size

Average size for one cell through

all frames

Average extension

Average extension for one cell

through all frames

Std extension

Standard deviation of extension for

one cell through all frames

Average dispersion Same as average extension

Std dispersion Same as std extension

Average elongation Same as average extension

Std elongation Same as std extension

Average velocity

Average velocity for one cell

through all frames

Average motion

linearity

Average motion linearity for one

cell through all kernel window

4 RELIABILITY TEST AND

BIOLOGICAL EXPERIMENTS

In Figure 6, we show the result of an experiment

with motility stimulation. In two groups, cells are

treated with a growth factor (experiment) and

expected to move faster with respect to the control

group (control). The effect of this stimulation is

observed in our measurement results. (Alberts, et al,

1994)

Average Velocity of All Cell in Ctrl Group vs. Experiment Group

0

0.5

1

1.5

2

2.5

3

3.5

4

4.5

5

control experiment control experiment

group 1 group 2

Average Velocity

average velocity

Figure 6: Control vs. EGF treated.

In addition, multiple subgroups of cells from the

same sample culture are determined using K-Mean

CELL TRACKING AND DATA ANALYSIS OF IN VITRO TUMOUR CELLS FROM TIME-LAPSE IMAGE

SEQUENCES

285

Clustering (cf. Fig. 7). The number of clusters is

validated by the lowest Davies-Bouldin Index (DBI)

score (cf. Fig. 8). The result of DBI score confirms

three natural subgroups: (1) Normal cells (2)

Correctly treated cells (3) Incorrectly treated cells.

These measurements are consistent with results from

similar experiments on different dates.

-2

0

2

-2

0

2

-2

0

2

Cell Size

Unsupervised Clustering on Cell Beavhior

Cell Elongation

C

e

ll

V

e

l

oc

it

y

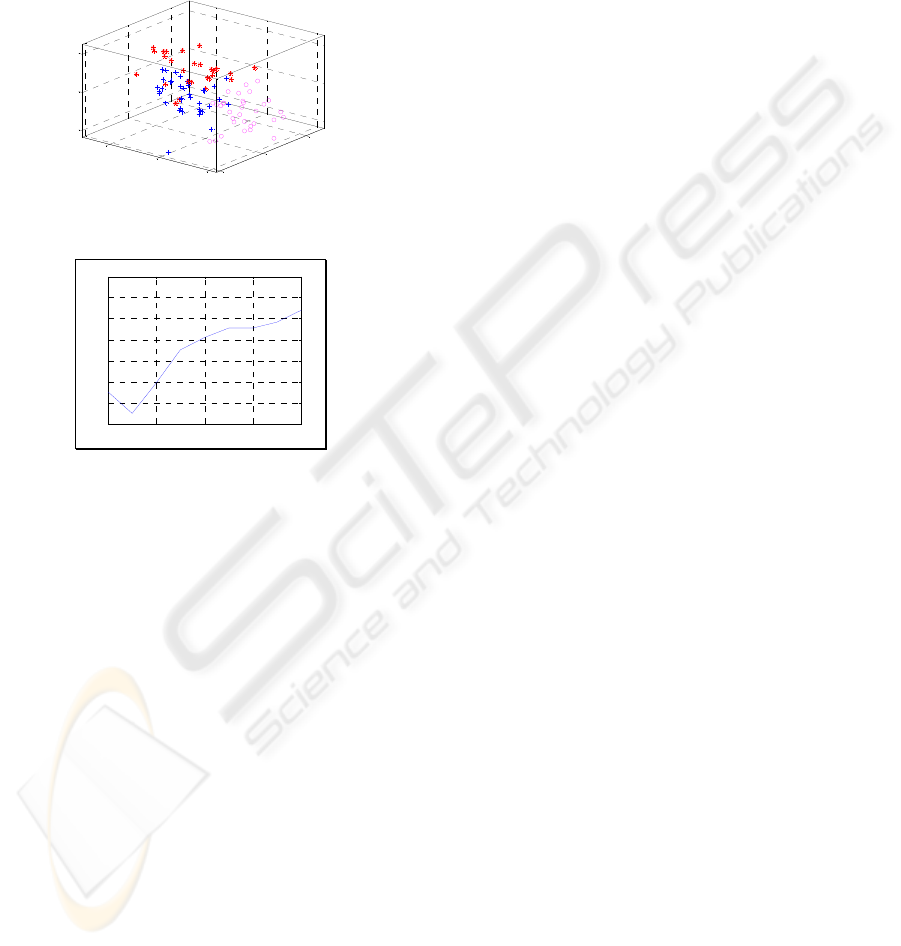

Figure 7: Cell behaviour clustering.

2 4 6 8 10

1.4

1.6

1.8

2

2.2

2.4

2.6

2.8

Number of Cluster

Davies-Bouldin Validity Index

Clustering Validation using DBI Score

Figure 8: Clustering validation using Davies-Bouldin

validity index.

5 CONCLUSIONS

Object tracking has been studied comprehensively in

computer vision. We investigated object tracking

algorithms to support cytomics research and we

demonstrated how these can be successfully applied.

Our results, i.e. object tracking and data analysis, on

real data illustrate application on image sequences

depicting a metastatic/motile cell model.

We developed an artificial object test and this test

shows that our approach of the KDE Mean Shift can

provide an accuracy over 90% (85% in level set

tracking); for cell-tracking analysis this is acceptable.

The measurements on the cells resulting from the

tracking present correct conclusions in relation to the

biological experiment. The feedback from the “wet-

lab” indicates that labour time of post-experiment

data analysis is reduced enormously (≥ 300%) while

accuracy of cell-migration analysis has significantly

increased. Moreover, automation allows processing

of large volumes of data.

Finally, the tracking analysis of migrating

(tumour) cells provides sufficient confidence to

continue further research on structural level tracking.

ACKNOWLEDGEMENTS

This research has been partially supported by the

BioRange Programme of the Dutch ministry of

Economic affairs (BSIK grant). We would like to

thank Hans de Bont for his assistance in the

microscopy.

REFERENCES

Yang, CJ., Duraiswami,, R. DeMenthon,, D. and Davis,

L.S. (2003). Mean-shift analysis using quasi Newton

methods, In Image Processing, International

conference on Volume 2, Issue , 14-17 Sept. 2003

Perceptual, Interfaces & Reality Laboratory,

University of Maryland, USA

Li, K. and Kanade, T. (2007). Cell Population Tracking

and Lineage Construction Using Multiple-Model

Dynamics Filters and Spatiotemporal Optimization, In

Proceedings of the 2nd International Workshop on

Microscopic Image Analysis with Applications in

Biology (MIAAB). Carnegie Mellon University, USA

Alberts, B., Johnson, A., Lewis, J., Raff, M., Roberts, K.

and Walter, P., (1994). Molecular Biology of the Cell,

Garland Science Publishing, New York, ISBN 0-8153-

4072-9, USA

Huang, C., Rajfur, Z., Borchers, C., Schaller, M.D. and

Jacobson, K. (2003). phosphorylates paxillin and

regulates cell migration, In Journal Nature,

Department of Cell and Developmental Biology,

Comprehensive Center for Inflammatory Disorders,

University of North Carolina, USA.

Gonzalez, R.C., Woods, R.E. and Eddins, S.L., (2004)

Digital Image Processing using MATLAB, Person

Prentice Hall Publishing, ISBN 0-13-008519-7, UK

Verbeek, F.J. (1995). Three dimensional reconstruction

from serial sections including deformation correction

(Delft, Delft University of Technology), the

Netherlands.

van der Putten, P., Bertens, L.F.M., Liu, J., Hagen, F.,

Boekhout T., Verbeek F.J. (2007). Classification of

Yeast Cells from Image Features to Evaluate Pathogen

Conditions, In Proc. SPIE Vol. 6506, MultiMedia

ontent Access: Algorithms & Systems, Vol. 6506 (Eds

Hanjalic, A., Schettini, R., Sebe, N.), 65060I-1,65060I-

14

Rogers, W.J., Meyer, C.H. and Kramer, C.M. (2006),

Technology Insight: In Vivo Cell Tracking by Use of

MRI, In Nat Clin Pract Cardiovasc Med, Nature

Publishing Group, USA

Sternber, S., (1983), Rolling ball algorithm, In Biomedical

Image Processing, IEEE Computer, January 1983

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

286
