MULTI-FEATURE STEREO VISION SYSTEM FOR ROAD TRAFFIC

ANALYSIS

Quentin Houben

1

, Juan Carlos Tocino Diaz

1

, Nadine Warz´ee

1

, Olivier Debeir

1

and Jacek Czyz

2

1

LISA, Universt´e Libre de Bruxelles, Avenue Franklin Roosevelt 50 CP165/57, Brussels, Belgium

2

Macq Electronique, Rue de l’Aronef, 2, B-1140 Brussels, Belgium

Keywords:

Visual trafﬁc analysis, Multi-camera, Object detection, Vehicle Classiﬁcation.

Abstract:

This paper presents a method for counting and classifying vehicles on motorway. The system is based on

a multi-camera system ﬁxed over the road. Different features (maximum phase congruency and edges) are

detected on the two images and matched together with local matching algorithm. The resulting 3D points

cloud is processed by maximum spanning tree clustering algorithm to group the points into vehicle objects.

Bounding boxes are deﬁned for each detected object, giving an approximation of the vehicles 3D sizes. A

complementary 2D quadrilateral detector has been developed to enhance the probability of matching features

on vehicle exhibiting little texture such as long vehicles. The algorithm presented here was validated manually

and gives 90% of good detection accuracy.

1 INTRODUCTION

This work presents an application of multi-camera

systems to vehicle detection and classiﬁcation on mo-

torway. Trafﬁc analysis is an active research do-

main. The behaviour of the road users and the type

of vehicle they use becomes a main issue for motor-

way administrators. We propose here a multi-camera

approach to tackle the difﬁcult problem of vehicle

recognition and to determine its main characteristics

(dimensions and class of the vehicle). Until a few

years ago, the main measurement tool in trafﬁc analy-

sis was the inductive loop (Gibson et al., 1998). This

system is expensive, requires a lot of effort to be in-

stalled, and is not effective in stop and go situations.

The laser-based systems (Lourenco et al., 2002) are

accurate but are still quite expensive and have prob-

lems with high reﬂectivesurfaces, like some car roofs.

Video analysis remains a good solution since hard-

ware becomes more and more inexpensive and pow-

erful, allowing real-time results. The installation of

cameras is relatively cheap and the maintenance cost

is low.

Most of the existing solutions are based on a

mono-camera system. Several approaches have been

developed (Kastrinaki et al., 2003). Background

methods are massively used since they demand small

computer effort and are simple to realize. The static

background is generally deﬁned by forming a mathe-

matical or exponential average of successive images.

The background is then subtracted of the images in

order to extract moving vehicles (Tan et al., 2007).

Other methods use tracked features that are compared

to models (Dickinson and Wan, 1989),(Hogg et al.,

1984) or used in a more general pattern recognition

(Viola and Jones, 2004). All these methods give lim-

ited informations about the dimensions of the vehicle

(length, width, height) and perform poorly in vehicle

class recognition.

In the approach discussed in this work, a multi-

camera grayscale system is considered. Two cameras

are disposed over the road (on a bridge for example)

with distance of 2 m between them. A multi-camera

system allows to obtain 3D informations of the scene.

These informations allow to determine the dimen-

sions of the vehicle and thus obtain more accurate in-

formations about the vehicle class. With the height

information, a distinction can be made, for example,

between a minivan and an estate car. As opposed to

the mono-camera systems, vehicles are detected and

tracked in the 3D world after a matching step be-

tween the two images, based on a multi-feature corre-

spondence system. This system includes phase con-

gruency matching and edges matching. Some heavy

vehicles, like semi-trailer trucks, are detected and

processed separately with more adapted algorithms,

based on an original method of quadrilateral surfaces

recognition. The feature-based matching and quadri-

554

Houben Q., Carlos Tocino Diaz J., Warzée N., Debeir O. and Czyz J. (2009).

MULTI-FEATURE STEREO VISION SYSTEM FOR ROAD TRAFFIC ANALYSIS.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 554-559

DOI: 10.5220/0001803405540559

Copyright

c

SciTePress

lateral detection are complementary: a vehicle has ei-

ther texture which yields strong local features that can

be matched across different views, or has large ﬂat re-

gions which can be processed by the proposed quadri-

lateral detector. This method does not need vehicle

models and therefore is more robust to variability of

the vehicle types.

This paper is organized as follows: Section 2

brieﬂy depicts general stereo vision issues; Section 3

presents the stereo construction algorithm; 3D points

processing is discussed in Section 4; Quadrilateralde-

tector is discussed in Section 5; Section 6 presents the

results of the proposed method; Section 7 concludes

and gives perspectives for this approach.

2 GENERAL STEREO VISION

ISSUES

Our approach requires a stereo vision algorithm ef-

ﬁcient and fast enough to work in real time. Two

major issues must be examined: the cameras system

calibration and the identiﬁcation of matching points

between the two images. We will focus here on the

second point, assuming that the ﬁrst one is already

treated (Zhang, 1998), (Zhang, 2000). There exists a

considerable amount of methods on the stereo corre-

spondences problem. We can classify them into two

main categories : dense matching methods, that give

a correspondence map for each pixel in the image,

and sparse matching methods, that give correspon-

dence only for some points of interest. The dense

matching methods, exhaustively listed by Scharstein

and Szeliski in (Scharstein and Szeliski, 2002), do

not suit the application requirements since the ob-

jects we try to detect have uniform texture or have

reﬂective surfaces (roads and cars). Matching pixels

of such surfaces is very difﬁcult. Furthermore these

algorithms generally demand a lot of computation re-

sources. The sparse matching methods require ﬁrstly

a features identiﬁcation step (edge detection, corner

detection...), which is done separately in the two im-

ages. These features can be matched with local or

global algorithms. On one hand, global algorithms

search a global matching solution for all features by

minimizing cost functions. We can cite dynamic pro-

gramming methods (Ohta and Kanade, 1985), (Kim

et al., 2005), graph cut methods (Boykov et al., 2001)

and belief propagation methods (Yang et al., 2006).

These last methods are efﬁcient but both belief prop-

agation and graph cut are typically computationally

expensive and therefore real-time performance is dif-

ﬁcult to achieve (Yang et al., 2006). The dynamic

programming method has been tested in the frame-

work of this project but does not improve signiﬁcately

the results. On the other hand, local methods depend-

ing only on values within a ﬁnite window around the

considerate pixel, are deﬁnitely faster.

Our approach uses multiple types of features and

match them by normalised cross-correlation, which is

at the same time simple and robust. The resulting dif-

ference of horizontal coordinates between two match-

ing points, called disparity, gives an estimate of the

distance of the points in the 3D world.

3 STEREO CONSTRUCTION

Both acquired images are ﬁrst rectiﬁed with the cam-

eras calibration data and corrected if optical distor-

tions appear. The use of rectiﬁed images reduces sig-

niﬁcately the complexity of process, since two corre-

sponding points in the left and right image will have

equal vertical coordinates.

Different features are identiﬁed separately on each

image. The ﬁrst characteristic points used in our im-

plementation are maximum phase congruency points

(where the Fourier components of the image are max-

imally in phase). These are less sensitive to differ-

ence of overall contrast between two images and give

more points than more classic features such as Har-

ris corners. The phase congruency is computed with

wavelets transforms as described in (Kovesi, 1999).

When all maximum phase congruency points are ob-

tained, each point of the left image is compared to

the points lying on the same horizontal line in the

right image. A maximum disparity is set to reduce

the search space and accelerate the process. Several

similarity measurement systems between surround-

ing pixels area have been studied in the literature.

Our method uses normalized cross-correlation of the

phase congruencyvalues in a squarewindow (W

1

, W

2

)

around the two points, deﬁned by

C(W

1

, W

2

) =

∑

(p

1

(i, j) − p

1

)(p

2

(i, j) − p

2

)

||(p

1

(i, j) − p

1

)(p

2

(i, j) − p

2

)||

(1)

where the sum is taken over (i,j), index of points

in the square windowsW

1

and W

2

, p

1

(i, j) and p

2

(i, j)

are the phase congruency at the pixel (i, j) in the im-

age 1 and image 2 respectively, and p

1

, p

2

, their mean

over the square windows W

1

, W

2

.

A list of scores in the right image is obtained for

each point of the left image and in a similar way for

each point of the right image. A ”winner-take-all”

strategy is then used to match the different points:

a match is considerate as valid if the correlation is

maximum among all the correlations computed on the

MULTI-FEATURE STEREO VISION SYSTEM FOR ROAD TRAFFIC ANALYSIS

555

same horizontal line in the left image and in the right

image. More formally, if x

l

is a point in the left image

for which we search the corresponding point among

the right points x

′

i

, and W

l

and W

′

i

are square windows

centred respectively on x

l

and x

′

i

, x

l

corresponds to x

′

k

if

k = arg

i

(max

i

C(W

l

, W

′

i

)) i = 1..N

′

(2)

where N’ is the number of points of interest on

the horizontal line in the right image. Furthermore

we check symetricaly that the determined x

′

k

gives a

maximum correlation in the left image with x

l

:

l = arg

j

(max

j

C(W

j

, W

′

k

)) j = 1..N (3)

where N is the number of points of interest on the

horizontal line in the left image.

This method is relatively fast and presents few

outliers. However, the number of 3D points deter-

mined in this way is slightly insufﬁcient to exploit

these data in all kinds of lighting conditions and for

all kinds of vehicles.

The second type of features points are determined

in a different way. Edges are ﬁrstly detected in both

images using a classic method such as Sobel. The

images are then scanned line by line. Each intersec-

tion between these lines and the detected edges gives

one point of interest. These features are then charac-

terised by three parameters : the strength of the edge,

the intensity proﬁle on the edge, and the average in-

tensity on the left and right side of the point. For each

hypothetical match, a score is computed taking into

account the comparison of all these criteria. The ﬁnal

matching is then done in the same way as the phase

congruencyfeatures; we consider that a match is valid

if the score is maximum among all the scores on the

same epipolar line in the left image and in the right

image.

These two types of features cover very well all ob-

jects of interest (trucks, cars, motorbikes...).

4 3D POINTS PROCESSING

At each features match corresponds a 3D point. The

coordinates are obtained with the intrinsic parameters

of the cameras, using a minimizing algebraic distance

algorithm (Hartley and Zisserman, 2004). The plane

equation of the road and its principal axis are sup-

posed to be known. The 3D points above the road

level are considerate as belonging to a vehicle. The

aggregation of the 3D points into vehicle groups is

achieved by the minimum spanning tree clustering al-

gorithm ; all the points classiﬁed as possible vehi-

cle points form a minimum spanning tree. The 3D

points are connected by weighted edges. The mini-

mum spanning tree is built in such way to minimize

the sum of the weights. The weights used here are

based on Euclidean distance between points. The

edges that have a weight greater than a threshold are

cut, forming distinct clusters. This threshold is de-

ﬁned by a constant modulated by the points density

around the two considered points. The distance used

to weight the edges is anisotropic due to the nature

of the tackled problem. The weight of an edge be-

tween two vertices (x

11

, x

12

, x

13

) and (x

21

, x

22

, x

23

), is

deﬁned as :

d =

q

α(x

11

− x

21

)

2

+ β(x

12

− x

22

)

2

+ γ(x

13

− x

23

)

2

(4)

where α , β and γ are parameters adjusted to give

more importance to distances that are parallel to the

road axis, x

i1

is the horizontal axis perpendicular to

the road, x

i2

, the axis parallel to the road and x

i3

, the

axis normal to the road. The 3D points are thus clus-

tered in vehicles. Eventual errors are extracted by ex-

aminating the distribution of the height coordinates of

points inside each group. Isolated points of the distri-

bution are eliminated. Bounding boxes of the groups

are then deﬁned around the points (ﬁgure 1). These

boxes give a good approximation of the dimensions

of the vehicle (length, width, and height) and are easy

to track. Therefore the vehicle speed can be measured

and dimensions can be averaged over several frames.

A vehicle is counted when it is detected more than 6

times. This method works well for ”classic” vehicle

like cars. This class of vehicles presents an average

number of 10 3D points. Light coloured vehicles have

more points than dark ones. We consider that a min-

imum of 3 points is needed to detect vehicles. With

8 points, we can obtain robust informations about ve-

hicle size. Small vehicles satisfy thus well these cri-

teria. However long trucks often present textureless

surfaces (i.e. with few features) which produce in-

sufﬁcient number of 3D points for further analysis.

These vehicles need therefore a complementary ap-

proach.

5 TRUCK DETECTOR

The roofs of long trucks are characterized by uniform

rectangular area. A general quadrilateral detector can

therefore be used, identifying the four corners of the

roof on the two images.

The roofs of semi-trailer trucks that interest us in

this case are always preceded by a tractor unit. This

one unit is generally well covered by different fea-

tures, which allows a gooddetection of the front of the

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

556

2 7

1.1011

1.1809

4 11

1.265

1.2594

3 11

1.4018

1.391

5 3

−19.6656

1.1548

4 4

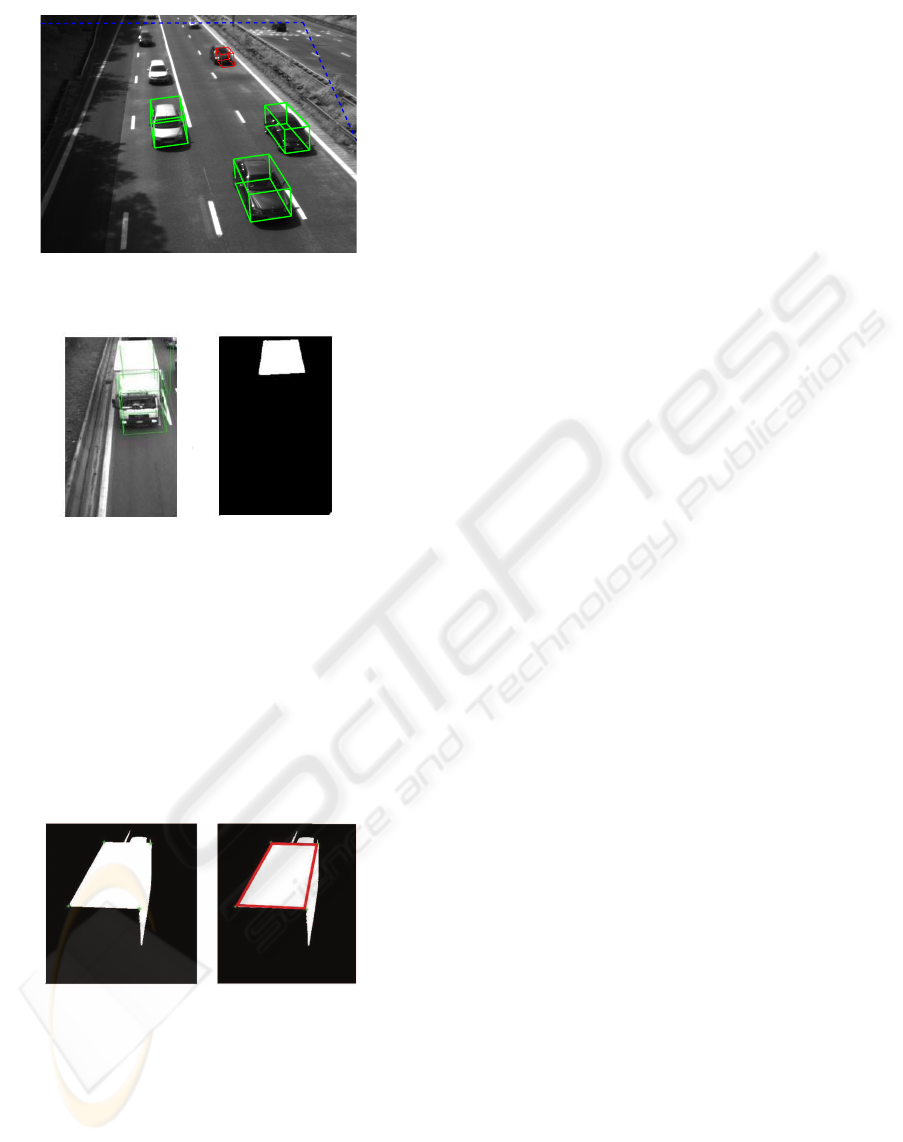

Figure 1: Result of the 3D points clustering : bounding

boxes.

Figure 2: A uniform grayscale zone is detected behind a

high box.

vehicle. We can therefore limit the search of quadri-

lateral surfaces to zones behind 3m high bounding

boxes (ﬁgure 2). A seed growing method is used to

delimit the uniform gray level zone. This detector

must be robust enough to recognize the roof of the

truck in the segmented zone, which can include seg-

mentation errors, such as side of the semi-trailer, cars

that have the same gray level behind the truck, or road

details (ﬁgure 3).

Figure 3: Delimitation of the roof.

The contour of the entire zone is deﬁned and the

main straight lines are extracted by examinating the

local high curvature points. The intersections be-

tween all the extracted lines are considered as poten-

tial roof corners. The four ﬁnal corners will be chosen

in such a way that the area of the surface inside these

four points is maximum. Several other criteria must

be respected :

− the deﬁned quadrilateral must be convex

− corners of the quadrilateral must be close to one

of the points of curvature previously detected

− sides of the quadrilateral must be included in the

initial segmented zone

This last criterion is adjusted with some tolerance pa-

rameter to allow the quadrilateral to include segmen-

tation defaults, like holes, of the initial segmented

zone. This method is applied on the two images.

If quadrilaterals are detected simultaneously in both

images, the four points are matched together and in-

jected in the 3D construction process.

Figure 4 summarizes the all process, from the im-

ages capture to the ﬁnal result.

6 RESULTS

To validate the vehicles detection method, a test was

conductedon 3 sequences extracted from a long video

of a 4 lanes motorway. These 3 sequences contain a

realistic set of vehicle types. A total of 214 vehicles

went through the zone covered by the two cameras. A

human operator identiﬁed the detection errors. These

can be classiﬁed into 3 categories :

− the vehicle is not detected

− the object detected is not a vehicle

− the vehicle is detected several times

The causes for the miss-detection case are either a

bad contrast between a dark car and the shadowed

road or a missed image in the camera ﬂow. The ﬁrst

cause could be avoided by using better image proper-

ties to permit features detection both in shadowed and

lighted zones of the road.

The second category does not appear on the anal-

ysed sequence but could be a problemif a mark on the

road is permanently miss-matched.

The third category is due either to tracking prob-

lem or to over-segmentation of the 3D points, which

induces double detections of the same vehicle. This

can be avoided using the time parameter, that is not

yet used here and will be used in temporal ﬁltering in

future development. The results of the 3 sequences

(s1, s2, s3) are presented in table 1.

The dimensions of the vehicle are consistent with

the vehicle actual characteristics. A test was con-

ducted over 20 vehicles. This test compares the di-

mensions given by the algorithm of some well identi-

ﬁed vehicles (sedans, estate cars, SUV, minivans...)

to dimensions furnished by the constructor. The

height measurement presents a precision of 92.1%,

the length 76.58% and the width 83.35%.

MULTI-FEATURE STEREO VISION SYSTEM FOR ROAD TRAFFIC ANALYSIS

557

Image 1 Image 2

Camera ﬂow

Rectiﬁed image 1 Rectiﬁed image 2

Features Features

Matching

3D points 3D points groups

3D points groups

with bounding box

roof corners

image 1

roof corners

image 2

tracked vehicule

count,

demmensions,

speed

Roof detector

(if long vehicule)

Points aggregation Elimination of isolated points

in the height distribution

Phase congruency

features detector

+ edges

features detector

Tracking centers

Figure 4: Multi-camera system summary.

Table 1: Table of detection results.

s 1 s 2 s 3

number of vehicles 107 44 63

number of detected vehicles 110 44 63

total not detected 6 5 7

total not detected in % 5.6 11.4 11.1

total false detections 9 5 7

total false detections in % 9.4 11.4 11.1

- over-segmentation 7 3 2

- tracking error 2 2 5

7 CONCLUSIONS AND FUTURE

WORK

In this work an application of multi-camera system

for trafﬁc monitoring has been presented. Based on

a multi-feature matching and a 3D tracking, the sys-

tem detects vehicles and determines their dimensions,

which is difﬁcult for a classic mono-camera system.

Additionally to stereo matching, 2D image process-

ing is used on each camera to detect roofs of long ve-

hicles. This method gives good results even with fast

change of lighting condition. Furthermore, 3D recon-

structions algorithms are not affected by stop and go

situations.

The implementation of the method was realized

on Matlab. Implementation on more time-effective

language is planed and will allow to measure more

precisely computational time requested. A time-

ﬁltering method could also be developed to improve

the detection results.

An interesting perspective could be a fusion be-

tween mono-camera and multi-camera processing.

2D and 3D info could then describe the dynamic

scene as a list of 3D objects with position history.

REFERENCES

Boykov, Y., Veksler, O., and Zabih, R. (2001). Fast ap-

proximate energy minimization via graph cuts. PAMI,

23(11).

Dickinson, K. and Wan, C. (1989). Road trafﬁc monitor-

ing using the trip ii system. In IEE Second Interna-

tional Conference on Road Trafﬁc Monitoring. The

MIT Press TODO check.

Gibson, D., FHWA, Tweedy, C., and Corp., O. (1998). An

advanced preformed inductive loop sensor. In North

American Travel Monitoring Exhibition and Confer-

ence(NATMEC).

Hartley, R. and Zisserman, A. (2004). Multiple view geom-

etry in computer vision. Cambridge University Press,

second edition.

Hogg, D., Sullivan, G., Baker, K., and Mott, D. (1984).

Recognition of vehicles in trafﬁc scenes using geo-

metric models. In Proceedings of the International

Conference on Road Trafﬁc Data Collection, London.

IEE.

Kastrinaki, V., Zervakis, M., and Kalaitzakis, K. (2003). A

survey of video processing techniques for trafﬁc appli-

cations. In Image and Vision Computing 21. Elsevier.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

558

Kim, J., Lee, K., Choi, B., and Lee, S. (2005). A dense

stereo matching using two-pass dynamic program-

ming with generalized ground control points. IEEE

CVPR, 2:1075–1082.

Kovesi, P. (1999). Image features from phase congruency.

Videre: Journal of Computer Vision Research.

Lourenco, A., Freitas, P., Ribeiroy, M. I., and Marquesy,

J. S. (2002). Detection and classiﬁcation of 3d moving

objects.

Ohta, Y. and Kanade, T. (1985). Stereo by intea nad inter-

scanline search using dynamic programming. PAMI.

Scharstein, D. and Szeliski, R. (2002). a taxonomy and

evaluation of dense two-frame stereo correspondence

algorithms. In Intl Journal of Computer Vision, vol.

47,no. 1, pp. 742.

Tan, X.-J., Li, J., and Liu, C. (2007). A video-based

real-time vehicle detection method by classiﬁed back-

ground learning. World Transactions on Engineering

and Technology Education, 6(1).

Viola, P. and Jones, M. (2004). Robust real-time object de-

tection. International Journal of Computer Vision.

Yang, Q., Wang, L., and Yang, R. (2006). Real-time global

stereo matching using hierarchical belief propagation.

In BMVC06, page III:989.

Zhang, Z. (1998). Determining the epipolar geometry and

its uncertainty: A review. IJCV, 27(2):161195.

Zhang, Z. (2000). Determining the epipolar geometry and

its uncertainty. IEEE TPAMI, 22:13301334.

MULTI-FEATURE STEREO VISION SYSTEM FOR ROAD TRAFFIC ANALYSIS

559
