EXACT ALGEBRAIC METHOD OF OPTICAL FLOW DETECTION

VIA MODULATED INTEGRAL IMAGING

Theoretical Formulation and Real-time Implementation using Correlation Image

Sensor

Shigeru Ando, Toru Kurihara

Department of Information Physics and Computing, University of Tokyo, Tokyo, Japan

Dabi Wei

Department of Control and Systems Engineering, Tokyo Institute of Technology, Tokyo, Japan

Keywords:

Optical ﬂow equation, Weighted integral method, Modulated imaging, Correlation image sensor, Computer

vision, Velocity ﬁeld measurement, Particle image velocimetry.

Abstract:

A novel mathematical method and a sensing system that detects velocity vector distribution on an optical

image with a pixel-wise spatial resolution and a frame-wise temporal resolution is proposed. It is provided by

the complex sinusoidally-modulated imaging using the three-phase correlation image sensor (3PCIS) and the

exact algebraic inversion method based on the optical ﬂow identity (OFI) satisﬁed by an intensity image and

a complex-sinusoidally modulated image captured by the 3PCIS. Since the OFI is free from time derivatives,

any limitations on the object velocity and inaccuracies due to approximated time derivatives is thoroughly

avoided. An experimental system was constructed with a 320×256 pixel 3PCIS device and a standard PC for

inversion operations and display. Several experimental results are shown including the dense motion capture

of face and gesture and the particle image velocimetry of water vortices.

1 INTRODUCTION

Optical ﬂow is the two-dimensional velocity ﬁeld that

describes the apparent motion of image patterns. The

computation of optical ﬂow has been widely studied

since the 1970’s motivated by broad range of applica-

tions such as detection and tracking of an object, sep-

aration from a background or more generally segmen-

tation, three-dimensional motion computation, etc.

One of the most established algorithm for optical ﬂow

determination both theoretically and practically will

be the gradient-based method. It is based on the op-

tical ﬂow constraint (OFC) equation describing the

intensity-invariance of moving patterns. According to

B. McCane(McCane et al., 2001), Horn and Schunk’s

algorithm(Horn and Schunk, 1981) with regulariza-

tion is still one of the best performer among numer-

ous optical ﬂow retrieval algorithms. The determina-

tion of optical ﬂow from conventional image indeed is

structurally very difﬁcult due to the well-known aper-

ture problem. It is stated clearly that optical ﬂow can-

not be retrieved locally for the information we get lo-

cally is one-dimensional; the conventionalOFC deter-

mines the optical ﬂow only in one direction (normal

ﬂow).

Recently, a novel imaging device, three-phase

correlation image sensor (3PCIS), has been devel-

oped(Ando and Kimachi, 2003; Ando et al., 2007),

which can capture, not only the intensity distribu-

tion as a conventional camera, but also produce si-

multaneously a complex-valued image consisting on

quadrature demodulated components of time-varying

intensity distribution. For the optical ﬂow determina-

tion, the 3PCIS can offer an alternative and extended

method to compute locally and therefore quickly the

velocity ﬁeld. A gradient-based algorithm for the im-

ages from 3PCIS was proposed and its basic proper-

ties were examined using simple images(Wei et al.,

2007). It showed that, contrary to algorithms on con-

ventional image, the computations are operated on

only one frame, thus the temporal differentiation be-

tween frames which is one of the main sources of er-

rors is not required and therefore the accuracy is not

limited by the velocity(Ando et al., 2008).

480

Ando S., Kurihara T. and Wei D. (2009).

EXACT ALGEBRAIC METHOD OF OPTICAL FLOW DETECTION VIA MODULATED INTEGRAL IMAGING - Theoretical Formulation and Real-time

Implementation using Correlation Image Sensor.

In Proceedings of the Four th International Conference on Computer Vision Theory and Applications, pages 481-487

DOI: 10.5220/0001794104810487

Copyright

c

SciTePress

The purpose of this paper is to formulate more ex-

actly the algorithm and its performance and realize

the novel scheme as a real time sensing system with

maximal resolution and examine the performance for

various objects and in various situations. An experi-

mental system was constructed with a 320×256 pixel

3PCIS and a standard PC for necessary computations

and display. Several experimental results are shown

including the dense motion capture of face and ges-

ture, motion detection with extended velocity range,

and the particle image velocimetry of water vortices.

2 THEORY

2.1 Optical Flow Constraint

We consider the brightness f on the object observed

in the moving coordinate system is constant. Then the

optical ﬂow velocity

v

x

,v

y

matches the OFC

(v

x

∂

x

+ v

y

∂

y

) f(x,y,t) + ∂

t

f(x,y,t) = 0 (1)

where, ∂/∂x ≡∂

x

,∂/∂y ≡∂

y

,∂/∂t ≡ ∂

t

.

Traditional optical ﬂow estimation based on the OFC

obtains the unknown velocity v

x

,v

y

from ∂

x

f,∂

y

f,∂

t

f

as the observed quantities. Since one equation is in-

sufﬁcient to retrieve the two unknowns, addition of

some hypothesis such as a locally uniform velocity

ﬁeld(Lucas and Kanade, 1982), or a smoothness con-

straint of the velocity ﬁeld (Horn and Schunk, 1981)

is necessary. To obtain ∂

t

f, we need two or more

frames for differencing. Also, this approximation is

the principal source of errors. When the difference is

small, the operation decreases the signiﬁcant digits.

When it is large, the difference approximation of dif-

ferential is not any more justiﬁed and great errors can

be encountered.

2.2 Integral Optical Flow Constraint

To tackle these problems, we introduce a novel

mathematical technique, i.e., the modulated integral

method. It is based on an identity relation

(v

x

∂

x

+ v

y

∂

y

+ ∂

t

) f(x,y,t) = 0

∀

t ∈ [−

T

2

,

T

2

]

↔

Z

T/2

−T/2

{(v

x

∂

x

+ v

y

∂

y

+ ∂

t

) f(x,y,t)}w(t)dt

∀

w(t) (2)

in a frame interval [−T/2,T/2] of an image sensor.

As the modulating function w(t), we can consider an

arbitrary set of complete functions. Here, we restrict

our attention to the complex exponential function set

{e

−jωt

}, ω = 2πn/T, n = 0,1, 2···. Then, evalua-

tion of the second equation using the integral by parts

leads to

Z

T/2

−T/2

{(v

x

∂

x

+ v

y

∂

y

) f(x,y,t)}e

−jωt

dt

+

Z

T/2

−T/2

{∂

t

f(x,y,t)}e

−jωt

dt

= (v

x

∂

x

+ v

y

∂

y

)g

ω

(x,y) + jωg

ω

(x,y)

+

f(x,y,t)e

−jωt

T/2

−T/2

= 0, (3)

where

g

ω

(x,y) ≡

Z

T/2

−T/2

f(x,y,t)e

−jωt

dt (4)

is the correlation image. Here, the third term

is the difference between the instantaneous images

weighted by e

−jωt

at the beginning and end of the

frame, which is not observable. Letting ω = 0, we

obtain another relation on the intensity image as

(v

x

∂

x

+ v

y

∂

y

)g

0

(x,y) + [ f (x,y,t)]

T/2

−T/2

= 0. (5)

The difference term remains although it is not

weighted by e

−jωt

. We show in the next section the

difference terms can be eliminated to obtain an exact

algebraic relation to solve (v

x

,v

y

).

2.3 Direct Algebraic Solution

Assume that we can obtain two images simultane-

ously with modulation frequencies ω = 0 and ω 6= 0.

Since ωT = 2nπ where n is an integer, it follows that

e

jωT/2

= e

−jωT/2

= (−1)

n

at the integral boundaries,

and thus

f(x,y,t)e

−jωt

T/2

−T/2

= (−1)

n

[ f(x,y,t)]

T/2

−T/2

. (6)

Therefore, by combining Eqs. (3) and (5), we obtain

a complex equation

(v

x

∂

x

+ v

y

∂

y

){(−1)

n

g

0

(x,y) −g

ω

(x,y)}

= jωg

ω

(x,y), (7)

which is free from the difference terms. Describing

Eq. (7) in matrix-vector form, we obtain

Av = b, (8)

where

A =

∂

x

((−1)

n

g

0

−ℜg

ω

) ∂

y

((−1)

n

g

0

−ℜg

ω

)

∂

x

ℑg

ω

∂

y

ℑg

ω

v =

v

x

v

y

, b =

−ωℑg

ω

−ωℜg

ω

, (9)

EXACT ALGEBRAIC METHOD OF OPTICAL FLOW DETECTION VIA MODULATED INTEGRAL IMAGING -

Theoretical Formulation and Real-time Implementation using Correlation Image Sensor

481

where ℜ and ℑ denote the real and the imaginary part,

respectively.

Two (real and imaginary) linear equations in it are

sufﬁcient to solve two real unknowns (v

x

,v

y

). Com-

bining with the gradient vector images ∇g

0

(x,y) and

∇g

ω

(x,y), we can compute the unknowns directly

from one pixel and one frame. We hereafter call

Eq.(7) the optical ﬂow identity (OFI). The OFI if free

from time derivative which is a severe source of er-

ror such as the ﬁnite differencing between frames and

the temporal aliasing in large motion. For the spatial

derivative in the OFI, the problem is far less suscep-

tive by virtue of spatially dense image data and mostly

ideal FFT-based gradient operation.

(a) point spread functions

(b) spatial frequency characteristics

Figure 1: Point spread functions (a) and spatial frequency

characteristics (b) in motion direction by means of complex

sinusoidally modulated imaging.

2.4 Modulation Frequency

Performance of the proposed method depends on fre-

quency ω of the modulated imaging with relating to

spatial frequency spectrum of moving objects. This

relation is described by the point spread functions of

motion blur and the corresponding spatial frequency

characteristics:

h(x) ≡ rect(

x

v

x

T

)e

j(ω/v

x

)x

F

←→ H(u) ≡ |v

x

T|sinc(v

x

T(u−

ω

v

x

)). (10)

Fig. 1 shows them when ω = 0 and ω > 0. For ω = 0,

the image is low-pass ﬁltered with bandwidth 2/v

x

T

of the original spectrum (illustrated as a shaded area

in (b)). In another image using ω = 2πn/T (n > 0), it

is band-pass ﬁltered with the same bandwidth 2/v

x

T

but its center at ω/v

x

. According to an increase of ve-

locity v

x

, two spectral bands are shifting toward a low

frequency side. This usually decreases the power of

gradient image, thus decreases the accuracy of veloc-

ity. When the velocity is small or ω is too large, the

spectral band locates in higher frequencies, hence the

power of image and the accuracy of velocity decrease.

Therefore, some optimum values of ω will exist with

relating to the spatial frequency distribution of mov-

ing object.

2.5 Aperture Problem

The aperture problem is arisen when the determinant

of matrix A in Eq. (8) becomes zero. The condition

is illustrated in Fig. 2. Namely, it vanishes when

∇ℜg

ω

−(−1)

n

∇g

0

and ∇ℑg

ω

are parallel. If the mov-

ing pattern is truly uni-directional (same direction in

wide spatial frequency range), the direction of ∇g

ω

and ∇g

0

coincides, thus the aperture problem happens

in the same way as the conventional optical ﬂow de-

tection. When the directions in different frequency

bands are different, however, the directions are differ-

ent, thus the aperture problem can be avoided. In the

proposed method, two frequency bands for g

0

and g

ω

are used, and the aperture problem is only when the

uni-directionalities are common. Therefore, the con-

ditions for aperture problem are relaxed in this sense.

Figure 2: Condition for the aperture problem in the OFI

when n of ωT = 2nπ is even. The velocity is indeterminate

when ∇ℜg

ω

−∇g

0

is parallel to ∇ℑg

ω

.

3 CORRELATION IMAGE

SENSOR

3.1 Principle

As shown in Fig. 3(a), the 3PCIS consists of a pho-

todiode PD, multiplier transistors Q

1

,Q

2

, and Q

3

, ca-

pacitors of the same capacitance C, and readout tran-

sistors SW

1

,SW

2

, and SW

3

. The photo-generated cur-

rent I from the PD is split by Q

1

,Q

2

, and Q

3

in pro-

portion to their respective gate-source voltages V

1

,V

2

,

and V

3

into the drain currents

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

482

I

1

I

2

I

3

≃ −

qκ

3kT

I(V

1

−

¯

V)

I(V

2

−

¯

V)

I(V

3

−

¯

V)

+

1

3

I

I

I

(11)

(k: Boltzmann constant, T: absolute temperature, q:

electron charge, κ: gate coefﬁcient,

¯

V ≡ (V

1

+ V

2

+

V

3

)/3), and accumulated at three independent capaci-

tors C. By activating SW

1

,SW

2

, and SW

3

, charges are

transferred to external capacitors and the capacitors C

are reset.

I

C

DD

V

1

2

SW

Q

PD

V

1

V

C

Q

2

3

SW

1

SS

V

ysel ysel

=0V

out

3

out

1

C

Q

3

3

V

ysel

out

2

SW

2

=3.3V

Figure 3: The pixel circuit of 3PCIS. V

1

,V

2

, and V

3

are the

reference inputs and I is an input from the PD. The charges

stored in the capacitors C are the sums of the mean intensity

<I > and correlation <IV

i

> between I and V

i

(i = 1,2,3).

Figure 4: Lock-in camera using 3PCIS. This enables paral-

lel correlation detection with two arbitrary analog orthogo-

nal reference signals supplied in the three-phase form. The

three correlation outputs are A/D-converted and transferred

to a PC via the USB.

The 200 ×200 pixel device was fabricated through

the 0.35µm 2 poly-3 metal (2P3M) CMOS pro-

cess provided by VLSI Design and Education Center

(VDEC), Univ. Tokyo, and 320 ×256 devices were

fabricated through the 0.35µm 2P3M CMOS imager

process by SHARP Corp., Japan. Several parameters

and performances of these devices and cameras are

summarized in Table 1.

3.2 Amplitude / Phase Recovery

Three outputs from each pixel of the 3PCIS can be

converted into a background (time-averaged) inten-

sity, a correlation amplitude, and a correlation phase

as follows. Let the time-varying intensity on a pixel

at the coordinates (x,y) be

f(t) = Acos(ωt + φ) + B+ ξ(t). (12)

here, ω is the frequency of the modulated light, φ is

the phase, A is the amplitude, B is the stationary back-

ground intensity, and ξ(t) denotes any time-varying

light components except for the frequency ω and DC.

As the reference signals of the 3PCIS, we input three

sinusoidal waves whose frequency is ω and whose ini-

tial phases are 0,2π/3, and 4π/3. Then, the 3PCIS

generates three outputs.

R

1

R

2

R

3

= < f(t)

cosωt

cos(ωt +

2π

3

)

cos(ωt +

4π

3

)

+

1

3

f(t)

f(t)

f(t)

>

=

AT

2

cosφ

cos(φ−

2π

3

)

cos(φ−

4π

3

)

+

BT

3

1

1

1

(13)

Hence, the intensity is expressed as

B =

1

T

(R

1

+ R

2

+ R

3

), (14)

and the correlation amplitude A and the phase φ

are obtained as

φ = tan

−1

(

√

3(R

2

−R

3

)

2R

1

−R

2

−R

3

) (15)

A =

2

√

2

3

q

(R

1

−R

2

)

2

+ (R

2

−R

3

)

2

+ (R

3

−R

1

)

2

.

(16)

The calculations are performed in real time by a PC

from the A/D-converted outputs of the 3PCIS.

4 IMPLEMENTATION

An experimental system was constructed using a

320 × 256 pixel 3PCIS and a PC (Core2 Duo

(TM)

@3.0GHz). Fig. 5 shows the block diagram of the

camera and the algorithm in the PC.

4.1 “Phase-Stamp” Imaging

Usual applications of 3PCIS are to 2-D active sensing

schemes in which reﬂected lights of modulated illu-

mination or returned lights modulated by a given per-

turbation on the object are observed(Kimachi et al.,

2001; Kimachi et al., 2002; Ando et al., 2007; Ki-

machi, 2007). Contrastively, the phase-stamp imag-

ing is a passive scheme. Moving objects are imaged

EXACT ALGEBRAIC METHOD OF OPTICAL FLOW DETECTION VIA MODULATED INTEGRAL IMAGING -

Theoretical Formulation and Real-time Implementation using Correlation Image Sensor

483

Table 1: Speciﬁcation of 3PCISs and lock-in cameras used in experiments.

process CMOS 0.35µm 2P3M CMOS 0.35µm 2P3M

image size 200×200 320×256

pixel size 40µm×40µm 24µm×24µm

chip size 9.8mm×9.8mm 9.81mm×9.81mm

correlation SNR — ∼30dB

phase SNR ∼44dB ∼47dB

cutoff frequency ∼400×scan frequency ∼200×scan frequency

correlation output charge readout, 3φ charge readout, 3φ

A/D conversion external (12bit, 3ch) internal (10 bit, 3ch)

frame rate 1.875∼15 frames/s 5.7∼183.1 frames/s

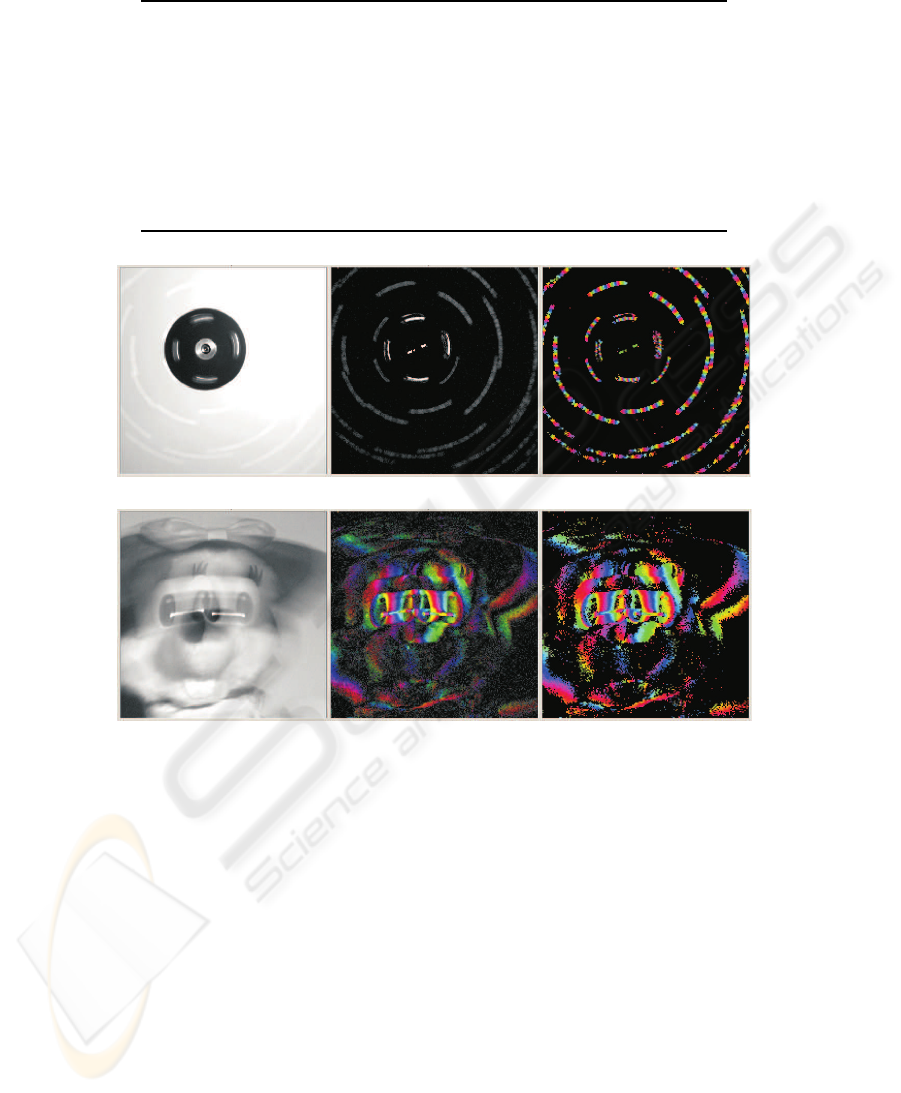

(a) rotating dots (ω = 8π/T)

(b) horizontally moving toy (ω = 2π/T)

Figure 6: Examples of phase stamp imaging. From left to right of each, intensity image, correlation amplitude image, and

correlation phase image (phase is indicated by hue).

while supplying sinusoidal reference signals to the

3PCIS.

The role of modulated imaging scheme can be

readily understood when the objects moving are

sparsely distributed points. When they are imaged

with s sinusoidal reference signal with a ﬁxed fre-

quency, the passage time of a point is recorded as

the phase of correlation image along its lucus. Sta-

tionary objects and background do not appear in the

correlation image although it is involved in the in-

tensity image. An example is shown in Fig. 6(a).

The objects are random dots on a rotating disk. The

reference frequency is such that four cycles of the

sinusoid is involved in a frame. In the correlation

phase images, continuous phase distributions [0,8π]

are recorded along the loci.

For more complex objects, simple correspondence

between time and phase like above is lost because the

loci of their components overlap each other. Never-

theless, rich information is involved in a particular

manner described in the previous section. Fig. 6(b)

shows an example. The correlation amplitude images

are shown with the hue corresponding to the correla-

tion phase. When the toy is moving, signiﬁcant am-

plitudes appear along the boundary in the correlation

image. In their perpendicular direction, the phase is

changing regularly in proportion to the velocity. Con-

trarily in the intensity images, these regions are cap-

tured only as the blur.

4.2 Differential-of-Gaussian Filtering

This is to obtain gradients and smoothed versions of

g

0

(x,y) and g

ω

(x,y). The ﬁltering is performed in

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

484

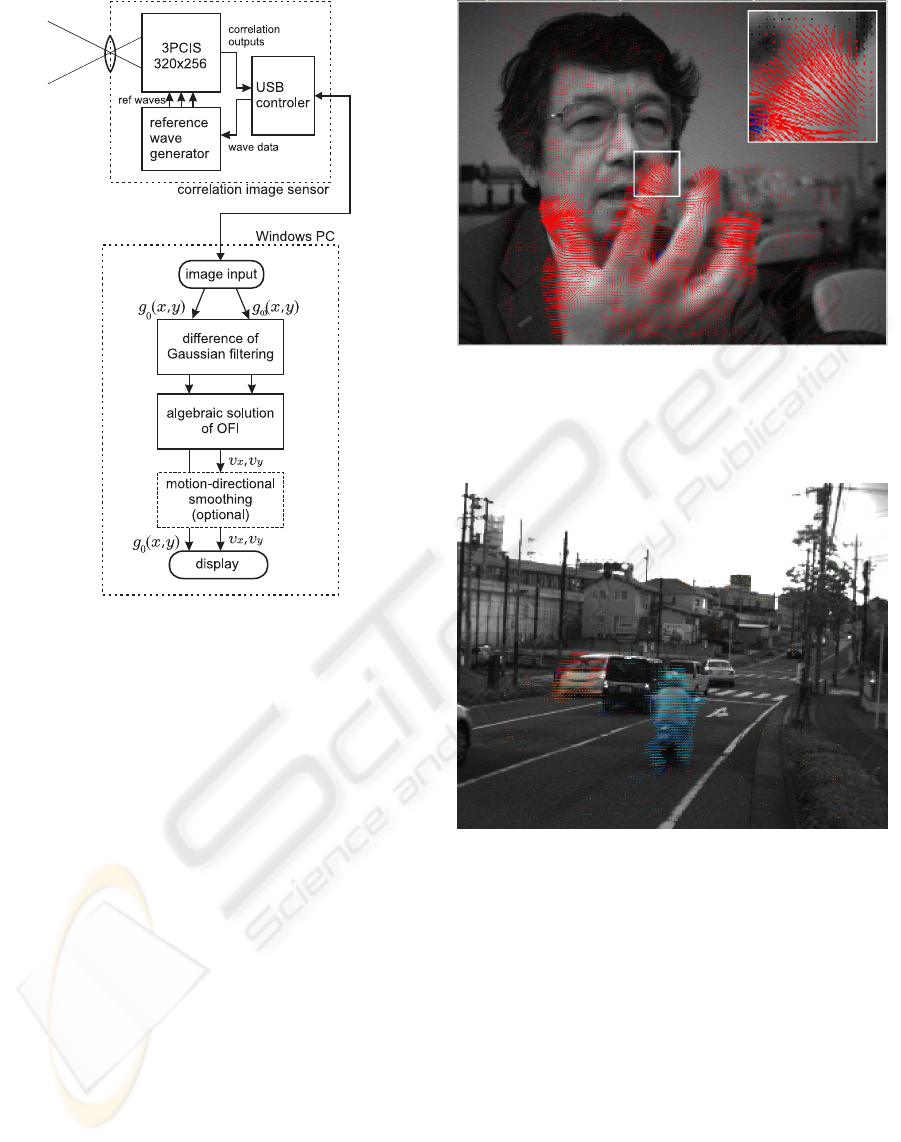

Figure 5: Block diagram of correlation camera using 3PCIS

and algorithms performed by a PC.

Fourier domain using 2-D FFTs. The smoothing pa-

rameter σ (rms size of Gaussian kernel) is variable.

In most applications, σ = 0.5 [pixel length] is an ap-

propriate choice to make a full use of spatial reso-

lution. For fast moving object with low spatial fre-

quency components,σ can be increased to ﬁt the spec-

tral passband to lower spatial frequency components.

The use of consistent gradient operators(Ando, 2000)

is an alternative choice for this stage.

4.3 Motion-directional Smoothing

During a frame time, each object keeps moving in

its motion direction. This causes a smoothing ef-

fect in which the motion vector ﬁeld is mostly con-

tinuous in the motion direction. Conversely speak-

ing, we can smooth the motion vector ﬁeld without

a resolution loss so that noises are reduced and esti-

mates are stabilized. In our system, it is performed in

conjunction with the iterative local least squares esti-

mate with varying spatial window(Lucas and Kanade,

1982; Ando, 1986). The window area is elongated

along the previously estimated motion direction and

the motion vector is estimated again.

Figure 7: An example of optical ﬂow detection of face and

gesture. Detected optical ﬂow vectors at every two pixels

are indicated by directed lines. The length and direction are

equal to a movement in a frame. The result is obtained in

real time.

Figure 8: An example of optical ﬂow detection of a trafﬁc

scene. The direction of motion is indicated by hue of line

along with its length and direction.

5 EXPERIMENTS

5.1 Natural Scenes

Facial motion or gesture are a typical target of opti-

cal ﬂow detection that requires high spatio-temporal

resolution and wide dynamic range of motion veloc-

ity. Fig. 7 shows an example of application result.

Detected nonzero optical ﬂow vectors at every two

pixels are indicated by directed lines at the pixels.

The length and direction are equal to a movement in

a frame. Without motion-directional smoothing, the

detection rate of 14 frame/s (a half of frame rate) is

EXACT ALGEBRAIC METHOD OF OPTICAL FLOW DETECTION VIA MODULATED INTEGRAL IMAGING -

Theoretical Formulation and Real-time Implementation using Correlation Image Sensor

485

achieved for 128 ×128 motion vectors. Simultane-

ous processing of image input, calculation, and dis-

play will increase the speed upto the frame rate. With

the motion-directional smoothing, the speed reduces

to about 7 frame/s. Fig. 8 shows another result for a

trafﬁc scene. A man on a motorbike going rightward

and a car coming from behind a waiting car are cap-

tured well by length and direction (indicated by hue)

of the velocity vectors.

5.2 Rapidly Moving Object

By an appropriate selection of sinusoidal frequency,

this system can be adjusted to a wide range of mo-

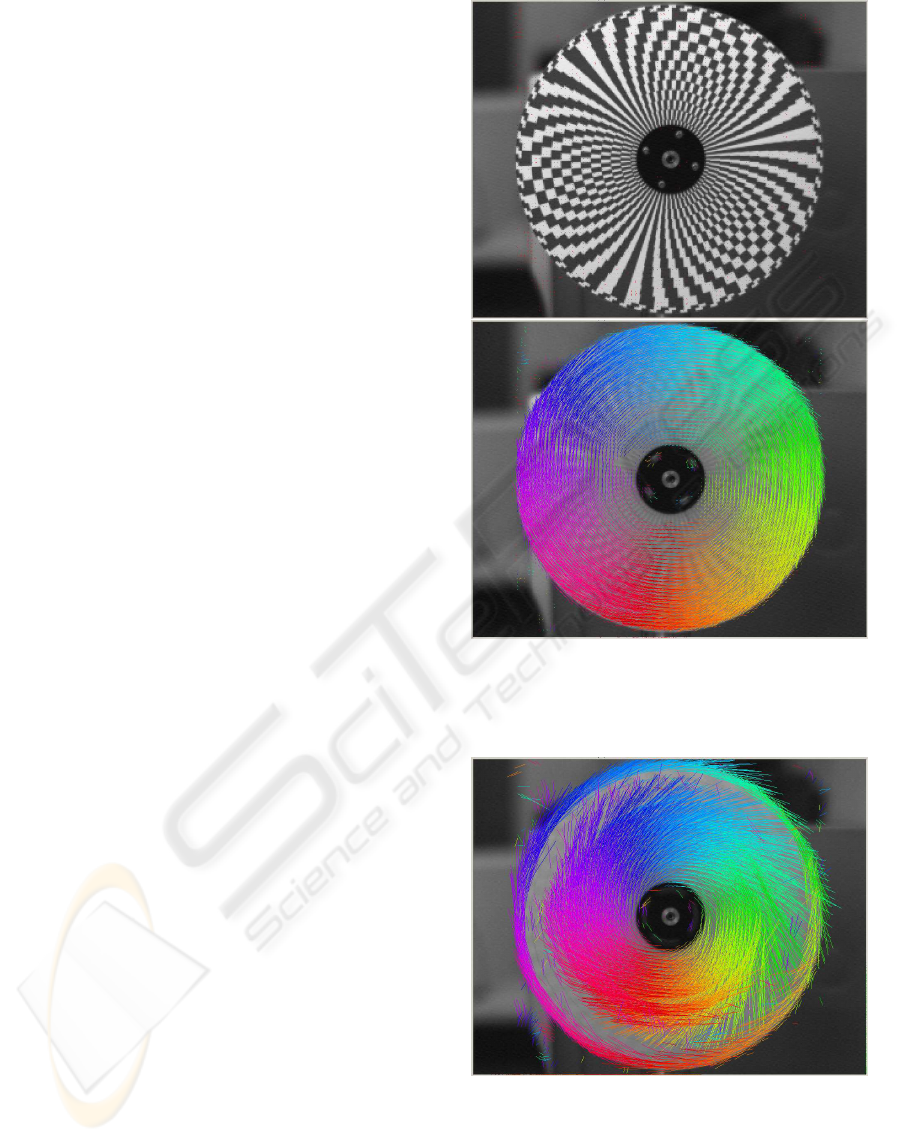

tion speed. Fig. 9 and Fig. 10 show examples to a

rotating disk when the rotation is stopped, slow, and

fast. For clarity, the direction of motion is indicated

by hue of line along with its length and direction.

The test chart on the disk is so designed that both

the spatial frequency and temporal frequency when

it is rotated is larger in the central zone. When the

rotation speed is slow, most temporal frequencies are

involved in correlation bandwidth of n = 1 sinusoid

(ω is equal to the frame frequency). But when it is

high, the frequency generated at the central exceeds

the bandwidth. In this case, we doubled (n = 2) the

reference signal frequency to capture the high tem-

poral frequency as shown in Fig. 10. Optical ﬂow at

there is captured successfully. But this causes lower

cutoff in the marginal zone, hence the optical ﬂow is

not detected there.

5.3 Particle Image Velocimetry

The proposed sensor is very suitable for the particle

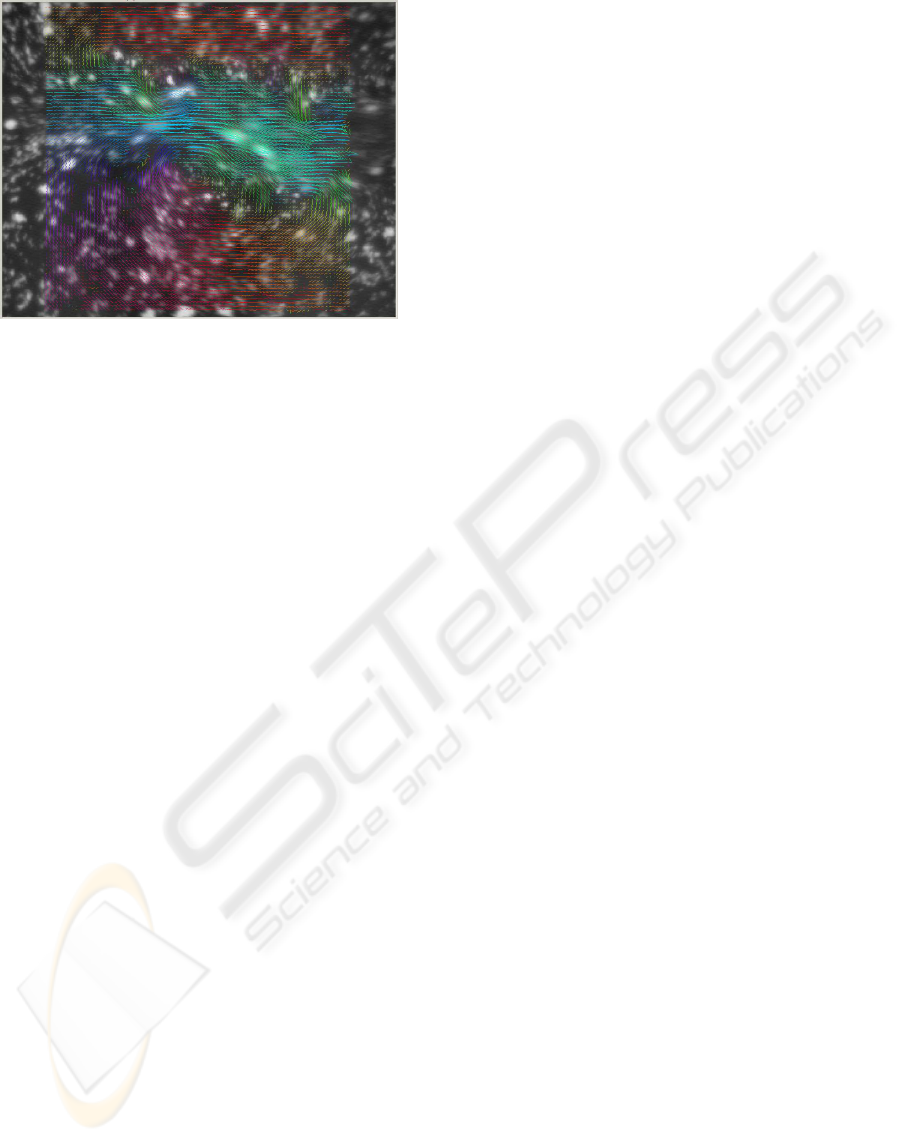

image velocimetry (PIV). Fig. 11 shows an example

of real-time measurement of velocity distribution of

a water surface marked by aluminum powder is de-

tected. The direction of motion is indicated by hue

of line along with its length and direction. In conven-

tional PIV, the velocity is obtained only particle-wise

by tracking the centroid of each particle. Contrarily

in this technique, the resolution is not limited by the

particle size and density. Except for pixels where no

fraction of particle is passing in a frame time, the opti-

cal ﬂow can be detected based on the spatio-temporal

intensity changes.

6 SUMMARY

A novel sensing scheme and algorithm for optical

ﬂow detection with maximal spatio and temporal res-

olution was proposed. An experimental system was

Figure 9: Optical ﬂow of a rotating disk with wide ranging

spatial frequencies. The upper image shows the object when

it is stopped, and the lower image shows the detection result

of optical ﬂow. The direction of motion is indicated by hue

of line along with its length and direction.

Figure 10: Optical ﬂow of fast rotating disk. The object is

same as Fig. 9. The reference signal frequency is increased

to capture the high temporal frequency of the central zone.

The frequency is below cutoff in the marginal zone, hence

the optical ﬂow is not detected.

constructed with a 320 ×256 pixel 3PCIS. Several

experimental results are shown using this system.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

486

Figure 11: An example of real-time particle image ve-

locimetry. Velocity distribution of a water surface marked

by aluminum powder is detected. The direction of motion is

indicated by hue of line along with its length and direction.

Device development of this work was supported by

VLSI Design and Education Center, University of

Tokyo, and Advanced Technology Research Labora-

tory, Sharp Corporation.

REFERENCES

Ando, S. (1986). A velocity vector ﬁeld measurement sys-

tem based on spatio-temporal image derivative. In

Trans. SICE, vol.22, pp.1330-1336.

Ando, S. (2000). Consistent gradient operators. In IEEE

Trans. Pattern Anal. Machine Intell., vol.22, no.3,

pp.252-265.

Ando, S. and Kimachi, A. (2003). Correlation image sen-

sor: Two-dimensional matched detection of amplitude

modulated light. In IEEE Trans. Electron Devices,

vol.50, no.10, pp.2059-2066.

Ando, S., Nara, T., Ono, N., and Kurihara, T. (2007). Real-

time orientation-sensitive magneto-optic imager for

leakage ﬂux inspection. In IEEE Trans. Magnetics,

vol.43, no.3, pp.1044-1051.

Ando, S., Wei, D., and Masurel, P. (2008). Optical ﬂow

detection via complex-sinusoidally modulated imag-

ing and its realization with correlation image sensor.

In Trans. IPSJ, Computer Vision and Image Media,

vol.49, no.6, p.13-21.

Horn, B. K. P. and Schunk, B. G. (1981). Determining op-

tical ﬂow. In Artiﬁcial Intell., vol.17, pp.185-203.

Kimachi, A. (2007). Real-time heterodyne imaging inter-

ferometry: focal-plane amplitude and phase demodu-

lation using a three-phase correlation image sensor. In

Applied Optics, vol.46, no.1, pp.87-94.

Kimachi, A., Imaizumi, T., Kato, A., and Ando, S. (2002).

Spectral matching imager using correlation image

sensor. In Trans. IEEJ, vol.122-E, no.4, pp.200-206.

Kimachi, A., Kurihara, T., Takamoto, M., and Ando, S.

(2001). A novel range ﬁnding system using correla-

tion image sensor. In Trans. IEEJ, vol.121-E, no. 7,

pp.367-375.

Lucas, B. D. and Kanade, T. (1982). An iterative image

registration technique with an application to stereo vi-

sion. In Proc. 7th IJCAI, pp.674-679.

McCane, B., Novins, K., Crannitch, D., and Galvin, B.

(2001). On benchmarking optical ﬂow. In Comput.

Vis. Image Underst., vol.84, no.1, pp.126-143.

Wei, D., Masurel, P., Kurihara, T., and Ando, S. (2007).

Optical ﬂow determination with complex-sinusoidally

modulated imaging. In Trans. IEICE, vol.J90-D, no.8,

pp.2009-2018.

EXACT ALGEBRAIC METHOD OF OPTICAL FLOW DETECTION VIA MODULATED INTEGRAL IMAGING -

Theoretical Formulation and Real-time Implementation using Correlation Image Sensor

487
