JUMPING JACK

A Parallel Algorithm for Non-Monotonic Stream Compaction

Pedro Miguel Moreira

1,2

, Luís Paulo Reis

2,3

and A. Augusto de Sousa

2,4

1

ESTG-IPVC, Instituto Politécnico de Viana do Castelo, Viana do Castelo, Portugal

2

DEI/FEUP, Faculdade de Engenharia da Universidade do Porto, Porto, Portugal

3

LIACC, Laboratório de Inteligência Artiﬁcial e Ciência de Computadores, Porto,Portugal

4

INESC-Porto, Instituto de Engenharia de Sistemas e Computadores do Porto, Portugal

Keywords:

Stream Compaction, Parallel Algorithms, Parallel Processing, Graphics Hardware.

Abstract:

Stream Compaction is an important task to perform in the context of data parallel computing, useful for many

applications in Computer Graphics as well as for general purpose computation on graphics hardware. Given

a data stream containing irrelevant elements, stream compaction outputs a stream comprised by the relevant

elements, discarding the rest. The compaction mechanism has the potential to enable savings on further

processing, memory storage and communication bandwidth. Traditionally, stream compaction is deﬁned as

a monotonic (or stable) operation in the sense that it preserves the relative order of the data. This is not

a full requirement for many applications, therefore we distinguish between monotonic and non-monotonic

algorithms. The latter motivated us to introduce the Jumping Jack algorithm as a new algorithm for non-

monotonic compaction. In this paper, experimental results are presented and discussed showing that, although

simple, the algorithm has interesting properties that enable it to perform faster than existent state-of-the-art

algorithms, in many circumstances.

1 INTRODUCTION

Current Graphics Processing Units (GPUs) are pro-

grammable parallel platforms which provide high

computational power with very large memory band-

width at low cost. These features make them com-

pelling not only under the graphics domain but also

for computationally intensive general purpose tasks,

leading to a relatively new research area focused

on mapping general purpose computation to graph-

ics processing units - GPGPU (Owens et al., 2007;

GPGPU, 2008).

Stream compaction, also designated as stream

non-uniform reduction and also as stream ﬁltering,

takes a data stream as input, uses a discriminator to

select a wanted subset of elements, outputs a com-

pacted stream of the selected elements, and discards

the rest.

Several computer graphics applications, making

use of the GPU programmable architecture, may ben-

eﬁt from stream compaction. Exclusion of non-

-relevant elements permits savings on further compu-

tational tasks, better memory footprints, and reduced

overhead when transferring data from the GPU to the

CPU. Stream compaction is also a fundamental com-

ponent on algorithms dealing with data partitioning

(e.g. some sorting algorithms and space hierarchies).

Parallel stream compaction is typically based on an-

other fundamental data parallel primitive, the parallel

preﬁx sum (Blelloch, 1990).

Conventionally, stream compaction is referred as

an order-preserving (or monotone) operation, i.e. the

output preserves the relative order of the elements.

In some circumstances, this can be a rather restric-

tive requirement. There are applications where mono-

tonicity is not fundamental, as when the data is self-

indexed (e.g. the data have coordinates, or a color

index) or when the relative order is irrelevant to fur-

ther processing. Therefore, we clearly distinguish two

classes of stream compaction: monotonic compaction

and non-monotonic compaction. The latter class mo-

tivated us to design the herein introduced Jumping

Jack algorithm.

Divide-to-conquer strategies, such as segmented

preﬁx-sum (Blelloch, 1990; Sengupta et al., 2007)

and hierarchical stream compaction (Roger et al.,

137

Moreira P., Reis L. and de Sousa A. (2009).

JUMPING JACK - A Parallel Algorithm for Non-Monotonic Stream Compaction.

In Proceedings of the Fourth International Conference on Computer Graphics Theory and Applications, pages 137-146

DOI: 10.5220/0001785001370146

Copyright

c

SciTePress

2007) allow for processing large amounts of data and

lead to increased efﬁciency.

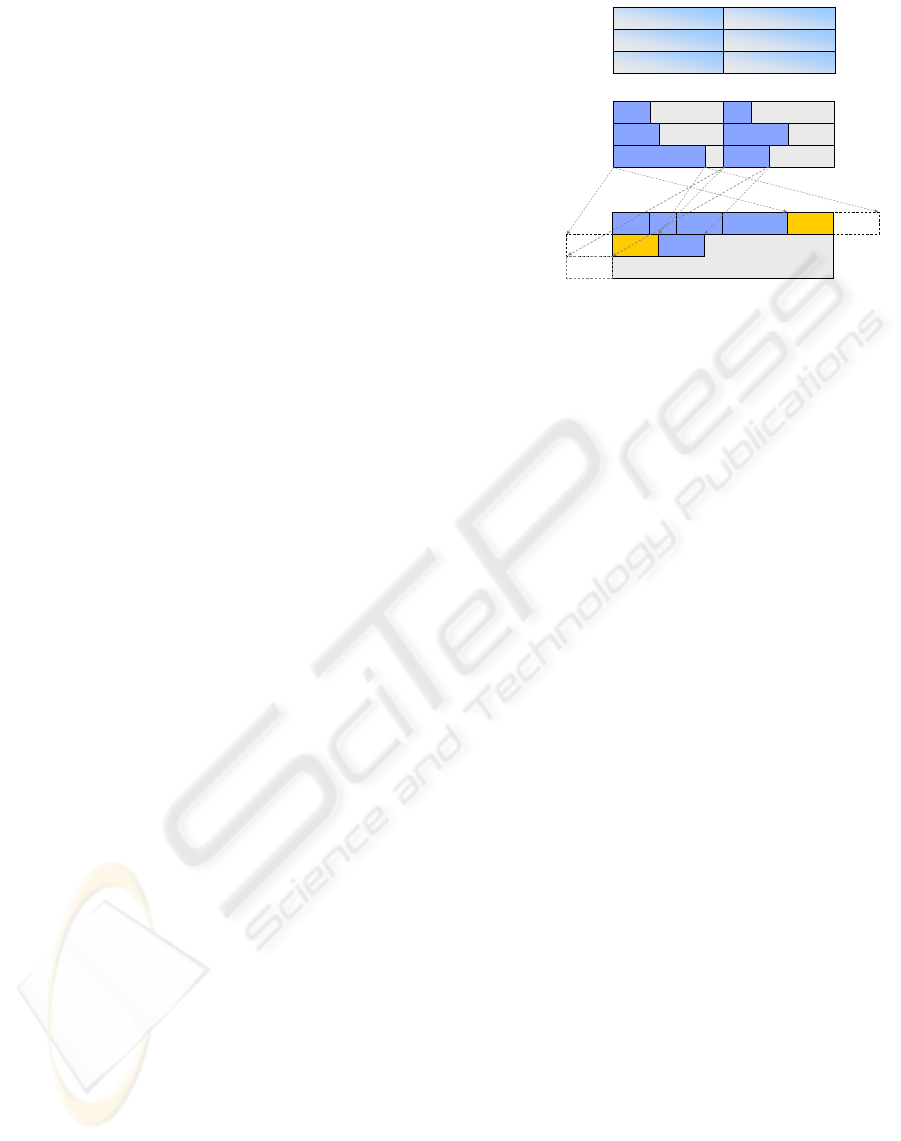

The herein introduced Jumping Jack algorithm

makes use of a similar strategy, Block Stream Com-

paction; it ﬁrst splits the input into regular smaller

blocks of data, compacts them, and ﬁnally concate-

nates the partial results into the desired compacted

output stream. The block concatenation step uses the

vertex engine and the texturing units of the GPU, in

order to achieve a better computational complexity

with respect to a global compaction approach.

The rest of the paper is organized as follows.

Next section introduces some fundamental concepts

and terminology on programmable graphics hard-

ware. Section 3 reviews relevant prior work on scan

primitives and stream compaction. The proposed

Jumping Jack algorithm is presented in Section 4 and

relevant details on the implementation are given in

Section 5. The achieved results are presented and dis-

cussed in Section 6. Major conclusions are summa-

rized in Section 7 alongside with possible directions

to future work.

2 PROGRAMMABLE GPU

ARCHITECTURE

Here we brieﬂy introduce some fundamental con-

cepts and terminology exhaustively used through the

paper. The current OpenGL speciﬁcation (OpenGL

2.1) exposes two GPU programmable units: the

vertex and the fragment processors. A third pro-

grammable unit, the geometry processor, was recently

exposed through OpenGL extensions but it has lim-

ited support and it is only available on very recent

GPUs. GPUs are designed with several vertex and

fragment processor units, enabling high levels of par-

allelism. Vertex and fragment programs can be coded

in high level languages such as the OpenGL Shad-

ing Language (aka GLSL), HLSL and Cg, to name

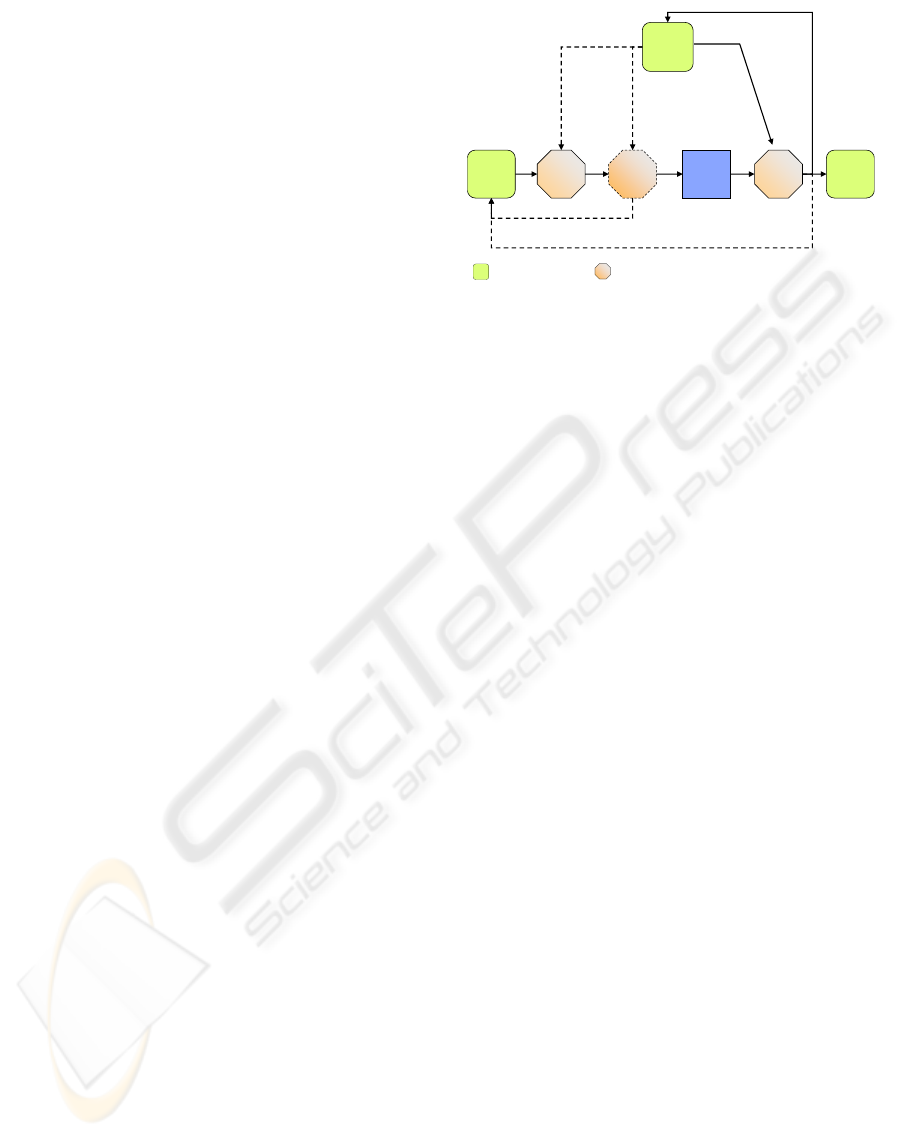

the most popular. A simpliﬁed scheme of the pro-

grammable pipeline is presented in Figure 1.

A vertex program processes each vertex indepen-

dently. The vertex processor has the ability of modi-

fying the vertex positions, which can be used to redi-

rect the output to a desired position, giving it memory

scattering abilities (indirect writing). . Memory gath-

ering (indirect read) is possible at the vertex proces-

sor through texture fetching. Although conceptually

interesting, the traditionally reduced number of vertex

pipelines, the limited support for texture formats and

the unoptimized read accesses (with big latency), im-

pose limitations on the practical utility of such gath-

ering mechanism.

Frame

Buffer

Vertex

Buffer

Texture

Memory

Vertex

Processors

Geometry

Processors

Fragment

Processors

Rasterizer

RTT:

RendertoTexture

VTF:

Vertex Texture Fetch

RTVA/RTVB

RendertoVertex Array /Buffer

memory /bufferobjects programmable units

Transform Feedback

Figure 1: Simpliﬁed GPU programmable pipeline (as ex-

posed by OpenGL). Dotted units and paths have limited /

non standard support.

At the fragment processor, each fragment is pro-

cessed independently, with the fragment ﬁnal posi-

tion being pre-determined before the fragment is pro-

cessed. Therefore, the fragment processor does not

have scatter abilities. However, gathering is possible

through texture fetching. A fragment program is al-

lowed to render to texture target (RTT) and also to

render to multiple targets (MRT), enabling it to easily

re-use results from one pass to another. Rendering

directly to the vertex buffer (RTVB) is not a widely

supported mechanism, although it can be indirectly

achieved in several ways.

Recently, GPU manufacturers adopted the so-

called uniﬁed architecture model, comprising sev-

eral (dozens to hundreds) of indistinct stream proces-

sors. Furthermore, global load-store memory, shared

memory for threads running on the same multipro-

cessor and synchronization mechanisms, are some of

the available capabilities. However, such capabilities

have only been exposed through manufacturer depen-

dent application programming interfaces (APIs) and

tools (e.g. such as nVidia CUDA (Nickolls et al.,

2008)), without support by architecture independent

or by general purpose APIs.

The herein proposed algorithm is intended to al-

low implementations making use of widely supported

GPU capabilities, such as the exposed by OpenGL.

It is assumed that the GPU has programmable ver-

tex processors with scatter and (potentially limited)

gather abilities and programmable fragment proces-

sors with gather abilities but without scatter.

3 RELATED WORK

This section reviews relevant prior work on stream

compaction. As existent algorithms are typically

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

138

based on preﬁx-sums, we begin by introducing the

fundamental concepts and algorithms for parallel pre-

ﬁx sum and segmented preﬁx-sum in the ﬁrst two sub-

sections, with a special focus on their GPU imple-

mentation. The following subsection describes paral-

lel stream compaction and approaches to implement

it.

3.1 Preﬁx-Sum

The preﬁx-sum primitive (aka scan operation and also

as preﬁx-reduction) is probably one of the most im-

portant primitives for parallel computing (Sengupta

et al., 2007). This can be somewhat surprisingly, as

the preﬁx-sum primitive is mostly unnecessary on se-

quential computation. Preﬁx-sum is successfully used

as a fundamental strategy in the parallelization of al-

gorithms that seem to be inherently sequential (Hillis

and Steele JR, 1986; Blelloch, 1990).

The all-preﬁx-sum (or inclusive preﬁx-sum) oper-

ation (Blelloch, 1990) takes a binary associative op-

erator ⊕ and an ordered set of elements (e.g. an array

or stream) [a

0

, a

1

, . . . , a

s−1

] and returns an ordered set

[a

0

, (a

0

⊕ a

1

), . . . , (a

0

⊕ a

1

⊕ ... ⊕ a

s−1

)].

Typical preﬁx-sum operations use addition, maxi-

mum, minimum, product and logic operators, but any

associative operator can be used. In the rest of this pa-

per, addition will be used as the default operator for

preﬁx-sum.

On sequential architectures, the all-preﬁx-sum op-

eration is trivially implemented with linear time com-

plexity O (s) using a single pass over the data. How-

ever, parallel computation of the all-preﬁx-sum can

not be straightforwardly mapped from the sequential

algorithm. Observe that each output depends on sev-

eral input elements, as for instance, the computation

of the preﬁx-sum at the last element (rightmost) in-

volves all the others.

Horn (Horn, 2005) proposed a GPU implementa-

tion for a linear all-preﬁx-sum primitive based on a

parallel recursive doubling algorithm as described by

Hillis & Steele (Hillis and Steele JR, 1986) that is of-

ten utilized in parallel and high performance comput-

ing. Hensley et al. (Hensley et al., 2005) also used a

parallel recursive doubling algorithm to carry out fast

GPU based generation of summed area tables (SAT).

SAT generation extends the recursive doubling into a

2D data structure by operating in two directions.

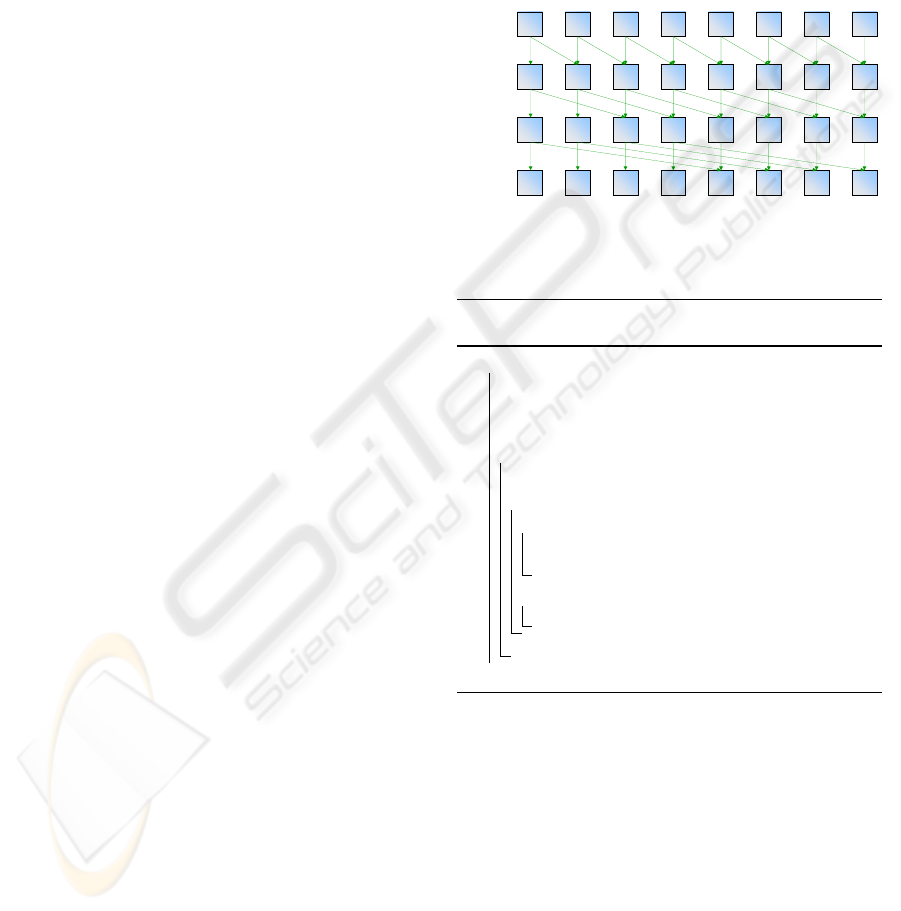

The recursive doubling approach proceeds as fol-

lows. For each element, and in parallel, the algorithm

starts by summing to each element the value of the el-

ement placed one position to the left. In the next iter-

ation, each element will sum itself to the value stored

two positions to the left. By now, each record stores

the sum of four original values, from its own position

to three positions to the left; following iterations re-

curse the process doubling the offset to the left. For a

stream with size s, the algorithm iterates log

2

(s) times

to complete. If there is a number of processors that

equals the size s of the stream, the algorithm com-

pletes in O(log(s)) time leading to a total work of

O(s · log(s)). A graphical depiction of this process

is illustrated in Figure 2.

offset = 2

k

if a

k-1

[i] >= offset then

a

k

[i] = a

k-1

[i] + a

k-1

[i+offset]

else

a

k

[i] = a

k-1

[i]

1 111 0 0 1 0

1 212 1 0 1 1

1 322 2 2 2 1

1 542 2 2 3 3

data

p=2,offset=2

p=1,offset=1

p=3,offset=4

Figure 2: Parallel Preﬁx Sum using a recursive doubling

algorithm for a stream with s = 8 elements.

Algorithm 1: Double Buffered Parallel All-

Preﬁx-Sum.

begin

input : s : stream length

input : pSum[in][ ] : input data stream

output: pSum[in][ ] : all-preﬁx-sum stream

for p ← 1 to log

2

(s) do

o f f set = 2

p−1

forall i < s in parallel do

if i ≥ o f f set then

pSum[out][i] ←

pSum[in][i − o f f set] ⊕ pSum[in][i]

else

pSum[out][i] ← pSum[in][i]

swapBuffers(in,out)

end

As the GPU programming model does not allow

for concurrent read and write on the same memory

buffer, the usual workaround comprises using double

buffered memory, i.e. two temporary streams (tex-

tures) and making one of them the input (for read-

only accesses by means of texture fetching, which

may be done concurrently) and the other the output

(the render-target with write-only access). After each

pass, the role of these buffers are swapped. The tech-

nique is commonly mentioned as ping-pong. Algo-

rithm 1 presents pseudo-code for a double buffered

version of the recursive doubling algorithm, closer to

a OpenGL/GPU implementation.

JUMPING JACK - A Parallel Algorithm for Non-Monotonic Stream Compaction

139

Even though widely used, the GPU recursive dou-

bling algorithm can result work-inefﬁcient. As, for

large streams, there is a number of processors typ-

ically smaller than the stream size, the computation

has to be serialized into batches. A key observation

is that the recursive doubling algorithm does unnec-

essary computations at each element.

Sengupta et al. (Sengupta et al., 2006) noticed this

fact and developed a work efﬁcient preﬁx-sum algo-

rithm for GPU implementation with work complex-

ity of O(s). Their algorithm uses a balanced tree ap-

proach adapted from the algorithm presented by Blel-

loch (Blelloch, 1990). An algorithm also with O(s)

work complexity, specially devoted to 2D data, has

been independently developed by Greß et al. (Greß

et al., 2006).

Blelloch proposes a two stage approach to com-

pute an exclusive-preﬁx-sum using a binary tree struc-

ture. The ﬁrst, the up-sweep, is a binary reduction . At

each tree level, each node stores the sum of its chil-

dren. Notice that for each subsequent level the num-

ber of active elements/processors is halved, leading

to a total of s− 1 active processors. The second stage,

referred as down-sweep, introduces the identity value

(zero, for the addition) at the root node and then pro-

ceeds, level by level, updating the ﬁnal result based on

the partial results computed during the reduction step.

Again, the number of active processors is s − 1, lead-

ing to an overall work complexity of O(s). Although

with better work efﬁciency, the number of passes in a

typical GPU implementation requires twice the num-

ber of passes to complete, i.e. 2· log

2

(s), compared to

the recursive doubling algorithm. Actually, the algo-

rithm, as described, computes a exclusive preﬁx-sum.

A ﬁnal adjustment step is needed in order to compute

the all-preﬁx-sum. This can be carried out by shifting

all the elements one position to the left and placing the

total sum at the rightmost element. Figure 3 visually

illustrates the algorithm operation.

Sengupta et. al (Sengupta et al., 2006) observed

that the balanced tree based algorithm has few ac-

tive processors in passes / iterations that are close to

the root and does more passes than the recursive dou-

bling. The authors have proposed an hybrid algorithm

that switches from the balanced tree into a recursive

doubling approach when the number of active proces-

sors falls under the degree of parallelism (the maxi-

mum number of available parallel processors).

3.2 Segmented Preﬁx-Sum

The underlying strategy of segmented all-preﬁx-sum

is a divide-to-conquer approach. A stream of ele-

ments can be partitioned into contiguous substreams

1 111 0 0 1 0

22 0 1

32

5

0

20

30 2 2

0 431 2 2 2 3

0

1 542 2 2 3 3

up-sweep

down-sweep

final adjustment

01234567

0123

01

0

0

01

0123

01234567

01234567

p=1

p=2

p=3

p=2

p=1

p=0

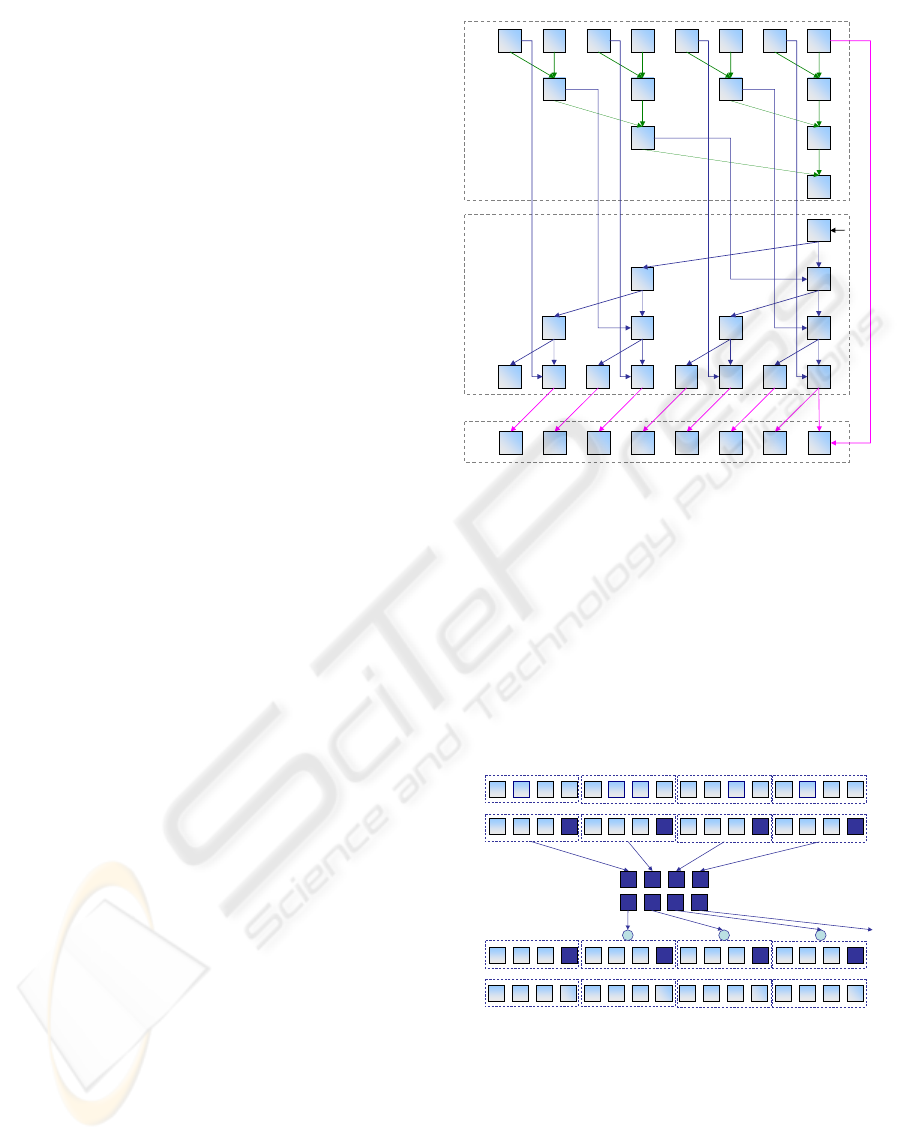

Figure 3: Parallel Preﬁx Sum using a balanced binary tree

algorithm (after (Blelloch, 1990)) for a stream with s = 8

elements.

(known as segments or blocks) and the all-preﬁx-sum

is computed for each sub-stream (intra-segment sum).

Then, an inter-segment all-preﬁx-sum is conducted

using as input the last sum of each segment. The re-

sults of the inter-segment sum are used to offset all

the values of the next segment. The process is illus-

trated in Figure 4. Segmented preﬁx-sum allows for

efﬁcient handling of large streams.

04623 5 71 8121410 11 13 159

original data

1 3 02 0 4 00 0 4 13 3 1 01

04623571 8121410 11 13 159

04623 5 71 8121410 11 13 159

intra-segment all-prefix-sum

1 3 73 3 7 71 0 4 64 7 5 61

3 7 67

3 17 2310

inter-segment all-prefix-sum

1 6 103 3 10 101 10 21 2314 17 22 2311

global all-prefix-sum

04623 5 71 8121410 11 13 159

intra-segment all-prefix-sum

1 3 73 3 7 71 0 4 64 7 5 61

+ + +

Figure 4: Segmented Parallel Preﬁx Sum for a stream with

s = 16 elements and segments (blocks) with b = 4 elements.

3.3 Stream Compaction

Stream compaction is an operator that takes a data

stream as input, uses a discriminator to select a valid

subset of elements, and outputs a compacted stream

of the selected elements, discarding the rest. Sequen-

tial stream reduction is trivially implemented in O(s)

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

140

with a single pass over the data.

Parallel stream compaction is an important opera-

tion for several applications. Examples in the graph-

ics domain that beneﬁt from stream compaction in-

clude collision detection (Greß et al., 2006), ray-

tracing (Roger et al., 2007), shadow mapping (Lefohn

et al., 2007), point-list generation (Ziegler et al.,

2006) and, in general, all algorithms that make use

of data partitioning.

While seeming an inherently sequential computa-

tion, stream compaction can be parallelized using the

all-preﬁx-sum. The fundamental idea is to discrim-

inate data using a value of one to mark invalid ele-

ments and zero to mark valid elements. Then, the

all-preﬁx-sum of this discriminated stream is com-

puted. The resulting stream stores, for each position,

the number of invalid elements to the left. This value

corresponds to the displacement to the left that each

valid element has to undertake in order to build the

compacted stream (see Figure 5).

04623 5 71 8121410 11 13 159

original data

discriminated data

all-prefix-sum

compacted data

0 0 db 0 c 0a 0 0 0e 0 f 00

1 1 00 1 0 10 1 1 10 1 0 11

1 3 31 2 3 41 5 8 96 7 8 106

a e dc d f 0b 0 0 0e 0 f 00

04623 5 71 8121410 11 13 159

04623 5 71 8121410 11 13 159

04623 5 71 8121410 11 13 159

Figure 5: Compaction of a stream based on the all-preﬁx-

sum.

For parallel architectures with scattering abilities,

the compaction process could be implemented in a

single pass, writing the valid elements to their ﬁ-

nal positions using the displacements available from

the all-preﬁx-sum (Sengupta et al., 2007). As no-

ticed, scattering is not available at the fragment pro-

cessor. Consequently, scatter has to be converted to

gather through vertex texture fetching (VTF), addi-

tional passes or search (Harris, 2005; Horn, 2005).

A straightforward solution to parallel compaction

might also make use of GPU based sorting. Although,

GPU-sorting solutions are typically based on sorting

networks and variations of bitonic search yielding to

an overall computational complexity of O(log

2

(s))

(refer to (Owens et al., 2007) for a comprehensive sur-

vey on GPGPU). Horn (Horn, 2005) noticed this and

proposed an improved algorithm from stream com-

paction. His algorithm improves the overall complex-

ity by a factor of log(s) yielding to an overall com-

plexity of O(log(s)). The solution is based on the

observation that the all-preﬁx-sum (pSum[ ]) is an as-

cending sorted stream and, as a result, a search can

be conducted on the all-preﬁx-sum stream, in order

to ﬁnd the positions corresponding to the elements

that will comprise the output compacted stream. The

fundamental idea is to conduct, in parallel, a binary

search, for all the ﬁrst c indexes (where c ≤ v, with v

denoting for the number of valid elements), in order

to ﬁnd an index f that satisﬁes f = c + pSum[ f ] and

for which the original data stream has a valid element

(Horn, 2005). The solution avoids the need of scatter-

ing, which is converted to gathering through search,

with a computational complexity of order O(log(s))

and total work of order O(s · log(s)).

3.4 Block Stream Compaction

Similarly to segmented preﬁx-sum, a divide to con-

quer strategy can be applied to compaction, as the hi-

erarchical compaction scheme proposed by Roger et.

al. (Roger et al., 2007) (Figure 6). The stream can be

segmented in blocks, the compaction process is done

for each block, and then a second-level process re-

computes an overall compacted stream based on the

inter-segment all-preﬁx-sums. As, subsequently to

the inner block compaction, the valid elements are

contiguously stored, the inter-block preﬁx-sum gives

the displacement to apply to each compacted sub-

stream. The concept is easily extended to a hierar-

chical process, and any preﬁx-sum or compaction al-

gorithm may apply.

split into blocks

compact compact compact compact compact

concatenation

inputstream

blocks

compacted blocks

compacted outputstream

Figure 6: The block based compaction approach (after

(Roger et al., 2007)).

As large streams are mapped into 2D textures, an

immediate beneﬁt from the block based compaction

arises from avoiding massive 1D ↔ 2D coordinate

conversions. A line by line, or segment by segment

computation avoids these conversions, but a ﬁnal step

must be attained in order to concatenate the com-

pacted parts of the blocks into a global compacted

stream. As all elements of each compacted block

must displace the same amount to the left, texture

mapping can be used, with expected linear work, to

attain such goal without the need for a scatter to gather

conversion.

JUMPING JACK - A Parallel Algorithm for Non-Monotonic Stream Compaction

141

4 JUMPING JACK ALGORITHM

This section introduces an original algorithm for non-

monotonic compression, i.e. the relative order of the

valid elements is not preserved on the output. The

algorithm was named Jumping Jack after observing

the pattern of the search process that seems to consec-

utively jump forwards and backwards on the stream

(Figure 7).

Although its simplicity, it has very interesting

properties alongside with some limitations. We will

discuss how these limitations can be mitigated leading

to a suitable implementation on the GPU, turning it

competitive or faster than existing stream compaction

algorithms.

For a stream with size s with v valid elements, the

idea is to keep the valid elements positioned within

the ﬁrst v indexes and ﬁll the remaining positions

(holes) by ﬁnding valid elements in the rest of the

stream.

For each stream element, the all-preﬁx-sum has

the ability to communicate some information about

the past elements (e.g. number of non valid ele-

ments to the left). Thus, for each position, given the

known non-valid elements to the left, one can com-

pute the potential maximum size of the compacted

stream (this number can also be interpreted as the

ﬁrst index that undoubtedly will not be part of the

compacted stream). We refer this index as the max-

allowable-size (MAS). MAS is easily evaluated as the

difference of the stream size by the all-preﬁx-sum

(Equation 1). Computation of the MAS stream can

be done explicitly by a straightforward adaptation of

the the all-preﬁx-sum computation, or embedded in

the algorithm.

MAS[i] = s − pSum[i]; (1)

The search proceeds as follows. For a given in-

dex i within the ﬁrst v positions, if the original data

is valid, then the corresponding value is copied to the

ﬁnal stream. Otherwise, the algorithm uses the MAS

value at position i and jumps to the corresponding in-

dex. This will be the ﬁrst index where valid elements

may be found. The process is then repeated until a

valid element is found. The pseudo-code for the algo-

rithm is given in Algorithm 2.

Applied to each position, the algorithm has the

ability to ﬁnd all the remaining valid elements (i.e.

there is a one-to-one mapping between the ﬁrst v po-

sitions and the positions of the valid elements).

To enable a better understanding of the algorithm,

a visual trace of its operation for a stream with 6 valid

elements in a total of 16 is depicted in Figure 7. As it

can be observed, there are three valid elements within

Algorithm 2: Jumping Jack (no order preserv-

ing).

input : s : the stream length

input : data[ ] : the data stream

input : MAS[ ] : the max-allowable-size stream

output: compact[ ] : the compacted stream

begin

v ← MAS[s − 1]

forall i < v in parallel do

idx ← i

while data[idx] is not valid do

idx ← MAS [idx];

compact [i] ← data[idx]

end

the ﬁrst 6 positions (at indexes 1, 2 and 5, respec-

tively), which will keep their positions. For the other

positions (indexes 0, 3 and 4) a search for valid ele-

ments is conducted based on the MAS values. These

positions ﬁnd their valid elements after 2, 7 and 1

search steps, respectively.

idx = i;

while(data[idx] == 0)

idx = width - pSum[idx];

return data[idx];

i=0,

idx = 0, data[0]=0, not found

idx = 16 – pSum[0] = 15, data[15] = 0, not found

idx = 16 – pSum[15] = 6, data[6] = d, found @ 6

…

i=3,

idx = 3, data[3] = 0, not found

idx = 16 – pSum[3] = 14, data[14] = 0, not found

0 0 db 0 c 0a 0 0 0e 0 f 00

04623571 8121410 11 13 159

d f db e c 0a 0 0 0e 0 f 00

1 1 00 1 0 10 1 1 10 1 0 11

15 13 1315 14 13 1215 11 8 710 9 8 610

0 0 db 0 c 0a 0 0 0e 0 f 00

1 3 31 2 3 41 5 8 96 7 8 106

original data

discriminated data

all-prefix-sum

MAS

original data

compacted data

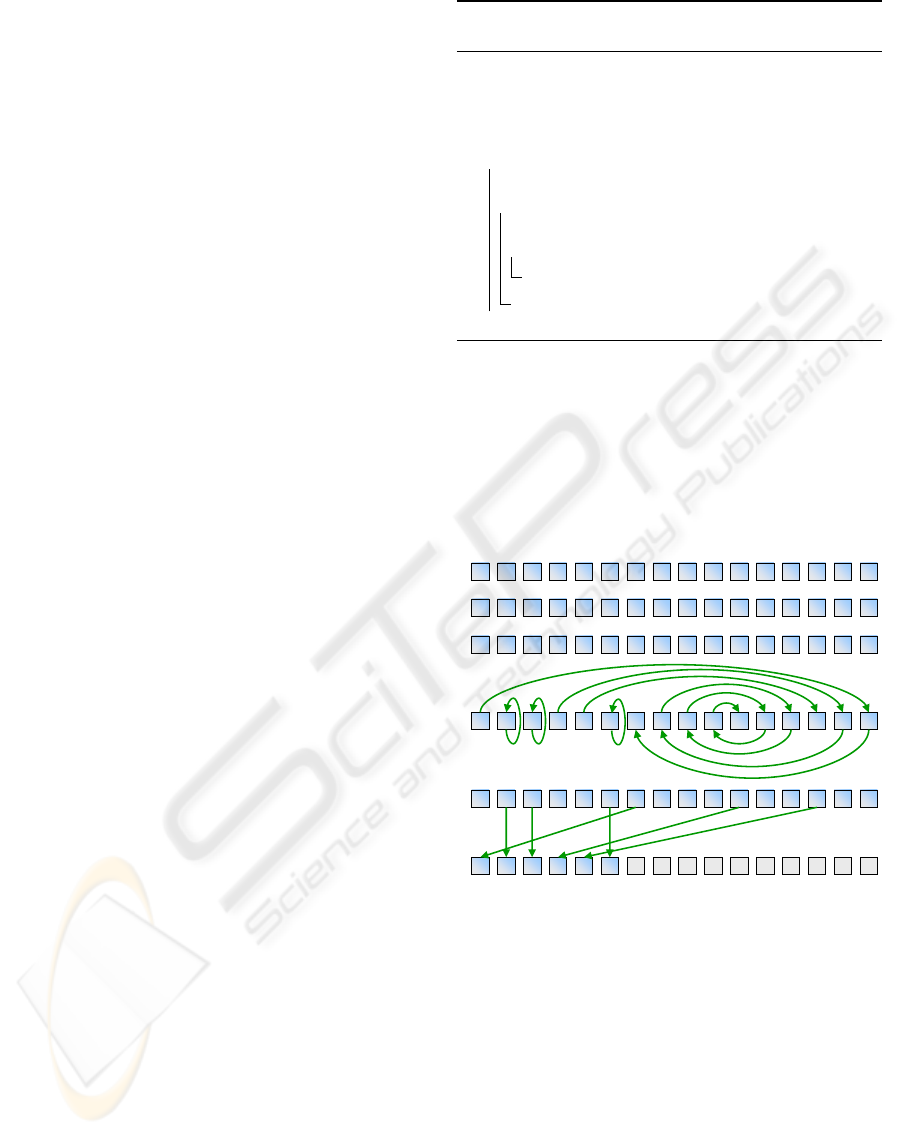

Figure 7: Graphical trace of the Jumping Jack algorithm.

The fundamental property of this algorithm is that,

for any given position, it will ﬁnd a different valid

element. Other very interesting property is that the

parallel work (the sum of the work carried out by all

processors) is linear and upper bounded by s-v search

steps.

Nevertheless, for very sparse data, this work can

be imbalanced, i.e. for some positions, ﬁnding a valid

element will take much more work than others. The

worst case happens when a unique valid element ex-

ists, and it is positioned in the middle of the stream.

In such case, s − 1 search steps will be needed to ﬁnd

it.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

142

Theoretically, and if an arbitrary large number of

processors is available, the algorithm is inefﬁcient,

as the overall computation only completes as the last

parallel processor ﬁnishes its operation. Therefore, in

the worst case, the parallel cost will be of quadratic

order. This constitutes the algorithm major weakness.

In practice, there is not an unlimited number of

fragment processors on the GPU. Therefore, the com-

paction of large streams has to be serialized into

batches to the available processors mitigating the pos-

sibly imbalanced behavior of the algorithm.

To further limit the inﬂuence of this undesirable

property, we make use of a segmented compaction

strategy in order to bound the maximum number of

iterations that may be performed by each element (by

reducing the size of the individual streams to com-

pact, as described in Section 3.4).

From the above discussion one can expect that,

for not very sparse data distributions, the algorithm

can be very fast in ﬁnding the unpositioned valid ele-

ments.

5 IMPLEMENTATION

Implementation was done using OpenGL 2.0, mak-

ing use of FBOs (frame buffer objects) with single

component 32-bit ﬂoat texture formats for the input

and output data, as well as, for intermediary memory

buffers. Four component (RGBA) 32-bit ﬂoat for-

mats were used for the described block compaction

mechanism. The presented results were taken using

a nVidia GeForce 7300 Go (G72M) GPU. Fragment

programs were coded using the Cg Language, but are

straightforwardly convertible to GLSL. All timings

were taken at GPU side using the query mechanism

provided by the OpenGL GL_EXT_timer_query ex-

tension.

The Jumping Jack Algorithm (Section 4) was im-

plemented to be used by a block based compaction

mechanism (Section 3.4). For the MAS computation

we implemented both the recursive doubling (Hillis

and Steele JR, 1986) and balanced tree (Blelloch,

1990) algorithms (Section 3.1).

We adopted (Roger et al., 2007) ideas to imple-

ment the block based compaction mechanism. The

process is depicted by Figure 8 and comprises three

stages.

The ﬁrst two stages are straightforward. The sec-

ond stage can use any compaction algorithm. We only

notice that the number of invalid elements per block

must be provided as a result from the second stage

(e.g. the value of the all-preﬁx-sum at the last block

element). We will now detail on the third stage which

B1 B2 B3

B5_1

B0 B4_1

B4_2

B0 B1

B2 B3

B4 B5

B0 B1

B2 B3

B4 B5

stage 1: map

stream to2Dtexture

and split into regular

size (line‐aligned)

blocks

stage 2: compact

each block

stage 3:

concatenation,using

compacted blocks as

atexture map and

rendering textured

lines.

B5_2

Figure 8: Block Based Compaction implementation.

is more elaborated.

Given the number of invalid elements per block,

the displacements, for each of the block compacted

substreams, can be computed using an a inter-block

all-preﬁx-sum. These displacements have to be con-

verted from 1D coordinates to 2D coordinates from

which the (x, y) coordinates for the two endpoints of

each block are obtained. As it is shown (Figure 8,

block B4) there are compacted blocks that may wrap

between consecutive lines in the result. Notice that

these have not to be split in more than two parts (as

the block size is less or equal than the line width).

To simplify, we assumed that all compacted blocks

wrap and actually we compute four endpoints corre-

sponding to the start and end positions of the ﬁrst sec-

tion and the (potential) second section. Texture coor-

dinates are assigned to each endpoint in accordance

with the compacted substream position.

These values are intended to be used by the ge-

ometry engine. This is actually implemented using a

Render to Vertex Array (RTVA) technique, but other

options exist as outlined later in the text. As the num-

ber of lines to be rendered is a priori known (twice

the number of blocks) we devised to use the frag-

ment processor to compute and pack the four end-

points and texture coordinates into two RGBA tex-

tures, each having twice the number of elements as

the number of blocks. One of these textures packs

the endpoints and textures coordinates for the ﬁrst

(mandatory non wrapping section) line segment and

the other those corresponding to the second (poten-

tially wrapping section) line segment. These textures

are then used as input data for the geometry engine, in

order to create the texturized lines, forwarding them

to the subsequent graphics pipeline. The graphics

hardware clips the lines, generates the fragments with

interpolated texture coordinates, and eventually ren-

der them. As a result, the overall compacted stream is

obtained.

JUMPING JACK - A Parallel Algorithm for Non-Monotonic Stream Compaction

143

True direct RTVA is not directly supported by

OpenGL but it can be achieved using buffer objects .

As in OpenGL these buffer objects are not uniﬁed, the

solution comprises rendering into a framebuffer ob-

ject (FBO), then copying the data into a pixel-buffer

object (PBO) and re-casting it as a vertex buffer ob-

ject (VBO). The VBO is then used as geometry input

by a OpenGL call. Copying from the FBO into a PBO

does not involve transfers from GPU to CPU or vice-

versa as it is performed internally and therefore can

be very fast due to the high memory bandwidth of in-

ternal GPU memory.

Other approaches exist as fetching the texture di-

rectly from the vertex processor (VTF), or from the

geometry processor when available (e.g. as suggested

by (Roger et al., 2007)). The latter should enable a

theoretical more optimized process of the wrapping

problem, as the geometry processor has the ability to

generate geometry in a data dependent manner, there-

fore enabling the creation of the second line segment

only when necessary.

6 RESULTS

The intra-block all-preﬁx-sum computation has no

data dependencies, however it depends on the block

size. We implemented both the double recursive and

the balanced tree approaches. The achieved results

for a 4M element stream (we will use the M preﬁx

to denote for ×2

20

) are depicted in Figure 9. Results

demonstrate the block-size dependency but the algo-

rithms show opposite behaviors. The recursive dou-

bling algorithm is more efﬁcient for small block sizes,

whereas the balanced tree becomes more efﬁcient as

the block size increases. As a result, the choice for

one algorithm may have consequences on the overall

performance, if not tuned as a function of the block

size.

0

20

40

60

80

100

120

140

1

6

3

2

6

4

1

2

8

2

5

6

5

1

2

1

0

2

4

2

0

4

8

BlockSize

Time(ms)

BalancedTree[Ble90]

RecursiveDoubling[HS86]

Figure 9: Timings achieved for intra-block block preﬁx-

sums for a stream with 4M elements.

To have a better insight on how the concatenation

varies with the block size, we measured the concate-

nation times for several block sizes. We used a data

set with 50% of invalid elements. Notice that only the

block level compaction component is affected by the

data distribution. Figure 10 presents average timings

to concatenate a 4M stream for block sizes ranging

between 16 and 2048. As expected. the inter-block

sum is faster for greater block sizes. The block-level

compaction is also faster for greater block sizes, how-

ever it appears to revert this behavior for block sizes

above 1024.

0

5

10

15

20

25

30

35

40

16

32

64

128

256

512

1024

2048

BlockSize

Time(ms)

linedrawingusingRTVA

inter‐blockprefix‐sum

Figure 10: Timings for block concatenation for a stream

with 4M elements.

We also observed experimentally, as it was ex-

pectable, that the concatenation process depends on

the number of valid elements. Notice that the work

carried out by the inter-block all-preﬁx-sum depends

on the number of blocks. Consequently, this data

dependent variation has more impact for large block

sizes, as the all-preﬁx-sum is faster (reduced number

of blocks) and the number of textured lines is smaller

(less effort by the geometry engine), but the number

of valid elements to render increases (stressing the

rasterizer and texturing units).

We proceed by analyzing the results achieved by

the Jumping Jack Algorithm and compare them with

those achieved by the binary search proposed by Horn

(Horn, 2005). The results herein presented make use

of the block compaction approach. Figure 11 presents

the timings achieved to compact a 4M element stream

against the density of invalid elements (randomly gen-

erated). A block size of 256 was used. Presented time

values correspond to the overall stream compaction

process.

Jumping Jack Algorithm has a stable performance

under densities of 95%, with timings increasing al-

most linearly as the density increases. Above 95%,

there is a signiﬁcative drop in performance. Notice

that jumping Jack, theoretically, performs the search

process for the number of unpositioned valid ele-

ments. As the invalid densities increases, the proba-

bility of unpositioned elements also increases. On the

other hand, as the invalid densities increase, it also

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

144

0.00

50.00

100.00

150.00

200.00

250.00

300.00

350.00

0.00 10.00 20.00 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00

DensityofInvalidElements(%)

Time(ms)

Horn'sbinarysearch

JumpingJack

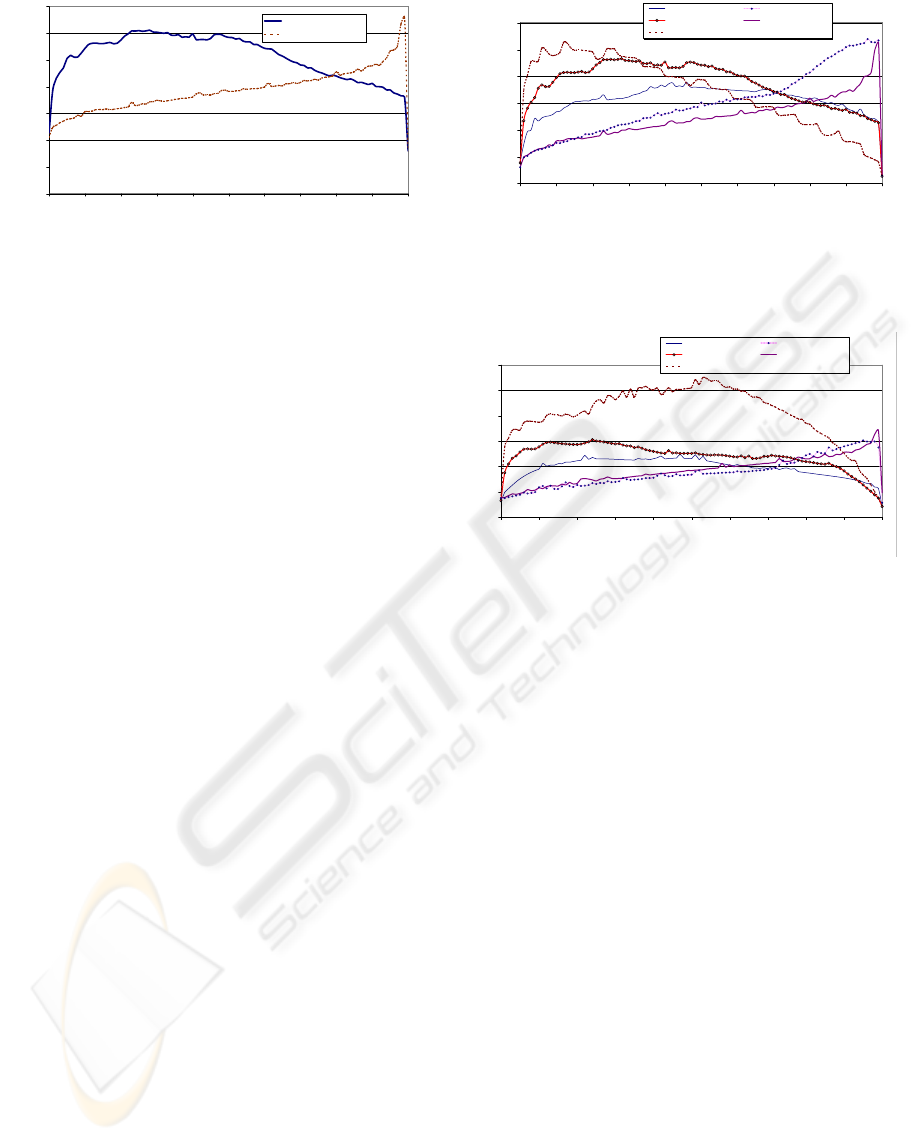

Figure 11: Overall time spent for compaction of a 4M

stream by the two tested algorithms, versus the invalid ele-

ments density. A block size of 256 was used.

increases the probability of having imbalanced work

with some elements doing longer searches than oth-

ers. This factor is very noticeable for high densities

of invalid elements.

Horn’s algorithm has a theoretical search com-

plexity, per valid element, that increases with the

number of invalid elements by a factor log

2

(s − v).

As the number of invalid elements increase, the

search complexity increases logarithmically, but the

the search is conducted for less elements. The tim-

ings until densities of 20% are dominated by the log-

arithmic factor, being then dominated by the number

of valid elements, with timings decreasing as the per-

centage of invalids increases.

It can be observed that Jumping Jack algorithm

performs faster than Horn’s for densities under 78%,

demonstrating the practical utility of the algorithm,

when monotonicity is not a requirement, and speciﬁ-

cally when very sparse data is not expectable.

Next, we present the results for the inter-block

compaction process using several block sizes. We

have tested the compaction in two architectures to

conclude about the scalability of the proposed algo-

rithm. Figure 12 shows the achieved timings for the

tested GPU nVidia Go 7300 (3 vertex processors, 4

fragment processors), and Figure 13 for a more recent

nVidia 9500 M GS (NB8P) GPU (with 32 uniﬁed pro-

cessors).

The achieved results demonstrate that Jumping

Jack globally maintains its behavior, being faster than

Horn for densities under 70%. A relevant observation

is that, for very sparse data, the Jumping Jack algo-

rithm performs comparatively better with the more re-

cent GPU. In such circumstances, it can be observed

a lesser noticeable drop in performance. This is an

expected result, as the more recent GPU has a better

branch granularity and better loop support.

We observed that speedups ranging between 5×

and 8× were achieved, depending on the algorithm,

block size and data density. A direct comparison can-

0.00

50.00

100.00

150.00

200.00

250.00

300.00

0.00 10.00 20.00 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00

DensityofInvalidElements(%)

Time(ms)

Horn(bs=32) JumpingJack(bs=32)

Horn(bs=256) JumpingJack(bs=256)

Horn(bs=2048)

Figure 12: Timings taken on a nVidia GeForce Go 7300

GPU for intra-block compaction of a 4M stream versus the

invalid elements density (bs denotes the block size).

0

10

20

30

40

50

60

0.00 10.00 20.00 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00

DensityofInvalidElements(%)

Time(ms)

Horn(bs=32) JumpingJack(bs=32)

Horn(bs=256) JumpingJack(bs=256)

Horn(bs=2048)

Figure 13: Timings taken on a nVidia GeForce 9500M GPU

for intra-block compaction of a 4M stream versus the in-

valid elements density (bs denotes the block size)

not be easily made as there is no control over the as-

signment of uniﬁed processors to each pipeline stage.

Another important observation is that, for the more re-

cent GPU, the algorithms tend to perform better with

smaller block sizes, whereas the older GPU has an op-

posite behavior. Thus, the underlying GPU architec-

ture clearly inﬂuences the algorithms performance.

7 CONCLUSIONS AND FUTURE

WORK

This paper introduces Jumping Jack, an original algo-

rithm for non-monotonic stream compaction. To take

full advantage of it, a block based compaction scheme

is proposed. The algorithm is very simple to imple-

ment and has interesting computational complexity

properties. A major weakness of the algorithm rests

in its imbalanced behavior, which is more notably re-

vealed in presence of very sparse data.

The achieved results demonstrate the practical

usefulness of our proposal, for which we pointed

out the advantages and limitations compared to prior

work. We devised strategies and implementation

notes on how to make it useful and demonstrated that

JUMPING JACK - A Parallel Algorithm for Non-Monotonic Stream Compaction

145

the algorithm can perform considerably faster than

existent algorithms.

Our implementations have room to be further op-

timized, as they served fundamentally as a proof of

concept. We plan to continue testing the algorithms

in a broader range of hardware platforms and diversi-

ﬁed data sets, expecting further insights that can lead

to improved variations and ideas. Another avenue to

future work is to study how these algorithms and con-

cepts adapt to the forthcoming (and expectably more

ﬂexible) architectures and standards.

A major conclusion is that performance of com-

paction algorithms may have large data and architec-

tural (inter)dependencies. Tuning an optimal solution,

if possible, is therefore a complex task which is likely

to rely on several variables.

Aware of this, and as a future work avenue, we are

devising solutions that have the ability to adaptively

self-tune in order to achieve a better performance.

This goal is likely to encompass several approaches,

as for instance, developing new algorithms, hybrid al-

gorithms (retaining the best properties of each compo-

nent), and by the use of a generic optimization frame-

work, as outlined in (Moreira et al., 2006), to enable

a dynamic optimization of the compaction process.

ACKNOWLEDGEMENTS

This work has been supported by European Social

Fund program, public contest 1/5.3/PRODEP/2003,

ﬁnancing request no. 1012.012, medida 5/acção 5.3 -

Formação Avançada de Docentes do Ensino Superior,

submitted by Escola Superior de Tecnologia e Gestão

do Instituto Politécnico de Viana do Castelo.

REFERENCES

Blelloch, G. (1990). Preﬁx sums and their applications.

Technical Report CMU-CS-90-190, Carnegie Mellon

University - CMU – School of Computer Science,

Pittsburgh, PA 15213.

GPGPU (2008). GPGPU.org. http://www.gpgpu.org.

Greß, A., Guthe, M., and Klein, R. (2006). GPU-based

collision detection for deformable parameterized sur-

faces. Computer Graphics Forum, 25(3):497–506.

Harris, M. (2005). GPU Gems 2, chapter Mapping Compu-

tational Concepts to GPUs, pages 493–508. Addison-

Wesley.

Hensley, J., Scheuermann, T., Coombe, G., Singh, M., and

Lastra, A. (2005). Fast summed-area table genera-

tion and its applications. Computer Graphics Forum,

24(3):547–555.

Hillis, W. D. and Steele JR, G. (1986). Data parallel algo-

rithms. Communications of the ACM, 29(12):1170–

1183.

Horn, D. (2005). GPU Gems 2, chapter Stream reduction

operations for GPGPU applications, pages 573–589.

Addison-Wesley.

Lefohn, A. E., Sengupta, S., and Owens, J. D. (2007). Res-

olution matched shadow maps. ACM Transactions on

Graphics, 26(4):20:1–20:17.

Moreira, P. M., Reis, L. P., and de Sousa, A. A. (2006).

Best multiple-view selection: Application to the visu-

alization of urban rescue simulations. IJSIMM - Int.

Journal of Simulation Modelling, 5(4):167–173.

Nickolls, J., Buck, I., Garland, M., and Skadron, K. (2008).

Scalable parallel programming with CUDA. Queue,

6(2):40–53.

Owens, J. D., Luebke, D., Govindaraju, N., Harris, M.,

Kruger, J., Lefohn, A. E., and Purcell, T. J. (2007).

A survey of general-purpose computation on graphics

hardware. Computer Graphics Forum, 26(1):80–113.

Roger, D., Assarsson, U., and Holzschuch, N. (2007). Whit-

ted ray-tracing for dynamic scenes using a ray-space

hierarchy on the GPU. In Proceedings of the Euro-

graphics Symposium on Rendering’07, pages 99–110.

Sengupta, S., Harris, M., Zhang, Y., and Owens, J. D.

(2007). Scan primitives for GPU computing. In GH

’07: Proceedings of the 22nd Symposium on Graphics

Hardware, pages 97–106.

Sengupta, S., Lefohn, A. E., and Owens, J. D. (2006). A

work-efﬁcient step-efﬁcient preﬁx sum algorithm. In

Proceedings of the Workshop on Edge Computing Us-

ing New Commodity Architectures, pages D:26–27.

Ziegler, G., Tevs, A., Theobalt, C., and Seidel, H. (2006).

GPU point list generation through histogram pyra-

mids. In 11th Int. Fall Workshop on Vision, Modeling,

and Visualization - VMV’06, pages 137–144.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

146
