Ch. Bouras
Research Academic Computer Technology Institute (CTI), Greece
Computer Engineering and Informatics Department (CEID), University of Patras, Greece
K. Chatziprimou
Computer Engineering and Informatics Departmet (CEID), University of Patras, Greece
V. Triglianos
Research Academic Computer Technology Institute (CTI), Greece and
Computer Engineering and Informatics Departmet (CEID) University of Patras, Greece
Th. Tsiatsos
Department of Informatics, Aristotle University of Thessaloniki, Greece
Research Academic Computer Technology Institute (CTI), Greece
Keywords: Virtual reality, H-Anim, Humanoid Animation, Anim
ation, Networked Virtual Environments, Multimedia
systems, Architecture, and Applications.
Abstract: Many applications of Networked Virtual Environment presuppose the users’ representation by humanoid
avatars that are able to perform animations such as gestures and mimics. Example applications are computer
supported collaborative work or e-learning applications. Furthermore, there is a need for a flexible and easy
way to integrate humanoid standardized avatars in many different NVE platforms. Thus, the main aim of
this paper is to introduce a procedure of adding animations to an avatar that is complying with H-Anim
standard and to present a standardized way to integrate avatars among various NVEs. More specifically this
paper presents a framework for adding/loading custom avatars to an NVE and applying to them a set of
predefined animations, using H-Anim standard.
Currently, a large number of Networked Virtual
Environments (NVEs) have made their way to the
public. Users are represented in NVEs by entities
called avatars. Using virtual humans to represent
participants promotes realism in NVEs (Capin et. al,
1997). Moreover, users tend to develop a
psychological bond with their avatar/s. One of the
main tasks in a NVE is the integration of humanoid
avatars and humanoid animations on top of them.
This could be useful in order for the users to transfer
their avatars from an NVE to another. In many
Networked Virtual Environments, such as Massively
Multi-User Online Role-Playing Games, users are
given a large degree of control over the appearance
of their avatars (Yee, 2006). Usually the users
exploit this functionality to customize their avatars
in order to reflect their real or virtual personality.
The creation and integration of virtual humans
that are compatible in many different NVE
platforms is a challenging task for the following
reasons: (a) It requires the creation of a humanoid
avatar based on a standardized way; (b) The creation
of humanoid animation is a complex task which
usually requires particular skills and training
(Buttussi et al., 2006); and (c) there is no
Bouras C., Chatziprimou K., Triglianos V. and Tsiatsos T. (2009).
In Proceedings of the Fourth Inter national Conference on Computer Graphics Theory and Applications, pages 286-291
standardised way to integrate and share humanoid
avatars in a networked virtual environment.
The first challenge has been resolved with the H-
Anim standard (Humanoid Animation Working
Group, 2004), now included in X3D, which
describes humanoids as an hierarchically organized
set of nodes. Furthermore, Ieronutti and Chittaro
(2005) proposed Virtual Human Architecture
(VHA), which is an architecture that integrates the
kinematic, physical and behavioral aspects to control
H-Anim virtual humans. This solution is fully
compatible with Web standards and it allows the
developer to easily augment X3D/VRML worlds
with interactive H-Anim virtual humans whose
behavior is based on the Sense-Decide-Act
paradigm (represented through HSMs).
Concerning the animation (which is the second
challenge) there are many tools (free of charge or
commercial) which simplify this process by visual
authoring tools. Buttussi et al., (2006), present such
a tool called H-Animator as well as an overview of
other visual authoring tools. However, the main
problem is the third challenge because there is no
standardized way to integrate and share humanoid
avatars in a networked virtual environment. Miller
(2000) achieved to provide an interface to aggregate
and control articulated humans in a networked
virtual environment by addressing the following
The creation of an articulated joint structure of
virtual human avatars and a limited motion
library in order to model realistic movement.
More specifically Miller (2000) achieved rapid
content creation of human entities through the
development of a native tag set for the
Humanoid Animation (H-Anim) 1.1
Specification in Extensible 3D (X3D).
The development and implementation of a set of
rule-based physical and logical behaviors for
groups of humans in order to execute basic
tactical formations and activities.
The aggregation of human entities into a group
or mounting of other human entities (such as
vehicles) and then separation back to individual
entity control. Otherwise, the high-precision
relative motion needed for group activities is
not possible across network delays or in geo-
referenced locations.
Even though Miller’s work is based on standards it
does not solve the problem of dynamic avatar
creation and change. Based on the above, it is
obvious that there is an need for a flexible and easy
way to integrate humanoid standardized avatars in
many different NVE platforms. Rapid application
development process could help on this direction by
utilizing reusable frameworks and API’s. This work
deals with two important challenges in the field of
NVEs. The first is the procedure of adding
animations to an avatar that is complying with a
standard, in our case H-Anim. The second is to
introduce a standardized way to integrate avatars
among various NVEs. Our contribution focuses on
providing a framework that allows a user to upload
an avatar to an NVE, to automatically add
predefined animations to it and integrate it to the
environment. All these steps could happen at
execution time. More specifically, in this paper we
present a framework that allows any X3D compliant
platform to import an H-Anim compliant avatar, to
add a set of custom animations to it and finally, to
add the avatar to the virtual environment.
This work is structured as follows. The next
section is an overview of an NVE Platform called
EVE that is the platform we used to integrate and
test our framework. Afterwards, the architecture of
the proposed solution is presented. The fourth
section describes the process of integrating the
framework to an NVE. The fifth chapter illustrates
practical examples concerning the practical
exploitation the proposed framework. The final
section presents the concluding remarks and our
vision for the next steps.
Even though the proposed H-Anim integration
framework aimed to support any NVE platform
based on X3D standard, we are presenting it through
its integration in EVE (http://ouranos.ceid.upatras.gr/vr)
networked virtual environments platform (Bouras et
al, 2006).
Thus, it is essential to present the main
characteristics of this platform. EVE is based on
open technologies (i.e. Java and X3D).
It features a client – multi-server architecture
with a modular structure that allows new
functionality to be added with minimal effort.
Initially, it provides a full set of functionalities for e-
learning applications and services, such as avatar
representation, avatar gestures, content sharing,
brainstorming, chatting etc.
Furthermore, the current version of the platform
supports collaborative design applications. Currently,
the architecture of the platform consists of five
servers as shown in Figure 1.

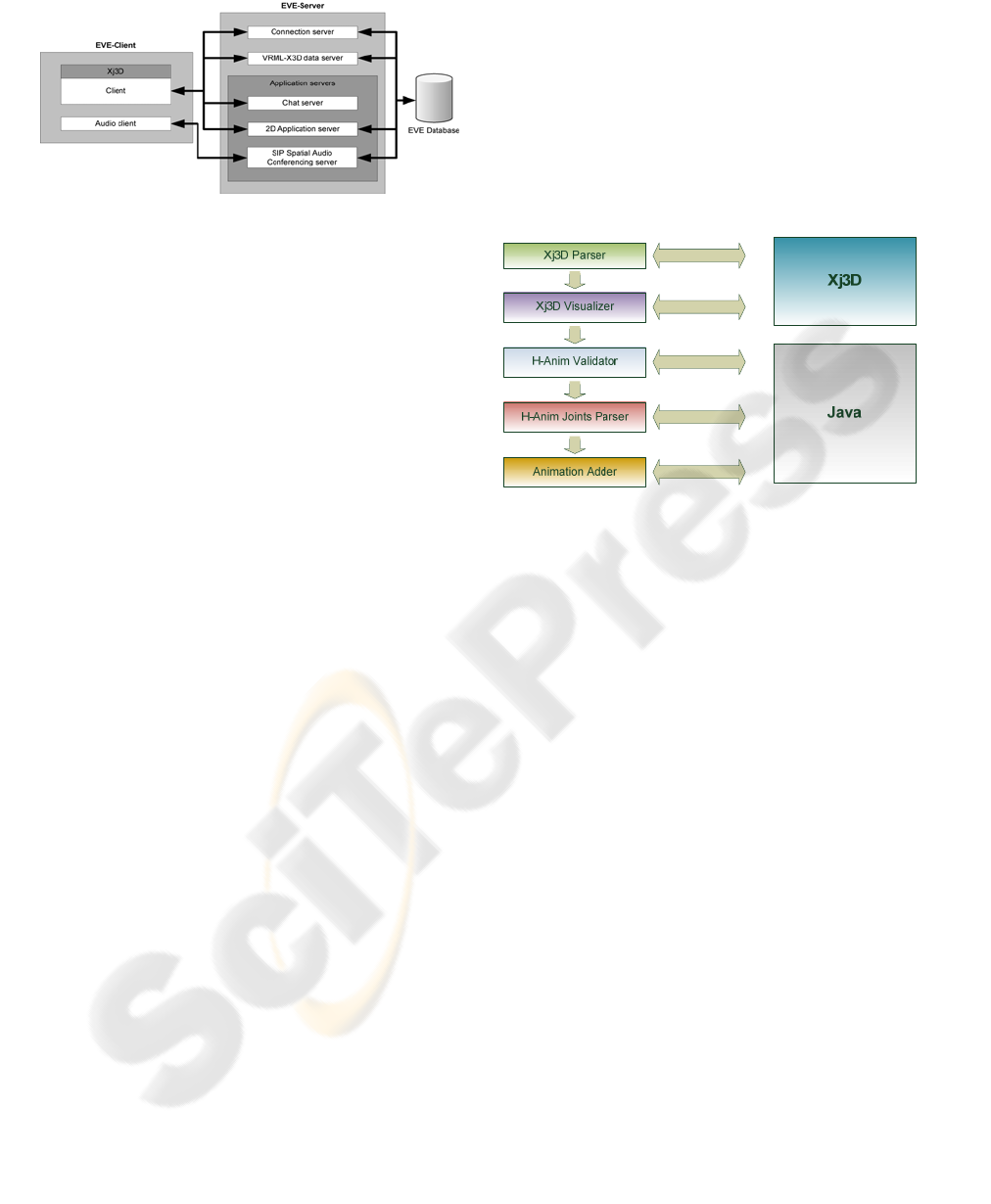

Figure 1: EVE Architecture.
The “Connection Server” coordinates the
operation of the other servers. The “VRML-X3D
Server” is responsible for sending the 3D content to
the clients as well as for managing the virtual worlds
and the events that occur in them. The “Chat Server”
supports the text chat communication among the
participants of the virtual environments.
The “SIP Spatial Audio Conferencing Server” is
used in order to manage audio streams from the
clients and to support spatial audio conferencing.
Finally the “2D Application Server” is handling the
generic (i.e. non - X3D) events.
On the client side, the interface of the platform is
rendered by a Java applet that incorporates an X3D
browser (based on Xj3D API). The following
section presents the architecture of the new H-Anim
component integrated in EVE platform and
describes its operation.
In this section the architecture behind the framework
for H-Anim support in NVEs is presented.
The "H-Anim 200X" standard has been chosen
for the representation of humanoid models in EVE
platform. Originally created to enable the design and
exchange of humanoids in virtual online
environments, the Η-anim standard offers a suitable
data structure for the real time animation. The main
features of H-anim standard are the following:
Support of VRML, XML and X3D data
Support of five (5) types of nodes: Humanoid,
Joint, Segment, Site and Displacer nodes.
Different levels of complexity are suggested.
These suggestions are called "Levels Of
Articulation" of the skeleton (LOA). There are
three of them (excluding the trivial, zero LOA),
varying in number of joints and sites needed.
Objects that are not part of the anatomy can still
be specified within the H-Anim humanoid data
"Skinning" the avatar is made possible by a dual
specification of the body geometry, which is
divided into the skeletal and the skinned part.
Moreover, the anatomy is specified through a tree-
like hierarchical structure of H-Anim specific nodes,
which is referred to as the skeletal body geometry
Figure 2: Architecture Components.
As long as a client (i.e. a user) wishes to connect
to the NVE, using her/his own avatar and utilize the
supplied animations, her/his humanoid has to be H-
Anim compliant. The overview of the architecture of
the proposed H-Anim component is presented
in Figure 2
The following paragraphs describe:
the mechanism for inserting an H-Anim avatar
in an NVE platform along with its animations.
the main parts of the H-Anim component (i.e.
the parser and the user interface).
3.1 Mechanism
The operation of H-Anim component presupposes
the availability of a VRML/X3D file that contains
the avatar as well as a set of VRML /X3D
GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

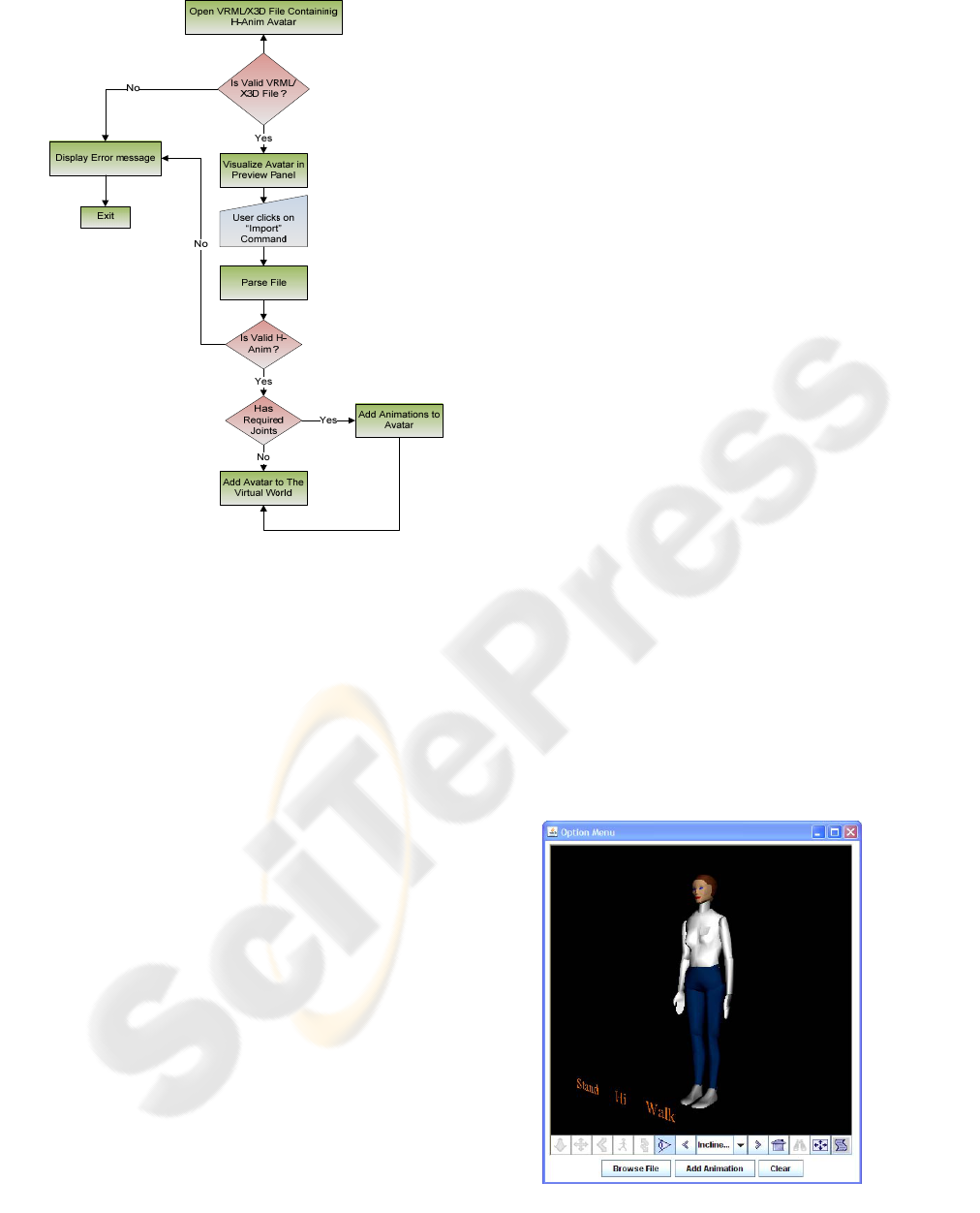

Figure 3: Flowchart of the import process.
Based on these necessary inputs, the operation of the
H-Anim component is based on the following steps
(Figure 3):
File submission and opening: Reading of the
VRML/X3D file that contains the avatar.
Validation of X3D/VRML compliance:
Validation of the above file. If it’s a valid
X3D/VRML file, visualize it on a Xj3D
Visualization Panel. If not a response
describing the problem is displayed and the user
can try again by restarting this process.
File insertion: Using the Xj3D Visualization
Panel the user can import the already validated
(against VRML/X3D) avatar file in order to
perceive its Level Of Articulation (LOA). If
LOA is equal or greater than 0 then we move to
the next step. If this is not the case then a
message describing the problem is displayed.
The user can try to upload another file.
Animation readiness validation: Check the file
to find out if the joints that are required by the
list of animations that we want to append, are
present. If they are, then the animations are
added to the avatar. If not then we simply
import dynamically the avatar to the NVE. In
the latter case a message informs the user that
although his/her avatar was imported to the
platform, the animations he chose were not
added to the avatar due to joints
Integration of animations: Finally, when all of
the above controls are completed, the
Animation Adder can be utilized. Choosing the
option “Add Animation” from the main menu, a
dialog frame pops up, and the user can select,
among a list of animations, the animation he
wishes to append to his avatar.
3.2 The Main Parts of the H-Anim
The framework’s architecture mechanism consists of
five main parts: the X3D/VRML Parser, the Xj3D
Visualizer, the H-Anim Validator, H-Anim Joints
Parser and finally the Animation Adder. The
following paragraphs describe each one of the above
The X3D/VRML Parser, based on Xj3D API,
which provides both syntax and semantic level
checking, is given a URL that represents the location
of a X3D/VRML file, making it transparently useful
as either part of a web browser or standalone client.
As the parser carries out the VRML/X3D grammar,
a set of VRML/X3D nodes is generated.
Once the parsing of the client’s file is correctly
accomplished, the content is displayed in the Xj3D
Visualizer. The interface that hosts the Xj3D
Visualizer, provides an option menu wherein the
user can browse a file in his computer system, and
thereafter submit it to H-Anim Validator. As long as
the selected file is validated as H-Anim compliant,
the client is enabled to interact with a dialog menu,
choose the desired animation and therefore apply it
to his own avatar.
Figure 4: User Interface main menu.
In particular, the H-Anim Joints Parser takes as
input the location of the user’s avatar file, and
examines if there exists an hierarchical structure of
H-Anim specific joints. The H-Anim Joints Parser
searches for the joints required by the selected
animation. Such a check is crucial in order for the
desired animation to be compatible with the offered
3D avatar. As has been already mentioned before,
the skeleton of the avatar consists of a sequence of
mutually alternating joints and segments (bones). By
that way, a graph is formed, where joints represent
vertices and segment stand for edges. The root of the
graph is referred to as the basis. The leaf of the
graph is called the end effector. The illusion of the
movement of the humanoid is reached by rotating
the segments around the joints. Consequently if
specific joint nodes are missing, no animation can
occur. As a result only if the user’s humanoid is H-
Anim compliant, containing the necessary joint’s
sequence, the existing animation can be attached to
her /his file. Responsible for the latter is the
Animation Adder, which appends the animation
code to the avatar’s file, under the correct context.
Finally, the user may clear the history of his actions.
There are three major steps in order to integrate this
work to an NVE, as were done in EVE’s case. The
first deals with the Graphic User Interface (GUI) of
the Framework. The second deals with the input and
output of the framework. In the next two paragraphs
we will address this two issues respectively.
The entire user interface of the framework is
embedded in a JFrame class instance. This makes it
very easy to integrate it to both desktop and
WebTop applications that are developed in Java.
The process of adding the framework GUI to EVE
was very simple: We just added the JPanel object to
the specific portion of the JApplet object that forms
The framework needs to have access to the
X3D/VRML code of the set of animations that an
NVE supports. The path to these animations can be
appended to a configuration file that the framework
reads during initialization. Finally the output of this
framework, that is X3D/VRML files that describe an
avatar along with the set of animations that were
added to it, can be stored to a specific location
(described in the configuration file). Once the output
is produced, the framework can be configured to call
one or more NVE specific functions that adds/add
the X3D/VRML code of the avatar to the virtual
world. In EVE a function that adds X3D/VRML
content to the world was invoked as soon as the
framework produce the avatars file.
Example applications for this framework could be
distance learning or collaborative work applications.
Bailenson and Beall (2006) said that given the
advent of collaborative virtual reality technology, as
well as the surging popularity of interacting with
digital representations via collaborative desktop
technology, researchers have begun to
systematically explore this phenomenon of
Transformed Social Interaction (TSI). TSI
(Bailenson et. al 2004) involves novel techniques
that permit changing the nature of social interaction
by providing interactants with methods to enhance
or degrade interpersonal communication. Our
proposed framework could be used in order to
support the implementation of TSI by attaching in
real time humanoid animations in users’ avatars.
Furthermore, we can exploit the proposed
framework for supporting role changing in
collaborative e-learning scenarios that are conducted
in a NVE. Our framework can offer the dynamic
change of avatars according to the users’

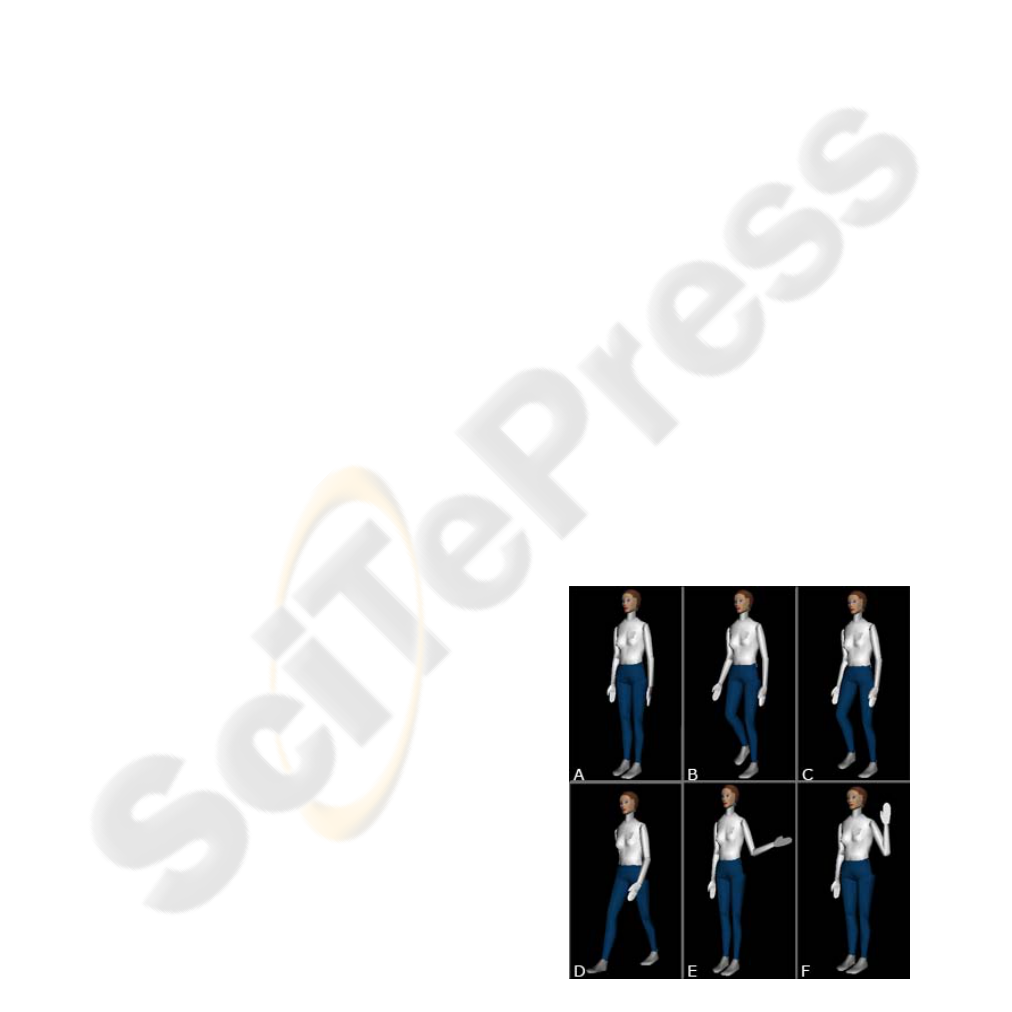

Figure 5A, shows an avatar in which we have
added various animations hat have been created by
the proposed process and is able to walk (Figure 5B,
C and D), salute (Figure 5E) and raise a hand
(Figure 5F).
Figure 5: Example avatar.
GRAPP 2009 - International Conference on Computer Graphics Theory and Applications
This paper presented a framework that (a) allows a
user to import custom H-Anim avatars to an NVE
and (b) adds the animations that are supported by
the NVE to an H-Anim Avatar. This framework
enables NVE’s developers to quickly add H-Anim
support to their applications. In addition, users can
benefit from this framework, in the sense that they
are able to import their favourite avatars in every
NVE they like.
Our next steps will focus on designing and
implementing a VRML/X3D visual editor that will
allow the user to modify his/her avatar at execution
time and before importing it to an NVE. We also
focus on releasing a Public API for this work.
Bailenson, J., Beall, A. 2006. Transformed Social
Interaction: Exploring the Digital Plasticity of
Avatars. Avatars at Work and Play, Book Series
Computer Supported Cooperative Work, Volume 34,
ISSN 1431-1496, Springer Netherlands, DOI
10.1007/1-4020-3898-4, pp. 1-16.
Bailenson, J.N., Beall, A.C., Loomis, J., Blascovich, J., &
Turk, M. (2004). Transformed social interaction:
Decoupling representation from behavior and formin
collaborative virtual environments. Presence:
Teleoperators and Virtual Environments, 13(4): 428–
Bouras, C., Giannaka, E., Panagopoulos, A., Tsiatsos, T.,
(2006) A Platform for Virtual Collaboration Spaces
and Educational Communities: The case of EVE,
Multimedia Systems Journal, Special Issue on
Multimedia System Technologies for Educational
Tools, Springer Verlang, Vol. 11, No. 3, pp. 290 –
Buttussi, F., Chittaro, L., and Nadalutti, D. 2006. H-
Animator: a visual tool for modeling, reuse and
sharing of X3D humanoid animations. In Proceedings
of the Eleventh international Conference on 3D Web
Technology (Columbia, Maryland, April 18 - 21,
2006). Web3D '06. ACM, New York, NY, 109-117.
DOI= http://doi.acm.org/10.1145/1122591.1122606.
Humanoid Animation Working Group, 2004. H-
Miller, T., E. (2000), “Integrating Realistic Human Group
Behaviors Into a Networked 3D Virtual
Environment”, Master's thesis, NAVAL
Ieronutti, L. and Chittaro, L. 2005. A virtual human
architecture that integrates kinematic, physical and
behavioral aspects to control H-Anim characters. In
Proceedings of the Tenth international Conference on
3D Web Technology (Bangor, United Kingdom,
March 29 - April 01, 2005). Web3D '05. ACM, New
York, NY, 75-83. DOI=
Yee, N. 2006. The Psychology of Massively Multi-User
Online Role-Playing Games: Motivations, Emotional
Investment, Relationships and Problematic Usage.
Avatars at Work and Play, Book Series Computer
Supported Cooperative Work, Volume 34, ISSN 1431-
1496, Springer Netherlands, DOI 10.1007/1-4020-
3898-4, pp. 187-207.
Capin, T.K., Noser, H. Thalmann, D., Sunday Pandzic, I.,
Thalmann, N.M. 1997. Virtual human representation
and communication in VLNet, Computer Graphics
and Applications, IEEE Volume: 17, Issue: 2, ISSN:
0272-1716, DOI: 10.1109/38.574680, pp. 42-53.
