Martin Kraus
Computer Graphics & Visualization Group, Technische Universit¨at M¨unchen, Boltzmannstraße 3, 85748 Garching, Germany
Three-dimensional graphics, Web graphics, Parametrized graphics, Interactive graphics, Interactive illustra-
tions, Synchronized graphics.
The synchronization of a single user’s interactions with multiple parametrized graphics in a single web page
is an important and powerful feature of interactive illustrations. In this work we present an interface to specify
this kind of synchronization and its implementation in a Java applet for rendering and interacting with three-
dimensional web graphics. Our design allows authors of web pages to synchronize the parameters of groups
of interactive graphics within a web page by specifying identical text labels for all applets of the same group.
Further labels may be specified to synchronize changes of the viewpoints and/or of the magnification. This
design allows for multiple, independently synchronized groups of graphics on the same web page as well as
any combination of synchronized parameters, viewpoints and magnification factors. Only three additional
applet parameters are necessary, which are not restricted by any syntax.
The support of web browsers for Java applets has led
to the development of many interactive web graph-
ics for illustration purposes. While most of these
graphics are restricted to two dimensions, there are
also many applets for three-dimensional illustrations.
Moreover, there are several frameworks for the design
of interactive illustrations that address the problem of
reducing the associated development costs, which are
usually significantly higher than the costs for static il-
One particular approach to the design of interac-
tive illustrations are “parametrized graphics” (Kraus,
2008). In this case, the underlying scene depends on a
set of parameters and is rebuilt (usually from scratch)
whenever any of the parameters is changed by the
user or due to an automatic animation. In general,
this approach simplifies the development of interac-
tive illustrations dramatically as shown, for example,
by the “Wolfram Demonstrations Project” (Wolfram
Research, 2008). Another example for this approach
is the related Java applet LiveGraphics3D” (Kraus,
2002), which serves as the test bed for our work.
Traditionally, many static illustrations accompany
a single main text. On the other hand, the develop-
ment of interactive illustrations and graphics is usu-
ally too costly to produce a similar amount of inter-
active illustrations. Moreover, some viewers for in-
teractive graphics are restricted to a single graphics
at a time. Thus, in most cases, only a single interac-
tive illustration is included in each document. There-
fore, the problem of synchronizing multiple interac-
tive illustrations in the same document has not re-
ceived much attention in the past.
However, the reduction of development costs en-
abled by parametrized graphics already resulted in
large collections of interactive illustrations and is
therefore very likely to lead to web pages and elec-
tronic documents that include multiple interactive il-
lustrations. Synchronizing these illustrations is not
always necessary; however, there are several im-
portant applications of synchronized graphics, such
as multiple views from different points of view,
overview+focustechniques, multiple “filtered” views,
consistent step-by-step illustrations for variable pa-
rameters, and sliders, dials, virtual trackballs, or other
2D and 3D widgets, which provide alternative in-
terfaces for manipulating parameters of interactive
While all these techniques can also be imple-
mented within a single graphics, the synchroniza-
tion of multiple graphics is more general and simpli-
fies the development of both, the viewer and the ac-
Kraus M. (2009).
In Proceedings of the Fourth International Conference on Computer Graphics Theory and Applications, pages 401-404
DOI: 10.5220/0001773104010404
tual content. Moreover, side-by-side comparisons of
graphics embedded in hypermedia documents are of-
ten preferable for presentation purposes and can only
be achieved by synchronizing multiple graphics.
In this work, we developed an interface to specify
the synchronization of multiple illustrations by ana-
lyzing basic properties and requirements of the syn-
chronization mechanism. This allowed us to reduce
the interface to the definition of a few (optional)labels
per graphics. These text labels are not subject to any
syntax; thus, no syntax errors are possible and authors
do not have to learn any syntax rules or restrictions.
Instead, the labels may be chosen arbitrarily and are
only tested for equality. We also present a prototyp-
ical implementation of this interface within the Java
applet LiveGraphics3D.
A survey of approaches to interactive illustrations in
electronic documents has been published by Kraus
(Kraus, 2008) with particular emphasis on the imple-
mentation of parametrized graphics within the Java
applet LiveGraphics3D (Kraus, 2002), which renders
graphics (Wolfram, 2003) with several
restrictions. The “Wolfram Demonstrations Project”
(Wolfram Research, 2008) provides a web platform
to archive and distribute more general interactive
parametrized graphics than supported by LiveGraph-
ics3D, i.e., arbitrary
graphics (Wolfram,
Communication between Java applets, which is
necessary for synchronization, has been discussed, for
example, by Andrew Meckler (Meckler, 1997) and
has been implemented in various Java applets for in-
teractive web graphics, e.g., “Jmol” (Jmol, 2008) and
“Modern CA” (ModernCA, 2008).
There are various ways of specifying synchroniza-
tions of interactivegraphics, which differ significantly
in the syntactical overhead as well as in their ex-
pressive power regarding the specification of different
kinds of synchronizations, e.g., master-slave relations
or selective synchronization of particular state vari-
In this section, we first discuss some features of
the synchronization of parametrized graphics, which
are particularly important since they determine the re-
quired expressive power of an interface for the speci-
fication of synchronized graphics. Based on this dis-
cussion, we develop the structure of our proposed in-
3.1 Properties of the Synchronization
3.1.1 Symmetric vs. Asymmetric
If the interface only allows for the specification of
symmetric synchronizations of parametrized graph-
ics, no “master-slave” relation can be specified, where
one graphics, the “master, is manipulated and a sec-
ond graphics, the “slave, follows the changes while
manipulations of the “slave” are not forwarded to the
“master. However, in almost all actual scenarios
symmetric synchronizations are sufficient as can be
shown by considering the following two cases:
1. The “slave” cannot be manipulated. In this case,
there is no difference between a symmetric syn-
chronization and a “master-slave” synchroniza-
tion because the “slave” never produces events
that have to be synchronized.
2. The “slave” can be manipulated. In this case,
there is a clear difference between a symmet-
ric synchronization and a “master-slave” synchro-
nization. In particular, there are some disadvan-
tages of the latter: Firstly, the states of the “slave”
and the “master” may be different, i.e., unsyn-
chronized. And secondly, if the states of the two
graphics are different and the “master” is manip-
ulated, the state of the slave” changes discontin-
uously due to the synchronization. Thus, this sce-
nario is usually highly undesirable.
We conclude that the “master-slave” synchroniza-
tion of parametrized graphics is unnecessary since it
is either indistinguishable from a symmetric synchro-
nization or results in inconsistent states and discontin-
uously changes of the state of the “slave.
3.1.2 Independently Synchronized Groups
Suppose there are four graphics A, B, C, and D in
a single document. (See also Figure 1.) In many
cases, only a subset of all graphics should be syn-
chronized, which might, however, consist of more
than two graphics. It is also conceivable that multiple
subsets should be synchronized independently, for ex-
ample, it might be necessary to synchronize the pair
{A, C} independently of the pair {B, D}. Thus, it is
necessary to allow for the specification of any number
of independently synchronized subsets of any size.
GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

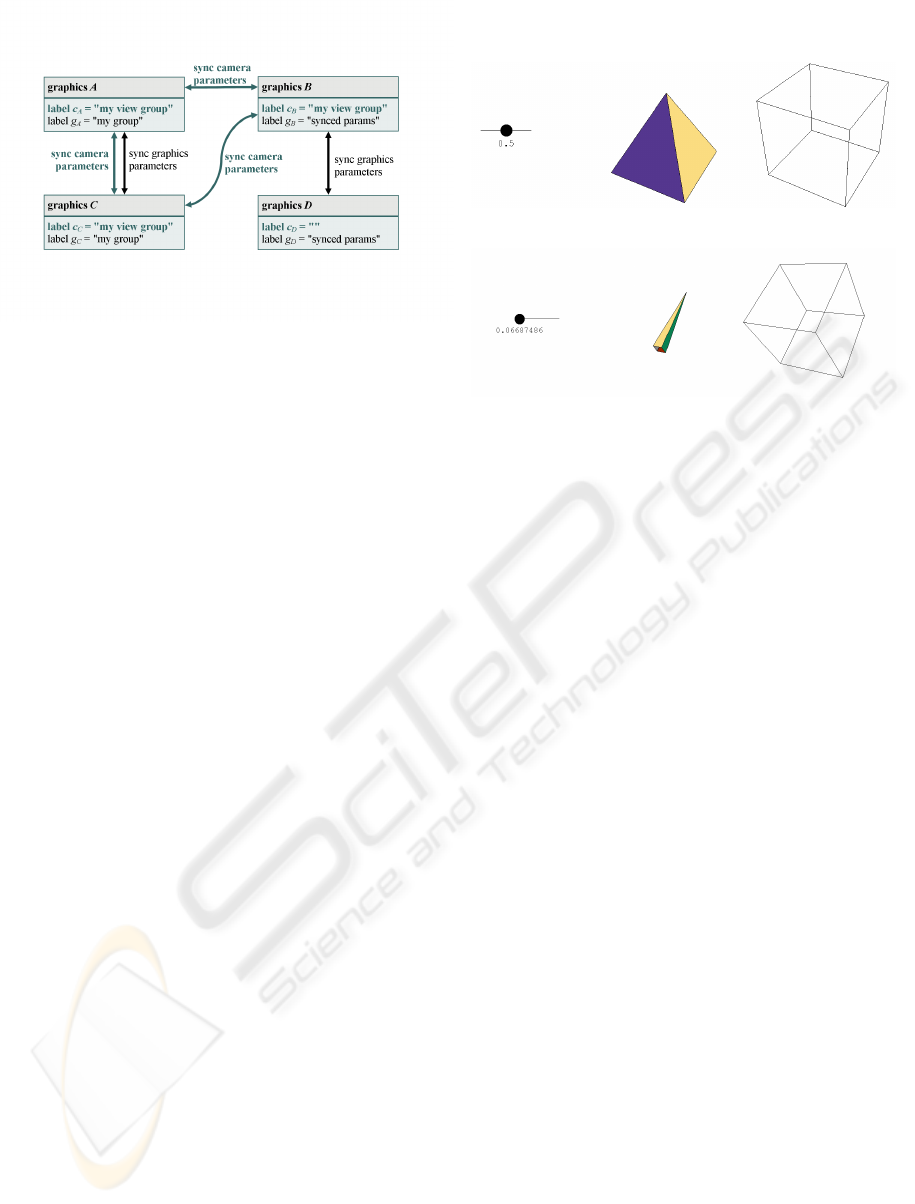

Figure 1: In this example, graphics A, B, and C synchro-
nize camera parameters since they specify identical camera
labels c
= c
= c
; graphics A and C synchronize graph-
ics parameters (because g
= g
) and graphics B and D
synchronize their graphics parameters independently (g
However, it is not necessary to be able to specify
intersecting subsets, e.g., the pairs {A, B} and {B, C},
because the specification of intersecting subsets can
always be replaced by specifying the union of these
subsets, in our example {A, B, C}, due to the implied
synchronization of all elements of the intersecting
3.1.3 Synchronized State Variables
Depending on the functionality offered by a ren-
derer for parametrized graphics, several groups of
state variables should by independently synchroniz-
able, for example, camera parameters, parameters of
the graphics, or a time parameter for animations.
However, in several scenarios it is preferable to
synchronize only a subset of the camera parameters.
For example, the field of view should usually not be
synchronized between a focused view and the cor-
responding overview while other camera parameters
should be synchronized.
The synchronization of parameters of multiple
graphics requires the specification of corresponding
parameters of these graphics. However, assuming that
the author of a web page has full control over the
included graphics, the easiest way to specify corre-
spondences between parameters is naming them iden-
tically in all included graphics.
For animations, it is preferable to introduce a time
parameter with a user-specified name. Thus, the time
variable of an animation can be synchronized with
any other parameter of another graphicsjust by choos-
ing identical names.
Figure 2: Initial rendering of three synchronized applets.
Figure 3: Rendering of the three applets in Figure 2 after
the point in the left-most applet has been dragged to change
the variable
and the right-most applet has been rotated to
change the camera parameters. The applet in the middle is
synchronized with both changes.
3.2 Specifying Synchronized Graphics
Based on the requirements discussed in the previous
section, we conclude that for each document a set of
non-intersecting sets of synchronized graphics has to
be specified for each group of synchronized state vari-
ables (e.g., camera parameters, graphics parameters,
or time).
We propose to specify these sets by specifying
a label for each group of state variables and each
graphics. If the labels of two (or more) graphics for
the same group of state variables are identical, these
state variables are synchronized. An example with
two groups of state variables (camera parameters and
graphics parameters) is illustrated in Figure 1.
There are several advantages of this interface in
comparison to previously presented interfaces for the
specification of synchronizations (Jmol, 2008; Mod-
ernCA, 2008):
The specification is completely symmetric: all
graphics are treated the same way.
For each group of state variables, any number of
non-intersecting sets of graphics can be specified
without the need to specify lists of graphics.
There is no need to name graphics nor to reference
graphics by any other means.
There is no possibility for syntax errors or any
other inconsistencies (if labels are not identical,
there is just no synchronization).
Furthermore, the design is easily extensible for ad-
ditional groups of state variables by introducing ad-
ditional labels and no additional syntax has to be
learned by authors of web pages.
We implemented our proposed interface within the
Java applet LiveGraphics3D (Kraus, 2002). From
several use cases we decided that three groups of
state variables may be synchronized independently:
graphics parameters, which are called “indepen-
dent variables” in LiveGraphics3D (Kraus, 2002);
camera parameters, which include the
(Wolfram, 2003) options
; and a magnification parameter,
which is specific to LiveGraphics3D. One text
label may be specified for each of these groups
and for each applet by means of three applet
, and
. A ex-
ample with three applets is illustrated in Figures 2
and 3.
On initialization, each applet builds three lists of
applets within the same document that specify the
same label in one of the three applet parameters for
synchronization. If such an applet was found, it is ap-
pended to one or more of the three lists and requested
to add a reference back to the former applet. This
is necessary because applets can be initialized in any
order by the Java virtual machine. During runtime,
each change of the graphics parameters or the camera
parameters of one applet is sent to all applets in the
corresponding list of synchronized applets.
4.1 Synchronization of Time Variables
A particular problem is posed by the synchroniza-
tion of time variables, which are incremented contin-
uously by all animated applet; thus, a smooth, sym-
metric synchronization is difficult to achieve between
two animated applets. Moreover, in the case of the
synchronization of a time variable with a directly ma-
nipulated parameter, it is preferable to establish an
asymmetric master-slave synchronization, where the
directly manipulated parameter acts as the master. We
solved these problematic situations by stopping any
animation as soon as its time variable is set to an-
other value due to a synchronization. This strategy
turned out to provide the most intuitive user experi-
ence among the tested approaches.
This work presents a particularly simple interface for
the specification of synchronizations of user interac-
tions with multiple parametrized graphics and a pro-
totypical implementation in a Java applet. There are
many applications for this kind of synchronization,
which will become more important as interactive il-
lustrations become more popular in the web and in
other electronic documents.
The proposed interface is only a small part of
any complete framework for interactive illustrations;
however, it can contribute significantly to the success
and usability of any such framework.
Future work consists in providing a collection of
basic widgets, e.g., sliders, dials, 2D and 3D point
selectors, virtual trackballs, etc., and to research the
specification and applications of remote synchroniza-
tions of parametrized graphics.
Jmol (2008). Jmol Interactive Scripting Docu-
mentation. Retrieved July 24, 2008, from
Kraus, M. (2002). Parametrized Graphics in Mathematica.
In Proceedings of the 2002 World Multiconference on
Systemics, Cybernetics, and Informatics (SCI 2002),
volume XVI, pages 163–168.
Kraus, M. (2008). From Parametrized Graphics to Interac-
tive Illustrations. In Borwein, J. M., Rocha, E. A. M.,
and Rodrigues, J. F., editors, Communicating Mathe-
matics in the Digital Era. A.K. Peters, Ltd.
Meckler, A. (1997). Java and Inter-Applet Communication.
Dr. Dobb’s Journal.
ModernCA (2008). Modern Cellular Automata Author
Documentation. Retrieved July 24, 2008, from doc-
Wolfram, S. (2003). Mathematica: A System for Doing
Mathematics by Computer. Wolfram Media, 5th edi-
Wolfram Research (2008). Wolfram Demonstra-
tions Project. Retrieved July 24, 2008, from
GRAPP 2009 - International Conference on Computer Graphics Theory and Applications
