CACHED MULTI-BOUNCE SOLUTION AND RECONSTRUCTION

FOR VOXEL-BASED GLOBAL ILLUMINATION

Łukasz Piwowar

Institute of Computer Science, University of Wrocław, Poland

R

´

emy Malgouyres

∗

Univ. Clermont 1, LAIC, EA2146, IUT Campus des C

´

ezeaux, BP 86 63172 Aubi

`

ere cedex, France

Keywords:

Realistic Rendering, Global Illumination, Voxel, Reconstruction, Multi-bounce.

Abstract:

We address the main shortcomings of the voxel-based multi-bounce global illumination method of Chatelier

and Malgouyres (2006), by introducing an iterated cached method which allows increasing sampling coarse-

ness at each bounce for improved efﬁciency, and by introducing a ray-tracing based reconstruction process for

a better ﬁnal image quality. The result is a competitive accurate multi-bounce global illumination method with

octree voxel-based irradiance caching.

1 INTRODUCTION

Comprehensive multi-bounce methods for global il-

lumination have been extensively studied, and ﬁnd-

ing the right balance of speed vs accuracy is always

painful. The most widely used approach consists in

one step of coarse computation of a global illumi-

nation solution followed by a step of reconstruction

by gathering the light by ray-tracing to provide good

quality images.

In (Malgouyres, 2002) and (Chatelier and Malgo-

uyres, 2006), a new to global illumination and a dis-

cretization of the diffuse illumination, based on voxel

approximation of surfaces by voxels is proposed. The

interest of the method is that visibility is determined

in linear time with respect to the number of rays.

Moreover, it directly provides a voxel-based irradi-

ance lookup octree. However, the method presented

in (Chatelier and Malgouyres, 2006) has two weak-

nesses: ﬁrst, solid angle sampling is the same for each

bounce, and in particular, direction sampling from

light sources is insufﬁcient while the cost of direc-

tion sampling after one or two bounces is very expen-

sive. Second, no reconstruction process is presented

and direct display of the voxel solution requires many

voxels, which also increases the runtime.

∗

This work was supported by the French National Re-

search Agency under contract GEODIB ANR-06-BLAN-

0225

In this paper, we address these two shortcomings

by proposing an iterated cached coarse global illu-

mination solution, in which direction sampling de-

creases after each bounce, followed by a reconstruc-

tion phase based on light cuts (Walter et al., 2005). It

results in a competitive accurate multi-bounce global

illumination method with a voxel irradiance cache oc-

tree.

In section 2, we have presented previous work

and outline the method of (Chatelier and Malgouyres,

2006). In Section 3, we present the iterated cached

global illumination method, and in Section 4, we ex-

plain our reconstruction process. In Section 5, we

present experimental results. Finally, in Section 6 we

present some perspectives for future works.

2 PREVIOUS WORK

The most widely used global illumination techniques

consist in a ﬁrst phase of computation of a coarse

solution, for example by photon mapping (Jensen,

1996), (Jensen, 1997), (Jensen, 2001). This method

traces random rays from light sources, and at each

intersection, traces a new random ray with a prob-

ability that depends on the BRDF according to rus-

sian roulette. Then, a second phase consists in a

viewpoint-dependant ray-tracing for computing good

173

Piwowar Ł. and Malgouyres R. (2009).

CACHED MULTI-BOUNCE SOLUTION AND RECONSTRUCTION FOR VOXEL-BASED GLOBAL ILLUMINATION.

In Proceedings of the Fourth International Conference on Computer Graphics Theory and Applications, pages 173-178

DOI: 10.5220/0001768301730178

Copyright

c

SciTePress

quality images. Instant radiosity ((Keller, 1997)) was

the ﬁrst of such methods to be introduced. Other

methods for ﬁnal gather steps have been produced

(Granier and Drettakis, 2004), (Arikan et al., 2005).

In all of these methods, determining visibility by

ray-object intersection is a very important time cost

factor. Attempts at getting rid of visibility problems

altogether have been made (Dachsbacher et al., 2007),

however at a cost of increased memory and reintro-

ducing hierarchical radiosity difﬁcult problems of re-

ﬁnement and meshing (Sillion and Puech, 1994). For

accelerating the gather step, photon splatting (Lav-

ignotte and Paulin, 2003), (Dachsbacher and Stam-

minger, 2006) can by used, but it neglects some occlu-

sions for indirect light and uses rough approximations

for speedup.

In (Chatelier and Malgouyres, 2006), a new global

illumination approach is considered, with a cost

which is linear with respect to the number of visibility

rays. This is a promising result, but there are short-

comings. The goal of this paper is to provide solution

to these, to obtain a competitive global illumination

technique. Up to the end of this section, we outline

the method of (Chatelier and Malgouyres, 2006).

In (Malgouyres, 2002), the (Lambertian) global il-

lumination equation

B(x) = E(x) + ρ(x)

Z

S

B(y)

cos θ

π

d

−→

σ

is discretized as

B(x) = E(x) +ρ(x)

∑

−→

σ ∈D

B(I(x,

−→

σ ))

cosθ(x,I(x,

−→

σ ))

π

∆Ω(

−→

σ )

where x is now a voxel, D is a set of discrete di-

rections in space, I(x,

−→

σ ) is the ﬁrst point y viewed

from x in the direction of

−→

σ (as in a ray-object

intersection), and ∆Ω(

−→

σ ) is the fraction of a solid

angle associated to the direction

−→

σ . In (Chatelier

and Malgouyres, 2006), a solution of the discrete

equation is obtained with a linear complexity with

respect to the number of rays. We remind the reader

the main ideas of the method. More details can be

found in (Chatelier and Malgouyres, 2006).

Given a direction vector (a,b,c) ∈ Z

3

with a ≥

b ≥ c, a notion of a 3D line has been proposed

(Debled-Rennesson, 1995), as the set of points

(x,y,z) ∈ Z

3

such that

µ ≤ cx − az < µ + ω and µ

0

≤ bx − ay < µ

0

+ ω

0

where µ,µ

0

,ω,ω

0

are integers. Other cases can be

deduced by symmetry. Let us denote by Z

3

∗

the set

Z

3

\{(0,0,0)}. Given an integer vector

−→

v ∈ Z

3

∗

, the

set Z

3

can be partitioned into 3D discrete lines, whose

direction vector is

−→

v (see Figure 1).

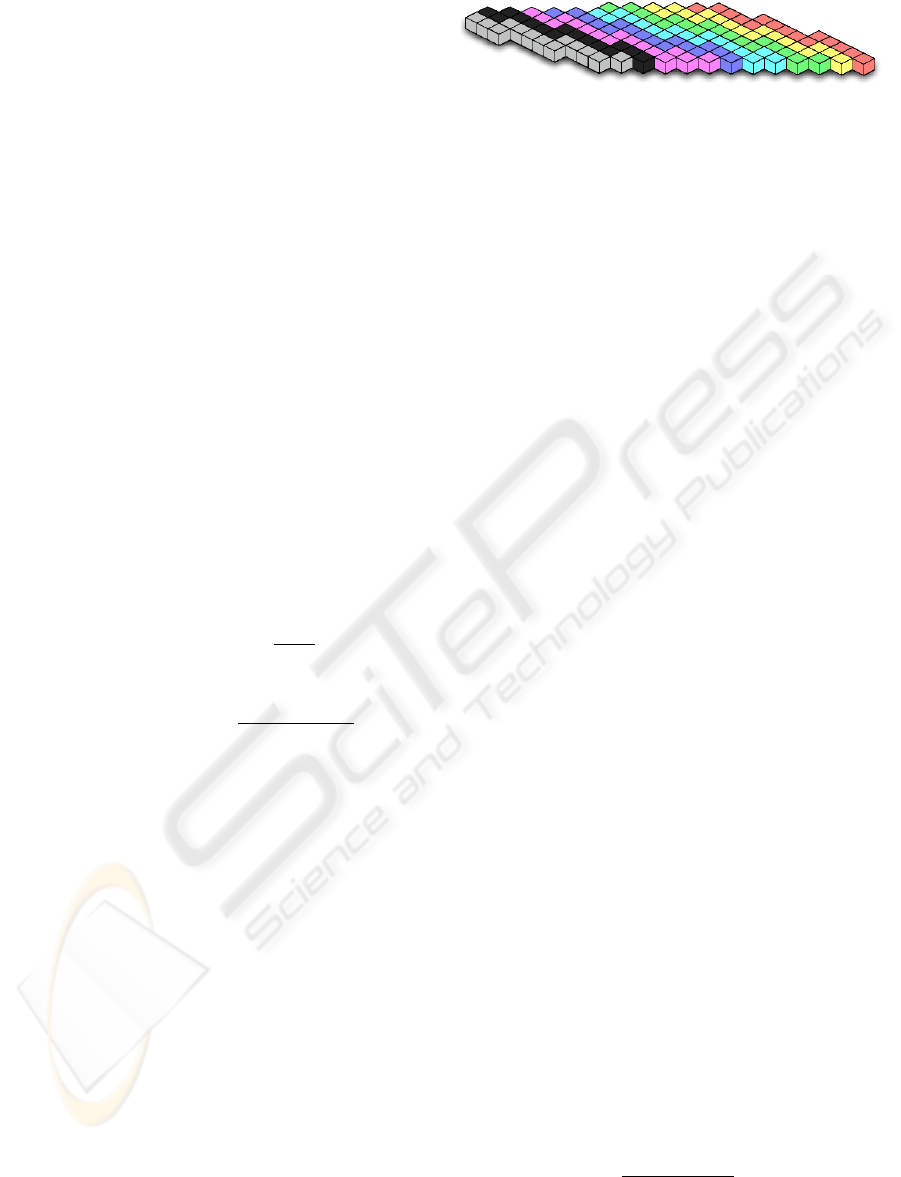

Figure 1: Partition of the space into parallel discrete lines.

Moreover, given a voxel x ∈ Z

3

, ﬁnding out which

3D discrete line in the partition the point x belongs to

can be done in constant time.

Now, to transfer energy from one voxel x to the

ﬁrst voxel y visible from x in a direction σ, for some

ﬁnite set of sample directions σ, if we consider some

ﬁxed direction σ and a partition of the voxel space

Z

3

into discrete lines parallel to σ, then the voxels of

the discretized surface (say mesh or implicit surface)

that lie on the same discrete line can be arranged in

an ordered list. In this ordered list, the ﬁrst visible

voxel is the next voxel in the list. So, once the lists

are sorted, we can propagate the energy in linear time

O(N), where N is the number of voxels.

Now, the idea of the method is that by going over

the set of all surface voxels in a lexicographic order

(lexicographic orders are precomputed by radix sort),

we can build all the sorted lists in linear time O(N).

We do this for each of the D sample directions and

for each of the I Gauss-Seidel iteration, and we get a

numerical solution of the global illumination equation

in time O(N × I × D).

3 SHOOTING FROM LIGHT

SOURCES AND BOUNCE

CACHE METHOD

Although the method of (Chatelier and Malgouyres,

2006) has a linear complexity with respect to the num-

ber of rays, one of its drawbacks is that it doesn’t sam-

ple solid angles according to power importance. We

consider small light sources which emit much light

per unit of area, as we can ﬁnd in many applications,

ﬁrst the voxel size needs to be small enough to ap-

proximate light source shapes, thus many voxels are

required, and second, the solid angle sampling must

be ﬁne enough to avoid artifacts. A natural solution

to this problem is the use of the raytracing instead of

discrete shooting in this step. We proceed as follows:

First we choose number of initial photons on light

sources with the random normal distribution that de-

pends on light power and area. The energy of each

sample is equal to

overall energy

number of samples

. Then we shoot

from each initial photon n rays into n directions, with

energy equal to E/n. For each intersection point we

store the given energy and compute the correspond-

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

174

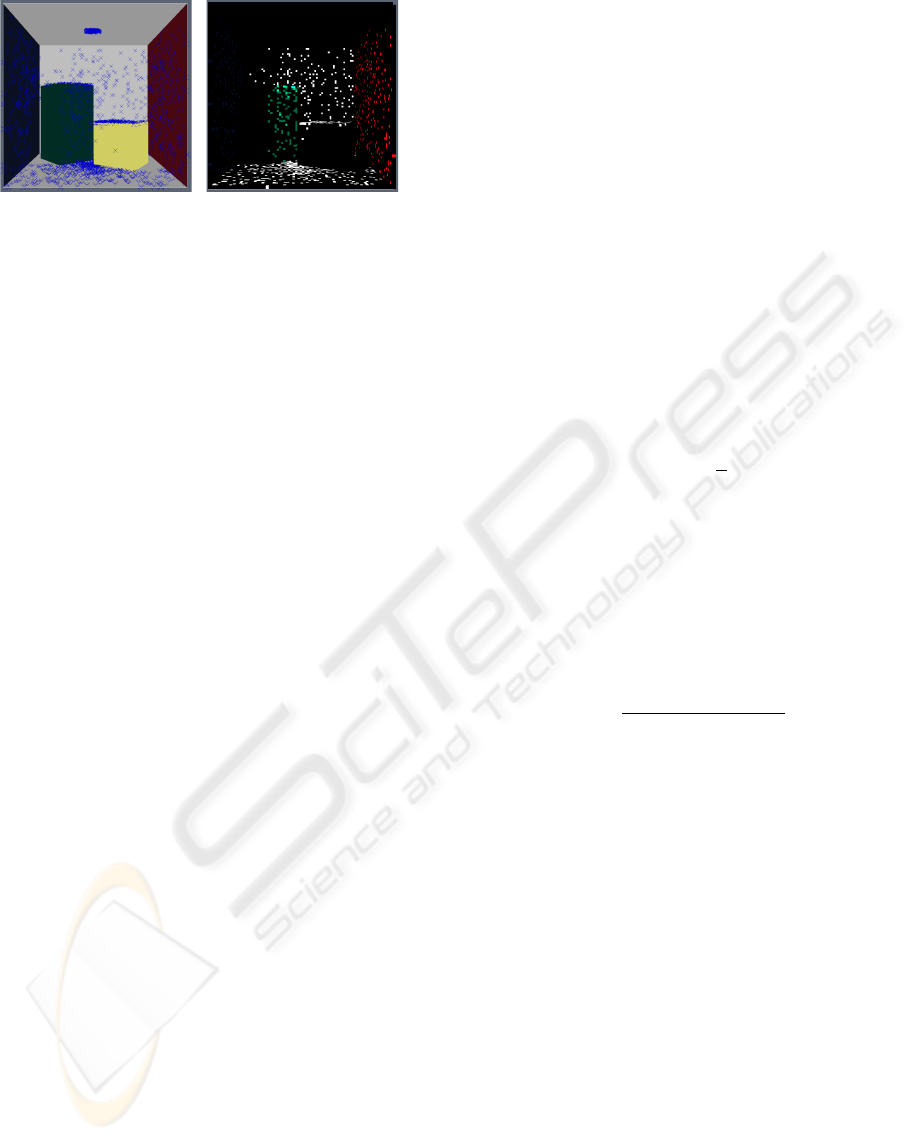

(a) Direct photons shooting (b) Initial voxel power

Figure 2: Photons shooting and voxels initialization.

ing irradiance. The set of indirect photons is used as

initial voxel setup (the initial voxel irradiance is equal

to the sum of the irradiance of the photons inside the

voxel). We propagate this light using the linear voxel

method of (Chatelier and Malgouyres, 2006).

After each bounce of Lambertian surface, the en-

ergy amount is reduced signiﬁcantly, and is getting

lower frequency (i.e. more smooth). We can use that

property by using less directions at each intersection

level, thus reducing the cost of multi-bounce simula-

tion. At each bounce we propagate only the light that

was created during previous shooting phase, summing

all the light in a global accumulation cache after each

iteration. We split computations into sets of indepen-

dent i to i + 1 bounces, and we use different (e.g. di-

vided by 2 at each bounce) number of directions at

each level. The algorithm can be sketched as follows:

• We shoot photons from light sources by raytracing

at path length one (only ﬁrst intersections).

• We sum the irradiance in the corresponding vox-

els and use the result as initialization of the linear

method of (Chatelier and Malgouyres, 2006). We

store this in currentCache.

• for each iteration

we propagate currentCache and store new

values into CachePlus

we add the energy from CachePlus to

GlobalCache

we swap CachePlus and currentCache

we clear CachePlus

4 RECONSTRUCTION METHOD

We present two approaches to light gathering for

voxel-based global illumination: one similar to in-

stant radiosity (Keller, 1997) and one based on light-

cuts (Walter et al., 2005).

4.1 Random Sample Voxels

Our ﬁrst reconstruction is inspired from instant ra-

diosity (Keller, 1997). Of course, the principle must

be substantially adapted to voxels. The intensity of

the voxels is proportional to their radiosity as ob-

tained in the output of the method of (Chatelier and

Malgouyres, 2006) improved by the iterated cached

method. However, in order to reduce the number of

point lights, and to take into account the nature of ra-

diosity (power per unit of steradian per unit of area)

we select the voxels randomly according to a proba-

bility proportional to their area, as deﬁned below, and

multiplied by a solid angle.

The area of a voxel is the sum for all boundary

voxel of an object of the dot product of the normal to

the faces of the voxel with the normal to the underly-

ing surface.

∆A(x) =

∑

y∈N

6

(x)∩O

−→

xy.

−→

N (1)

So, we make a raytracing phase by tracing rays

from the viewpoint through the pixels. For each pixel,

we compute the ray hit point I that we must shade. In

order to shade the hit point I, we use the sample vox-

els y, randomly selected with probability proportional

to ∆A(y), as point light sources with light contribu-

tion:

C

y

(I) = B(y)

cos θ(I,y)cos θ(y,I)

||I − y||

2

V (I,y) (2)

In fact, we select two random samples sets of vox-

els by monte-carlo sampling. We can use progres-

sive raytracing that allows the user to get approximate

results after a few seconds. This method generated

nice images, but its complexity is dependent on O(n)

where n is number of virtual point lights.

4.2 Reconstruction based on Lightcuts

In order to reduce the dominant reconstruction cost,

we use the lightcuts method (Walter et al., 2005). This

method enables us to render massive (thousands to

millions) number of point lights in a reasonable (sub-

linear) time. The only drawback is a small pixel po-

tential error value (determined by a user-set param-

eter, e.g. 2%) . A cluster is a set of point light

sources which are approximated by a single represen-

tative light source. A common lightcut tree, the nodes

of which are clusters, is created which uniﬁes illumi-

nation and enables transparent tradeoffs between ade-

quate components. During the reconstruction process,

at a ray hit point, the largest clusters compatible with

CACHED MULTI-BOUNCE SOLUTION AND RECONSTRUCTION FOR VOXEL-BASED GLOBAL

ILLUMINATION

175

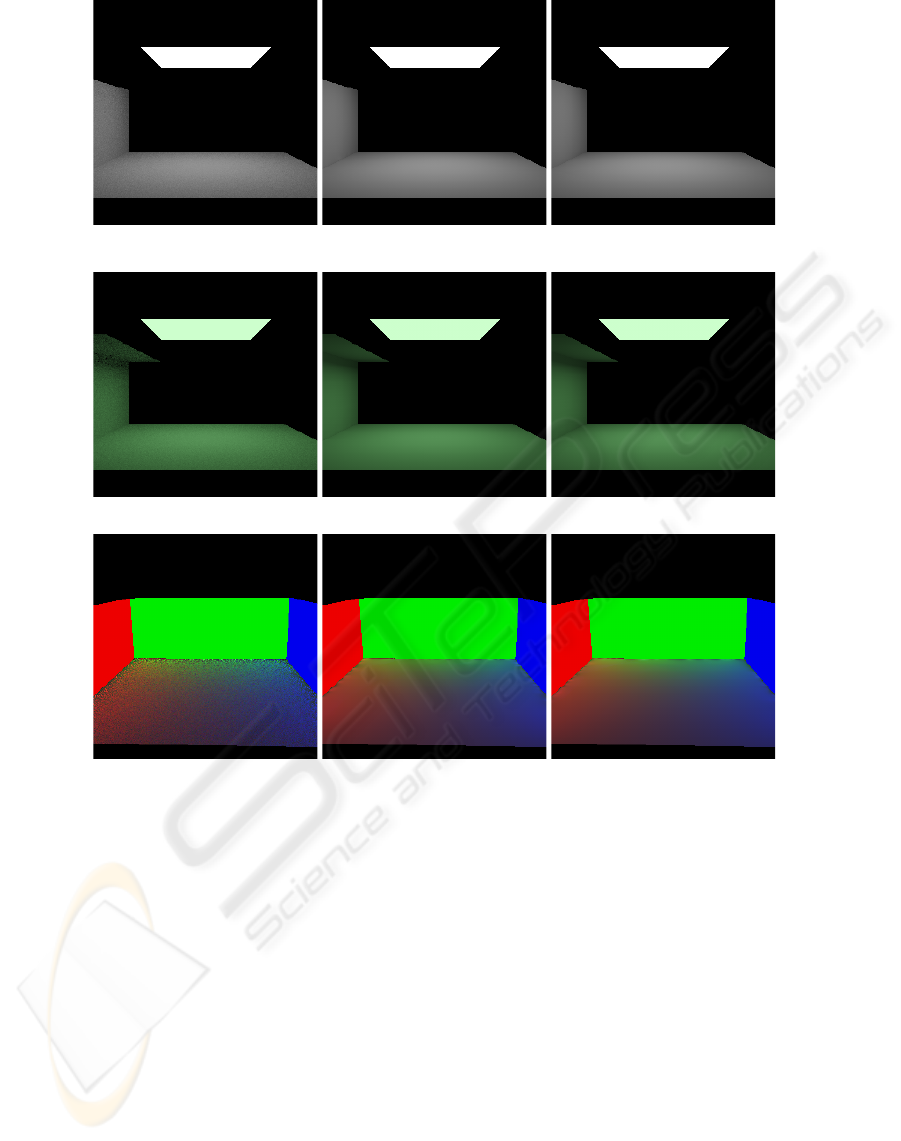

(a) 13.5 sec (b) 11.2 sec (c) 9.0 sec

(d) 14.3 sec (e) 13.1 sec (f) 11.5 sec

(g) 18.0 sec (h) 20.6 sec (i) 21.0 sec

Figure 3: Comparison tests. the left column was computed by monte carlo path tracing (50 samples per pixel), the middle

column is photon mapping with lightcuts for reconstruction, and the right column is the voxel-based method with lightcut

reconstruction. All pictures were computed using 1600 direct photons. We used 1600 indirect photons for photon mapping.

We used 128 directions in the linear voxel propagation, and 2 iterations. The discretization resolution was 64 ×64×64 voxels.

the error criterion is selected, and summed to obtain

the irradiance value. This method allows us, instead

of using a random sample of voxels, to consider all the

voxels. This simpliﬁes the voxel selection process, at

a cost of constructing lightcuts trees.

Our implementation of lightcuts is based on (Mik-

sik, 2007). We divide direct and indirect virtual light

points and create separate trees, and combine them

in a root node as described in (Miksik, 2007). The

direct tree is based on light source photons and the

ﬁrst irradiance cache (for direct light) of the method

of Section 3. The indirect tree is based on the indirect

accumulation voxel cache.

5 RESULTS

Tests were done on PC with Intel Core 2 Duo 6300

(1.86GHz). Only one core was used (single thread

with Widows Vista).

The ﬁrst test compares the method with a refer-

ence solution computed by path tracing. In Figure 3,

a quality comparison with other classical methods is

provided. The results shows that the method is accu-

rate and without noise. We computed path-tracing at

a constant rate samples per pixel (50) thus the time

is sometimes better, but the noise is strongly visible.

This test shows that the method is accurate.

In Table 1, we can see the statistics for runtime.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

176

Table 1: Statistics for Scene 1.

Scene 1 Scene 2

Antialiasing off on

number of triangles 1,176 67,462

number of voxels 108,455 22,615

Light path length 4 6

Voxel directions 146 256

Primary photons 650 4000

Direct photons 200 256

Continuous Rays 87,913,202 184,834,570

Discrete Rays 26,637,785 10,146,637

Rays/sec (continuous) 140,819 68,983

Rays/sec (discrete) 5,122,651 5,176,855

Propagation Time 6.1 sec 4.15 sec

Linear method Time 5.2 sec 1.96 sec

Reconstruction Time 624.3 sec 2679.27 sec

Overall Time 630.5 sec 2684.43 sec

The ratio of number of rays per seconds for continu-

ous rays (KD-tree accelerated ray-object intersection)

and discrete rays in 2.75%, For Scene 2, the ratio of

number of rays per seconds for continuous rays and

discrete rays in 1.33%. This result shows the rele-

vance of the discrete linear method, even more so for

complex scenes. Moreover, the discrete number of

rays per seconds is little dependant on the scene com-

plexity.

In (Hasan et al., 2007) Hasan et al. render sim-

ilar views of the Sponza atrium in about 8s, but we

can not compare that directly since it uses hardware

acceleration vs our fully software single thread based

raytracer, Moreover we used area light to simulate day

light, which is slower than a single ray sunlight. Qual-

ity of the image of (Hasan et al., 2007) may be also

lower since it uses the same set of lights for whole

image, contrary to the lightcuts which selects lights

adaptatively.

6 CONCLUSIONS AND FUTURE

WORK

Our results show that our voxel based method can

be competitive and accurate for precise multi-bounce

global illumination. It provides very large numbers

of rays per seconds for discrete rays, which make

the technique promising. To improve the method, we

could possibly ﬁnd a method with linear complexity

with respect to the number of rays for the reconstruc-

tion process also, which could result in dramatic re-

duction of the reconstruction time, which is the dom-

inant term. Then, a GPGPU acceleration for the dis-

crete linear method could result in a very low-time

propagation phase, and should be considered. The

current version of the method works only for Lam-

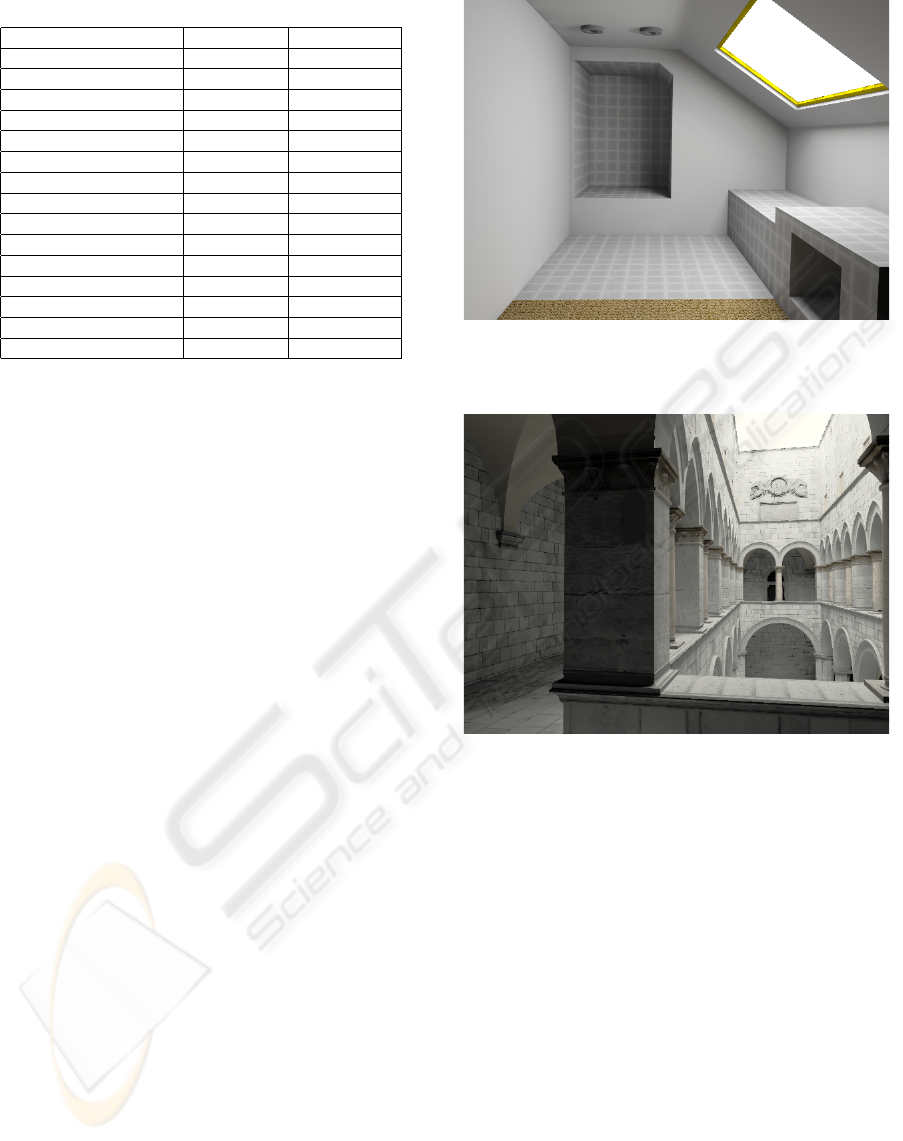

(a) Scene 1: Polygonal scene with 1.176 triangles. Shooting

and multicache methods combined are 6.1 sec. The recon-

structions phase lasted 630 sec. We used 108,455 voxels and

146 directions.

(b) Scene 2: Sponza atrium. Highly textured scene with

67,462 triangles. We used huge area light to simulate day

light. Shooting and multicache methods combined lasted

4.15 sec. We used 22, 615 voxels and 256 directions.

Figure 4: Test scenes.

bertian material, and a method for general BRDF’s

should be developed, by storing a more complex rep-

resentation of outgoing light in voxels. Finally, we

could ﬁnd a method for fast animation by enabling to

add an object into the scene without recomputing the

whole solution by the use of antiradiance (Christensen

and Batali, 2004).

REFERENCES

Arikan, O., Forsyth, D. A., and O’Brien, J. F. (2005).

Fast and detailed approximate global illumination

by irradiance decomposition. ACM Trans. Graph.,

24(3):1108–1114.

Chatelier, P. Y. and Malgouyres, R. (2006). A low-

CACHED MULTI-BOUNCE SOLUTION AND RECONSTRUCTION FOR VOXEL-BASED GLOBAL

ILLUMINATION

177

complexity discrete radiosity method. Computers &

Graphics, 30:37–45.

Christensen, P. H. and Batali, D. (2004). An irradiance atlas

for global illumination in complex production scenes.

In Rendering Techniques, pages 133–142.

Dachsbacher, C. and Stamminger, M. (2006). Splatting in-

direct illumination. In SI3D, pages 93–100.

Dachsbacher, C., Stamminger, M., Drettakis, G., and Du-

rand, F. (2007). Implicit visibility and antiradiance for

interactive global illumination. ACM Trans. Graph.,

26(3):61.

Debled-Rennesson, I. (1995).

´

Etude et reconnaissance des

droites et plans discrets. PhD thesis, Universit

´

e Louis

Pasteur, Strasbourg. PhD thesis.

Granier, X. and Drettakis, G. (2004). A ﬁnal reconstruction

approach for a uniﬁed global illumination algorithm.

ACM Trans. Graph., 23(2):163–189.

Hasan, M., Pellacini, F., and Bala, K. (2007). Matrix row-

column sampling for the many-light problem. ACM

Trans. Graph., 26(3):26.

Jensen, H. W. (1996). Global Illumination Using Photon

Maps. In Rendering Techniques ’96 (Proceedings of

the Seventh Eurographics Workshop on Rendering),

pages 21–30, New York, NY. Springer-Verlag/Wien.

Jensen, H. W. (1997). Rendering caustics on non-

Lambertian surfaces. Computer Graphics Forum,

16(1):57–64.

Jensen, H. W. (2001). Realistic image synthesis using pho-

ton mapping. A. K. Peters, Ltd., Natick, MA, USA.

Keller, A. (1997). Instant radiosity. In Proceedings of

the ACM SIGGRAPH Conference (SIGGRAPH-97),

pages 49–56, New York. ACM Press.

Lavignotte, F. and Paulin, M. (2003). Scalable photon splat-

ting for global illumination. In GRAPHITE, pages

203–210.

Malgouyres, R. (2002). A discrete radiosity method. In

Braquelaire, A. J.-P., Lachaud, J.-O., and Vialard, A.,

editors, DGCI, volume 2301 of Lecture Notes in Com-

puter Science, pages 428–438. Springer.

Miksik, M. (2007). Implementing lightcuts. In In Cen-

tral European Seminar on Computer Graphics for stu-

dents.

Sillion, F. and Puech, C. (1994). Radiosity and Global Il-

lumination. Morgan Kaufmann Publishers, San Fran-

cisco.

Walter, B., Fernandez, S., Arbree, A., Bala, K., Donikian,

M., and Greenberg, D. P. (2005). Lightcuts: a scal-

able approach to illumination. In SIGGRAPH ’05:

ACM SIGGRAPH 2005 Papers, pages 1098–1107,

New York, NY, USA. ACM Press.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

178
