ADVANCED PLAYER ACTIVITY RECOGNITION BY

INTEGRATING BODY POSTURE AND MOTION INFORMATION

Marco Leo, Tiziana D’Orazio, Paolo Spagnolo and Pier Luigi Mazzeo

Institute of Intelligent Systems for Automation, Italian National Council Research, via Amendola 122/d, Bari , Italy

Keywords:

Human pose estimation, Contourlet transform, Neural networks, Soccer player activity recognition.

Abstract:

Human action recognition is an important research area in the ﬁeld of computer vision having a great number of

real-world applications. This paper presents a multi-view action recognition framework able to extract human

silhouette clues from different synchronized static cameras and then to validate them introducing advanced

reasonings about scene dynamics. Two different algorithmic procedures have been introduced: the ﬁrst one

performs, in each acquired image, the neural recognition of the human body conﬁguration by using a novel

mathematic tool named Contourlet transform. The second procedure performs, instead, 3D ball and player

motion analysis. The outcomes of both procedures are then properly merged to accomplish the ﬁnal player

activity recognition task. Experimental results were carried out on several image sequences acquired during

some matches of the Italian Serie A soccer championship.

1 INTRODUCTION

Human action recognition aims at automatically as-

certaining the activity of a person, i.e. to identify

if someone is walking, dancing, or performing other

types of activities. It is an important area of research

in the ﬁeld of computer vision and the ever growing

interest in it is fueled, in part, by the great number

of real-world applications such as surveillance scenar-

ios, content-based image retrieval, human-robot inter-

action, sport video analysis,smart rooms etc.

Human action recognition has been a widely stud-

ied topic and extensive reviews can be found in

(Weiming et al., 2004) and (Agarwal and Triggs,

2006). Human activity recognition approaches are

categorized on the basis of the representation of the

human body: representation can be extracted either

from a still image or a dynamic video sequence.

In general, performing human action recognition

from video sequences requires complex models for

understanding the dynamics (Gorelick et al., 2007),

(Jhuang et al., 2007), (Niebles et al., 2008), (Liu

et al., 2008). On the other side recent studies demon-

strated that static human pose encapsulates many use-

ful clues for recognizing the ongoing activity (Iki-

zler and Duygulu, 2007), (Goldenberg et al., 2005),

(Lu and Little, 2006), (Zhang et al., 2007), (Thurau,

2007).

Unfortunately, due to possible large variations in

body appearance, both static and dynamic representa-

tions have a considerable failure rate unless speciﬁc

databases are used.

In this paper we introduce a new multi-view ac-

tion recognition system that extracts human silhou-

ette clues from different synchronized static cameras

and then it validates them by introducing some rea-

sonings about scene dynamics. The experimental re-

sults were carried out on several image sequences ac-

quired during some matches of the Italian “Serie A”

soccer championship.

2 SYSTEM OVERVIEW

Six high resolution cameras (labeled as FGi, where i

indicates the i − th camera) have been placed on the

two sides of the pitch assuring double coverage of al-

most all the areas by either adjacent or opposite cam-

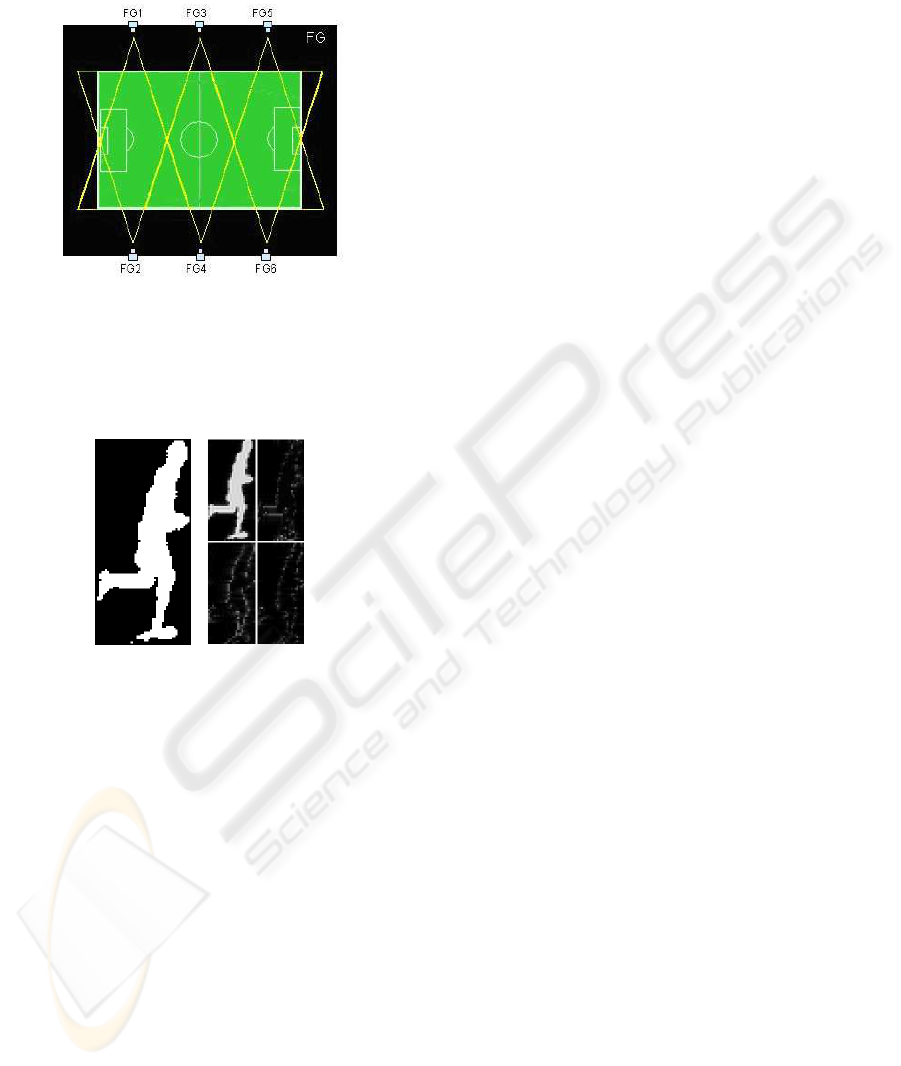

eras. In ﬁgure 1 the location of the cameras is shown.

The acquired images are transferred to six processing

nodes by ﬁber optic cables. The acquisition process

is guided by a central trigger generator that guaran-

tees synchronized acquisition between all the cam-

eras. Each node, using two hyper-threading proces-

sors, records all the images of the match on its internal

261

Leo M., D’Orazio T., Spagnolo P. and Luigi Mazzeo P. (2009).

ADVANCED PLAYER ACTIVITY RECOGNITION BY INTEGRATING BODY POSTURE AND MOTION INFORMATION.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 261-266

DOI: 10.5220/0001754002610266

 SciTePress

storage unit, displays the acquired images and, simul-

taneously, processes them with parallel threads, in an

asynchronous way with respect to the other nodes.

Figure 1: The location of the cameras around the pitch.

The six processing nodes, are connected to a cen-

tral node, having the supervisor function. It synchro-

nizes data coming from nodes and performs high level

processing.

Figure 2: The binarized player silhouette (on the left) and

its Contourlet representation (on the right).

Each node uses a background subtraction algo-

rithm for motion detection. It is based on a modi-

ﬁed version of a well known approach for background

creation and maintenance (Kanade et al., 1998). In-

formation relative to moving objects is then sent to

two parallel processing threads: the ﬁrst one per-

forms human blob detection, classiﬁcation (Spagnolo

et al., 2007) and tracking (D’Orazio et al., 2007) as

well as neural player activity recognition using static

representation by Contourlet transform; the second

one performs ball detection by means of a correla-

tion based approach using six reference sets contain-

ing some ball examples acquired in different positions

with respect to the camera (near, far, very far) and in

different lighting conditions (sunny days, evening or

cloudy days).

At each trigger pulse, the outcomes of the algo-

rithmic procedures running on each processing node,

are sent to the central node that analyzes them in or-

der to localize the ball and the players on a virtual

play-ﬁeld, to compute their trajectories and to vali-

date player activity by using motion information.

3 PLAYER BODY POSTURE

ESTIMATION

The ﬁrst step in the proposed framework deals with

the recognition of the player body conﬁguration (pos-

tures) in each of the different cameras. For this pur-

pose, in this paper, a learning based approach is used:

ﬁrst of all the player silhouettes are binarized, mir-

rored (only those coming from the three cameras FG2,

FG4 and FG6) in order to use the same left-right label-

ing system for body conﬁguration, re-sized to avoid

scaling effects, and described by using Contourlet co-

efﬁcients that are extracted via a double iterated ﬁlter

bank structure providing a ﬂexible multi-resolution,

local and directional image expansion (Do and Vet-

terli, 2005).

The new Contourlet representation is then pro-

vided as input to a back propagation neural network

able to recognize seven different human conﬁgura-

tions associated to seven player activities: walking,

running left, running right, running front-back, still,

shooting left, shooting right.

The neural network architecture (experimentally

set) consists of three processing layers: 30 hid-

den neurons with sigmoidal activation functions and

6 output neurons with softmax activation functions

(Bishop, 1995) are used. The neural output values

are managed as follows: the greatest output value is

considered and if it is greater than th = 0, 5 the input

patch is labeled by the corresponding activity, other-

wise it is labeled as undetermined. In ﬁgure 2, on the

left the initial binary silhouette of a running player is

reported whereas on the right the relative Contourlet

representation is shown.

4 BALL AND PLAYER

TRAJECTORY COMPUTATION

The second algorithmic procedure runs on the pro-

cessing unit with supervisor function. The supervisor

makes use of a virtual play-ﬁeld (having the same di-

mension of the real play ﬁeld) to project extracted in-

formation: in particular the player and referee data

are projected onto the virtual play-ﬁeld by homo-

graphic transformation assuming that their feet are al-

ways in contact with the ground. Anyway, the pro-

jection of the same player using data relative to dif-

ferent cameras are not coincident due to the different

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

262

segmentations into the image planes caused by differ-

ent appearances of the same player (different position

with respect the camera, different lighting conditions,

shadows and so on). To overcome this drawback, the

mid-point of the line connecting the different projec-

tions of the player in the virtual play-ﬁeld has been

considered for further processing.

The projection of the ball position in to the virtual

play-ﬁeld requires, instead, a different procedure con-

sidering that the ball is not always in contact with the

ground. The 3D ball position has to be then ﬁrstly re-

covered by triangulation (if ball information coming

from two opposite or adjacent views is available) and

then its projection onto the virtual play ﬁeld can be

performed.

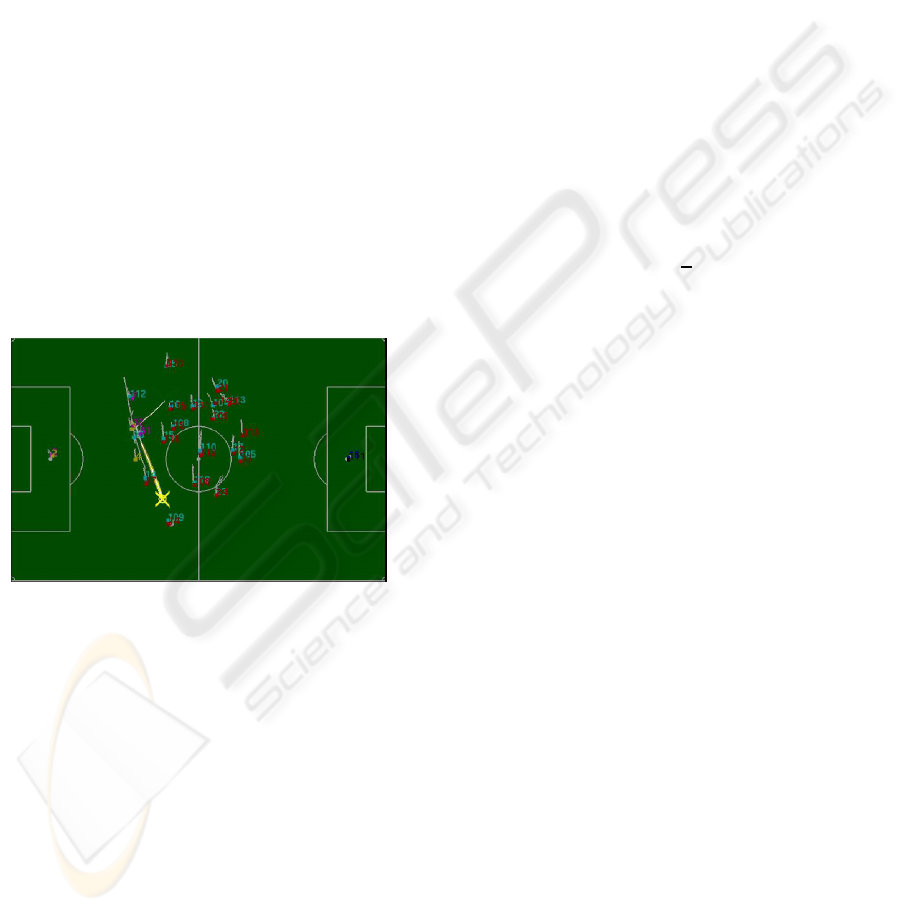

In ﬁgure 3 the virtual play-ﬁeld is reported. The

red and cyan rectangles indicate the player positions

computed by merging data coming from two opposite

or adjacent views (relative IDs assigned from nodes

are also reported) whereas the ball position is indi-

cated by the yellow cross. The white lines behind

each object indicate recent ball and players displace-

ments.

Starting from the estimated ball and players posi-

Figure 3: The virtual play-ﬁeld.

tions their temporal trajectories can be computed. The

player trajectories in the virtual play-ﬁeld cannot be

mathematically modeled by straight lines or curves;

they vary continuously in an unpredictable way and

then they can be represented only collecting the player

positions into the play-ﬁeld.

For the ball, instead, trajectories in the virtual

play-ﬁeld can be approximated by straight lines: this

allows the system to predict the successive positions,

to recover missed intermediate ones, and to introduce

high level reasonings useful to understand the soccer

game developing. For the sake of precision we have

to explain that we dispose of both 3D and 2D ball tra-

jectories. In order to detect shots, as abrupt changes

of trajectories, we consider in this paper only 2D tra-

jectories, obtained by projecting the 3D ball positions

in to the virtual play-ﬁeld. This simpliﬁcation allows

the system to avoid false shot detections when there

are ball rebounds on the ﬁeld.

5 MULTI-VIEW PLAYER

ACTIVITY RECOGNITION

The outcomes of the algorithmic procedures de-

scribed in the sections 3 and 4 are, ﬁnally, given as

input to a higher level functional step running on the

supervisor unit that performs a multi-view player ac-

tivity recognition. To do that, ﬁrst of all, the supervi-

sor processing unit merges body posture information

coming from different views of the same player: the

M available estimation scores extracted by the single

view procedure (one for each camera acquiring the

considered player) for the i − th player are averaged

to obtain k values of MPV (Multi-view Probability

Value) :

(MPV)

= P(X

...z

) =

∑

p(X

) k = 1, ...N

where X is the player posture class, z

are the sin-

gle view estimated conﬁgurations and N indicates the

maximum number of body conﬁgurations classes to

be recognized. In this way a global estimation score

is estimated for each of the k conﬁguration classes.

The problem becomes now how to decide which body

conﬁguration class has to be associated to the i−th on

the basis of the relative available P

with k = 1, ...N .

To solve this problem a preliminary statistical

evaluation of the neural outcomes is done: the val-

ues relative to both correct and incorrect occurrences

during a preliminary experimental phase are consid-

ered and they are then used to estimate the relative

gaussian probability distributions. This demonstrates

that the most probable values in case of correct body

conﬁguration estimations in a single view are close to

0.85, whereas in case of wrong estimations they are

close to 0.5.

Starting from this statistical consideration a multi-

view decision rule, based on available MPVs, is intro-

duced: the player’s body conﬁguration K is associated

to the i-th player if

{(K = arg max

k=1,...6

(MPV)

) ∧ ((MPV)

> th)∧

∧((MPV)

< thi = {1...N, i 6= K})

where th is the intersection point of the above esti-

mated pd fs. If these conditions are not simultane-

ously satisﬁed the considered player body conﬁgura-

tion is labeled as undetermined.

ADVANCED PLAYER ACTIVITY RECOGNITION BY INTEGRATING BODY POSTURE AND MOTION

INFORMATION

263

5.1 Integration of Motion Information

After that, a static multi-view player activity estima-

tion is available for each player in the scene and it

can be validated by using motion information. In par-

ticular ‘running’, ‘walking’ and ‘still’ activities are

validated by using motion information of the relative

player, whereas ’shooting’ activity is validated tak-

ing under consideration also the 3D ball trajectory. In

fact for an estimated ’still’ player the system checks

his motion: if, considering the last three frames, his

position in the virtual playing ﬁeld does not signi-

ﬁcatively change, the player activity is deﬁnitively la-

beled as ‘still’. The same approach, based on the anal-

ysis of the position changes into the play-ﬁeld, is also

used for validating estimated ‘running’ and ‘walking’

players: in this case the estimated player body pos-

ture is validatedif player position (considering the last

three frames) changes according to the common run-

ning and walking velocity values for a human being

whereas running directions (left, right, front-back) are

validated considering the recovered player trajectory

into the play-ﬁeld. In particular a player is validated

as ’walking’ if this velocity in the virtual play-ﬁeld

varies between 3 km/h and 6 km/h; running activity is

instead validated if the velocity of the relative player

is greater than 6 km/h.

A quite different approach is ﬁnally used for vali-

dating estimated ’shooting’ players: in this case both

ball and player motion information are used. In fact,

’shooting’ player is validated if : 1) the 3D ball tra-

jectory indicates that the ball is really going away

from the considered player (as expected for the kick-

ing player) 2) the player is near (at lest 2 meters) to

P(x

, y

), i.e. the intersection point of two consecutive

validated ball trajectories.

In this way motion information helps to improve

player activityrecognition but, at the same time, could

solve some of the previously unclassiﬁed activity oc-

currences: in fact motion reasonings can be separately

applied to the different incoherent human body con-

ﬁguration outcomes in order to point out the most

likely one.

Finally notice that in the case of incoherence be-

tween estimated player body conﬁgurations and mo-

tion information the relative player activity is deﬁni-

tively labeled as ’undetermined’.

6 EXPERIMENTAL RESULTS

The proposed multi-steps method was applied to

several image sequences acquired during some

matches of the Italian “Serie A” championship.

Experiments were carried out on a set of 3500

different pairs of synchronized patches (7000 total

patches) relative to players acquired during differ-

ent soccer matches. These patches were prelimi-

narily labeled by a human operator who assigned to

each pair one of the seven considered activities: A-

Running right side; B-Running left side; C-Running

front-back; D-Walking; E-Still;F- Shooting left side;

G-Shooting right side.

The ground truth relative to the 7000 patches is

reported in table 1.

Table 1: The ground truth relative to the 7000 considered

binary patches used in the experimental phase.

A B C D E F G

1680 1844 412 1410 756 476 422

The ﬁrst step of the experimental phase concen-

trates on the recognition of the human activity on each

single image by using Contourlet representation and a

neural classiﬁer as described in section 3.

The results of this ﬁrst experiment are reported in

table 2. Because of lack of space the ﬁrst row reports

the capital letters relative to each of the seven consid-

ered body conﬁgurations as in the above list.

Table 2: The scatter matrix relative to the ﬁrst experiment

regarding the recognition of the player activity recognition

by single image.

A B C D E F G und.

1243 9 218 160 0 0 0 50

0 1624 0 111 108 0 0 1

0 0 305 33 25 29 0 20

0 0 14 1269 30 56 0 41

0 21 62 0 620 0 0 53

9 0 16 0 0 432 0 19

13 5 5 0 0 0 387 12

The experimental results reported in table 2 were

very encouraging: almost 84% of the testing patches

were automatically labeled by the system in the same

way as the human operator. Some miss-classiﬁcations

happened due to the similarity of appearance, un-

der certain conditions, of the body silhouettes rela-

tive to players performing different activities. For ex-

ample, in ﬁgure 4, three wrongly classiﬁed patches

are reported: the player on the left was classiﬁed as

running towards the camera by the human operator

whereas the automatic system consider him as run-

ning right. The player in the center was instead clas-

siﬁed as running towards the camera by the human

operator whereas the automatic system classiﬁed him

as still. Finally, the player on the right was labeled as

kicking by the human operator and running right by

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

264

the automatic system. As you can see in this cases it

is not easy to deﬁnitivelydecide real player conﬁgura-

tions and then you have to consider that experimental

results strongly depend, on the operator that generated

the ground truth.

Figure 4: Three different cases where the proposed system

missrecognized player body conﬁgurations.

The activity data coming from this ﬁrst experi-

mental step were then merged, for each pair of op-

posite cameras, by using the procedure described in

section 5. In table 3 the multi-view activity estima-

tion results on the 3500 pairs of binary patches are

reported.

Table 3: Activity recognition performance integrating in-

formation coming from different camera views. The test set

consists of 3500 pairs of binary patches.

A B C D E F G und.

822 2 3 2 0 0 5 6

0 890 0 12 9 6 0 5

0 0 186 2 8 7 0 3

0 0 10 666 7 8 0 14

0 9 5 0 345 0 0 19

0 0 3 0 0 227 0 8

5 0 3 0 0 0 199 4

More than 95% of the 3500 tested pairs were cor-

rectly recognized. Less than 2% of the tested patches

were not classiﬁed due to the ambiguities in the prob-

ability values provided by the neural algorithms run-

ning on the images coming from each camera.

In ﬁgure 5, the two pictures on the left report the

player’s silhouettes acquired by two opposite cam-

eras at a shot instant. In this case the analysis of

human body conﬁguration performed on each view

agreed and they indicated that the player was shoot-

ing the ball with probability values respectively of

0.97 and 0.89. The two pictures on the right show,

instead, a case in which the procedure running on

each single view disagreed: one camera recognized

the player as walking (probability value 0.87) and the

other one as still (probability value 0.54). The multi-

view approach solved this ambiguity and labeled the

player walking as the human operator did. Finally,

the remaining 3% of the tested patches were miss-

classiﬁed.

Finally the validation procedure based on motion

information described in section 5.1 was tested in or-

Figure 5: Different pairs of patches containing the same

player acquired from different cameras.

der to verify its capability to improve player activity

recognition. The ﬁnal results of the proposed player

activity recognition approach are then reported in ta-

ble 4.

Table 4: Activity recognition performance after validation

by motion information.

A B C D E F G und.

833 0 0 0 0 0 1 6

0 912 0 3 1 0 0 6

0 0 196 0 3 0 0 7

0 0 4 689 2 0 0 10

0 3 1 0 357 0 0 17

0 0 0 0 0 230 0 8

0 0 0 0 0 0 204 7

Introducing activity validation by motion informa-

tion drastically reduces both uncertainty occurrences

and increases correct classiﬁcation. In ﬁgure 6 two

examples pointing out the beneﬁts of using motion

information are reported. On the left two patches (ac-

quired from FG3 and FG4) are relative to a player

kicking the ball. The neural approach did not clas-

sify player activity because, for the patch on the left,

it rightly recognizes the player as shooting left but,

for the patch on the right, it erroneously classiﬁes the

player as running left. Introducing reasonings about

motion and ball proximity the system veriﬁed that

both the ball was close to the player and the distance

of the player from the intersection point of the ball tra-

jectory was very small. For these reasons the player

was correctly classiﬁed as shooting the ball. On the

right, instead, the two patches are relative to a player

running right (acquired from FG5 and FG6). Unfor-

tunately both patches were classiﬁed as ”walking” by

the neural approach based on Contourlet representa-

tion (most probably due to perspective distortions).

The motion validation procedure did not validate the

player as walking due to his velocity on the pitch (9

km/h) and then his activity was considered as ’under-

mined’ avoiding a wrong classiﬁcation.

Finally in ﬁgure 7 an example in which mo-

tion information did not solve miss-classiﬁcation is

reported. The two players were classiﬁed as shooting

right by the multi-view approach described in section

5. Unfortunately the ball was very close to the play-

ADVANCED PLAYER ACTIVITY RECOGNITION BY INTEGRATING BODY POSTURE AND MOTION

INFORMATION

265

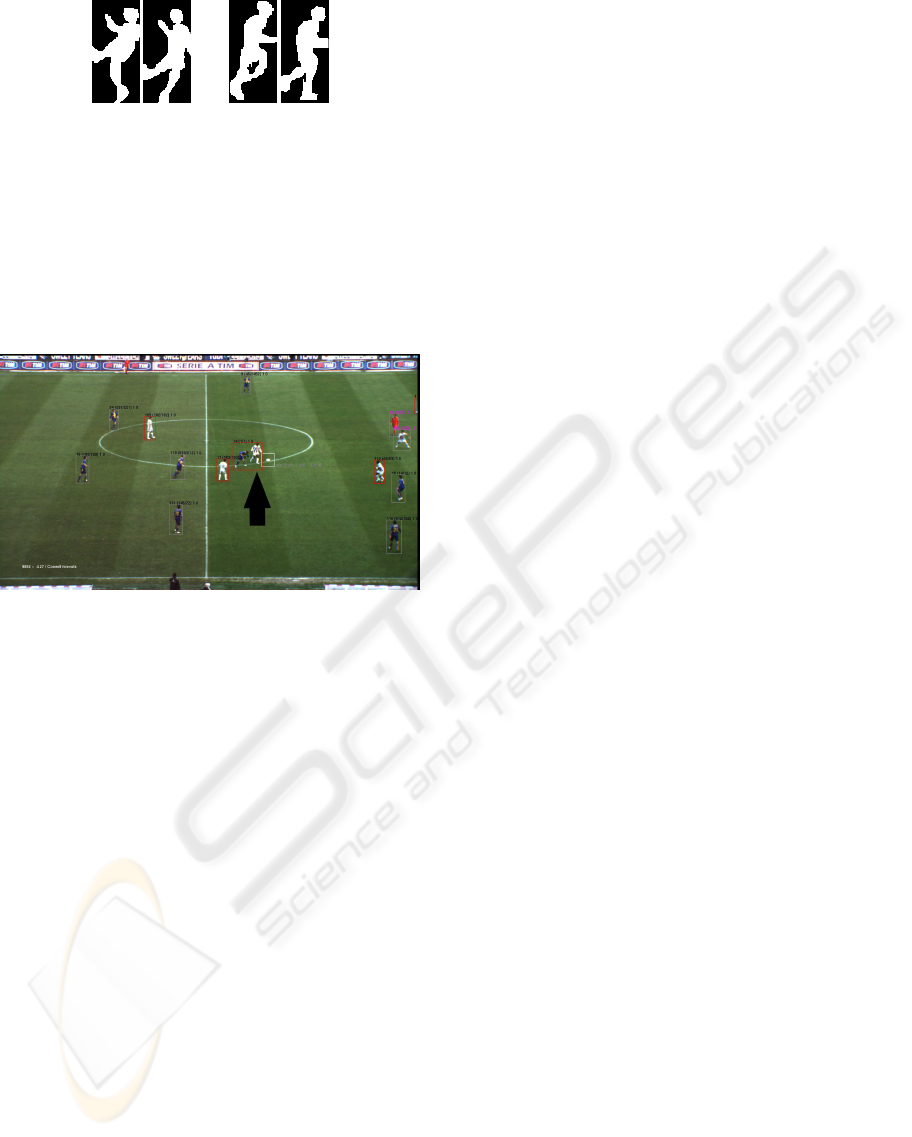

Figure 6: Two examples in which motion information over-

come drawback of the neural approach for player activity

recognition.

ers and it was going away from them and then both

of them were also validated as shooting right by the

procedure based on motion information integration.

The ground truth, instead, indicated that the ball was

kicked by the player having a white strip and that the

player with blue strip is instead just running right side.

Figure 7: An example in which motion information did not

solve activity miss-classiﬁcation.

REFERENCES

Agarwal, A. and Triggs, B. (2006). Recovering 3d human

pose from monocular images. IEEE Transactions on

Pattern Analysis and Machine Intelligence, 28(1):44–

58.

Bishop, C. M. (1995). Neural Networks for Pattern Recog-

nition. Oxford University Press.

Do, M. N. and Vetterli, M. (2005). The contourlet trans-

form: An efﬁcient directional multiresolution image

representation. IEEE Transactions on Image Process-

ing, 14(12):2091–2106.

D’Orazio, T., Leo, M., Spagnolo, P., Mazzeo, P., Mosca, N.,

and Nitti, M. (2007). A visual tracking algorithm for

real time people detection. In Wiamis2007: Proceed-

ings of the International Workshop on Image Analysis

for Multimedia Interactive Services.

Goldenberg, R., Kimmel, R., Rivlin, E., and Rudzsky,

M. (2005). Behavior classiﬁcation by eigen-

decomposition of periodic motions. IEEE transac-

tions on systems, man and cybernetics. Part C, Ap-

plications and reviews, 38(7).

Gorelick, L., Blank, M., Shechtman, E., Irani, M., and

Basri, R. (2007). Actions as space-time shapes. Trans-

actions on Pattern Analysis and Machine Intelligence,

29(12):2247–2253.

Ikizler, N. and Duygulu, P. (2007). Human action recogni-

tion using distribution of oriented rectangular patches.

In HUMO07, pages 271–284.

Jhuang, H., Serre, T., Wolf, L., and Poggio, T. (2007). A

biologically inspired system for action recognition. In

ICCV07, pages 1–8.

Kanade, T., Collins, R., Lipton, A., Burt, P., and Wixson, L.

(1998). Advances in cooperative multi-sensor video

surveillance. In Proceedings of DARPA Image Under-

standing Workshop, volume 1, pages 3–24, November.

Liu, J., Ali, S., and Shah, M. (2008). Recognizing human

actions using multiple features. In International Con-

ference on Computer Vision and Pattern Recognition

CVPR08.

Lu, W. and Little, J. (2006). Simultaneous tracking and

action recognition using the pca-hog descriptor. In

CRV06, pages 6–6.

Niebles, C., Wang, H., and Fei-Fei, L. (2008). Un-

supervised learning of human action categories us-

ing spatial-temporal words. International Journal of

Computer Vision, in press:2247–2253.

Spagnolo, P., Mosca, N., Nitti, M., and Distante, A. (2007).

An unsupervised approach for segmentation and clus-

tering of soccer players. In IMVIP2007: Proceedings

of the International Machine Vision and Image Pro-

cessing Conference.

Thurau, C. (2007). Behavior histograms for action recogni-

tion and human detection. In HUMO07, pages 299–

312.

Weiming, H., Tieniu, T., Liang, W., and Steve, M. (2004).

A survey on visual surveillance of object motion and

behaviors. IEEE transactions on systems, man and

cybernetics. Part C, Applications and reviews, 34(3).

Zhang, L., Wu, B., and Nevatia, R. (2007). Detection and

tracking of multiple humans with extensive pose artic-

ulation. In ICCV07, pages 1–8.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

266
