ADAPTATIVE MULTIMODAL ARCHITECTURES MANAGING

SOFTWARE QUALITIES

Hicham Djenidi

, Amar Ramdane-Cherif

1,2

and Nicole Lévy

PRISM,

LISVI, Université de Versailles Saint-Quentin

45, Avenue des États-Unis, 78035 Versailles Cedex, France

Keywords: Multimodal multi-agent architecture, Scenario of reconfiguration, Petri net models, Software quality.

Abstract: Multimodal interfaces for natural human-computer interaction involve complex architectures that should

facilitate the process of matching IT to people. These architectures should react to events occurring

simultaneously, and possibly redundantly, from different input media. In this paper, intelligent expert agent-

based architecture for multimedia multimodal dialog protocols are proposed. The generic components of the

multimodal architecture are monitored by an expert agent, which can perform dynamic changes in

reconfiguration, adaptation and evolution at the architectural level. Software performance and usability are

maintained by the expert agent via a scenario-based methodology. The expert agent’s behavior modeled by

Petri nets permits a software quality tradeoff between attributes of usability and other software attributes

like system’s performance.

1 INTRODUCTION

The use of multi-agent architecture (A), such as the

Open Agent A (Martin et al., 1998), in which

dedicated agents (Ag) communicate with each other

is a common practice in multimodal (M) systems.

However, the A in (Martin et al, 1998) is dedicated

to predefined types of modality and does not

constitute a methodology of formal and generic

specification but offers rather the possibility of re-

use in certain cases the already coded blocks and

methods to connect them. Another example of MA,

is the A of (Nigay and Coutaz, 1995) which supports

the mechanism of generic fusion named melting pot.

The core component in this A is the Dialog

Controller - a set of cooperating Ag who realizes

parallel data processing at several levels of

abstraction. However, as showed by the author in

(Bellik, 1995), this approach does not define clearly

the roles of the Ag. Besides, its specification by does

not allow an automatic validation of the scenarios of

dialog before the development and the

implementation phases of the prototype, as would

allow it a timed colored Petri net (TCPN) model.

QuickSet is a group of tools based on a multi-Ag A

where co-workers act in a wireless M environment

allowing several users to realize and to check

military simulations by the use of voice, gesture and

by attributing to users, behaviors and roles. This

application, offers a centralized A (based on the

blackboard concept) of colleagues Ag (Cohen et al.

1997). However, being a military application, the

authors don’t give enough information about their

MA and about the way the dynamic dialog is

specified in this MA. We notice, according to these

examples, that, for MA, the literature offers, either

architectural solutions dedicated to precise cases, or

generic multi-Ag A, but at high levels of abstraction

or without making a relevant identification of the

Ag, detailed description of their roles and their

dynamic interactions which they maintain. Or still, if

they describe in a detailed way the M interaction,

their A does not state the 'dynamic architectural

reconfiguration' (in the case of the use or the

renunciation of a modality for example.) Finally, for

some of them, there is no formal specification of all

the important aspects for the generic M management

of the events. We think, that it is recommended to

use a formal specification of the M interaction by a

formal model, if we wish to allow the A of a M

dialog, to take into account at the same time

temporal and grammatical constraints and if we wish

to prove formally the behavioral properties of the

interaction before the stage of coding. We think,

also, that an A has to allow the automatic validation

of scenarios of dialog, before the stage of coding, to

349

Djenidi H., Ramdane-Cherif A. and Lévy N. (2009).

ADAPTATIVE MULTIMODAL ARCHITECTURES MANAGING SOFTWARE QUALITIES.

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence, pages 349-352

DOI: 10.5220/0001665303490352

 SciTePress

minimize development costs. On the other hand, it

seems important that a MA offers characteristics

relative to the dynamic reconfiguration (dependent

on the semantic and\or temporal constraints of two

or several events) to allow the most natural possible

language. So, we choose to model a MA with a

timed colored Petri nets TCPN because of its

suitability to MA (Djenidi et al., 2004), (Navare et

al., 2005) and dynamic concurrent objects (Robert,

2006).

Our paper presents an architectural model of an

expert Ag (EAg) that monitors system and user

performance in a MA and can dynamically adjust

input and output modalities. The dynamic adaptation

provides an interesting mechanism for enhancing the

services given by the system based scenarios. The

core of our proposal consists of: i) M software based

on multi-queued components A modeled by a

(TCPN). ii) An expert agent (EAg) to improve some

software performance and usability (section 2), also

modeled by a TCPN. The M software application is

used like an example of the A on which we

implement our EAg to increase the M software

qualities. We develop some TCPN scenarios to show

how the monitoring works and how we identify and

improve the usability and performance qualities.

2 DYNAMIC

RECONFIGURATION

2.1 Reconfiguration Scenario

Several modalities can simultaneously be used and

this synergic use of input modalities could drive up

errors. Different modalities introduced in our MA

simulate the mouse and the keyboard events. For

example, the haptic screen and the eye gaze system

perform the mouse functionalities. To avoid these

devices’ inconsistency we impose an input

modalities’ activation rule. For this purpose, the

input modalities are prearranged in three groups

matching the use of different devices: i) Group 1:

mouse, haptic screen, eye gaze system, wireless

control mouse; ii) Group 2: keyboard, virtual

keyboard; iii) Group 3: Speech recognition. The

chosen rule is simple: the user can’t activate two

input modalities belonging to the same group. This

rule is included into a scenario. The stimulus of the

scenario is the activation of the new input modality.

If a new input modality is activated, reactive agent’s

layer gets the event and sends it to its reasoning

layer through the linking layer (Figure 1).

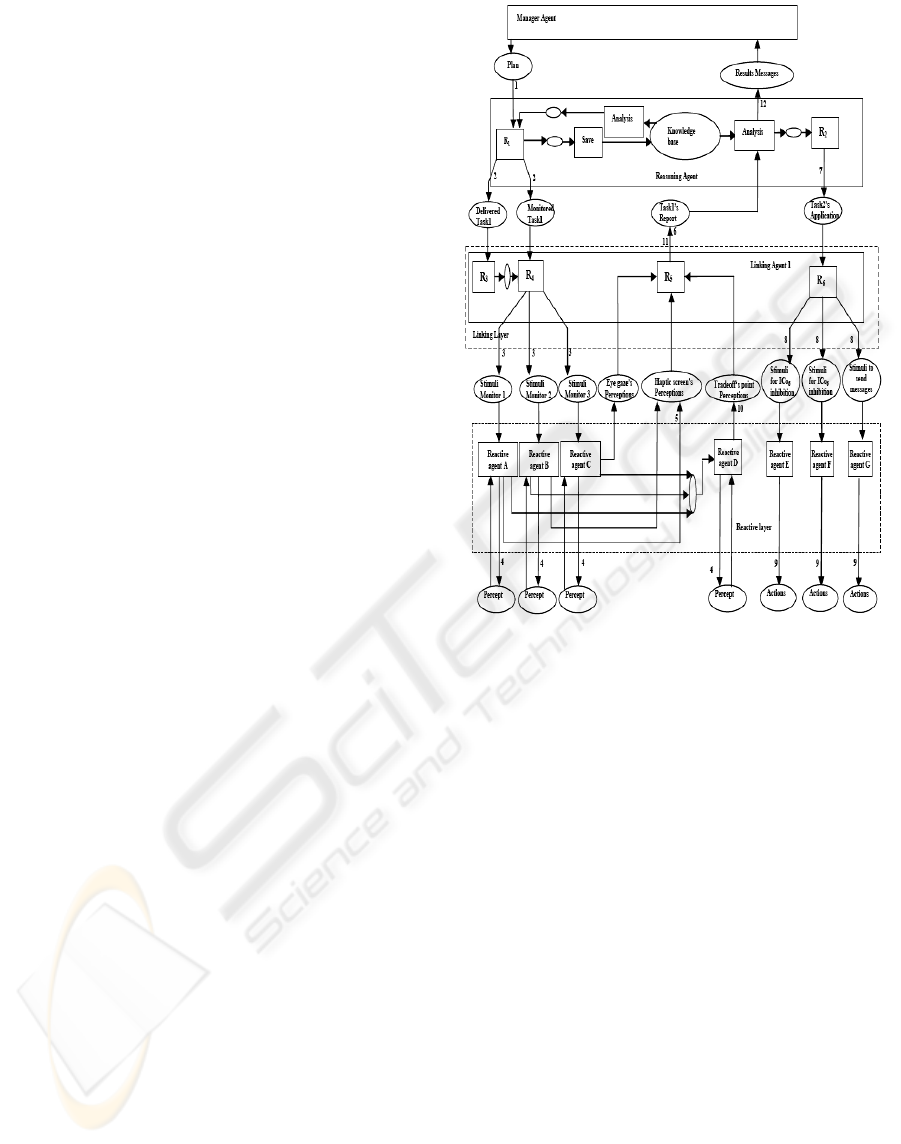

Figure 1: Principle of usability scenario application

process: an example inside the expert agent.

The EAg tests if the modality is used at the same

time with another device belonging at the same

group (application of the rule). If the new modality

causes conflict, the reasoning layer establishes a

plan based on the scenario. The plan consists on

deactivation of the new modality. The reactive layer

deactivates the concerned component and its

connection with the MA. Then, the input modality

becomes inoperative. A sequence of the scenario

process performed by the expert agent is

symbolically described in Figure 1. When the

manager agent receives the scenario, it analyses it

and sends it as a plan to the reasoning agent (step 1).

The plan only contains applicative requests, which

are saved into the shared “Knowledge base” of the

reasoning layer. The tasks containing the monitoring

processes are sent to the adequate linking agent

(“linking Agent 1” in Figure 1), in order to listen to

the stimulus event and monitor the specified

component (step 2). The actions of monitoring are

distributed to the specific reactive agents (“Reactive

agents A, B and C) (step 3). After that, the

monitoring actions are applied in step 4. The

feedback information about the perception actions is

ICAART 2009 - International Conference on Agents and Artificial Intelligence

350

sent to the “Linking Agent 1” (step 5). For example,

the reactive agent C monitors an eye gaze

component. The reports about the application of the

task are sent to the reasoning agent in order to be

analyzed (step 6). The reasoning agent contains the

rule on the modalities. If the condition, on the

modalities, is not satisfied, the stimulus condition is

activated and the application of the role is started, by

consequence, the new task “task 2” is sent to the

linking agent (step 7). The linking agent applies the

“task 2”: primitives actions are sent to the reactive

agent (step 8). The actions are accomplished by the

reactive agents (Agents E, F and G) (step 9). The

feedback of the last actions is accomplished by the

reactive agent D (step 10). The information is

charged to reports and sent up to the reasoning agent

through the linking agent (step 11). Finally, the sum

of the reports is sent to the manager agent in order to

be transformed to documentations. Safety of the MA

and priority of the others scenarios are continually

checked during the gradual process of

reconfiguration.

2.2 Example of Quality Tradeoff

In real situations, we don’t know in which hardware

the M application will be installed (the CPU

performance, memory performance, etc. are

unknown). The EAg must maintain the software

performances regarding to user’s impairment and

hardware’s performances of the computer, for

example. In this scenario, the EAg employs the

modalities’ activations to drive up the application in

a resource-less way. Clearly, certain modalities

consume more resources than others. The scenario 1

specifies to the EAg to choose the modalities that

consume less resources in order to maintain a high

degree of performance in the M application. Another

scenario (named scenario 2) identifies a major goal

of one characteristic of usability that the expert

agent can maintain. But in certain cases one

characteristic is not sufficient to assume acceptable

work of the application. Priority of the scenarios is

then used and parameterized by the users (also a

default parameterization is available in the EAg). In

our example case, the Scenario 2 has priority 8/10,

whereas the scenario 1 (performance) has priority

10/10. The comparison between the two qualities is

occurred in a section “quality trade-off” defined in

each scenario. Automatically, the EAg executes the

scenario 2 at detriment of the scenario 1 (if the

condition of the trade-off quality is satisfied). In the

scenario 1, the expert agent monitors the consumed

resources, if the CPU charges exceed the 60% the

scenario 1 is applied and scenario 2 is stopped. For

example, if we use the computer including Pentium

III with 850 MHz CPU frequency, and if the user

some modalities, the scenario 1 is executed (because

the consumed resources are 70%). The Scenario 1

starts procedures to activate the modality belonging

to the same group of the eye gaze system like haptic

screen to satisfy the requirement for the performance

of the application. In this case, the M application

consumes 30% of resources. The EAg was modeled

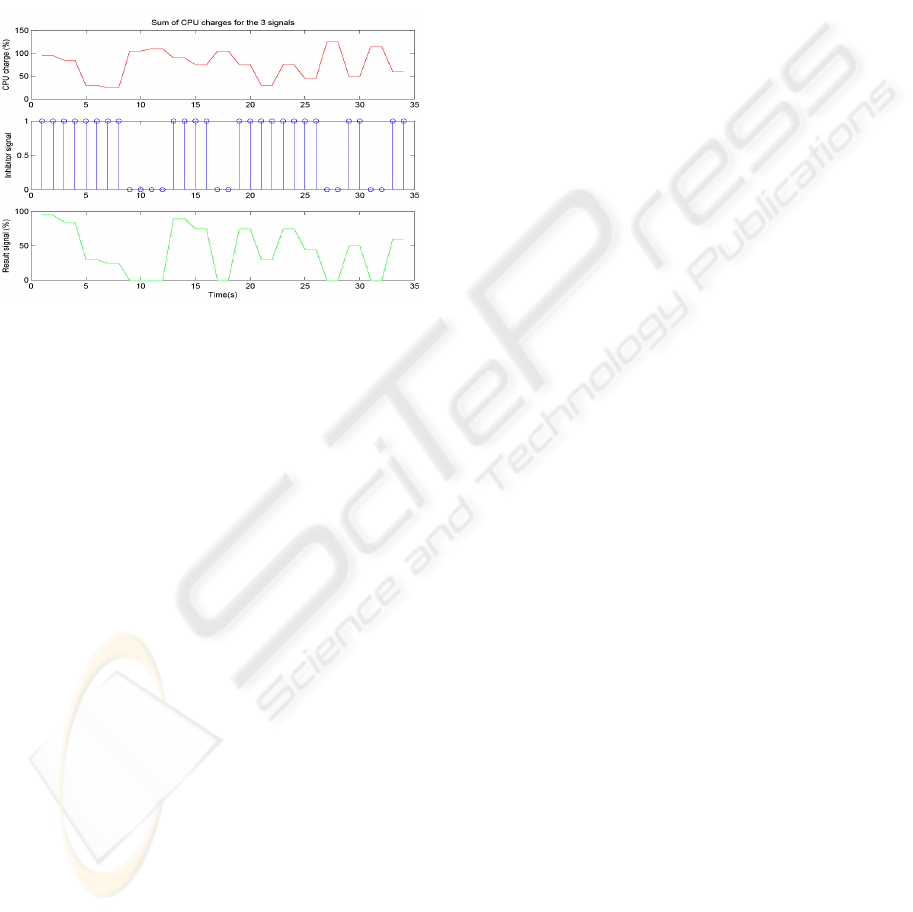

in CPN-tools for the two scenarios. The results of

the simulation of the nets are presented at Figure 2.

A reasoning agent 2 (like the one in Figure 1 but for

scenario 1) randomly inhibits one of the three

modalities involved in the process described by the

scenario 1, when the CPU charge exceeds 100%,

with respect to the constraints of the M interaction.

The network is conceived for always guaranteeing

that the CPU resources are not saturated when the M

events occur (in parallel or sequential) and doesn’t

disturb the running interaction in the MA. It thus

fulfils its function of monitoring and control in an

intelligent and automatic way. The intelligence

comes from the fact that we know that the agent will

carry out its role, even if we are not able to affirm, in

advance, at every moment, in a procedural way,

which of the modalities will be inhibited by the

agent. The automatism comes from the behavioral

cyclic invariants in the Petri nets which allow to

control and to monitor the MA. While the scenario 1

is performed, the EAg supervises and controls the

input modalities and applies the scenario 2. The part

of the EAg, in charge of the application of the

scenario 2, uses the beginning instant of the events

captured on the input modalities and their respective

durations for performing activation and/or inhibition

rules on the antagonist modalities. The A of the

network is an automaton which applies the scenario

2 with respect to cyclic invariants. When inhibition

actions are applied by the EAg to modalities, the

cognitive agent sends messages to the user. During

the step by step simulation of the networks with

CPN-Tools (Jensen et al. 2008), we observe the

correct behavior of the EAg performing the scenario

1 and the scenario 2. The graphs on Figure 2 show,

during time, how the EAg reacts to the variation of

the input signals. Those signals are the input

modalities' ones. The inhibitor signals in Figure 2

are generated by the EAg, with respect to the MA’s

reliability, to apply the scenarios. CPN-ML

inscriptions on the various arcs, in the codes

(performed by the transitions), of conditions

(checked by the transitions) and also the dynamic

links (arcs) between the various instances of agents

ADAPTATIVE MULTIMODAL ARCHITECTURES MANAGING SOFTWARE QUALITIES

351

(transitions) constitute the specifications of the

actions of reasoning of the EAg CPN model

according to its own rules which it works out. We

made with the CPN-tools the automatic analysis of

the behavioral properties of the nets: these networks

do not comprise any blocking during the execution

of the scenarios. This analysis (via CPN-Tools)

gives a report of the behavioral properties checked.

The report shows liveness properties of the networks

which models the EAg.

Figure 2: Result of control by reasoning agent CPU

charges for 3 modalities during time.

3 CONCLUSIONS

The design of the multi-Ag systems offers a

systematic methodology to produce formal

specification of multi-agent multimodal architectural

model. Modeling by TCPN takes all its importance

here because it offers a formal framework whose

advantages remain identical to those already quoted

for the architectural paradigms of the M interaction

The lack of commercial tools to specify and simulate

multi-agent multimodal architecture before the stage

of coding (in development life cycle’s prototype) is

a problem which we solve by our Petri net model

approach with CPN-Tools. We described a model of

the organization of the EAg and the problems of

software qualities of the MA via an example. The

model of the EAg in TPCN constitutes a strategic

representation because it takes account of the

various elements of the architectural structure of the

EAg (various agents, various requirements, various

data and their types, etc) and its behavior for the

execution of the selected quality profile. Lastly, this

model enables us to simulate the structure of the

EAg for a profile of quality chosen before the phase

of coding of the application, in addition to being

able to make an automatic checking of the

behavioral properties of the EAg grafted on MA,

before this same phase of development. It also puts

in value the various cyclic behaviors and the

protocols of communications in the model. The Petri

integration of the EAg provides important

information on the course of the scenarios.

The innovation with our approach resides in explicit

associations between quality requirements,

automated scenarios and their behavioral validations

in a TCPN model of a multi-Ag A.

REFERENCES

Martin, J. C., Julia, L., Cheyer, A., 1998, 'A Theoretical

Framework for Multimodal User Studies',

International Conference on Cooperative Multimodal

Communication, Theory and Applications’, Tilburg,

The Netherlands.

Nigay, L., Coutaz, J., 1995, 'A generic platform for

addressing the multimodal challenge', International

Conference on Computer-Human Interaction, ACM,

pp. 98-105, Denver (CO).

Bellik, Y., 1995, Interfaces multimodales : concepts

modèles architectures, PhD thesis. Paris, Paris XI.

Jensen, K., Kristensen, L., M, Wells, L., 2008, CPN Tools

University of Aarhus, Denmark. Available from:

<http://wiki.daimi.au.dk/cpntools-help/_home.wiki>

6 october 2008].

Cohen, P., Johnston, M., McGee, D., Oviatt, S., Pittman,

J., Smith, I., Chen, L., Clow, J., 1997, 'QuickSet:

Multimodal interaction for distributed applications',

Fifth ACM International Multimedia Conference

MULTIMEDIA'97, pp. 31-40.

Djenidi, H., Benarif, S., Ramdane-Cherif, A., Tadj, C.,

Levy, N., 2004, 'Generic Multimedia Multimodal

Agents Paradigms and their Dynamic Based Agent

Reconfiguration at the Architectural Level', European

journal of Applied Signal Processing, pp. 1688-1707.

Navarre, D., Palanque, P., Schyn, A., Nedel, L., Freitas,

C., Winckler, M 2005, 'A Formal Description of

Multimodal Interaction Techniques for Immersive

Virtual Reality Applications', Interact 2005, IFIP.

Rome, Italy, pp. 12-16.

Robert, G., Pettit, I., V., Gomaa, H., 2006, 'Modeling

Behavioral Patterns of Concurrent Objects Using Petri

Nets', Ninth IEEE International Symposium on Object

and Component-Oriented Real-Time Distributed

Computing, pp. 303-312.

ICAART 2009 - International Conference on Agents and Artificial Intelligence

352
