ROBUST OBJECT TRACKING BY SIMULTANEOUS GENERATION

OF AN OBJECT MODEL

Maria Sagrebin, Daniel Caparr`os Lorca, Daniel Stroh and Josef Pauli

Fakult¨at f¨ur Ingenieurwissenschaften

Abteilung f¨ur Informatik und Angewandte Kognitionswissenschaft

Universit¨at Duisburg-Essen, Germany

Keywords:

Model-based object tracking, Online model generation.

Abstract:

Although robust object tracking has a wide variety of applications ranging from video surveillance to recog-

nition from motion, it is not completely solved. Difﬁculties in tracking objects arise due to abrupt object

motion, changing appearance of the object or partial and full object occlusions. To resolve these problems, as-

sumptions are usually made concerning the motion or appearance of an object. However in most applications

no models of object motion or appearance are previously available. This paper presents an approach which

improves the performance of a tracking algorithm due to simultaneous online model generation of a tracked

object. The achieved results testify the stability and the robustness of this approach.

1 INTRODUCTION

Robust object tracking is an important task within the

ﬁeld of computer vision. It has a variety of appli-

cations ranging from motion based recognition, auto-

mated video surveillance, trafﬁc monitoring, up to ve-

hicle navigation and human-computer interaction. In

all situations the main goal is to extract the motion of

an object and to localize it an image sequence. Thus

in its simplest form, tracking is deﬁned as the problem

of estimating the trajectory of an object in an image

sequence as it moves in the scene. In high level ap-

plications this information could be used to determine

the identity of an object or to recognize some unusual

movement pattern to give a warning.

Although good solutions are widely desired object

tracking is still a challenging problem. It becomes

complex due to noise in images, abrupt changes in

object motion and partial and full object occlusions.

Changing appearance of an object and changes in

scene illumination also cause problems a good track-

ing method has to deal with.

Numerous approaches for object tracking have

been proposed. Depending on the environment in

which tracking is to be performed they differ in object

representations or how motion, appearance or shape

is modeled. Jepson et al. (Jepson et al., 2003) pro-

posed an object tracker that tracks an object as a three

component mixture, consisting of stable appearance

features, transient features and a noise process. An

online version of the Expectation-maximization (EM)

algorithm is used to learn the parameters of these

components. Comaniciu et al. (Comaniciu et al.,

2003) used a weighted histogram computed from a

circular region to represent the moving object. The

mean-shift tracker maximizes the similarity between

the histogram of the object and the histogram of the

window around the hypothesized object location. In

1994, Shi and Tomasi proposed the KLT tracker (Shi

and Tomasi, 1994) which iteratively computes the

translation of a region centered on an interest point.

Once a new position is obtained the tracker evalu-

ates the quality of the tracked patch by computing

the afﬁne transformation between pixel correspond-

ing patches.

Thus usually some of the problems described ear-

lier are resolved by imposing constraints on the mo-

tion or appearance of objects. As stated by Yilmaz

(Yilmaz et al., 2006) almost all tracking algorithms

assume that the object motion is smooth with no

abrupt changes. Sometimes prior knowledge about

the size and shape of an object is also used to sim-

plify the tracking task. However the higher the num-

ber of imposed constraints the smaller is the area of

applicability of the developed tracking algorithm.

This paper presents an approach which implies no

prior knowledge about the motion or appearance of

an object. Instead the appearance of a previously un-

392

Sagrebin M., Caparròs Lorca D., Stroh D. and Pauli J. (2009).

ROBUST OBJECT TRACKING BY SIMULTANEOUS GENERATION OF AN OBJECT MODEL.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 392-397

DOI: 10.5220/0001659803920397

 SciTePress

known object is learned online during an initial phase.

First all moving objects in the scene are detected by

using a backgroundsubtraction method. Then distinc-

tive features are extracted from these objects and cor-

respondences of detected object regions across differ-

ent images are established by using a point tracker.

The used point tracker does have several drawbacks.

However, during the initial phase it provides enough

information to the system to learn the appearance of a

tracked object. The generated multiview appearance

model is then used to detect an object in subsequent

images and thus helps to improve performance of a

tracking method.

In the following every step of the described ap-

proach is discussed in detail. First the used back-

ground subtraction method and the point tracker are

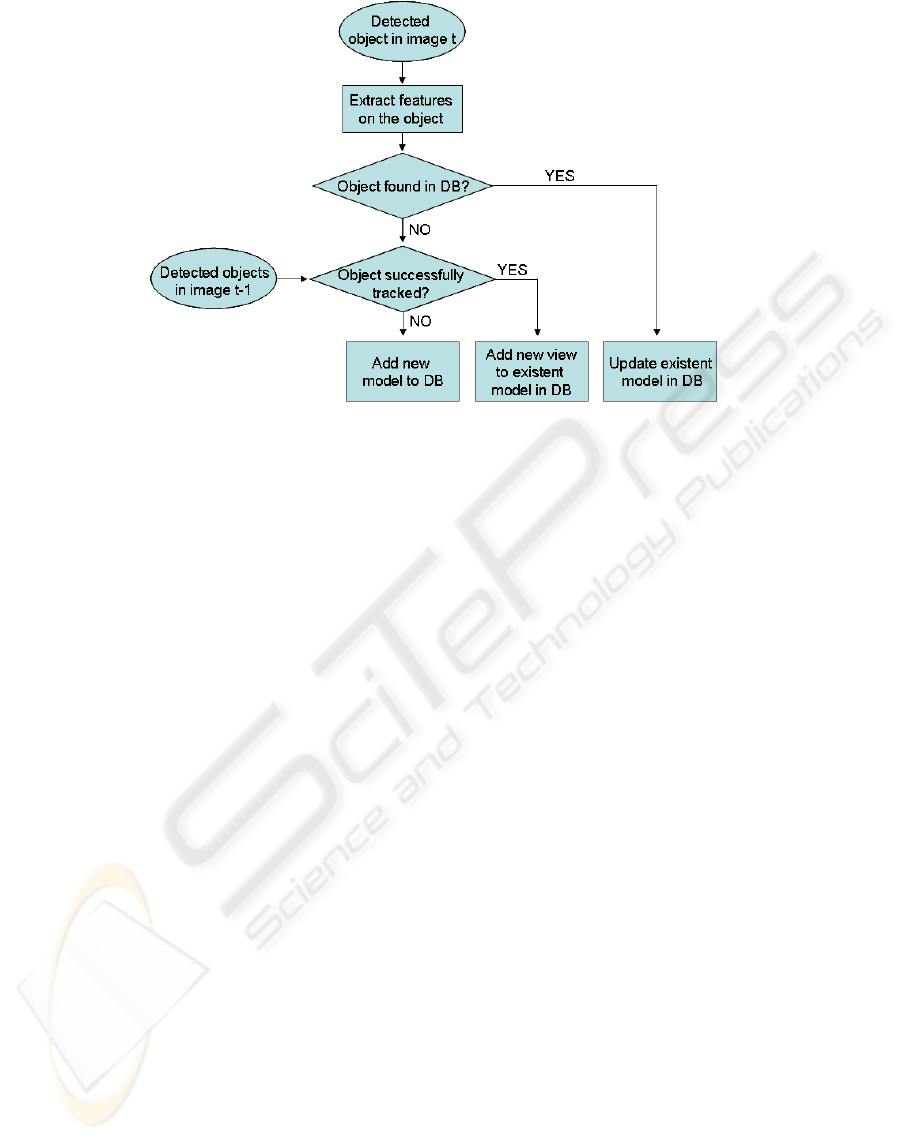

presented. The developed algorithm for online gen-

eration of an object appearance model is described in

section 4. In subsequent sections the results and pos-

sible improvement to this approach are discussed.

2 ADAPTIVE BACKGROUND

SUBTRACTION

If the amount and the shape of moving objects in the

scene is unknown, background subtraction is an ap-

propriate method to detect those objects. Although

several background subtraction algorithm have been

proposed, all of them are based on the same idea. First

the so called background model is built. This model

represents the naked scene or the observed environ-

ment without any objects of interest. Moving objects

are then detected by ﬁnding deviations from the back-

ground model in the image.

Background subtraction became popular follow-

ing the work of Wren et al. (Wren et al., 1997).

He proposed a method where each pixel of the back-

ground is modeled by a Gaussian distribution. The

mean and the covariance parameters for each distri-

bution are learned from the pixel value observations

in several consecutive images. Although this method

shows good results, a single Gaussian distribution is

not appropriate to model multiple colors of a pixel.

This is necessary in the case of small repetitive move-

ments in the background, shadows or reﬂections. For

example pixel values resulting from specularities on

the surface of water, from monitor ﬂicker or from

slightly rustling of leaves can not be modeled with just

one Gaussian distribution. In 2000, Staufer and Grim-

son (Stauffer and Grimson, 2000) used instead a mix-

ture of Gaussians to model a pixel color. This back-

ground subtraction method is used in the proposed ap-

proach to detect moving objects. In the following it is

presented in more detail.

Each pixel in the image is modeled by a mixture of

K Gaussian distributions. K has a value from 3 to 5.

The probability that a certain pixel has a color value

of X at time t can be written as

p(X

) =

∑

i=1

i,t

· η(X

;θ

i,t

)

where w

i,t

is a weight parameter of the i-th Gaussian

component at time t and η(X

;θ

i,t

) is the Normal dis-

tribution of i-th Gaussian component at time t repre-

sented by

η(X

;θ

i,t

) =

(2π)

|Σ

i,t

−

(

−µ

i,t

)

−1

i,t

(

−µ

i,t

)

where µ

i,t

is the mean and Σ

i,t

= σ

i,t

I is the covariance

of the i-th component at time t. It is assumed that the

red, green and blue pixel values are independent and

have the same variances.

The K Gaussians are then ordered by the value of

i,t

/σ

i,t

. This value increases both as a distribution

gains more evidence and the variance decreases. Thus

this ordering causes that the most likely background

distributions remain on top.

The ﬁrst B distributions are then chosen as the back-

ground model. B is deﬁned as

B = argmin

∑

i=1

> T

where the threshold T is the minimum portion of the

background model. Background subtraction is done

by marking a pixel as foreground pixel if its value is

more than 2.5 standard deviations away from any of

the B distributions.

The ﬁrst Gaussian distribution that matches the pixel

value is updated by the following equations

i,t

= (1− ρ)µ

i,t−1

+ ρX

i,t

= (1− ρ)σ

i,t−1

+ ρ(X

− µ

i,t

)

− µ

i,t

)

where

ρ = αη(X

|µ

,σ

)

and α is the learning rate. The weights of the i-th

distribution are adjusted as follows

i,t

= (1− α)w

i,t−1

+ α(M

i,t

)

where M

i,t

is set to one for the distribution which

matched and zero for the remaining distributions.

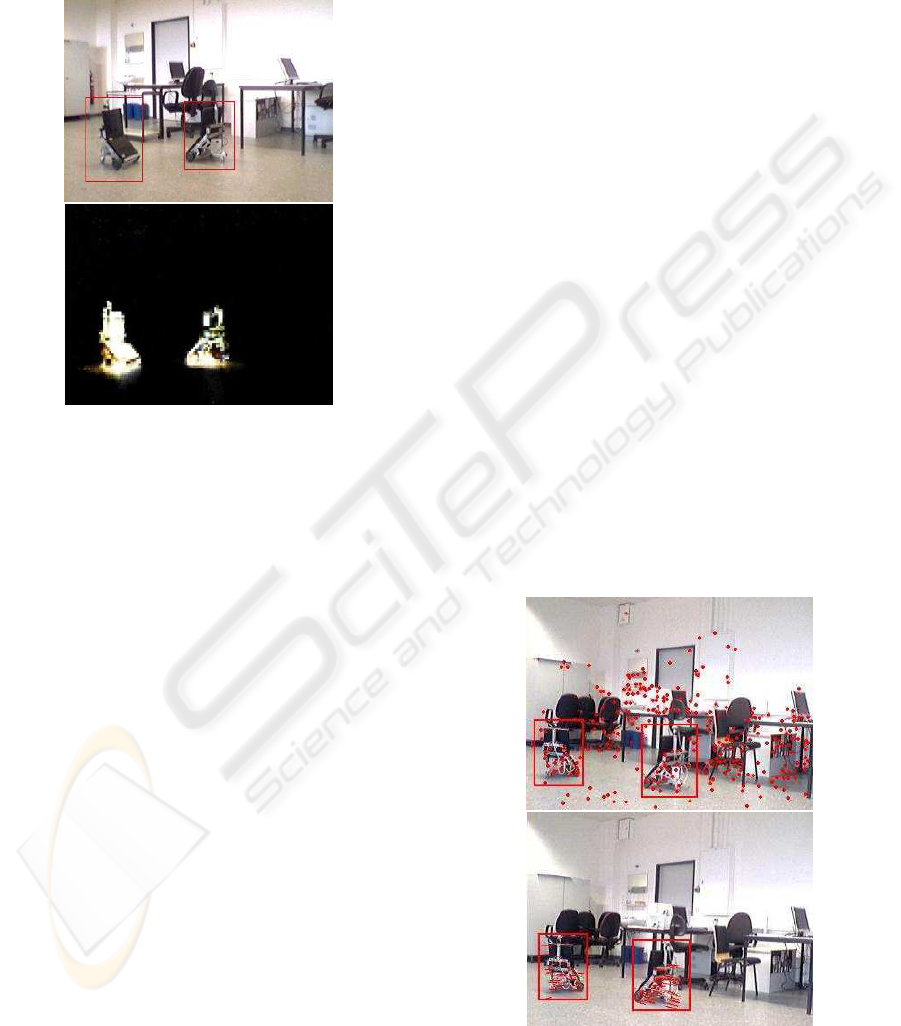

Figure 1 shows some results of the background

subtraction method. For this experiment a simple off

the shelf web camera was placed in one corner of the

room facing the center. The background model of

ROBUST OBJECT TRACKING BY SIMULTANEOUS GENERATION OF AN OBJECT MODEL

393

the scene was learned from the ﬁrst 200 images taken

from that camera. Moving objects in the scene were

then detected by the deviation of pixel colors from the

background model. As shown in the lower image all

moving objects have been successfully detected.

Figure 1: Results of the background subtraction.

Here moving objects are represented by so called

foreground pixels. Pixels which belong to the back-

ground have a constant black value. Usually for later

processing foreground pixels are grouped into regions

by a connected components algorithm. This allows to

treat an object as a whole. After labeling the com-

ponents axis parallel rectangles around these regions

have been computed. The results are shown in the left

image. The centers of these rectangles have been used

to specify the positions of the objects in the image.

The positions and rectangles around all detected

objects in the scene form the input to the object track-

ing method. This method is described in more detail

in the next section.

3 OBJECT TRACKING

The aim of an object tracker is to establish correspon-

dences between objects detected in several consecu-

tive images. Assuming that an object is not moving

fast, one could treat overlapping rectangles r

i,t

and

j,t+1

in two consecutive images t and t + 1 as sur-

rounding the same object. However as stated above

this assumption imposes a constraint on the motion

model of an object. In the case of a small fast moving

object the rectangles around this object in different

images will not overlap and the tracking will fail.

To overcome this problem a different tracking ap-

proach was used. The input to this method consists

of rectangles around moving objects which have been

previously computed in two consecutive images. To

establish correspondences between rectangles the fol-

lowing steps have been conducted.

• Extraction of distinctive features in both images.

• Finding correspondences between the extracted

features.

• Identifying corresponding rectangles. Two rect-

angles are considered as being correspondent

when features they surround are corresponding to

each other.

Figure 2 shows how two robots have been tracked.

The upper and lower pictures show images taken from

the same camera at timestamps t and t + 1 respec-

tively. First based on the background subtraction

method the robots have been found and then by us-

ing the connected components algorithm rectangles

around these robots have been computed. Simulta-

neously, distinctive features have been extracted and

tracked over these two images. In the upper image

those features are depicted through dots. Computed

rectangles were used to select features which repre-

sent the moving objects. Corresponding rectangles in

two consecutive images have been identiﬁed through

corresponding features which lie inside those rectan-

gles. The short lines on moving objects in the lower

image depict trajectories of successfully tracked fea-

tures which have been found on the robots. This

Figure 2: Tracking of moving objects in the scene.

approach is not restricted to a special kinds of fea-

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

394

tures. Several interest point detectors can be used.

Morevec’s interest operator (Moravec, 1979), Harris

corner detector (Harris and Stephens, 1988), Kanade-

Lucas-Tomasi (KLT) detector (Shi and Tomasi, 1994)

and Scale-invariant feature transform (SIFT) detector

(Lowe, 2004) are often mentioned in the literature.

However in experiments presented here, SIFT detec-

tor has been used. According to the survey by Miko-

lajczyk and Schmid (Mikolajczyk and Schmid, 2003)

this detector outperforms most point detectors and is

more resilient to image deformations.

SIFT features were introduced by Lowe (Lowe,

2004) in 1999. They are local and based on the ap-

pearance of the object at particular interest points.

They are invariant to image scale and rotation. In

to these properties, they are also highly distinctive,

relatively easy to extract and are easy to match against

large databases of local features.

As seen on the left image in Figure 2 features are

extracted not only on moving objects but also all over

the scene. Previously computed rectangles around the

objects which were detected by background subtrac-

tion are used to cluster and to select features of inter-

est. These are features which are located on moving

objects. However one could also think of clustering

the features due to the length and angle of the trans-

lation vectors deﬁned by two corresponding features

in two images. Features located on moving objects

produce longer translational vectors as those located

on the background. In such an approach no back-

ground subtraction would be necessary and a lot of

computational cost would be saved. This method was

also implemented but led to very unstable results and

imposed too many constraints on the scene and on

the object motion. For example to separate features

which represent a slowly moving object from those

which lie on the background it was necessary to de-

ﬁne a threshold. It is easy to see that this approach

is not applicable when for example an object stops

moving before changing its direction. Later it will be

shown that the results of the background subtraction

method are also used to generate a model of an object.

Although the proposed tracking method was suc-

cessfully tested in an indoor environment, it does have

several drawbacks. The method tracks objects based

on the features which have been extracted and tracked

to the next image. However point correspondences

can not be found in every situation. It especially be-

comes complicated in the presence of partial or full

occlusions of an object. The same problem arises due

to changing appearance of an object. Usually an ob-

ject does have different views. If it rotates fast only

few or no point correspondences at all can be found.

The above problems could be solved if a mul-

tiview appearance model of a tracked object would

be available. In that case an object could have been

detected in every image, hereby improving the per-

formance of the tracking algorithm. Usually such

models are created in an ofﬂine phase. However, in

most applications it is not practicable. Such an ap-

proach also restricts the number of objects which can

be tracked. Depending on the application, an expert

usually deﬁnes the amount and the kind of objects to

be tracked and trains the system to recognize these ob-

jects. Next section describes how a multiview appear-

ance model of a previously unknown object is gener-

ated online.

4 GENERATION OF AN OBJECT

MODEL

Usually objects appear different from different views.

If such an object performs a rotational movement the

system has to know the different views of that ob-

ject so that it can track it. A suitable model for that

purpose is a so called multiview appearance model.

A multiview appearance model encodes the different

views of an object so that it can be recognized in dif-

ferent positions.

Several works have been done in the ﬁeld of ob-

ject tracking using multiview appearance models. For

example Black and Jepson (Black and Jepson, 1998)

proposed a subspace based approach, where a sub-

space representation of the appearance of an object

was built using Principal Component Analysis. In

2001, Avidan (Avidan, 2001) used a Support Vector

Machine classiﬁer for tracking. The tracker was pre-

viously trained based on positive examples consist-

ing of images of an object to be tracked and negative

examples consisting of things which were not to be

tracked. However, such models are usually created

in an ofﬂine phase, which is not practicable in many

applications.

In the approach presented here a multiview ap-

pearance model of a previously unknown object is

generated online. The input to the model genera-

tion module consists of all moving objects detected

by background subtraction and all correspondences

established through the object tracker described in

section 3. Figure 3 shows graphically the procedure

which is followed by the model generation module.

After background subtraction was performed and

moving objects were detected in the image, image re-

gions representing those objects were used to build

models of them. In the database a model of an ob-

ject was stored as a collection of different views of

that object. The database was created and updated us-

ROBUST OBJECT TRACKING BY SIMULTANEOUS GENERATION OF AN OBJECT MODEL

395

Figure 3: Graphical representation of a workﬂow of the model generation module.

ing the vision system of the Evolution Robotics ERSP

platform. Each view of an object was represented

by a number of SIFT features, which have been ex-

tracted from the corresponding image of that object.

Recognition was performed by extracting SIFT fea-

tures in a new image and by matching them, based on

the similarity of feature texture, to the features stored

in the database. The potential object matches were

then reﬁned by the computation of an afﬁne transform

between the new image and the corresponding view

stored in the database. Next all different cases shown

in ﬁgure 3 are described in more detail.

Case 1. In the very beginning when the system starts

working and the database is empty, there is

no matching of any extracted object with the

database. And since it is the ﬁrst time that this

object is detected it is not tracked either. Thus a

new model consisting of one view only is added

to the database.

Case 2. If the same object could be tracked to the

next image but the new view could not be matched

with the database then this new view is added to

the model which matched the view of the object

in the previous image. This situation can occur

when an object is rotating and thus changing its

appearance. In this case only a few features can

be tracked. However these correspondences are

usually not sufﬁcient to match the new view to the

one already existing.

Case 3. The detected object can be matched with the

database. In this case two situations can arise. In

the ﬁrst case the object is matched to one model

in the database only. If the matching score is low

than a new view is added to that model. In the

second case the object is matched to more than

one model in the database. In this situation all

views of these models are fused together. It is sug-

gested that these views describe the same object

and therefore belong to the same model.

The second situation in the third case arises when dif-

ferent models in the database represent the same ob-

ject. Different models of the same object could have

been created when an object performs an abrupt mo-

tion and neither the new view is matched with the

database nor the tracker is able to track the object.

However after a period of time, if a new view can

be matched to these different models in the database,

these models will be fused together. The duration of

this period depends on the motion of the object. Fig-

ure 4 shows the multiviewmodel of a robot which was

created with the proposed approach.

Different views of the robot have been stored in

the database. In this ﬁgure points depict the posi-

tions of SIFT features which havebeen extracted from

these images. The generated model is speciﬁc to cam-

era position and orientation. No views are stored in

the database which can not be obtained from that par-

ticular camera. This results in a very accurate and

concise representation of an object. The obtained

database is optimally ﬁtted into the application envi-

ronment.

The described algorithm for model generation can

also work if no point tracker is available. In that case

the query for a successfully tracked object in ﬁgure

3 would always result in ’NO’. However experiments

have shown that an adequate point tracker reduces the

time needed to generate an object model.

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

396

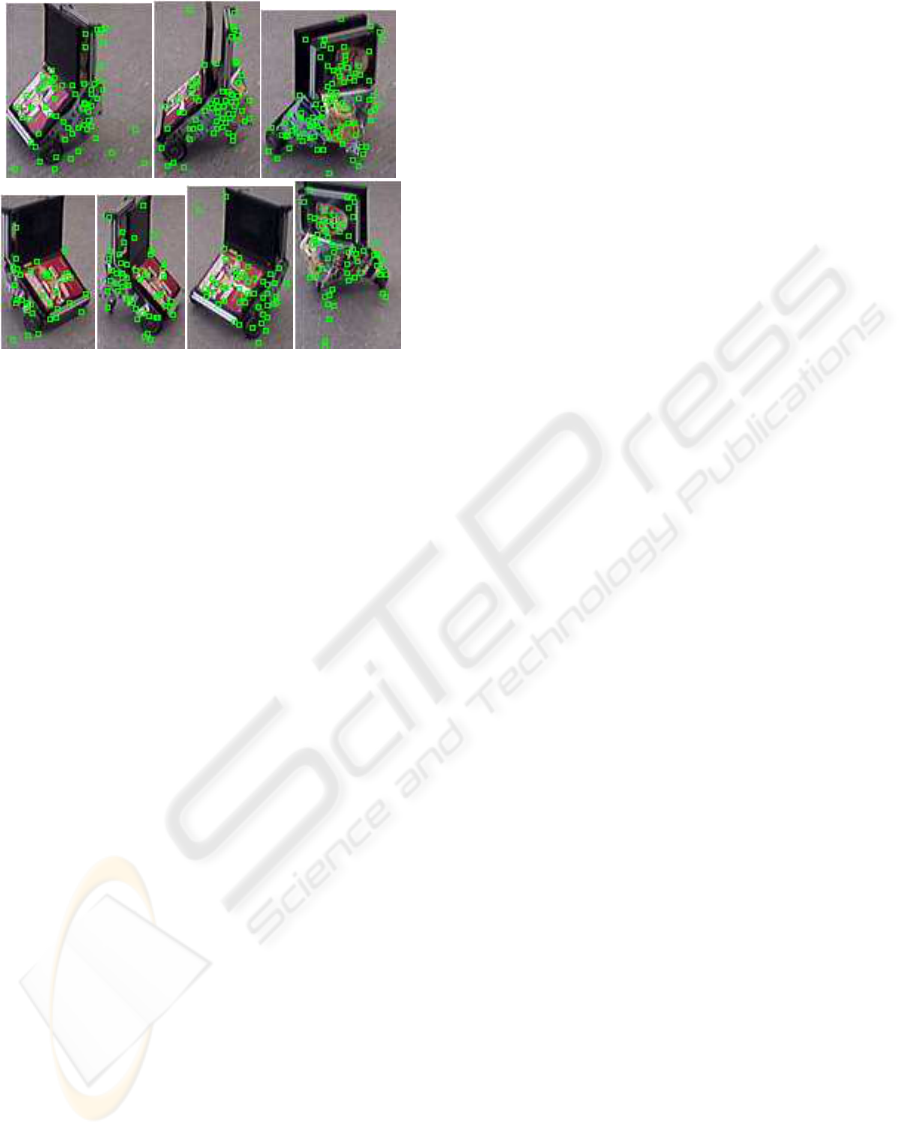

Figure 4: Online generated model of the robot.

With object models being available, objects were

tracked more robustly. The trajectory of an object

was estimated via results of the feature tracker pre-

sented in section 3 in combination with the object

detection mechanism which located objects based on

their model stored in the database. Even in the case

of temporary partial or full occlusions of the tracked

object tracking was stable and could have been con-

tinued. After the object reappeared, it was detected

by the system based on the previously stored model

in the database.

5 CONCLUSIONS

In this paper a new object tracking approach was

presented which autonomously improves its perfor-

mance by simultaneous generation of object models.

The different multiview appearance models are cre-

ated online. The presented approach requires no pre-

vious training nor manual initialization. With such

characteristics it is very good suitable for automated

surveillance. Since the method automatically creates

a model of moving objects, it can also be used to re-

trieve information when or how often a particular ob-

ject was moving in the scene.

Although the presented approach was successfully

tested in an indoor environment, it sometimes suffers

from one problem which will be eliminated in the fu-

ture. Background subtraction does not work perfectly.

Due to noise or abrupt illumination changes artifacts

can arise. The resulting foreground image does not

contain only moving objects, but also some clusters

of pixels which actually belong to the background.

Since the system has no previous knowledge about

objects to track it treats these clusters as moving ob-

jects and starts to generate an appearance model. The

idea to overcome this problem is to develop a mod-

ule which monitors trajectories and appearances of

objects. Clusters of falsely classiﬁed pixels which ac-

tually belong to the background do not move and their

appearance does not change. Based on that informa-

tion wrongly created models can be deleted from the

database.

REFERENCES

Avidan, S. (2001). Support vector tracking. In IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 184–191.

Black, M. and Jepson, A. (1998). Eigentracking: Robust

matching and tracking of articulated objects using a

view-based representation. Int. J. Comput. Vision 26,

1:63–84.

Comaniciu, D., Ramesh, V., and Meer, P.

(2003). Kernel-based object tracking. IEEE

Trans.Patt.Analy.Mach.Intell, 25:564–575.

Harris, C. and Stephens, M. (1988). A combined corner and

edge detector. In 4th Alvey Vision Conference, pages

147–151.

Jepson, A., Fleet, D., and ElMaraghi, T. (2003). Robust

online appearance models for visual tracking. IEEE

Trans.Patt.Analy.Mach.Intell, 25:1296–1311.

Lowe, D. (2004). Distinctive image features from scale-

invariant keypoints. Int. J. Comput. Vision 60, 2:91–

110.

Mikolajczyk, K. and Schmid, C. (2003). A performance

evaluation of local descriptors. In European Con-

ference on Computer Vision and Pattern Recognition,

pages 1615–1630.

Moravec, H. (1979). Visual mapping by a robot rover. In

Proceedings of the International Joint Conference on

Artiﬁcial Intelligence, pages 598–600.

Shi, J. and Tomasi, C. (1994). Good features to track.

In IEEE Conference on Computer Vision and Pattern

Recognition, pages 593–600.

Stauffer, C. and Grimson, W. (2000). Learning pat-

terns of activity using real time tracking. IEEE

Trans.Patt.Analy.Mach.Intell. 22, 8:747–767.

Wren, C., Azarbayejani, A., and Pentland, A. (1997).

Pﬁnder: Real-time tracking of the human body. IEEE

Trans.Patt.Analy.Mach.Intell. 19, 7:780–785.

Yilmaz, A., Javed, O., and Mubarak, S. (2006). Object

tracking: A survey. ACM Computing Surveys, 38.

ROBUST OBJECT TRACKING BY SIMULTANEOUS GENERATION OF AN OBJECT MODEL

397
