HARDWARE IMPLEMENTATION FOR EDGE

DETECTION IN CDNA MICROARRAY IMAGES

Bogdan Belean, Monica Borda

Technical University of Cluj-Napoca, Faculty of Electronics Teleomunications and Information Technology

Comunications Department, 26 28 George Baritiu, Cluj-Napoca, Romania

Albert Fazakas

Technical University of Cluj-Napoca, Faculty of Electronics Teleomunications and Information Technology

Electronics Basics Department, 26 28 George Baritiu, Cluj-Napoca, Romania

Keywords: cDNA Microarray, Image Processing, Parallel Processing, FPGA Technology.

Abstract: The present paper proposes hardware implementation strategies for cDNA microarray image processing in

order to overcome the main disadvantage introduced by the existing computational tools, the increased

processing time. A hardware implementation of the Canny edge detection algorithm for microarray spots is

described. The implementation takes advantage of spatial and temporal parallelism offered by FPGA

technology. Results of the hardware implementation which prove time and cost efficiency are presented.

1 INTRODUCTION

Microarray experiments are providing genome wide-

data on gene expression patterns. Different

techniques including SAGE, differential display,

oligonucleotide array and cDNA microarrays have

been developed. The techniques offer the possibility

of mRNA expression to be assessed on a global

scale, allowing the parallel assessment of gene

expression for thousands of genes in a single

experiment. Gene expression represents the

transformation of gene’s information into proteins.

The most common use of these techniques is for the

determination of patterns of differential gene

expression, comparing differences in mRNA

expression levels between identical cells subjected

to different stimuli or between different cellular

phenotypes or developement stages (Bajcsy, 2004).

The hardware processing techniques described in

this paper will focus on processing images obtained

as a result of cDNA microarray experiment. cDNA

microarrays represent gene specific probes arrayed

on a matrix such as a glass slide or microchip.

Usually, samples from two sources are labelled with

two different fluorescent markers and hybridized on

the same array (glass slide). After the hybridization,

the array is scanned using two light sources with

different lengths (red and green) to determine the

amount of labelled sample bound to each spot

through hybridization process. The light sources

induce fluorescence in the spots, which is captured

by a scanner and a composite image is produced.

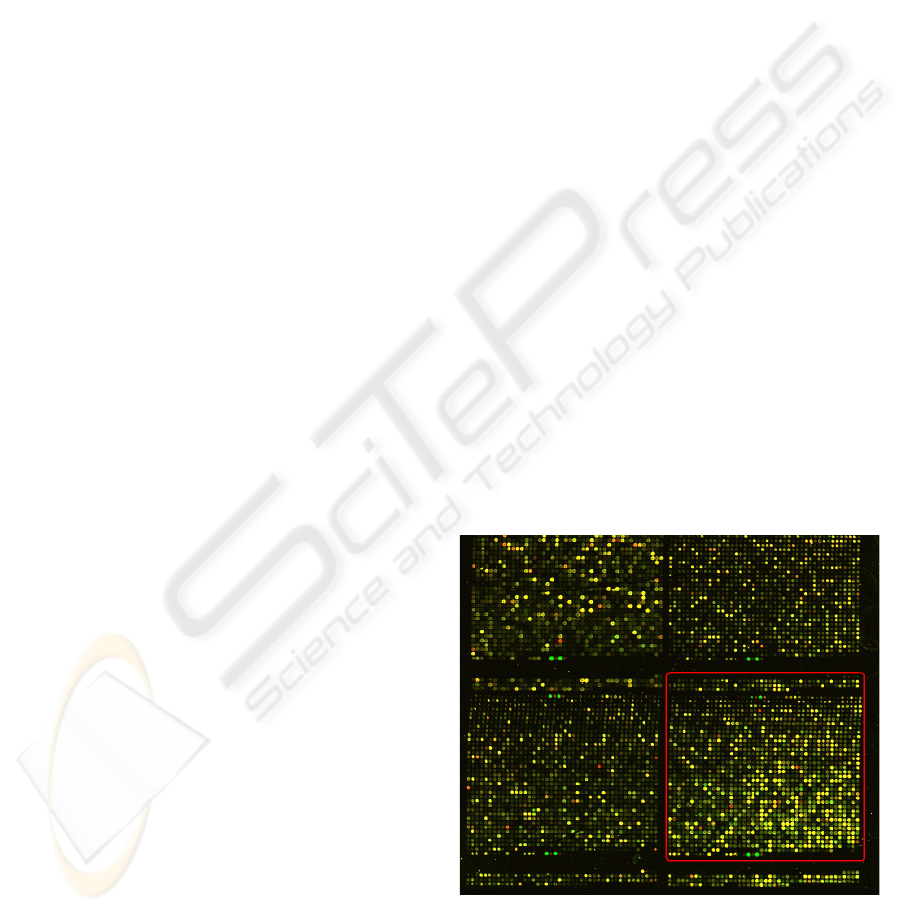

Figure 1: Microarray image with underlined independent

sub-image. Stanford University Medical Centre,

Department of Genetics.

359

Belean B., Borda M. and Fazakas A. (2009).

HARDWARE IMPLEMENTATION FOR EDGE DETECTION IN CDNA MICROARRAY IMAGES .

In Proceedings of the International Conference on Biomedical Electronics and Devices, pages 359-363

DOI: 10.5220/0001536403590363

 SciTePress

Further on, image processing techniques are used

to quantify gene expression levels present in the

captured microarray image, in order to identify a

gene in a biological sequence and to predict the

function of the identified gene. The flow of

processing a microarray image (Yang, 2001) is

generally separated in the following tasks:

addressing, segmentation, intensity extraction and

pre-processing to improve image quality and

enhance weakly expressed spots. The first step

associates an address to each spot of the image. In

the second one, pixels are classified either as

foreground, representing the cDNA spots, or as

background. The last step calculates spot intensities

and estimates background intensity values.

The major tasks of microarray image processing,

which contributes in fulfilling the last mentioned

steps, are to identify the array format including the

array layout, spot size and shape, spot intensities and

distances between spots. The main parameters taken

into consideration in microarray image processing

are accuracy and time. The accuracy is given by the

quality of image processing techniques. The second

parameter, time, is critical due to the large amount of

data contained in a microarray image. A regular

microarray image has up to hundreds of MB, and it

can be divided in independent sub-images, which

consists in a compact group of spots as it can be seen

in figure 1. Sophisticated computational tools are

available for microarray image processing but, their

main disadvantages are the increased computational

time and the user intervention needed in processing.

To overcome the previous disadvantages,

microarray images are analyzed and processed using

FPGA technology. The hardware implementations

of microarray image processing techniques make use

of the features of FPGA, which allow accessing at

the same time hundreds of memory addresses. In this

way, calculations specific to microarray image

processing are made in parallel, increasing the

processing speed. For this kind of processing, image

acquisition is mandatory and its description is

presented in the following papers (Belean, 2008).

This paper proposes hardware strategies for

microarray image processing (paragraph 2), and also

an implementation of spot border detection

algorithm using the Canny filter.

2 FPGA & MICROARRAYS

FPGA technology uses pre-built logic blocks and

programmable routing resources to configure these

chips and to implement custom hardware

functionality. Their main benefits are the low cost,

the short time to market and also the increased

performance due to their structure which is able to

exploit spatial and temporal parallelism. These

advantages will be used to develop a system on a

chip in order to process the microarray images in a

manner that does not need user intervention. Also,

time being critical in microarray image processing,

using FPGA technology will decrease the

computational time due to its parallel computation

capabilities. The main goal of this approach for

microarray image processing is to obtain a device

which will be able to extract and quantify gene

expression a lot more faster than existing

computational tools, so that microarray analyses to

be easily performed on a large number of subjects

(thousands of patients and different diseases). This

task can hardly be achieved with the existing tools

which are time consuming and which also need user

intervention.

2.1 Hardware Implementation for

Microarray Image Processing

The hardware implementation strategies for

microarray image processing techniques presented in

this paper takes advantage of the structure size and

shape of a microarray image. As in figure 1, a piece

of the microarray image is delimited, and represents

an independent microarray sub-image. Taking into

account that the microarray image composed by

independent sub-images is written in a RAM

memory after the acquisition, a first step in

processing is to crop the image by determining the

address and dimension of each sub-image. Once

these parameters are known, the independent sub-

images are copied one by one in the Block RAM

memory inside the FPGA for further processing

which consists in addressing each spot of the image.

This type of memory offers multi-port and high

speed access needed for the next step of processing

which aims to determine the spot contour and extract

the spot intensity for quantifying gene expression.

The image being cropped and copied into the

Block RAM memory, hardware design techniques

such as parallelism and pipelining can be developed

using FPGA technology. These techniques will be

presented in the next subchapters.

2.1.1 Hardware Algorithms

Image processing operations like median filters and

gradient calculation are based on the convolution,

which is included in a class of algorithms called

BIODEVICES 2009 - International Conference on Biomedical Electronics and Devices

360

spatial filters. Convolution is used for implementing

image operators which have as output pixel value a

linear combination between pixels of the original

image. Conceptually, each pixel in the output image

is produced by sliding an NxM window over the

input image and computing an operation according

to the input pixels under the window and the chosen

window operator. The hardware approach for

convolution is presented as follows: the entire input

image is stored into a frame buffer; each time the

window is moved, MxN pixels values are required to

calculate the resulted pixel value. Memory bandwith

constraints make obtaining all these pixels each

clock cycle impossible, so local caching is

performed. In this way, N-1 rows are cached using a

shift register which leads to the next block diagram:

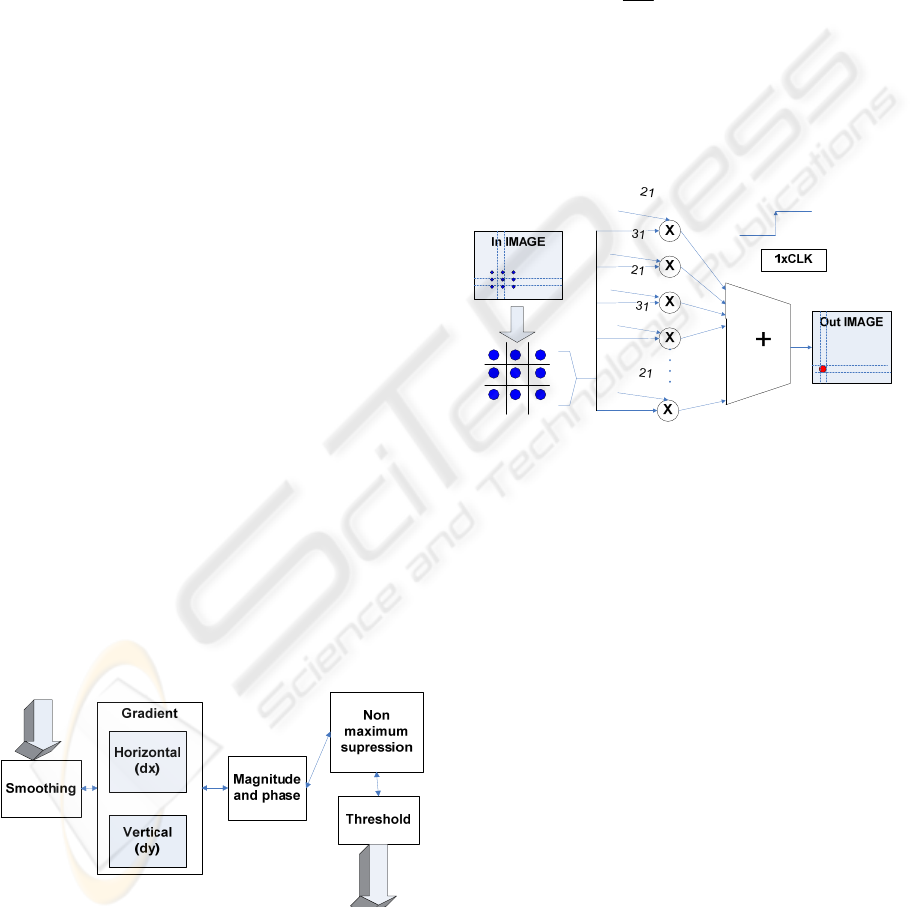

Figure 2: Block diagram for hardware implementation of

convolution operator (Johnston, 2004).

In this case, instead of sliding a window across

the image, the implementation feeds the image

through the window.

2.1.2 Temporal Parallelism

Based on the possibility of cropping a microarray

image into independent sub-images, a strategy for

microarray image processing emerges. The idea is to

design an architecture which processes in parallel

two or more independent sub-images. Once the

address and dimension of each independent sub-

image is determined, two ore more microarray sub-

images can be copied into the FPGA block RAM

depending on the capacity of block RAM. In figure

3 a cropped microarray image which consists in a

matrix of independent sub-images called A(i,j) is

presented. The numbers from 1 to 3 and from 1’ to

3’ represent the operations applied on two

independent microarray sub-images. This way,

operation 1 stands for copying the sub-image from

RAM to the FPGA block RAM. Operation 2

represents the processing of the sub-image using

FPGA technology and spatial parallelism. Operation

3 copies the microarray processed sub-image back

into the RAM, on the exact place from which it was

transferred into FPGA. The operations 1, 2 and 3 are

done for each microarray sub-image. In the end we

will have in the RAM memory a processed

microarray image.

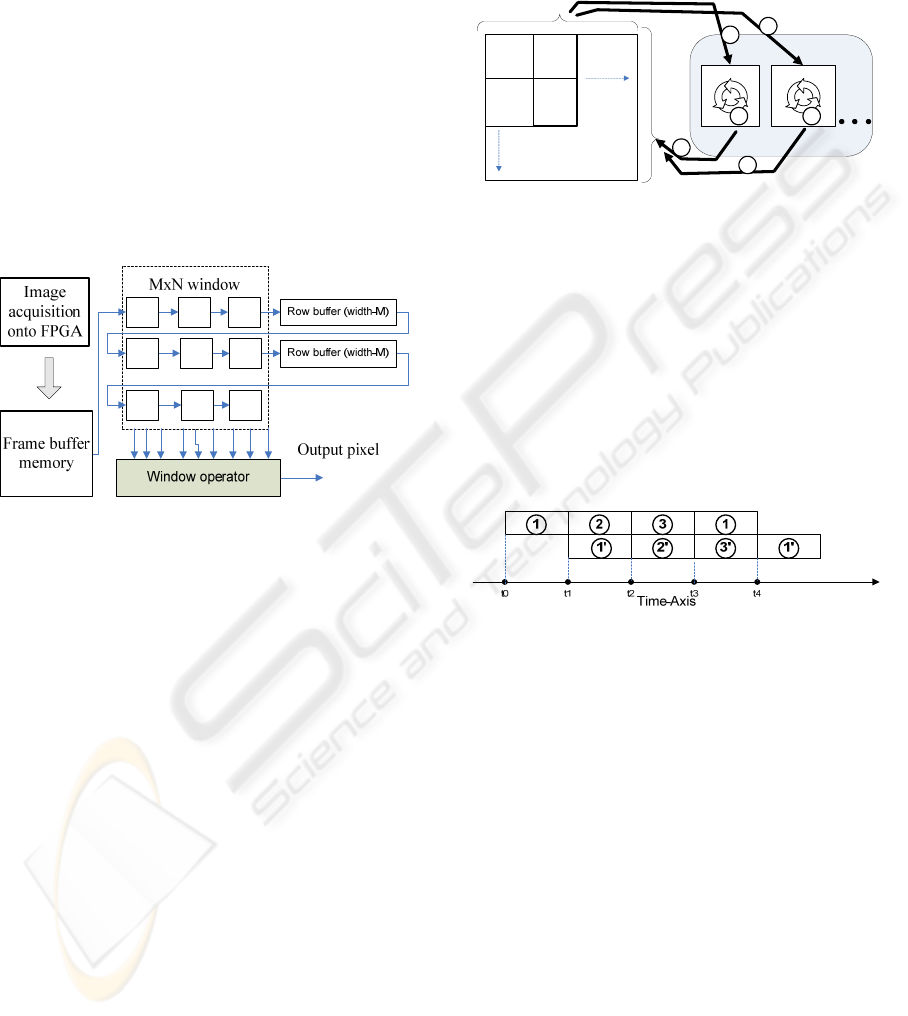

Figure 3: Block diagram for pipeline architecture of

microarray image processing.

Time beeing critical in microarray image

processing, the previous approach reduces the

processing time to half of its regular value. As an

exemple we can mention that, while a sub-image is

copied into the block RAM, image processing

techniques are applied on another independent sub-

image, in case that there is place for more than one

microarray independent sub-image in RAM. A view

in time of the current architecture can be seen in the

next figure:

Figure 4: Time representation of the operation 1,2 and 3 in

pipelining.

2.1.3 Spatial Parallelism

To start with, it is to be mentioned that processors

divide computation across time, while dedicated

logic divides it across space, which highly decreases

computational time. Taking into consideration the

large amount of data contained in a microarray

image and also the repetitive nature of this type of

data, FPGA dedicated logic was chosen for the

implementation of microarray image processing

techniques in order to reduce computational time.

The use of hardware description language (HDL)

allows a description of a design with parallel data

paths and simultaneous computation.

Some of the major tasks in microarray image

processing are to extract spot intensities and to

determine spot contour and dimension. The

dimension of a regular spot is around 20-40 pixels

height and length. The reduced dimension of a

A(0,0) A(0,1)

A(1,0) A(1,1)

FPGA

Block RAM

A(i,j)

A(i,j)+1

Cropped microarray image

representation

in RAM memory

HARDWARE IMPLEMENTATION FOR EDGE DETECTION IN CDNA MICROARRAY IMAGES

361

microarray spot offers the possibility to exploit

spatial parallelism capabilities of FPGAs. Each spot

is copied into the distributed RAM of the FPGA, so

spatial computation can be applied, thanks to the

simultaneous access to each pixel.

3 HARDWARE

IMPLEMENTATION

This paper presents a hardware implementation of an

adaptive edge detection filter using FPGA, which

provides the necessary performance for fast

microarray image processing. In microarray image

processing, edge detection is a fundamental tool

used as a precursor step to intensity extraction and

spot segmentation. Edges occur at images location

with strong intensity contrast. For edge detection a

high-pass filter in Fourier domain can be applied, or

convolution with an appropriate kernel (Sobel,

Prewitt etc.) in the spatial domain is useful.

Convolution in the spatial domain has been chosen

for implementation because it is computationally

less expansive and offers better results.

The algorithm used for the hardware

implementation is Canny algorithm, which is

considered to be optimal, based on the following: it

finds the most edges, marks the edge as close as

possible to the actual edges, provides sharp and thin

edges. The filter that meets all the criteria mentioned

above can be efficiently approximated using the first

derivative of a Gaussian function. So the first two

steps in applying the Canny algorithm would be

smoothing the image and differentiating the image in

two orthogonal directions. The next step, non-

maximum suppression, computes the gradient

direction and magnitude in order to eliminate the

pixels that represent false edges.

Input

Output

Figure 5: Block diagram for Canny algorithm.

The previously described algorithm is applied on

a microarray spot. Due to its small dimension

(approximately 40x40 pixels), the whole spot is

copied into the FPGA, so hardware processing

strategies (spatial parallelism) described in the

previous paragraph can be applied. Further on, the

hardware implementations for each of the previous

steps are presented.

Smoothing operation is done using the following

convolution mask, because it contains a division by

that is easily done with an 8 bits shift operation:

213121

314831

213121

256

The effect of the previous Gaussian convolution is to

blur the image, eliminating noise. As it can be seen

in the next diagram, for processing 1 pixel only one

clock cycle is needed, because all the neighborhood

pixels used in computation are accessed at the same

time.

Figure 6: Gaussian filter implementation.

After smoothing the image, the next step is

gradient calculation in order to find the edge

strength of the spot. To determine the orthogonal

gradient at each pixel location, the following

convolution masks are used:

000

101

000

−

and

010

000

010 −

In this case, only arithmetic operations of addition

are used, so for the whole microarray spot written in

FPGA distributed RAM, a single clock cycle and

2x40x40 adders are enough to determine the resulted

image after applying the convolution masks.

The sign and value of the orthogonal components

of the gradient determined before are used in

estimating the magnitude and the direction of the

gradient. Once the direction of the gradient is

known, pixels values around the pixel being

analyzed are interpolated. The pixel that does not

represent a local maximum is eliminated, by

comparing it with its neighbors along the direction

of the gradient (non maximum suppression).

Combinational logic and basic operations of addition

BIODEVICES 2009 - International Conference on Biomedical Electronics and Devices

362

and shifting are used in implementation, so each

clock cycle one pixel it’s processed.

3.1 Experimental Results

The hardware platform used for implementation

includes the XC3S5000 and a quartz oscillator with

a frequency of 50 MHz used to generate the clock

signal. Summing up the time needed for each step of

the edge detection algorithm applied on a 20x20

pixels spot, a processing time of 3.2 μs is obtained.

This results leads to a processing rate of

approximately 250 Mbytes/second.

The next table presents the FPGA resource usage

for such an implementation.

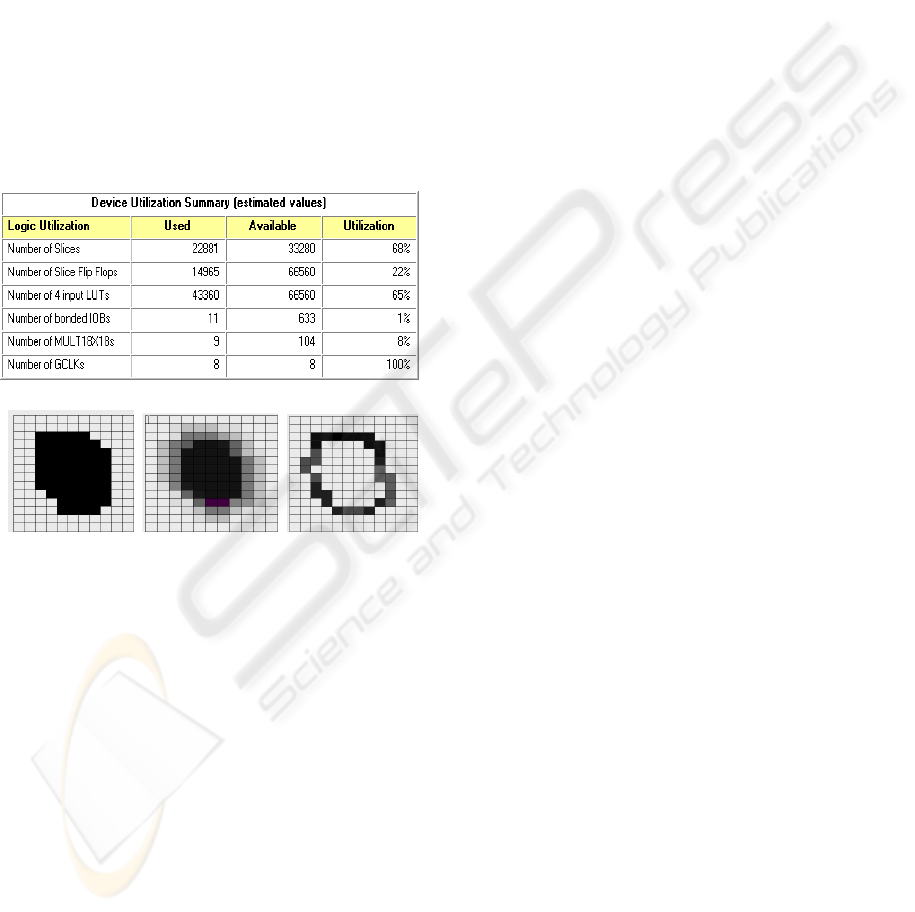

Table 1: Statistics of FPGA (XC3S5000) resource usage

for edge detection of microarray spot.

(a) (b) (c)

Figure 7: Preliminary results obtained on a 20x20

microarray spot; a) original image, b) smoothed image,

c) edge detection.

The results of the implementation applied on a

microarray spot are presented in the previous figure.

4 CONCLUSIONS

The hardware implementation strategies for image

processing presented in this paper represent an

essential step for microarray image processing on a

hardware platform. The results of the hardware

implementation for edge detection in cDNA

microarray image emphasize the importance of

using hardware methods in cDNA microarray image

processing. The technology chosen to implement a

digital system for microarray image processing was

FPGA, due to its parallel computation capabilities

and to the possibility of reconfiguration.

To sum up, the experimental results made this

hardware technology a solution for realizing a fast,

cost efficient and accurate automated system for

cDNA microarray image processing.

ACKNOWLEDGEMENTS

This work was supported by PNII IDEI Nr.

332/2007 grant, code 909 and also by CNCSIS BD

scholarship.

REFERENCES

Bajcsy, P., 2004. An Overview of DNA Microarray Image

Requirements for Automated Processing, IEEE

Transactions on Image Processing, Vol. 13, No. 1, pp.

15-25

Yang, Y., Buckley, M., Dudoit, S., and Speed, T., 2001.

Comparison of methods for image analysis on cdna

microarray data, Department of statistics - University

of California – Berkeley, Technical Report 584

Li, Q., Fraley, C., Baumgarner,R., Yeung, K., and Raftery,

E., 2005. Donuts, scratches and blanks: Robust model-

based segmentation of microarray images,

Department of statistics - University of Washington.

Technical Report 473.

Belean, B., Borda, M., Fazakas, A., 2008, Adaptive

Microarray Image Acquisition System and Microarray

Image Processing Using FPGA Technolog. KES2008,

Springer (in print).

Johnston, C.T., 2004. Implementing image processing

algorithms on FPGA, Institute of Information Sciences

and Technology, Palmerston, New Zeeland

Blekas, K., Likas, A., Legaris, I., 2005. Mixture model

analysis of dna microarray images, IEEE Transactions

on medical imaging, pp. 901-909.

HARDWARE IMPLEMENTATION FOR EDGE DETECTION IN CDNA MICROARRAY IMAGES

363
