Computational Linguistics for Metadata Building

(CLiMB) Text Mining for the Automatic

Extraction of Subject Terms for Image Metadata

1,2

Judith L. Klavans,

Tandeep Sidhu,

Carolyn Sheffield,

Dagobert Soergel

1,2

Jimmy Lin,

Eileen Abels and

Rebecca Passonneau

College of Information Studies (CLIS), USA

University of Maryland Institute for Advanced Computer Science (UMIACS)

University of Maryland, College Park, Maryland, USA

College of Information Science and Technology, Drexel University, Phila PA, USA

Center for Computational Learning Systems, Columbia University, NY, USA

Abstract. In this paper, we present a fully-implemented system using computa-

tional linguistic techniques to apply automatic text mining for the extraction of

metadata for image access. We describe the implementation of a workbench

created for, and evaluated by, image catalogers. We discuss the current func-

tionality and future goals for this image catalogers’ toolkit, developed under the

Computational Linguistics for Metadata Building (CLiMB) research project.

Our primary user group for initial phases of the project is the cataloger expert;

in future work we address applications for end users.

1 The Problem: Insufficient Subject Access to Images

The CLiMB project addresses the existing gap in subject description in metadata for

image collections, particularly for the domains of art history, architecture and land-

scape architecture. Within each of these domains, image collections are increasingly

available online yet the availability of subject-oriented access points for these images

remains minimal, at best. In an initial observational study conducted with six image

catalogers, we found that typically between one and eight subject terms are added to

catalog records for images and many legacy records lack subject entries altogether.

The literature on end users’ image searching practices indicates that this level of sub-

ject description may be insufficient for some user groups. In a study of the image-

searching behaviors of faculty and graduate students in the domain of American his-

tory [3], found that 92% of the thirty-eight participants considered the textual infor-

mation associated with the images inadequate for the images searched in the Library

of Congress’ American Memory Collection. The individual records in this collection

typically contain quantities of subject descriptors comparable to—or exceeding- those

found in the exploratory CLiMB studies. Furthermore, this study found that this

This project was first funded by the Mellon Foundation to the Center for Research on Information Access at

Columbia University.

L. Klavans J., Sidhu T., Shefﬁeld C., Soergel D., Lin J., Abels E. and Passonneau R. (2008).

Computational Linguistics for Metadata Building (CLiMB) Text Mining for the Automatic Extraction of Subject Terms for Image Metadata.

In Metadata Mining for Image Understanding, pages 3-12

DOI: 10.5220/0002338100030012

 SciTePress

group of searchers submitted more subject-oriented queries than known author and

title searches. Similar results demonstrating the importance of subject retrieval have

been reported in other studies including [6], [4] and [2].

2 Solutions

The CLiMB project was initiated to address the subject metadata gap under the hy-

pothesis that automatic and semi-automatic techniques may enable the identification,

extraction and thesaural linking of subject terms. In particular, the CLiMB Toolkit

processes text associated with an image through Natural Language Processing (NLP),

categorization using Machine Learning (ML), and disambiguation technologies to

identify, filter, and normalize high-quality subject descriptors. Like [9] we use natural

language processing techniques and domain specific ontologies, although our focus is

on associated text rather than captions.

For this project, we use the standard Cataloging Cultural Objects (CCO) definition

of subject metadata

. According to this definition, the subject element of an image

catalog record should include terms which provide “an identification, description, or

interpretation of what is depicted in and by a work or image.” The CCO guidelines

also incorporate instructions on analyzing images based on the work of Shatford-

Layne (formerly Shatford).[11], building on [8], proposed a method for identifying

image attributes, which includes analysis of both the generic and specific events,

objects, and names that a picture is “of” and the more abstract symbols and moods

that a picture is “about”. Panofsky describes the pre-iconographic, iconographic, and

iconologic levels of meaning found in Renaissance art images. Shatford's specific and

generic level corresponds to Panofsky's pre-iconographic and iconographic level,

respectively, which encompass the more objective and straightforward subject matter

depicted in an image. The iconologic level (Shatford's about) addresses the more

symbolic, interpretive, subjective meanings of an image. To aid user access, catalog-

ers are encouraged to consider both general and specific terms for describing the

objective content of an image (the “of-ness”) as well as to include the more subjective

iconologic, symbolic, or interpretative meanings (the “about-ness”). Iconologic terms

may be the hardest for catalogers to assign but occur often in texts associated with

images.

3 Preparatory Studies of Cataloging

In order to get a better sense of the cataloging process and to inform our system de-

sign, we performed some fundamental studies on the process of subject term selection

as it is currently undertaken. Our goal was to collect data on the process as a whole in

order to improve both our system function (either through rules or statistical methods)

and our system functionality (i.e. how to incorporate our results into an existing

http://vraweb.org/ccoweb/cco/parttwo_chapter6.html.

workflow and how to perhaps replace that portion of the workflow with automatic

techniques). In this section, we briefly discuss two of these formative studies.

The first study was designed to identify the types of subject terms a cataloger may

assign to a given image. Identifying these expert term preferences will help guide the

development of heuristic rules for automatically identifying high-quality descriptor

candidates and filtering out term types which are rarely assigned manually. Partici-

pants were given four stimuli: 1) a hypothetical query for an image; 2) an image; 3)

another image—this time with associated text; and 4) an image paired with a list of

CLiMB-extracted terms. For the first two stimuli, catalogers were asked to generate

subject terms. For the third and fourth stimuli, catalogers were asked to select terms

from the associated text and list of terms, respectively. We selected four image/text

pairs from the National Gallery of Art Collection. To control for varying textual con-

tent which may occur with different art historical genres, we chose one image each

from the genres of landscape, portrait, still life, and iconography. Employing a Latin

Square Design, the study was administered to 20 image catalogers, recruited through

the Visual Resource Association. Each cataloger completed 1 stimuli of the study for

each image for a total of 5 participants per version (stimuli-image pair).

Through a combined quantitative and qualitative approach, we analyzed the num-

ber of terms assigned per task, the types of terms assigned, and the level of agreement

between catalogers in formulating terms for a single concept.

In analyzing the types of terms catalogers assigned to this image, we identified seven

categories (in order of frequency): content, place, artist names, period/date, type, style

and color. Results for landscape art showed 13 terms for content, 9 for place, 8 for

artist names, 7 for period/date, 6 for type, and 4 for style and color. This distribution

is typical of the other images, and will help guide the priorities placed on term selec-

tion in CLiMB.

For the second study, we took a broader look at the overall image-indexing work-

flow, including standards, local policies, and actual practices, to determine how the

CLiMB Toolkit fits into the cataloging process as a whole. This study not only en-

abled us to define interface parameters and necessary functionality, it also confirmed

the lack of subject access currently provided by human indexers. We examined the

similarities and differences in image cataloging practices both within a single institu-

tion and across three separate institutions, and at the number and types of subject

terms added per catalog record. Within and across these academic visual resource

centers, we found that general practices and workflow patterns varied little, and that

the number of subject terms entered per catalog record varied but typically fell some-

where between one and eight. One of the primary differences across institutions was

the use of different software and metadata schemas, some of which were locally de-

veloped. These results indicate that, with flexible export functionality built in to a

generic workbench, the CLiMB Toolkit should integrate smoothly with existing prac-

tices and different work environments, with little or no tailoring required.

4 CLiMB Architecture

This section describes the techniques we have developed to semi-automatically iden-

tify terms which qualify as potential subject descriptors. Our techniques exceed sim-

ple keyword indexing by:

• applying advanced semantic categorization to text segments,

• identifying coherent phrases,

• associating terms with a thesaurus, and

• applying disambiguation algorithms to these terms.

CLiMB combines new and pre-existing technologies in a flexible, client-side archi-

tecture which has been implemented into a downloadable toolkit, and which can be

tailored to the user’s needs.

Figure 1 shows the overall architecture of the CLiMB Toolkit. The upper left

shows the input to the system, an image, minimal metadata (e.g. image, name, crea-

tor), and text. The first stage of CLiMB’s processing pipeline associates portions of

the input text with images. Note that this requires segmentation, and association of

segmented text with the image referred to and described. In clear cases, such as

online image captions or in exhibition catalogs, association of image with text is a

given. However, in cases where there is a more diffuse relationship between text and

image (as in art history texts, for example), it is a computational challenge to ensure

that text is accurately associated with the correct image, and not with an image in

close proximity (which might or might not be described by the text). This logic cre-

ates high-quality associations between text and image, unlike a broader approach

which simply grabs text surrounding an image in the hopes that it is relevant to that

image.

User

Interface

Export results

Create Index

Input: image, metadata, text

Linguistic Analysis

Stanford Tagger

Stanford Parser

NP Chunker

Term Selector

XML marked-up text

with linguistic tags

Segment, Associate

and Categorize

CLiMB Toolkit

Selection

Database

and

Index

AAT,

ULAN, TGN,

etc

Map and

Disambiguate

Linguistic

Resources

Fig. 1. CLIMB Architecture.

In addition to segmentation, we are developing methods to categorize spans of text

(e.g., sentences or paragraphs) as to their semantic function in the text. For example,

a sentence might describe an artist’s life events (e.g. “during his childhood”, “while

on her trip to Italy”, “at the death of his father”), geographical reference in a work

(e.g. “Lake Cuomo”), or style (“impressionism”.) A set of categories has been ini-

tially proposed through textual analysis of art survey texts, and piloted by asking a

range of users to label sample text; using this labeling, initial experiments in machine

learning have been conducted to extract features which will permit categorization of

sentences. These features can then be used in disambiguation to select between dif-

ferent senses of a term according to its category.

The next phase, Linguistic Analysis, consists of several subprocesses. After

sentence segmentation, a part-of-speech (POS) tagger labels (i.e. tags) the function of

each word in a text, e.g., noun, verb, preposition, etc. Complete noun phrases can

then be identified by the NP chunker based on tag patterns. For example, a deter-

miner, followed by any number of adjectives, followed by any number of nouns, is

one such pattern that identifies a noun phrase, as in “the impressive still life draw-

ing”. The tagger used for CLiMB, the Stanford tagger

provides sentential analysis

of syntactic constructions, e.g., verb phrases, relative clauses. The output of Linguis-

tic Analysis consists of XML-tagged words which now contain substantial part of

speech tagged and syntactic parsed labels. Lucene is used to create an efficient index

for these tagged words.

At this point, the noun phrases stored in the index are input to the disambigua-

tion algorithm, which then enables sense mapping, so that the proper descriptor can

be selected from a controlled vocabulary. Words and phrases often have multiple

meanings which correspond to different descriptors in a controlled vocabulary but

only one may be relevant in context. The ability to select one sense from many is

referred to as lexical disambiguation. We map to the appropriate descriptor from the

Getty Art and Architecture Thesaurus (AAT), the Getty Union List of Artist Names

(ULAN), and the Getty Thesaurus of Geographic Names (TGN).

The AAT is a

well-established and widely-used multi-faceted thesaurus of terms for the cataloging

and indexing of art, architecture, artifactual, and archival materials. In the AAT, each

concept is described through a record which has a unique ID, preferred name, record

description, variant names, and other information that relate a record to other records.

In total, AAT has 31,000 such records. Within the AAT, there are 1,400 homonyms,

i.e., records with same preferred name. For example, the term “wings” has five senses

in the AAT (see Table 1 below).

Table 2 shows the breakdown of the AAT vocabulary by number of senses

with a sample lexical item for each frequency. As with most dictionaries and thesauri,

most items have two to three senses, and only a few have more.

Both the tagger and parser are available at: http://nlp.stanford.edu/software.

Lucene is a search engine library: http://lucene.apache.org.

Getty resources can be accessed at:

http://www.getty.edu/research/conducting_research/vocabularies/aat

Table 1. Selection of AAT records for term “wings”.

Wings (5 senses):

• Sense#1:

wings (costume accessories) Used for accessories that project outward from

the shoulder of a garment and are made of cloth or metal.

• Sense#2: wings (visual works components) Lateral parts or appendages of a work of

art, such as those found on a triptych.

• Sense#3: wings (theater spaces) The areas offstage and to the side of the acting area.

• Sense#4: wings (furniture components) The two forward extensions to the sides of the

back on an easy chair.

• Sense#5: wings (building divisions) Subsidiary parts of buildings extending out from

the main portion.

What Table 2 does not illustrate, however, is the semantic distance between senses,

i.e. how close the two or three senses might be. This is a measure of the difficulty of

disambiguation. Table 2 also does not illustrate the frequency of occurrence in the

corpus of these items. Thus, although there may seem to be few terms (types) to dis-

ambiguate, they occur with very high frequency (tokens) across the data set. Words

with one sense tend to be more rare and highly specialized.

Table 2. Scope of the disambiguation problem in the AAT Thesaurus.

# of Senses # of Terms Example # of Senses # of Terms Example

29576 scaglioni

8 2 Emerald

2 1097 bells 9 1 Plum

3 215 painting 10 1 emerald green

4 50 alabaster 11 1 Magenta

5 39 wings 12 1 Ocher

6 9 boards 13 1 Carmine

7 5 amber 14 2 Slate

Following standard procedure in word sense disambiguation tasks [7], two labelers

manually mapped 601 subject terms to a controlled vocabulary. Inter-annotator

agreement for this task was encouragingly high, at 91%, providing a notional upper

bound for automatic system performance [5] and a dataset for evaluation. We have

used SenseRelate [1], [10] for disambiguating AAT senses. SenseRelate uses word

sense definitions from WordNet 2.1, a large lexical database of English nouns, verbs,

adjectives, and adverbs.

First, we use all modifiers that are in the noun phrase to find the correct AAT re-

cord (Lookup Modifier). We search for the modifiers in the record description, vari-

ant names, and the parent hierarchy names of all the matching AAT senses. If this

technique narrowed down the record set to one, then we found our correct record. For

example, consider the term “ceiling coffers.” For this term we found two records:

http://wordnet.princeton.edu/

“coffers” (coffered ceiling components) and “coffers” (chests). The first record has

the modifier “ceiling” in its record description, so we were able to determine that this

was the correct record. Next, we use SenseRelate to help select the correct WordNet

sense of the noun phrase (or its head noun). Using that sense definition from Word-

Net, we next examined which of the AAT senses best matches with the WordNet

sense definition. For this, we used a word overlapping technique which takes senses

of WordNet for each polysemous term in AAT and selects the highest value of word

overlaps. If none of the AAT records received any positive score (above a threshold),

then this technique could not find the best match. Other techniques, Best Record

Match and Most Common Sense, are presented in [12].

5 Evaluation

Table 3 below shows the breakdown of the data set terms based upon each disam-

biguation technique. Row 1 in Table 3 shows how few terms were mapped by the

lookup modifier technique. In fact, only one was mapped under the Training Set.

Table 3. Breakdown of AAT mappings by Disambiguation Technique.

Row Technique Training

(n=128)

Test

(n=96)

1 Lookup Modifier 1 3

2 SenseRelate 108 63

3 Best Record Match 14 12

4 Most Common Sense 5 18

Rows 2 and 3 show that most of the terms were labeled using the SenseRelate tech-

nique followed by the Best Record Match technique. The Most Common Sense tech-

nique (Row 4) accounted for the rest of the mappings. An analysis of results and

errors shows that our overall accuracy is between 50-55%. General disambiguation

tends to run at about 70%, which gives us room for improvement. We are working in

a challenging domain with a highly specialized vocabulary. Currently we depend on

the external program SenseRelate to perform much of the disambiguation. Further-

more, SenseRelate maps terms to WordNet and we then map the WordNet sense to an

AAT sense. This extra step is overhead, and it causes errors in our algorithm. In

future work, we will explore the option of re-implementing concepts behind SenseRe-

late to directly map terms to the AAT. We will explore additional approaches to em-

ploy hybrid techniques (including machine learning) for disambiguation. At the pre-

sent time, we have tested disambiguation and the module will be integrated with into

CLiMB as soon as we test results with users. Our plan is to first use results to rank

and select a sense for mapping that the user will confirm; once we collect enough

feedback from users, we can apply learning to actually map fully and eliminate senses

with greater confidence than at present. Figure 2 shows a screen shot of the CLiMB

user interface, after having performed a search over images in the National Gallery of

Art, and having run the text through the Toolkit.

Note that the center top panel con-

tains the image, so the user can look at the item to be approved. The center panel

contains the input text, with proper and common nouns highlighted. Under this is the

term the user has selected to enter. The right-hand panel gives the thesaural informa-

tion.

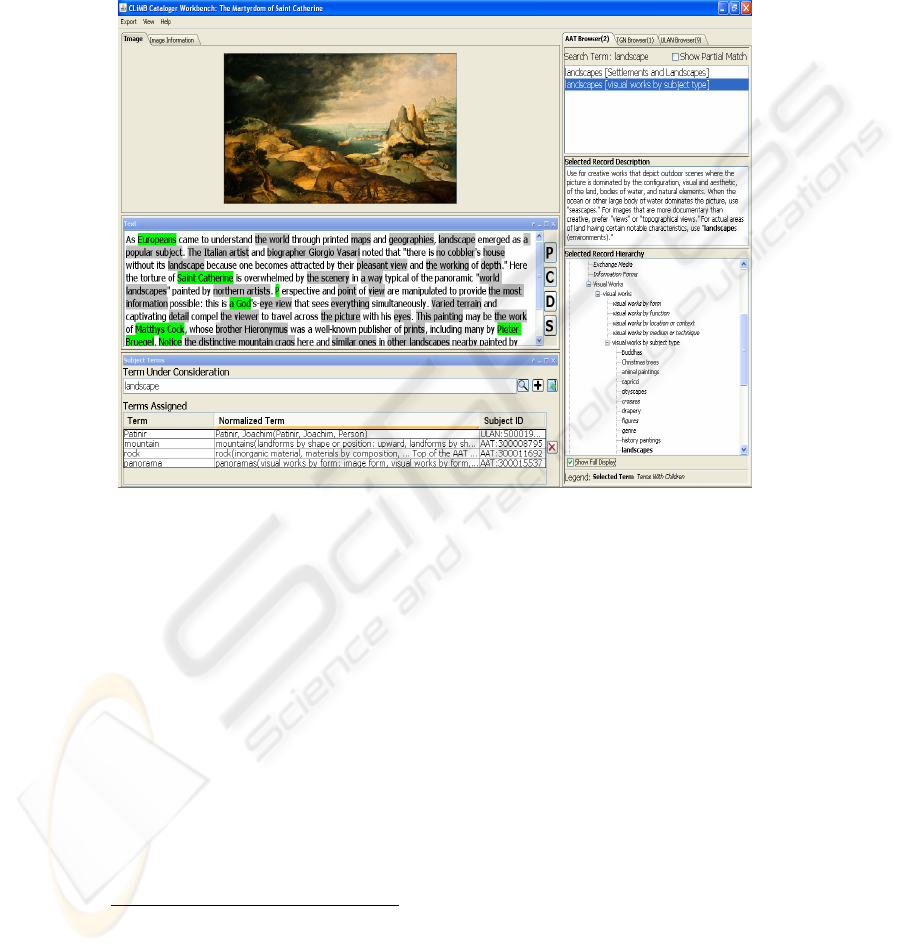

Fig. 2.CLiMB User Interface for Term “landscape”.

At the top of the right are the two senses for the word “landscape” with an indication

of where they occur in the AAT hierarchy. Next is the text description of the sense

selected. Finally, the entire hierarchy is displayed, bottom right, for the user to view

and used to identify any related terms.

As part of the evaluation, we have established a series of test collections with

CLiMB partners, in the fields of art history, architecture, and landscape architecture.

These three domains were selected in part because of the existing overlap in domain

specific vocabulary. Testing with distinct but related domains enables us to test for

disambiguation issues which arise in the context of specialized vocabularies. For

example, the Art and Architecture Thesuarus (AAT) provides many senses of the

term “panel” which apply to either the fine arts, architecture, or both, depending on

context. In the context of fine arts, “panel” in the AAT may refer to a small painting

on wood whereas in the context of architecture, the same term may refer to a distinct

section of a wall, demarked by a border or frame.

In the interest of space, we have included a full screen shot, accompanied by text explanations. If reviewers

prefer, this can be enlarged or split into two Figures.

1010

We are currently working with five image-text sets and one image collection for

which we are conducting experiments with dispersed texts located online. These six

collections will be used for different phases of evaluation, discussed under Future

Work. The texts and images for two of the collections, the National Gallery of Art

(NGA) Online Collection and the U.S. Senate Catalogue of Fine Arts, can be found

online and are in the public domain. For three of the other image collections, The

Vernacular Architecture Forum (VAF)

, The Society of Architectural Historians

(SAH)

, and The Landscape Architecture Image Resource (LAIR)

, we have secured

digital copies of relevant texts along with permissions for use in our testing. The final

collection is the Art History Survey Collection, made available to us through

ARTstor

6 Future Work

For future work, we have designed a series of studies to test the toolkit in situ. We

have partners from several museums and libraries, mentioned in the preceding

paragraph, that will first test CLiMB with their cataloging staff, and then who will

work with us to design evaluations of Toolkit success in three areas: 1) staff

perception on Toolkit ease of use for cataloging within their collections; 2) end user

satisfaction with these enhanced records; and 3) several component evaluations,

including the named entity recognizer, the noun phrase selector, and the

disambiguation component. The proverbial tradeoff between precision and recall may

be different for different sectors of the image community; we believe our research in

different venues will provide insights on this critical issue. Finally, we intend to

explore new directions for integrating CLiMB with current social networking

technologies, including social tagging, trust-based ranking of tags, and recommender

systems. These technologies offer CLiMB the potential to achieve more personalized

results.

Acknowledgements

We acknowledge: the Mellon Foundation; Dr. Murtha Baca, director of the Getty

Vocabulary Program and Digital Resource Management, Getty Research Institute for

providing us with research access to resources; collections partners, including Jeff

Cohen, Bryn Mawr College and University of Pennsylvania; Jack Sullivan, Univer-

sity of Maryland; the Senate Museum and Library and ARTStor.

http://www.vernaculararchitectureforum.org/

www.sah.org/

www.lair.umd.edu/

www.artstor.org

1111

References

1. Banerjee, S., Pedersen, T.: Extended Gloss Overlaps as a Measure of Semantic Related-

ness. In: Proceedings of the Eighteenth International Joint Conference on Artificial Intelli-

gence, (2003) 805–810 [7].

2. Chen, H.: An Analysis of Image Retrieval Tasks in the Field of Art History. Information

Processing & Management, Vol. 37, No. 5 (2001) 701-720.

3. Choi, Y., Rasmussen, E. Searching for Images: The Analysis of Users’ Queries for Image

Retrieval in American History. Journal of the American Society for Information Science

and Technology, Vol. 54 (2003) 498-511.

4. Collins, K.: Providing Subject Access to Images: A Study of User Queries. The American

Archivist, Vol. 61 (1998) 36-55.

5. Gale, W., Church, K., Yarowsky, D.: A Method for Disambiguation Word Senses in a

Large Corpus. Computers and Humanities, Vol. 26 (1993) 415-439.

6. Keister, L.H.: User Types and Queries: Impact on Image Access Systems. In: Fidel, R.,

Hahn, T.B., Rasmussen, E., Smith, P.J. (eds.): Challenges in Indexing Electronic Text and

Images. Learned Information for the American Society of Information Science, Medford

(1994) 7-22.

7. Palmer, M., Ng, H.T., Dang, H.T.: Evaluation. In: Edmonds, P., Agirre, E. (eds.): Word

Sense Disambiguation: Algorithms, Applications, and Trends. Text, Speech, and Language

Technology Series, Kluwer Academic Publishers (2006).

8. Panofsky, E. Studies in Iconology: Humanistic Themes in the Art of the Renaissance.

Harper & Rowe, New York (1962).

9. Pastra, K., Saggion, H., Wilks, Y.: Intelligent Indexing of Crime-Scene Photographs. In:

IEEE Intelligent Systems: Special Issue on Advances in Natural Language and Processing,

Vol. 18, Iss. 1. (2003) 55-61.

10. Patwardhan, S., Banerjee, S., Pedersen, T.: Using Measures of Semantic Relatedness for

Word Sense Disambiguation. In: Proceedings of the Fourth International Conference on

Intelligent Text Processing and Computational Linguistics, Mexico City (2003).

11. Shatford, S.: Analyzing the Subject of a Picture: A Theoretical Approach. Cataloging &

Classification Quarterly, Vol. 6, Iss. 3 (1986) 39-62.

12. Sidhu, T., Klavans, J.L., Lin, J.: Concept Disambiguation for Improved Subject Access

Using Multiple Knowledge Sources. In: Proceedings of the Workshop on Language Tech-

nology for Cultural Heritage Data (LaTech 2007), 45th Annual Meeting of the Association

for Computational Linguistics. Prague, Czech Republic (2007).

1212
