A NEW VIDEO QUALITY PREDICTOR BASED ON DECODER

PARAMETER EXTRACTION

Andreas Rossholm

†‡

and Benny L¨ovstr¨om

†

†

Department of Signal Processing, School of Engineering, Blekinge Institute of Technology, Ronneby, Sweden

‡

Video Technology, Ericsson Mobile Platforms AB, Lund, Sweden

Keywords:

Video quality assessment, video quality metric estimation, reference free, mobile equipment, multi-linear

regression, quality predictor, low complexity.

Abstract:

In the mobile communication area there is a demand for reference free perceptual quality measurements in

video applications. In addition low complexity measurements are required. This paper proposes a method for

prediction of a number of well known quality metrics, where the inputs to the predictors are readily available

parameters at the decoder side of the communication channel. After an investigation of the dependencies

between these parameters and between each parameter and the quality metrics, a set of parameters is chosen

for the predictor. This predictor shows good results, especially for the PSNR and the PEVQ metrics.

1 INTRODUCTION

There is a growing demand for objective quality mea-

surement techniques estimating perceived video qual-

ity in mobile devices. This is of interest to, among

others, the mobile phone industry, mobile network

operators and software developers. The quality of

a video encoder and decoder can be measured with

different metrics. Frequently metrics which require

a reference together with the processed image or

video in order to evaluate the perceived quality are

used (Winkler, 2005). Two of the most commonly

used metrics are the objective metrics peak signal-

to-noise ratio (PSNR) and the mean-squared-error

(MSE) which can be calculated for each decoded

frame and then averaged for the complete sequence.

Since both MSE and PSNR are based on a pixel-by-

pixel comparison the metrics have some issues re-

garding the relation to the perceptual quality. This

has resulted in the development of several new met-

rics as SSIM (Wang et al., 2004), a video adapted

version of SSIM denoted VSSIM (Lu et al., 2004),

NTIAs VQM (Pinson and Wolf, 2004), and Opticoms

PEVQ (PEVQ, 2008). All these metrics use the origi-

nal frame as reference, or some kind of reduced refer-

ence information, to calculate a relation between this

and the decoded frame.

In many situations where perceptual quality is of in-

terest, e.g. streaming video, video telephony, MBMS,

and DVB-H, the original frames are not available.

Thus there is a need for reference free quality metrics,

which can be implemented entirely at the decoder side

of a transmission line. There are a number of such

metrics that have been developed but they often fo-

cus on one parameter such as blur (Marziliano et al.,

2002), blockiness (Zhou, 2000), or motion (Ries et

al., 2007), and they require some processing of the re-

ceived frame and are thereby often less useable in real

application.

In this paper a solution is proposed to estimate the

quality without having access to the original frames

or reduced reference and without the requirement of

processing of the received frame. The estimation is

based on predicting the above mentioned full or re-

duced reference quality metrics.

2 THE PROPOSED IDEA

When a video sequence is encoded to fulﬁl the re-

quired properties such as bit rate, frame rate and reso-

lution, the encoder sets and adjusts a number of pa-

rameters. Some of these are set for the whole se-

quence while some are adjusted for each frame or

285

Rossholm A. and Lövström B. (2008).

A NEW VIDEO QUALITY PREDICTOR BASED ON DECODER PARAMETER EXTRACTION.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 285-290

DOI: 10.5220/0001933302850290

Copyright

c

SciTePress

within frames. The coding results in a bit stream

consisting of motion vector parameters, coded resid-

ual coefﬁcients and header information, e.g. frame

rate and quantization parameters (QP) value. From

the bit stream it is also possible to calculate the num-

ber of intra blocks, number of inter blocks, number of

skipped blocks, etc. The idea proposed in this paper

is to predict the video quality using these parameters.

The predictor is built by setting up a model and adapt

its coefﬁcients using a number of training sequences.

The parameters used are available at the decoder and

therefore the quality predictor is reference free.

Throughout this paper the video sequences are

coded using the H.264 standard, since this is one of

the most used video encoder for mobile equipment.

The parameters chosen for evaluation of contribution

to the predictor are

1. Average QP value (Avg QP)

2. Bitrate /Frame rate (Bits/Frame)

3. Number of intra blocks (Intra [%])

4. Number of inter blocks (Inter [%])

5. Number of skipped blocks (Skip [%])

6. Frame rate

7. Number of inter blocks of size 16x16

(P16x16[%])

8. Number of inter blocks of size 8x8, 16x8, and

8x16 (P8x8 [%])

9. Number of inter blocks of size 4x4, 8x4, and 4x8

(P4x4 [%])

10. Average motion vector length (Avg MV [%])

Also, other parameters could be extracted and evalu-

ated but these where chosen based on their expected

potential contribution to the perceptual quality.

3 THE METRICS PREDICTED

The proposed model will in this paper be evaluated

in predicting the following quality metrics; PSNR,

SSIM, VSSIM, NTIA VQM, and PEVQ.

PSNR, the peak signal-to-noise ratio, is deﬁned as

PSNR(n) = 10· log

MAX

2

I

MSE(n)

(1)

where MAX

I

is the maximum value a pixel can take

(e.g. 255 for 8-bit images) and the MSE is the aver-

age of the squared differences between the luminance

values of corresponding pixels in two frames. MSE is

deﬁned as

MSE =

1

UV

U

∑

u=1

V

∑

v=1

[I

R

(u,v) − I

D

(u,v)]

2

(2)

where I

R

(u,v) denotes the intensity value at pixel lo-

cation (u,v) in the reference video frame, I

D

(u,v) de-

notes the intensity value at pixel location (u, v) in the

distorted video frame, U is the number of rows in a

video frame, and V is the number of columns in a

video frame. To get a measure for a video sequence

a simple averaging over a video sequence of length N

frames is made as.

PSNR =

1

N

N

∑

n=1

PSNR(n) (3)

SSIM, the Structural SIMilarity index, considers im-

age degradations as perceived changes in the varia-

tion of structural information by combining measures

of the distortion in luminance, contrast and structure

between two frames, (Wang et al., 2004), as

SSIM(n)=

[2µ

I

R

(n)µ

I

D

(n)+C

1

][2σ

I

R

I

D

(n)+C

2

]

[µ

2

I

R

(n)+µ

2

I

D

(n)+C

1

][σ

2

I

R

(n)+σ

2

I

D

(n)+C

2

]

(4)

where µ

I

R

(n),µ

I

D

(n) and σ

I

R

(n),σ

I

D

(n) denote the

mean intensity and contrast of the n-th reference

video frame I

R

and distorted video frame I

D

, respec-

tively. The constants C

1

and C

2

are used to avoid in-

stabilities in the structural similarity comparison that

may occur for certain mean intensity and contrast

combinations.

Similar as with PSNR, the SSIM value for an en-

tire video sequence of length N may be calculated as

SSIM =

1

N

N

∑

n=1

SSIM(n) (5)

VSSIM, the Video Structural SIMilarity index, is an

adaption of the SSIM metric to quality evaluation

for video. VSSIM was developed using the VQEG

(Video Quality Experts Group) Phase I test data set

for FR-TV video quality assessment (VQEG, 2008)

and calculated as

Q

i

=

∑

R

S

j=1

w

ij

SSIM

ij

∑

R

S

j=1

w

ij

(6)

where Q

i

denotes the quality index measure of the i-

th frame in the video sequence. The weighting value

w

ij

is given to the j-th sampling window in the i-th

frame based on the observation that dark regions usu-

ally do not attract ﬁxations and should therefore be

assigned smaller weighting values. R

S

is the number

of sampling windows per video frame that has been

used. The VSSIM value for the entire video sequence

of length N is then calculated as

VSSIM =

∑

N

i=1

W

i

Q

i

∑

N

i=1

W

i

(7)

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

286

where W

i

is the weighting value assigned to the i-th

frame based on global motion and w

ij

. Since the met-

ric was developed using the VQEG Phase I test data

it consists of larger frame sizes (SD-resolutions, 525-

line and 625-line) than the QCIF used in this paper,

therefore a modiﬁed VSSIM has also been used in

the proposed solution to adapt it to smaller resolu-

tion. This is accomplished by scaling the weighting

coefﬁcient K

M

, used to calculateW

i

, and its connected

thresholds with a factor of 8, from 16 to 2 (Lu et al.,

2004).

NTIA VQM, the National Telecommunications and

Information Administrations general purpose Video

Quality Model general model, is a reduced reference

method containing linear combination of seven ob-

jective parameters for measuring the perceptual ef-

fects of a wide range of impairments such as blurring,

block distortion, jerky/unnatural motion, noise (in

both the luminance and chrominance channels), and

error blocks (Pinson and Wolf, 2004). The perceptual

impairment is calculated using comparison functions

that have been developed to model visual masking

of spatial and temporal impairments. Some features

use a comparison function that performs a simple Eu-

clidean distance between two original and two pro-

cessed feature streams but most features use either the

ratio comparison function or the log comparison func-

tion. The VQM general model was included in the

Video Quality Experts Group (VQEG) Phase II Full

Reference Television (FR-TV) tests (VQEG, 2008).

PEVQ, the Perceptual Evaluation of Video Quality

from Opticom, calculates measures from the differ-

ences in the luminance and chrominance domains be-

tween corresponding frames. Also motion informa-

tion is used in forming the ﬁnal measure (PEVQ,

2008). PEVQ has been developed for low bit rates and

resolutions as CIF (352× 288) and QCIF (176× 144).

PEVQ is a proposed candidate for standardization of a

FR video model within VQEG which is in the process

of starting veriﬁcation tests for future standardization.

4 THE MATHEMATICAL MODEL

The problem can be presented as an observation ma-

trix, X = [x

1

x

2

· · · x

N

], where x

1

,x

2

,. .. x

N

are a num-

ber of feature vectors that has been generated with

different video content and codec setups. Each fea-

ture vector x

n

consists of extracted codec parameters

denoted x

1

,x

2

,. .. x

K

. The corresponding quality mea-

sures for the different video content, PSNR, PEVQ,

SSIM, VSSIM, and NTIM then correspond to the de-

sired Y = [y

1

y

2

· · · y

N

]. X and Y can be viewed as

training data for a classiﬁcation, mapping or regres-

sion problem. It is desired to ﬁnd a function Z = f(x)

that maps the given values in x to a speciﬁc value Z,

e.g. an estimation of PSNR.

There are several different models solving the prob-

lem, that are more or less computationalcomplex. Be-

cause a low complex solution is required in order to

have the possibility for an implementation in a mobile

device, multi-linear regression is selected.

The multi-linear model is formulated as:

Y = βx+ ε (8)

where ε represents the unpredicted variation. The

multi-linear regression estimates the values for β de-

noted

b

β that can be used to predict Z as

b

Z =

b

β

0

+

b

β

1

x

1

+

b

β

2

x

2

+ ... +

b

β

K

x

K

(9)

4.1 Predicted Metric Evaluation

To be able to evaluate the accuracy of the predicted

metric Pearson linear correlation coefﬁcient is used.

It is deﬁned as follows:

r

P

=

∑

(

b

Z

i

−

b

Z

mean

)(Z

i

− Z

mean

)

q

∑

(

b

Z

i

−

b

Z

mean

)

2

p

∑

(Z

i

− Z

mean

)

2

(10)

where

b

Z

mean

and Z

mean

are the mean value of esti-

mated and true data set respectively, and

b

Z

i

and Z

i

are

the estimated and true data values for each sequence.

This assumes a linear relation between the data sets.

5 VIDEO SOURCE SEQUENCES

To generate training and veriﬁcation data different se-

quences with different characteristic (amount of mo-

tion, color, heads, animations) were used. The source

sequences had QCIF (176× 144) resolution and were

generated with different frame rates, 30, 15, 10, and

7.5 frames per second (fps), and bitrates, approxi-

mately: 30, 40, 50, 100, 150, and 200 kilobits per

second (kbps). The video sequences were approxi-

mately 3 seconds long (90, 45, 30, and 23 frames) and

they were encoded with the H.264/MPEG-4 AVC ref-

erence software, version 12.2 generated by JVT (JVT,

2000) using the baseline proﬁle.

The sequences for training were: Foreman, Cart,

Mobile, Shine, Fish, Soccer goal, and Car Phone re-

sulting in 168 sequences for training. For veriﬁcation

ﬁve different parts from a cropped version of the 3G-

sequence was used, where the ﬁve parts have differ-

ent characteristics. The cropping was made to QCIF

without the original letter box aspect ratio. Varying

the bitrate and the frame rate in the same way as for

the training data results in 120 veriﬁcation sequences.

A NEW VIDEO QUALITY PREDICTOR BASED ON DECODER PARAMETER EXTRACTION

287

Table 1: The correlation matrix of the evaluated parameters.

Avg

MV

P4x4

[%]

Frame

rate

P16x16

[%]

Avg

QP

Intra

[%]

Skip

[%]

Bits/

Frame

P8x8

[%]

Avg MV 1.000 -0.041 0.247 0.451 0.036 0.098 0.505 0.193 0.454

P4x4 [%] -0.041 1.000 -0.180 0.545 -0.218 0.556 0.234 -0.577 -0.475

Frame rate 0.247 -0.180 1.000 0.032 0.124 0.143 0.079 0.206 0.374

P16x16 [%] 0.451 0.545 0.032 1.000 0.140 0.710 0.784 0.116 0.189

Avg QP 0.036 -0.218 0.124 0.140 1.000 0.160 0.429 0.652 0.539

Intra [%] 0.098 0.556 0.143 0.710 0.160 1.000 0.697 -0.162 0.294

Skip [%] 0.505 0.234 0.079 0.784 0.429 0.697 1.000 0.323 0.597

Bits/Frame 0.193 -0.577 0.206 0.116 0.652 -0.162 0.323 1.000 0.473

P8x8 [%] 0.454 -0.475 0.374 0.189 0.539 0.294 0.597 0.473 1.000

Table 2: The values of β

i

in Eq. (9) for the different metrics, resulting from the regression.

Metrics

b

β

0

b

β

1

b

β

2

b

β

3

b

β

4

b

β

5

b

β

6

b

β

7

Scale

PSNR 66.89 -0.92 -0.07 -0.03 -0.01 -0.09 -0.07 0.01 1.0exp−0

SSIM 109.67 -0.46 0.16 -0.03 -0.38 0.26 0.49 -0.03 1.0exp−2

VSSIM 112.76 -0.52 0.10 -0.01 -0.33 0.19 0.41 -0.01 1.0exp−2

VSSIM modiﬁed 111.74 -0.48 0.00 0.00 -0.33 0.17 0.32 0.37 1.0exp−2

NTIA 66.13 -0.66 1.23 0.39 -0.82 1.34 -1.61 0.41 1.0exp−2

PEVQ 55.94 -0.92 0.14 -0.21 -0.07 0.23 0.26 -0.26 1.0exp−1

6 RESULTS

In the ﬁrst step the linear regression described above

is applied to the 168 training sequences for each of the

parameters separately, giving a measure of the corre-

lation between this parameter and the quality metric.

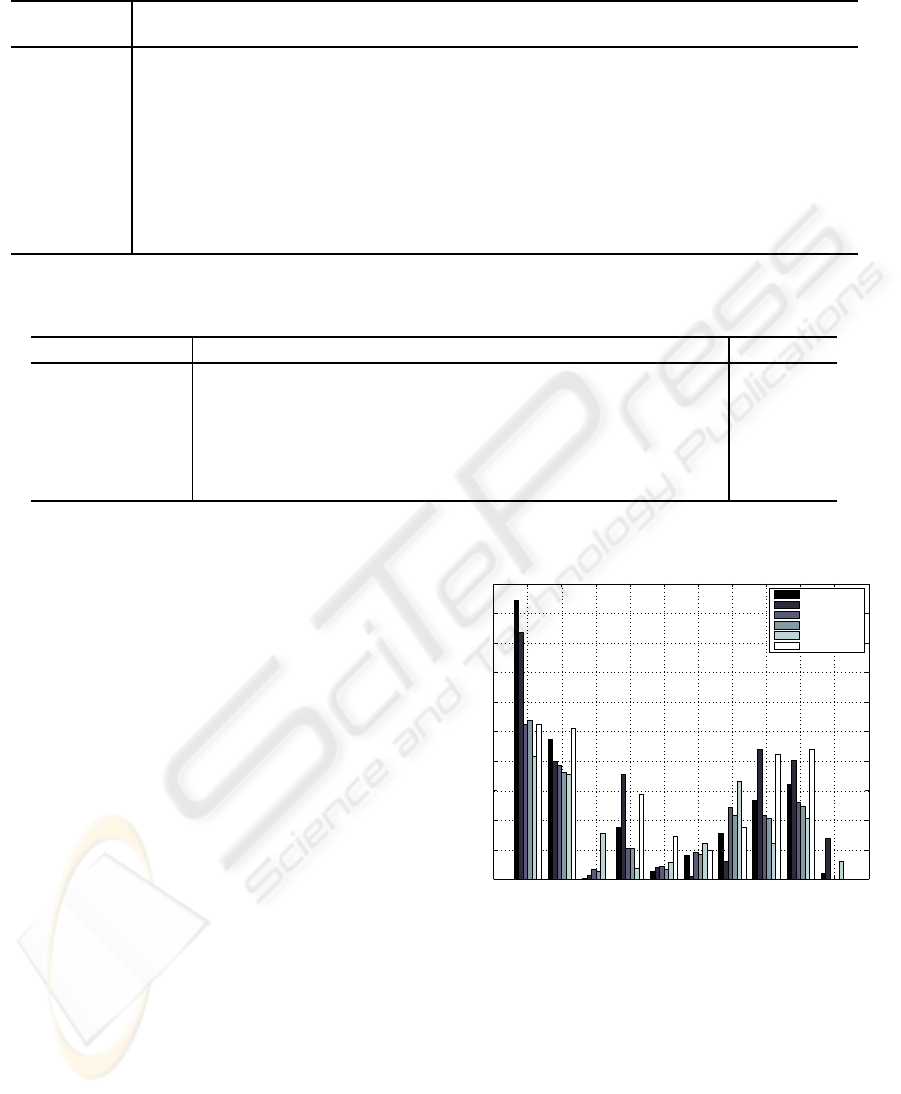

The outcome is shown in Fig. 1, where it can be seen

that the parameters have considerably varying corre-

lation, but also that it differs between the metrics.

In the second step an evaluation of the different

parameters are performed. In this the correlation be-

tween the parameters is calculated. Before the corre-

lation is calculated ”Inter [%]” is removed since this

parameter is a summation of ”P16x16 [%]”, ”P8x8

[%]”, and ”P4x4 [%]” and therefore redundant. The

result from the correlation are shown in Tab. 1. It can

be seen that ”Intra [%]”, ”Skip [%]”, ”Frame rate”,

and ”Avg MV” have the lowest correlations in Fig.

1. If these are analyzed it can also be seen that both

”Intra [%]” and ”Skip [%]” have the highest correla-

tion with ”P16x16 [%]” while neither ”Frame rate”

nor ”Avg MV” correlations are that high. This makes

it possible to reduce the parameter set further by ex-

cluding ”Frame rate” and ”Avg MV”.

Performing the regression with the reduced parame-

ter set using the training sequences gives a prediction

function

ˆ

Z for each metric. The resulting coefﬁcients

0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1

PSNR

PEVQ

SSIM

VSSIM

VSSIM modified

NTIA

Avg QP

Bits/Frame

Intra [%]

Inter [%]

Skip [%]

Frame rate

P16x16 [%]

P8x8 [%]

P4x4 [%]

Avg MV

Correlation Factor (R

2

)

Figure 1: The correlation factor R

2

between each of the pa-

rameters and the metrics used.

in this function

ˆ

Z (see Eq. (9)) are shown in Tab. 2.

The mapping of the

b

β

k

in Tab. 2 to the actual parame-

ters are shown in Tab. 3. These prediction functions,

ˆ

Z, are applied to the veriﬁcation sequences to predict

the quality metric for these. Further, the quality met-

rics are calculated according to their deﬁnitions, and

the Pearson correlation coefﬁcient, r

P

, from Eq. (10)

is calculated and shown i Tab. 4. In the Fig. 2 – 5 the

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

288

Table 3: Mapping of the

b

β

k

in Tab. 2 to the parameters used

in the regression.

b

β

k

Parameter

b

β

0

Constant

b

β

1

Avg QP

b

β

2

Bits/Frame

b

β

3

Frame rate

b

β

4

P16x16 [%]

b

β

5

P8x8 [%]

b

β

6

P4x4 [%]

b

β

7

Avg MV

Table 4: The Pearson correlation coefﬁcient, r

P

, for the pre-

diction of the different quality metrics.

Metric r

P

PSNR 0.99

SSIM 0.62

VSSIM 0.61

VSSIM modiﬁed 0.71

NTIA 0.74

PEVQ 0.95

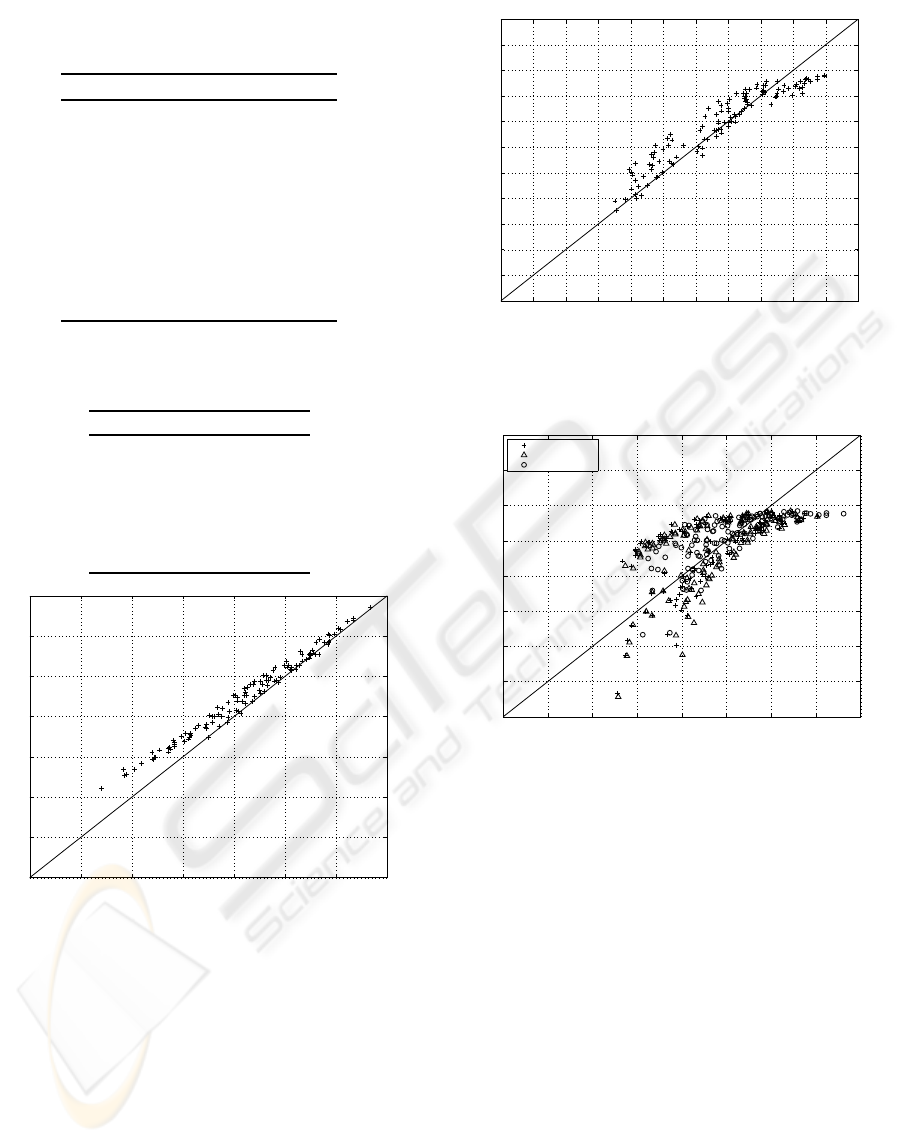

15 20 25 30 35 40 45 50

15

20

25

30

35

40

45

50

Predicted PSNR

PSNR

Figure 2: PSNR in dB vs. predicted PSNR for each veriﬁ-

cation sequence, r

P

= 0.99.

true metrics are plotted versus the predicted metrics.

Note that the scale differs between the ﬁgures since

the metrics have different range.

It can be seen from the table and the ﬁgures that

the best prediction is obtained for the PSNR metric.

This is expected since the JM encoder uses rate dis-

tortion optimization where the distortion measure is

correlating with the PSNR. Also the PEVQ metric is

well predicted, with a correlation coefﬁcient of 0.95.

This gives the possibility to implement the proposed

no-reference metric in environments where full or re-

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5

0

0.5

1

1.5

2

2.5

3

3.5

4

4.5

5

5.5

Predicted PEVQ

PEVQ

Figure 3: PEVQ vs. predicted PEVQ for each veriﬁcation

sequence, r

P

= 0.95.

0.7 0.75 0.8 0.85 0.9 0.95 1 1.05 1.1

0.7

0.75

0.8

0.85

0.9

0.95

1

1.05

1.1

SSIM

VSSIM

VSSIM modified

Predicted SSIM, VSSIM and modiﬁed VSSIM.

True SSIM, VSSIM and modiﬁed VSSIM

Figure 4: SSIM, VSSIM and modiﬁed VSSIM vs. the

predicted values for each veriﬁcation sequence, r

P

=

0.62, 0.61 and 0.71.

duced reference metrics are not possible to imple-

ment. The metric is also of low complexity, since the

prediction is a simple calculation of the function in

Eq. (9).

7 CONCLUSIONS

A low complex, reference free method to predict per-

ceptual quality metrics of coded video sequences has

been suggested. For the PSNR and PEVQ metrics a

very good precision is achieved, while for the other

metrics the correlation is weaker. The result for PSNR

is expected since rate distortion optimization is used

in the encoder, while the result for PEVQ was not ob-

vious beforehand and shows great potential. The pre-

cision of the prediction for PSNR may be considered

A NEW VIDEO QUALITY PREDICTOR BASED ON DECODER PARAMETER EXTRACTION

289

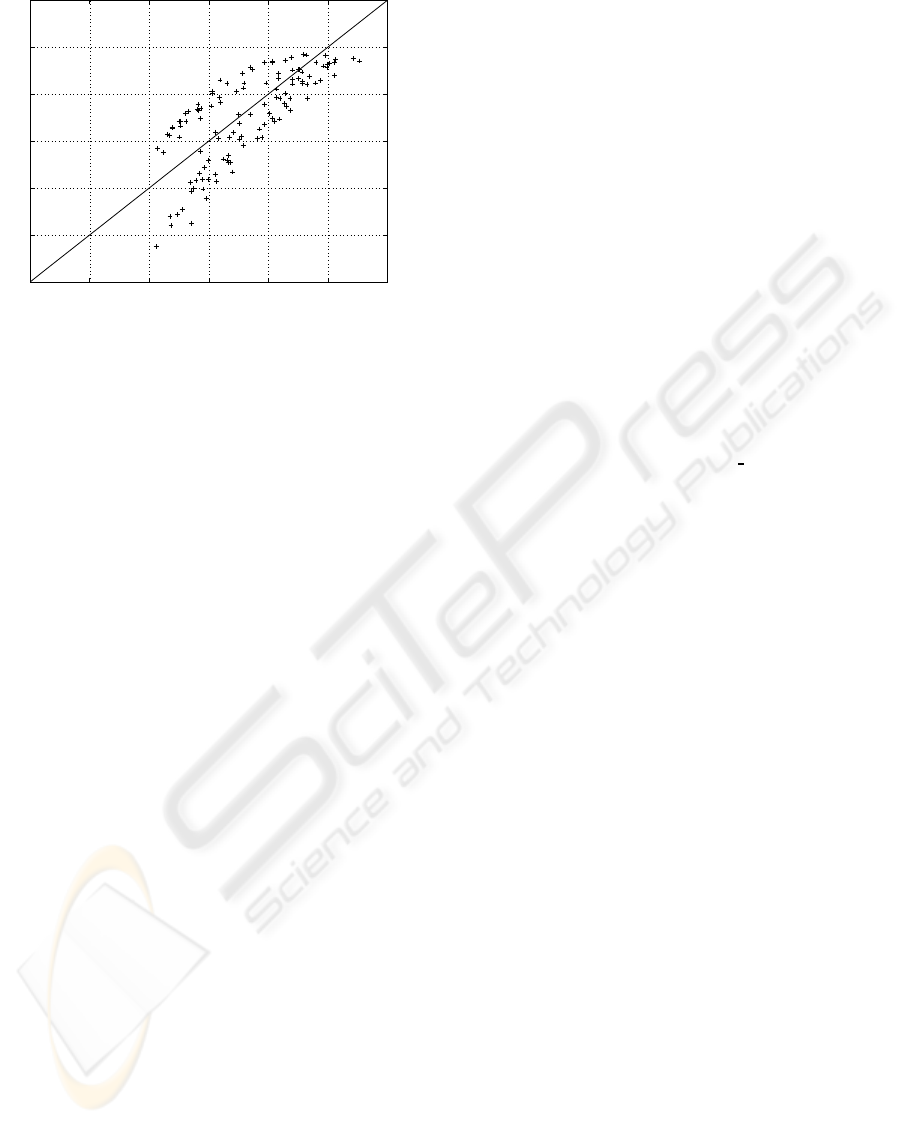

0 0.2 0.4 0.6 0.8 1 1.2

0

0.2

0.4

0.6

0.8

1

Predicted NTIA VQM

NTIA VQM

Figure 5: NTIA VQM vs. predicted NTIA VQM for each

veriﬁcation sequence, r

P

= 0.74.

to be of limited practical use since the correlation of

PSNR to subjective perceptual quality is known to be

low in many cases. On the other hand, the good preci-

sion for PEVQ prediction is promising since PEVQ is

developed to measure the perceptual quality for low

resolution and low bitrates, and is also proposed for

standardization. The main result of this paper is the

ability of the proposed method to predict quality met-

rics, and the ﬁnal value of using this prediction de-

pends on the value of the chosen quality metric.

In constructing the predictor an investigation has

been performed to choose the most promising param-

eters to base the prediction on. This has been per-

formed by evaluating the correlation both between

each extracted parameter and the actual quality metric

and between each parameter. The outcome from this

has made it possible to restrict the number of param-

eters to seven and still achieve promising result. The

parameters ﬁnally chosen are: Avg QP, Bits/Frame,

Frame rate, P16x16 [%], P8x8 [%], P4x4 [%], and Avg

MV.

To get a more general predictor where also other

encoders are included the proposed model can be

used. It will be obtained by increasing the training

and veriﬁcation set with sequences encoded using ad-

ditional codecs. Then a new evaluation of which pa-

rameters to choose would be needed, resulting in a

new set of

b

β values.

REFERENCES

S. Winkler, ”Digital Video Quality: Vision Models and

Metrics”, John Wiley and Sons, Ltd, 2005.

Z. Wang, A. C. Bovik, H. R. Sheikh, and E. P. Simoncelli,

”Image quality assessment: From error visibility to

structural similarity” IEEE Transactios on Image Pro-

cessing, vol. 13, no. 4, pp.600-612, Apr. 2004.

Z. Wang, L. Lu and A.C. Bovik, ”Video quality assessment

based on structural distortion measurement”, Signal

Processing: Image Communication, Special issue on

Objective video quality metrics, vol. 19, no. 2, Febru-

ary 2004.

M. H. Pinson, S. Wolf, ”A New Standardized Method for

Objectively Measuring Video Quality”. IEEE Trans-

actions on Broadcasting, vol. 50, no. 3, Sept. 2004.

”PEVQ Advanced Perceptual Evaluation of Video Quality

(PEVQ Whitepaper)”, Opticom, http://www.pevq.org,

(veriﬁed 2008-01-18).

”FR-TV Phase II Final Report”, 2003-08-25,

VQEG: The Video Quality Experts Group,

http://www.vqeg.org/projects/frtv phaseII/, (veri-

ﬁed 2008-01-18).

P. Marziliano, F. Dufaux, S. Winkler, T. Ebrahimi, ”A

No-Reference Perceptual Blur Metric”, IEEE Interna-

tional Conference on Image Processing 2002, volume

3, pp. III-57 - III-60, Rochester, USA, Sept. 2002.

W. Zhou, A. C. Bovik, B. L. Evans. ”Blind measurement

of blocking artifacts in images”, IEEE International

Conference on Image Processing 2000, volume 3, pp.

981 - 984, Vancouver, Canada, Sept. 2000.

M. Ries, O. Nemethova, M. Rupp, ” Motion Based

Reference-Free Quality Estimation for H.264/AVC

Video Streaming”, 2nd International Symposium on

Wireless Pervasive Computing (ISWPC ’07), pp. 355

- 359, San Juan, Puerto Rico, USA, February 2007.

”H.264/MPEG-4 AVC REFERENCE SOFTWARE”, Joint

Video Team (JVT) of ISO/IEC MPEG & ITU-

T VCEG (ISO/IEC JTC1/SC29/WG11 and ITU-T

SG16 Q.6), 24th Meeting: Geneva, CH, 29 June - 5

July, 2007.

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

290
