KEY DISTRIBUTION BASED ON QUANTUM FOURIER

TRANSFORM

Marius Nagy, Selim G. Akl and Sean Kershaw

School of Computing, Queen’s University, Kingston, Ontario, Canada

Keywords:

Key distribution, protocols, phase shift, quantum Fourier transform, disturbance ampliﬁcation, eavesdropping

detection.

Abstract:

The data dependencies brought about by the Quantum Fourier Transform can be harnessed to design novel key

distribution protocols with improved performance. Such a protocol maximizes an eavesdropper’s uncertainty

over the information transmitted, while amplifying the disturbance caused by the act of eavesdropping, thus

offering better chances of detecting the intrusion. This is due to the fact that a tested qubit may reveal the

presence of an eavesdropper even if that particular qubit was not ”touched” while in transit.

1 INTRODUCTION

In this paper we explore the feasibility and advantages

offered by a novel approach to quantum key distribu-

tion (QKD). We consider the situation in which Bob

stores the qubits received from Alice until he acquires

more information about how to measure them. This

assumption is motivated by recent advances in lay-

ing the foundation for quantum networks (Cirac et al.,

1997; Blinov et al., 2004) and allows for the creation

of conceptually new protocols for QKD. These new

protocols have the potential to outperform the previ-

ous ones in terms of the total volume of communica-

tion required and (more important, perhaps) the intru-

sion detection rate. The price to pay for these beneﬁts

is a more complex processing of the qubits transmit-

ted.

The remainder of the paper is structured as fol-

lows. Next section is intended as a reference for the

comparison we will make between the new protocol

developed in this paper and the well-known BB84

quantum protocol for key distribution (Bennett and

Brassard, 1984). The section describes a generic

protocol based on phase manipulation, which can be

seen as an abstraction of BB84. Section 3 takes the

idea of phase shifts to a deeper level, as it appears

in the computation of the Quantum Fourier Trans-

form and shows how the interdependencies between

qubits can be exploited to detect eavesdropping activ-

ity in a quantum key distribution protocol. Section

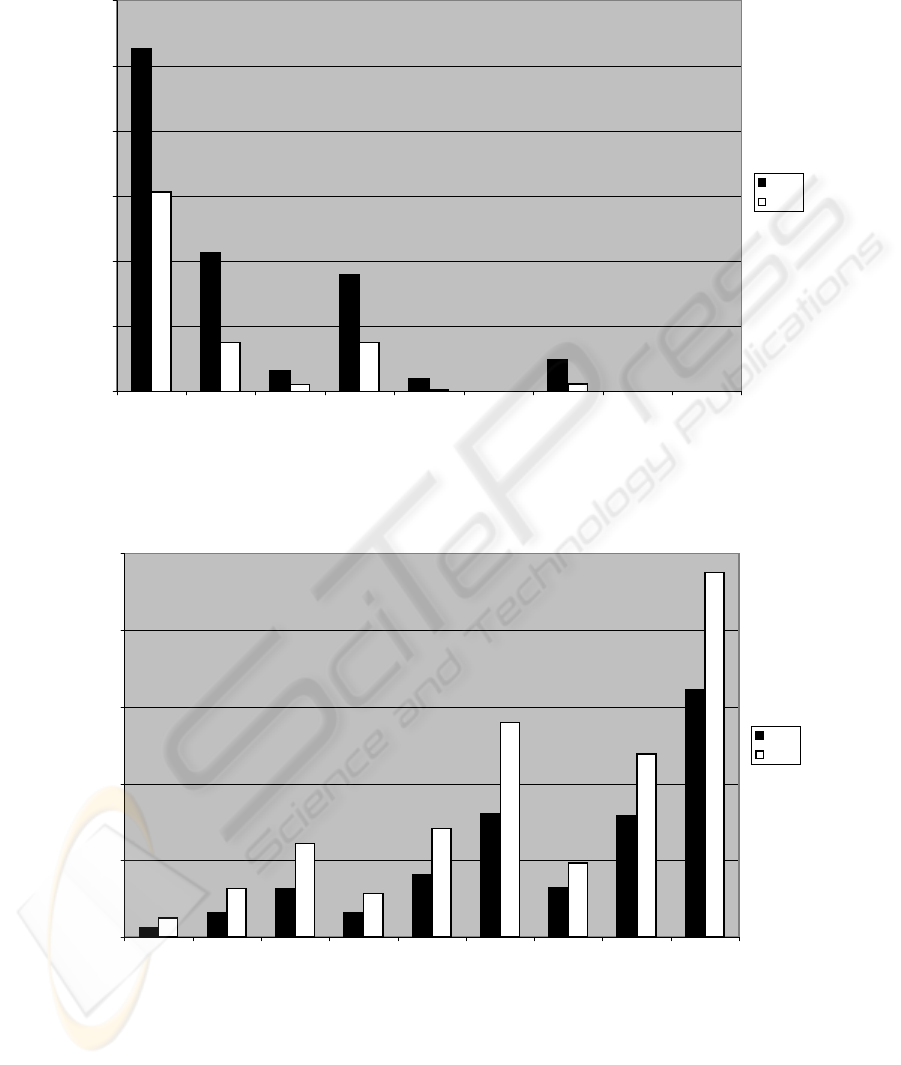

4 demonstrates the improvement in intrusion detec-

tion and security of the novel protocol with respect to

BB84 through a series of simulations. Conclusions

and prospects for future research are presented in sec-

tion 5.

2 RANDOM

π

2

PHASE SHIFT

PROTOCOL

We ﬁrst describe a BB84 equivalent protocol that we

will use as a building block in designing a QKD

scheme based on the Quantum Fourier Transform.

The main idea of the protocol described in this sec-

tion is to encode each transmitted bit (0 or 1) into the

relative phase between the |0i and |1i components of

a balanced superposition and then encrypt the result-

ing qubit by applying a random phase shift gate, as

depicted in Figure 1. The Hadamard gate provides

the encoding alphabet

“0” 7→

1

√

2

(|0i+ |1i)

“1” 7→

1

√

2

(|0i−|1i)

and the R

θ

gate rotates the relative phase with an angle

θ

R

θ

=

1 0

0 e

iθ

, θ ∈ {0,

π

2

}.

263

Nagy M., G. Akl S. and Kershaw S. (2008).

KEY DISTRIBUTION BASED ON QUANTUM FOURIER TRANSFORM.

In Proceedings of the International Conference on Security and Cryptography, pages 263-269

DOI: 10.5220/0001916802630269

Copyright

c

SciTePress

Eve

BobAlice

H

θ

R

θ

R

H

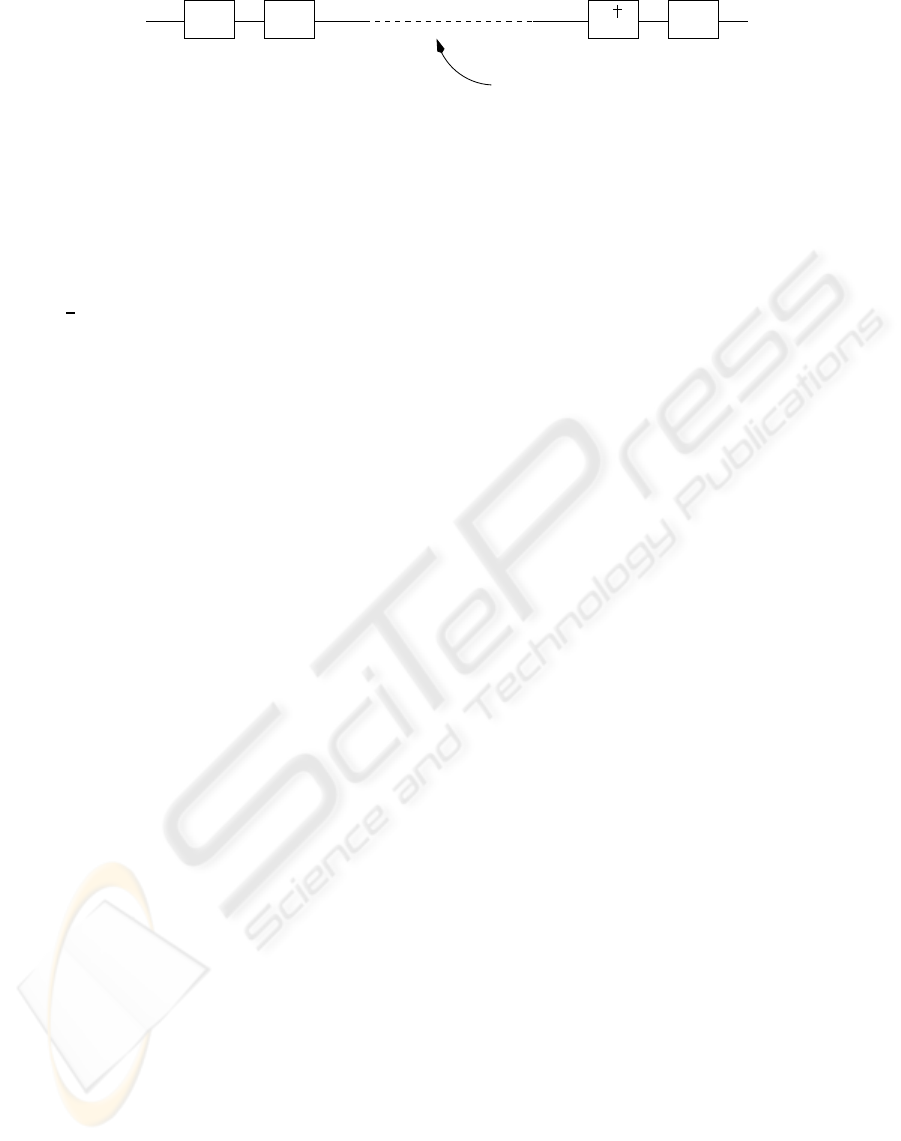

Figure 1: Schematics of random phase shift protocol for QKD.

Note that R

0

does not affect the state of the qubit onto

which the gate is applied, while R

π/2

rotates the qubit

halfway between the two symbols of the encoding al-

phabet. The gate R

†

θ

denotes the inverse of R

θ

.

Random

π

2

phase shift protocol for QKD

Stage 1: Communication over a quantum channel

Step 1. Alice ﬂips a fair coin to generate a ran-

dom binary sequence that she intends to share

with Bob.

Step 2. For each bit j in the sequence, Alice

chooses , again at random, an angle θ = 0 or

θ = π/2. She then prepares, accordingly, a

qubit in the state |ψi = R

θ

H|ji that she sends

over to Bob.

Step 3. Bob applies the necessary procedures for

safely storing the qubits received from Alice

until the second stage of the protocol, when

he gains knowledge of which qubits have been

phase shifted.

Stage 2: Communication over a public channel

Phase 1. Raw key extraction

Step 1. Alice informs Bob about her choice of

θ for each transmitted bit.

Step 2. Knowing the relative phase shift θ

for each stored qubit |ψi, Bob recovers the

original bit transmitted, by computing |ji =

HR

†

θ

|ψi and then measuring |ji in the normal

computational basis {|0i,|1i}. Following this

procedure, Bob obtains a binary sequence that

should be identical to the one randomly gen-

erated by Alice, provided no eavesdropping or

errors interfered with the quantum transmis-

sion.

Phase 2. Error estimation

Step 1. Over the public channel, Alice and

Bob compare portions of their raw keys to es-

timate the error rate Err. The bits tested are

deleted from their raw keys. If Err = 0 the

remaining bits form their ﬁnal secret key.

Step 2. If Err > 0, but still sufﬁciently small,

Alice and Bob may decide to apply privacy

ampliﬁcation techniques to minimize Eve’s

knowledge about their ﬁnal secret key. Other-

wise, if Err exceeds a certain threshold, they

discard the whole sequence and start all over

again.

The analogy with BB84 becomes apparent if we

assimilate the encoding alphabet with the horizon-

tal/vertical basis and the π/2 relative phase shift with

the oblique basis. For each qubit Eve decides to tam-

per with, there is a certain chance (25% in our case, as

well as for BB84) that she will be caught. It is impor-

tant to emphasize that this probability is independent

of the actions performed on the other qubits transmit-

ted through the quantum channel. The only way Eve

can be detected is to test one of the qubits she decided

to spy on. In half of the cases, when she is lucky, the

quantum state retransmitted to Bob is identical to the

one intercepted from Alice, so she gains knowledge

of the bit transmitted without any possibility of being

detected. On the other hand, if she gets unlucky, then

her uncertainty about the bit transmitted is total and,

in addition, she disturbs the state of the qubit, intro-

ducing an error rate in Bob’s raw key.

Consequently, Eve could settle for a low level of

eavesdropping, trying to gain only partial knowledge

of the secret key, while minimizing the chances of

being detected. She could even take advantage of

the imperfections in the quantum channel, trying to

hide behind the “noise”. In the next section, we pro-

pose a conceptually new kind of QKD scheme that

aims to maximize Eve’s uncertainty about the bits

she eavesdropped on, even after the public discus-

sion between Alice and Bob, while giving Bob higher

chances of detecting Eve, even for a smaller number

of bits tested. The main idea of the protocol is to prop-

agate the disruption caused by Eve when measuring a

qubit to other qubits in the sequence as well. To this

end we take advantage of the data dependencies in-

troduced by the application of the Quantum Fourier

Transform.

3 QKD SCHEME BASED ON THE

FOURIER TRANSFORM

The Quantum Fourier Transform (QFT) is a very

powerful tool, allowing the design of quantum al-

gorithms that are exponentially faster than their best

SECRYPT 2008 - International Conference on Security and Cryptography

264

classical counterparts, as in the case of Shor’s quan-

tum algorithms for factoring integers and computing

discrete logarithms (Shor, 1997). We show herein that

the QFT and its inverse can also be successfully used

to build quantum key distribution protocols that offer

improved eavesdropping detection rates while max-

imizing the eavesdropper’s uncertainty about the bi-

nary sequence transmitted.

The QFT is a linear operator whose action on any

of the computational basis vectors |0i,|1i,···, |2

n

−1i

associated with an n-qubit register is described by the

following transformation:

|ji −→

1

√

2

n

2

n

−1

∑

k=0

e

2πijk/2

n

|ki, 0 ≤ j ≤2

n

−1. (1)

Equation (1) can be rewritten as a tensor product of

the n qubits involved, as follows:

|j

1

j

2

··· j

n

i −→

(|0i+e

2πi0. j

n

|1i) ⊗···⊗(|0i+ e

2πi0. j

1

j

2

···j

n

|1i)

2

n/2

.

(2)

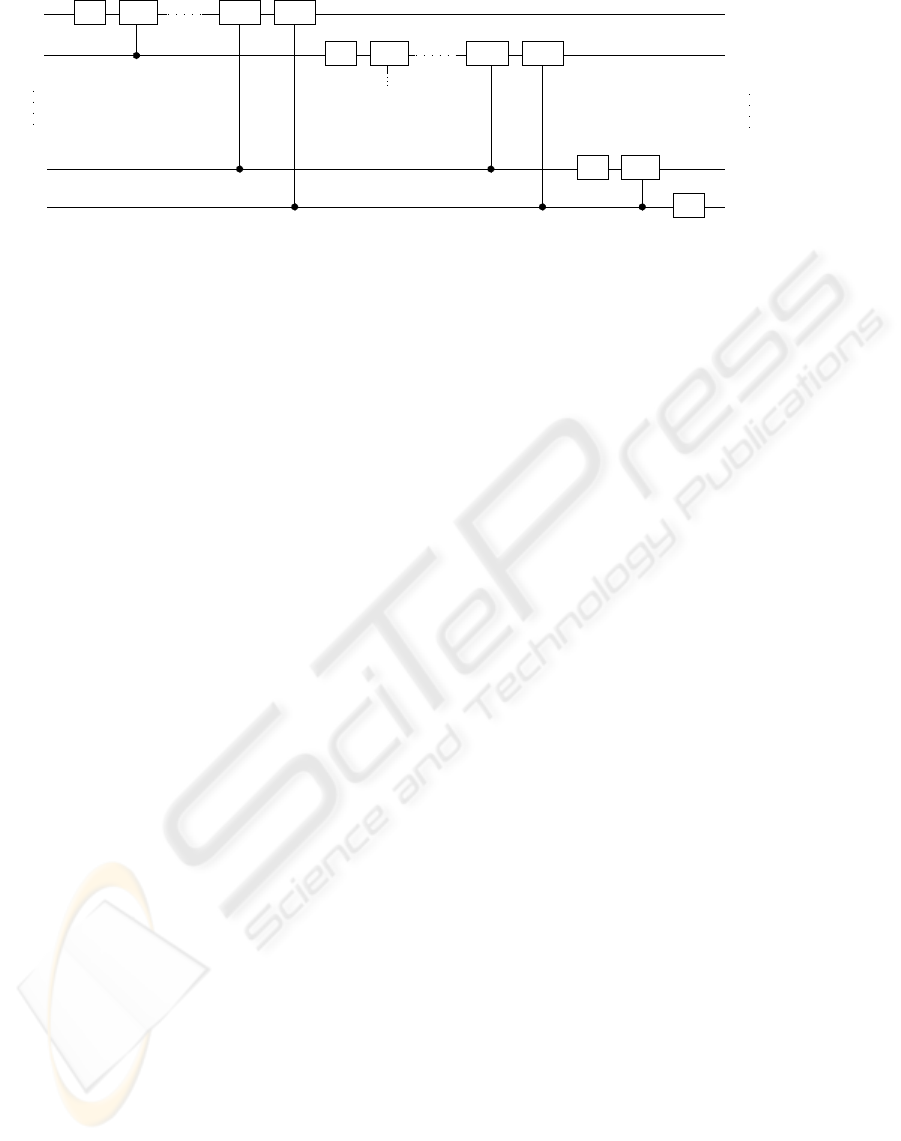

Equation (2) provides the blueprint for devising a cir-

cuit implementing the QFT that requires only Θ(n

2

)

elementary quantum gates (see Figure 2).

In the case of each qubit, the 0 or π phase in-

duced by its own binary value is implemented through

a Hadamard gate. The dependency on the previous

qubits is reﬂected in the use of controlled phase shifts,

as depicted in Figure 2. Reversing each gate in Fig-

ure 2 gives us an efﬁcient quantum circuit for per-

forming the inverse Fourier transform.

Because of the interdependencies introduced by

the controlled rotations, the procedure must start by

computing |j

n

i and then work its way up to |j

1

i. The

value of |j

n

i is needed in the computation of |j

n−1

i.

Both |j

n

i and |j

n−1

i are required in order to obtain

|j

n−2

i. This continues in the same manner, until ﬁ-

nally, the values of all the higher rank bits are used to

determine |j

1

i precisely.

This ﬁxed order of execution can be exploited to

design secure QKD schemes. The protocol that we

describe in the following can be seen as a general-

ization of the random π/2 phase shift protocol, both

relying on encapsulating information in the relative

phase between the two components in a superposi-

tion. However, the Fourier transform brings into play

the rank of a qubit in the sequence, thus giving a con-

text to each qubit transmitted.

Employing the Fourier transform instead of the ran-

dom π/2 phase shift as the encryption method does

not alter the main structure of the protocol, so we will

just point out the differences relative to the descrip-

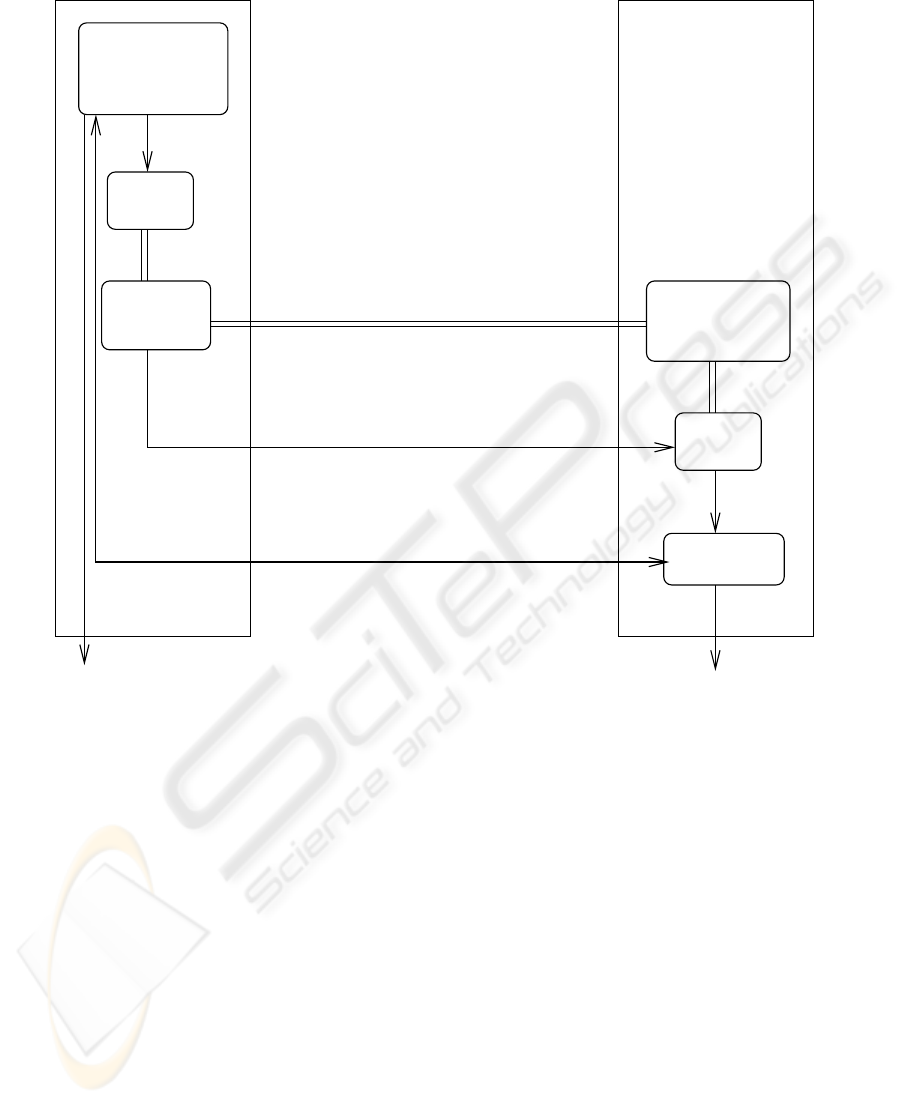

tion we provided in the previous section. Figure 3

gives a pictorial representation of the entire protocol,

with time ﬂowing downwards.

In step 2 of the quantum communication stage, Al-

ice applies the QFT to the binary sequence generated

in the previous step, by passing it through the quan-

tum circuit depicted in Figure 2. Then, she scrambles

the resulting qubit sequence by choosing an arbitrary

permutation of the qubits and sends them to Bob.

In the second stage of the protocol (involvingclas-

sical communication), Alice informs Bob of the cor-

rect order in which he must place the received qubits

(in other words, the rank of each qubit is disclosed).

Consequently,the raw keyextraction step can proceed

with Bob applying the inverse Fourier transform to

the properly re-arranged qubit sequence. In the ab-

sence of any eavesdropping or transmission errors,

Bob must end up with the same bit sequence that Al-

ice randomly produced at the outset of the protocol.

When Eve decides to spy on an arbitrary qubit in

the sequence, she doesn’t know its rank and is there-

fore ignorant of the inﬂuence exerted on it by the pre-

vious qubits in the ordered sequence. Without ac-

cess to this additional information (the qubit’s con-

text), Eve can have no conﬁdencein the outcome of an

eventual measurement in the Hadamard basis pointing

to a 0 or a 1.

3.1 An Example

Suppose that the bit string that Alice wants to convey

to Bob is 10011010, so that j

1

= 1 and j

8

= 0. Con-

sider what happens if Eve intercepts the qubit of rank

6 and measures it in the Hadamard basis. Since its

state is

|0i+ e

2πi0.010

|1i = |0i+ e

π

2

i

|1i, (3)

exactly halfway between |0i and |1i (relative phase

π/2), there is an equal probability for either outcome

to be realized. Consequently, even after learning its

context, Eve’s uncertainty over this bit is total. Fol-

lowing her measurement, Eve can either send H|0i or

H|1i to Bob. In any case, Bob will undo the π/2 rota-

tion supposedly caused by j

7

= 1, therefore having a

50% chance of detecting Eve, provided he and Alice

choose to test bit j

6

. But if Bob measures bit j

6

as 1,

then the error introduced by Eve’s action is still de-

tectable, even if the qubit whose state she disturbed is

not checked by Alice and Bob. Thus, when applying

the inverse Fourier transform on the qubit of rank 5,

its quantum state becomes

|0i+ e

(π+

π

4

−

π

4

−

π

2

)i

|1i (4)

and in 50% of the cases Alice and Bob will discover

a mismatch in their values for this bit. An erroneous

KEY DISTRIBUTION BASED ON QUANTUM FOURIER TRANSFORM

265

R

2

H

2

RH

n-1

R

n-2

R

2

RH

n

R

n-1

RH

π2

|0> + e |1>

2

i0.j ... j

n

π2

|0> + e |1>

|0> + e |1>

π2 i0.j ... j

1 n

n

|j >

|j >

n-1

2

|j >

|j >

1

n-1

n

i0.jπ2

|0> + e |1>

n

i0.j j

Figure 2: Quantum circuit performing the discrete Fourier transform.

bit j

6

will continue to inﬂuence the outcome of the

following bits, up to j

1

. The strength of this inﬂuence

decreases with the rank and probably becomes negli-

gible in a few steps. Nevertheless, if the error in j

6

propagates to one of its neighbors, then this bit acts

as a new source of error, creating the mechanism for

the initial disturbance to propagate indeﬁnitely. So,

unlike other QKD schemes, in this case, eavesdrop-

ping on one qubit has the potential to introduce a large

number of errors. In general, for an arbitrary qubit

of rank k (0 < k ≤ n), the relative phase shift caused

by errors in the previous bits (from n to k + 1) varies

between 0 and

∑

n−k

i=1

π/2

i

, as the errors induced may

interfere with each other, adding up or canceling out.

Since Eve’s uncertainty over an observed value is

based on her ignorance about the context involved, it

appears that the weak spot of the protocol lies in the

high rank qubits. The highest rank qubit, for instance,

is context-free (having no predecessors), so Eve can

be certain of its value, provided she has performed

a measurement on it. But because she doesn’t know

the ranks of the qubits transmitted during the quantum

communication stage, she must eavesdrop on many

qubits to increase her chances of learning the value

of j

n

. This, in turn, will cause more disturbance and

therefore increase the risk of being detected.

In our example, by learning that the value of j

8

equals 0, Eve also becomes aware that j

8

has no inﬂu-

ence on j

7

, so her measurement on j

7

(if performed)

must have yielded its true value. However, since

j

7

= 1, there is an equal probability that a hypothetical

measurement on j

6

has revealed the correct or incor-

rect value. For an arbitrary bit string j

1

··· j

n

, Eve can

end up knowing the values of the last k bits, where

j

n−k+1

= 1 and j

n−k+2

,··· , j

n−1

, j

n

are all zeroes, as-

suming that she performed all the necessary measure-

ments on the qubits in transit. In practice, since the

binary sequence transmitted is chosen at random, the

probability of it ending in more than two or three con-

secutive zeroes is very low.

One immediate solution is for Alice and Bob to

discard those bits from their raw keys. Alterna-

tively, the protocol described above, and based on the

Fourier transform, could be combined with the ran-

dom π/2 phase shift protocol presented in the previ-

ous section. In this way, each qubit may get an ad-

ditional π/2 relative phase shift, increasing Eve’s un-

certainty about the trailing bits in the sequence while

maintaining the uncertainty level for the others.

4 SIMULATIONS

In order to better assess the improvement in perfor-

mance brought by the QFT-based protocol with re-

spect to the traditional BB84 protocol, a series of sim-

ulations for various input parameters were performed.

To ensure a fair comparison between the two pro-

tocols, we assumed that Bob has knowledge of the

encoding bases chosen by Alice, such that no qubits

are discarded in the BB84 protocol because of a mis-

match between the encoding and decoding bases. A

series of 1000 simulations were performed for each

possible conﬁguration allowed by varying the follow-

ing input parameters:

- total number of qubits transmitted (128, 256, 512),

- percentage of qubits eavesdropped on by Eve (10,

25, 50),

- percentage of qubits checked for eavesdropping by

Alice and Bob (10, 25, 50).

Figure 4 shows the results in terms of the number of

times Eve managed to remain undetected during each

batch of 1000 simulations of the two protocols. For

the same number of qubits eavesdropped on and the

same number of qubits checked, the QFT-based pro-

tocol consistently outperforms BB84 because the er-

rors introduced by eavesdropping propagate to other

qubits as well and thus Eve may get caught even if the

bit checked was not eavesdropped on. We can see that

the improvement is bigger for lower levels of eaves-

dropping and/or fewer bits checked.

Figure 5, on the other hand, shows the average

number of qubits (out of 256) that were detected as

SECRYPT 2008 - International Conference on Security and Cryptography

266

generate

randomly

QFT

scramble

qubits

raw key

qubit

storage

IQFT

Alice Bob

<

<

>

information about the rank of each qubit

test some bits for eavesdropping

final key final key

quantum channel

key

Figure 3: Schematics of a quantum key distribution protocol using the quantum Fourier transform (QFT) and its inverse

(IQFT) as encoding and decoding algorithms. This is the ﬁrst protocol that allows the detection of an eavesdropper even if the

qubit tested was not “disturbed” while in transit.

corrupted by Eve in each 1000-trial batch. The im-

provement in performance in favor of the QFT-based

protocol is evident for each combination of input vari-

ables.

5 CONCLUSIONS

In this paper, we have addressed the quantum key dis-

tribution problem from the novel perspective allowed

by the possibility of temporarily storing the qubits re-

ceived through the quantum communications chan-

nel during a protocol. This assumption is well mo-

tivated by the progress achieved in quantum networks

research. The immediate advantage is a signiﬁcant

decrease in the volume of quantum and classical com-

munication required between the two parties. In ad-

dition, under the new assumption, conceptually new

QKD schemes can be designed, with improved efﬁ-

ciency, security and eavesdropping detection.

One idea that we propose in this paper is to bring

into play the dependencies between qubits created by

the Quantum Fourier Transform in order to obtain

a protocol with superior performance. When com-

pared with existing QKD schemes, the protocol using

the QFT offer better eavesdropping detection rates by

propagating the disruption caused to one qubit to the

following qubits in the sequence. This makes the pro-

tocol more efﬁcient in terms of the number of bits

that have to be tested in order to achieve a certain

level of security. Also, the lack of knowledge over

a qubit’s context, at the time of eavesdropping, max-

imizes Eve’s uncertainty about the information en-

coded within its quantum state, thus making the pro-

tocol more secure.

These beneﬁts come at the cost of a more complex

KEY DISTRIBUTION BASED ON QUANTUM FOURIER TRANSFORM

267

256 Bits

525

213

32

178

19

0

48

0 0

306

75

10

75

2

0

11

0 0

0

100

200

300

400

500

600

10,10 10,25 10,50 25,10 25,25 25,50 50,10 50,25 50,50

(% eved, % checked)

# times Eve undetected in 1000

BB84

QFT

Figure 4: A comparison between the QFT-based and the BB84 protocol, in terms of the number of times Eve escapes detection

in 1000 trials, for various percentages of bits eavesdropped on and checked.

256 Bits

0.66

1.60

3.16

1.63

4.05

8.04

3.22

7.89

16.09

1.24

3.17

6.12

2.83

7.09

13.97

4.83

11.93

23.77

0.00

5.00

10.00

15.00

20.00

25.00

10,10 10,25 10,50 25,10 25,25 25,50 50,10 50,25 50,50

(% bits eaved., % bits checked)

Avg # bits, Eve detected

BB84

QFT

Figure 5: A comparison between the QFT-based and the BB84 protocol, in terms of the average number of corrupt bits

detected in 1000 trials, for various percentages of bits eavesdropped on and checked.

processing required at both ends of the link. How-

ever, the computational power assumed to be avail-

able for Alice and Bob is not that of a quantum com-

puter. Alice and Bob need only to be able to perform

Hadamard and phase shift rotations of single-qubit

quantum states. Parallel processing can also be ap-

plied in order to avoid decoherence (Nagy and Akl,

2006).

The protocol for QKD developed in this paper

demonstrates that the QFT is a versatile tool, with im-

SECRYPT 2008 - International Conference on Security and Cryptography

268

portant applications not only in quantum algorithms,

butalso in quantumcryptography. It allows for the de-

sign of new QKD schemes with clear advantages over

the existing ones, especially for low levels of eaves-

dropping. Furthermore, the results obtained herein

suggest that the role of QFT in the general area of

data security is much more important than previously

believed.

REFERENCES

Bennett, C. H. and Brassard, G. (1984). Quantum cryp-

tography: Public key distribution and coin tossing.

In Proceedings of IEEE International Conference on

Computers, Systems and Signal Processing, pages

175–179, IEEE, New York. Bangalore, India, Decem-

ber 1984.

Blinov, B. B., Moehring, D. L., Duan, L.-M., and Mon-

roe, C. (2004). Observation of entanglement between

a single trapped atom and a single photon. Nature,

428:153–157.

Cirac, I., Zoller, P., Kimble, H. J., and Mabuchi, H. (1997).

Quantum state transfer and entanglement distribution

among distant nodes in a quantum network. Physical

Review Letters, 78(16):3221–3224.

Nagy, M. and Akl, S. G. (2006). Coping with Decoherence:

Parallelizing the Quantum Fourier Transform. In 19th

International Conference on Parallel and Distributed

Computing Systems, pages 108–113, San Francisco,

California.

Shor, P. W. (1997). Polynomial-time algorithms for prime

factorization and discrete logarithms on a quantum

computer. Special issue on Quantum Computation of

the SIAM Journal on Computing, 26(5):1484–1509.

KEY DISTRIBUTION BASED ON QUANTUM FOURIER TRANSFORM

269
