WORK LISTS FOR THE TRANSPORT OF PATIENTS

A Case for Mobile Applications in Health Care

Andreas Holzinger, Jürgen Trauner

Institute of Medical Informatics, Statistics and Documentation (IMI), Research Unit HCI4MED

Graz University Hospital, Auenbruggerplatz 2/V, A-8036 Graz, Austria

Stefan Biffl

Complex Systems Engineering Lab, Institute of Software Technology and Interactive Systems (IFS)

Vienna Univeristy of Technology, Favoritenstrasse 11, A-1040 Wien, Austria

Keywords: Mobile User Interfaces, Medical Workflow optimization, Mobile Computing in Hospitals.

Abstract: In many hospitals, the workflow involved in transporting patients is supported by interactive work lists on

desktop computers that provide the status of a work order and detailed information on request. However, the

nurses, who organize and conduct the transportation, need to go to the desktop in order to update the work

list status; which has been found very time consuming. In this paper we report on the development of a

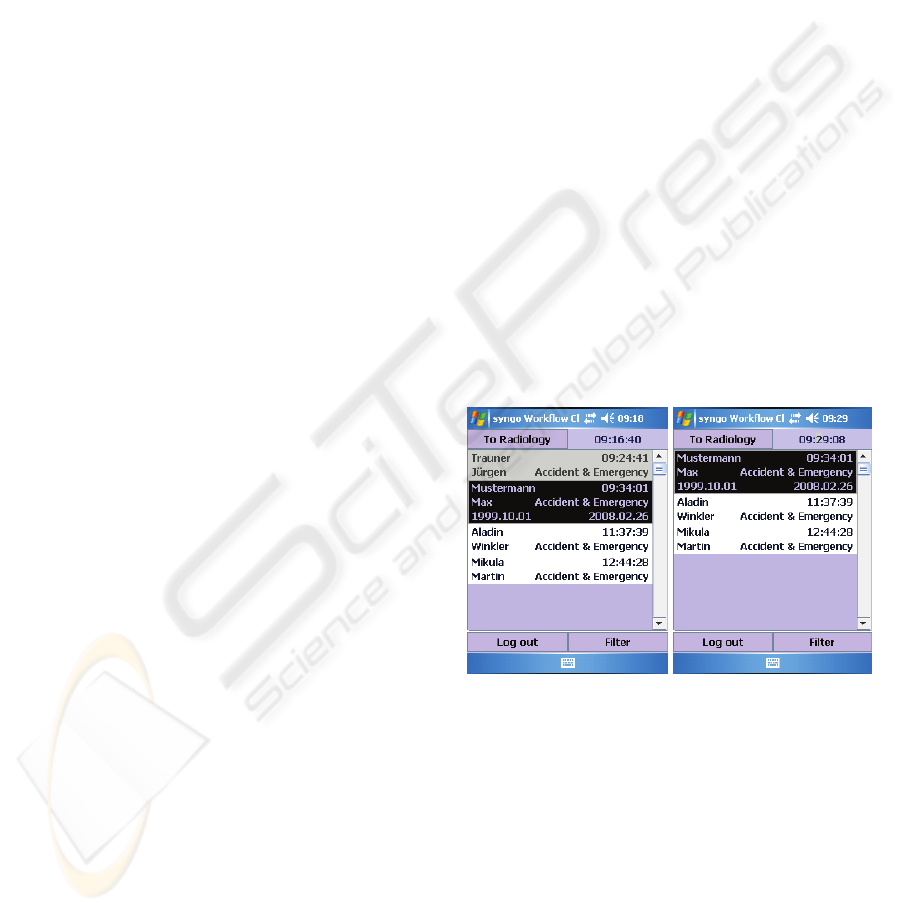

mobile solution prototype that provides interactive transport work lists on a PDA and we discuss some

design and implementation issues. Despite the limited screen size, end-users were able to use the PDA with

no more problems than their usual desktop user interface as the PDA user interface can be customized with

property files to fit exactly the requirements of the end-users in the hospital.

1 INTRODUCTION

The transport of patients within hospitals is often

supported by work lists on desktop computers (Gale

& Gale, 2000). The central information is the status

of a work order. Whilst such a non-mobile system is

useful for work orders that do not change, the highly

dynamic nature of hospital work often results to

changing situations (Holzinger & Errath, 2007).

Consequently, the nurses, who organize such

transportations, are required to go to the desktop

computer in order to update the work list status –

only to find out that their next patient is waiting

where they just came from. In this context, a desktop

solution is time consuming, and consequently wastes

personal resources. In our project example, at the

Danube Hospital Vienna, nurses have the core

responsibility of transporting patients between the

Radiology department and other medical

departments: 14 different rooms, each with a

separate list of appointments.

At the beginning of their shift, the nurse prints out

the list of patients to be transported on that day.

Approximately 12 nurses are responsible for

transportation per shift, which means that some must

work with two lists. The list contains the name and

the date of birth of the patient, for identification; the

station where the patient lies; which type and when

the checkup is planned; and whether the patient has

to lie in bed or can walk. Usually, the nurse does not

transport the patients in the order given on the list.

Each transport is arranged with the assistant at the

medical unit. Some changes in order are made by the

nurse, for example, when more than one patient is at

the same station or waiting at the station where

another patient was returned. Then they may be

fetched in order to save time. However, nurses are

not automatically notified when patients are added

during their shift, so either the nurses are informed

about the new additions by the assistant or, less

often, by telephone.

2 MATERIAL AND METHODS

In order to ensure platform independency of our

mobile prototype, our first choice was Java.

Fortunately, there is a free Virtual Machine for every

Windows Mobile 2003 device (and later versions),

called Mysaifu JVM (Freebeans, 2008).

454

Holzinger A., Trauner J. and Bifﬂ S. (2008).

WORK LISTS FOR THE TRANSPORT OF PATIENTS - A Case for Mobile Applications in Health Care.

In Proceedings of the International Conference on e-Business, pages 454-459

DOI: 10.5220/0001909004540459

 SciTePress

Although this is not a Java 2 Micro Edition, it is

a Java 2 Standard Edition (J2SE) conformant Virtual

Machine, which is built as a Source Forge project

under the GNU Public License Version 2 (GPLv2).

For this project we used version 0.2. This version

supports both the Abstract Windowing Toolkit

(AWT) and Swing. We applied small sample

programs in order to ensure full functionality; the

use of a standard edition JVM has, in our opinion,

some benefits: first, it is very simple to test the

application before copying the files to the PDA.

Second, J2ME is not just J2ME; which means that

there are many different versions highly dependant

on the performance of the device (Sun, 2008),

(Knyziak & Winiecki, 2005). Because of these

issues and of other restrictions of J2ME, the J2SE

was the best way to implement this application, in

order to provide compatibility with most of the

current systems – which are usually developed in

Java (Bruno, 2005). The general idea was to use an

already available connection to the existing server.

The main connection type is the Bright Side

Framework (BSF) (Brightsidefactory, 2008), which

transports XML content over the HTTP protocol

with dynamic instantiation and invocation of

available interfaces. However, in such specialized

circumstances the JVM for the PDA is not fully

compatible with the version for the PCs. The other

connection was based on Remote Method Invocation

(RMI), facing the problem that dynamic interfaces

were not supported on the PDA. This required us to

develop another connection for the PDA. Due to the

communication protocol should not be changed in

the first version we built a relay application.

3 BACKEND LESSONS

LEARNED

A new concept was necessary, employing a relay, in

order to establish the connection to the server. On

the server side the connection was built using RMI

or BSF (Sims, 2004), while, on the PDA side the

communication is based on an object stream. The

BSF and the RMI connections were given the means

to access the data on the server. Both

communication connections had to be adapted to fit

the requirements of this application. The

communication is no longer made over a static

connection; this is due to the fact that the relay has

to be able to open many connections. On top of this,

some additional functions were necessary. The most

interesting change is the function which returns the

sessionID. The communication process between the

relay and server, and relay and PDA client, is

provided by SASTransferObjects. These made it

necessary to add a function to transport them

without alteration. Example: the logon data is stored

within an object but the function takes the username

and the password as its arguments, therefore it is

necessary to prevent direct access to this data.

On the other hand, there is the client. The newly

built communication method is also sub-classed

from the SASServerProxy. This makes it possible to

change the method of communication just by

changing the properties file. The first idea was to use

an object stream for both directions; however there

was some difficulty with this method. Generally, the

communication with objects from the client to the

relay does not work – because it is far more

complicated as it normally is on PCs, due to the

different JVMs. As already mentioned, the Mysaifu

JVM is not yet fully compatible with the Java

defaults, since it calculates the version numbers and

does not allow for these to be fixed, as implemented

in the source code. Every class which has a fixed

version number causes an error at the relay when it

is de-serialized. The InvalidClassException, states

that the serial versions are different but in reality

they are the same and only one number has been

wrongly calculated. The solution for this is to

change the version number before de-serialization.

Any data which is sent through a stream is sent as a

series of bytes. In an object stream, this is done with

a special protocol which is publicly available (Sun,

2004). There is an exact description of how the class

and the serialVersionUID are printed out. Some

general information is followed by the class and

super class information, which is succeeded by the

class name printed in UTF. Directly after the name,

the version number is written to the next eight bytes,

followed by some flags and the variables, which of

course can also be classes.

Once the object serialization stream protocol is

known, this ceases to be a problem, since the right

version numbers are known by the relay.

After the serialVersionUID of any class defined

in the properties file is changed, the objects from the

received byte stream can be regenerated and it is

then possible to send a SASTranferObject, including

classes, from the PDA client to the relay. However,

in the other direction, the communication from the

relay back to the PDA client is less simple.

The reason for this is mainly that the JVM on the

PDA throws an InvalidClassException for each

class. Theoretically, it would also be possible to

change the version numbers on all the classes

transferred on the PDA, practically, there are too

many and the cost would be too high; therefore it

was decided to send strings as a series of bytes. A

WORK LISTS FOR THE TRANSPORT OF PATIENTS - A Case for Mobile Applications in Health Care

455

very simple protocol was invented where the string

is divided into fields with field terminators. The

PDA splits up the field and rebuilds the resulting set.

This method has proved successful. The

disadvantage for the relay, was the necessity of

rethinking the data encryption technique, however,

this actually turned out to be an advantage. Since the

communication is built up with such easy methods,

the necessary number of libraries decreased and now

requires less than 100 KB.

The WPA encryption, which is supported by the

WLAN hardware, is generally sufficient to secure

the transmitted data. However, since the client on

the PDA is used within a hospital and includes the

transmission of sensible patient data (Weippl,

Holzinger & Tjoa, 2006), (Miller, 2004),

(Mupparapu & Arora, 2004) we decided to include

additional encryption. The first technique we

considered was an asymmetric method: its security

has remained unbroken up until now. However, as

we practically expected, a performance test of the

RSA algorithm showed that this was not possible in

our case. For the test, a very short stream of about 50

bytes was used. The decryption of these few bytes

took almost a second. Within the real application,

the amount of data sent is often more than one kilo

byte. The time delay caused by this encryption and

decryption would be unacceptable. Other

asymmetric algorithms are as slow as the RSA

algorithm, which also made them unsuitable for our

client application on the PDA (Salomaa, Rozenberg

& Brauer, 1996). An additional, very fast, symmetric

encryption, which has not been patented, was

implemented in order to ensure against a possible

deactivation of the WPA encryption. There are many

symmetric encryption algorithms. The One-Time

Pad would have been best, but it is not practicable.

DES and 3DES are old and also quite slow. IDEA,

RC5, RC5a and RC6 are protected through patents.

A5 is already broken. The result of this is that only

RC4, Blowfish, Twofish and AES were suitable. Of

course, there are some other (proprietary)

algorithms; however, AES is a common and very

fast algorithm.

This new standard algorithm has already been

analyzed for security vulnerabilities, which

practically ensures that there is no chance of

cracking the algorithm within the next few years.

Therefore, the AES algorithm was chosen. The

implementation of the algorithm was not done

within this project. A free implementation of the

ACME Laboratories was chosen to encrypt the data.

In this project, it is used with a 16 byte (128 bit) key

which is calculated from a pass phrase which has to

be specified in the property file. The used block size

is 32 bytes, the maximum supported by this

algorithm. This is acceptable because, although the

calculation time needed for the encryption,

decryption and the data lookup on the server is up to

5 seconds, the old list is left on display until the new

one is loaded. It is possible that the customer might

decide that no encryption on top of WPA encryption

would be needed and change this in the property file

to save time. It is also possible to change the whole

algorithm, because this part was built to support

other algorithms. The test with non-Standard English

characters, such as the German “äöüß”, was also

interesting. These characters are encoded differently

on the PDA. For example, on the PC the “ü” is

represented by a byte with the value of -4. On the

PDA, the value for the same character is -127. Other

languages with additional character tables will have

similar problems. To add support for these

languages, an adjustment of the characters can be

made after the transfer. Which changes have to be

performed can again be specified in the property file

which contains all the general settings. This makes it

simple to adopt the system for many different

character sets.

4 FRONTEND LESSONS

LEARNED

At first the nurse logs on; the server then checks the

logon information. The BSF communication

framework provides the necessary security. After

logon, the transport list is shown with the default

filter. In order to provide the ability to change this,

two option panels are available. Our main design

criteria was to build the mobile interface as similar

as possible to the existing non-mobile interface on

the PC, which the nurses are used. We followed

previous experiences on mobile interface design

(Holzinger, Sammer & Hofmann-Wellenhof, 2006),

(Holzinger, Searle & Nischelwitzer, 2007),

(Nischelwitzer et al., 2007) and general experiences

on usability engineering (Holzinger, 2005) in order

to ensure an end-user centered user interface. On

mobile interfaces, generally the keyboard size

problem refers to the fact that using the on-screen

keyboard significantly reduces the remaining screen

size. The log on and the Options panel use Scalable

Vector Graphics (SVG). The layout manager expects

the whole screen to be available for the widgets.

Constraints specify the place and the position as a

percentage of the screen. This generally worked, due

to the independence from the physical screen size.

However, when the keyboard is selected, the

program is notified to refresh its screen – to fit the

ICE-B 2008 - International Conference on e-Business

456

new, smaller screen; this new rendering causes each

component to become smaller, which makes the

options panel very difficult to read. After the

removal of the keyboard, the PDA must again adjust

the size of all components. This takes approximately

3 seconds, slowing down the overall application

time considerably, which was perceived as

extremely unpleasant by our test users. This problem

can be solved by using another layout manager,

however, the start up problem still has to be solved,

where we followed a three step approach:

The first step is to review the needed libraries.

Maybe not all classes of the library are needed. A

new library should be built, which only contains the

necessary classes. The reason for this is simple, to

shrink the size of the libraries which have to be

loaded, thereby decreasing load time. This is not

very difficult, since the class files contain the

information of their super class and interface, the

dependency within a package can be discovered and

the methods’ argument types can also be seen.

The second step is the loading process itself.

This prototype loads all elements which are shown

on the display at start-up. This mean that all three

panels, the logon, the transport list and the options,

are all loaded before anything is painted to the

screen. A better solution would be to load only the

first panel, where the user enters their username and

password. To do this, the user needs a few seconds

to enter their account details: meanwhile the

transport list can be loaded in the background. The

benefit of this is simply that the user can start to

work after a shorter loading time. From the user’s

point view of while using the application, this does

not make a big difference as the next panel is

already loaded when it is needed. The same strategy

can be used for the options panel. While the user

looks at the screen and uses the functions of the

transport list panel, the options panel can be loaded.

The only disadvantage of this technique is from the

programmer’s perspective: it is more work to load

something in the background than it is to load

everything at once. In this case, it is necessary to use

separate threads to control which panels will be

needed next and to check whether it is already

loaded, or to load it before it is needed, in order to

avoid delay. We had to ensure that the system waits

until the required panel is loaded; in real-life this

will happen very rarely.

The third step is to use separate frames for each

panel. This helps to reduce the required memory,

because after the user is logged in, the logon frame

can simply be removed from memory.

The not default mistake means that it is default

on the PDA that the close button in the title bar is

used for the okay and cancel buttons. An X in the

title bar means cancel and the symbol for okay is

simply represented by the two characters ‘OK’.

Because of this, the cancel button generally will not

be used very often; and therefore could be removed

to the title bar. Experienced users will be acquainted

with this. Also, inexperienced users will not have

many problems because they normally only need the

OK button which is same as on the PC. When the

cancel button is needed, a short glance over the rest

of the screen will solve any difficulty that may arise.

The options scroll is really one of the bigger

problems. This view shows the different options

which the nurse can set up. As already described in

the options paragraph above, every time the user

activates a scrolling action the whole window must

be redrawn. If there are only a few components on

screen, then the PDA’s processor is sufficient to

perform the necessary actions of the layout manager.

Therefore, it is better to split the panel up into two

windows, or panels, so that the scrollbar is no longer

needed. A button is necessary to switch between the

two panels. This makes sense because in this way it

is possible to put the more important widgets on one

panel and the remaining components on the other

panel, which may not need loading as often. Another

possibility is to reduce the number of possible

options to a minimum by removing the less

important ones and therefore the necessity for a

second panel. Other known errors refer to usability

difficulties rather than real problems, avoiding these

makes it easier for the user to work with the

program. A typical example includes the information

displayed about the last update or a logout button.

The last update is necessary because if the nurse

is somewhere in the hospital without a wireless

connection to the server it is not possible to update

the transport list. And because the nurse usually gets

an update of the list every five minutes it is possible

that they may think that the program does not work

anymore because the list had not changed for more

than ten minutes. In this case, the time of the last

update indicates a connectivity problem, which

requests that the nurse move towards an area with a

wireless connection. This will mainly be an issue at

the beginning, later support will be expanded to the

entire hospital. The logout button is a time saving

service for the nurses to enable them to share PDAs

without the necessity of restarting the PDA

application each time it changes hands.

When the nurse goes off duty they just log off

and the next nurse can login immediately. Another

thing which is not directly an error is the cancel

button. Because this button has been moved to the

title bar it is no longer a real widget which needs

WORK LISTS FOR THE TRANSPORT OF PATIENTS - A Case for Mobile Applications in Health Care

457

space within a panel or window. So the okay button

should be moved to the middle or to the right of the

available space to fit the user’s expectations. Our

last idea was to use different panels for the different

screens and to perform any cancel actions using the

“X” in the title bar. However, this was not possible.

The reason for this is simple, that the default action

on the PDA is to hide the window and to show the

next one which is below the current window. On the

PC it is possible to execute own code when the

closing button is pressed. On the PDA this is not

possible because no event is generated to perform an

action which would prevent the window from being

hidden. So some changes were necessary. The first

was that every panel gets its own window, except

the two option panels, which share one. The options

window is the only panel which has a default cancel

operation, performed by pressing the “X” on the title

bar. This is possible because then the transport list

window, which is the window below, is shown. The

problem that switching the windows takes longer

than switching the panels could also be eliminated

by preloading the windows. If a window is needed, it

is just shown on the screen because it is already in

the memory, which prevents the shimmer. The other

two windows no longer have the close button in the

title bar to prevent user mistakes. Standard buttons

are used to perform the needed actions. This means

that the exit button, which was just removed, is

again added to the logon panel. Also the logout

button within the transport list panel can not be

removed. In the transport list panel, one very

important button is absent. There is no way to

change the direction of the transportation. The

patients have to be transported to the radiology and

they must also be transported back to their stations.

This means that two lists must be displayed. To save

space on the screen the button is added instead of

using one options button. The loss is that there is

now no way to get directly to each of the options

panels. To minimize the effects of this disadvantage

the options dialog always shows the panel which

was used the last time. A next/back button is used to

switch between the two options panels. Other

modifications which are needed are the logout and

direction buttons and the change of the last update

time string. The change of the two buttons has two

reasons. The first is that the application should be

consistent. In the options dialog, the position of the

OK button to go back to the transport list is at the

bottom left. The logout button is the same within the

transport list window. The second reason is that the

direction is like a headline. And so its logical

position is at the top of the window. An extra

window is used for the list, which is the main part of

the application. In the top left of the window, there

is a button to select the direction. The title of the

button shows the currently selected direction.

Possible values are “To Radiology” and “To

Station”. By pressing it, the direction is changed. On

the right of this button, there is a label which tells

the user when the last update of the list was made.

This is necessary because of the automatic update of

the list. The time interval of the update is specified

in a property file of the client. On starting, the list

consists of the patients name, the time to transport,

from where and if the patient can walk, which are

displayed in two rows. After the selection of one of

the items, the item pops out and shows additional

information, such as the patient’s date of the birth.

When one patient is transported, the nurse double-

clicks on the patient in the list to mark this as

transported. This is shown by the light gray

background. After selecting another item the marked

item pops in and the color of the font of the selected

item turns dark gray. By the next update of the list,

the update will have been completed on the server

and the item is removed from the list. It is possible

to declare a minimal time in the property file, during

which an item is not updated to prevent mistakes, it

is only necessary to make a second double-click on

the marked item in order to change the item state

back to normal.

Figure 1: Transport List: Before and after performing a

transport.

When the button “Filter” in the transport list

panel is pressed, the first options panel is shown.

The nurse can specify different options for the filter;

e.g. the transport type or the examination date. The

transport list button behaves as a back button to the

transport list panel; when pressed the expected panel

is shown and the contained list is updated to fit the

current filter settings. The “Next” button is used to

get to the second options panel. The “X” is abort.

The second panel is built as the first one. The whole

available space is used for components which are

used to specify different filter criteria. Examples for

ICE-B 2008 - International Conference on e-Business

458

filter options on this panel are the patient name or

the handling of already completed transports. At the

bottom of the panel there is again a button to return

to the transport list and update it with the specified

options to match the selected filters. The “Back”

button switches to the first options panel.

5 CONCLUSIONS

It is not trivial to develop both a useful and usable

mobile application. The general idea to use a J2SE

Virtual Machine was abandoned, due to lack of

compatibility. The server communication could not

be done trough the available methods. This made it

necessary to build a relay to forward the inquiries to

the server. That made it possible to convert the result

to a string which is sent as a byte stream. Due to this

sensible data, encryption was necessary. Primarily

the WPA encryption is used, which is secure and is

supported by the PDA’s hardware. Additionally, the

data is encrypted by the application. After a

comparison the AES implementation of the ACME

Laboratories was deemed the optimal choice. Due to

the fact that it is the new standard algorithm for

symmetric data encryption, the algorithm can be

graded as secure. The user interface of the PDA

client also caused some troubles. It is not possible to

build a slightly more complicated interface when

using the default layout managers. It was necessary

to program a custom interface to fit all our needs

within an adequate time. Another problem was that

the PDA had a different window handling. It is not

possible to receive any window events within a Java

application and that must also be considered.

Another big problem on the PDA, which is not an

issue on the PC, is the scrolling of complicated

interfaces. The scrolling time is much too long

because a simple scroll request required a few

seconds of time to perform. Everything had to be

optimized to save as much computing time as

possible. However, some of the challenges of

migrating desktop applications to mobile technology

are the limited screen size and the originality of the

technologies that need to work together correctly for

a useful and usable solution. In conclusion, the PDA

prototype can reduce the time needed for transports

and the end-users were able to use the PDA similarly

to their non-mobile interfaces.

REFERENCES

Brightsidefactory (2008), Bright Side Framework

Overview. Online available: http://www.bs-

factory.org/components/remotingDoc/architecture.htm

l, last access: 2008-06-10

Bruno, E. J. (2005) NetBeans 4.1 & Eclipse 3.1 -

Development platforms for J2SE, J2EE, J2ME. Dr

Dobbs Journal, 30, 8, 14-23.

Freebeans (2008), Mysaifu JVM. Online available:

http://www2s.biglobe.ne.jp/~dat/java/project/jvm/inde

x_en.html, last access: 2008-06-10

Gale, M. E. & Gale, D. R. (2000) DICOM modality

worklist: An essential component in a PACS

environment. J of Digital Imaging, 13, 3, 101-108.

Holzinger, A. (2005) Usability Engineering for Software

Developers. Comm of the ACM, 48, 1, 71-74.

Holzinger, A. & Errath, M. (2007) Mobile computer Web-

application design in medicine: research based

guidelines. Universal Access in the Information

Society International Journal, 6, 1, 31-41.

Holzinger, A., Sammer, P. & Hofmann-Wellenhof, R.

(2006) Mobile Computing in Medicine: Designing

Mobile Questionnaires for Elderly and Partially

Sighted People. Springer LNCS 4061. Berlin, New

York, 732-739.

Holzinger, A., Searle, G. & Nischelwitzer, A. (2007) On

some Aspects of Improving Mobile Applications for

the Elderly. Springer LNCS 4554. Berlin, Heidelberg,

New York, 923-932.

Knyziak, T. & Winiecki, W. (2005) The new prospects of

distributed measurement systems using Java (TM) 2

Micro Edition mobile phone. Computer Standards &

Interfaces, 28, 2, 183-193.

Miller, A. (2004) PDA security concerns. Network

Security, 2004, 7, 8-10.

Mupparapu, M. & Arora, S. (2004) Wireless networking

for the dental office: current wireless standards and

security protocols. J Contemp Dent Pract, 5, 4, 155-

162.

Nischelwitzer, A., Pintoffl, K., Loss, C. & Holzinger, A.

(2007) Design and Development of a Mobile Medical

Application for the Management of Chronic Diseases.

In: Springer LNCS 4799. Heidelberg, Berlin, New

York, 119–132.

Salomaa, A., Rozenberg, G. & Brauer, W. (1996) Public-

Key Cryptography.

Sims, B. (2004) Moving from liability to viability.

Hospitals, health plans and physician practices can

outsmart hackers with policy, a comprehensive

security infrastructure and wireless monitoring.

Health

Management Technology, 25, 2, 32-35.

Sun (2004), Object Serialization Stream Protocol.

http://java.sun.com/j2se/1.5.0/docs/guide/serialization/

spec/protocol.html, last access: 2008-06-10

Sun (2008), CLDC HotSpot™ Virtual Machine.

http://java.sun.com/j2me/docs/pdf/CLDC-

HI_whitepaper-February_2005.pdf, 2008-06-10

Weippl, E., Holzinger, A. & Tjoa, A. M. (2006) Security

aspects of ubiquitous computing in health care.

Springer Elektrotechnik & Informationstechnik, e&i,

123, 4, 156-162.

WORK LISTS FOR THE TRANSPORT OF PATIENTS - A Case for Mobile Applications in Health Care

459
