DEALING WITH BUSINESS PROCESS EVOLUTION

USING VERSIONS

Mohamed Amine Chaâbane, Eric Andonoff

Laboratoire IRIT, Université Toulouse 1, 2 rue du Doyen Gabriel Marty, 31042 Toulouse Cédex, France

Lotfi Bouzgenda, Rafik Bouaziz

Laboratoire MIRACL, ISIMS, Route de Tunis, km 10, BP 242, 3021 Sakeit Ezzit, Sfax, Tunisia

Keywords: Version, Business Process Evolution, Meta-model, Petri net with Objects.

Abstract: Competition in which enterprises and organizations are involved nowadays imposes them to often make

evolve their business processes in order to meet, as quickly as possible, new business or production

requirements. This paper proposes to adopt a version-based approach to support these dynamic changes of

business processes. This approach permits to keep chronological business process changes: it is then

possible to allow several instances of a same business process to own different schemas, each one

representing a possible schema for the considered business process. Consequently, this approach is very

suitable to deal with long-term business process evolution: it does not necessarily impose the adaptation and

migration of running instances of business processes to a new business process schema. The paper

contribution is threefold. First, it defines a meta-model for designing versions of business processes

considering the three dimensions of business processes: the informational, organizational and process

dimensions. Then, it introduces a taxonomy of operations for business process version management. Finally,

it proposes to formalize and visualize modeled versions of business processes using a Petri net-based

formalism, namely Petri net with Objects.

1 INTRODUCTION

Nowadays, the importance of business processes in

enterprises’ and organizations’ Information Systems

(IS) is widely recognized. As a consequence, these

last few years, there has been a shift from data-

aware IS to process-aware IS (Aalst and al, 2007).

However, even if important advances have been

done in business process management, several

problems are still to be dealt. Among them, the

business process evolution problem that can be

posed as follows: how to support dynamic change of

business processes (Smith and Fingar, 2003), (Aalst

and al, 2003-a)?

The competitive and dynamic worldwide

economic context, in which enterprises and

organizations are involved, lead them to often

change and adapt their business processes in order to

meet new business or production requirements.

Consequently, the business process evolution

problem is really a relevant problem. This problem

has mainly been addressed in the Workflow context

using two main approaches: an adaptive-based

approach and a version-based approach. The

adaptive-based approach consists in defining a set of

operations supporting both workflow process

schema changes, and adaptation and migration of

their corresponding instances (Casatia and al, 1996),

(Reichert and Dadam, 1998), (Kammer and al,

2000), (Rinderle and al, 2004). In this approach,

only one schema is kept for all modelled workflow

processes. This approach has been investigated

intensively and its implementations, ADEPT

(Reichert and Dadam, 1998) and JOpera (Heinis and

al, 2005), are probably the most successful

Workflow Management Systems (WfMS) regarding

workflow process’ schema evolution.

In the version-based approach, different

instances of a same workflow process can have

different schemas. Thus, it is possible to distinguish

between temporary and permanent updates for

workflow processes since it is possible to keep track

of chronological workflow process changes, each

267

Amine Chaâbane M., Andonoff E., Bouzgenda L. and Bouaziz R. (2008).

DEALING WITH BUSINESS PROCESS EVOLUTION USING VERSIONS.

In Proceedings of the International Conference on e-Business, pages 267-278

DOI: 10.5220/0001903702670278

 SciTePress

one representing a possible schema for the

considered workflow process.

In the workflow context, where long-term

processes are involved, adaptation and migration of

workflow process instances according to a new

schema are not always easy and are sometimes

impossible (Casati and al, 1996). So, it is important

to be able to manage different schemas for a

workflow process in order to allow several instances

of this workflow process to own different schemas

(Kradolfer and Geppert, 1999). Thus, the version-

based approach is a promising solution to deal with

business process evolution.

Versions are used in several fields of computer

science in which was highlighted the need to

describe evolution of real world entities over time.

Thus, versions are used in the database field mainly

in object-oriented databases (Cellary and Jomier,

1990), (Sciore, 1994), or scientific databases (Chen

and al, 1996) but also for specific database

application fields such as computer aided design or

computer aided manufacturing (Chou and Kim,

1986), (Katz, 1990). Versions are also used in

software engineering to handle software

configurations (Kimball and Larson, 1991). Versions

are also considered in conceptual models such as the

Entity Relationship model (Roddick and al, 1993) or

the OMT model (Andonoff and al, 1996).

Although versions are used in several areas of

computer science, to the best of our knowledge, only

few efforts have been put on version management in

the business process (workflow) context (in the

remainder of the paper, the terms workflow and

business process will be used equally).

We distinguish two main contributions about

versions of business processes in literature.

(Kradolfer and Geppert, 1999) have proposed to deal

with dynamic workflow evolution, i.e. modification

of workflow process schemas in the presence of

active workflow process instances, introducing

versions of workflow process schemas. This work

has defined a set of operations for workflow process

schema modification and, if possible, a strategy for

migration of workflow process instances. Recently,

(Zhao and Liu, 2007) have also defended the

advantages of a version-based approach to face

business process evolution. More precisely, this

work proposes to model versions of workflow

process schemas using graphs. It also presents a set

of operations enabling updates of graphs and defines

two strategies to extract versions of workflow

process schemas from these graphs.

We believe that these two propositions need to

be revisited. Indeed, both (Kradolfer and Geppert,

1999) and (Zhao and Liu, 2007) addressed the issue

of business process versioning only considering,

what is called in the workflow literature, “process

model”. Such a model describes tasks involved in

the process and their coordination. But, using only

this model is not enough to have a comprehensive

description of business processes (Aalst, 1999). Two

others models have to be considered: the

organizational and the informational models. The

organizational model structures the business process

actors and authorizes them, through the notion of

role, to perform tasks making up the process. The

informational model defines the structure of the

documents and data required and produced by the

process. These two models are glued together with

the process model since, in addition to the tasks and

their coordination, the process model also defines

the required resources (information, actors) to

perform the tasks.

Consequently, this paper proposes to revisit the

business process evolution problem using a version-

based approach and considering both organizational,

informational and process models of business

processes. More precisely, this paper introduces:

 A meta-model for designing versions of

business processes;

 A taxonomy of operations for business process

version management;

 A formalization and a visualization of versions

of business processes designed with the

previous meta-model.

The remainder of this paper is organized as

follows. Section 2 introduces the Business Process

(BP) meta-model we use for designing business

process, while section 3 introduces the Versioned

Business Process (VBP) meta-model we propose for

business process versioning. More precisely, section

3 first recalls the notion of version, then presents the

versioning kit we propose for handling versions of

business processes, and finally explains how the kit

is merged with the BP meta-model to define the

VBP meta-model. This section also gives an

example of business process versioning. Section 4 is

dedicated to the dynamic aspects of the meta-model:

it presents a taxonomy of operations for business

process version management. Section 5 presents our

proposition for both formalization and visualization

of workflow process versions using a formal model,

namely Petri Net with Objects (Sibertin, 1985).

Finally, section 6 stands our contribution according

to related works and then concludes the paper.

ICE-B 2008 - International Conference on e-Business

268

DEALING WITH BUSINESS PROCESS EVOLUTION USING VERSIONS

2 MODELING BUSINESS

PROCESSES

As mentioned before, a business process meta-model

must allow the expression of three complementary

aspects, usually described through three different

interacting models: the organizational, informational

and process models. The main important model is

the process model which defines component tasks

and their coordination, but this model also refers to

the organizational model and to the informational

model defining required and produced resources

before and after tasks execution (Aalst, 1999).

Another important requirement for such a meta-

model is its simplicity and efficiency: it must be

comprehensive and must define the core (basic)

concepts of the three complementary aspects of

business processes: it must play the role of a

Business Process Virtual Meta-model, i.e. a minimal

meta-model for the design of business processes.

This idea of Business Process Virtual Meta-model is

the same as the one of Workflow Virtual Machine

introduced in (Fernandes and al, 2004) to deal with

the development of a Workflow Management

System (WfMS) that supports changes in its

workflow definition language(s).

But does such a meta-model for business process

modelling (i.e. meeting the previous requirements)

already exist, or do we have to define a new one by

ourselves?

Despite the standization efforts of the Workflow

Management Coalition (WfMC), different workflow

or business meta-models exist in literature. The used

vocabulary differs from one model to another, and

yet, so far, the workflow and business process

community seem to not have reached an agreement

on which model to adopt, even if XPDL, BPMN and

BPEL are standards recommended by the WfMC.

Some business process and workflow meta-

models proposed in literature mainly focus on the

process model -i.e. tasks description and their

coordination- (e.g. (Zhao and Liu, 2007), BPEL,

XPDL). Others also consider the informational

model in addition to the process model (e.g. (Casati

and al, 1995), (Kradolfler and Geppert, 1999),

(Vossen and Weske, 1999), (Aalst and al, 2004)).

Finally, some meta-models have a comprehensive

approach for business process modeling considering

the three complementary aspects (e.g. FlowMark

and its successors MQSeries Workflow and

WebSphere MQ Workflow (Leymann and Roller,

1999), Exotica (Mohan and al, 1995), OpenFlow

(Halliday and al, 2001)). For instance, as illustrated

in (Rosemann and zur Muehlen, 1998), the

FlowMark meta-model proposes a very detailed

description of workflow processes along with

involved data flows and actors. However, these

meta-models are very complex, specially with

respect to the organizational dimension.

Consequently, we have defined our own meta-

model which fulfils the previous requirements: (i) a

comprehensive meta-model considering three

complementary aspects of business processes

(organizational, informational and process models),

and (ii) a business process virtual meta-model as it

defines the core (basic) concepts of the three com-

plementary aspects of business processes. This meta-

model is shown in the UML diagram of figure 1.

In this UML meta-model, a business process is

either a composite process or an atomic process. A

composite process is itself recursively composed of

atomic or composite processes. It also uses a control

pattern, which participates to the definition of

business process coordination. In our meta-model,

and as in, for instance (Manolescu, 2001), the main

control patterns described in the literature are

provided. Some of them are conditional (e.g. if,

while…), while others are not (e.g. sequence,

fork…). Their semantics is the following:

 Sequence pattern: it permits the execution of

processes in a sequential order;

 If pattern: it allows processes execution

according to a condition;

 Fork pattern: it spawns the parallel execution of

processes and waits for the first to finish;

 Join pattern: it spawns the parallel execution of

processes but waits for all of them before

completing;

 While and Repeat patterns: they cyclically

execute a process while or until a condition is

achieved.

Informational Model

System Data

Data

Document Form

Atomic Process

Control Pattern

Process Model

0..*

consumes

Organizational Model

1..*

Database

Data Repository

Process Data

Application Data

Informational resource

uses

1..*

is_composed_of

1..*

Actor

Human

Software

0..*

Not Human

Machine

Role

External

Internal

played_by

Organizational Unit

1..*

0..*

1..*

is_member_of

1..*

Action

1..*

references

Composite Process

Business Process

1..*

2..*

produces

0..*

1..*

contains

has_pre-conditions

has_post-conditions

Non Conditional Control

Pattern

Conditional Control Pattern

0..*

0..1

has

0..1

belongs_to

uses

Condition

0..1

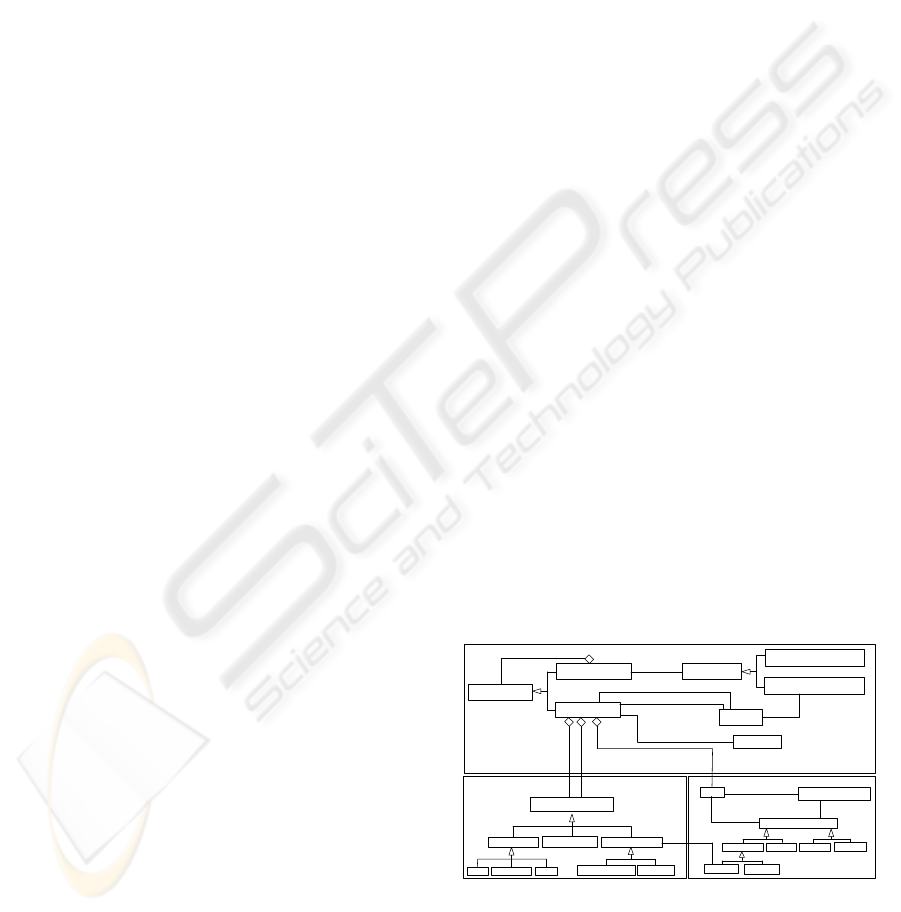

Figure 1: The Business Process meta-model.

An atomic process corresponds to a task to

perform. It can have pre-conditions and post-

conditions, and executes one or several actions. An

atomic process is performed by a role (belonging to

269

the organizational model) and consumes and/or

produces informational resources (belonging to the

informational model). Informational resources

correspond to system data, process data (i.e. data,

document or form), and application data (i.e.

database and data repository). A role is played by an

actor belonging to some organizational units. An

actor is a human resource or not (machine or

software). Finally, an actor may be internal or

external.

Going back to control patterns, our meta-model

only includes low level (basic) control patterns; all

the high level workflow patterns of (Aalst and al,

2003-b) are not considerer here (they are much more

complex than what we need). In this way, the meta-

model we propose could be seen as a Business

Process Virtual Meta-model gathering the core

(basic) concepts of business process models.

3 MODELING VERSIONS OF

BUSINESS PROCESSES

First, this section briefly recalls the version notion as

it is introduced in object-oriented databases and

software engineering. Then, this section presents the

Versioned Business Process (VBP) meta-model: it

consists of a versioning kit to handle versions of

business processes which is merged with the BP

meta-model introduced before. Finally, this section

illustrates the VBP meta-model instantiation to

design versions of business processes.

3.1 Concept of Version

A real world entity has characteristics that may

evolve during its life cycle: it has different

successive states. In object-oriented database

systems that provide version management, this entity

is described by a set of objects called versions. A

version corresponds to one of the significant entity

states. Then, it is possible to manage several entity

states (neither only the last one as in classical

databases nor all the states as in temporal databases).

E1.v0 E1.v1

E1.v2

E1.v3

En.v2

En.v0

En.v1

En.v3

E ntities

V ersions

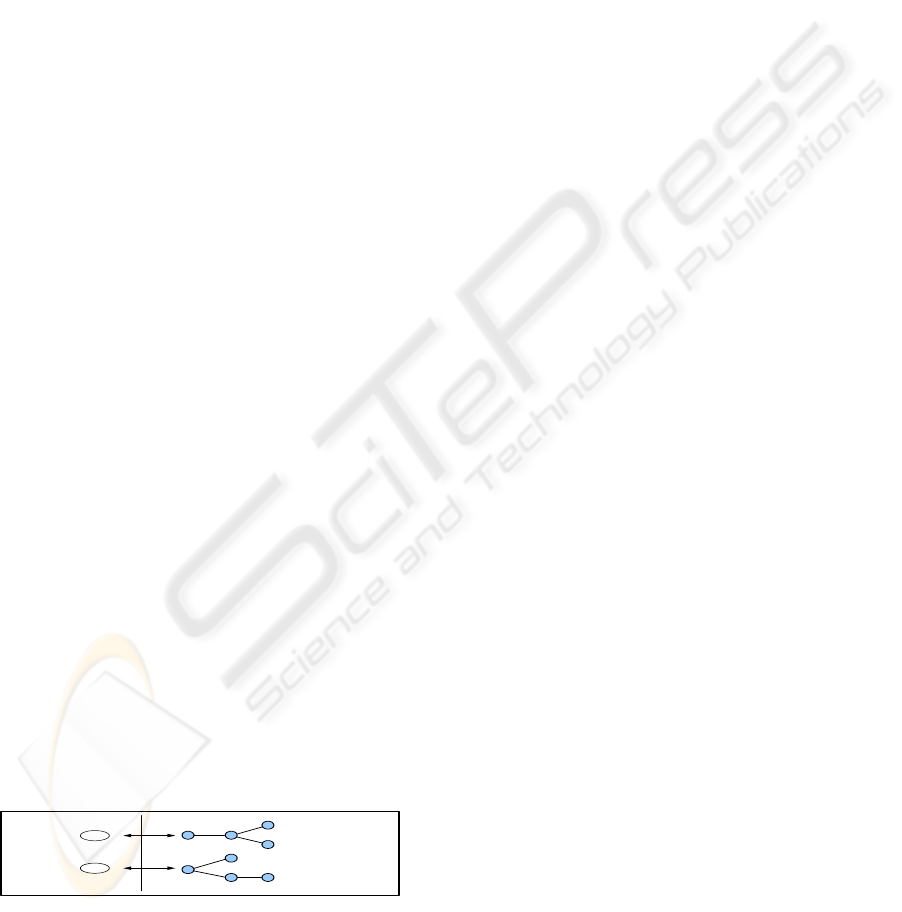

Figure 2: Representing entities with versions.

As illustrated in figure 2, the entity versions are

linked by a derivation link; they form a version

derivation hierarchy. When created, an entity is

described by only one version. The definition of

every new entity version is done by derivation from

a previous one. Such versions are called derived

versions (e.g. E1.v1 is a derived version from

E1.v0). Several versions may be derived from the

same previous one. They are called alternatives (e.g.

E1.v2 and E1.v3 are alternatives derived from

E1.v1).

A version is either frozen or working. A frozen

version describes a significant and final state of an

entity. A frozen version may be deleted but not

updated. To describe a new state of this entity, we

have to derive a new version (from the frozen one).

A working version is a version that temporarily

describes one of the entity states. It may be deleted

and updated to describe a next entity state. The

previous state is lost to the benefit of the next one.

3.2 The Versioned Business Process

Meta-model

This meta-model consists of a versioning kit to

handle versions of business processes, which is

merged to the BP meta-model previously introduced.

3.2.1 Versioning Kit

This kit is very simple: it is composed of a class and

a set of properties and relationships that make

classes of the previous meta-model “versionable”. A

“versionable” class is a class whose instances are

versions (Katz, 1990).

Thus, for each of these “versionable” classes, we

define a new class which contains versions, called

“Version of…”. We also specify two new

relationships: (i) the is_version_of relationship

which links a class to its corresponding “Version

of…” class, and (ii) the derived_from relationship

which describes version derivation hierarchies. This

latter relationship is reflexive. The underlying idea

of our proposition is to describe both entities and

their corresponding versions as indicated in figure 2.

Consequently, (i) versions are therefore involved in

the process definition, and (ii) a couple (version,

entity) is obviously created when the first version of

an entity is created. Regarding properties of these

“Version of…” classes, we introduce the classical

version number, creator name, creation date and

status properties (Sciore, 1994).

3.2.2 Merging the Versioning Kit with the

Business Process Meta-model

Regarding the process model, we propose to keep

versions for only two classes: the Atomic Process

ICE-B 2008 - International Conference on e-Business

270

DEALING WITH BUSINESS PROCESS EVOLUTION USING VERSIONS

and the Business Process classes. It is indeed

interesting to keep changes history for both atomic

processes (i.e. tasks) and workflow processes since

these changes correspond to changes in the way that

business is carried out. At the atomic (task) level,

versions describe evolutions in activity realization

while at the business process level, versions describe

evolutions in work organization (i.e. coordination of

activities). We defend the idea that atomic process

(task) and business processes versioning is enough

to help organizations to face the fast changing

environment in which they are involved nowadays.

Regarding the other models, it is necessary to

handle versions for the Informational resource class

from the informational model, and versions for the

Role class from the organizational model. Regarding

this latter model, it is also possible to handle

versions for the Actor and Organizational Unit

classes. However, keeping changes history for these

two classes is, in our opinion, quite useless to handle

versions of business processes.

Figure 3 below presents the new obtained meta-

model in terms of classes and relationships.

System

Data

Dat a

Document

Form

Version of Atomic

Process

Control

Pattern

Informational Model

Process Model

0..*

Organizational Model

1..*

Database

Data

Repository

Process

Data

Application

Data

uses

1..*

is_composed_of

Actor

Human

Software

0..*

Not Human

Machi ne

Role

External

Internal

played_by

Organizational Unit

1..*

0..*

1..*

Composite Process

1..*

2..*

0..*

Non Conditional Control

Pattern

Conditional Control Pattern

has

0..1

Version of

Business Process

Business

Process

1..*

is_version_of

derived_from

is_version_of

1..*

derived

_from

1..*

Version of

Informational resource

is_version_of

Informational

resource

Version of

Rol e

derived_from

1..*

is_version_of

belongs_to

uses

Atomic

Process

derived_from

consumes

produces

1..*

Action

1..*

references

0..*

1..*

contains

has_pre-conditions

has_post-conditions

0..*

Condition

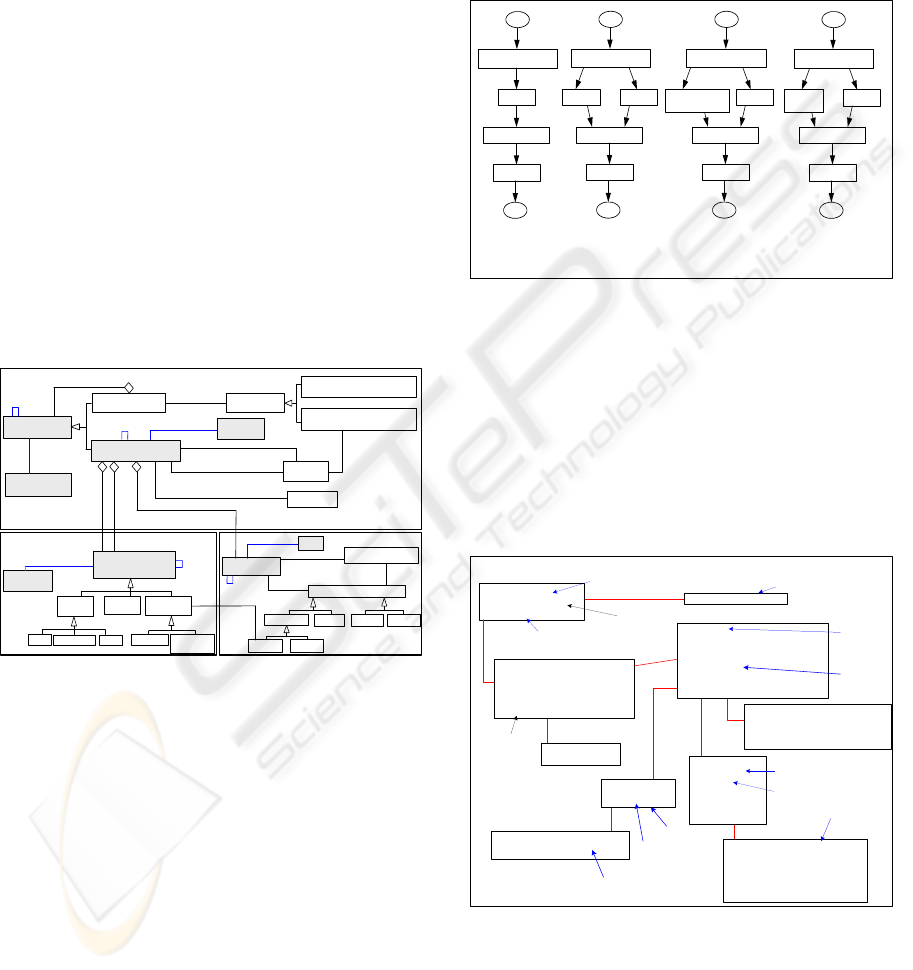

Figure 3: The Versioned Business Process meta-model.

3.3 Example

In order to illustrate the VBP meta-model

instantiation, we propose to use the example

introduced by (Zhao and Liu, 2007). Because of

space limitation, we only focus on the instantiation

of the process model of this example.

This example describes a production business

process and involves a factory, which owns one

production pipeline following the business process

shown in figure 4(a). It includes several activities:

production scheduling, production using a work

centre, quality checking and packaging. In order to

increase its productivity, the factory decides to add a

new work centre. The business process is then

updated as shown in figure 4(b). If one of the two

work centres, for instance work centre#1 (Pc#1), has

a technical problem and consequently is removed

from the process, two solutions are proposed to

attempt keeping the production output: fixing

unqualified products or using employees for manual

production. The business process is then updated as

shown in figure 4(c) and 4(d).

Start

Produce

Quality Checking

Packaging

End

Produce

Schedule Production

Start

Schedule Production

Produce

Quality Checking

Packaging

End

Produce

(Manual)

Start

Fix Unqualified

Products

Quality Checking

Packaging

End

Produce

Schedule Production

4(a) 4(b)

4(c)

Start

Quality Checking

Packaging

End

Produce

Schedule Production

4(d)

Pc#1,

Roles

Em: Enterprise manager

Pc: Production work centre

Pac: Packaging work centre

Ma: Machine

Informational Resource

Cof: Customer order form

Po: Production order form

E-Co: Electronic customer order form

Cof

Pac

Cof, E-Co

Pc#1

Po Po

Pc#1,

Ma, Ms

Ss: Scheduling service

Ms: Maintenance service

Qs: Quality service

Cof, E-Co Cof, E-Co

Em Em

Pac Pac Pac

Pc#1,

Pc#2,

Figure 4: Change in the Production BP.

The solution we provide to model theses

derivation hierarchies consists in instantiating the

VBP meta-model. The Business Process, Atomic

Process, Role and Informational resource

“versionable” classes and their “Version of…”

corresponding classes are involved in this

instantiation, along with the Composite Process and

Control Pattern non “versionable” classes. This

instantiation is visualized in figure 5.

is_version_of

relationship

Version of Atomic Process

Atomic

Process

[ap1, Schedule Production, {vap1, vap2}, ...]

[ap2, Produce, {vap3, vap4, vap5}, ...]

[ap3, Quality Checking, {vap6, vap7}, ...]

[ap4, Packaging, {vap8}, ...]

[ap5, Fix Unqualified Products, {vap9}, ...]

Control Pattern

[cpa1, Sequence]

[cpa2, Join]

Composite Process

[cp1, cpa1, {vap1, vap3, vap6, vap8}, ...]

[cp2, cpa1, {vap2, cp5, vap6, vap8}, ...]

[cp3, cpa1, {vap2, cp6, vap6, vap8}, ...]

[cp4, cpa1, {vap2, cp7, vap7, vap8}, ...]

[cp5, cpa2, {vap3, vap4}, ...]

[cp6, cpa2, {vap9, vap4}, ...]

[cp7, cpa2, {vap5, vap4}, ...]

Business Process

[bp1, Production, {vbp1}, ...]

Version of

Business Process

[vbp1, v1, bp1, nil, cp1, ...]

[vbp2, v2, bp1, vbp1, cp2, ...]

[vbp3, v3, bp1, vbp2, cp3, …]

[vbp4, v4, bp1, vbp2, cp4, …]

structure of the

business process

version

is_version_of

relationship

derived_from

relationship

is_version_of relationship

derived_from relationship

control pattern which

structures the

composite process

is_version_of

inverse relationship

Role

[vr1, v1, r1, nil, ...]

[vr2, v1, r2, nil, ...]

[vr3, v2, r2, vr1, ...]

[vr4, v1, r3, nil, ...]

[vr5, v1, r4, nil, ...]

[vr6, v1, r5, nil, ...]

[vr7, v1, r6, nil, ...]

[vr8, v1, r7, nil, ...]

Version

of Role

[r1, Enterprise Manager, {vr1}]

[r2, Production work center, {vr2,vr3}]

[r3, Machine, {vr4}]

[r4, Quality service, {vr5}]

[r5, Packaging work center, {vr6}]

[r6, Maintenance service, {vr7}]

[r7, Scheduling service, {vr8}]

[ir1, Customer order form,{vir1}]

[ir2, Electronic customer order,{vir2}]

[ir3, Production order, {vir3}]

Informational resource

derived_from

relationship

[vir1, v1, ir1, nil, ...]

[vir2, v1, ir2, nil, ...]

[vir3, v1, ir3, nil, ...]

Version of

Informational resource

[vap1, v1, ap1, nil, {vr1}, {vir1}, …]

[vap2, v2, ap1, vap1, {vr8}, {vir1,vir2}, …]

[vap3, v1, ap2, nil, {vr2,vr4}, {vir3}, …]

[vap4, v2, ap2, nil, {vr3,vr4}, {vir3}, …]

[vap5, v3, ap2, vap3, {vr2}, {vir3}, …]

[vap6, v1, ap3, nil, {vr1},{}, …]

[vap7, v2, ap3, vap6, {vr5},{}, …]

[vap8, v1, ap4, nil, {vr6},{}, …]

[vap9, v1, ap5, nil, {vr2,vr4,vr7},{}, …]

is_version_of

inverse relationship

is_version_of

inverse relationship

is_version_of

relationship

derived_from

relationship

Figure 5: Instantiation of the VBP Meta-Model.

271

4 OPERATIONS FOR BUSINESS

PROCESS VERSIONING

In this section, we introduce a taxonomy of

operations for business process versioning. These

operations are defined as methods in the “Version of

…” classes (“versionable” classes). They correspond

to classical operations for versions (Katz, 1990):

create, derive, delete, update and froze, but this

taxonomy also includes operations for version

selection. Of course, create, delete and update are

also available for the other classes of the meta-

model (non “versionable” classes), but their

presentation is out of the scope of the paper.

This section introduces the create, derive, delete,

update and froze operations first giving a state chart

which indicates when these operations are available,

and second detailing the actions they perform

according to the classes in which they are defined.

Moreover, this section also discusses about version

selection, more precisely business process version

selection.

4.1 State Chart for Versions

The UML state chart of figure 6 indicates when

these operations are available. Some of them are

available whatever the state of versions on which

they are applied, while others are only available in

some cases. In this state chart, each operation is

described using the notation Operation:Event/Action

whose meaning is “for Operation when Event is

triggered then Action is performed”.

Working

Frozen

Create:

create/to_create

Update:

update/to_update

Delete:

delete/to_delete

Freeze:

freeze/to_freeze

Derive:

derive/to_derive

Delete:

delete/to_delete

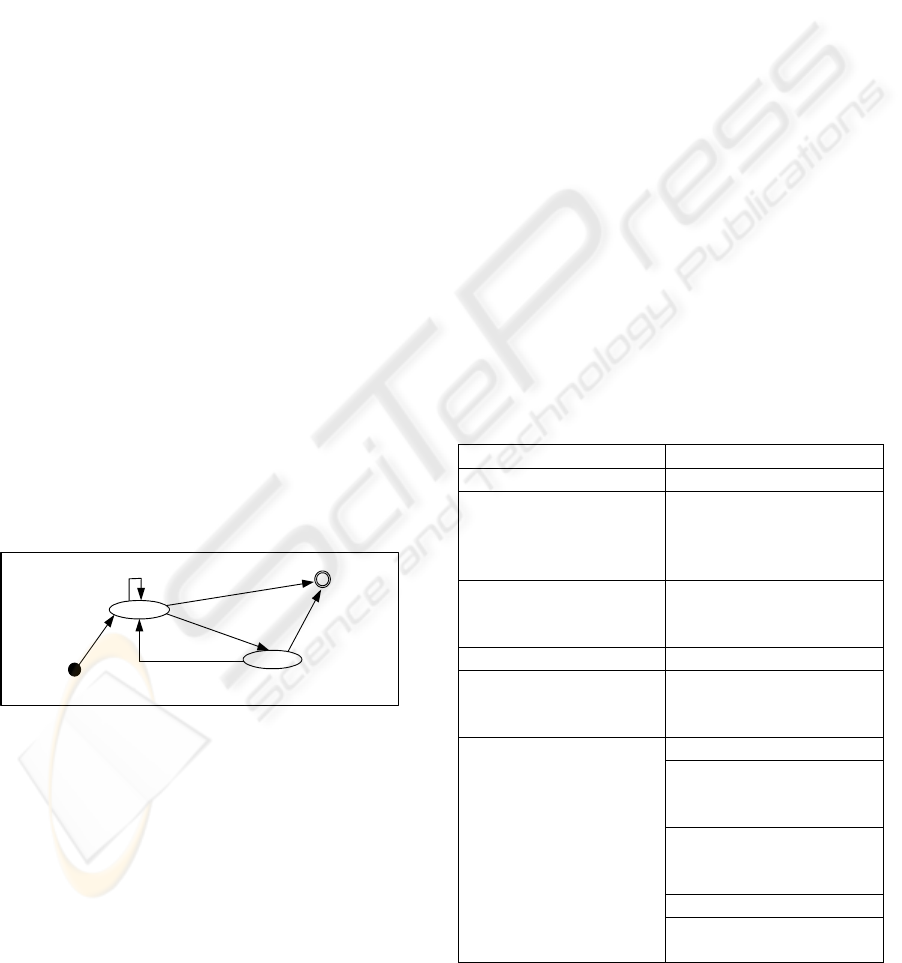

Figure 6: State Chart for Versions of Business Processes.

When the create event is triggered by the a

version designer, the to_create action is performed

to both create the entity and its corresponding first

version. The state of the created version is Working.

In this state, the version can be updated (update

event and to-update action).

It also can be deleted (delete event and to-delete

action): its state is then the final state of the chart. It

also can be frozen (freeze event and to-freeze

action): its state is then Frozen. Triggering the freeze

event, the designer means that the considered

version is definitive and does not need additional

updates. A frozen version (i.e. a version in a Frozen

state) can be deleted or can serve as a basis for the

creation of a new version using the derive event and

to-derive operation. This new created version has the

same value as the version from which it is derived

from: its state is Working.

In addition to the previous state chart, these

operations require further details. For instance, the

Create and Update operations permit to add and

delete references to the components of versions.

These components change according to the

considered type of versions: versions of business

processes, versions of atomic processes (tasks),

versions of informational resources or versions of

roles. Regarding the Derive operation, it can trigger

the derivation of versions of its components. The

sections below gives additional details for these

operations.

4.2 Creating and Updating Versions

Table 1 and 2 below give the semantics of these two

operations (Create and Update) according to the

classes in which they are defined. The four “Version

of…” classes

are considered.

Table 1: Creating and Updating Versions of Business

Processes and Atomic Processes (task).

Business Process

Atomic Process

1. Change structure 1. Change conditions

1.1. add/delete

composite process in

the workflow process

structure

1.1. add/delete pre-

conditions (has-pre-

conditions relationship)

1.2. add/delete atomic

process in the work-

flow process structure

1.2. add/delete post-

conditions (has-post-

conditions relationship)

2. Change pattern 2. Change action

2.1. choose a pattern

for a composite process

(use relationship)

2.1. add/delete actions

(contains relationship)

3. Change information

3.1. add/delete input

information (consumes

relationship)

3.2. add/delete output

information (produces

relationship)

4. Change role

4.1. add/delete roles

(references relationship)

These two tables indicate that Create and Update

operations change according to the classes in which

ICE-B 2008 - International Conference on e-Business

272

DEALING WITH BUSINESS PROCESS EVOLUTION USING VERSIONS

they are defined. However, they share the same

general idea that is to give values to properties and

relationships of the considered classes. Moreover,

relationships referencing versions may only

reference frozen versions (i.e. versions in the Frozen

state).

Table 2: Creating and Updating Versions of Informational

Resource and Role.

Informational

Resource

Role

1. Change software 1. Change actors

1.1. add/delete

software (uses

relationship)

1.1. add/delete actors

(played_by relationship)

2. Change organization 2. Change the structure

of information

resource

2.1. add/delete

organizational units

(belongs_to

relationship)

4.3 Derivation of Versions

The Derive operation allows the creation of a new

version from an existing frozen one. The new

created version is a working version (its state is

working). Before being updated, the value of this

new created version is the same than the derived

one. Moreover, derivation of a version may trigger

the derivation of other versions, which are linked to

the derived one. Figure 7 below illustrates this

derivation propagation.

Role

Derive

Atomic Process

Informational Resource

Business Process

Derive

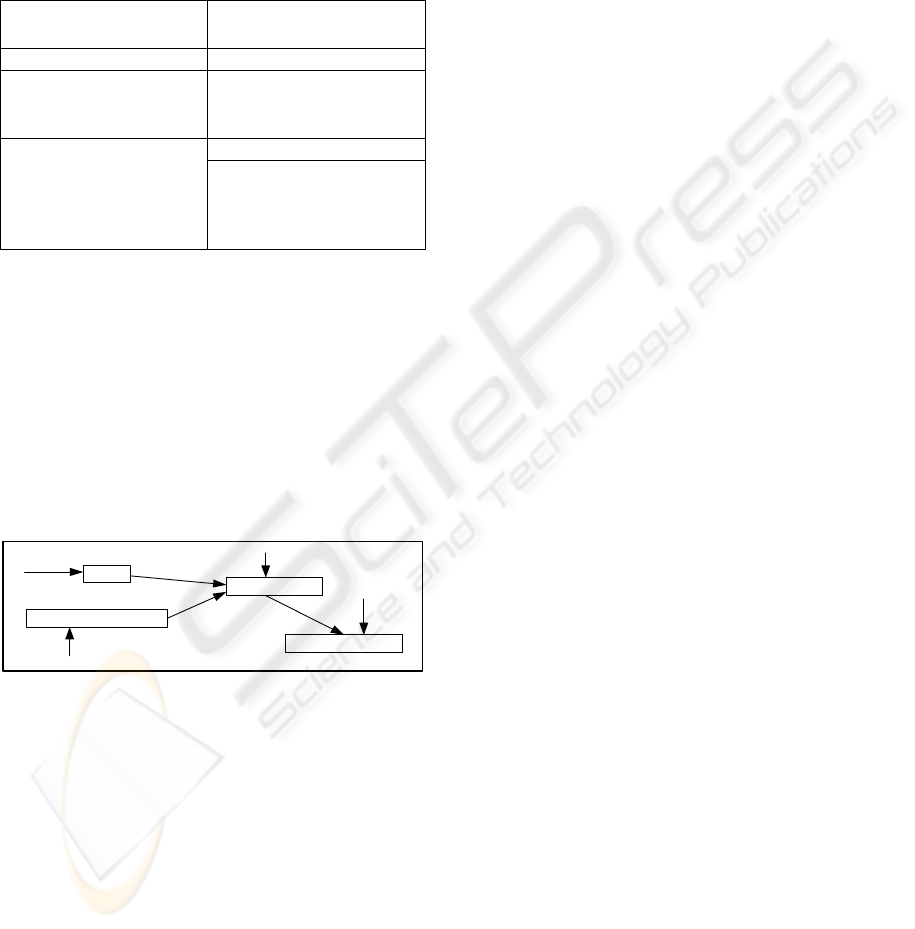

Figure 7: Derivation Propagation.

This propagation is due to the composition

relationships existing between Business Process,

Atomic Process, Informational Resources and Role

classes. Thus, derivation of an Informational

Resource version or a Role version triggers the

derivation of its corresponding Atomic Process

version. In the same way, derivation of an Atomic

Process version triggers the derivation of its

corresponding Business Process version.

4.4 Selection of Versions

In addition to the previous presented operations, we

also propose specific operations for version selection

and version hierarchy selection: Select, Slice,

Display, among others... Because of space

limitation, the paper only details the version

selection operation and illustrates its use for business

process version selection.

4.4.1 Select Operation

This operation allows the selection of versions. Its

syntax is: Select(Class,Predicate) where Class is a

name of a VBP class containing versions (i.e. a

“versionable” class) and Predicate a condition

permitting the filtering of versions.

The result of this operation is a set of versions

verifying the predicate along with versions and/or

objects that are (directly or not) linked to it by a

relationship. In other words, the result of the Select

operation is a set of instances of the VBP meta-

model linked (directly or not) to a version belonging

to the “versionable” class on which the Select

operation is performed. We call such a group of

instances VBP-instances. This notion of VBP-

instances corresponds to the notion of Configuration

introduced for handling versions in Software

Engineering (Kimball and Larson, 1991). It is also

close to the notion of Database Version introduced

in (Cellary and Jomier, 1990) in order to reduce the

complexity of version management in object-

oriented databases.

4.4.2 VBP-Trees for representing

VBP- Instances

Regarding business process version selection, the

result of a Select operation performed to the Version

of Business Process class is a set of business process

versions verifying the predicate along with instances

(versions and/or objects) of the Composite Process,

Control Pattern, Version of Atomic Process, Version

of Informational Resource and Version of Role

classes which are (directly or not) linked to them.

In this case, a VBP-instance corresponds to a

business process version along with versions and/or

objects linked to it. It can be represented as what we

call an VBP-Tree from which we distinguish two

kinds of nodes: terminal nodes (leaves) and non

terminal nodes. Terminal nodes correspond to VBP

atomic processes while non terminal nodes

correspond to VBP composite processes. A non

terminal node is described by the following data

structure:

 NodeName: name of the node (corresponds to

the name of the corresponding composite

process);

273

 CPName: name of the control pattern used for

the composite process;

 Condition: optional property associated to

conditional control patterns;

 SetOfNodes: set of nodes (terminal or non

terminal) composing it.

A terminal node is described by the following

data structure:

 NodeName: name of the node (corresponds to

the name of the corresponding atomic

process);

 SetOfActions: set of actions to perform;

 PreCondition: condition associated to the

execution of the atomic process; it must be

evaluated to true to perform actions of the

atomic process that the node represents;

 PostCondition: condition associated to the

atomic process after execution of actions of

the node;

 ConsumesInformation: set of informational

resources required to perform actions of the

node;

 ProduceInformation: set of informational

resources produced by the performing the

actions of the node;

 PlayedBy: role defining a set of actors able to

perform the actions of the node.

For instance, the VBP-Tree corresponding to the

third version of the Production business process

(vbp3 i.e. Production.v3) introduced in section 3.3 is

visualized in figure 8.

This VBP-Tree illustrates the structure of the

considered business process distinguishing terminal

nodes (visualized as ellipses) from non terminal

nodes (visaulized as rectangles).

In fact, figure 8 only gives a simplified view of

the VBP-Tree since nodes are not described in

details (according their corresponding structures

defined before).

Packaging

Join

Schedule Production

Quality Checking

Produce

Fix Unqualified Products

Sequence

Figure 8: VBP-Tree for Production v3.

The function implementing the mapping from a

VBP-instance to a VBP-Tree uses the mapping rules

given in Table 3 below.

Table 3: Mapping Rules from VBP-instance to VBP-Tree.

VBP meta-model

concepts

VBP-Tree concepts

Instance of Version of

Business Process class

VBP-Tree

Instance of Composite

Process class

Non Terminal node

Instance of Version of

Atomic Process class

Terminal node

Moreover, this function uses a set of functions

permitting the handling of processes and nodes:

 IsAtomicProcess(i) indicates if i is an instance

of the Version of Atomic Process class;

 BuildTerminalNode(i) returns the

corresponding terminal node of an atomic

process i taking into account the relationships

flowing from i (has_pre-conditions, …);

 BuildNonTerminalNode(i) returns the

corresponding non terminal node of the

composite process i using the relationship

flowing from i (uses);

 AddNode(n, tr) adds the node n to a VBP-Tree

tr.

This function is the following.

Function BuildVBP-Tree (i:VBP-

Instance):VBP-Tree

Local n:Node

Begin

If IsAtomicProcess(i) Then

n = BuildTerminalNode(i)

BuildVBP-Tree = AddNode(n, tr)

Else

–- i is a composite process

n = BuildNonTerminalNode(i)

BuildVBP-Tree = AddNode(n, tr)

For Each c ∈ IsComposedOf(i)

BuildVBP-Tree =

BuildVBP-Tree(c)

Next c

End If

End

5 FORMALIZING BUSINESS

PROCESS VERSIONS: FROM

VBP-TREE TO PNO

Representing versions of business processes as

VBP-Tree is not sufficient to visualize and formalize

the semantics of the modeled versions of business

processes. To compensate this drawback, we

propose to use a Petri net-based formalism, namely

Petri Nets with Objects (PNO) (Sibertin, 1985) for

ICE-B 2008 - International Conference on e-Business

274

DEALING WITH BUSINESS PROCESS EVOLUTION USING VERSIONS

workflow process version visualization and

formalization.

This section first presents the PNO formalism

and gives the reasons of the choice of this language

for workflow process versions. Then, this section

explains the mapping from a VBP-Tree onto a PNO.

5.1 Petri-net with Objects

5.1.1 What are PNO?

Petri Nets with Objects (PNOs) (Sibertin, 1985) are

a formalism combining coherently Petri nets (PN)

technology and the Object-Oriented (OO) approach.

While PN are very suitable to express the dynamic

behavior of a system, the OO approach permits the

modeling and the structuring of its active (actor) and

passive (information) entities. In a conventional PN,

tokens are atomic, whereas they are objects in a

PNO. As any PN, a PNO is made up of places, arcs

and transitions, but in a PNO, they are labeled with

inscriptions referring to the handled objects. More

precisely, a PNO features the following additional

characteristics:

 Places are typed. The type of a place is a (list

of) type of an (list of) object(s). A token is a

value matching the type of a place such as a

(list of) constant (e.g. 2 or ‘hello’), an in-

stance of an object class, or a reference

towards such an instance. The value of a place

is a set of tokens it contains;

 Arcs are labeled with parameters. Each arc is

labeled with a (list of) variable(s) of the same

type, as the place the arc is connected to. The

variables on the arcs surrounding a transition

serve as formal parameters of that transition

and define the flow of tokens from input to

output places. Arcs from places to a transition

determine the possible condition of the

transition: a transition may occur (or is

possible) if there exists a binding of its input

variables with tokens lying in its input places;

 Each transition is a complex structure made up

of three components: a precondition, one (or

several) action(s) and emission rules. A

transition may be guarded by a precondition,

i.e. a side-effect free Boolean expression

involving input variables. In this case, the

transition is only permitted by a binding if this

binding evaluates the precondition to be true.

Passing through a transition depends on the

precondition, on the location of tokens and

also on their value. A transition also includes

one or several actions, which consists of a

piece of code in which transitions’ variables

may appear and object methods may be

invoked. These actions are executed at each

occurrence of the transition and they process

the values of tokens. Finally, a transition may

include a set of emission rules i.e. side-effect

free Boolean expressions that determine the

output arcs that are actually activated after the

execution of the action.

5.1.2 Motivations for using PNO

Petri nets are widely used for workflow specification

(Aalst, 1998). Several good reasons justify their use:

 An appropriate expressive power that permits

the description of the different tasks involved

in a workflow process and their coordination;

 A graphical representation that eases the

workflow process specification;

 An operational semantics making an easy

mapping from specification to implementation

possible;

 Theoretical foundations enabling analysis and

validation of behavioral properties and

simulation facilities.

Unfortunately, conventional Petri nets focus on

the process definition and do not perfectly capture

the organizational and the informational dimensions

of business processes. As mentioned before, PNO

extend Petri nets by integrating high-level data

structures represented as objects, and, therefore

provide the possibility to integrate in a coherent way

the two missing dimensions. Thus, using PNO,

actors/roles of the organizational model are directly

represented as objects and they may be invoked

through methods in the action part of a transition. In

the same way, data and documents (from the

informational model) are also represented by objects

flowing in the PNOs and transformed by transitions.

Consequently, we use PNO as a graphical tool to

visualize versions of business processes, and as a

formal tool to define executable specifications in

order to analyze, simulate, check and validate

workflow process versions.

5.2 From VBP-Trees to PNOs

Table 4 and figure 9 give the mapping rules in order

to obtain, from a VBP-Tree, i.e. a VBP-instance, the

corresponding Petri net with objects. We distinguish

mapping rules for concepts from mapping rules for

control patterns. Table 4 introduces mapping rules

for concepts while figure 9 presents mapping rules

for control patterns.

275

Table 4: Mapping Rules for Concepts.

VBP-Tree concepts PNO concepts

Name of a Terminal

node

Name of a transition

SetofActions of a

Terminal node

Actions of a transition

PreCondition of a

Terminal node

Pre-condition of a

transition

PostCondition of a

Terminal node

Emission rule of a

transition

ConsumesInformation

of a Terminal node

Begin place of a

transition

ProduceInformation of

a Terminal node

End place of a transition

PlayedBy of a

Terminal node

Begin place of a

transition representing a

role

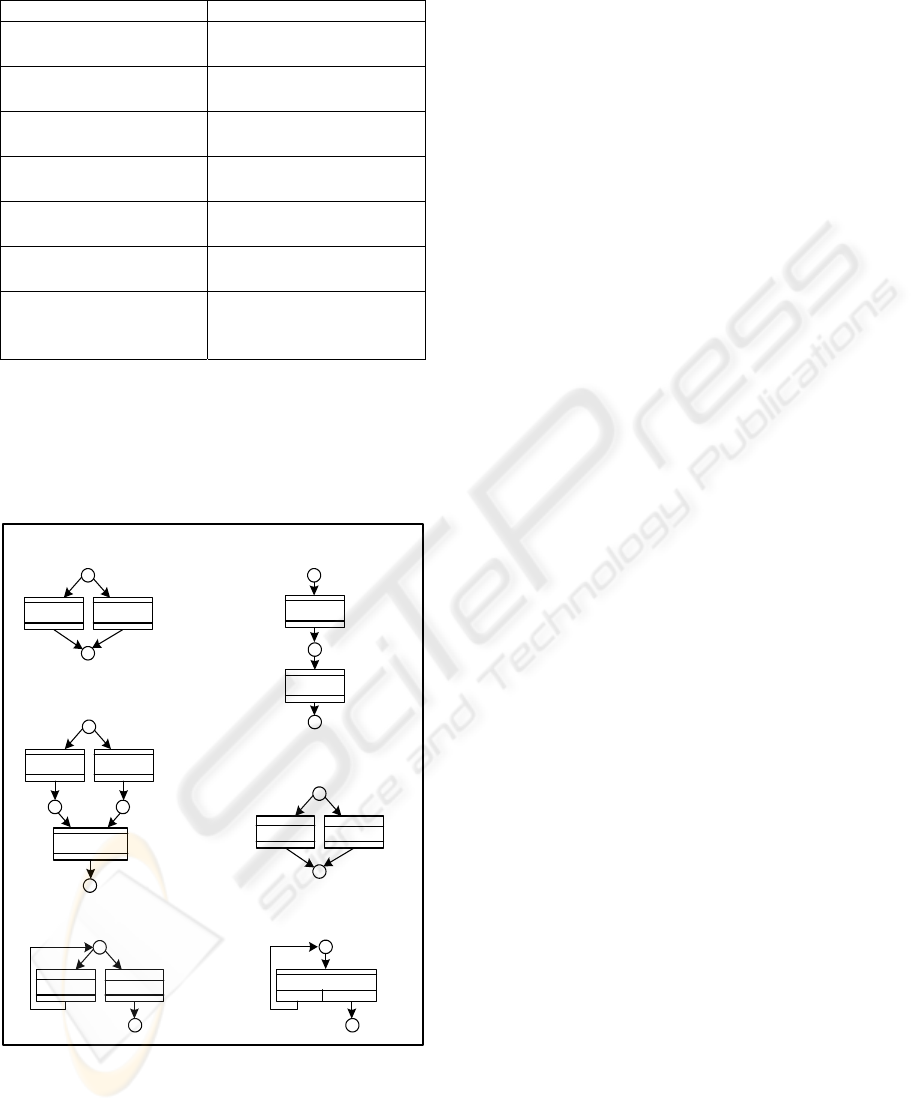

Figure 9 below details how modeled control

patterns are represented using PNOs. In this figure,

P, P1 and P2 correspond to business processes while

condition corresponds to a condition used in

conditional control patterns. Finally, Empty is a

transition for which no actions are executed.

Sequence(P1,P2)Fork(P1,P2)

Join(P1,P2)

If(Condition,P)

While(Condition,P)

Repeat(Condition,P)

P2P1

Empty

condition

not condition

P2P1

Empty

condition not condition

Empty

condition

not condition

Figure 9: Mapping Rules for Control Patterns.

We also provide a function for building a PNO

from a VBP-Tree. This function uses mapping rules

presented in table 4 and figure 9 for defining

transitions of the PNO and their coordination.

Moreover, this function uses a set of functions

permitting the handling of a tree:

 ListOfChildren(n) returns the children of a node

n (non-terminal or terminal nodes);

 ListOfLeaves(t) returns the terminal nodes

(leaves) of a tree t;

and also a set of functions for building transitions

and their coordination:

 BuildTransition returns the corresponding

transition to a node using mapping rules

defined in table 4;

 BuildPattern uses mapping rules defined in

figure 9 to return the corresponding PNO

according to the control pattern specified in a

node;

 AddTransition (tr,PNO): add a transition tr to a

PNO;

 AddPattern (pa,PNO): adds a pattern pa to a

PNO.

This function is the following.

Function BuildPNO (n:Node):PNO

Local c:Node; tr:Transition

Global t:VBP-Tree

Begin

If n ∈ ListOfLeaves(t) Then

tr = BuildTransition(n)

BuildPNO =

AddTransition(tr,BuildPNO)

Else

–- n is a non terminal node

pa = BuildPattern(n)

BuildPNO =

AddPattern(pa, BuildPNO)

For Each c ∈ ListOfChildren(n)

BuildPNO = BuildPNO(c)

Next c

End If

End

6 CONCLUSIONS

As mentioned in the introduction, the problem stated

as “how to support dynamic change of business

process” has already been addressed in the workflow

context. We distinguish two main approaches to deal

with this problem.

Concerning the adaptive-based approach,

relevant works in this area propose solutions to deal

with workflow schemas changes, adaptation and

migration of their corresponding instances. (Casatia

and al, 1996) presents a workflow modification

language that supports updates of workflow

ICE-B 2008 - International Conference on e-Business

276

DEALING WITH BUSINESS PROCESS EVOLUTION USING VERSIONS

schemas. It also defines a set of evolution policies

that a workflow administrator can adopt to manage

instances of updated workflow schemas in order to

migrate (or not) them as instances of the new

schema. Three mains policies are defined: abort,

flush and progressive. (Kammer and al, 2000)

investigates exception handling as a way to support

dynamic change to workflow process schemas.

Consequently, it introduces a taxonomy for

exceptions and defines functionalities that Workflow

Management Systems must have in order to be able

to deal with these exceptions. The ADEPTflex

project (Reichert and Dadam, 1998), (Rinderle and

al, 2004) extensively studies process schema

evolution. This work formally defines change

operations for both process schemas and workflow

instances as well as related migration policies in

handling potential conflicts. We can also mention

van der Aalst’s work to address dynamic change of

workflow (Aalst, 2001). This work uses a generic

process model to describe a family of variants of a

same workflow process and the notion of inheritance

is used to link these different variants. In the same

vein, (Adams and al, 2006) proposes, for dealing

with dynamic evolution in workflows, to use

accepted ideas of how people actually work to

define sets of worklets (i.e. processes) and a stategy

for runtime selection of a specific worklet.

However, none of these works mention the

notion of workflow versions. Consequently, none of

them enables several different schemas of a same

workflow process to conjointly exist.

Relevant works from the version-based approach

allow to different instances of a same workflow

process to own different schemas. Two main

contributions are relevant from this approach. First,

(Kradolfer and Geppert, 1999) have proposed to deal

with dynamic workflow evolution, i.e. modification

of workflow process schemas in the presence of

active workflow process instances, introducing

versions of workflow process schemas. This work

has defined a set of operations for workflow process

schema modification and a strategy for migration of

workflow process instances. Second, and more

recently, (Zhao and Liu, 2007) have also defended

the advantages of a version-based approach to face

business process evolution. More precisely, this

work proposes to model versions of workflow

process schemas using a graph. It also presents a set

of operations enabling to update this graph and

defines two strategies to extract versions of

workflow process schemas from this graph.

However, these two works only consider the

process model of workflow. They do not integrate

the two other dimensions of workflow, that are the

informational and the organizational dimensions.

Consequently, this paper revisits the dynamic

change of business process issue following a

version-based approach and considering the

organizational, informational and process models of

business processes. More precisely, it introduces:

 A meta-model for designing versions of

business processes;

 A taxonomy of operations for business process

version management;

 A formalization and a visualization, using Petri

net with Objects, of versions of business

processes, designed with the previous meta-

model.

Our solution has the following advantages:

 It permits a comprehensive modeling of

business processes considering the three

dimensions of business processes;

 The VBP meta-model is simple: it only

integrates core concepts for both business

process modeling and business process

versioning (our versioning kit is very simple),

 Dynamics aspects of business process version

management are investigated in depth

according to the state of the art for versions in

databases;

 It provides rules and algorithms to derive

modeled versions of business processes onto

Petri net with objects specifications.

As future work, we have planed to implement the

VBP meta-model in order to model version of

business processes and to derive versions of business

processes specified using BPEL.

REFERENCES

Adams, M., ter Hofstede, A., Edmond, D., van der Aalst,

W., 2006. Worklets: A Service-Oriented

Implementation of Dynamic Flexibility in Workflows,

Int. Conference on Cooperative Information Systems,

Montpellier, France, pp. 291–308.

Andonoff, E., Hubert, G., Le Parc, A., Zurfluh, G., 1996.

Integrating Versions in the OMT Models. Int.

Conference on the Entity Relationship Approach,

Cottbus, Germany, pp. 472–487.

Casati, F., Ceri, S., Pernici, B., Pozzi, G., 1995.

Conceptual Modelling of Workflows. Int. Conference

on the Entity Relationship Approach, Goald Cost,

Autralia, pp. 341–354.

Casati, F., Ceri, S., Pernici, B., Pozzi, G., 1996. Workflow

Evolution. Int. Conference on the Entity Relationship

Approach, Cottbus, Germany, pp. 438–455.

277

Cellary, W., Jomier, G., 1990. Consistency of Versions in

Object-Oriented Databases. Int. Conference on Very

Large DataBases, Brisbane, Australia, pp. 432–441.

Chen, I., Markowitz, V., Letovsky, , Li, P., Fasman, K.,

1996. Version Management for Scientific Databases.

Int. Conference On Extended Database Technology,

Avignon, France, pp. 289–303.

Chou, H.T., Kim, W., 1986. A Unifying Framework for

Version Control in a CAD Environment. Int.

Conference on Very Large DataBases, Kyoto, Japan,

pp. 336–344.

Fernandes, S., Cachopo, J., Silva, R., 2004. Version

Supporting Evolution in Workflow Definition

Language. Int. Conference on Current Trends in

Theory and Practice of Computer Science, Merin,

Czech Republic, pp. 208–217.

Halliday, J., Shrivastava, SK., Wheater, SM., 2001.

Flexible Workflow Management in the OPEN-flow

System. Int. Conference on Enterprise Distributed

Object Computing, Seattle, Washington, USA, pp. 82–

92.

Heinis. T., Pautasso. C., Alonso G., 2005. The JOpera

Autonomic Workflow Engine, the 2nd International

Conference on Autonomic Computing (ICAC-05),

Seattle, Washington, June 2005.

Kammer, P., Bolcer, G., Taylor, R., Bergman, M., 2000.

Techniques for supporting Dynamic and Adaptive

Workflow. Int. Journal on Computer Supported

Cooperative Work, 9(3/4), pp. 269–292.

Katz. R., 1990. Towards a Unified Framework for Version

Modelling in Engineering Databases. Int. Journal on

Computing Surveys, 22(4), pp. 375–408.

Kimball, J., Larson, A., 1991. Epochs: Configuration

Schema, and Version Cursors in the KBSA

Framework CCM Model. Int. Workshop on Software

Configuration Management, Trondheim, Norway, pp.

33–42.

Kradofler, M., Geppert, A., 1999. Dynamic Workflow

Schema Evolution based on Workflow Type

Versioning and Workflow Migration, Int. Conference

on Cooperative Information Systems, Edinburgh,

Scotland, pp. 104–114.

Leymann, F., Roller, D., 1999. Production Workflow:

Concepts and Techniques. Prentice-Hall Press.

Manolescu, DA., 2001. Micro-Workflow: A Workflow

Architecture Supporting Compositional Object-

Oriented Development. PhD Thesis, University of

Illinois.

Mohan, C., Alonso, G., Gunthor R., Kamath, M., 1995.

Exotica: A Research Perspective on Workflow

Management Systems. IEEE Data Engineering

Bulletin, 18(1), pp. 19–26.

Reichert, M., Dadam, P., 1998. ADEPTflex: Supporting

Dynamic Changes of Workflow without Loosing

Control. Int. Journal on Intelligent Information

Systems, 10(2), pp. 93–129.

Rinderle, S., Reichert, M., Dadam, P., 2004. Disjoint and

Overlapping Process Changes: Challenges, Solutions

and Applications. Int. Conference on Cooperative

Information Systems, Agia Napa, Cyprus, pp.101–120.

Roddick, J., Craske, N., Richards, T., 1993. A Taxonomy

for Schema Versioning based on the Relational and

Entity Relationship Models. Int. Conf. on the Entity

Relationship Approach, Arlington, Texas, USA, pp.

137–148.

Rosemann, M., zur Muehlen, M., 1998. Evaluation of

Workflow Management Systems: a Meta-model

Approach. Australian Journal of Information Systems,

6(1), pp. 103–116.

Sciore, E., 1994. Versioning and Configuration

Management in Object-Oriented Databases. Int.

Journal on Very Large Databases, 3(1), pp. 77–106.

Sibertin-Blanc, C., 1985. High Level Petri Nets with Data

Structure. Int. Workshop on Petri Nets and

Applications, Espoo, Finland.

Smith, H., Fingar, P., 2003. Business Process Management

- The Third Wave. Megan-Kiffer Press.

van der Aalst, W., 1998. The application of Petri Nets to

Workflow Management. Int. Journal on Circuits,

Systems and Computers, 8(1), pp. 21–66.

van der Aalst, W., 1999. Inter-Organizational Workflows:

An Approach Based on Message Sequence Charts and

Petri Nets. Int. Journal on Systems Analysis, Modeling

and Simulation, 34(3), pp. 335–367.

van der Aalst, W., 2001. How to Handle Dynamic Change

and Capture Management Information: an Approach

based on Generic Workflow Models. Int. Journal of

Computer Systems, Science, and Engineering, 16(5),

pp. 295–318.

van der Aalst, W., Aldred, L., Dumas, M., ter Hofstede,

A., 2004. Design and Implementation of the YAWL

System. Int. Conference on Advanced Information

Systems Engineering, Riga, Latvia, pp. 142–159.

van der Aalst, W., Benatallah, B., Casati, F., Curbera, F.,

Verberk, E., 2007. Business Process Management:

Where Business Processes and Web Services Meet.

Int. Journal on Data and Knowledge Engineering,

61(1), pp. 1–5.

van der Aalst, W., ter Hofstede, A., Kiepuszewski, B.,

Barros, A., 2003-b. Workflow Patterns. Int Journal on

Distributed and Parallel Databases, 14(1), pp. 5–51.

van der Aalst, W., Ter Hofstede, A., Weske, M., 2003-a.

Business Process Management: A Survey. Int.

Conference on Business Process Management,

Eindhoven, The Nederlands, pp. 1–12.

Vossen, G., Weske, M., 1999. The WASA2 Object-

Oriented Workflow Management System. Int.

Conference on Management of Data, Philadelphia,

Pennsylvania, USA, pp. 587–589.

Zhao, X., Liu, C., 2007. Version Management in the

Business Change Context. Int. Conf. Business Process

Management, Brisbane, Australia, pp. 198–213.

ICE-B 2008 - International Conference on e-Business

278
