REFACTORING PREDICTION USING CLASS COMPLEXITY

METRICS

Yasemin Köşker, Burak Turhan and Ayşe Bener

Department of Computer Engineering, Boğaziçi University, Bebek, İstanbul, Turkey

Keywords: Weighted Naïve Bayes, Refactoring, Software Metrics, Naïve Bayes, Defect Prediction, Refactor

Prediction.

Abstract: In the lifetime of a software product, development costs are only the tip of the iceberg. Nearly 90% of the

cost is maintenance due to error correction, adoptation and mainly enhancements. As Belady and Lehman

(Lehman and Belady, 1985) state that software will become increasingly unstructured as it is changed. One

way to overcome this problem is refactoring. Refactoring is an approach which reduces the software

complexity by incrementally improving internal software quality. Our motivation in this research is to detect

the classes that need to be rafactored by analyzing the code complexity. We propose a machine learning

based model to predict classes to be refactored. We use Weighted Naïve Bayes with InfoGain heuristic as

the learner and we conducted experiments with metric data that we collected from the largest GSM operator

in Turkey. Our results showed that we can predict 82% of the classes that need refactoring with 13% of

manual inspection effort on the average.

1 INTRODUCTION

Refactoring is an approach to improve the design of

a software without changing its external behaviour

which means it always gives the same output with

the same input after the change is applied (Fowler,

Beck, Brant, Opdyke and Roberts, 2001) . As the

project gets larger, the complexity of the classes

increase and the maintenance becomes harder. Also,

it is not easy or practical for developers to refactor a

software project without considering the cost and

deadline of the project. In general software

refactoring compose of these phases (Zhao and

Hayes, 2006):

Identify the code segments which need

refactoring,

Analyze the cost/ benefit effect of each

refactoring,

Apply the refactorings.

Since this processes can be done by developers, a

proper tool support can decrease the cost and

increase the quality of the software. There are some

commercial tools which enables refactoring,

however there is still a need for process automation

(Simon and Lewerentz, 2001). Developers refactor

a code segment to make it simpler or decrease its

complexity such as extracting a method and then

calling it. A code segment’s complexity can increase

due to its size or logic as well as its interactions with

other code segments (Zhao and Hayes, 2006).

In this paper we focus on the automatic

prediction of refactoring candidates for the same

purposes mentioned above. We treat refactoring as a

machine learning problem and try to predict the

classes which are in need of refactoring in order to

decrease the complexity, maintenance costs and bad

smells in the project. We have inspired by the

prediction results of Naïve Bayes and Weighted

Naïve Bayes learners in defect prediction research

(Turhan and Bener, 2007). In this research we use

class level information and define the problem as

two way classification: refactored and not-refactored

classes. We then try to estimate the classes that need

refactoring.

The rest of the paper is organized as follows.

Section 2 presents related work. In section 3 we

explain the Weighted Naïve Bayes algorithm. In

section 4 we present our experimental setup to

predict classes in need of refactoring. Results are

presented and discussed is section 5, and the

conclusions are given in section 6.

289

Kö¸sker Y., Turhan B. and Bener A. (2008).

REFACTORING PREDICTION USING CLASS COMPLEXITY METRICS.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 289-292

DOI: 10.5220/0001893802890292

Copyright

c

SciTePress

2 RELATED WORK

Welker (Welker and Oman, 1995) suggested

measuring software's maintainability using a

Maintainability Index (MI) which is a combination

of multiple metrics, including Halstead metrics,

McCabe's cyclomatic complexity, lines of code, and

number of comments. Hayes et al. (Hayes and Zhao,

2006) introduced and validated that the RDC ratio

(the sum of requirement and design effort divided by

code effort) is a good predictor for maintainability.

Fowler (Fowler, Beck, Brant, Opdyke and Roberts,

2001) suggested using a set of bad smells such as

long method to decide when and where to apply

refactoring. Mens, Tourwé and Muñoz (Mens,

Tourwé and Muñoz, 2003) designed a tool to detect

places that need refactoring and decide which

refactoring should be applied. They did so by

detecting the existence of "bad smells” using logic

queries. Our approach differs from the above

approaches since we treat the prediction of candidate

classes for refactoring as a data mining problem. We

use Weighted Naïve Bayes (Turhan and Bener,

2007), which is an extension to the well-known

Naïve Bayes algorithm in order to predict the classes

which are in need of refactoring.

3 WEIGHTED NAÏVE BAYES

The Naïve Bayes classifier, currently experiencing a

renaissance in machine learning, has long been a

core technique in information retrieval (Lewis,

1998). In defect prediction it has so far given the

best results in terms of probability of detection and

false alarm (which will be defined in Section 5)

(Menzies, Greenwald and Frank, 2007). However,

Naïve Bayes makes certain assumptions that may

not be suitable for software engineering data

(Turhan and Bener, 2007). Naïve Bayes treats

attributes as independent and with equal importance.

Turhan and Bener argued that some software

attributes are more important than the others (Turhan

and Bener, 2007). Therefore each metric must be

assigned a weight as per its importance. “Weighted

Naïve Bayes” approach showed promising outcomes

that can generate better results in defect prediction

problems with the InfoGain and GainRatio weight

assignment heuristics. In this paper, our aim is to

implement and evaluate Weighted Naïve Bayes with

InfoGain and show that it can be used for predicting

the refactoring candidates.

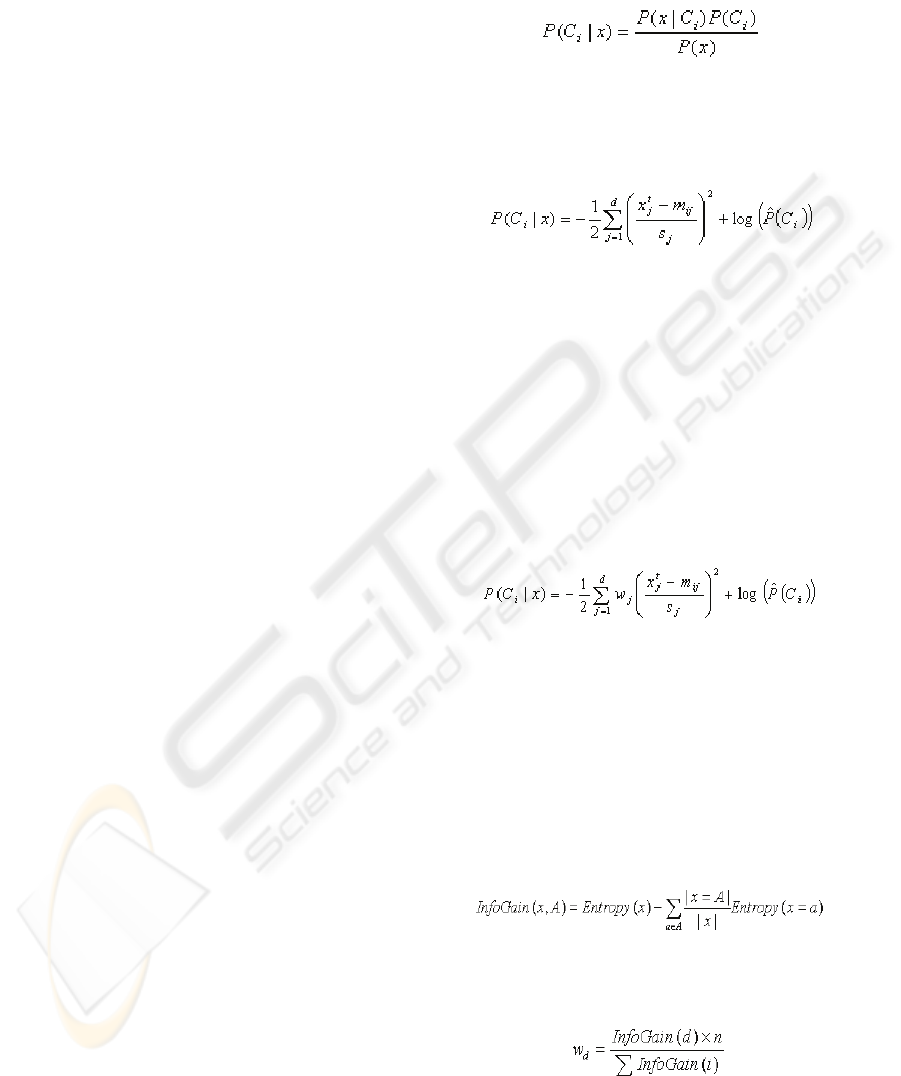

Naïve Bayes classifier is a simple yet powerful

classification method based on the famous Bayes’

Rule. Bayes’ Rule uses prior probability and

likelihood information of a sample for estimating

posterior probability (Alpaydın, 2004).

(1)

To use it as a classifier, one should compute

posterior probabilities P(

i

C |x) for each class and

choose the one with the maximum posterior as the

classification result.

(2)

This simple implementation assumes that each

dimension of the data has equal importance on the

classification. However, this might not be the case in

real life. For example, the cyclomatic complexity of

a class should be more important than the count of

commented lines in a class. To cope with that

problem, Weighted Naïve Bayes classifier is

proposed and tested against Naïve Bayes (Turhan

and Bener, 2007), (Ferreira, Denison and Hand

2001). Class posterior computation is quite similar

to Naïve Bayes only with the introduction of weights

for each dimension and the formula in Weighted

Naïve Bayes is as follows:

(3)

Introduction of weights brings a flexibility that

allows us to favour some dimensions over others but

it also raises a new problem: determining the

weights. In our case, dimensions consist of different

attributes calculated from the source code and we

need some heuristics for determining the weights (or

the importance’s) of the attributes. InfoGain

measures the minimum number of bits to encode the

information obtained for prediction of a class (C) by

knowing the presence or absence of a feature in data.

(4)

In the equations “w” denotes the weight of

attribute in data set which is calculated with

Equation 5.

(5)

ICSOFT 2008 - International Conference on Software and Data Technologies

290

4 EXPERIMENTAL SETUP

We collect data from a local GSM operator

company. The data contains one project and its 3

versions. The project is implemented in Java and

corresponds to a middleware application. We

collected 26 static code attributes including Halstead

metrics, McCabe's cyclomatic complexity and lines

of code from the project and its versions with our

Metric Parser, Prest (Turhan, Oral and Bener, 2007)

which is written in Java. The class information of all

project versions is listed in Table 1.

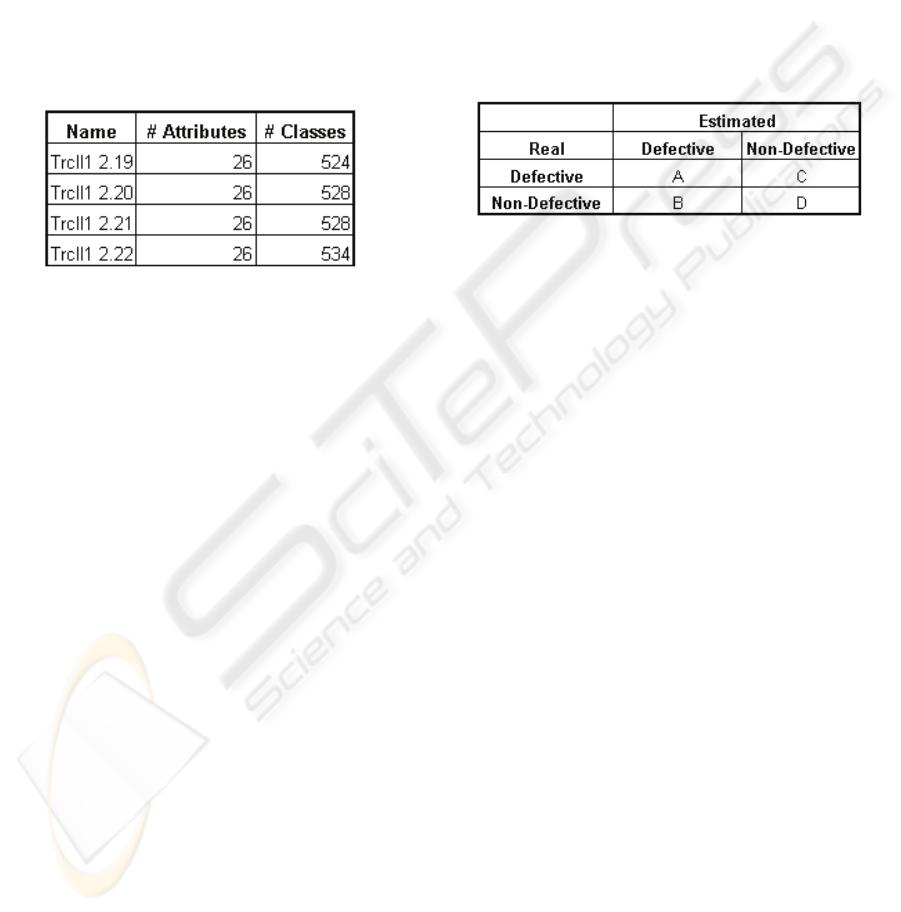

Table 1: Attribute and Class information of the project.

In order to estimate the classes that should be

refactored during each version upgrade, we made an

assumption that if the cyclomatic complexity,

essential complexity or total number of operands

decreases from the beginning of the project, then

these classes are assumed to be refactored. Since we

did not know the affect of metrics on refactoring

decision we assumed that complexity metrics

affected the refactoring decision during the version

upgrades. We normalized the data in Trcll1 datasets

since it is a complex project at the application layer.

It is refactored and changed frequently during the

development of the project. After collecting refactor

data, we apply Weighted Naïve Bayes for automatic

prediction of candidate classes.

We have designed the experiments to achieve

high degree of internal validity by carefully studying

the effect of independent variables on dependent

variable in a controlled manner (Mitchell and Jolley,

2001). In order to carry on statistically valid

experiments, datasets should be prepared carefully.

A common technique is working with two data sets

which are namely test and train instead of entire

data. Generally, these sets are constructed randomly

by dividing whole data into two sets. Here, a

problem arises due to the nature of random selection,

which is that it is not guaranteed to have a good

representation of the real data by doing a single

sampling. To cope with that problem, k-fold cross

validation is used. In k-fold cross validation, data is

divided into k equal portions and training process is

repeated for k times with k-1 folds used as train data

and one fold is used as test data (Turhan and Bener,

2007). We chose k as 10 in our experiments. This

whole process is repeated 10 times with the shuffled

data. Moreover, since both the train and test data

should have a good representation of the real data,

the ratio among the refactored and not-refactored

samples should be preserved. We have used

stratified sampling so when dividing the data into 10

folds, we made sure that each fold preserves the

refactored/ not-refactored samples ratio.

5 RESULTS

Table 2: Confusion Matrix.

We evaluated the accuracy of our predictor with

probability of detection (pd = A/(A+C)) and

probability of false alarm (pf = B/(B+D)) measures

(Menzies, Greenwald and Frank, 2007). Pd is the

measure of detecting real refactored classes over all

real refactored ones and pf is the measure of

detecting classes as refactored that are not actually

refactored over all not-refactored classes. Higher pd

values and lower pf values reflects the accuracy of

the predictor. The confusion matrix used for

calculating pd and pf is shown in Table 2.

The results of our experiments show that in the

first unstable version of a software our predictor

detects the classes that need to be refactored with

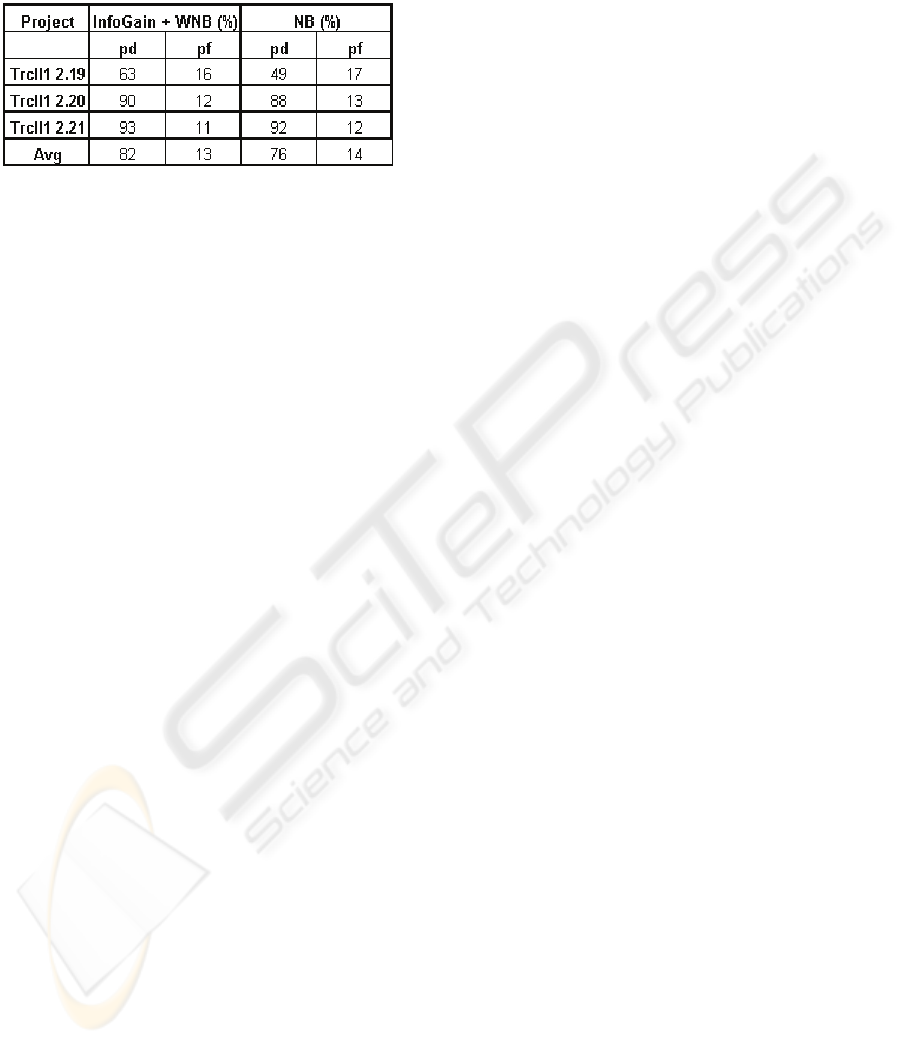

63% accuracy (Table 3). In the second version

which we can call that the first stable version the

predictor’s performance increases to 90%. We can

conclude that the learning performance improves as

we move to more stable versions and learn more

about the complexity of the code. Our results also

show that learning complexity related information

on the code, i.e. weight assignment, considerably

improves the learning performance of the predictor

as evidenced by the IG+WNB pd of 82 (avg) versus

NB pd of 76 (avg). We also observe that as we move

to later versions false alarm rates decrease (from

pf:16 to pf:11) with our proposed learner. Low pf

rates prevent software architects from manual

analysis of classes which are not needed to be

refactored. In tne three versions of a complex code

such as Trcll1 project we can predict 82% of the

refactored classes with 13% of manual inspection

effort on the average. Our concern for external

validity is the use of limited number of datasets. We

used one complex project and its three versions. To

REFACTORING PREDICTION USING CLASS COMPLEXITY METRICS

291

overcome ceiling effects we used 10-fold cross

validation.

Table 3: Results for Trcll1 project.

6 CONCLUSIONS AND FUTURE

WORK

The developers and the architects make refactoring

decisions based on their years of experience.

Therefore refactoring process becomes highly

human dependent, subjective and costly. Process

automation and tool support can help reduce this

overhead cost as well as increase consistency,

efficiency, and effectiveness of the code reviewing

and refactoring decision process.

In this paper we presented an empirical study of

refactoring prediction. We addressed the problem as

a machine learning problem and we used Weighted

Naïve Bayes with InfoGain weighting heuristic for

predicting the candidate refactorings of classes. We

used 3 data sets from Trcll1 project and run our

model on these data sets. We have seen that our

algorithm works better as it learns in terms of higher

pd rates and lower pf rates. We have seen that using

oracles to predict which classes to refactor

considerably decreases the manual effort for code

inspection (note that avg pf is 13), identifies the

complex and problematic pieces of the code and

hence makes the maintenance less costly and trouble

free process.

Our future direction would be to collect more

refactor data and repeat our experiments. We may

also try other heuristics to further lower the pf rate.

ACKNOWLEDGEMENTS

This research is supported in part by Bogazici

University research fund under grant number BAP-

06HA104 and by Turkcell A.Ş

REFERENCES

Simon, F. S., F., Lewerentz, C., 2001. Metrics based

refactoring. Proc. European Conf. Software

Maintenance and Reengineering.

Fowler, M., Beck, K., Brant,J., Opdyke,W., Roberts,D.,

2001. Refactoring: Improving the Design of Existing

Code, Addison-Wesley.

Lewis, D., 1998. Naive (Bayes) at Forty: The

Independence Assumption in Information Retrieval.

Proceedings of ECML-98, 10th European Conference

on Machine Learning.

Zhao, L., Hayes,J.H., 2006. Predicting Classes in Need of

Refactoring: An Application of Static Metrics. In

Proceedings of the Workshop on Predictive Models of

Software Engineering (PROMISE), associated with

ICSM 2006.

Welker, K., Oman, P.W., 1995. Software maintainability

metrics models in practice. Journal of Defense

Software Engineering.

Mens, T., Tourwé, T., Muñoz, F., 2003. Beyond the

Refactoring Browser: Advanced Tool Support for

Software Refactoring. Proceedings of the

International Workshop on Principles of Software

Evolution.

Fowler, M., Beck, K., Brant,J., Opdyke,W., Roberts,D.,

2001. Refactoring: Improving the Design of Existing

Code, Addison-Wesley.

Menzies, T., Greenwald, J., Frank, A., 2007. Data mining

static code attributes to learn defect predictors. IEEE

Transactions on Software Engineering.

Turhan, B., Bener, A.B., 2007. Software Defect

Prediction: Heuristics for Weighted Naive Bayes.

ICSOFT 2007

Alpaydin, E., 2004. Introduction to Machine Learning,

MIT Press.

Lehman, M.M., Belady, L.A., 1985. Program evolution:

processes of software change, Academic Press

Professional.

Turhan, B., Oral, A.D., Bener, A.B., 2007. Prest- A tool

for pre-test defect prediction. Boğaziçi University

Technical Report.

Ferreira, J.T.A.S., Denison, D.G.T., Hand, D.J., 2001.

Weighted naive Bayes modelling for data mining.

Mitchell, M., Jolley, J., 2001. Research Design Explained,

New York:Harcourt.

ICSOFT 2008 - International Conference on Software and Data Technologies

292
