AUTOMATING WORKFLOWS IN MEDIA PRODUCTION

Building an Infrastructure for a Service Oriented Architecture with a Business

Process Management System

Steven Van Assche, Dietrich Van der Weken, Bjorn Muylaert

VRT MediaLab, Gaston Crommenlaan 10 (bus 101), B-9050 Ghent, Belgium

Stein Desmet, Bruno Volckaert

IBCN-INTEC, Ghent University, Gaston Crommenlaan 8 (bus 201), B-9050 Ghent, Belgium

Keywords: Service oriented architecture, media production, open source, business process management system, user-

generated content.

Abstract: This paper describes our experiences with building an infrastructure for automating workflows in media

production based on service oriented architecture (SOA). An SOA deals with distributed software services

that interact with each other. By adopting an SOA in cooperation with a Business Process Management

System (BPMS) we aimed at increased efficiency and control, shorter setup times, and increased flexibility.

We used open source or free products where possible, and the end result is a professional architecture

suitable for small-scale to medium-scale media enterprises. Key concepts are the use of JMS as messaging

layer for asynchronous, long-running service interactions (which are typical in a media production

environment), the orchestration of services leading to processes with more business meaning, the graphical

description of these business processes followed by the automatic generation of executable code (BPEL),

support for human interactions in the processes and compliance with the WS-I Basic Profile 1.1. Our

architecture is illustrated with a use case in which we automated a process that deals with the intake, review,

transcoding and publishing of user-generated content.

1 INTRODUCTION

In every mid-scale to large-scale media production

environment, production processes run across

multiple heterogeneous systems that were originally

not designed to work together. Therefore, system

integration is needed in order to automate the

required system interactions. The traditional system

integration approach consists of putting in place a

central monolithic "integration system" that accepts

messages from the production systems, and that

subsequently transforms and routes these message

towards other production systems. These integration

systems are internally very complex, difficult to

scale horizontally, and based on proprietary

technologies. Under the influence of Internet

technologies and architectures, current integration

systems and integration architectures are

increasingly based on open standards and on

distributed software components.

Service Oriented Architecture (SOA) is rapidly

becoming the recommended system integration

architecture as SOA-enabled software platforms are

coming into maturity and more and more tooling is

becoming available that supports SOA design and

implementation methodologies. The vision of SOA

can be considered threefold: 1) enable the reuse of

functionality and data sources, 2) allow the

orchestration of services based on a declarative

description instead of programming, and 3) promote

a horizontal market of service providers. In the

scope of this paper, the envisioned goals of SOA are

predominantly reuse of functionality on the one hand

and services orchestration on the other. This will

allow for higher degrees of automation in media

production and will result in both setup and

operational cost savings.

Van Assche S., Van der Weken D., Muylaert B., Desmet S. and Volckaert B. (2008).

AUTOMATING WORKFLOWS IN MEDIA PRODUCTION - Building an Infrastructure for a Service Oriented Architecture with a Business Process

Management System.

In Proceedings of the Third International Conference on Evaluation of Novel Approaches to Software Engineering, pages 31-38

DOI: 10.5220/0001761400310038

 SciTePress

Historically, the market for professional

broadcast equipment has been rather vertical, with

large vendors providing complete “silo” solutions.

As in other markets, it is anticipated that the

professional broadcast market will become more

horizontal over time, and thus be more compatible

with the SOA vision.

In order to assess the value of SOA for media

production, some workflows in a selected use case

were automated using a Business Process

Management System (BPMS) that orchestrates

distributed services and allows people to get

involved in the automated processes through human

tasks. The architecture was designed, technical and

technological choices were considered, services

were designed and implemented, the infrastructure

was built, and the processes were designed and

implemented. The primary goal of this work was to

evaluate whether automating workflows in an SOA

yields increased efficiency and control, shorter setup

times and increased flexibility. Another goal was

designing and building an SOA reference

architecture and reference infrastructure for media

enterprises. A third goal was the identification,

design and implementation of required services for

media. Because of the limited scope of the

implemented use case, only very basic

functionalities have been realised. More complex

use cases are needed to drive the development of

services with more added value.

Although the prime target audience for this work

are professional media production enterprises such

as broadcasters and production houses, the work is

relevant to non-media enterprises also because of the

generic architectural challenges and the use of

generic technologies.

2 USE CASE DESCRIPTION

The use case deals with the intake, review,

transcoding and publishing of user-generated

content, and was defined together with the Vlaamse

Radio- en Televisieomroep (VRT, the public

broadcaster of the Flemish part of Belgium). The

term "User-generated Content" refers to different

kinds of contributions of non-professional end users

to an online medium. Popular examples of websites

based on user-generated content include YouTube,

MySpace and Flickr. User-generated content is used

at VRT in multiple contexts, f.e.

http://www.16plus.be and http://www.toyinima.be.

VRT’s current automation framework is an ad-hoc

solution and is very brittle. As user-generated

content becomes increasingly popular, and multiple

VRT websites need similar functionality, it is

expected that a more professional automation

infrastructure will be required.

VRT was specifically interested in shorter setup

times, increased operational efficiency, a higher

level of control, and increased flexibility. Extra

constraints put forward at the beginning of the work

in this use case were the use of open source or free

products, and the targeted developer role of so called

“empowered developers” who have both good

technical and business knowledge.

The automation infrastructure we have built

allows end users to upload their own video material

intended for publication on a user-generated content

website. An uploaded video item will be prepared

automatically for publication, except that in some

cases human intervention will be necessary to

successfully finalize the publication. With respect to

these human interactions, we can identify two roles

participating in our process. The first role is the

process administrator who is responsible for

approving the format of the uploaded item in case

the format was not accepted or refused automatically

by the system. The process administrator thus deals

with exceptions on a technical level. The second

role, the reviewer, is responsible for checking

whether the uploaded item is suitable for publication

w.r.t. the item’s content. This can be useful in those

cases where the targeted website is aimed at a

specific audience (e.g. children), and content

moderation is required.

Figure 1 shows a functional overview of the

demonstrator that has been built. The end user

uploads video content through the Upload Servlet

that stores the uploaded file on a local drive and

triggers the business process. The business process

subsequently calls the FileInfo and FileHandling

services in order to retrieve technical information for

the video file and to move the file between the

different storage locations in the setup, respectively.

It calls an e-mail notification service at the end of

the publishing process. The business process also

coordinates human interaction for exception

handling and content approval. The specific business

rules for transcoding are isolated in a sub-process

TranscodeHandling. A second sub-process deals

with the technical particularities of the invocation of

the Vodtec transcoder. A façade component is

required to translate the SOAP/HTTP call into

XML-RPC/HTTP to the transcoder. The

FileHandling and FileInfo services both call the

RemoteFile component that can access local and

remote files and that can copy and move those files.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

3 ARCHITECTURAL AND

TECHNOLOGICAL DECISIONS

3.1 Message Format

The preferred technical interface for the services is

SOAP because it is supported by most, if not all

infrastructure components in a typical SOA

environment, such as application servers and BPMS.

An alternative to SOAP is XML-RPC, but XML-

RPC is not really standardized and therefore support

is rather limited in typical (back-office) application

servers and in BPM systems. It also suffers from

some serious functional and technical drawbacks

which makes it ill-suited for an enterprise

environment. Because of our choice of SOAP, the

XML-RPC interface of the transcoder in the setup

needs to be wrapped by a façade component that

translates SOAP to XML-RPC for the request and

XML-RPC to SOAP for the reply. Interoperability

tests in our heterogeneous environment quickly

revealed that the level of web services technology

support in general and SOAP support in particular is

limited to what WS-I Basic Profile 1.1 specifies:

SOAP 1.1, WSDL 1.1, UDDI 2.0, XML 1.0, XML

Schema and HTTP 1.1. The selected encoding of the

SOAP messages is set to document/literal/wrapped

encoding as it is the industry standard.

3.2 Message Transport

Traditionally, web services are invoked using HTTP

as transport layer. HTTP restricts service

interactions to synchronous short-lived interactions,

and is not suited for the asynchronous long-lived

service interactions as encountered in media

production. Therefore, a JMS messaging layer is put

in place for asynchronous message transport for the

long-lived service interactions.

Besides providing reliable messaging, Message

Oriented Middleware (MOM) like JMS brings other

interesting capabilities such as message queuing.

This allows a service listening to a message queue to

have messages delivered in-order (f.e. important

when updating metadata of a media item) and to

control the number of concurrent service instances

that are being executed (f.e. for scheduling resource-

intensive operations like transcoding). MOM is a

very mature concept and high performing solutions

are available on the market able to cope with very

high message throughputs.

The message content of the JMS messages is still

SOAP. Currently, state-of-the-art web services

development tooling and infrastructure systems like

Enterprise Service Buses (ESB) and BPMS support

the combination of SOAP with JMS, at least in the

Java world.

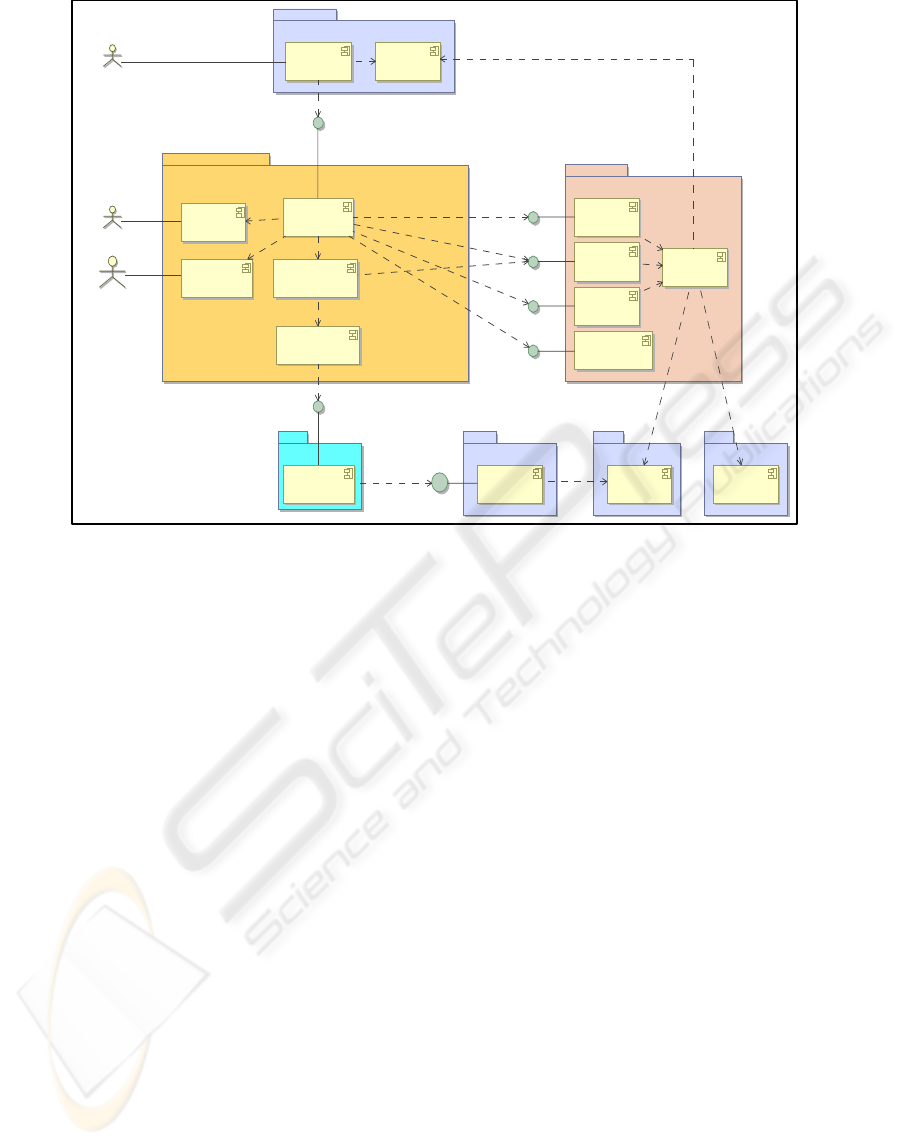

Figure 1: Functional overview of the demonstrator setup.

Business Process Management System

<<process>>

TranscodeHandling

<<process>>

TranscodeRequest

<<component>>

Content Review

<<process>>

UploadUserGen

<<component>>

Media Format

Exception

ITranscode

Front-end

<<component>>

Upload Servlet

<<component>>

Data Storage

Services

<<component>>

E-mail notification

<<service>>

FileHandling

<<component>>

FileInfo

<<component>>

RemoteFile

<<component>>

FileURI

Transcoder

<<component>>

Vodtec

Transcoder Storage

<<component>>

Data Storage

Central Storage

<<component>>

Data Storage

Façades

<<utility>>

SOAP2XML-RPC

XML-RPC2SOAP

ITranscodeFaçade

ContentReviewer

IEmailNotification

IUploadUserGen

ProcessAdmin

IFileHandling

EndUser

IFileInfo

IFileURI

SOAP/HTTP

SOAP/JMS

SOAP/HTTP

SOAP/JMS

SOAP/HTTP

XML-RPC/HTTP

AUTOMATING WORKFLOWS IN MEDIA PRODUCTION - Building an Infrastructure for a Service Oriented

Architecture with a Business Process Management System

3.3 Service Definitions

In practical development of web services, two

divergent practices have emerged (Akram, 2006):

the "code-first" approach (also known as "bottom

up") and the "contract-first" approach (also know as

"top down" or "WSDL first"). The code-first

approach involves auto-generation of the WSDL file

from service implementation classes using tools that

leverage reflection and introspection. Alternatively,

the contract-first approach involves writing the

original WSDL and XML Schema, and generating

service implementation classes from the WSDL file.

The code-first approach is often appealing to the

developers because of its simplicity, but the

contract-first approach is preferred in an enterprise

environment. Platform and language interoperability

problems are prevented, because both the client and

server are working from a common set of

interoperable XML Schema types. Defining a

common platform-independent type system also

facilitates separation of roles, whereby client side

developers can work in isolation from server side

developers. The contract-first approach is the most

suitable for developing robust, interoperable

services. However, in practice not all development

environments support the contract-first approach in a

sufficient manner.

The WSDL specification and the WS-I Basic

Profile recommend the separation of WSDL files

into distinct modular components in order to

improve re-usability and manageability. These

modular components include: 1) XML Schema files,

ideally one per XML type; 2) an "abstract" WSDL

file for the message and portType definitions; 3) a

"concrete" WSDL file with bindings and endpoint

addresses. It is also recommended to have separate

namespaces for each of the three (types of) files. The

namespaces are versioned using version numbers or

using the revision date.

3.4 Enterprise Service Bus

An Enterprise Service Bus (ESB) is an SOA

infrastructure system that provides an integration

backbone. It acts as a shared messaging layer for

connecting applications and other services

throughout an enterprise computing infrastructure

(Desmet, 2007). An ESB provides enhanced services

such as message routing, message transformation,

use of technology adapters, and service

orchestration.

An ESB is a strongly recommended component

in an SOA with so called legacy systems that do not

have a SOAP interface. In reality, hardly any IT

environment is free of legacy systems (w.r.t. SOAP

support), and thus ESB is positioned as an essential

infrastructure component in an SOA. In our use

case, most services were designed and implemented

from scratch and thus have a SOAP/HTTP or

SOAP/JMS interface. One exception is the

transcoder service that has an XML-RPC interface.

Because adapting SOAP to XML-RPC is not

straightforward at all (even in an ESB), our current

infrastructure does not have an ESB, and the

adaptation is performed in a custom façade

component.

3.5 Business Process Management

The intake and publishing process in the use case is

a long-running business process that involves human

interaction. Automating this process is done through

first modelling it in Business Process Modelling

Notation (BPMN) and then converting it to an

executable business process in Business Process

Execution Language (BPEL) that is run by a

Business Process Management System (BPMS).

The Business Process Modelling Notation

(BPMN) is a standardized graphical notation for

drawing business processes in a workflow. The

primary goal of the BPMN effort was to provide a

notation that is readily understandable by all

business users, from the business analysts that create

the initial drafts of the processes, to the technical

developers responsible for implementing the

technology that will perform those processes, and

finally, to the business people who will manage and

monitor those processes. Thus, BPMN creates a

standardized bridge for the gap between the business

process design and process implementation.

WS-BPEL 2.0, commonly known as BPEL 2.0,

is a business process modelling language that is

executable. WS-BPEL defines a model and a

grammar for describing the behaviour of a business

process based on interactions between the process

and its partners. The interaction with each partner

occurs through Web Service interfaces described

using WSDL 1.1. The WS-BPEL process defines

how multiple service interactions with these partners

are coordinated (orchestrated) to achieve a business

goal, as well as the state and the logic necessary for

this coordination. WS-BPEL also introduces

systematic mechanisms for dealing with business

exceptions and processing faults.

The service endpoints (whether HTTP or JMS

binding) are currently statically configured in the

BPMS. However, binding dynamically to endpoints

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

via a Universal Description, Discovery, and

Integration (UDDI) registry is probably a

recommended practice in a large SOA environment.

3.6 Monitoring

A typical SOA results in a highly distributed

environment. It is vitally important to monitor and

log the service interactions in order to verify the

correct behaviour of the services and debug the

business processes. Separate tools are available for

monitoring and logging SOAP/HTTP messages and

SOAP/JMS messages.

Monitoring is also recommended on other levels,

such as machines, software systems, and processes.

Combining all this monitoring information into a

coherent dashboard view relating processes with

messages, systems and machines is the ultimate

goal, but no products are available on the market to

provide such a view.

3.7 Storage Location Abstraction

Media content is stored in multiple storage locations

in the use case: on the intake server, the central

storage server, the transcoder, and the publish

server. The storage locations can be addressed on the

servers via their respective addresses, ports and

protocols and credentials (user/password

combinations). As such, a file residing on the intake

server might have a Uniform Resource Identifier

(URI) like ftp://intake.geisha.vrt.be/video/file1.mpg,

while a transcoded version of that file on the publish

server has http://publish.geisha.vrt.be/cat.mp4 as

URI.

In order to prevent the process designer of

needing to know the concrete addresses of the

storage locations and to allow easy changes to the

system setup without changes to the processes, we

introduced the “geisha” scheme that binds a logical

location to a physical one. The same video residing

on the intake server would then be identified by the

URI geisha://IncomingFiles/file0001.mpg. The

services that deal with the media files are configured

to translate a logical location into a physical one.

4 INFRASTRUCTURE SETUP

The infrastructure for the demonstrator was

predominantly setup with open source or free

software systems. The services and adapters run on

MS .NET or Tomcat/Axis2. We chose Intalio

Community Edition as the business process

management system and ActiveMQ as messaging

middleware. HTTP web services monitoring is done

with Amberpoint Express and generic infrastructure

monitoring with OpenNMS.

4.1 Services

A basic service in media production environments is

the file movement service. The FileHandling service

has operations for copying a file from its source

location to a destination location (using the File

Exchange Protocol whenever possible), verifying the

existence of a file, and deleting a file. The input

parameters to the operations are Uniform Resource

Identifiers that can refer to a physical location or a

logical location through the geisha:// scheme. The

FileHandling service can translate logical locations

into physical locations while performing the

requested task. Another service, the FileURI service,

provides a mapping service returning the physical

location for a given logical location. This service is

necessary when file locations need to be

externalized. The FileInfo service is a media-specific

service returning technical information about a

media file, such as duration, audio and video codecs,

etc. This information is used by the business

processes to determine what tasks need to be

performed on the media. The services were

implemented as Microsoft ASP.NET 2.0 web

services. As they were developed first, a code-first

approach was taken and WSDLs and XSDs were

derived from the web service code. The choice for

Microsoft ASP.NET 2.0 goes against the

requirement for the use of open source or free

products, but it was dictated by the service

developer’s competencies. Actually, the presence of

Microsoft ASP.NET 2.0 web services in the setup

proved very useful in determining the technological

standards required to achieve interoperability in

heterogeneous environments. The FileInfo and

FileHandling services operate on large files and

some of their operations take up to one minute to

complete, and that is why a JMS binding was

preferred. The open source Enterprise Service Bus

ServiceMix was tried for bridging the HTTP web

services towards the JMS messaging backbone, but

this was too unwieldy and a specific JMS client for

MS .NET (called NMS) was used instead.

Video transcoding is done through a transcoder

service that is able to transcode a media file from

one encoding to another. It was provided to us by a

third party. Its XML-RPC interface needed to be

adapted to a SOAP interface to be compatible with

our infrastructure. We tried to achieve this with

AUTOMATING WORKFLOWS IN MEDIA PRODUCTION - Building an Infrastructure for a Service Oriented

Architecture with a Business Process Management System

ServiceMix, but finally a custom façade component

implemented with Apache Axis2 and the Apache

XML-RPC library was a far less complex solution.

Axis2 is an open source web service stack developed

at the Apache Software Foundation, and is available

in both Java and C implementations. It not only

supports SOAP style web services, but it also has

integrated support for REST style web services.

ServiceMix is an open source Enterprise Service

Bus product, also provided by Apache. It is based on

the Java Business Integration (JBI) specification,

developed by Sun under the Java Community

Process. Two different types of JBI components are

distinguished: Service Engines (that provide services

to other components, and may consume other

services as well) and Binding Components (that

provide connectivity to external systems or services

through a particular transport protocol, such as

HTTP, JMS or JDBC).

4.2 Processes

Business process management addresses how

organizations can identify, model, develop, deploy,

and manage their business processes, including

processes that involve IT systems and human

interaction. Intalio offers a range of solutions for

business process management and control. The first

is the Open Source Edition of the BMPN Designer,

BPEL Server and Workflow Engine. The BPEL

Server is part of the Apache Foundation under the

ODE project. The BPMN designer is part of the

Eclipse Foundation under the STP project. The

Workflow Engine is fully open sourced and

available under the Eclipse Public License.

The second platform option and the one we have

chosen is the Community Edition. All three

components are available for download together and

have all the necessary components to run as a

platform. The Community Edition runs on the

Apache Geronimo Application Server and the

MySQL database.

The most important advantages of the Intalio

platform are wide standards support and clear and

well established user interfaces. The modeler is very

usable, and supports BPMN elements well enough to

be used for everyday modelling. Furthermore, the

designer embeds a form editor based on XForms to

be used with the Workflow Engine. Forms can be

created graphically and are integrated with process

models to support user tasks. We believe that

Intalio|Designer has better than average usability.

Besides this, the zero-code principle and one-click

deployment model are very much appreciated.

Finally, the administrative console coming with

Intalio|Server offers sufficient control over active

and running processes, gives a basic overview of all

the process instances details and allows for a

superficial monitoring functionality.

Next, we give a brief description of the different

processes designed with Intalio|Designer. We have

designed one main process, the UploadUserGen

process, that utilizes two sub-processes, the

TranscodeHandling sub-process and the

TranscodeRequest sub-process. The former sub-

process deals with the technical aspects of transcode

requests (transcode or not, generate thumbnails or

not) and the latter is responsible for sending

transcode requests to the Vodtec façade and

receiving notifications from it.

When a video file is uploaded through the

Upload Servlet, a SOAP request is sent to the

endpoint corresponding to the UploadUserGen

process such that a new instance of this process

starts. The UploadUserGen process is rather

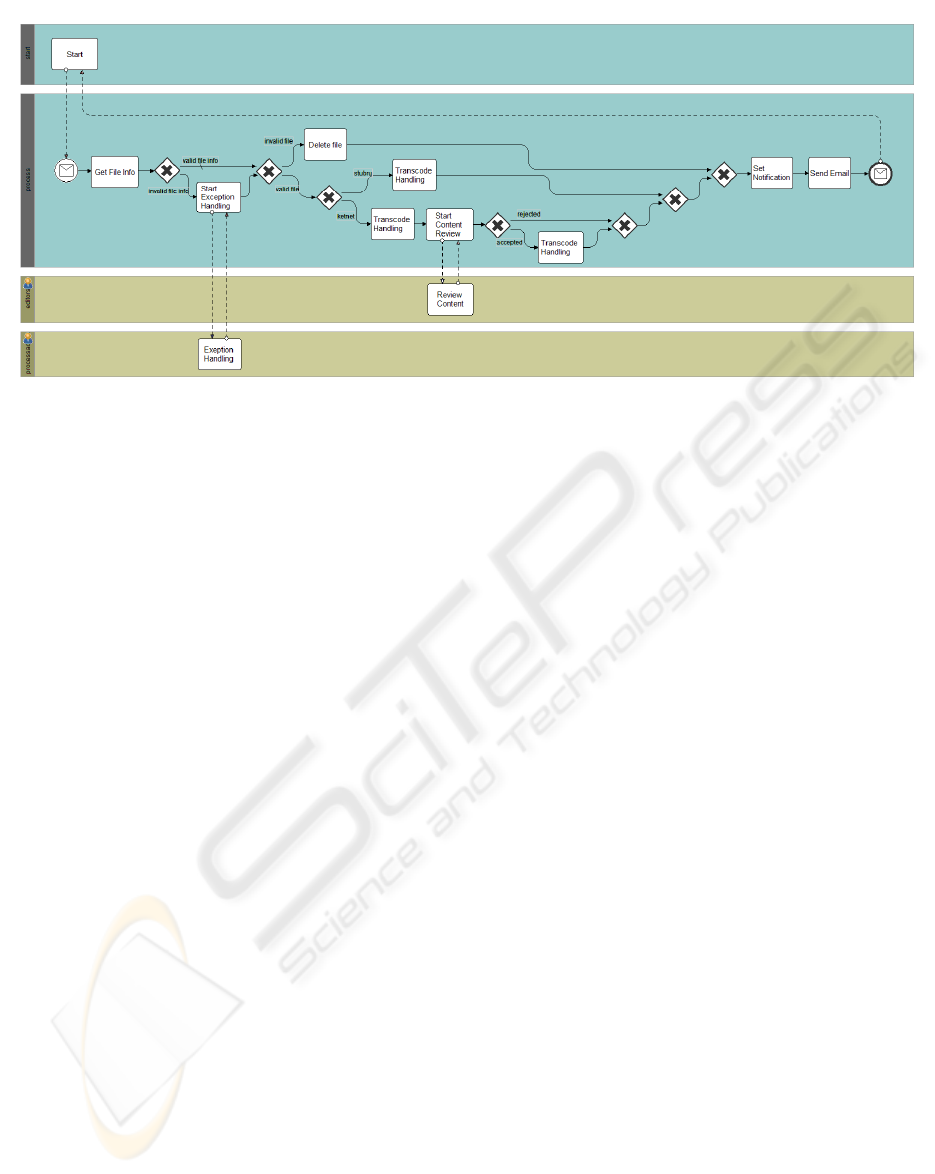

Figure 2: Intake and publishing business process.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

business-oriented, which means that we tried to hide

the more technical aspects from this process. A high-

level overview of the main process is displayed in

Figure 2. The horizontal bars, called pools, represent

the different roles in the process.

In the first step of the UploadUserGen process

the validity of the uploaded item is checked by

invoking the FileInfo service. It can happen that the

format of an uploaded media item is not recognized

by the FileInfo service, although it is a valid media

item. In those cases we assign a task to a process

administrator who is responsible for handling such

exceptions. The task will be listed in the process

administrator’s task list which becomes available

after logging into the workflow platform of Intalio.

When the process administrator rejects the format of

the uploaded item, the item is deleted from the

central file storage and a notification email sent to

the end user finalizes the process. In case the process

administrator approves the format of the item, the

process continues.

The next decision in the process is related to the

publishing destination. In case the item was

uploaded for publication to the “stubru”-website, the

item will be processed immediately by the

TranscodeHandling sub-process. In this sub-process

the necessary steps are covered to bring the

uploaded item in the correct format for publishing.

The other possibility is that the item is targeted at

the “ketnet”-website. In that case an additional

content approval step is needed. The

TranscodeHandling sub-process is invoked to

generate 10 thumbnails for the reviewer as preview

to the complete item. When the reviewer rejects the

uploaded item, a notification email with the

comment of the reviewer is sent to the end user. In

case the reviewer accepts the uploaded item, the

process continues and the item will be transcoded, if

necessary. Therefore, again the TranscodeHandling

sub-process is invoked in which the required steps

are taken to bring the uploaded item in the correct

publish format. To conclude, also in this case a

notification email with the publish location and

comment from the reviewer is sent to the end user.

4.3 Asynchronous Transport

ActiveMQ is an open source message broker from

Apache, which implements the Java Message

Service 1.1 specification. It is perhaps the most

prominent open source JMS implementation

available. Messaging functionality is not limited to

JMS only, but is also extended to other protocols

such as XMPP or REST.

Using ActiveMQ from any Java environment is

fairly easy, and clients are available in other

languages, such as Ruby, C++ or C#/.NET.

Especially the C#/.NET clients are of importance to

the demonstrator, as several of the services

implemented in .NET needed JMS support.

However, it turned out that support for C#/.NET is

only very basic and is not yet fully stable.

Message persistence can be configured in various

ways, depending on the level of performance and

security needed. ActiveMQ 4.2 does not support

message priorities, despite the fact that these are part

of the JMS specification. Message priorities are

expected to be introduced in future versions.

ActiveMQ has a Web console and a Java

Management Extensions (JMX) interface allowing

remote monitoring.

4.4 Monitoring

In the current infrastructure two types of monitoring

are used: Amberpoint Express for the web services

and OpenNMS for machines and software systems.

Amberpoint Express is a free HTTP web services

monitoring tool for Tomcat/Axis, MS ASP.NET and

IBM WebSphere Application Server. When installed

on the server, it automatically configures the

management system for each deployed web service

without requiring code changes. In practice,

Amberpoint Express intercepts the SOAP messages

on the HTTP level and logs the service requests and

corresponding replies. Through its browser-based

interface, performance can be monitored, errors can

be diagnosed, and web services can be tested.

Unfortunately, Amberpoint Express only supports

HTTP transport and not JMS; however the full

Amberpoint SOA Management System does.

OpenNMS is an open source Java based Network

Management System. It provides three different

capabilities that are used in conjunction to offer

network management. The first capability is that it is

able to determine the availability of the various low-

level services (HTTP, FTP, etc.) in the network,

through the use of a polling mechanism. A second

capability is the gathering and reporting of

performance data on both the network and its

services. OpenNMS does so by using the Simple

Network Management Protocol (SNMP) and Java

Management Extensions (JMX). Finally, its third

capability is Event Management, which allows

receiving and responding to events, such as a

network outage.

AUTOMATING WORKFLOWS IN MEDIA PRODUCTION - Building an Infrastructure for a Service Oriented

Architecture with a Business Process Management System

5 CONCLUSIONS

The goal of the work described in this paper was the

automation of several relevant workflows with a

focus on achieving shorter setup times, and

increased efficiency, control and flexibility. This had

to be realized with open source or free products in a

service oriented architecture, focusing on

“empowered developers” with good technical and

business knowledge.

First the architecture was designed and the

infrastructure was built using several software

systems: BPMS, messaging middleware, application

servers, and monitoring tools.

Table 1 shows the

estimated effort that has gone into realizing the

whole of the use case. A lot of time was put in

product evaluation and selection, more specifically

concerning open source products. Quite some time

went into designing and implementing the services,

and more or less the same time went into designing

and implementing the processes. This was mainly

due to the middle-out approach that was taken

during development: the services and processes were

developed together in an iterative way. As shown in

the table, the reuse of existing services (the Vodtec

transcoder) should not be underestimated, in

particular when extensive configuration or technical

wrapping is required. But in the end, automating

workflows in media production with an SOA-

approach proved to be perfectly feasible.

Table 1: Estimated effort for realizing the use case.

Topic Effort

( man-months)

Architecture 1

Product evaluation & selection 3

Demonstrator basic infrastructure 1

Service design & implementation 2

Transcoder setup & wrapping 1

Process design & implementation 2

The total time needed to implement the

demonstrator was significantly longer than the initial

setup time for VRT’s current user-generated content

automation framework, which is mainly due to the

long product evaluation phase. The benefits with

respect to setup times for new processes are really

only achieved once the services provide at least

some basic business-relevant functionality. Until

that moment, a specific non-SOA based

implementation is mostly faster to setup than an

SOA-based implementation. But once all the

services are available, implementing and deploying a

new process takes only a very short time.

Concerning the request for increased efficiency

and control, with the right monitoring and logging

tools in place, it is possible to have a good insight

into the behaviour of the technical infrastructure in

general and the automated processes in particular.

This comprehensive set of information allows

developers to thoroughly debug and optimize the

system interactions, and allows support people to

track down the causes of problems very fast.

ACKNOWLEDGEMENTS

The research described in this paper was carried out

in the framework of the IBBT-project GEISHA,

which stands for Grid Enabled Infrastructure for

Service Oriented High Definition Media

Applications (https://projects.ibbt.be/geisha/). We

would like to thank Vodtec (www.vodtec.com) for

providing their transcoder free of charge.

REFERENCES

Web Service Description Language (WSDL) 1.1:

http://www.w3.org/TR/wsdl

Simple Object Access Protocol (SOAP) 1.1:

http://www.w3.org/TR/2000/NOTE-SOAP-20000508/

Universal Description, Discovery and Integration (UDDI):

http://www.uddi.org/

XML Remote Procedure Call (XML-RPC):

http://www.xmlrpc.com/

Java Message Service (JMS):

http://java.sun.com/products/jms/

Web Services Interoperability (WS-I) Basic Profile 1.1:

http://www.ws-i.org/Profiles/BasicProfile-1.1.html

Web Services Business Process Execution Language (WS-

BPEL) 2.0: http://docs.oasis-open.org/wsbpel/2.0/

OS/wsbpel-v2.0-OS.html

Business Process Modeling Notation specification

(BPMN): http://www.bpmn.org/Documents/

ActiveMQ: http://activemq.apache.org/

Intalio, BMPS Community Edition:

http://bpms.intalio.com

Amberpoint Express: http://www.amberpoint.com/

solutions/express.shtml

OpenNMS: http://www.opennms.org/

Akram, A., Meredith, D., Allan, R., 2006. Best Practices

in Web Service Style, Data Binding and Validation for

use in Data-Centric Scientific Applications. In Proc.

UK e-Science All Hands Conference 2006.

Desmet, S., Volckaert, B., Van Assche, S., Van der

Weken, D., Dhoedt, D., De Turck, F., 2007.

Throughput evaluation of different enterprise service

bus approaches. In Proceedings of the 2007

international conference on software engineering

research en practice.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering
