An Ontology-based Framework for Modelling Security

Requirements

Joaquín Lasheras, Rafael Valencia-García

Jesualdo Tomás Fernández-Breis and Ambrosio Toval

Department of Informatics and Systems. University of Murcia

30071 Campus de Espinardo, Murcia, Spain

Abstract. In the last years, security in Information Systems (IS) has become an

important issue, so that it has to be taken into account in all the stages of IS

development, including the early phase of Requirements Engineering (RE). One

of the most helpful RE strategies for improving the productivity and quality of

software process and products is the reuse of requirements, and this can be

facilitated by Semantic Web technologies. In this work, we describe a novel

ontology-based framework for representing and reusing security requirements

based on risk analysis. A risk analysis ontology and a requirement ontology

have been developed and combined to represent formally reusable security

requirements and improve security in IS, detecting incompleteness and

inconsistency in requirements and achieving semantic processing in

requirements analysis. These ontologies have been developed according to a

formal method to build and compare ontologies and with a standard language,

OWL. This framework will be the basis to elaborate a “lightweight” method to

elicit security requirements.

1 Introduction

Information confidentiality, security or privacy, issues of interest for Information

System designers, are nowadays critical and vital issues for the society [1]. Hence,

security has to be taken into account in all the stages of the software development

process [2]. These include the early phases related to Requirements Engineering (RE)

[3], where, security has been identified as a research hotspot [4].

Security requirements include the types and levels of protection necessary for

equipment, data, information, applications, and facilities to meet security policy.

Specifically, security requirements are identified by risk analysis - “the systematic use

of information to identify sources and to estimate the risk” [5]. Risk analysis is one of

the three sources identified by the security standard ISO 27002 – “Code of Practice

for Information Security Management” [5] – to identify security requirements. The

others two sources are related to legal, regulatory and contractual requirements of an

organization and with the principles, objectives and business requirements for

information processing that an organization have developed to support its operations.

In this context, reuse comes out as an important factor to achieve efficient

requirements management. There is a consensus [6] on the many benefits of reuse,

becoming more important as the abstraction level augments; not only code, but also

Lasheras J., Valencia-García R., Tomás Fernández-Breis J. and Toval A. (2008).

An Ontology-based Framework for Modelling Security Requirements.

In Proceedings of the 6th International Workshop on Security in Information Systems, pages 78-88

DOI: 10.5220/0001743400780088

 SciTePress

designs and specifications, are reused [7]. So, methods and technologies for

facilitating requirements reuse are needed, including security requirements [8].

The Semantic Web community has experience in the design and development of

reusable components. Ontologies are its backbone technology [9] and have become

widely used due to their advantages (reusability and shareability) [10]. An ontology

represents a common, reusable and sharable - since it captures knowledge which has

the consensus of the community [11]- view of a particular application domain. The

benefits of using the ontological technology in terms of information systems’ security

is stated in [12] according to three main properties: (1) the ontology organizes and

makes it systematic any phenomenon at any detail level and reduces the diversity of

items to a properties list; (2) many approaches take advantage of the modularity it

induces, for instance, to establish relations among measurements to detect some

properties; and (3) an ontological approach provides mechanisms to forecast security

problems. Several authors [13, 14] consider the definition of a security ontology a

challenge within the community of security engineering.

In this work an ontology-based framework for representing, storing and reusing

security requirements is presented. This framework is based on risk analysis,

permitting a formal representation (intelligible by a machine) of the requirements,

their metainformation, their relationships and the constraints, axioms and rules

derived of their use (semantic relationships). This framework combines a risk

analysis ontology, based on methods of risk analysis and security standards, and a

requirements ontology (based on our RE method SIREN [15] ).

This paper has been structured as follows: Section 2 presents the ontology-based

framework for modelling security requirements. First the risk analysis ontology

(Section 2.1) and the requirements ontology (Section 2.2) are described, and then its

combination (Section 2.3) and its application (Section 2.4) are showed. Section 3

presents related work and, finally, Section 4 shows the conclusions and further work.

2 Ontology-based Framework for Modelling Security

Requirements in Risk Analysis

In this framework, knowledge is represented through ontologies. In this work, the

ontologies have been implemented by using the Ontology Web Language (OWL),

which is the current W3C recommendation for exchanging semantic content on the

Web. OWL has different flavors, being OWL-DL the chosen one since it has the

expressivity needed and allows for complete reasoning. Our framework for modelling

security requirements is based on two ontologies: the risk analysis ontology (Section

2.1) and the requirements ontology (Section 2.2). The first one conceptualizes the risk

analysis domain including concepts such as assets, or threats, and is based on risk

analysis methods and standards of security. On the other hand, the requirements

ontology models reusable requirements, with their metainformation and relationships.

In Section 2.3, the combination of both ontologies is showed, which will permit to

specify security requirements with all its metainformation, relationship and semantic

properties (constraints, axioms and rules). In Section 2.4, the application of the

framework is presented.

2.1 Risk Analysis Ontology

The risk analysis ontology is based on MAGERIT [16], the information systems risk

analysis and management method of the Spanish public administration. It conforms to

the ISO/IEC 15408-1999 [17] and is based in international and national legal

regulations, which are relevant in the analysis and management of risk: administrative

procedure, protection data, electronic signature, classified information and network

and information security (see appendix 3 MAGERIT [16] for details).

MAGERIT defines a document with the elements that must appear in a risk

analysis project. This document, named “catalogue of elements”, has two purposes in

a risk analysis and management project [16]:

− To offer a standard item for quick consultation, centred on the specifics of the

system being analysed, to facilitate the work of the people involved in the project.

− To provide uniform results of the analysis, promoting terminology and criteria that

allow to compare and even integrate the analyses made by different teams.

In MAGERIT, the relationships between the elements are explained by means of

tables and natural language text. In this work, this information has been formalized in

an ontology (see Fig. 1 for a partial representation of its structure). The current

version of this ontology is available in http://dis.um.es/~jolave/RiskElements.owl.

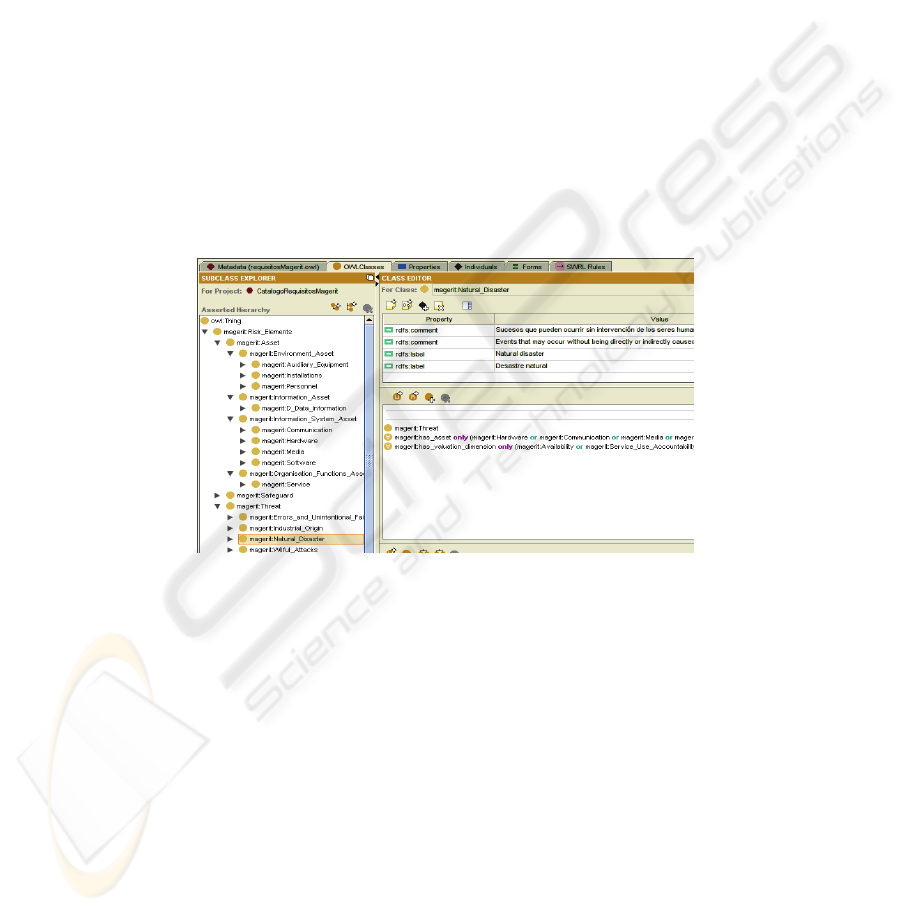

Fig. 1. Taxonomy and axioms of the elements of the risk analysis ontology in the Protégé

Editor.

This ontology identifies five groups of elements:

• Asset: anything that provides value to the organization. It is classified within a

hierarchy of types of assets.

• Valuation dimension: the features or attributes that make an asset valuable. It is

the measurement of the loss caused by damages in an asset in a certain

dimension: availability, integrity, confidentiality, authenticity and accountability.

• Threat: the possible threats to the assets in an information system.

• Safeguard: the safeguards that allow threats to be faced.

The risk analysis ontology contains relations, constraints, axioms and rules. For

example, there is a binary relationship between the assets and the threats to represent

which threat can affect to which asset. The semantics of this generic relation is

completed at each concept (of the assets and threats taxonomies) by adding the

corresponding range and domain constraints in OWL (see Fig. 1). For example,

software (asset) cannot be affected by natural disasters (threat), and the errors and

unintentional failures (threat) affect to the software (asset) but not to the personnel

(asset). Moreover, other constraints such as disjointness or cardinality can also be

defined in OWL and have been very useful for the construction of this ontology (and

the followings described above). However, not every type of rule can be directly

formalized in OWL. In this case, rules languages, such as the Semantic Web Rule

Language (SWRL), play an important role in combination with semantic reasoners.

2.2 Requirements Ontology

The concepts, metainformation and relationships included in the requirements

ontology have been mostly taken from our experience in the context of requirements

reuse, specifically in the reuse-based RE method called SIREN [15, 18]. SIREN could

be considered both a document-based and a repository-based approach since it builds

upon a reusable requirements repository organized by catalogs based on RE

standards, specifically IEEE [19, 20]. To date, these requirements are represented

textually (organized in the IEEE documents [19, 20]), with their metainformation

associated to them. Fig. 2 shows a part of the taxonomy of the requirements ontology.

There, requirements are classified according to the IEEE documents standards. Next,

the main metainformation elements (attributes) identified for each requirement, and

their OWL modelling, are described:

• Requirements are characterized by a unique identifier

and a textual

description. Both have been defined in OWL as Datatype properties.

• Priority

: this value must be established by the analyst and shows the order of

development Datatype property {“high”, “medium”, “low”}

• Rationale:

why the requirements are considered. Datatype property.

• State:

9 states are possible for a requirement. Datatype property {To be

Determined, Determined, To be Revised, To Rule out, Approved, Modelled in

Analysis, Modelled in Design, Implemented or Verify}

• Traceability

: in a requirements document the requirements can appear related to

each other by means of traces. The traceability model includes three types of

relationships: inclusive relationships, parent-children relationships and exclusive

relationships which have been modelled using the following Object properties:

• Inclusive

: the inclusive traceability relationships are defined between two

requirements A and B, which means that to satisfy A, B also needs to be

satisfied and, therefore, the reuse of A will imply the reuse of B. This is a

dependence relation and satisfies a set of properties (reflexivity, asymmetry

and transitivity). This relationship has been modeled in OWL using 2 inverse

object properties (trace_to and trace_from), being both transitive.

• Parent

-Child: They are relationships through which the children

requirements refine the meaning of the parent ones. This relation has been

modeled as the previous relationship.

• Exclusive

: the exclusive traceability relationships mean that the

requirements implied are mutually exclusive. This relationship is directly

related to reuse since it indicates those requirements that cannot be selected

from the repository for the same project. This relation has been modeled by

an Object property with the symmetry property of OWL.

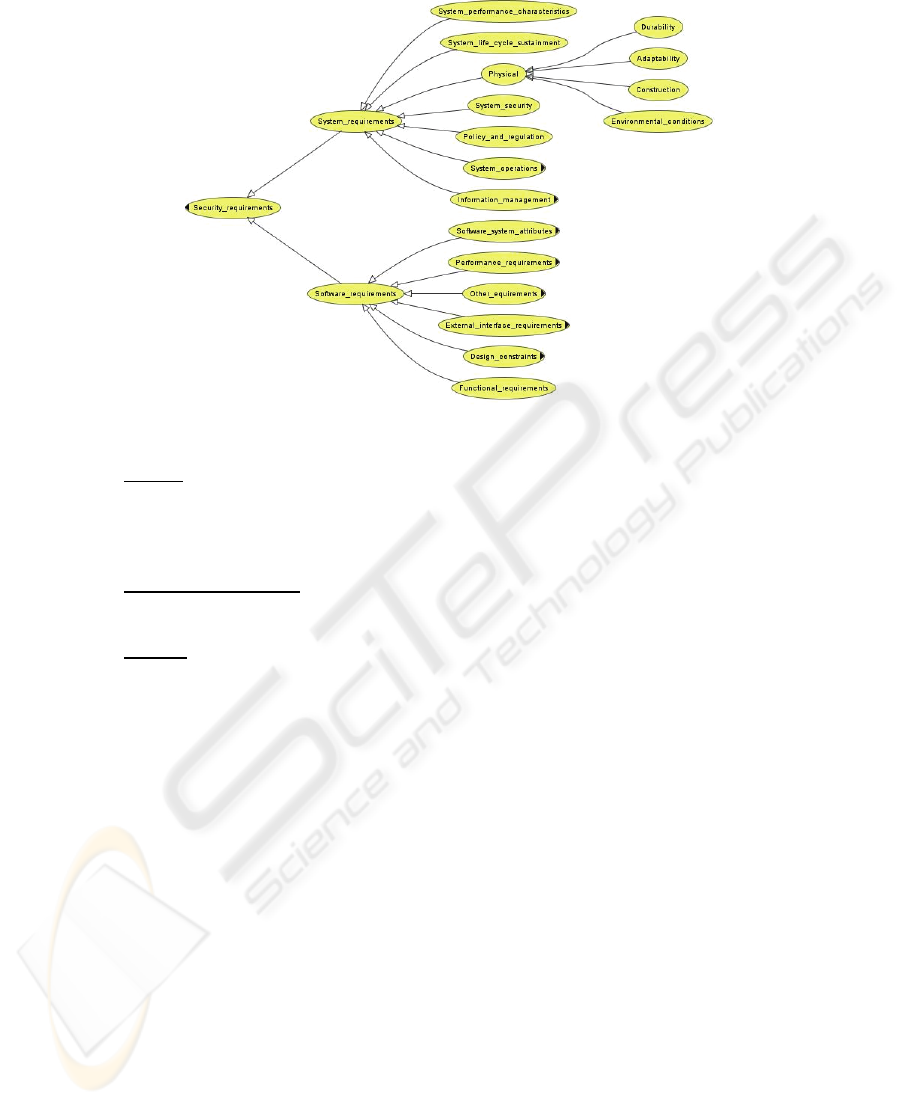

Fig. 2. Requirements Taxonomy (an extract).

• Source: It is the source of the requirement. Although the client needs are the

main source, others requirements could be derived from the technical solution,

current legislation or standards (i.e., security standards). References, URL, the

name of standards or even the source catalog, if the requirement has been reused,

must be collected. Datatype property.

• Verification Method

: This is the method used to verify that the requirement is

satisfied in the final product. Datatype property {“inspection”, “analysis”,

“demonstration”, "test”}

• Section

: The document section in which the requirement is situated, if any.

Datatype property.

2.3 Combining Ontologies: The Security Requirements Ontology

As described in the introduction, this work is focused on security requirements

identified by risk analysis, which is one source to elicit security requirements.

identified by the security standard ISO 27002 [5]: “One source is derived from

assessing risks to the organization, taking into account the organization’s overall

business strategy and objectives. Through a risk assessment, threats to assets are

identified …”. These requirements, which meet security policy, can be functional or

non-functional (software or system requirements), supporting some security issues in

the system. Consequently, the requirements ontology described in section above 2.2

has been used to classify the security requirements (Fig.2), extending it with concepts

from the risk analysis ontology (Section 2.1). Then, the metainformation related to

risk analysis (such as assets or threats) and the constraint, axioms and rules that help

to maintain consistency in the security requirements have been modelled.

Although the main basis to identify this new metainformation has been MAGERIT

(Section 2.1), other instructions from the family of security standards ISO 27000,

specifically by the ISO 27002 [5], have been considered, so the results could be

adapted and certified under these standards in the future.

The new properties, and their OWL modelling, are described next:

• has_asset

: Every security requirement has to be related to one asset. So, an

Object property has been added to the concept security requirement to represent

its asset associated. The range of the Object property is the class Asset defined in

the risk analysis ontology. This Object property is inherited and restricted along

the hierarchy. For example a physical system requirement can only be associated

to hardware assets. Furthermore storing the owner, the person and the unit

responsible for the asset are relevant. This information is an objective in ISO

27002 (Section 7 - Asset Management).

• has_threats:

It represents possible threats associated to the non-fulfilment of the

requirements. The risk analysis ontology has constraints of which threat can be

occurred to which asset, so the system can infer if a threat associated to a

requirement can be inconsistent with the asset associated to this requirement. For

example the user cannot relate a physical system requirement (which has as asset

“hardware system”) to the threat “repudiation”, associated to the asset of

“Services”. This property is represented by an Object property over the hierarchy

of threats of the risk analysis ontology. In [16] are described the different kind of

threats. Furthermore, information about the effect of the threat, about its

probability of occurrence and previous record must be stored.

• valuation_criteria:

The purpose is to provide relative values of the assets in their

various valuation dimensions. It is a number Datatype property (1-10) that values

the importance of the requirement for the system. MAGERIT describes such

possible values [16]. Besides, the Datatype property

“rationale_of_valuation_criteria” includes the rationale for selecting this value.

• has_valuation_dimensions:

the features that make an asset valuable. There exist

five valuation dimensions modelled using an Object property: "Availability",

"Integrity", "Confidentiality", “Accountability” and “Authenticity”.

• has_safeguards:

This Object property associates to the safeguard its related

requirement. Information about the efficacy to confront a threat and its state of

implantation must be stored.

With this combination, the Source

of the requirement becomes essential. It

specifies the current legislation or security standards a requirement has been derived

from. This is useful for the application of the framework shown in the next section.

2.4 Application of the Framework

In Security Information, a basic (baseline) protection must be implemented in all

systems except for particular situations. This type of reasoning is frequently applied

and leads to the deployment of a minimum of “purely common sense” safeguards

[16]. There are numerous sources to identify these safeguards, including international

standards (such as ISO 27002 [5] or CCF [17]), national standards or regulations

(such as protection data laws), and sector standards.

In that way, our framework can be used as a source to specify a baseline

protection, by using the security requirements ontology and the properties that it

models. This ontology represents a “catalog” of security requirements that can be a

useful starting point for further refinement in the system. Furthermore, protection by

catalog can be refined somewhat by considering the value of the assets or quantifying

the threats [16]. This is achieved thanks to all the properties, relationships and

semantic properties, of the ontologies, permitting to elicit and specify requirements,

for instance, by assets or by probably threats to the system.

On the other hand, our framework covers a very wide spectrum of interests,

accounting for all types of situations in security. In practice, the user may face

situations in which the analysis is more restricted, for instance, files affected by

legislation regarding personal data or communications security. In this case, the

metainformation related to the requirement through the “attribute” source must be

considered as a layer to search and identify requirements.

The advantages of protection by catalogue are quickness, need for little effort (once

the catalogue has been developed), and standardization, providing uniform results with

other similar organisations. An additional advantage of using this framework is the

possibility of identifying the measurement of percentage of satisfied requirements. In

[21], a catalog of reusable requirements related to Personal Data Protection was applied

to the process of auditing a case study in a Health Information System. Here, the % of

the satisfied requirements from the catalog was presented as a measurement of security.

Application to a Reusable Requirements Repository. In previous work [18], a

reusable requirements catalog related to security with about 350 requirements (with

their metainformation and traceability relationships) was defined. This new

framework allows for verifying the consistency of the associated metainformation,

using the properties - constraint, axioms and rules - identified in Section 2.3

(has_asset, has_threats …). For example, some inconsistencies were identified by the

proper instantiation process, such as checking that the traceability of the requirements

is free of cycles, that a requirement associated to a determined asset has to be related

to a possible threat, or that a safeguard is applicable to this asset. Specifically 27

inconsistencies have been detected: 8 were related to the traceability of the

requirements, and 19 were identified by constraint of risk analysis. In table 1, some

details about the ontologies are showed.

Table 1. Ontology details.

Risk analysis ontology Security Requirements ontology

Classes 266 46

Individuals 280 350

Number of datatype properties 6 21

Number of object properties 6 9

Restrictions 140 52

Disjoint Axioms 30 15

An Example of Security Requirement. Let us suppose that the requirement to model

is a high-level one (closed to the stakeholders and the problem-realm), and it is

defined in natural language:

“The installations will be built earthquake-proof”

First, the taxonomic category of the requirement has to be identified. This

requirement has to be inserted into the class "System requirement- Physical -

Construction" (Fig. 2). Each property of this new individual has to be filled in (Fig.

3). The system allows for associating the requirement only with instances of the asset

"Installations", due to the constraints defined in the ontology. Besides, due to the

asset of this requirement (“Installation”), the user cannot relate to it any threat of the

hierarchies (Fig. 1) associated to "Wilful attacks" (deliberate failures caused by

people) or “Error and unintentional failure” (unintentional failures caused by people).

Fig. 3. Properties of the requirement, an extract.

The source attribute allows for identifying that this requirement is associated to the

ISO 27002 control objective - 9.1.4 Protecting against external and environmental

threats. However, this requirement has not a direct correspondence to requirements

extracted by Protection Data Laws. Nevertheless, thanks to the relationships of

traceability between requirements, and the relation between threats-assets-

requirements, it has been detected that, if data regulated by protection laws is stored

in these installations, then the requirement must be considered.

3 Related Work

Several authors consider the definition of security ontology an important investigation

area and a challenge within the community of security engineering [13, 14]. In our

previous works, a systematic review and comparison (based on the formal method

[22]) of Security Ontologies was made [23], which has been the basis for identifying

the contribution of this work.

In security, ontologies concerning dependability domain [24], trust domain [25]

and to other functional issues about security (algorithms Security or Policy security)

[26] have been used to provide an unified conceptualization, but none of them are

associated to risk analysis. In [13] the authors present an ontology of risk analysis

based on standards used in a security management framework for information

systems, and in [27] is centred in small and medium companies. Nevertheless, none of

them has integrated it with RE techniques in order to take care of their benefits and

the used of reuse requirements catalogs. [28] proposes a methodology to elicit and

certify security requirements, although it is particularly adapted to the Department of

Defense, Information Technology Security Certification and Accreditation Process

(DITSCAP). The ontology proposed there is not related to RE techniques, and

catalogs of requirements are not used nor semantics is managed.

has_asset: Installations

Owner: the company

Responsible for: the building of the company

has_valuation_dimensions: availability

valuation_criteria: 7

Rationale: is likely to cause damage to the operational effectiveness or security of the Operations

/ Logistics mission

has_threats: Natural Disaster

Probability of occurrence: probability of earthquake in the city of the company.

Previous record: information about this threat in other branches of the company.

has_safeguards: Certification

State of implantation: we get a certification that the installations are earthquake-proof

Efficacy to confront a threat: % of buildings certified that have recovered from the threat.

Consequently, although several related work has been identified, none of them

combines the use of method of RE, reuse, ontologies and pre-existing catalogs, as the

basis of a “lightweight” method to elicit security requirements following security

standards, as the ISO 27002 [5], with the aim that the results obtain could be adapted

and certified in future under these standards. Besides, none of them have followed a

formal method to the development of the ontologies.

4 Conclusions and Further Work

This work, proposes an ontological representation for reusable requirements, which

allows for detecting incompleteness and inconsistency in requirements and achieving

semantic processing in requirements analysis without rigorous NLP (Natural

Language Processing) techniques. The ontologies have been developed according to a

formal method to build and compare ontologies [22] and implemented in a standard

language, OWL. Besides, their definition is based on requirements [19, 20] and

security standards and regulations [5, 16]. So the results obtained could be adapted

and certified in future under these standards.

This framework will be the basis to elaborate a “lightweight” method to elicit

security requirements which permits us to reduce significantly the impact of risks

without making large investment in software, by arranging the management of the

security. We permit users or developers (without being security experts) to identify

security requirements through reuse, with the advantages of using a method based on

“catalogs” (see Section 2.4). A measurement of security is also offered by identifying

the % of satisfied requirements with respect to standards or regulation.

Furthermore, thanks to the property of shareability and reuse of the ontologies, the

community can benefit from having a shared set of reusable security requirements.

Besides, the framework could be extended with other ontologies related to security.

Work in progress is focused on such issue, considering the ontologies identified [23].

In that way, we are also planning to extend the risk analysis top level ontology using

others wide-accepted standards, such as the family ISO/IEC 27000, the CCTA Risk

Analysis and Management Method (CRAMM) or OCTAVE (Operationally Critical

Threat, Asset and Vulnerability Evaluation by the Carnegie-Mellon). These methods

are used once the architectural design has been defined, allowing only an ”a

posteriori” approach of IT security, resulting in a gap between security requirements

and business security needs. On the other hand, as further work, our ontologies might

be used to perform semantic searches by using Semantic Web oriented languages

such as SPARQL, and we expect to improve the selection of the requirements with

the use expert system to prioritize the requirements.

Acknowledgements

This work has been partially financed by the Spanish Ministry of Science and

Technology, projects TIC2006-15175-C05-03 and TSI2007-66575-C02-02, by the

Government of Murcia under project TIC-INF 06/01-0002; by the Junta de Castilla-

La Mancha (Spain), project PBC-05-012-3, and by the FEDER and the Junta de

Castilla-La Mancha (Spain), project PBC-05-012-1.

References

1. Smith, S.W.Spafford, E.H., Grand Challenges in Information Security: Process and

Output. IEEE Security & Privacy, 2(1): (2004). p. 69-71.

2. Devanbu, P.Stubblebine, S., Software engineering for security: a roadmap. ACM Press.

Future of Software Engineering: (2000). p. 227-239.

3. Jürjens, J., Secure Systems Development with UML: Springer (2005).

4. Cheng, B.Atlee, M. Research Directions in Requirements Engineering. in Future of

Software Engineering 2007 (FOSE 2007) Minneapolis, Minnesota (2007).

5. ISO27002, ISO/IEC 17799-27002 Code of Practice for Information Security Managament.

(2005).

6. Rothenberger, M.A., Dooley, K.J., Kulkarni, U.R., Nada, N., Strategies for Software Reuse:

A Principal Component Analysis of Reuse Practices. IEEE Trans. on Soft. Eng., 29(9):

(2003). p. 825-837.

7. Sommerville, I., Software Engineering (7th edition): Pearson Education Limited (2004).

8. Firesmith, D., Specifying Reusable Security Requirements. Journal of Object Technology,

3(1): (2004). p. 61-75.

9. Berners-Lee, T., Hendler, J., Lassila, O., The Semantic Web, in Scientific American.(2001):

http://www.scientificamerican.com.

10. Brewster, C.O'Hara, K., Knowledge Representation with Ontologies: The Present and

Future. IEEE Intelligent Systems, 19:1: (2004). p. 72-73.

11. Gruber, T., Towards Principles for the Design of Ontologies used for Knowledge Sharing.

International Journal of Human-Computer Studies, 43(5/6): (1995). p. 907-928.

12. Raskin, V., Hempelmann, C.F., Triezenberg, K.E., Nirenburg, S. Ontology in Information

Security: A Useful Theoretical Foundation and Methodological Tool. in New Paradigms

Security Workshop NSPW'01. ACM Press Clouford, New Mexico, USA (2001).

13. Tsoumas, B.Gritzalis, D., Towards an Ontology-based Security Management. Proceedings

of the 20th International Conference on Advanced Information Networking and

Applications (AINA'06). IEEE Computer Society, 1: (2006).

14. Mouratidis, H.Giorgini, P., Integrating Security and Software Engineering: Advances and

Future Visions: Idea Group Publishing (2007a).

15. Toval, A., Olmos, A., Piattini, M. Legal Requirements Reuse: A Critical Success Factor for

Requirements Quality and Personal Data Protection. in IEEE Joint International

Conference on Requirements Engineering (ICRE'02 and RE'02). Essen, Alemania (2002b).

16. MAGERIT, Methodology for Information Systems Risk Analysis and Management:

http://www.csi.map.es/csi/pg5m20.htm. (2006)

17. ISO15408, ISO/IEC 15408 (Common Criteria v3.0) "Information Technology Security

Techniques-Evaluation Criteria for IT Security".(2005).

18. Toval, A., Nicolás, J., Moros, B., García, F.,Requirements Reuse for Improving Information

Systems Security: A Practicioner's Approach.

Requirements Engineering

Journal.Springer,6(4):(2002a).p.205-219.

19. IEEE, Std 830-1998 Guide to Software Requirements Specifications in Volume 4: Resource

and Technique Standards. The Institute of Electrical and Electronics Engineers, Inc. IEEE

Software Engineering Standards Collection.(1999).

20. IEEE, Std 1233-1998 Guide for Developing System Requirements Specifications, in Volume

1: Customer and Terminology Standards. The Institute of Electrical and Electronics

Engineers, Inc. IEEE Software Engineering Standards Collection(1999).

21. Martínez, M.A., Lasheras, J., Toval, A., Piattini, M. An Audit Method of Personal Data

Based on Requirements Engineering. in The 4th International Workshop on Security In

Information Systems (WOSIS-2006). Paphos, Chipre (2006).

22. Lozano-Tello, A.Gómez-Pérez, A., ONTOMETRIC: A Method to Choose the Appropriate

Ontology. Journal of Database Management. Special Issue on Ontological analysis,

Evaluation, and Engineering of Business Systems Analysis Methods, 15(2): (2004).

23. Blanco, C., Lasheras, J., Valencia-García, R., Fernández-Media, E., Toval, A., Piattini, M.

A Systematic Review and Comparison of Security Ontologies. in International Workshop on

Frontiers in Availability, Reliability and Security (FARES) in conjunction with ARES.

Barcelona (2007).

24. Dobson, G.Sawyer, P., Revisiting Ontology-Based Requirements Engineering in the age of

the Semantic Web. International Seminar on "Dependable Requirements Engineering of

Computerised Systems at NPPs", Institute for Energy Technology (IFE), Halden: (2006).

25. Mouratidis, H., Giorgini, P., Manson, G., An Ontology for Modelling Security: The Tropos

Approach, in Knowledge-Based Intelligent Information and Engineering Systems. Springer

Berlin / Heidelberg. (2003) p. 1387-1394.

26. Kim, A., Luo, J., Kang, M. Security Ontology for Annotating Resources in 4th International

Conference on Ontologies, Databases, and Applications of Semantics (ODBASE'05). Agia

Napa, Cyprus (2005).

27. Fenz, S.Weippl, E.Ontology based IT-security planning. Proceedings of 12th Pacific Rim

International Symposium on Dependable Computing PRDC '06. IEEE Computer Society:

(2006). p. 389-390.

28. Lee, S.W., Gandhi. R.A., Ontology-based Active Requirements Engineering Framework.

APSEC (2005).
